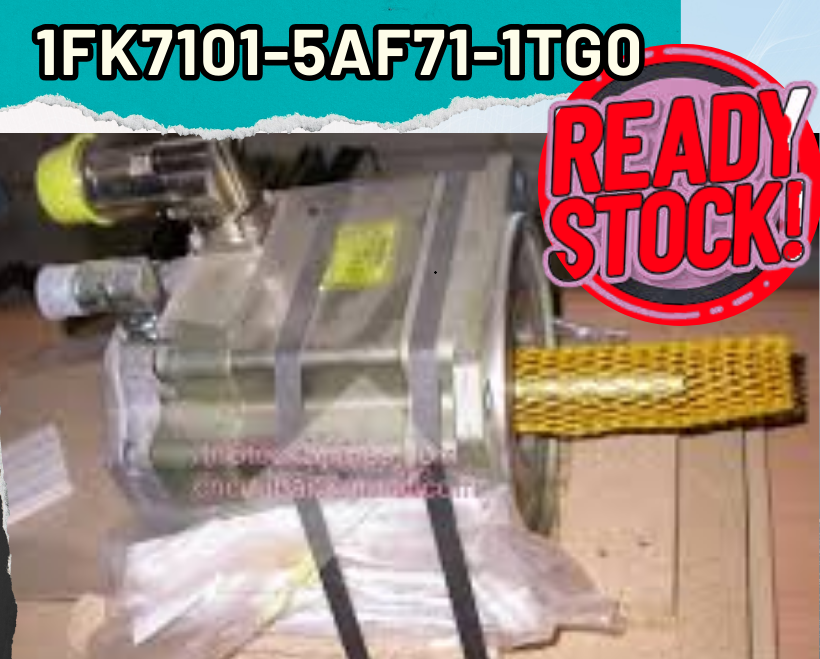

Siemens 1FK7101-5AF71-1TG0 Servo Motor | 1FK71015AF711TG0

Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days

Siemens 1FK7101-5AF71-1TG0 Servo Motor | 1FK71015AF711TG0

Name: Siemens 1FK7101-5AF71-1TG0 Servo Motor | 1FK71015AF711TG0
Brand: Siemens
SKU: ENC7A46
Price: 2800.00 USD
Availability: InStock

Download Product Datasheet

View Manufacturer Product Page

$2,800.00

Taxes included. Shipping calculated at checkout.

Condition:New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms

Same day ship if paid before 2 PM Local time
Confirmed Orders : Ready to Collect In PERSON | or by Your Deputed Courier - DHL/ Fedex or any other, Same day of order after 4 Hours of Confirmation Email.
One-year limited seller warranty
Opened original packaging
Original packaging with shelf wear

Manufacturer MPN:1FK71015AF711TG0
Manufacturer's Alternative Identification Part number1FK7 101 5AF71 1TG0

1FK 7101 Servo motor Ready stock | Ships today or Collect from Store Now

1FK7100-5AF71-1TG0 SYNCHRONOUS SERVOMOTORS 1FK7

SIMOTICS S synchronous servo motor 1FK7 Compact, 18 Nm 100K, 3000 rpm, 3.77 kW naturally cooled IM B5 (IM V1, IM V3) power/signal connector plug rotatable by 270° RESOLVER 2-POLE (RESOLVER P=1); PLAIN SHAFT, TOLERANCE N; W/O HOLDING BRAKE DEGREE OF PROTECTION IP64

Engineering data
Rated speed (100 K) 3,000 rpm
Number of poles 8
Rated torque (100 K) 15.5 Nm
Rated current 11.8 A
Static torque (60 K) 22.40 Nm
Static torque (100 K) 27.00 Nm
Stall current (60 K) 15.70 A
Stall current (100 K) 19.00 A
Moment of inertia 79.900 kgcm²
Efficiency 93.0 %

Physical constants
Torque constant 1.41 Nm/A
Voltage constant at 20º C 90.0 V/1000*min¯¹
Winding resistance at 20º C 0.15 Ω
Rotating field inductance 3.0 mH
Electrical time constant 20.00 ms
Mechanical time constant 1.80 ms
Thermal time constant 60 min
Shaft torsional stiffness 165,000 Nm/rad
Net weight of the motor 21.0 kg

Ships from DUBAI

Ready Stock - Collect from Ajman sotre today

Sold by Ajman FET [ Established 2003 ]

Worldwide Shiping

Also known as in industry: 1FK71015AF71 1TG1
Typographic Errors in Part numbers1FK7 101 5AF71 1TGO
Id Number 1FK7101-5AF71-1TG0 |
Ident | MLFB Number1FK 7101 5AF71 1TG0
