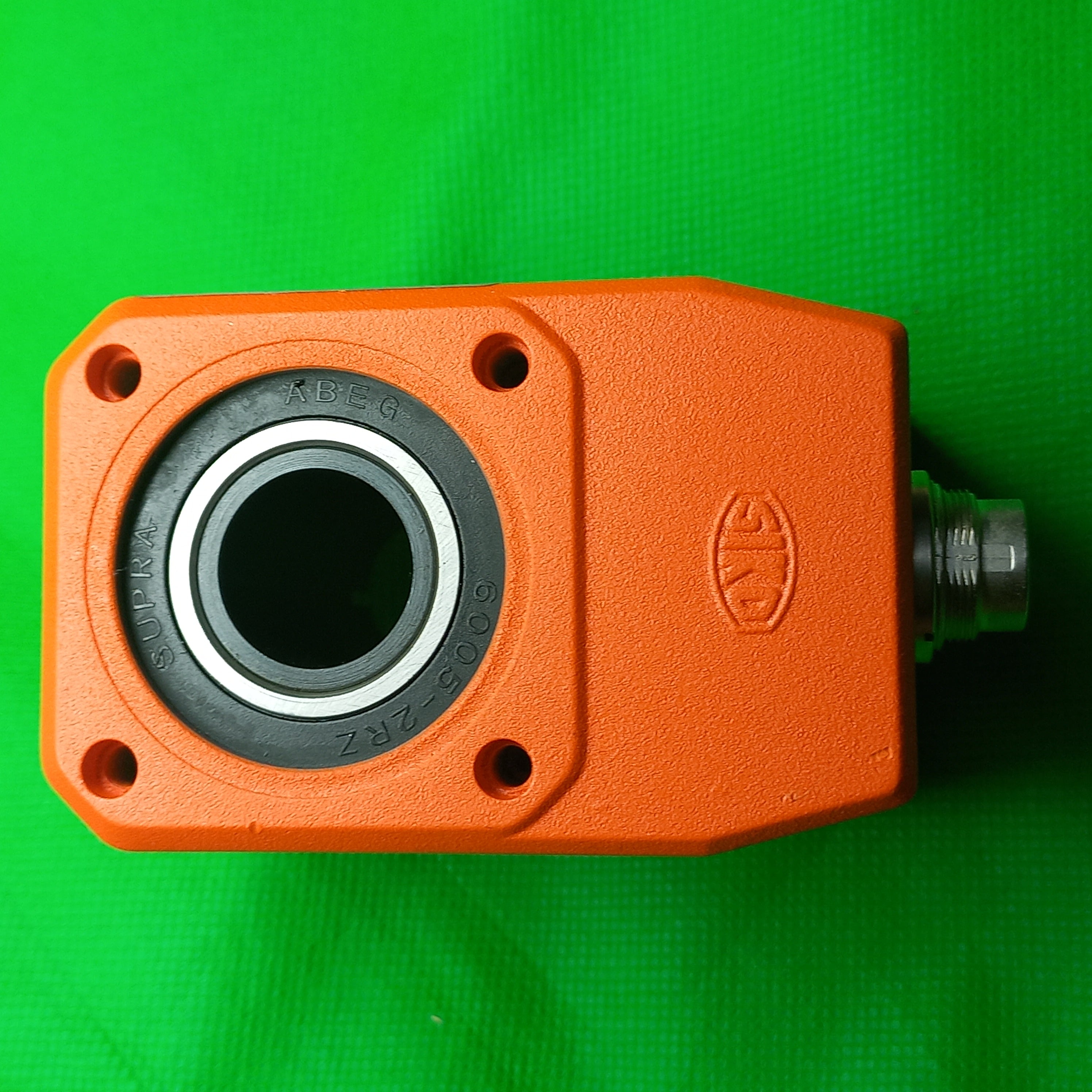

SIKO IG07 Encoder IG07-2534 ABO-25-PP | output signal : ABO | 20mm Shaft
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IG072534ABO25PP
- Encoder Type: Incremental encoder
- Supply voltage 10v...30VDC

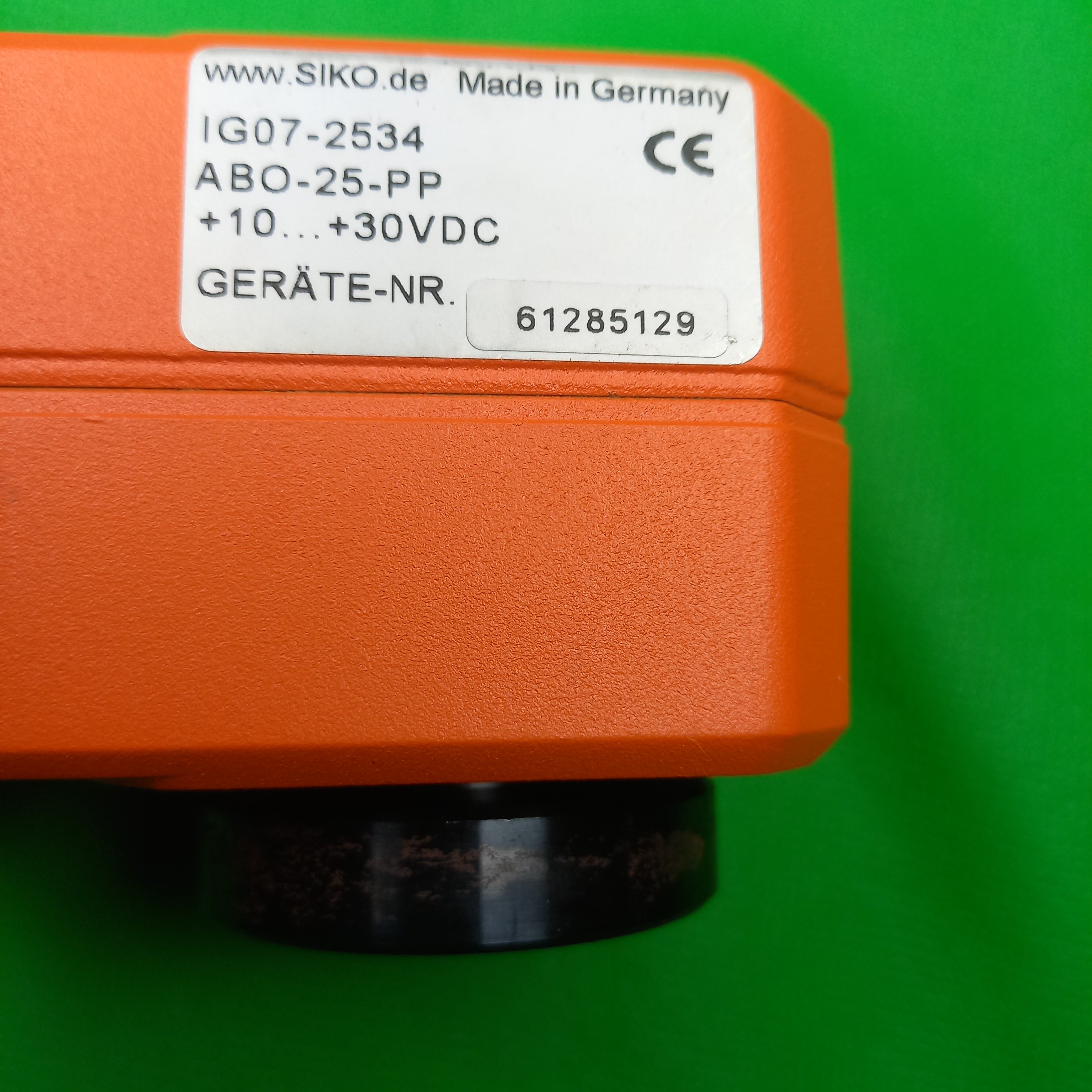

- Encoder ID. NR.IG07 2534 ABO 25 PP
- Encoder SIgnal | 25 | HTL | Ø 90 mm |
ITD 4 + KTD3-6 B10

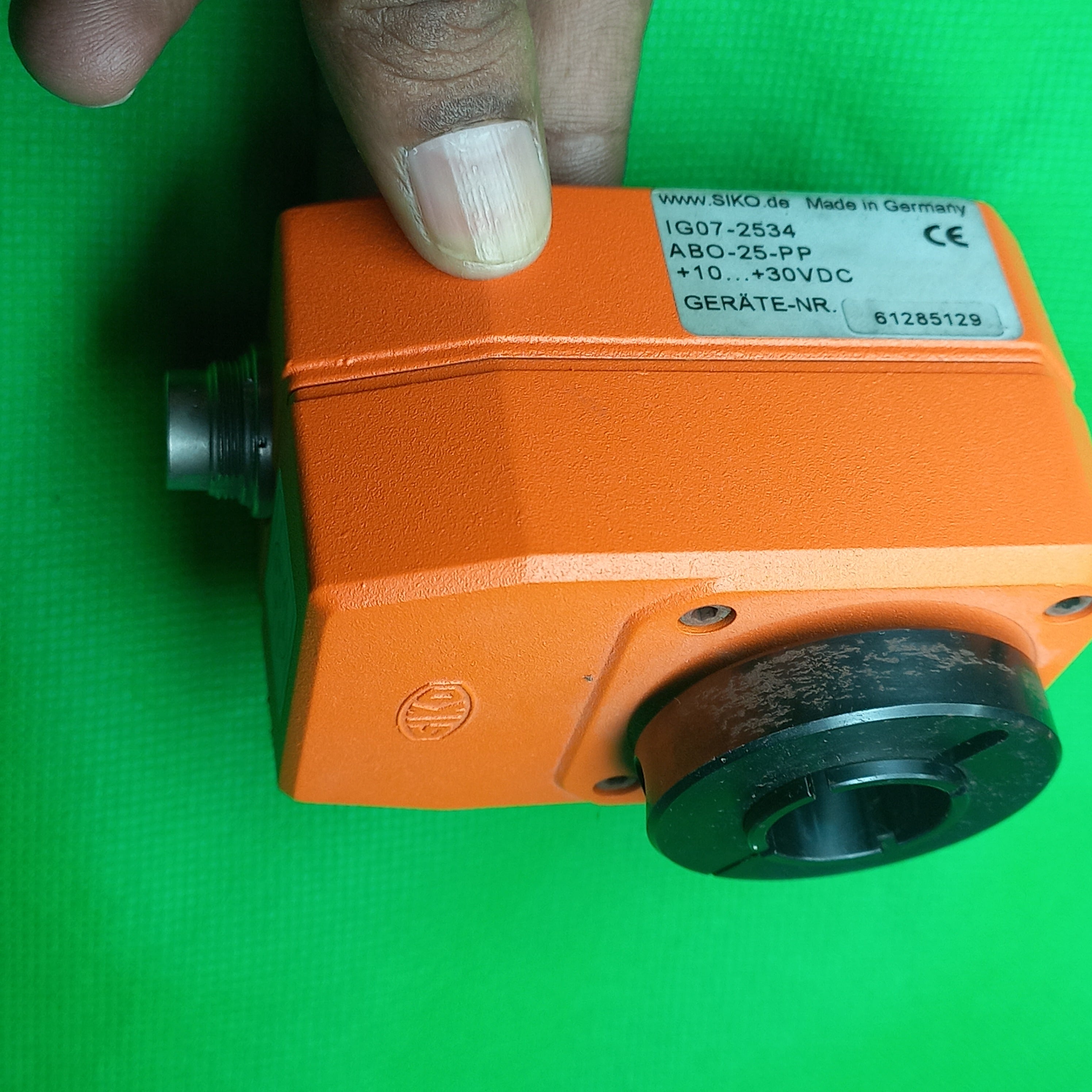

IG07-2534 ABO-25-PP
=10...+30VDC
Incremental encoder IG07

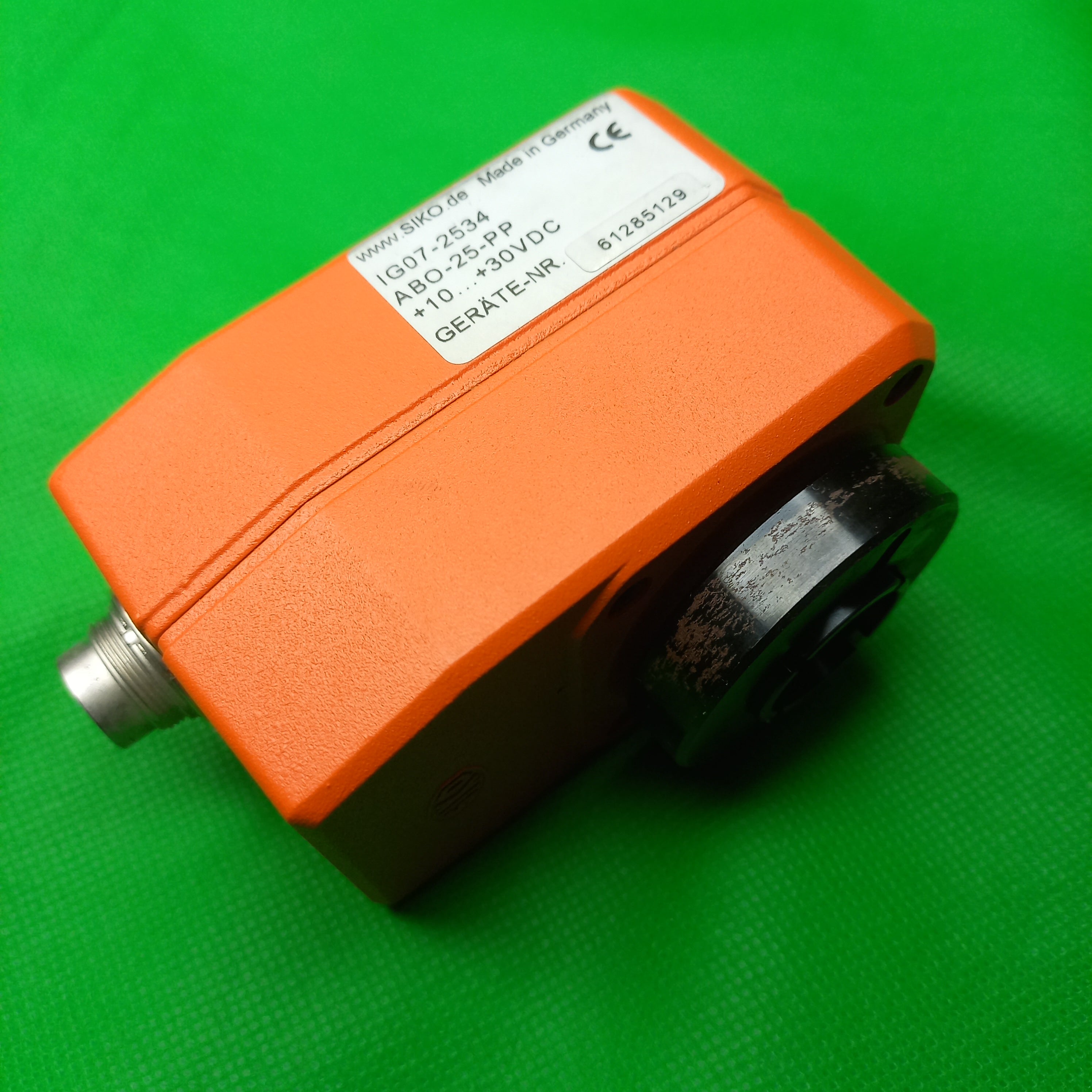

Housing made of zinc die-cast with through hollow shaft Profile
■ Resolutions of max. 1024 pulses/revolution

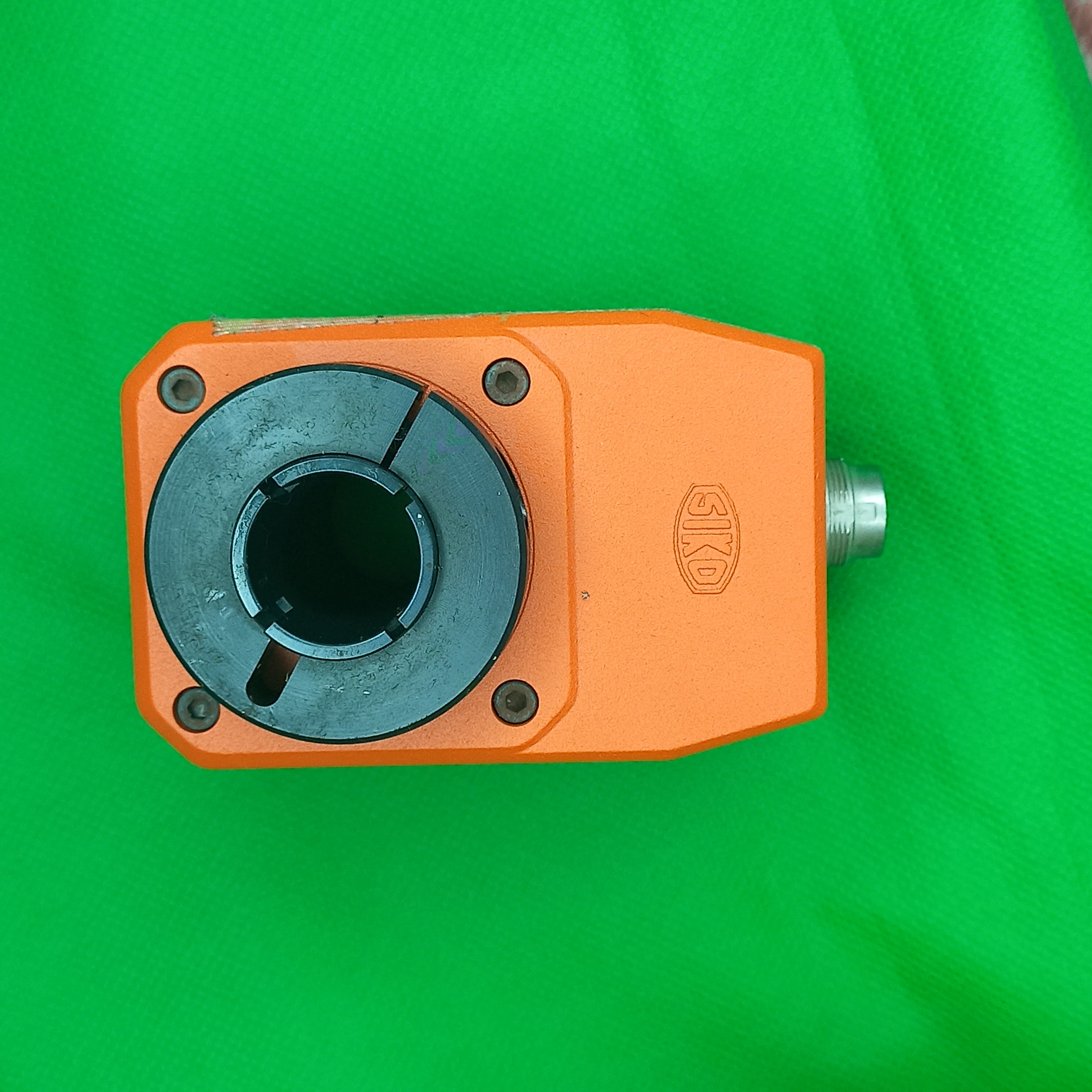

■ Through hollow shafts up to ø20 mm
■ Housing made of zinc die-cast
■ High shaft load rating, radial 5600 N, axial 1400

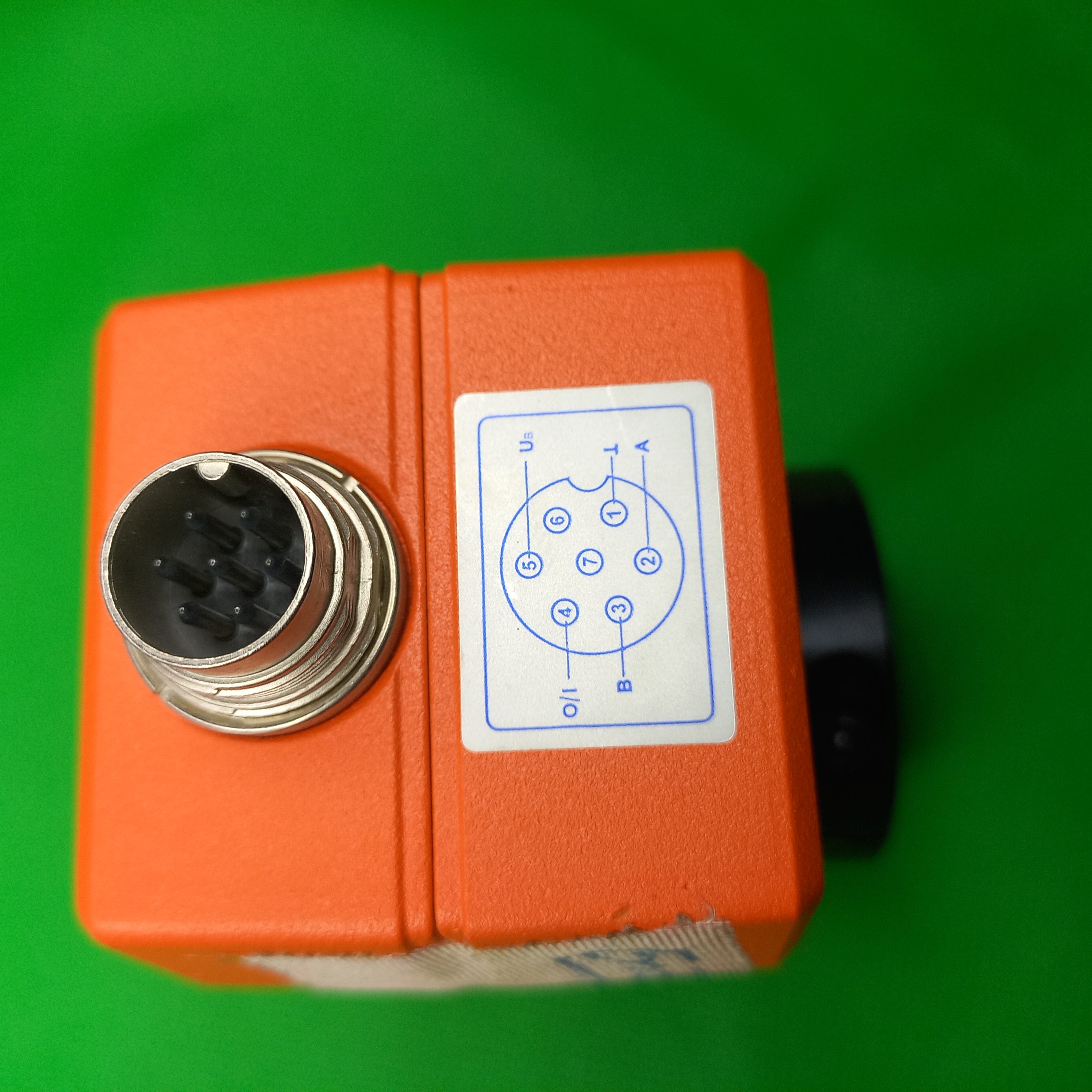

Connections:
Pin: 1,: I Ground
Pin 2: A
Pin 3 : B
Pin 4 : O/ I
Pin 5 : Us
Pin 6 ; not used


Technical data
Shaft : black-finished steel
Housing : zinc, die-cast
Speed : ≤6000 min-1 IP64
≤3000 min-1 IP65
Moment of inertia : ~28.5 x 10-6 kgm2 | W01 shaft design
~58.5 x 10-6 kgm2 | W02 shaft design
Starting torque :
≤6 Ncm at 20 °C | IP64
≤10 Ncm at 20 °C | IP65
Shaft load rating : 1400 N axial | 5600 N radial
Weight : ~0.75 kg
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Special version
- Incremental Encoder Construction size (flange) Ø 90 mm
- Incremental Encoder Shaft diameter 10 mm
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail HTL
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution25
- incremental Encoder Range of pulses per revolution0 ... 1024
- Signal Details:
Connection Details of encoder
- Connection type (Detail)
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNIG07-2534 ABO-25-PP
- Manufacturer indent Nr.IGO7-2534 ABO-25-P
- 1 Manufacturer Part Number (MPN) IG072534ABO25PP
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
