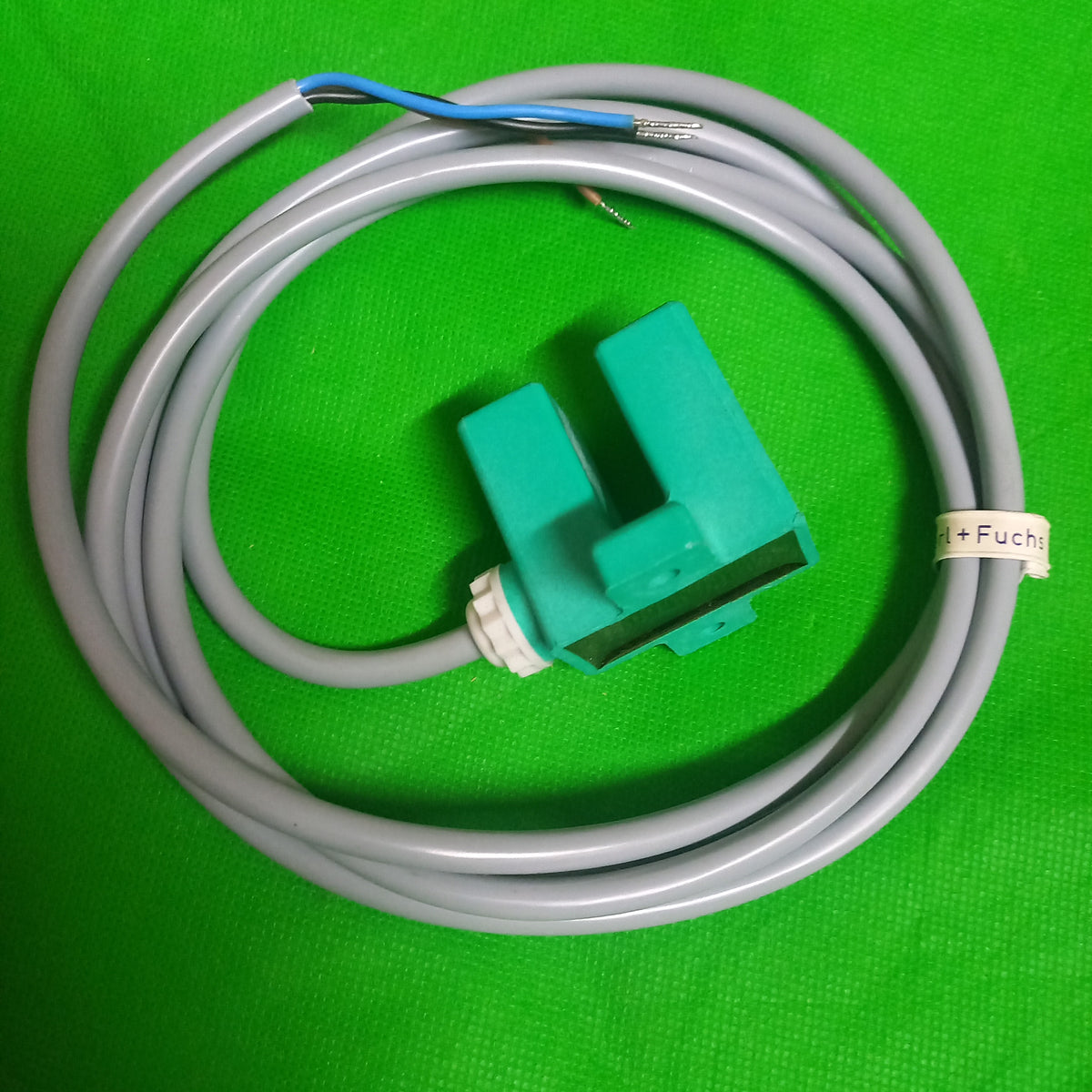

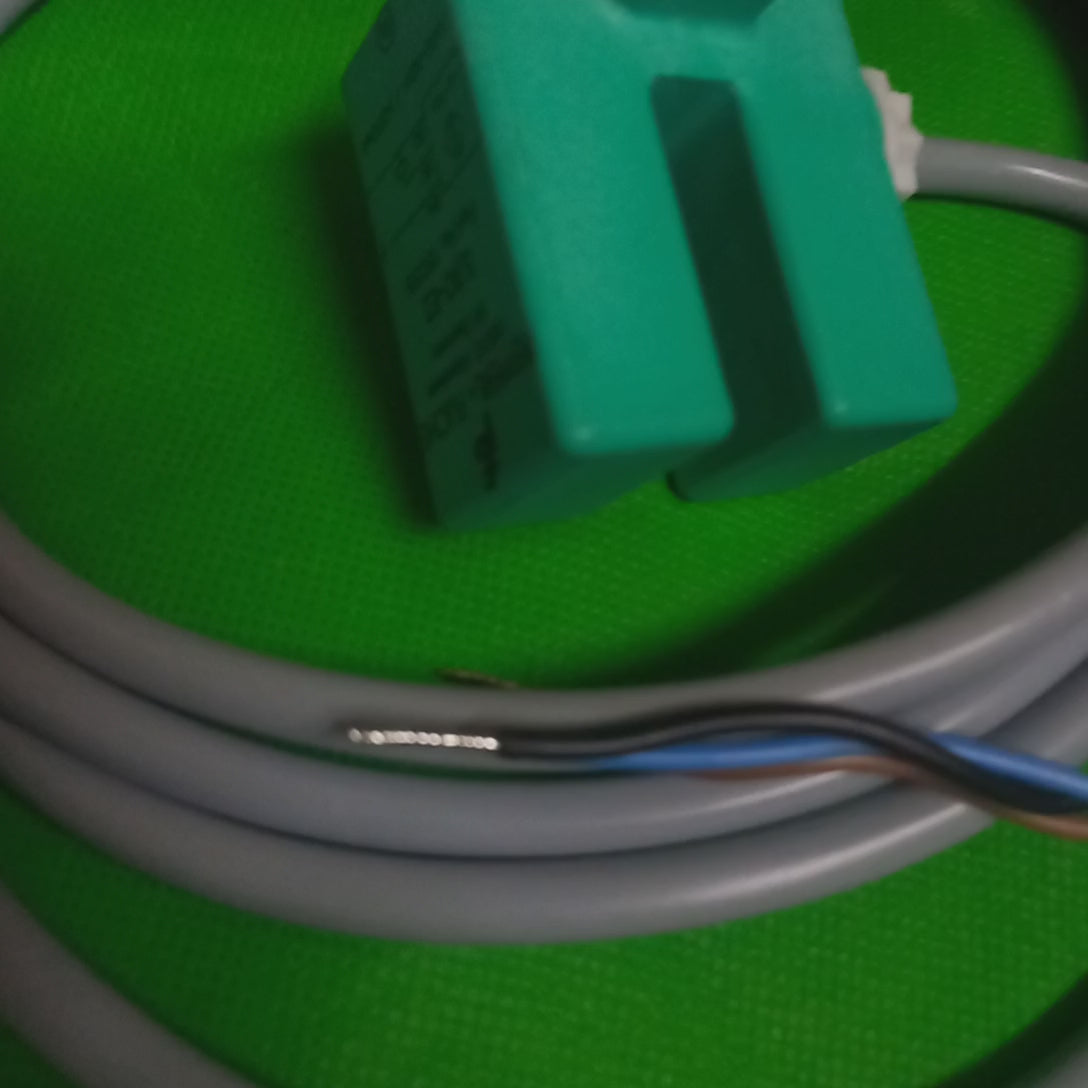

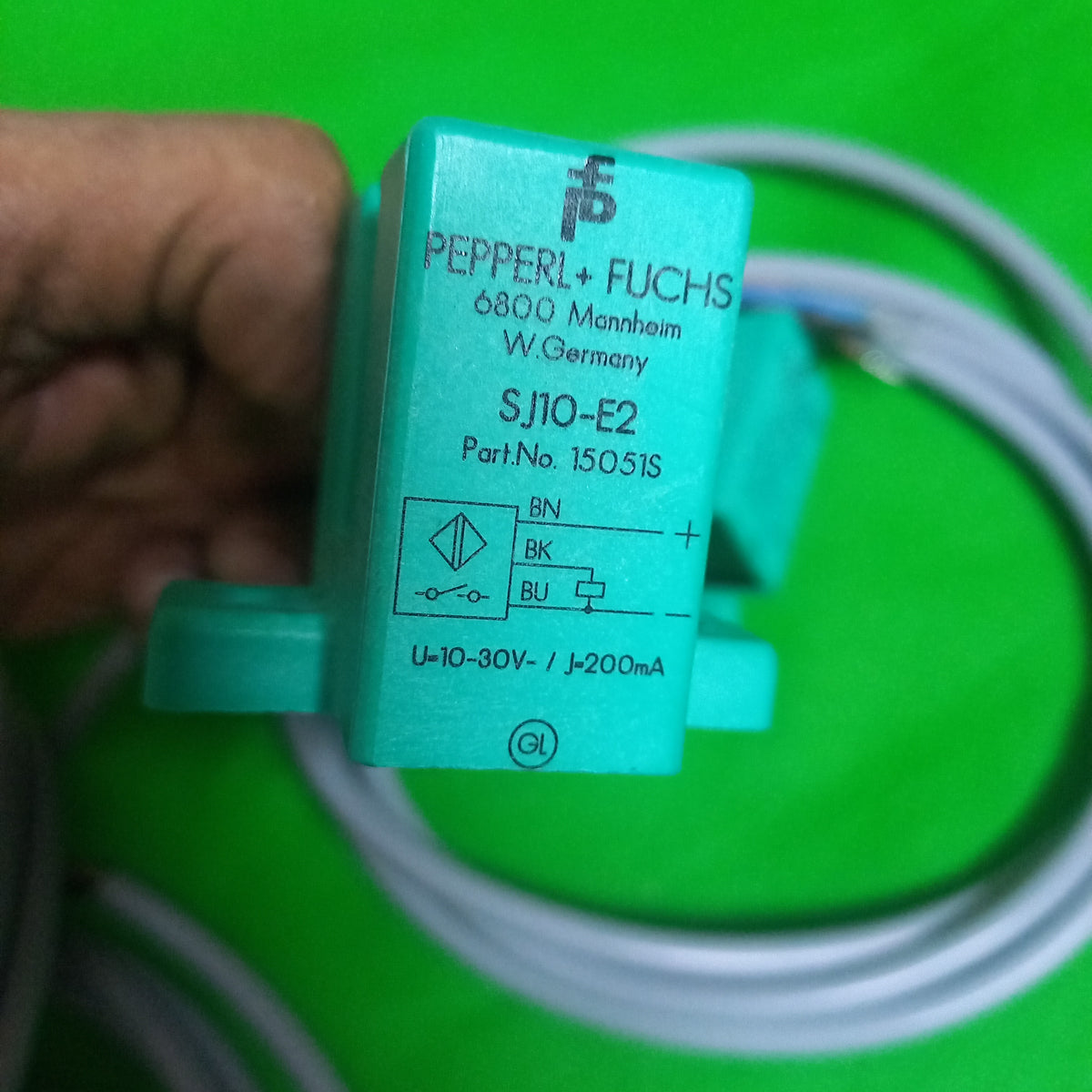

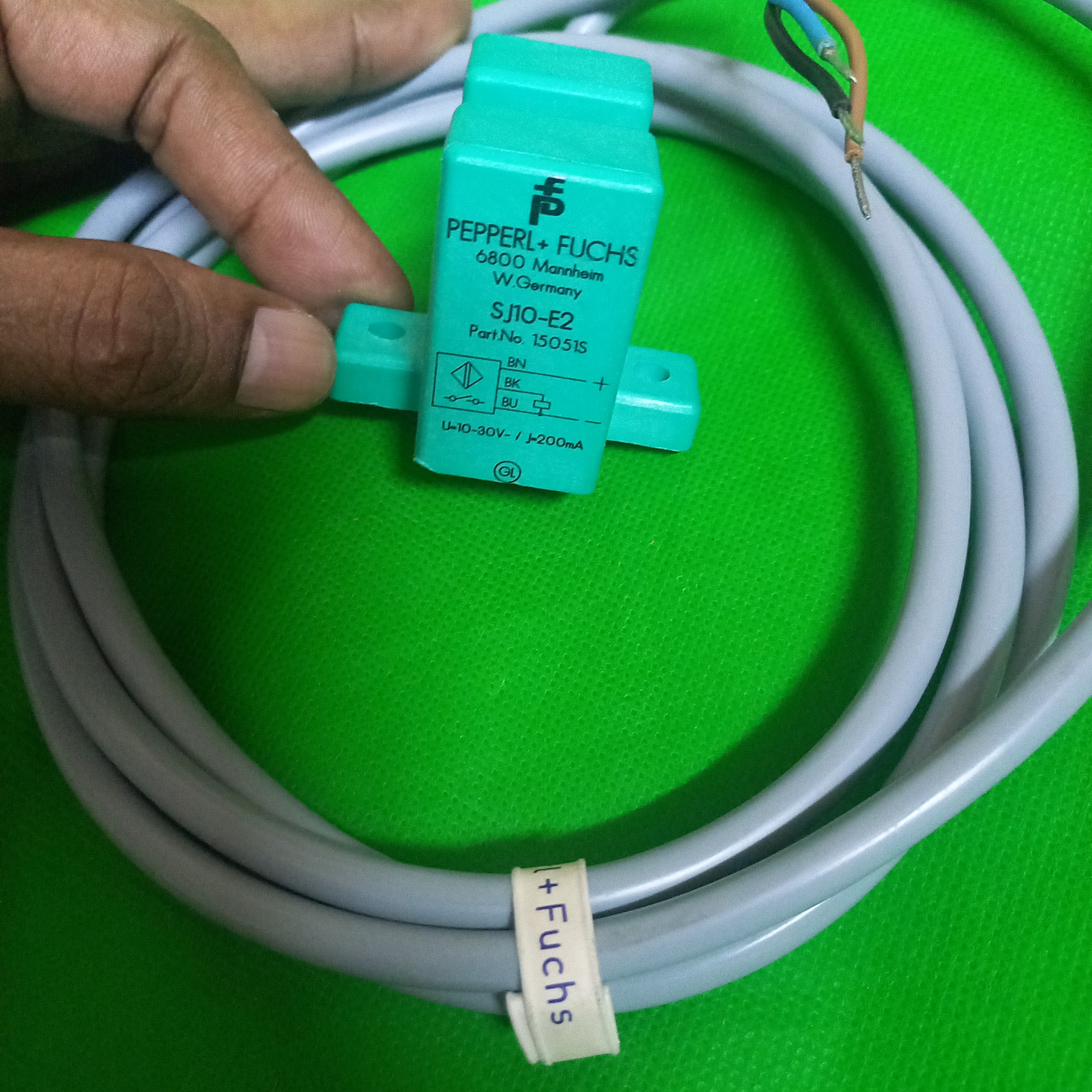

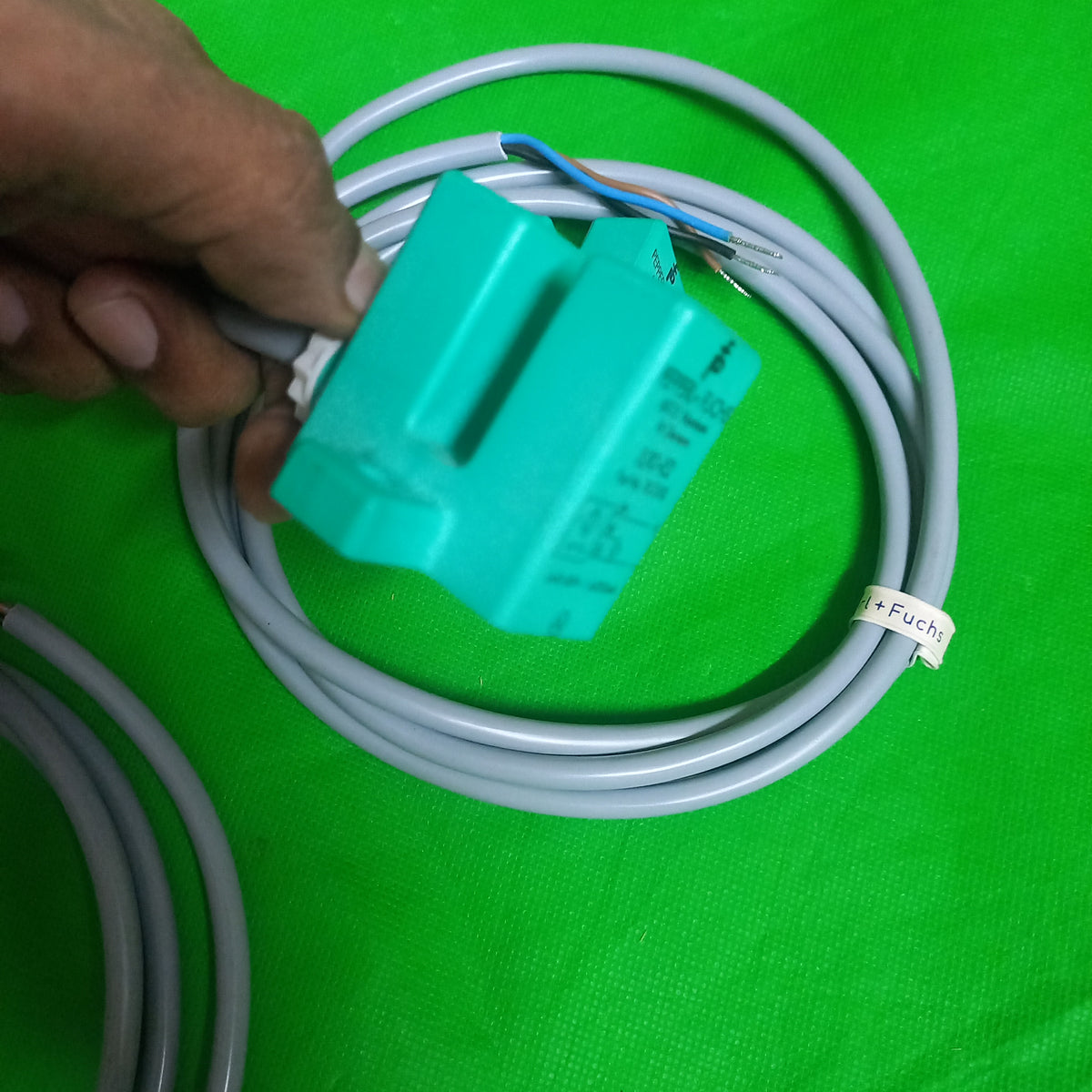

SJ10-E2 Inductive slot sensor, PNP NO, 10 mm slot width, 3Wire, Part no. 015051
$430.00
Skip to product information
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
SJ10-E2 Inductive slot sensor, PNP NO, 10 mm slot width, 3Wire, Part no. 015051
$430.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Pepperl + Fuchs
- Sensor Type: Inductive Proximity SensorInductive Sensor
- Sensor Dimensions: 44x45x55mm
- Sensor Range : Slot width 10 mm | Depth of immersion (lateral) 13.5 ... 16.5 mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
SJ10-E2 Inductive slot sensor, PNP NO, 10 mm slot width
SJ 10-E2, Part no. 015051 | RS Stock No.: 294-7125
SJ-10-E2 Inductive slot sensor, PNP NO, 10 mm slot width, 3-wire DC
Pepperl + Fuchs SJ10-E2 Slot Inductive Proximity Sensor PNP 3V 10 mm 30 V dc 200mA
Technical Data
General specifications
Switching function Normally open (NO)
Output type PNP
Slot width 10 mm
Depth of immersion (lateral) 13.5 ... 16.5 mm
Output polarity DC
Output type 3-wire
Nominal ratings
Operating voltage UB 10 ... 30 V DC
Switching frequency f 0 ... 1000 Hz
Hysteresis H typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud ≤ 3 V
Operating current IL 0 ... 200 mA
No-load supply current I0 ≤ 15 mA
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed
Load Type: Resistive
Circuitry: Class 2 Power Source
Enclosure Type Rating: Type 1
Supply/Switching Voltage: 30 V DC
Output Switching Current: 200 mA
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type cable
Housing material PBT
Degree of protection IP67
Cable
Wire end ferrules yes
Cable diameter 6.4 mm ± 0.2 mm
Bending radius > 10 x cable diameter
Material PVC
Color Gray
Number of cores 3
Core cross section 0.75 mm2
Length L 2 m
Mass 220 g
Tightening torque, fastening screws 3 Nm
Dimensions
Height 45 mm
Width 55 mm
Length 44 mm
- MPN : SJ10-E2
- Manufacturer indent Nr. : SJ10-E215051
- Manufacturer Product number : SJ10E2
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
