- Manufacturer Part Number: 601-6169-026 | SK-UV15Z M
- Manufacturer Alternative MPN ; 6016.1690.26 | SKUV15ZM
- Manufacturer Id Nr. SK-UV15Z-M

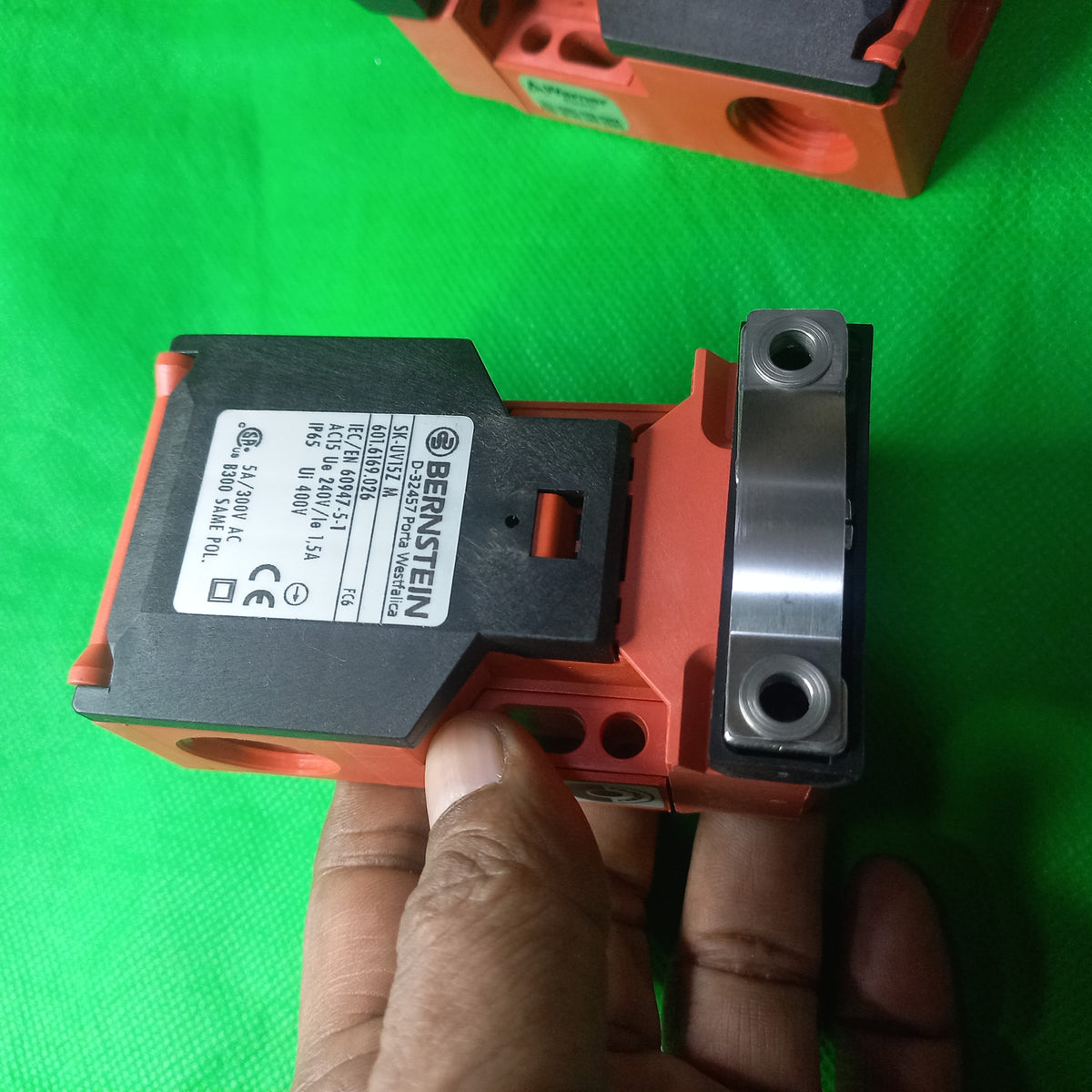

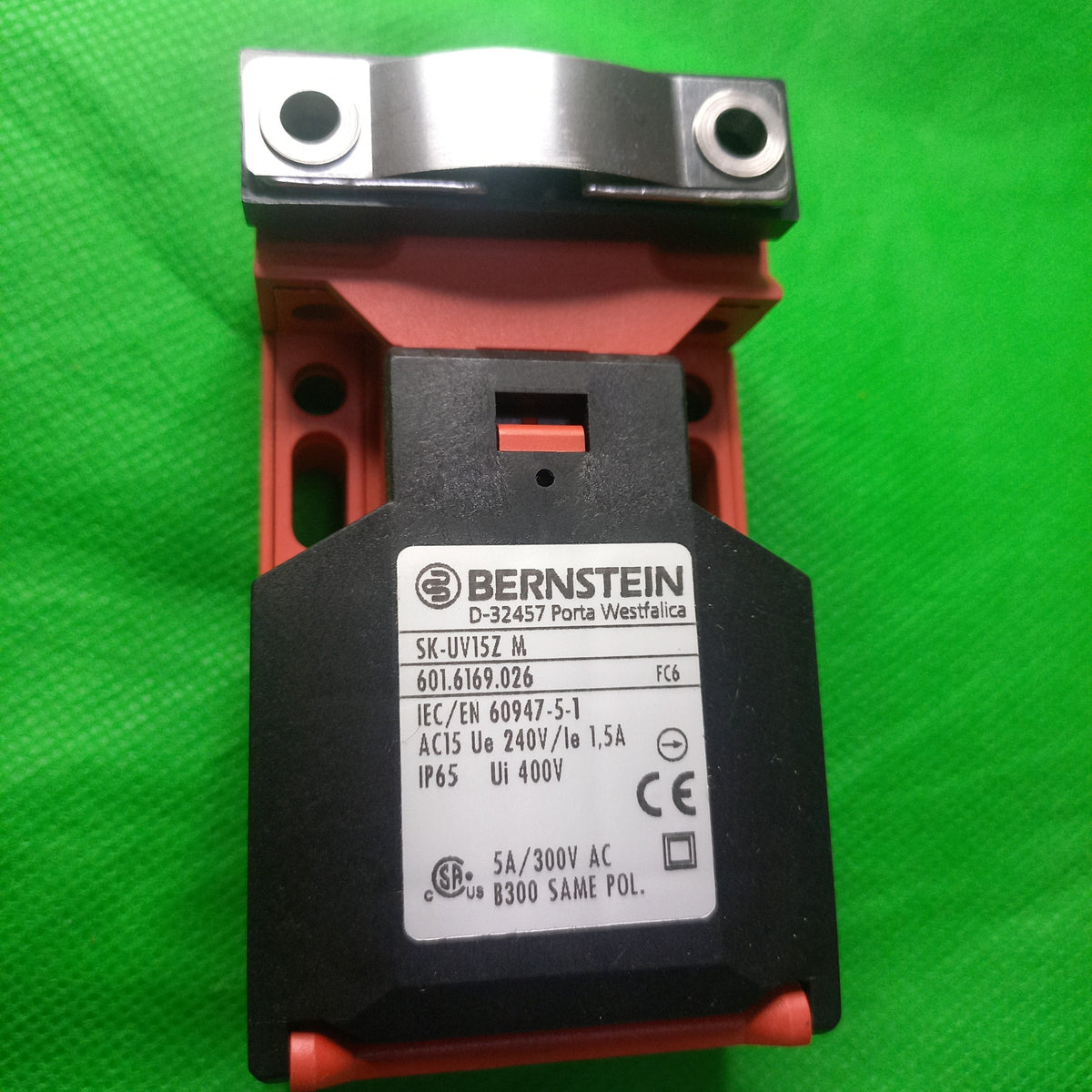

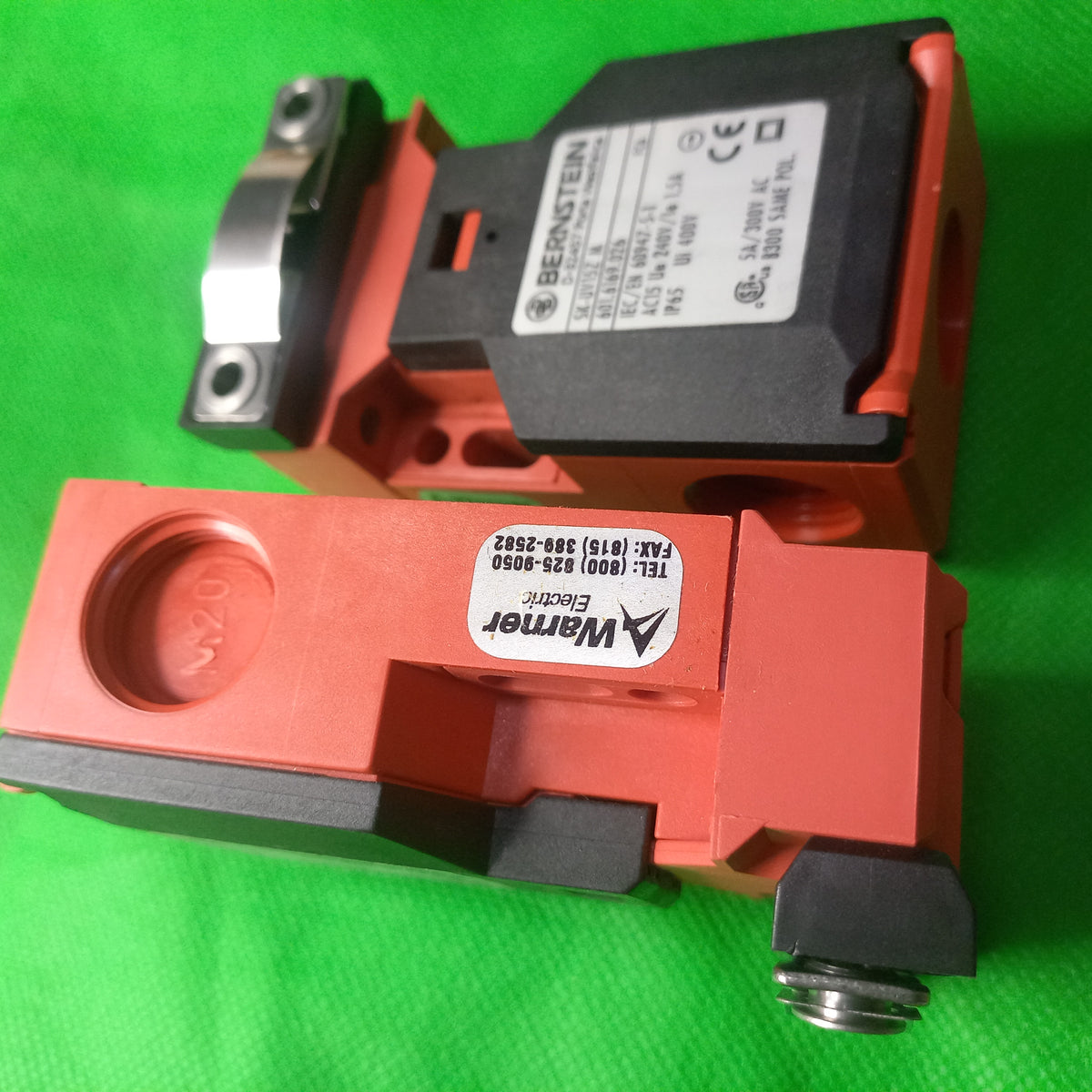

SK-UV15ZM Safety switch Series SK- with separate actuator Bernstein 601-6169-026 Bernstein 601.6169.026
- Enclosure/Cover - Thermoplastic, Glass fibre-reinforced (UL94-V0)
- Protected by multi-coding system to increase safety
- Industry standard body conforming to VDE 0660 T200, IEC 60947-5-1
- Protection class IP 65 conforming to IEC/EN 60529
- Standard actuating force of 10 N
- 3x M20 x 1.5 cable entry
- B10d = up to 2 Mio
Electrical Data
Rated insulation voltage Ui 400 V AC
Conv. thermal current Ithe 5 A
Utilization category AC-15, Ue /Ie 240 V / 1,5 A
Direct opening action p according to IEC/EN 60947-5-1, Annex K
Short-circuit protective device Fuse 6 A gG
Protection class II, totally insulated
Mechanical data
Enclosure Thermoplastic, glass fibre reinforced (UL94-V0)
Cover Thermoplastic, glass fibre reinforced (UL94-V0)
Actuator Separate actuator (G-stainless steel)
Extraction force 10 N
Ambient air temperature -30 °C … +80 °C
Contact type 2 NC, 1 NO (Zb)
Mechanical life 1 x 106
switching cycles
Switching frequency ≤ 30 / min.
Assembly Safety switch
Actuator
2 x M5
2 x M5
Connection 6 screw connections (M3)
Conductor cross-sections Solid: 0,5 ... 1,5 mm²
Litz wire with ferrules: 0,5 ... 1,5 mm²
Cable entrance 3 x M20 x 1,5
Weight ≈ 0,15 kg
Installation position operator definable
Protection type IP65 acc. to IEC/EN 60529
- Manufacturer indent Nr.6016169026
