SRS Hiperface Encoder Replacement/Adjustment Parts +Service offer (Price includes supply of

SRS50-HFA0-K21 | 1037067) for

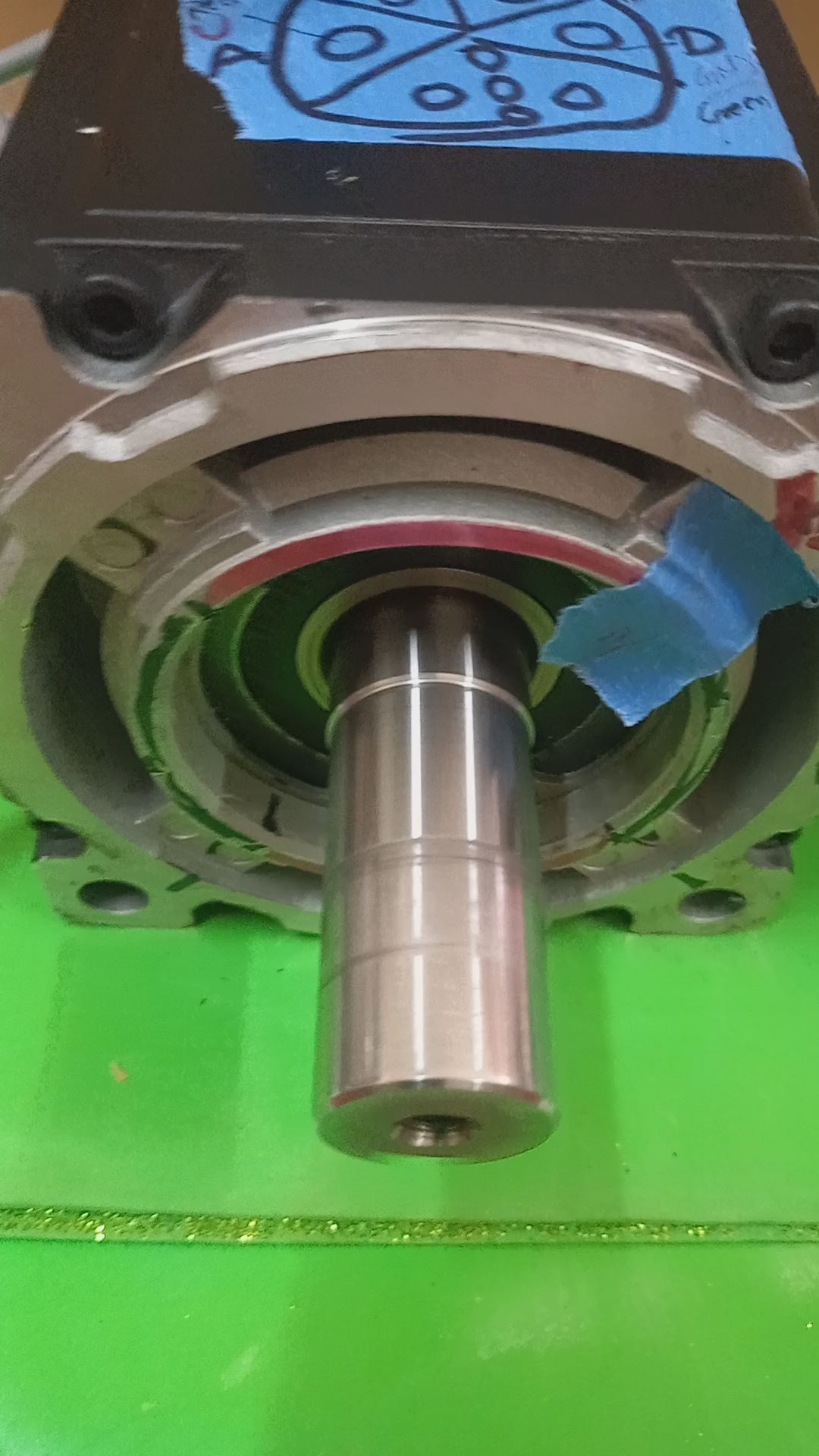

AllenBradley servo motor MPL-B4530F-S

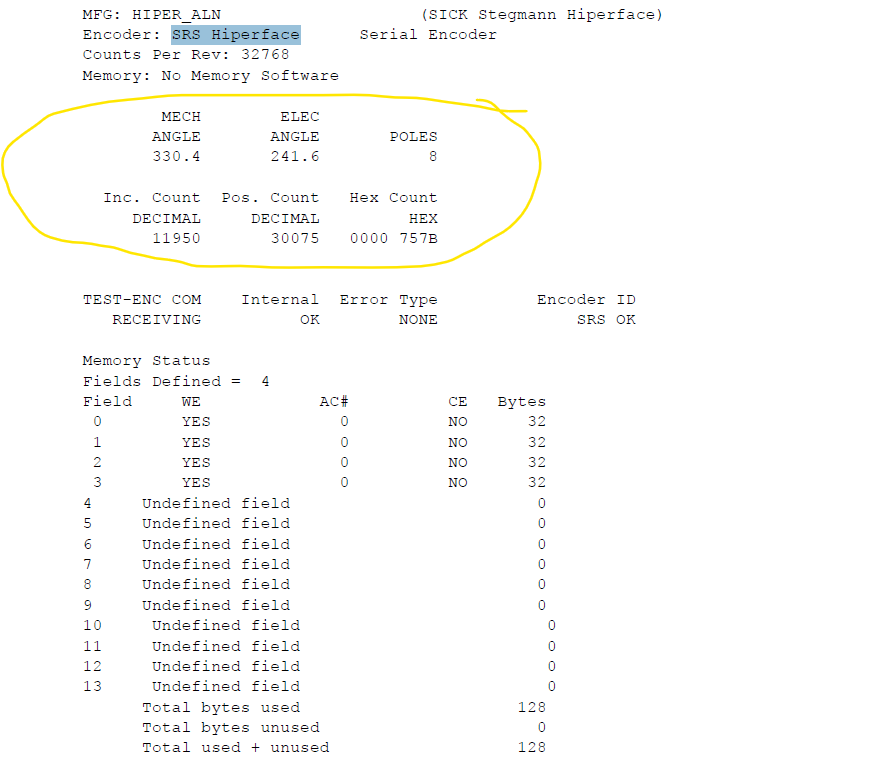

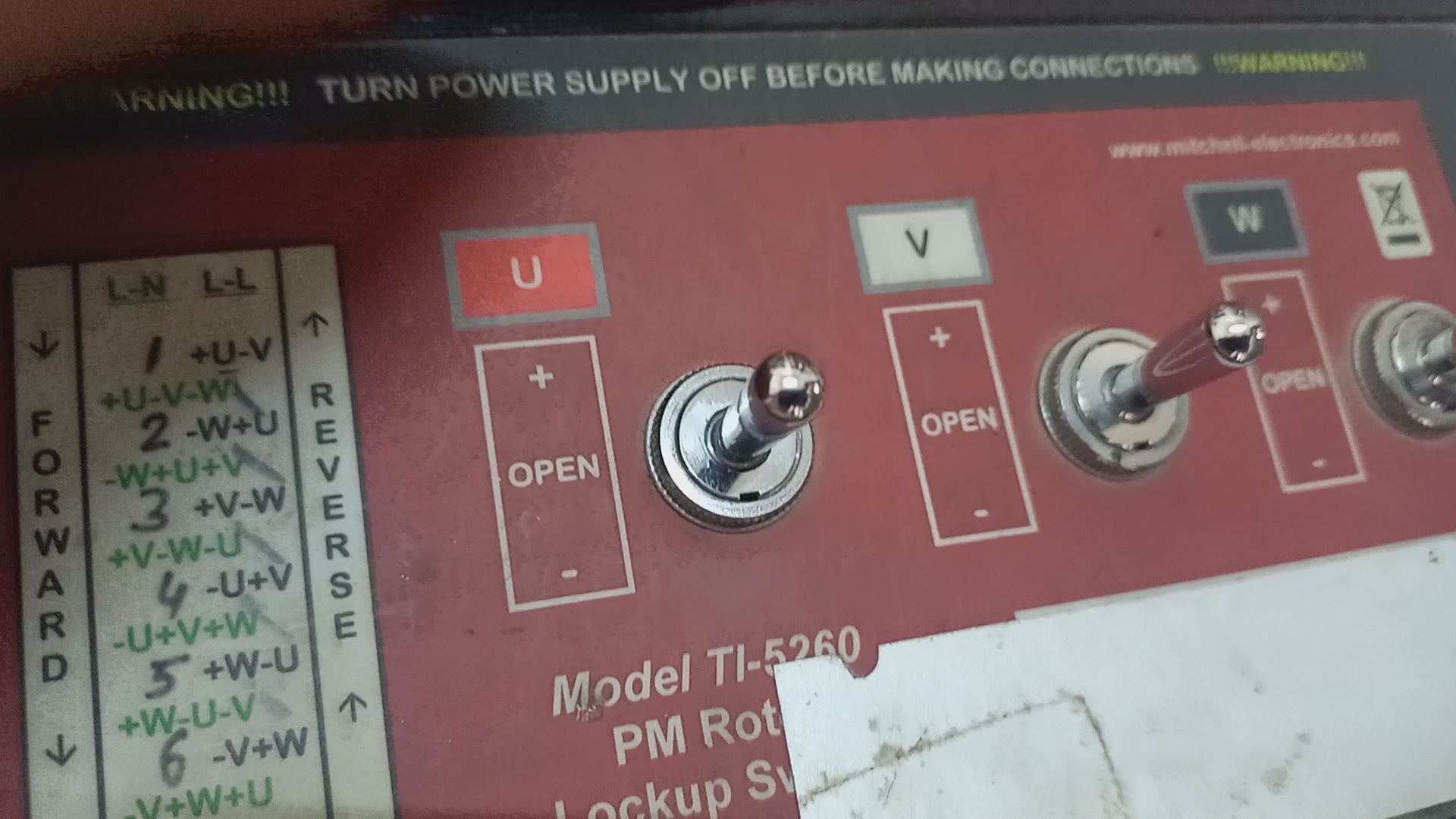

New Encoder installation & Services for Reading Memory of Old encoder, Copying Motor|Encoder name plate information, into new encoder, and Commutation Alignment of encoder per memory informaiton.

Whats is offered:

We shall Supply a New Encoder and Install it on your Servo motor, Align the new encoder per memory data of Factory Fitted encoder.

 What is NOT included

We shall also Check & Report the status of Health of  - Winding Health/ Magnet Health, Bearing health. However This is additional work taken up at extra charge.

 Shipping  Documents:

1. We should get the Motor delivered to us Freight / Taxess/ duties Prepaid door delivered to our Collection location in Ajman.

TI-5069 cable We use for connecting SRS Encoder on AllenBradley to Servo Alignment system

Data to be shared with Us Before Sending the Motor for Adjustment/ Alignment/ Health check

1. - Send us the Specification Sticker photo of the motor. We need the complete code including Suffixes. The suffix can change electrical and mechanical compatibility. Include every character and a clear nameplate photo.

2. Take Clear Photograph of power Connector and 2b. Feedback connectors. The photo should show the Number of pins and their Markings on the insert beside the Pin along with location of Orientation/ Location Notch on the Body of the connector.

3. Take Clear Photograph of the Encoder Fitted / Motor feedback fitted . The photo should show the Nameplate specs

4. Prepare Shipping documents & Pack the motor in Rugged Box suitable for motor weight/ Pallet and cover the Delicate parts eg. Connectors etc.

Motor details:

Kinetix MPL Low-inertia Servo Motors

MPL-B4530F-SJ72AA

Representative Rendering, Not The Actual Product

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0 in.), 3000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)

Encoder MOTOR FEEDBACK SYSTEMS SRS50-HFA0-K21

DETAILED TECHNICAL DATA
FEATURES
Items supplied Mounting screws for stator coupling or servo clamps not included with delivery.
SAFETY-RELATED PARAMETERS
MTTFD
(mean time to dangerous failure) 235 years (EN ISO 13849)
1)
1)
This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 60°C, frequency of
use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.
PERFORMANCE
Sine/cosine periods per revolution 1,024
Number of the absolute ascertainable revolutions 1
Total number of steps 32,768
Measuring step 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits
Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling
Differential non-linearity ± 7 ″
Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced
Available memory area 128 Byte
System accuracy ± 52 ″
INTERFACES
Type of code for the absolute value Binary
Code sequence Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional
drawing), For clockwise shaft rotation, looking in direction “A” (see dimensional drawing)
Communication interface HIPERFACE®

ELECTRONICS
Connection type Male connector, 8-pin, radial
Supply voltage 7 V DC ... 12 V DC
Recommended supply voltage 8 V DC
Current consumption 80 mA
1)
Output frequency for sine/cosine signals ≤ 200 kHz
1)
Without load.
MECHANICS
Shaft version Tapered shaft
Flange type / stator coupling Spring mounting plate, Spring mounting plate
Dimensions See dimensional drawing
Weight ≤ 0.2 kg
Moment of inertia of the rotor 10 gcm²
Operating speed ≤ 12,000 min⁻¹
Angular acceleration ≤ 200,000 rad/s²
Operating torque 0.2 Ncm
Start up torque + 0.4 Ncm
Permissible movement static ± 0.5 mm, radial
± 0.75 mm, axial
Permissible movement dynamic ± 0.1 mm, radial
± 0.2 mm, axial
Angular motion perpendicular to the rotational axis,
static
± 0.005 mm/mm
Angular motion perpendicular to the rotational axis,
dynamic
± 0.0025 mm/mm
Life of ball bearings 3.6 x 10
9
 revolutions
