FL SWITCH 5TX-ZF - Industrial Ethernet Switch Phoenix 2832894

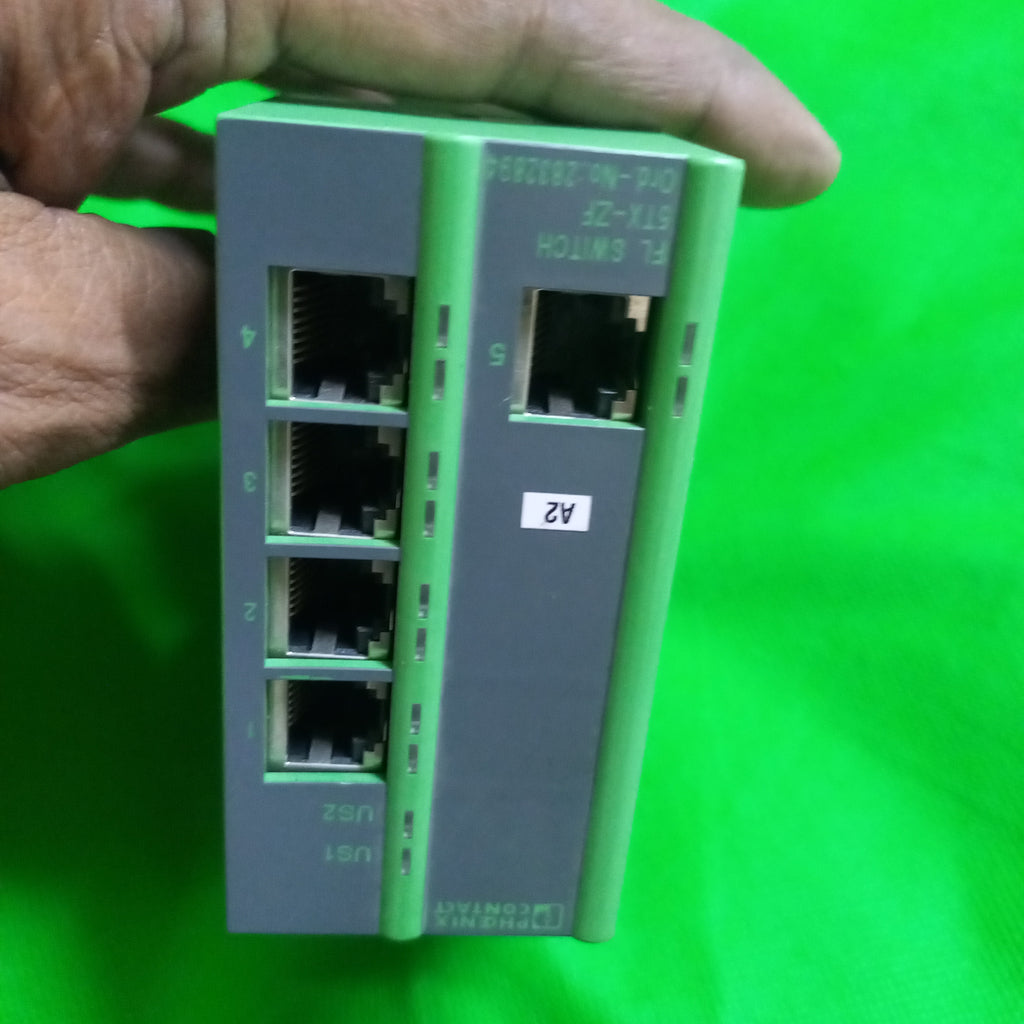

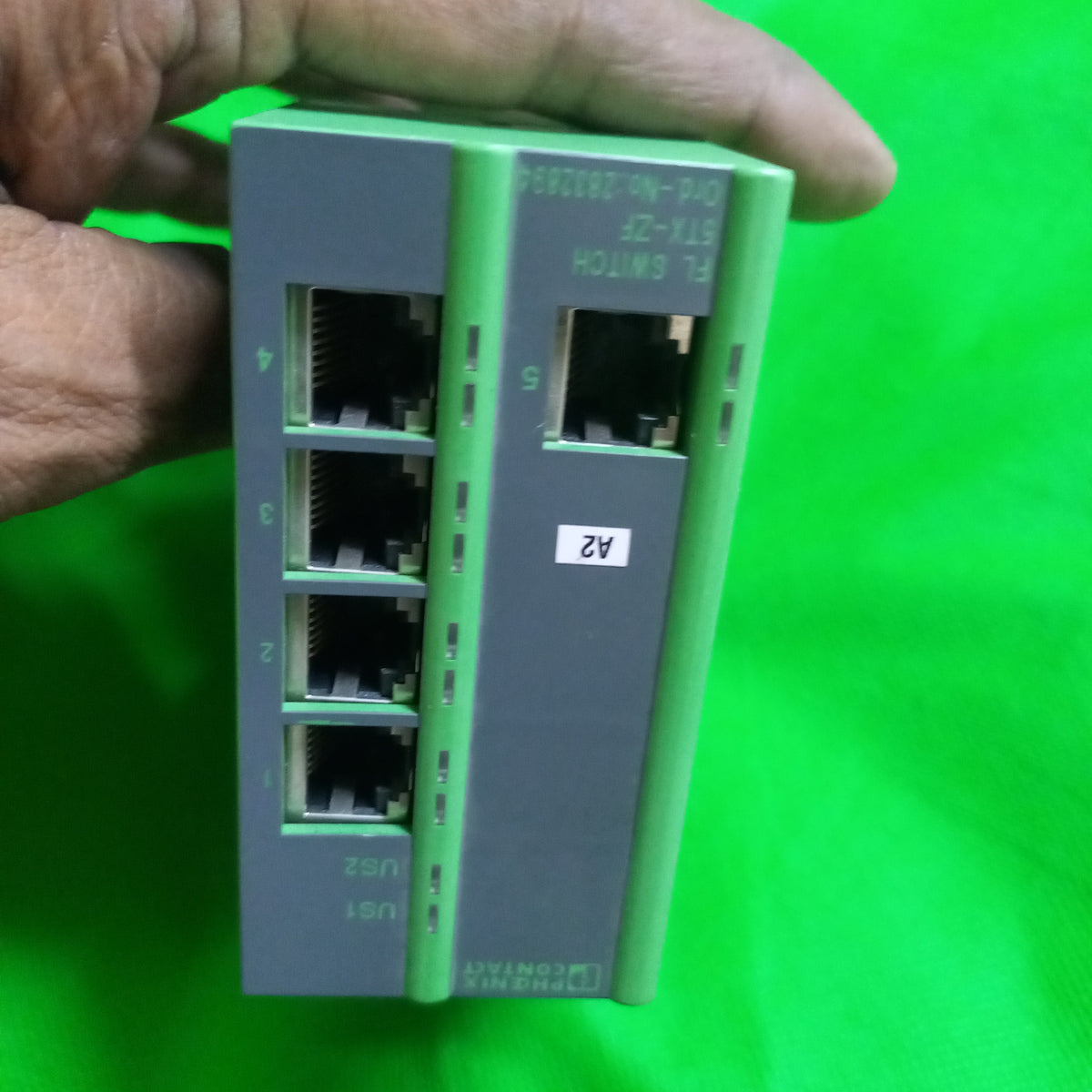

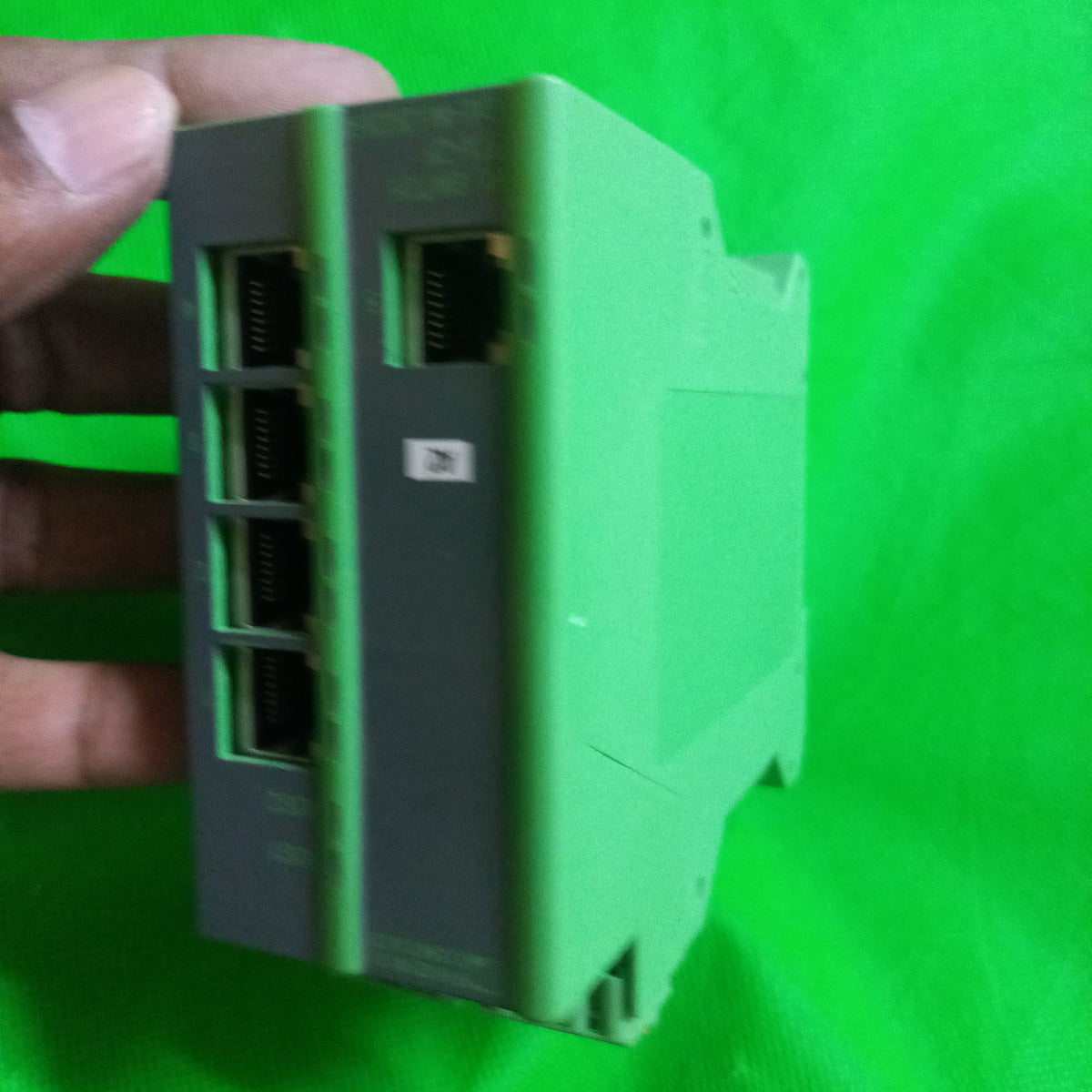

Ethernet switch, 5 front-facing Ethernet ports in RJ45 format, automatic detection of data transmission rate (10 or 100 Mbps), coupling of network segments with different bit rates, auto-crossing function, DIN rail mountable

Technical data
Dimensions Width 45 mm
Height 99 mm
Depth 112 mm
Material specifications
Color green
Housing material PA 6.6
Mounting
Mounting type DIN rail mounting
Interfaces
Ethernet
Connection method 5 ports 10/100BaseT(X) auto negotiation and autocrossing
Transmission speed 10/100 Mbps
Transmission physics Ethernet in RJ45 twisted pair
Transmission length 100 m (per segment)
Signal LEDs Data receive, link status
Potential-free signaling contact
Connection method Plug-in/screw connection via COMBICON
Product properties
Product type Switch
Type Stand-alone
Insulation characteristics
Protection class III (IEC 61140, EN 61140, VDE 0140-1)
Switch functions
Status and diagnostic indicators LEDs: US1, US2 (redundant voltage supply), link and activity per
port
Basic functions Unmanaged switch / auto negotiation, complies with IEEE 802.3,
store and forward switching mode
Additional functions Autonegotiation
Electrical properties
US1, US2 Supply voltage US1, US2 Green LED
One LED per port Link active Green LED
Local diagnostics
One LED per port Telegrams received Yellow LED
Maximum power dissipation for nominal condition 4.3 W
Test section 500 V DC 1 mi
