Thalheim ITD4 50 Impulse/U | A, B, N-Spur | 5 VDC | TTL Drehimpulsgeber ITD 4 B10
$1,980.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Z-Nr.012-2
- Encoder Type: Incremental encoder
- Supply voltage 5VDC
- Encoder ID. NR.C-Nr. 93002129
- Encoder SIgnal | 50 | TTL | Ø 115 mm | Terminal boxes
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
Ready stock Thalheim ITD 4 Encoder, Flange B10, 50 Pulses per revolution Output Signals are: A, B, N-Spur Supply voltage is : 5 VDC | TTL Drehimpulsgeber Part number is : ITD 4 B10

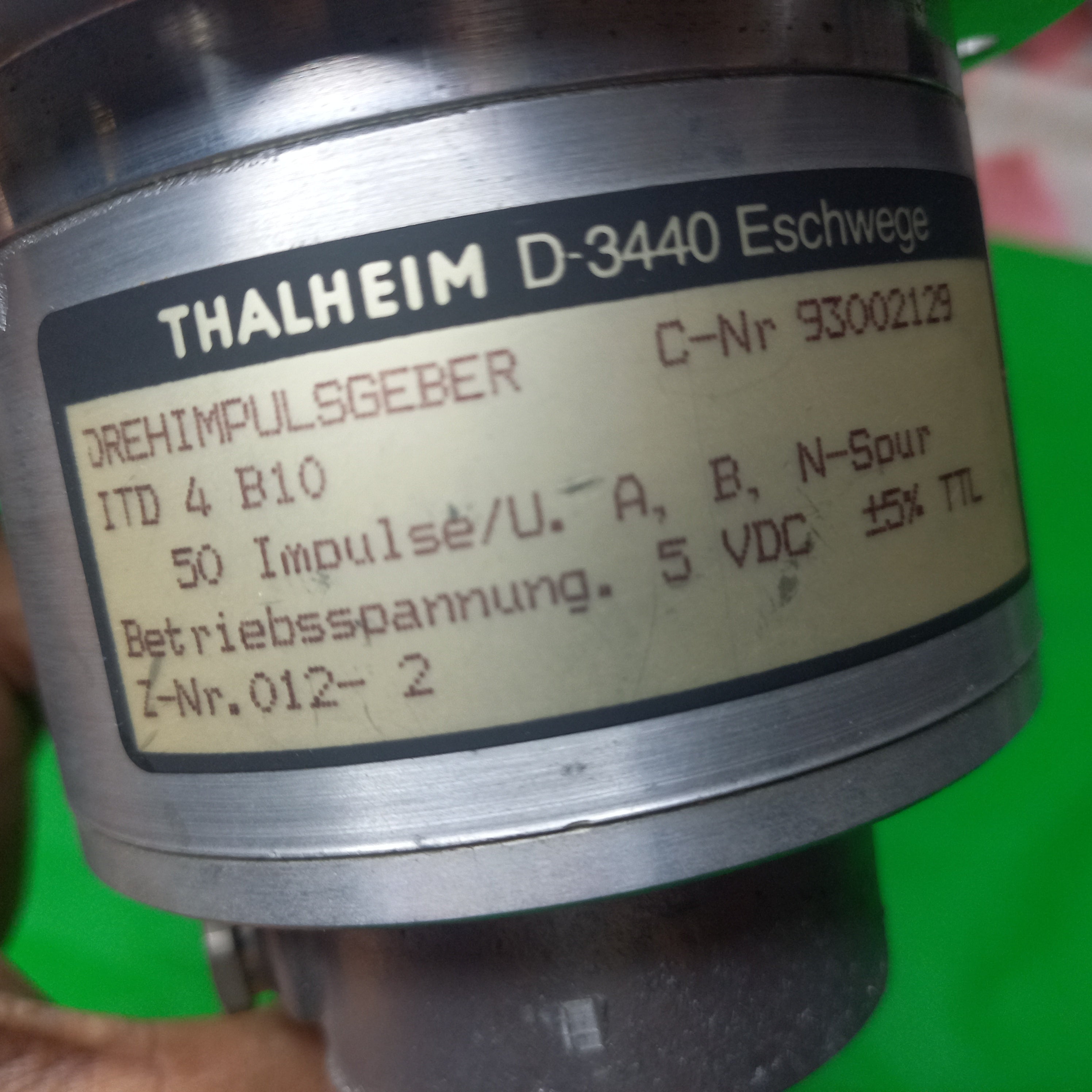

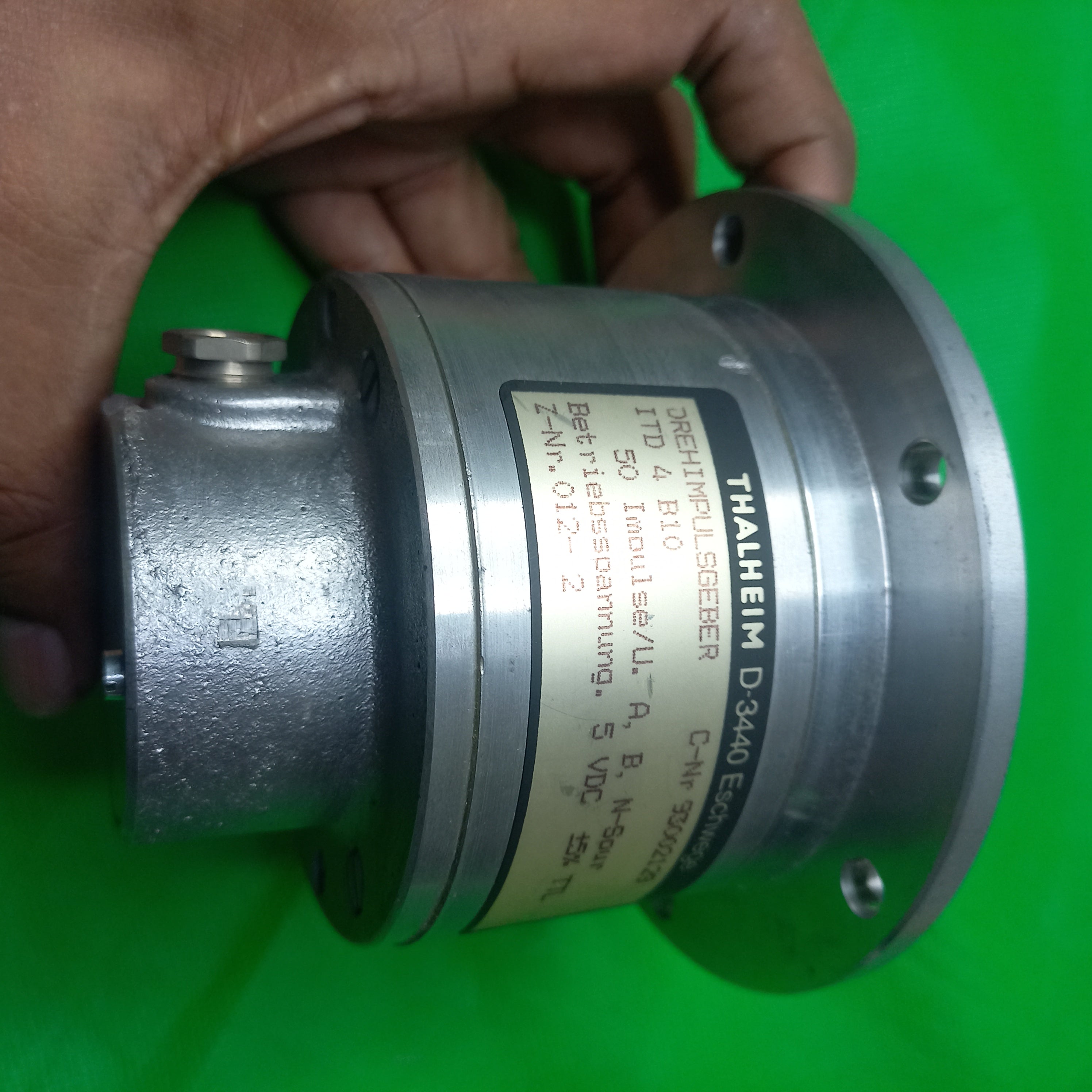

Specification sticker details:

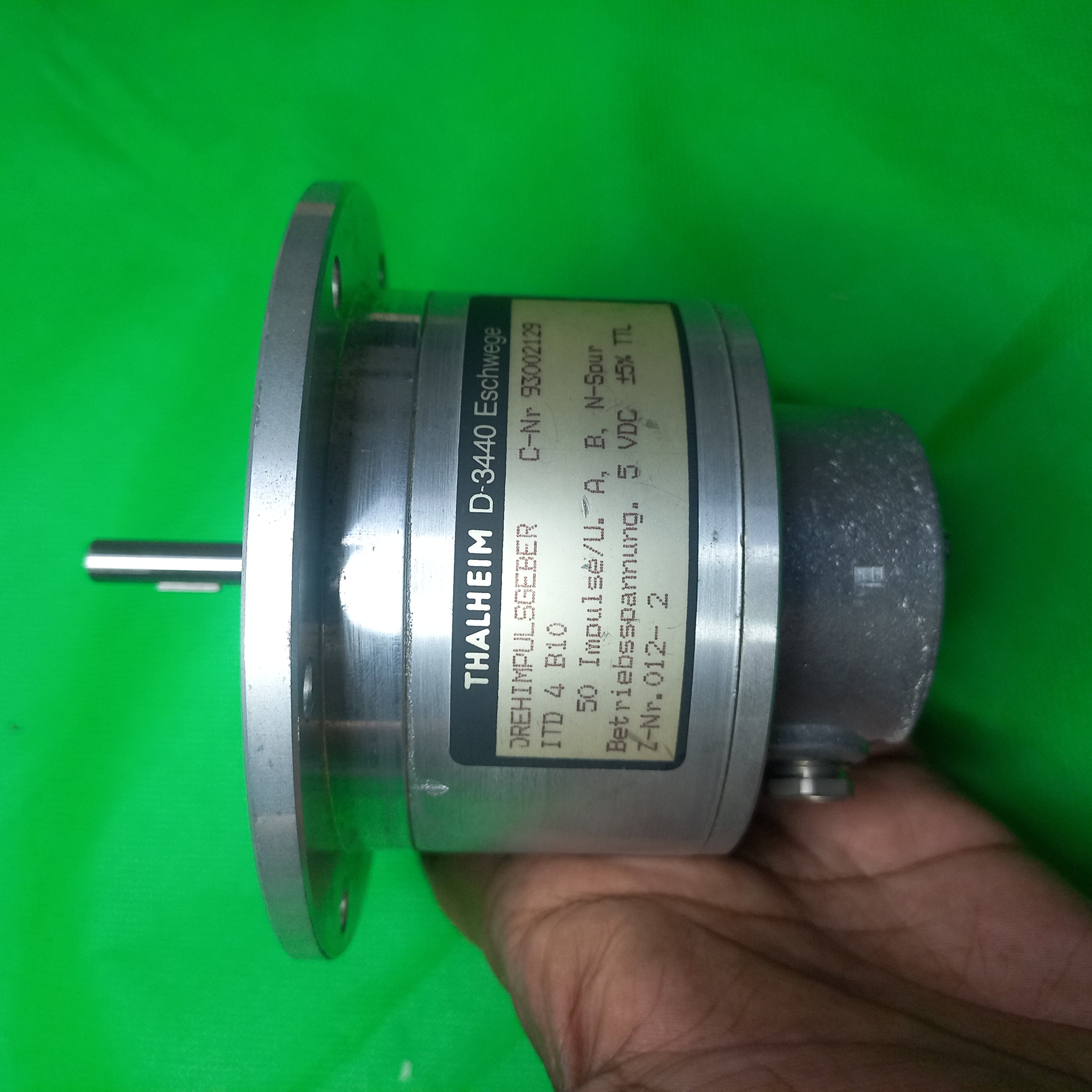

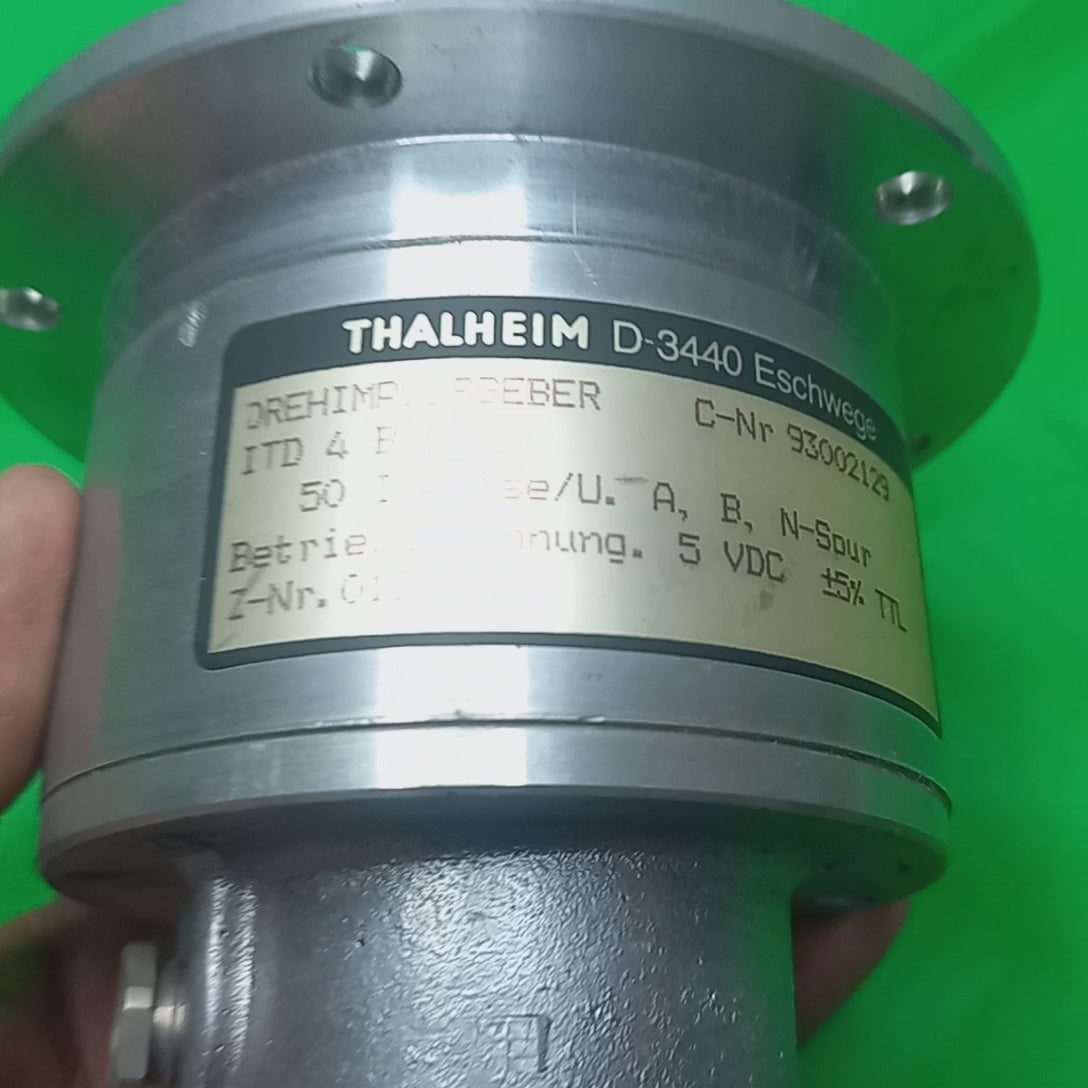

THALHEIM DREHIMPULSGEBER
ITD 4 B10
C-Nr 93002129
50 Impulse/U. A, B, N-Spur [2 square-wave pulse trains + zero pulse, 90° electr. ]
Betriebsspannung. 5 VDC ±5% TTL [TTL-output signals line driver-output stage]
Z-Nr. 012-2
Made : original by : THALHEIM D-3440 Eschwege THALHEIM is Now known as Baumer
Incremental Encoder with shaft - ITD 40 B10
Mechanical data:
Housing light-alloy metal, unpainted
Design style B10
Protective class IP65 IP 65 according to DIN 40 050, IEC 529
Construction principle OPSIC with slotdisc
max. revolution ( mechanical ) nmax ≤ 12000 rpm ( observe frequency limit )
Admissible shaft load axial ≤ 40 N
radial ≤ 60 N ( at shaft end )
Starting torque at 20 ° C ≤ 1.2 Ncm
Vibration 55... 2000 Hz ≤ 100 m/s² according to DIN IEC 68, part 2-6
Shock 11 ms ≤ 1000 m/s² according to DIN IEC 68, part 2-27
Moment of inertia ( rotor ) approx. 60 gcm²
Shaft diameter d 11 mm
Weight approx. 850 g

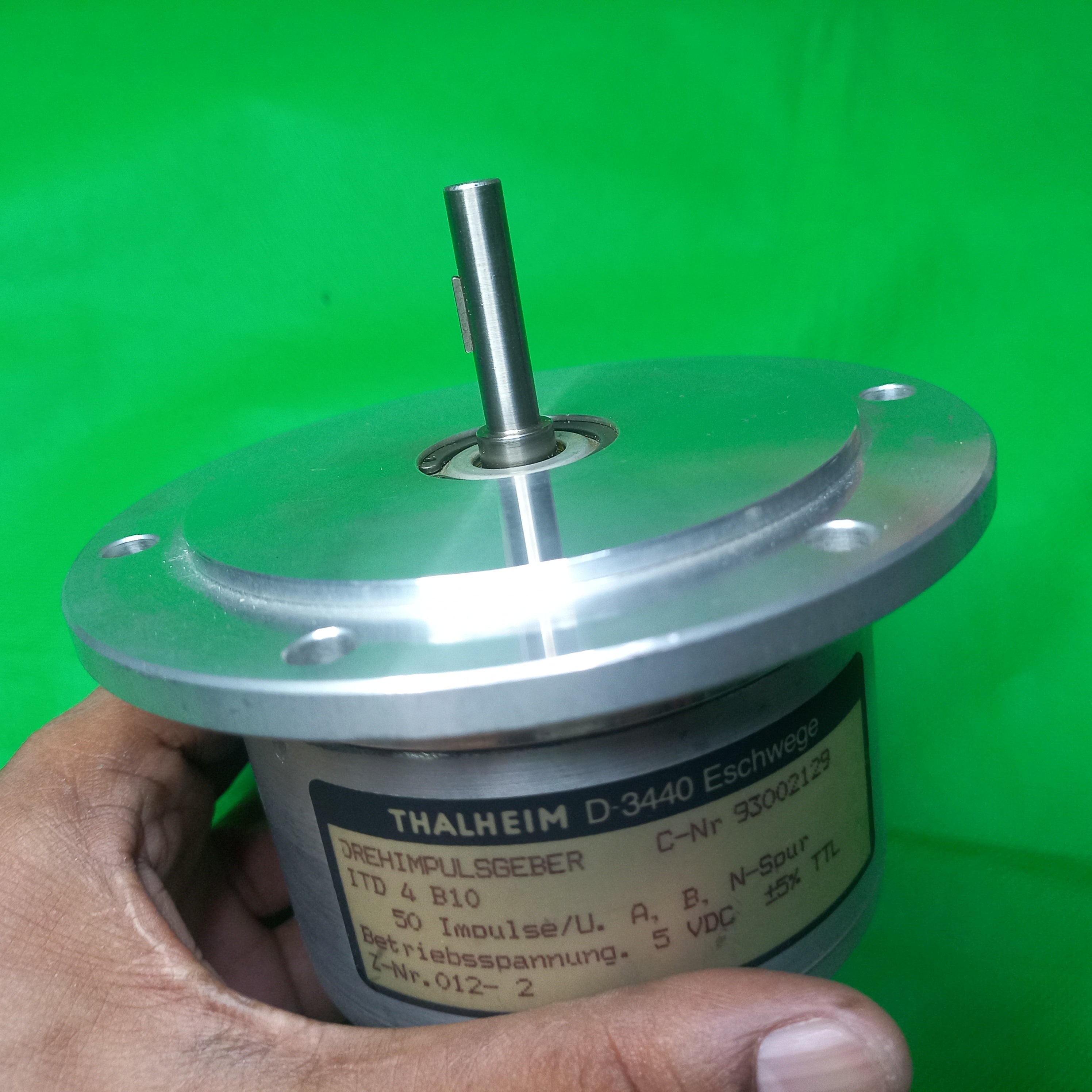

Dimensions: Consider Shaft as 7mm Diameter
Qualities:
- Robust incremental encoder for industrial use
- Number of pulses, up to 1024 pulses per revolution
- Euro-flange mounting
- Centering seat Ø 85, mounting punch circle Ø 100
- TTL- or HTL-output signals
- Cable outlet radial or axial
- Connector versions optional
- Cable-box versions optional
Encoder Type:
Salient | Special features of Encoder:

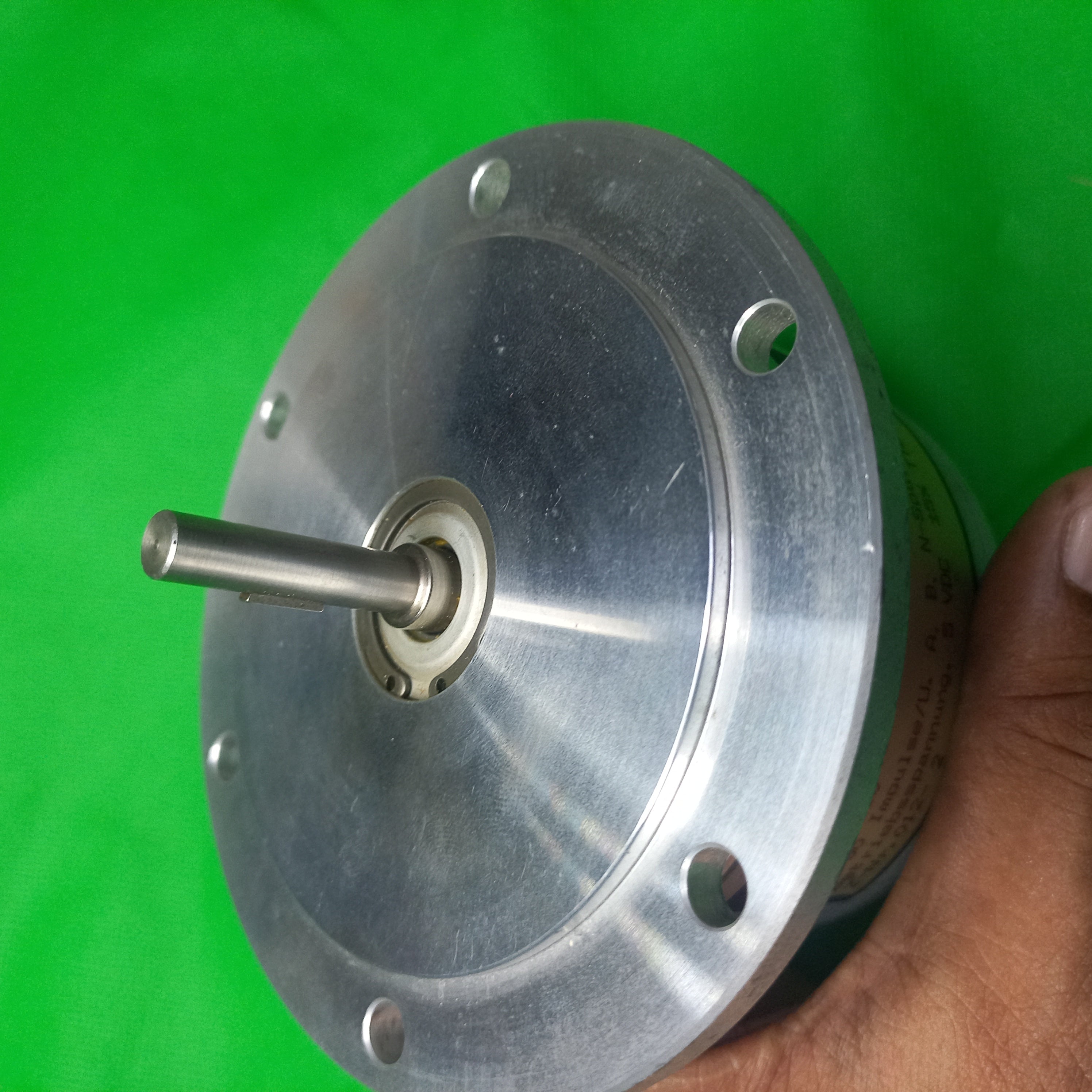

Encoder mechanical Design
- Increental Encoder Mechanical Design solid shaft with EURO flange B10
- Incremental Encoder Construction size (flange) Ø 115 mm
- Incremental Encoder Shaft diameter 7mm ( Thalheim )
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail TTL
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution50
- incremental Encoder Range of pulses per revolution0 ... 1024
- Signal Details:

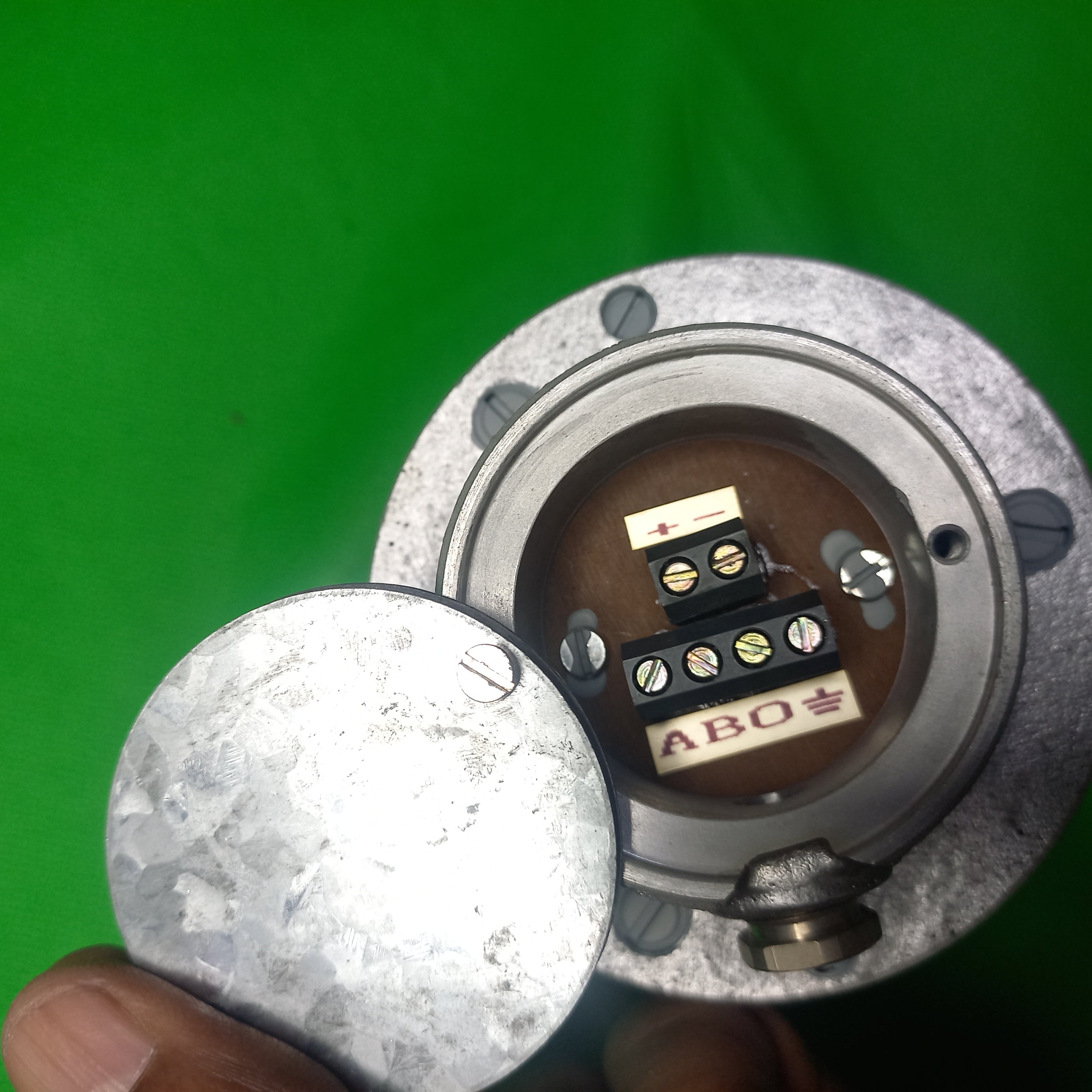

Connection Details of encoder

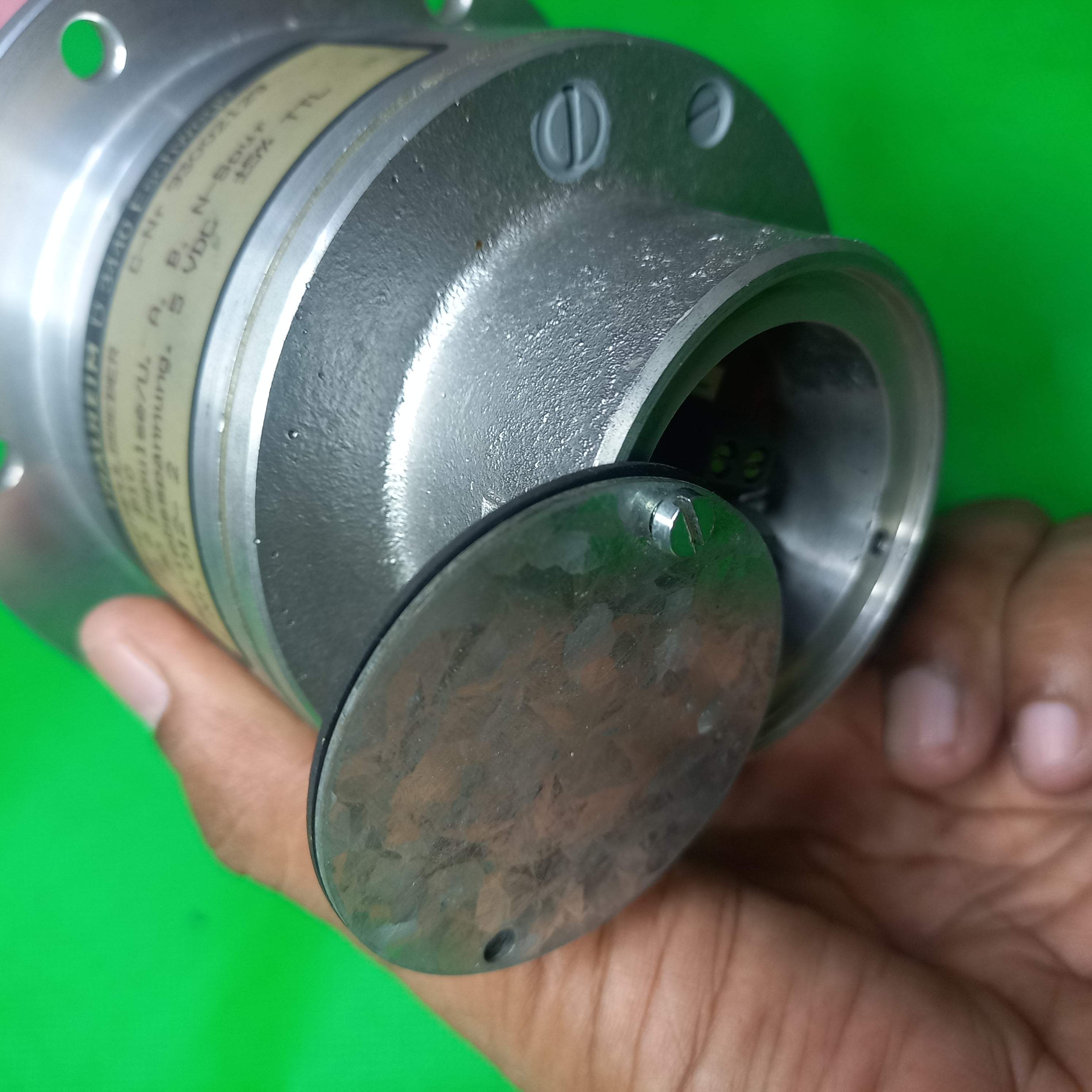

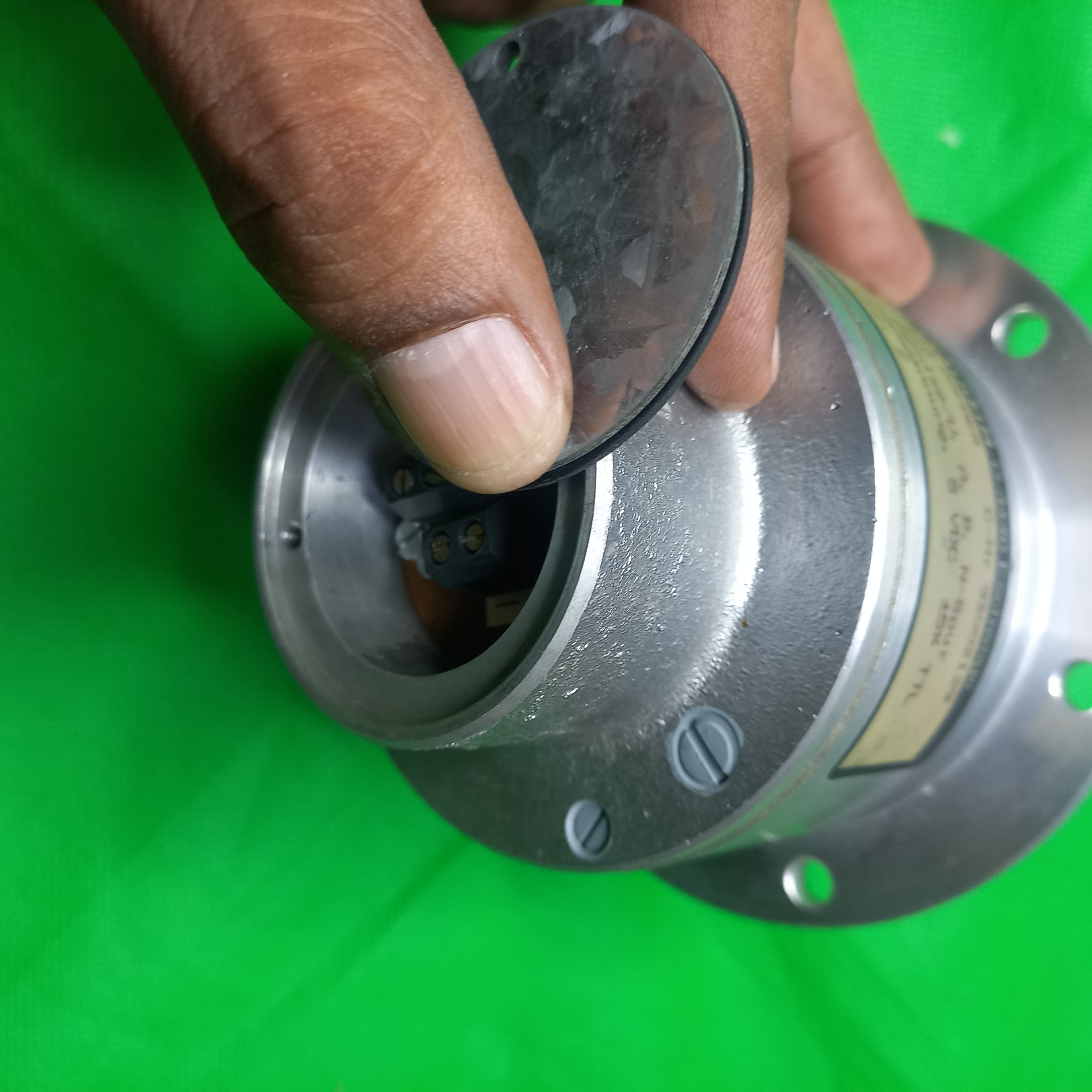

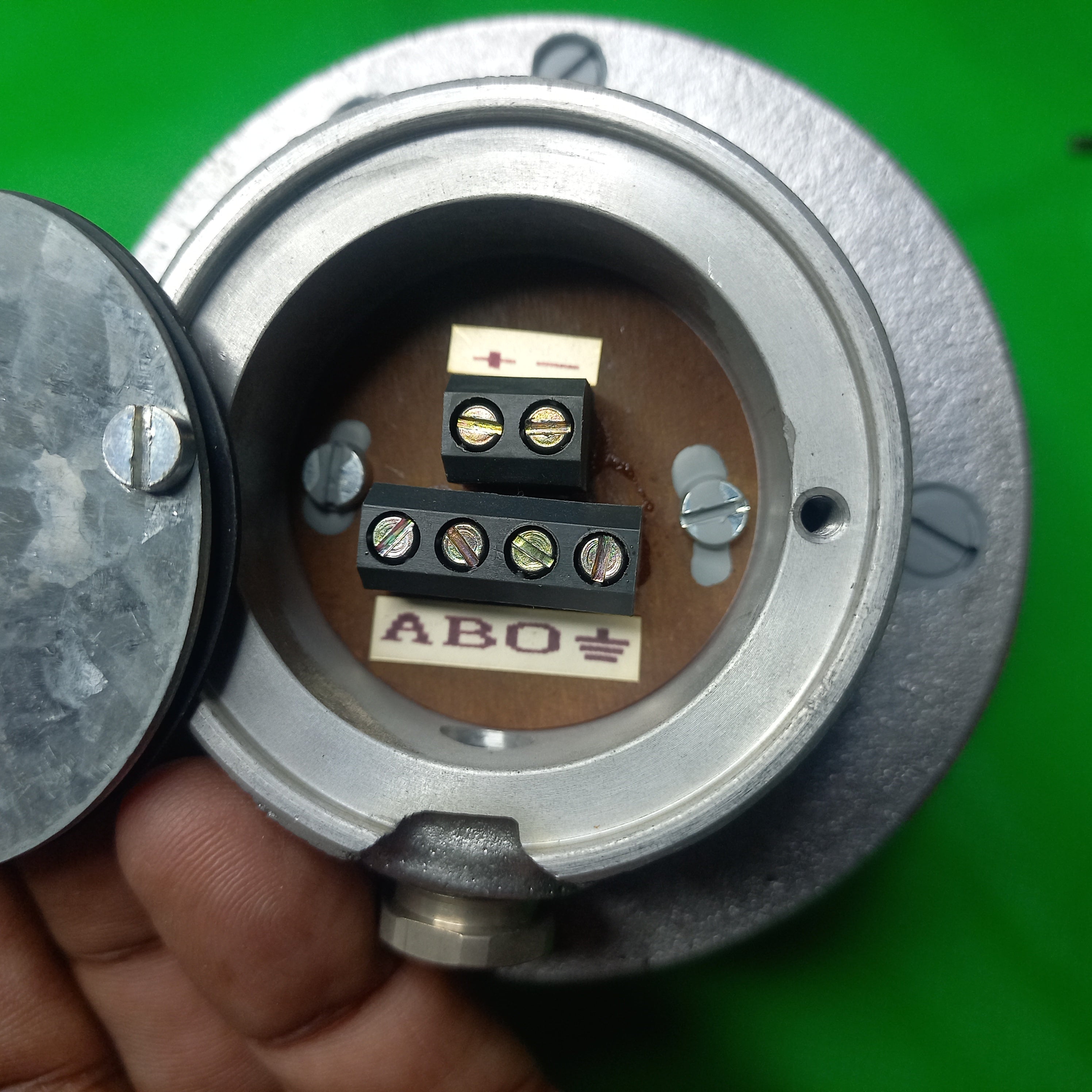

- Connection type (Detail)Terminal boxes

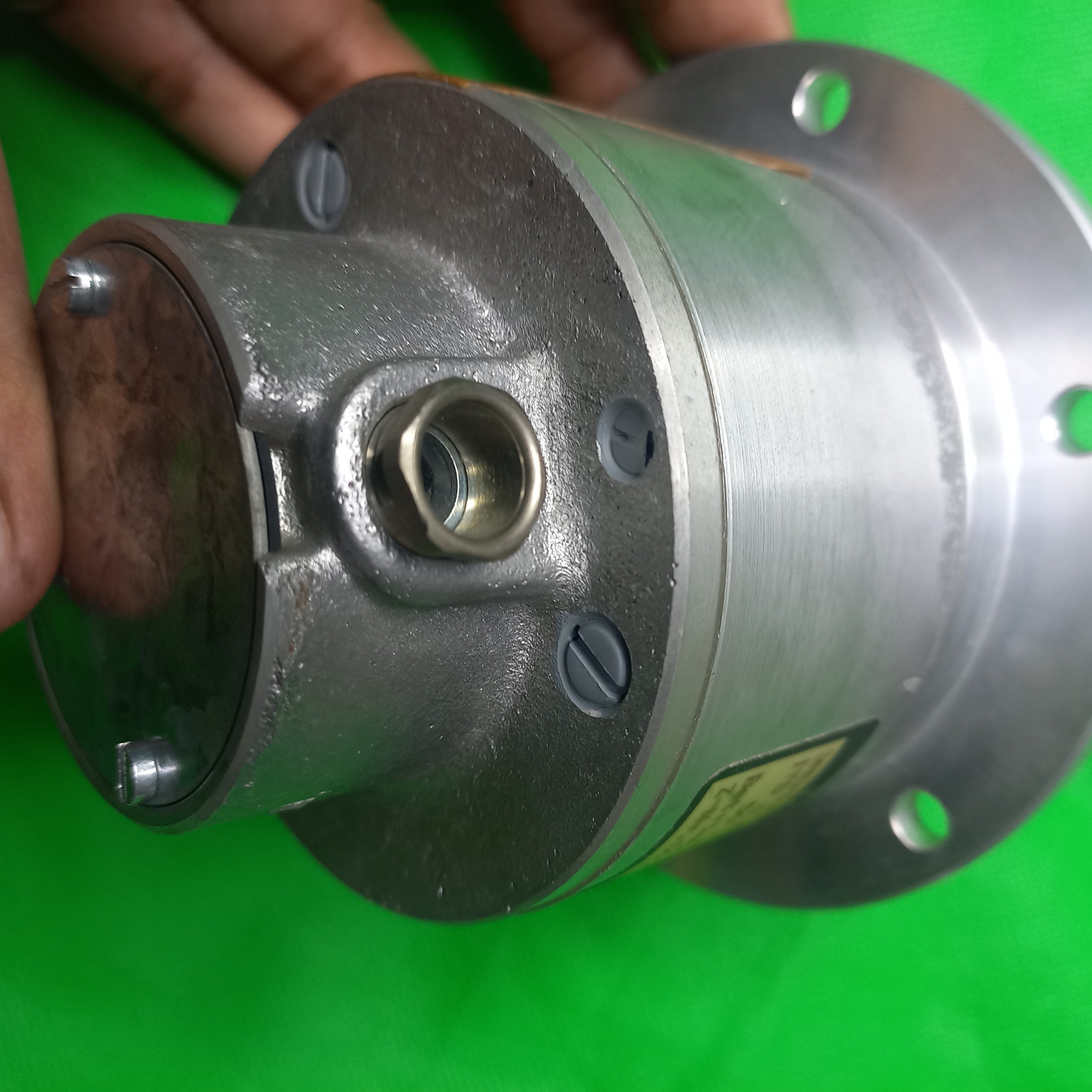

- Direction of connection Radial
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNITD 4 B10
- Manufacturer indent Nr.ITD4 B10
- 1 Manufacturer Part Number (MPN) Z-Nr.012-2
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
Brand, Condition & Warranty Disclosure
We are Independent Reseller for this Brand - Not Authorised by manufacturer
EMERGENCY BREAKDOWN ? Need it Right away ( After Office hours?) .. No Problem | Can be arranged. Send us a Message.
