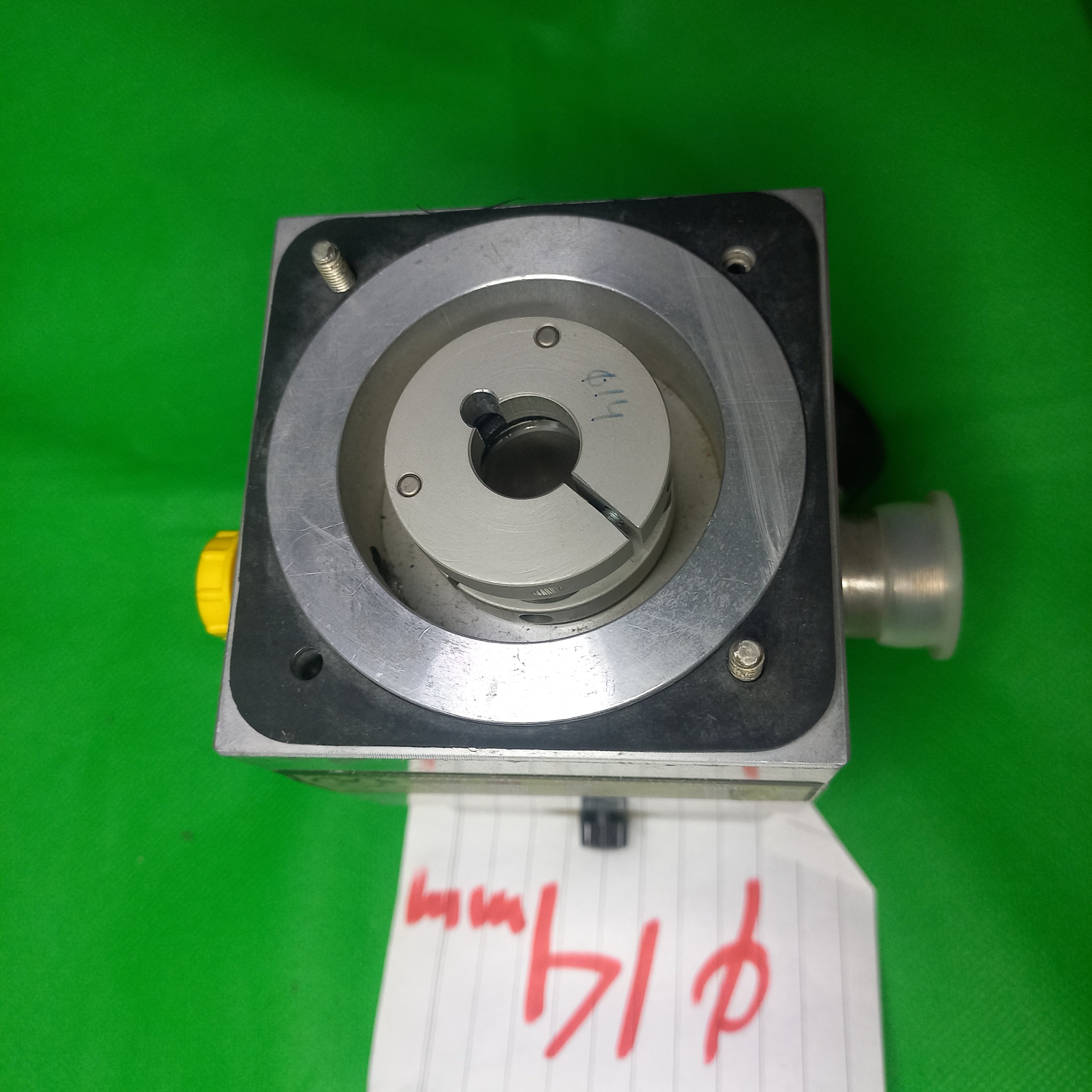

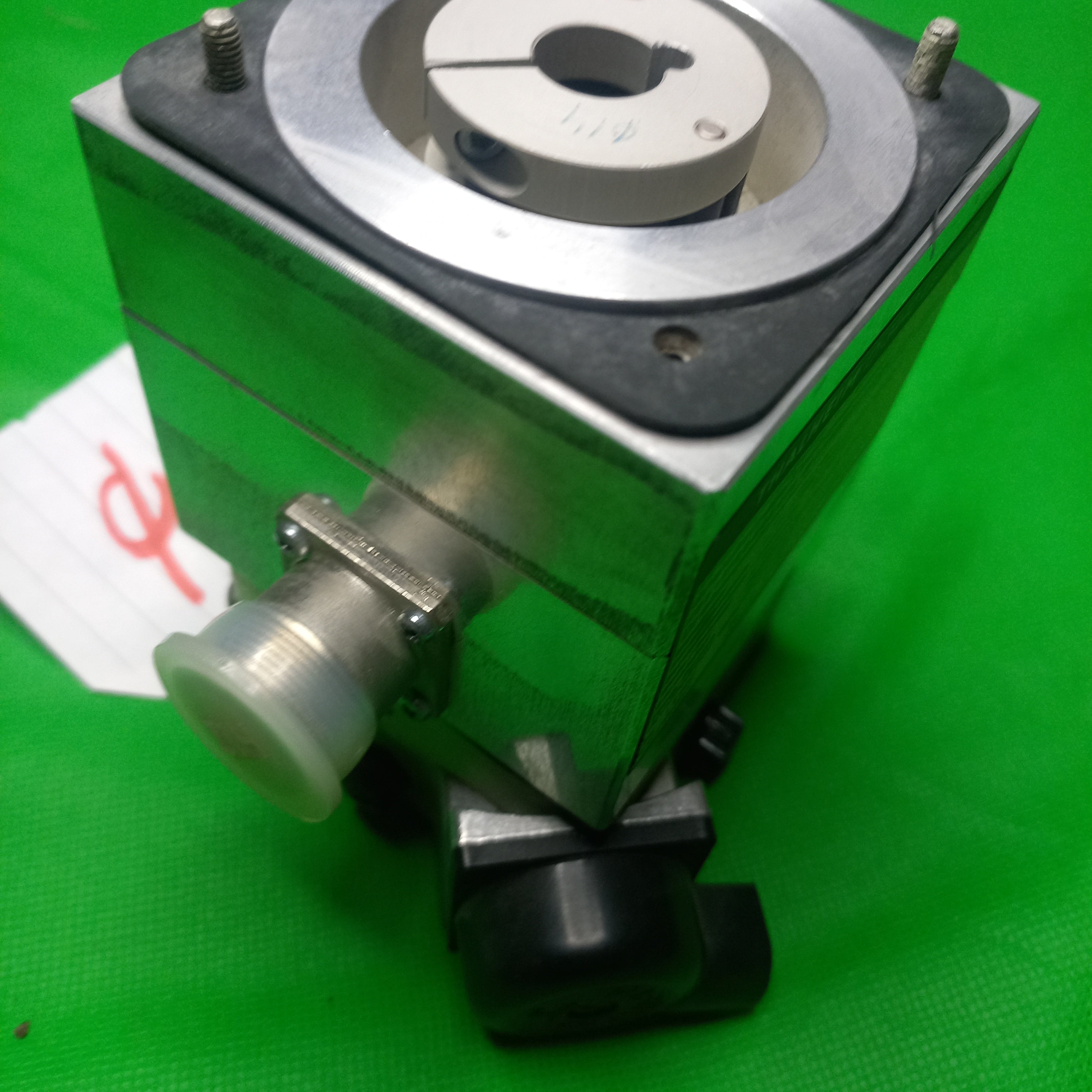

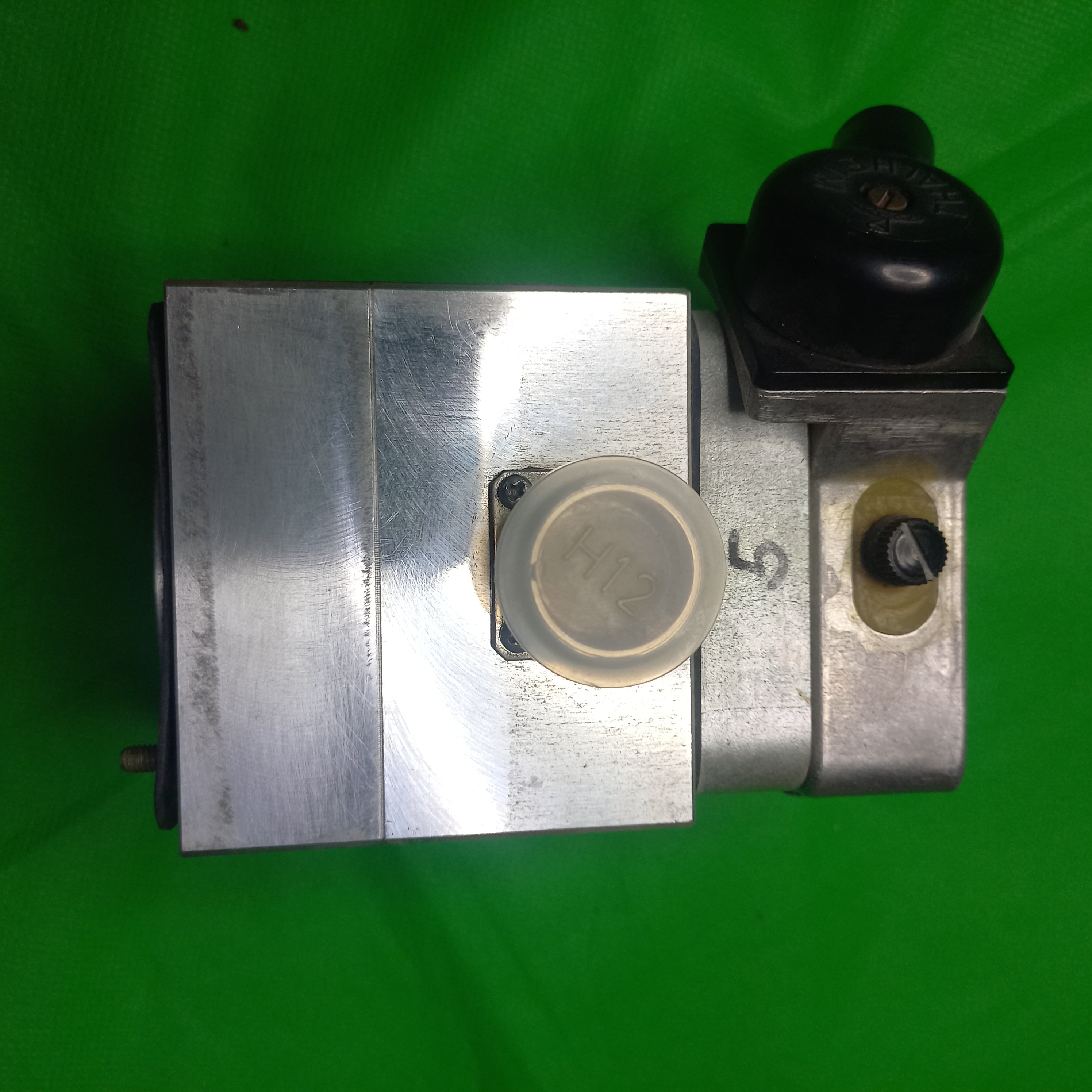

Thalheim Encoder+DC tacho-generator| ITD 3+KTD 3-0,5 A 4 Y11 64 T NI D2SR12 S 14 IP54
$2,880.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Z-Nr.: 015-2 Y11
- Encoder Type: Incremental encoder
- Supply voltage 5VDC
- Encoder ID. NR.C-Nr.: 00002775 -5
- Encoder SIgnal | 64 | TTL | Ø 115 mm | Terminal boxes
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
Ready stock Thalheim ITD 3+KTD 3-0,5 Combined Modular unit : part number is :
ITD 3+KTD 3-0.5 A 4 Y11 64 T NI D2SR12 S 14 IP54
ITD 3+KTD 3-0,5 refers to a combined modular sensor unit made by Thalheim that integrates an ITD3 optical encoder and a KTD3 DC tachogenerator into a single feedback system for industrial motors. Combined Unit: Saves mounting space on motor shafts while providing simultaneous digital position and analog speed feedback
ITD3 (Encoder): Measures speed and position using optical pulses. ( the unit here has 64 Pulse per revolution output - TTL)
KTD3 (Tachogenerator): Generates an analog voltage proportional to rotation speed. DC tacho-generator: UN: ±5 VDC at 10 mA (referenced to 1000 rpm)

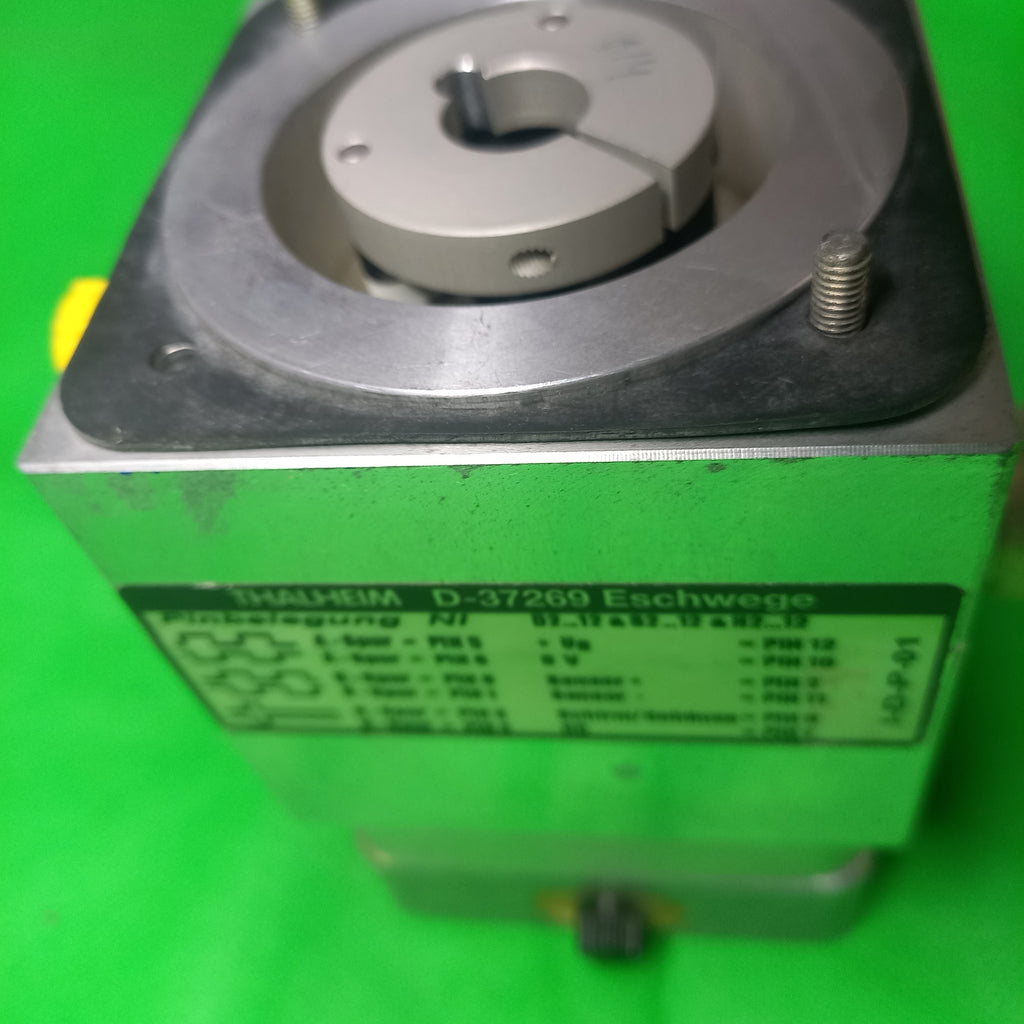

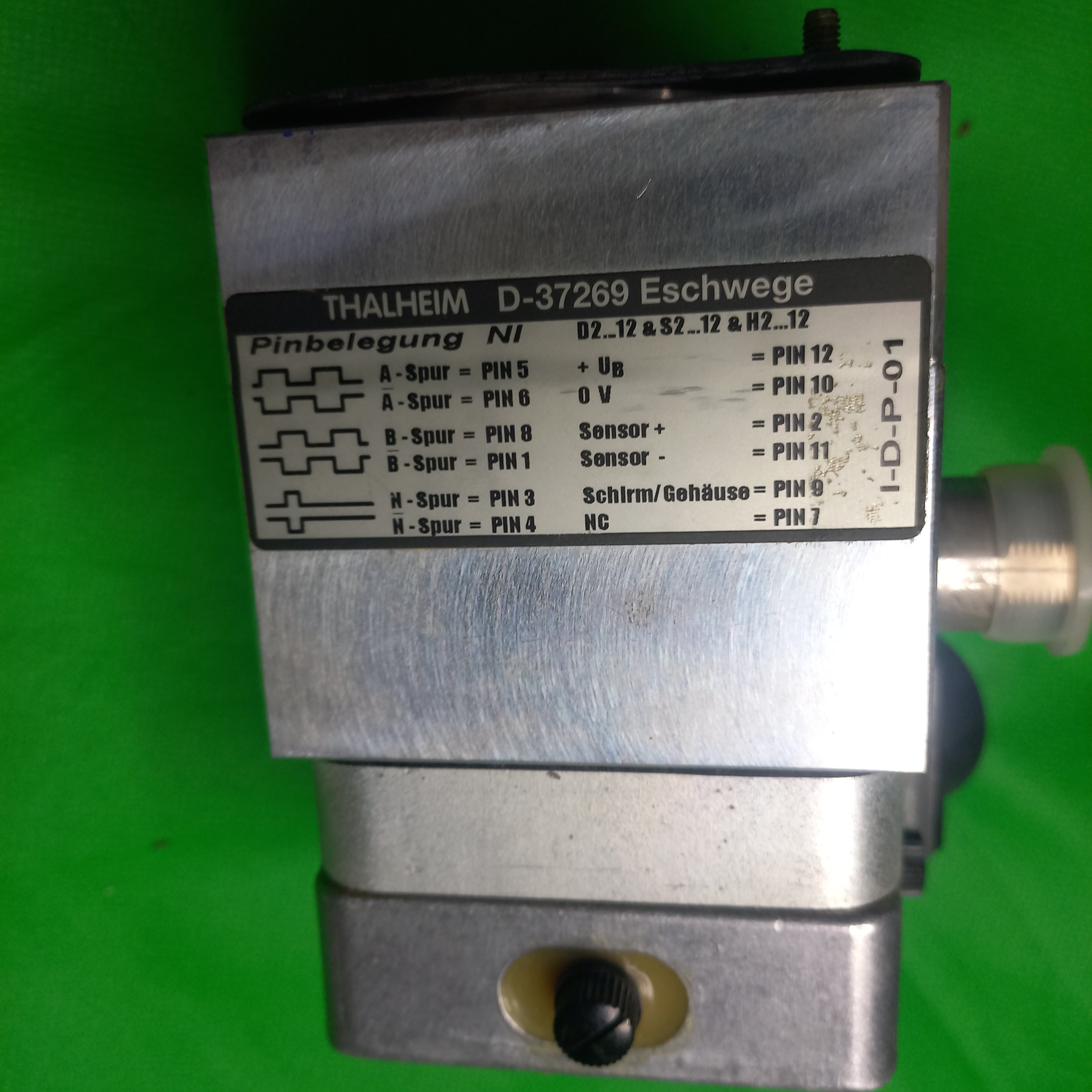

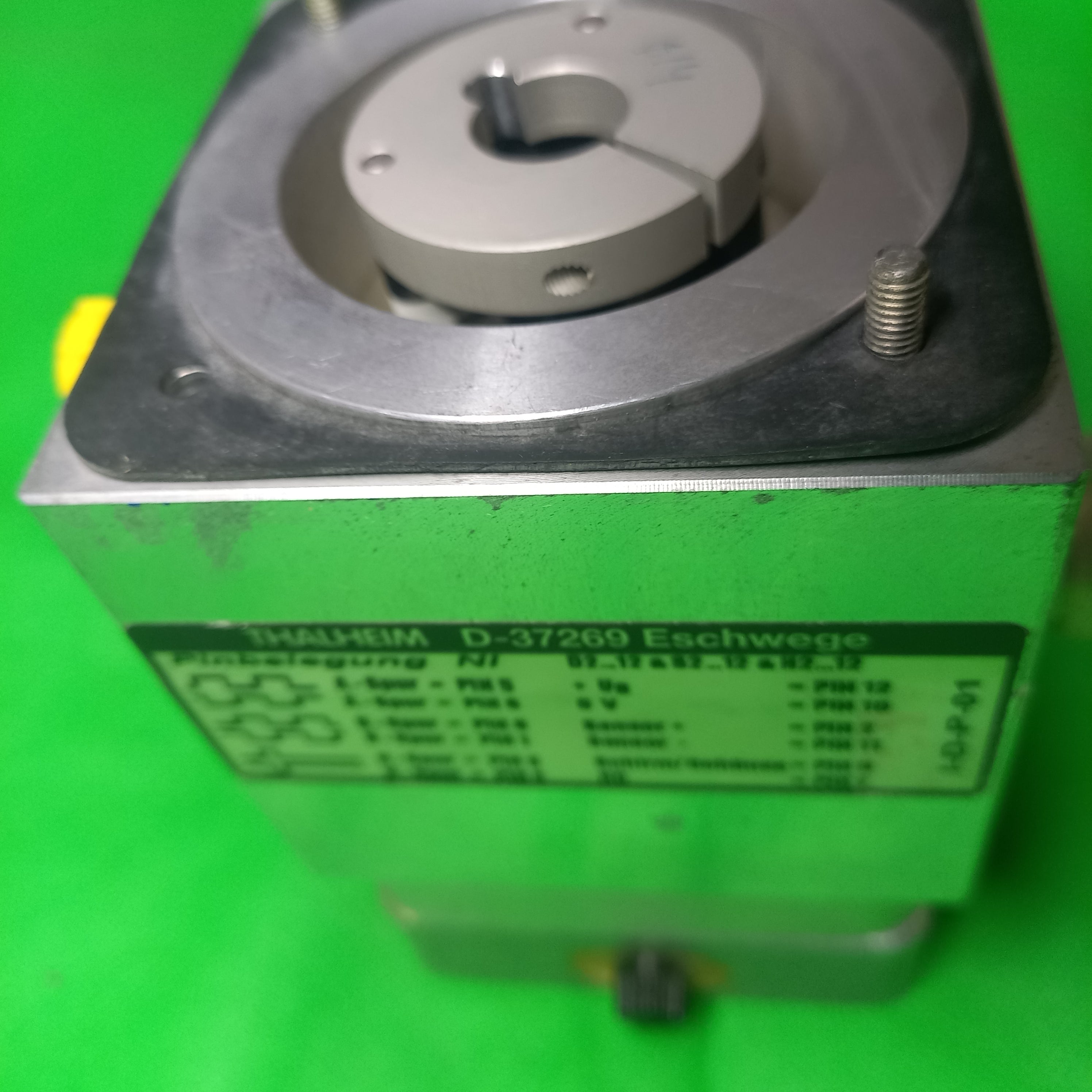

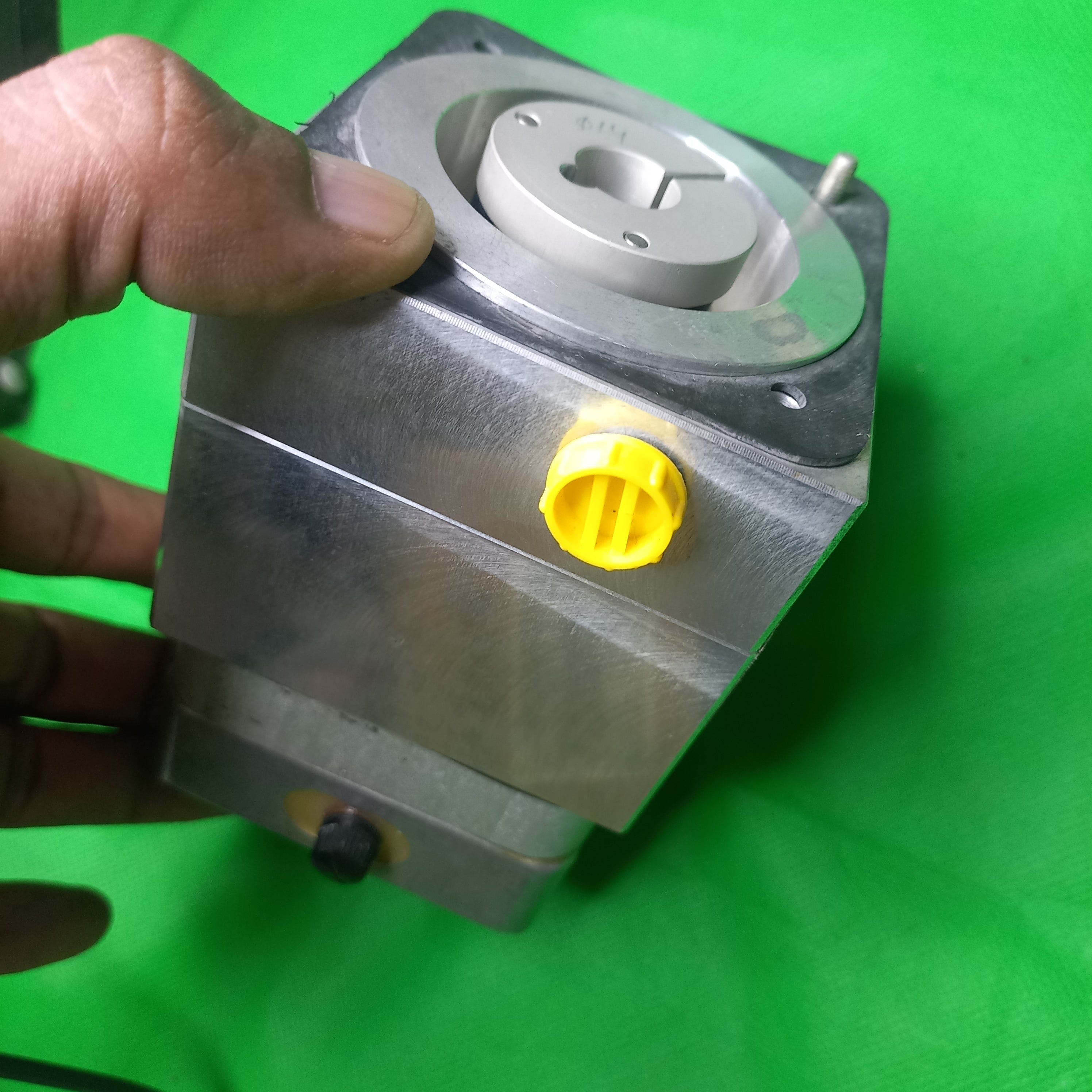

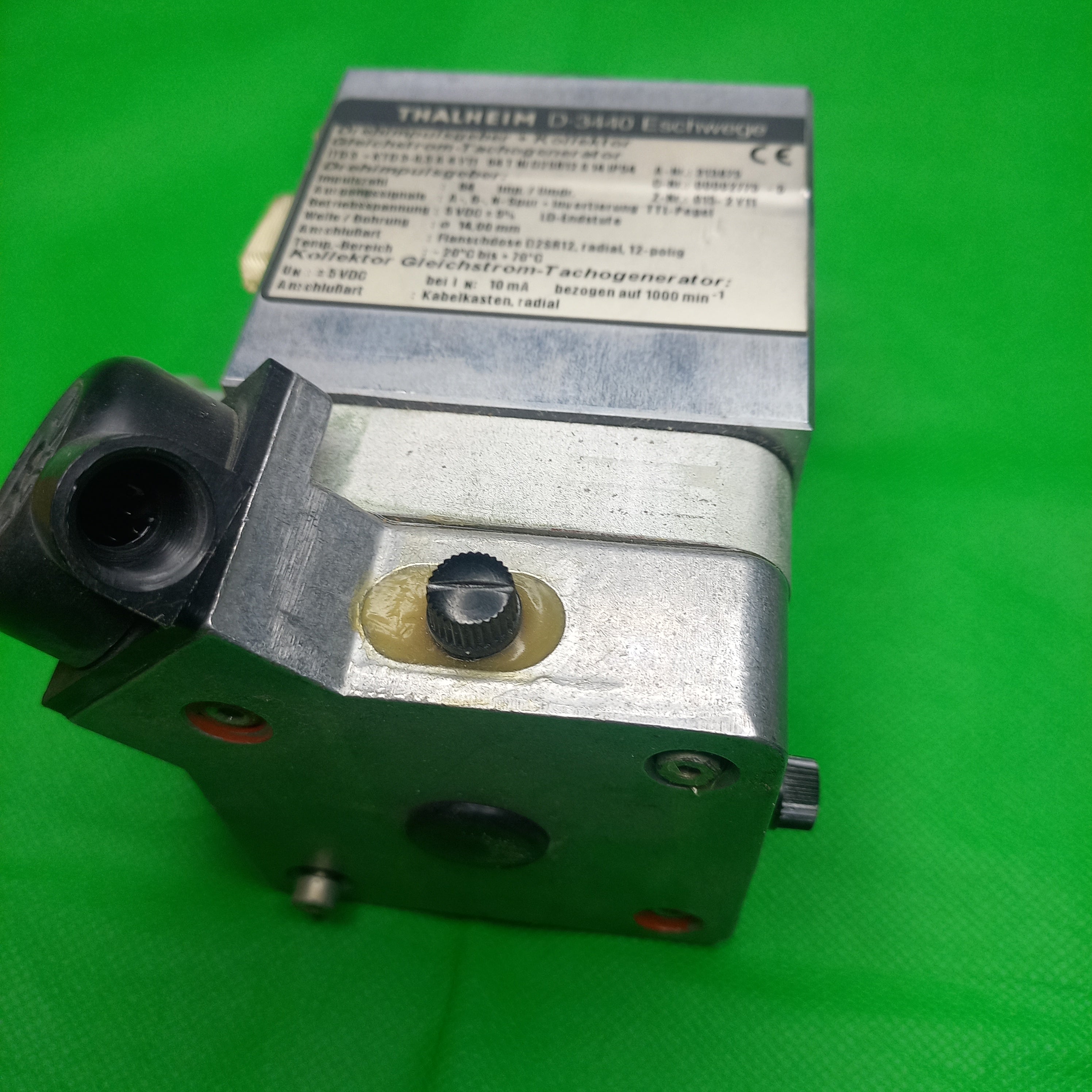

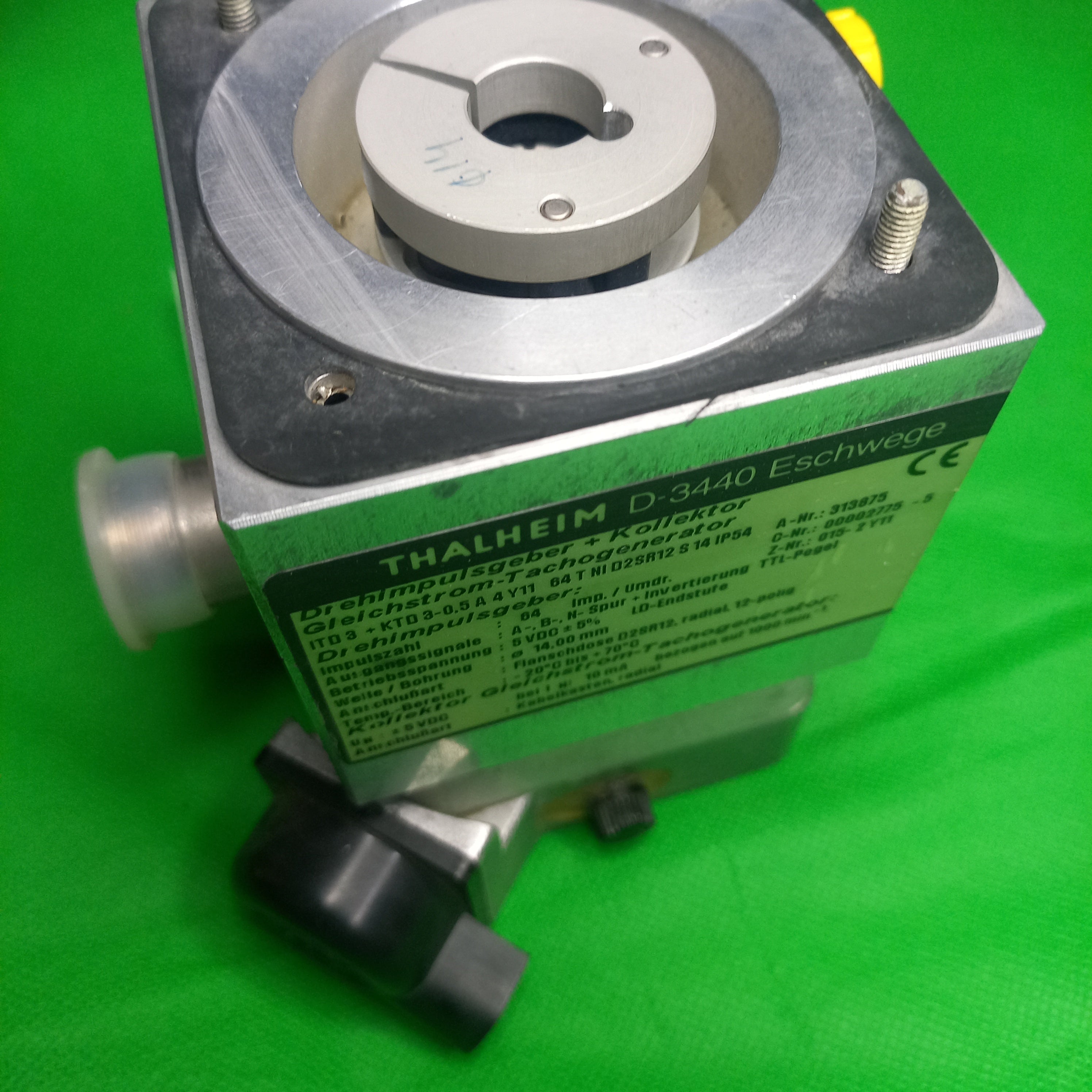

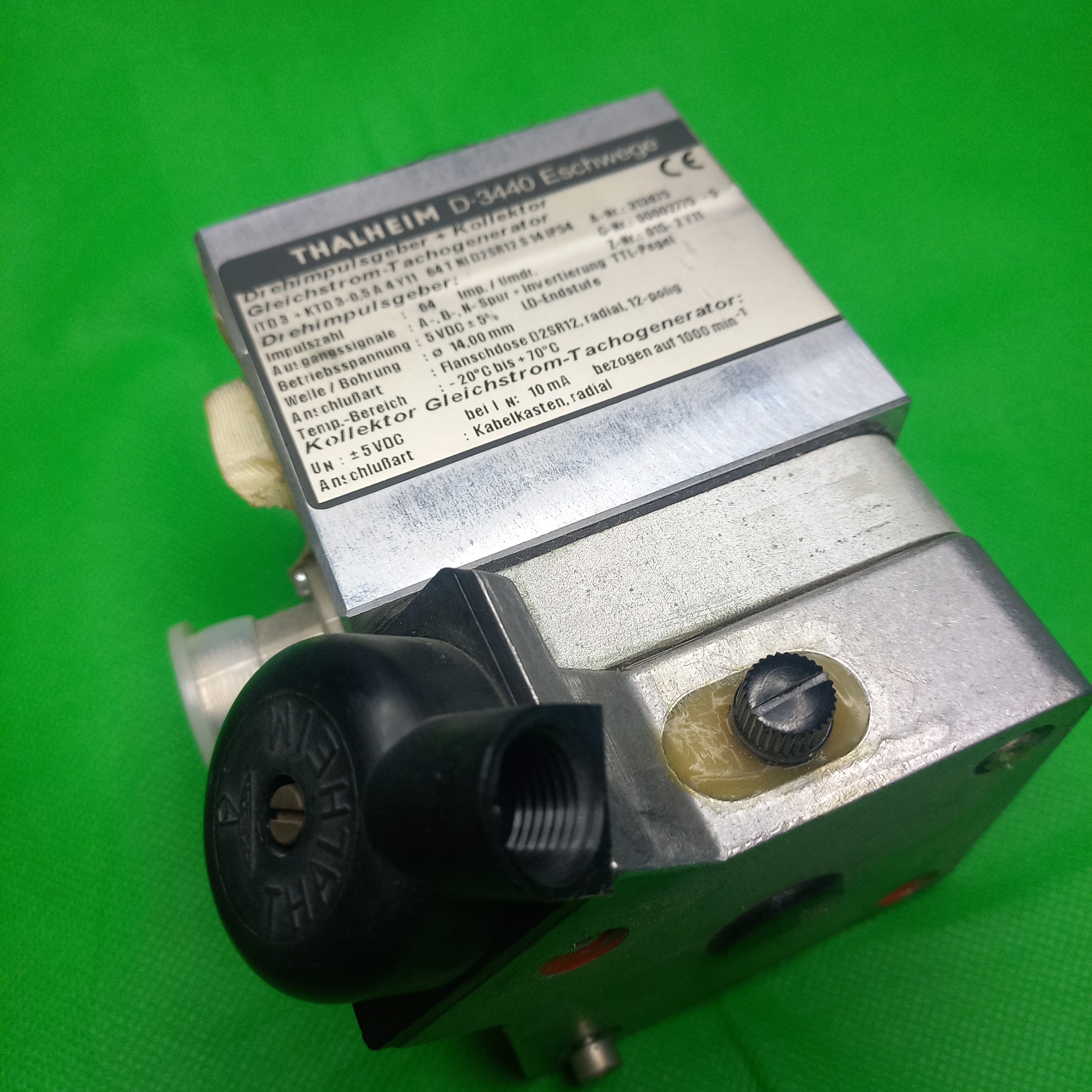

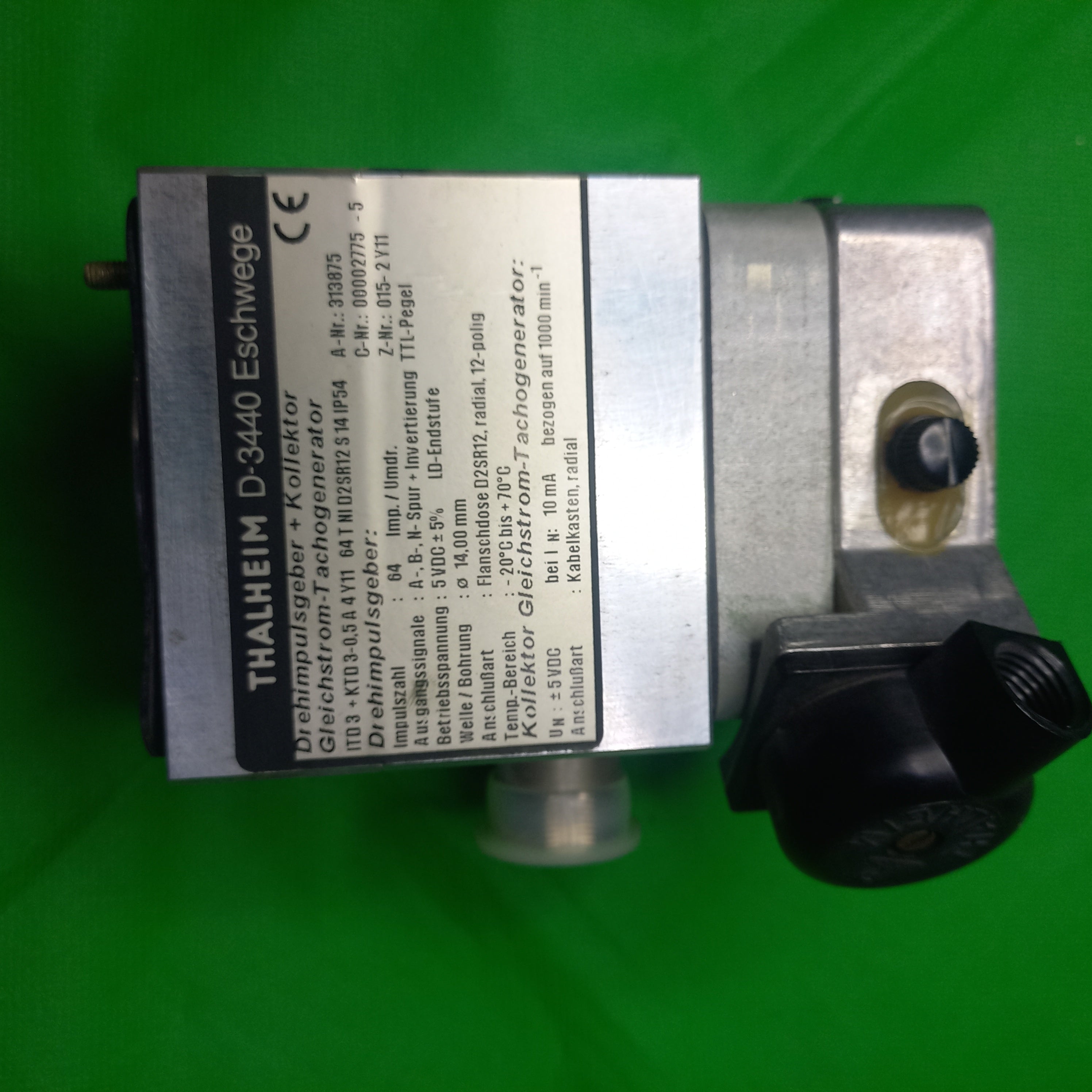

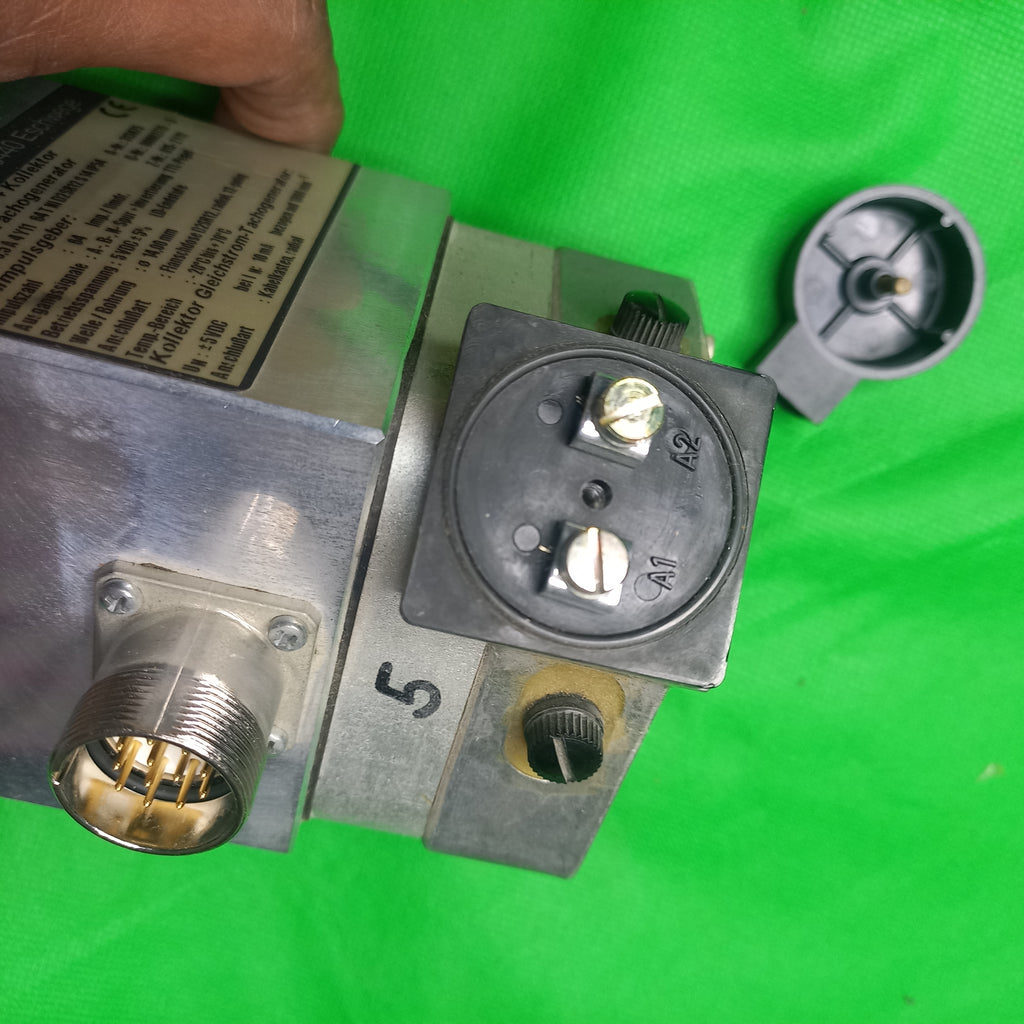

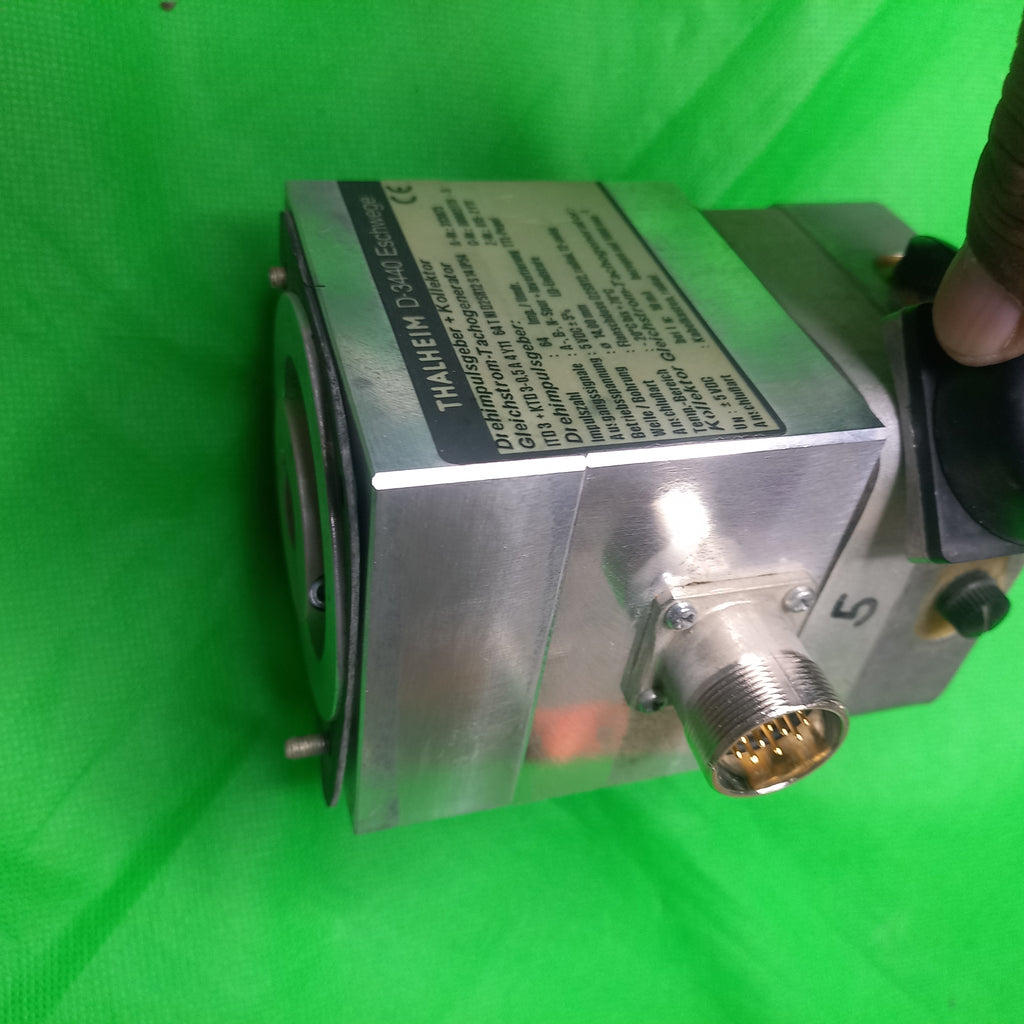

Specification sticker details:

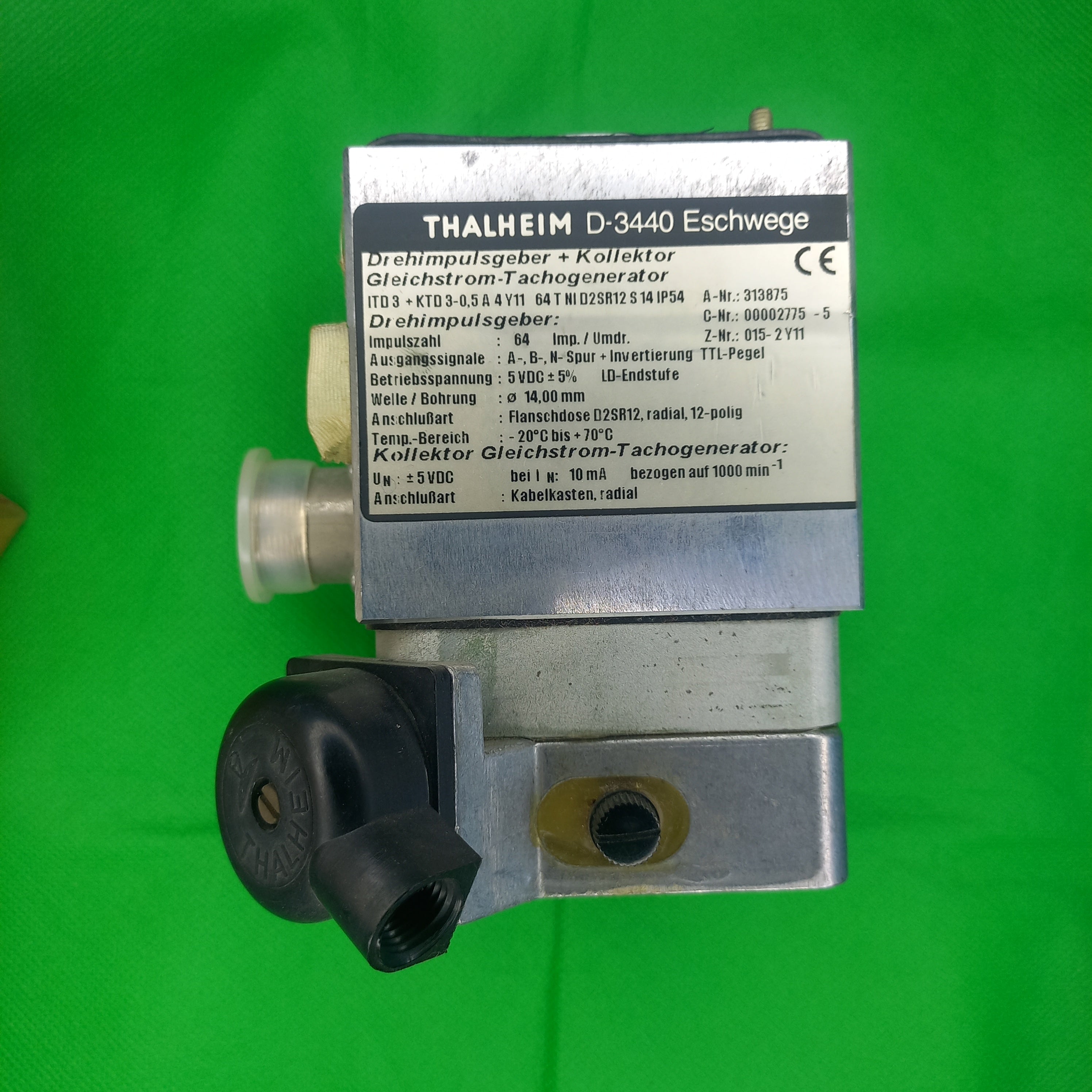

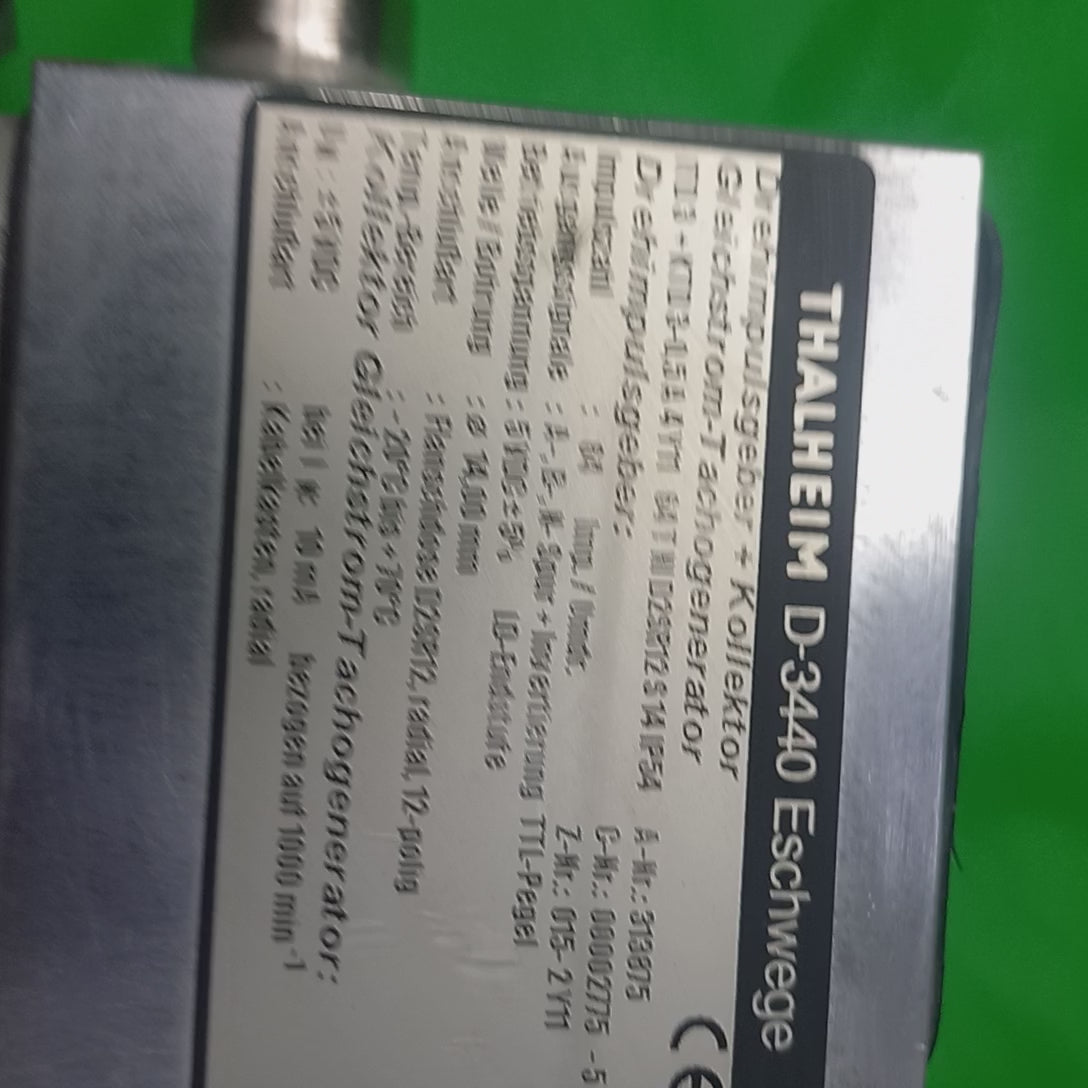

| THALHEIM Drehimpulsgeber + Kollektor Gleichstrom-Tachogenerator ITD 3+KTD 3-0,5 A 4 Y11 64 T NI D2SR12 S 14 IP54 Drehimpulsgeber: Impulszahl: 64 Imp. / Umdr. Ausgangssignale : A-, B-, N- Spur + Invertierung TTL-Pegel Betriebsspannung: 5 VDC ± 5% LD-Endstufe Welle/Bohrung : Ø 14,00 mm Anschlußart : Flanschdose D2SR12, radial, 12-polig Temp.-Bereich : -20°C bis +70°C Kollektor Gleichstrom-Tachogenerator: UN: ±5VDC bei | N: 10 mA bezogen auf 1000 min-1 Anschlußart : Kabelkasten, radial A-Nr.: 313875 C-Nr.: 00002775 -5 Z-Nr.: 015-2 Y11 |

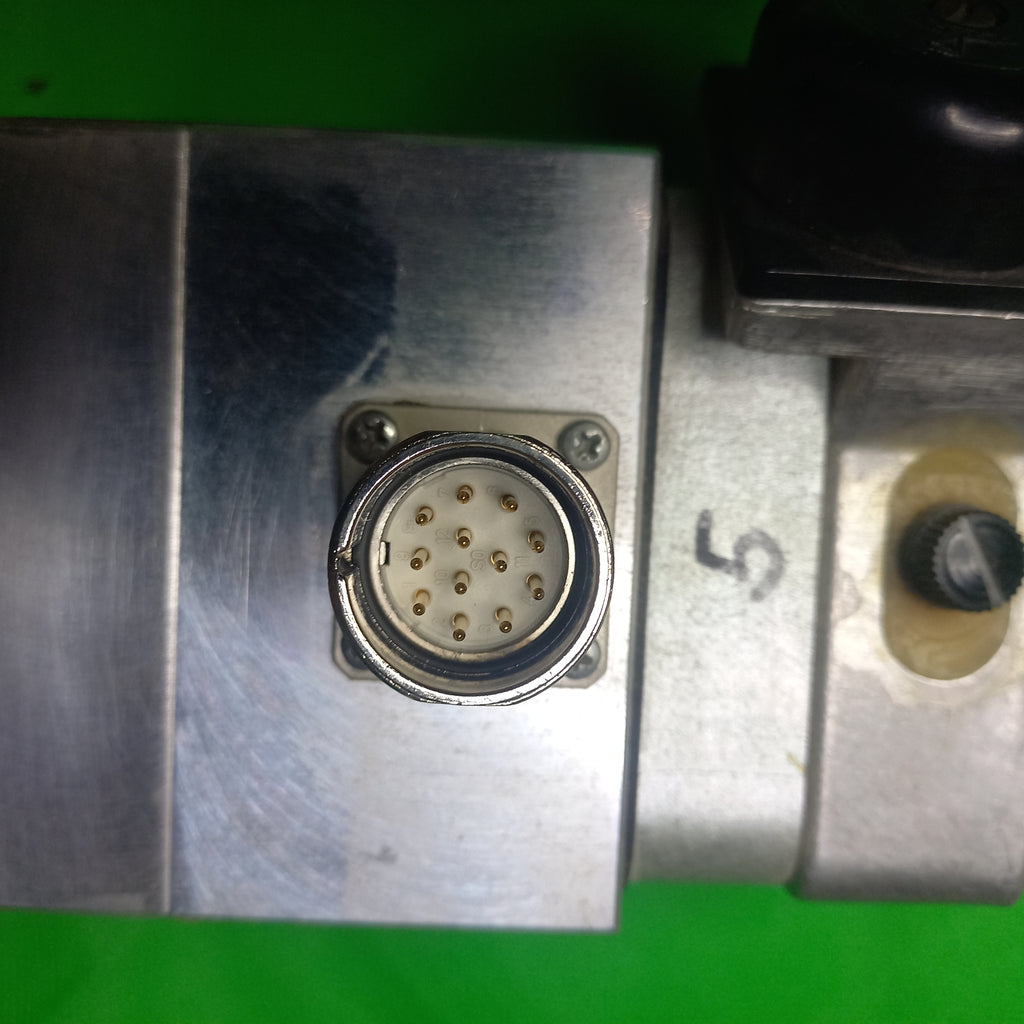

THALHEIM Rotary encoder + DC tacho-generator DC tacho-generator ITD 3+KTD 3-0.5 A 4 Y11 64 T NI D2SR12 S 14 IP54 Rotary encoder: Pulse count: 64 pulses/rev. Output signals: A, B, N tracks + inversion, TTL level Operating voltage: 5 VDC ± 5%, LD output stage Shaft/Bore: Ø 14.00 mm Connection type: Flange socket D2SR12, radial, 12-pin Temp. range: -20°C to +70°C DC tacho-generator: UN: ±5 VDC at 10 mA (referenced to 1000 rpm) Connection type: Cable box, radial A-No.: 313875 C-No.: 00002775 -5 Z-No.: 015-2 Y11 |
Qualities:
- Robust incremental encoder for industrial use
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design

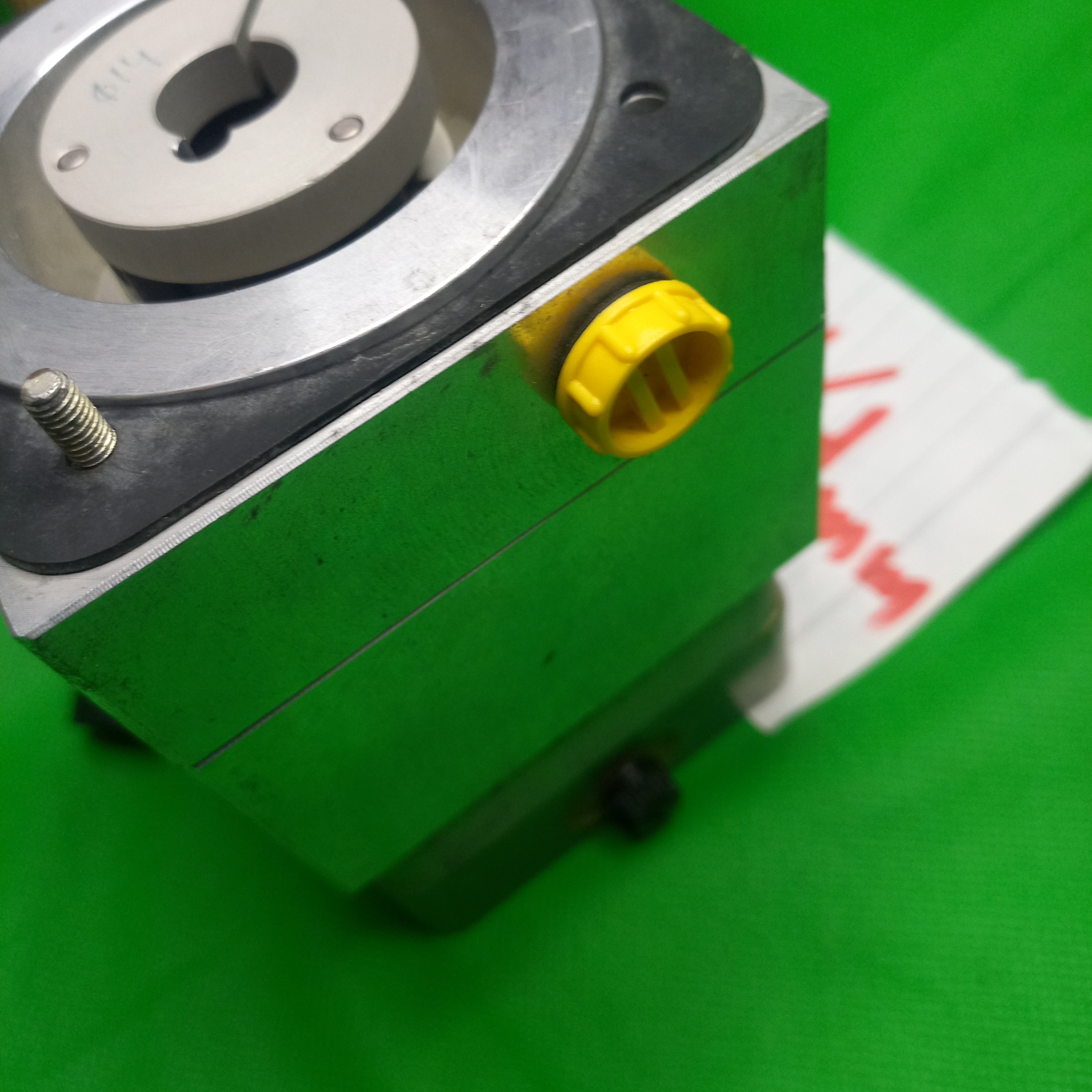

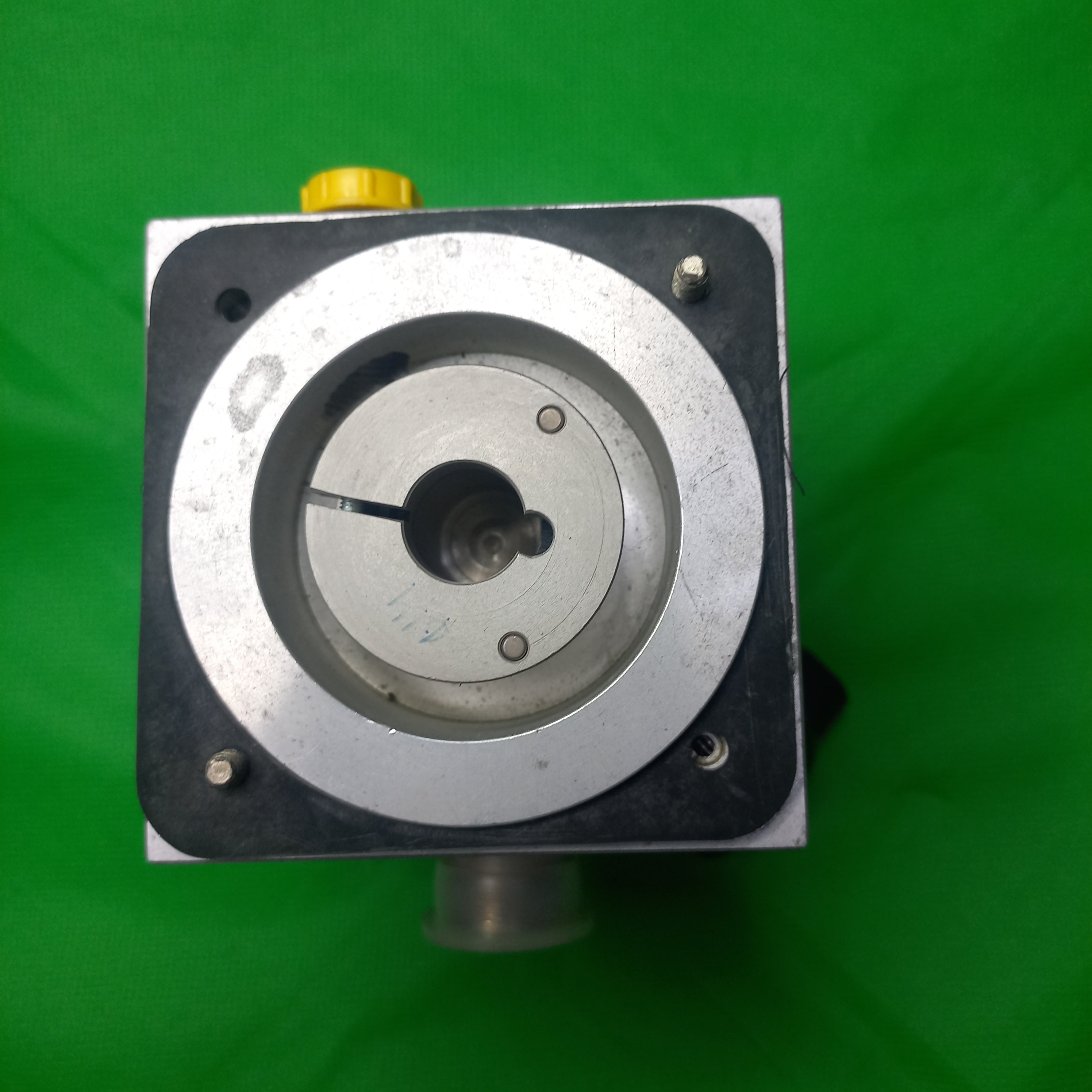

- Increental Encoder Mechanical Design solid shaft with EURO flange B10
