Thalheim ITD4KTD3-6 B10_Encoder+DC tacho-generator | ITD 4 + KTD 3-6 B10 | 360ppr 60v

Name: Thalheim ITD4KTD3-6 B10_Encoder+DC tacho-generator | ITD 4 + KTD 3-6 B10 | 360ppr 60v
Brand: Thalheim (Baumer)
SKU: itd458
Price: 2880.00 USD
Availability: InStock

$2,880.00

Taxes included. Shipping calculated at checkout.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

Manufacturer Part Number: Z-No. 022-13
Encoder Type: Incremental encoder
Supply voltage 8-30VDC
Encoder ID. NR.ITD 4 + KTD 3-6 B10
Encoder SIgnal Ouptut Signals: Aderkennung bl= - rt= + = Betr. Spg.
gnu= Kanal, gr= B Kanal,
gn/ge= Masse, Schirm nicht = Masse | 360 | HTL | Ø 115 mm | Terminal boxes

View Manufacturer Product Page

Download Product Datasheet

Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

Thalheim ITD4KTD3-6 B10_Encoder+DC tacho-generator | ITD4 + KTD 3-6 B10

THALHEIM

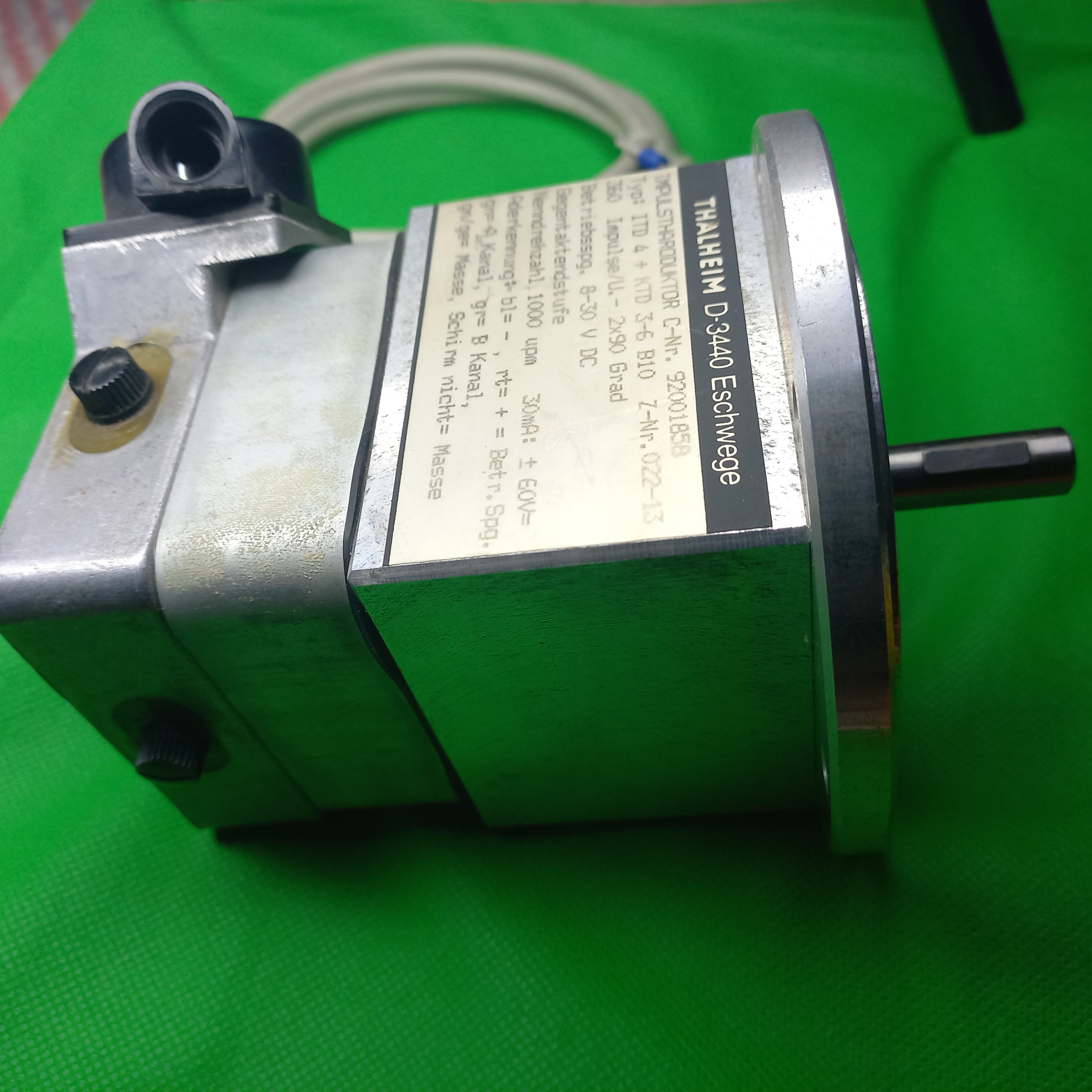

IMPULSTHARODUKTOR C-Nr. 92001858
Typ: ITD4+KTD3-6 B10 Z-Nr. 022-13
360 Impulse/U.- 2x90 Grad
Betriebsspg. 8-30 V DC

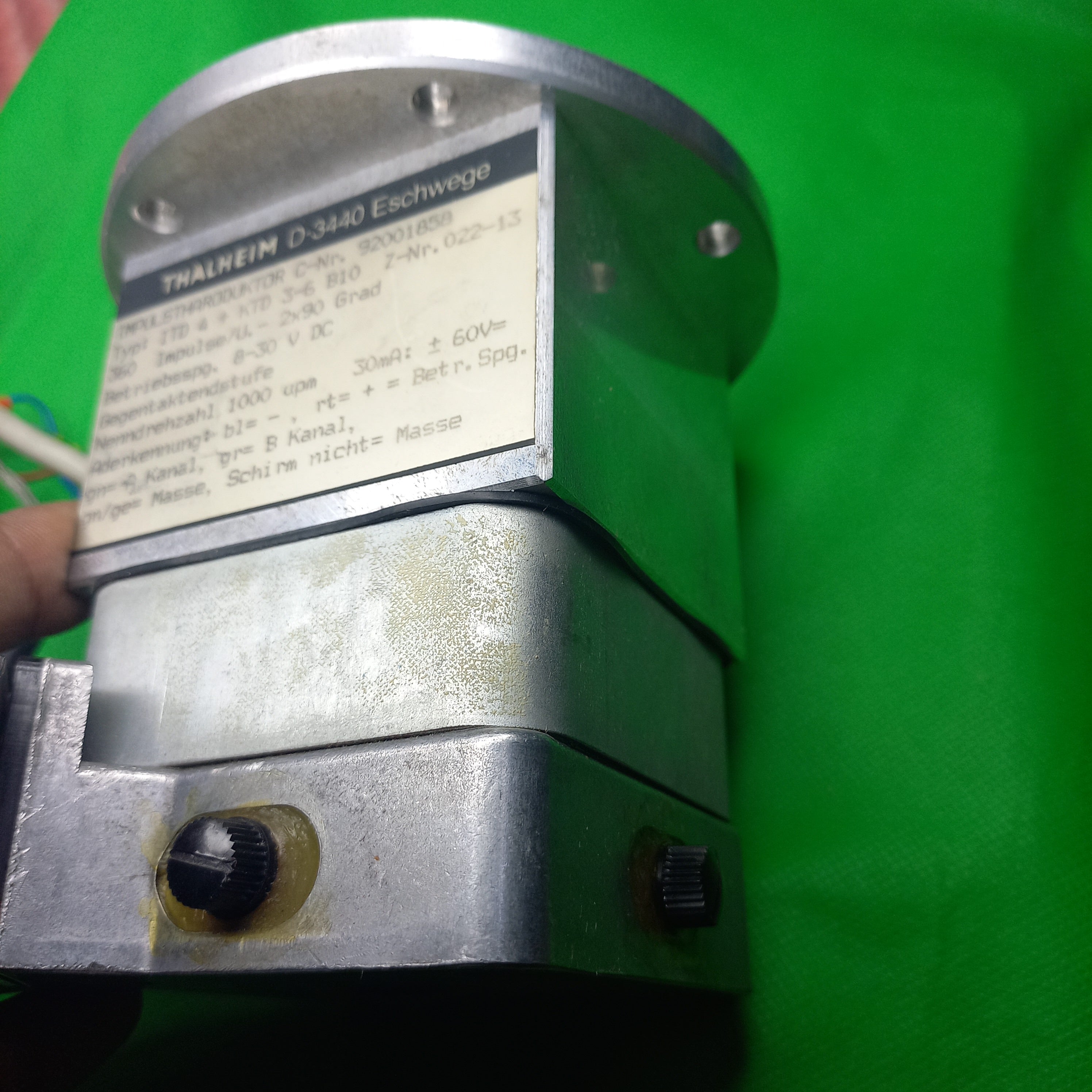

Gegentaktendstufe
Nenndrehzahly 1000 upm 30mA: ± 60V=
Aderkennung bl= (- ), rt= (+) = Betr. Spg.
gnu= A Kanal, gr= B Kanal,
gn/ge= Masse, Schirm nicht = Masse

THALHEIM
PULSE DIRECTOR C-No. 92001858
Type: ITD 4 + KTD 3-6 B10 Z-No. 022-13
360 pulses/rev - 2x90 degrees
Operating voltage 8-30 V DC
Push-pull output stage
Rated speed 1000 rpm 30 mA: ± 60 V DC
Wire identification: blue = -, red = + = Operating voltage
green = Channel, green = Channel B
green/yellow = Ground, shield = Ground

Encoder Type:

Salient | Special features of Encoder: Robust encoder

Encoder mechanical Design

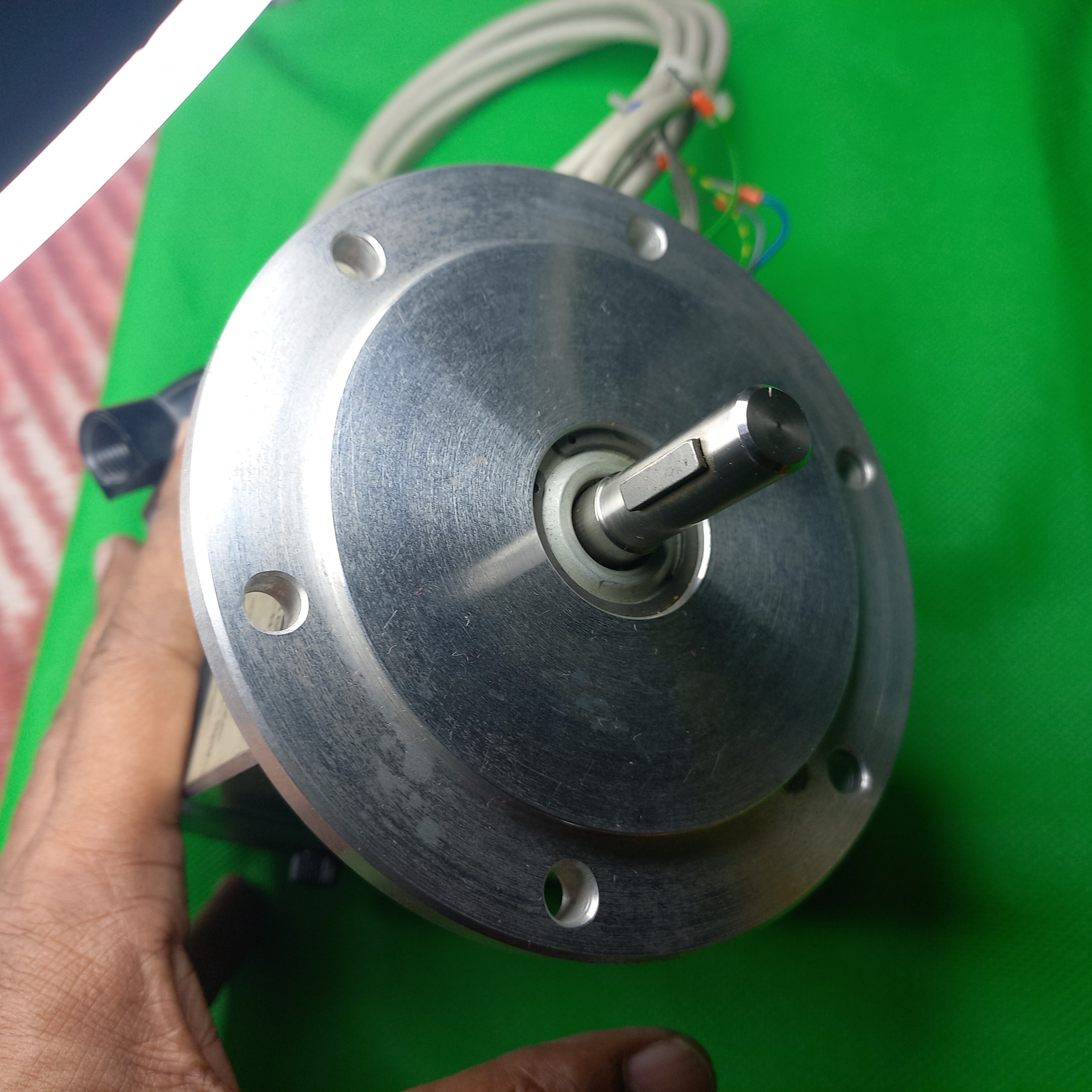

Increental Encoder Mechanical Design solid shaft with EURO flange B10
Incremental Encoder Construction size (flange) Ø 115 mm
Incremental Encoder Shaft diameter 14 mm

Encoder Signal Interface | Communication

Incremental Encoder Communication Interface detail HTL

Performance Data:

Incremental encoder PPR | Impulse | Pulses per revolution360

incremental Encoder Range of pulses per revolution0 ... 1024
Signal Details: Ouptut Signals: Aderkennung bl= - rt= + = Betr. Spg.
gnu= Kanal, gr= B Kanal,
gn/ge= Masse, Schirm nicht = Masse

Connection Details of encoder

Connection type (Detail)Terminal boxes
Direction of connection

Mounting Arrangement for Encoder Body

- Check Datasheet or Contact us

Manufacturer Alternative MPNITD4+KTD3-6 B10 Z-Nr. 022-13
Manufacturer indent Nr.ITD4+KTD3-6
1 Manufacturer Part Number (MPN) Z-No. 022-13
Alternative ways of identifying | Part Numbers | Compatible Parts C-No. 92001858
Typographic Errors in MPN | Mistakenly Known as ITD4KTD36
