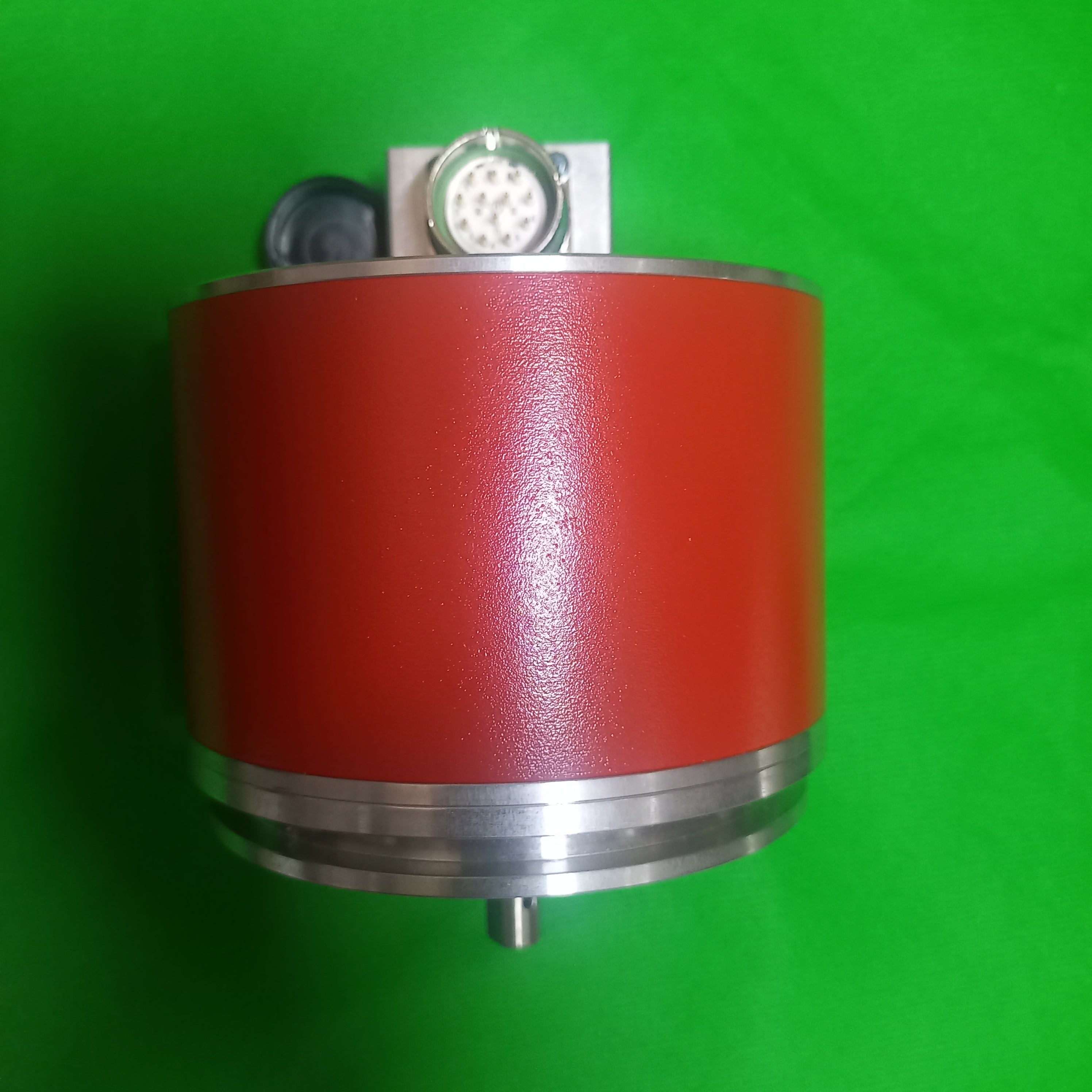

TR CE100M | Art.Nr. 100-00102 | HAS/Binar |MultiTurn Absolute 1024/4096
$3,680.00
Skip to product information
Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days
TR CE100M | Art.Nr. 100-00102 | HAS/Binar |MultiTurn Absolute 1024/4096
$3,680.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = CE 100M
- Manufacturer MPN = TR CE100M Art.Nr. 100-00102
- Encoder Type = Absolute Encoder
- Supply voltage = 11 - 27 VCC
- ID. NR. = CE 100M
- indent Nr. = CE 100 M Art.Nr. 10000102
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = CE 100M

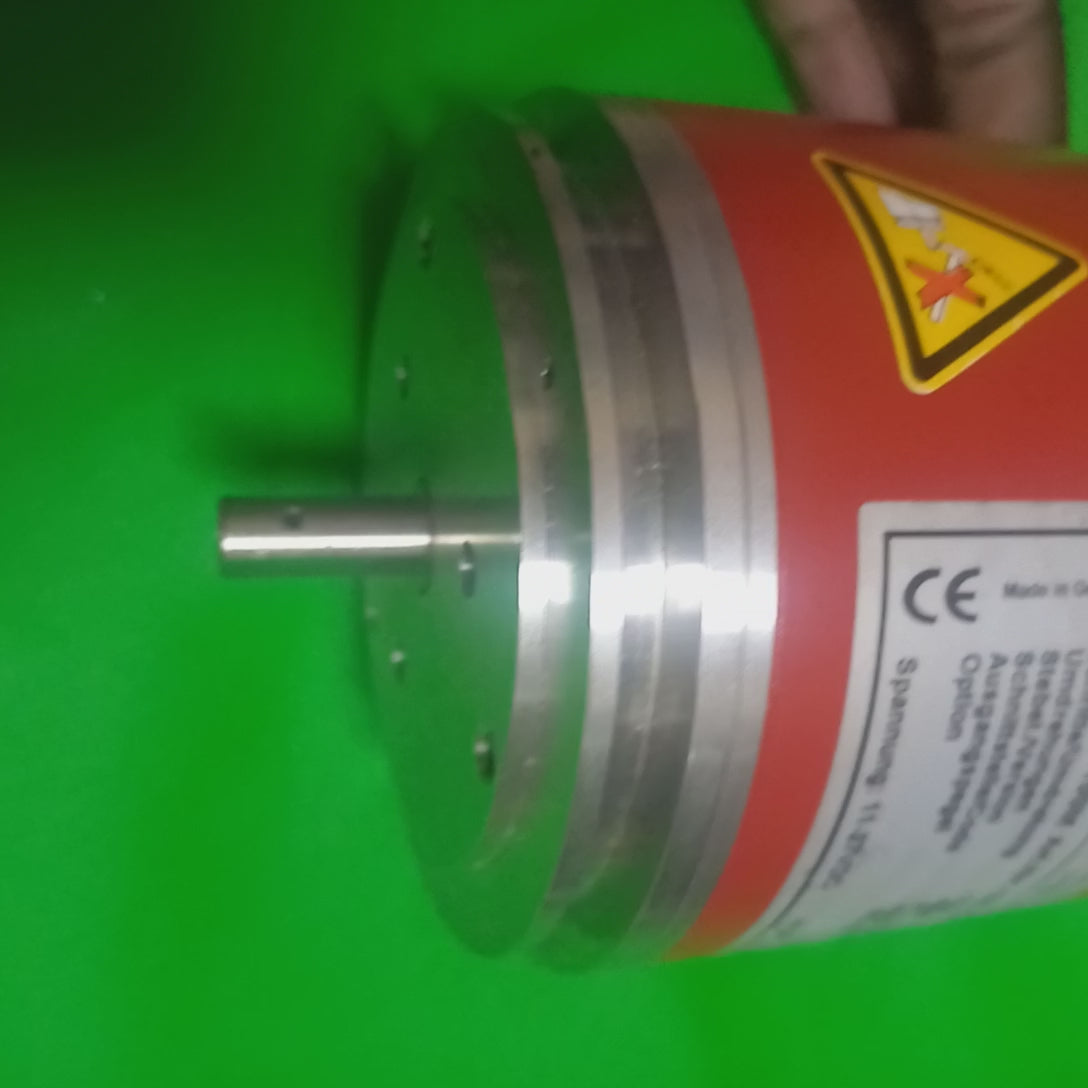

Mechanical Design Features of this Encoder:

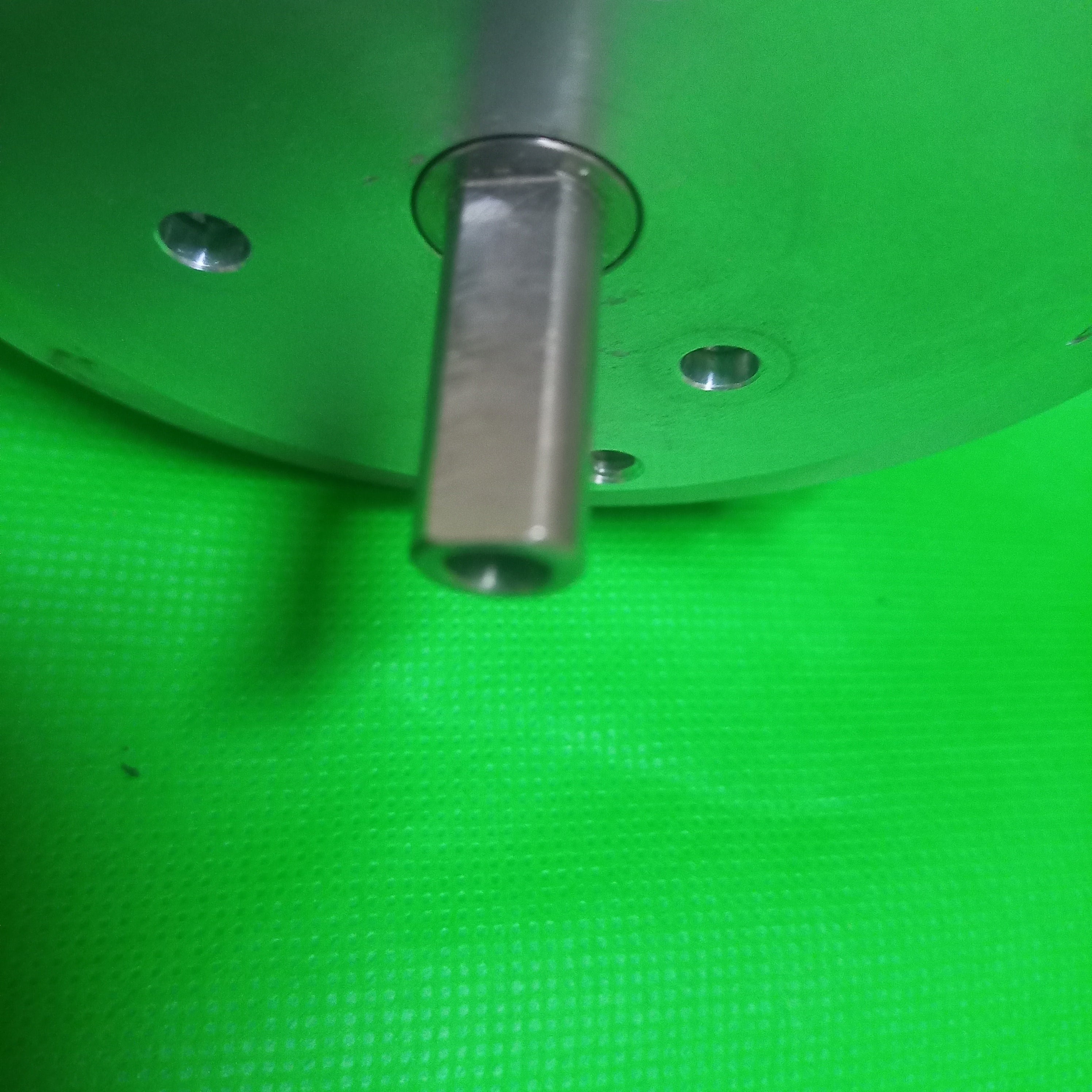

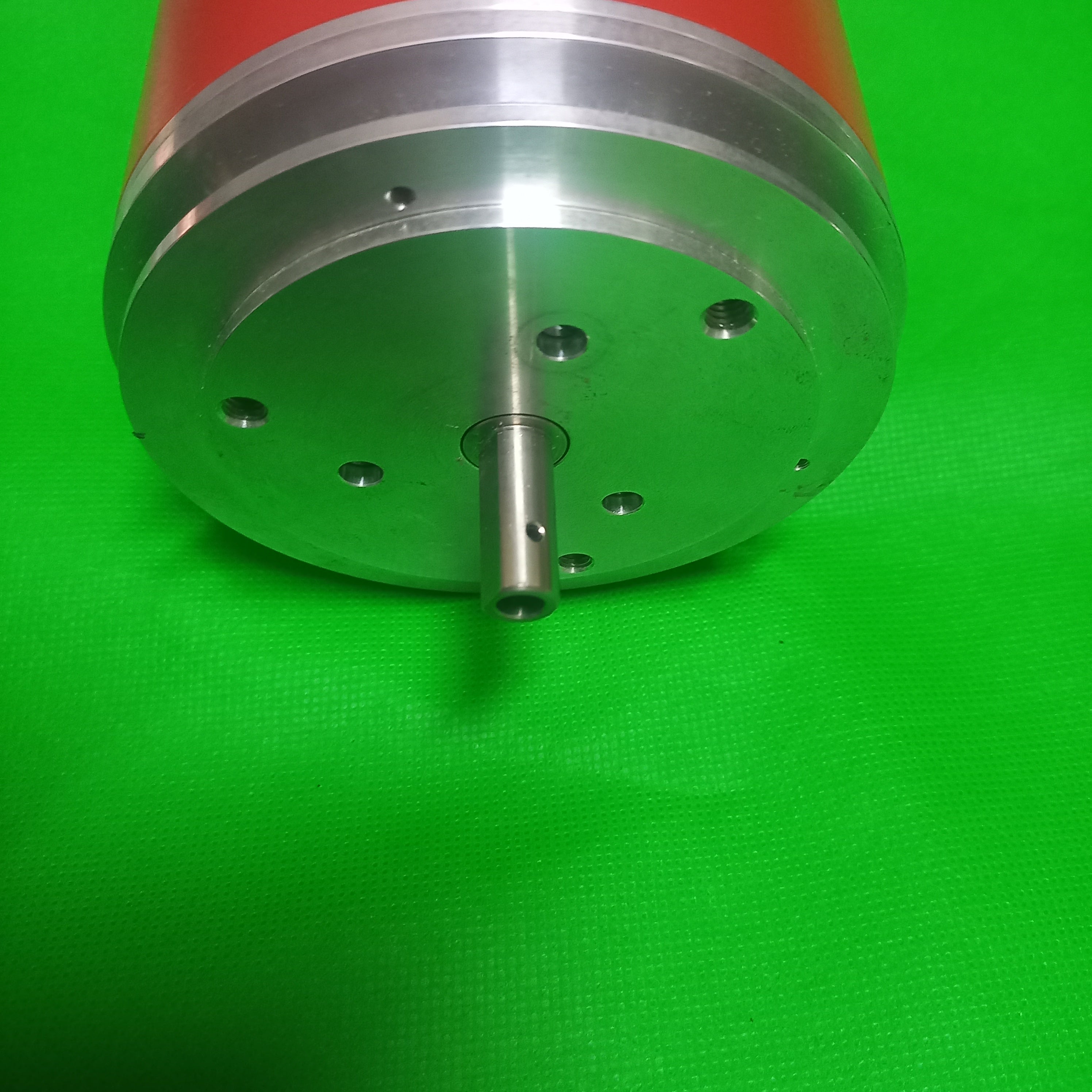

- Absolute Encoder Mechanical Design = Solid shaft, Servo flange
- Absolute Encoder Construction size (flange) = Ø 100 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = SSI
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 1024(10bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
- Absolute Encoder Resolution (Bits) =
Absolute Encoder Programmable/configurable = NOT : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection =

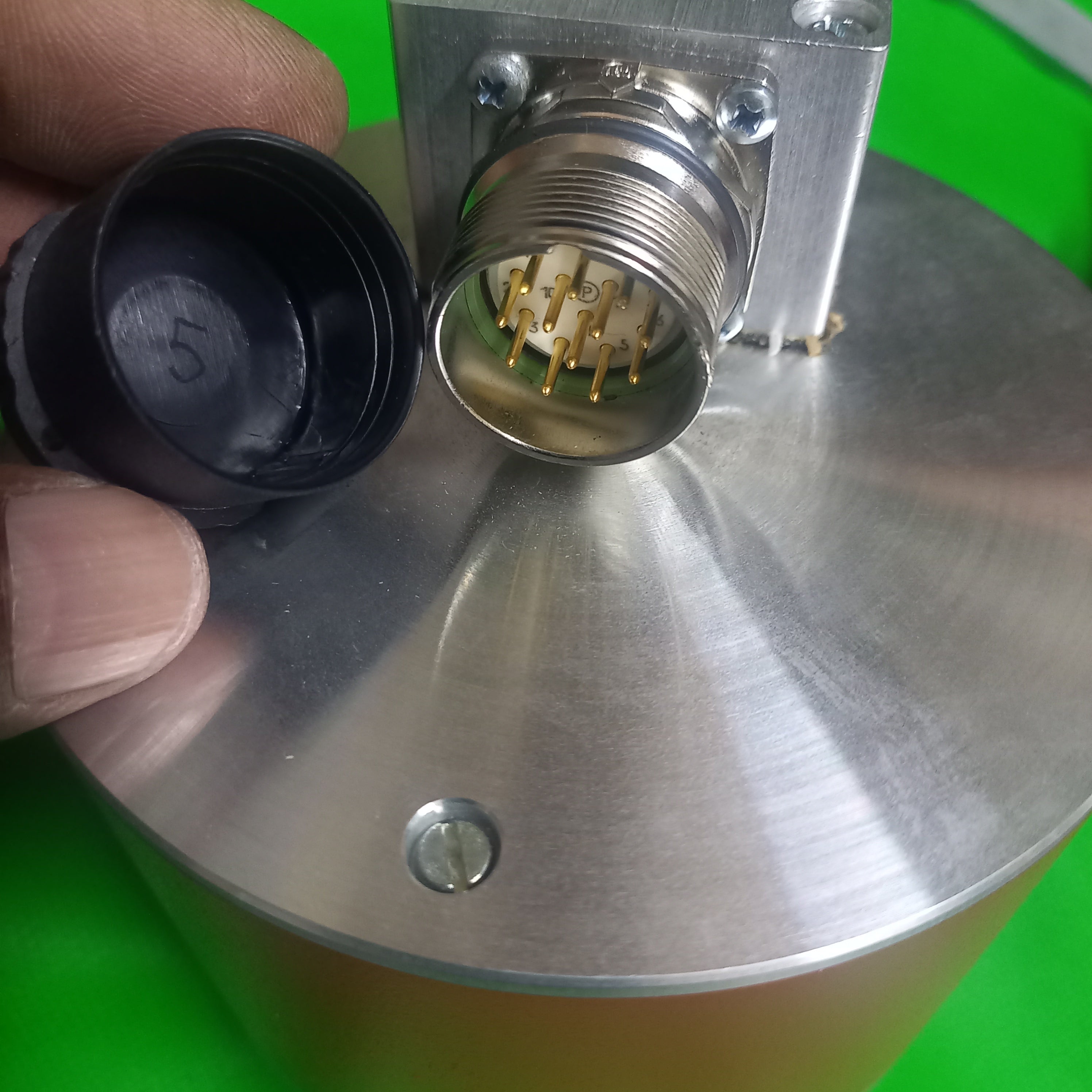

- Connection Type Detail = M23, Male connector on Encoder Body, 12-pin
- ABS- INC Length of cable =
How Encoder body is Mouted ? Mouting Flange Design Data:
Ready Stock | Collect from our Store Today SSI Programmable TR Electronics
Highspeed-Asynchronous-Serial (HAS) interface
TR CE100M | CE 100M | Art.Nr. 100-00102 | HAS/Binar - Mult turn Absolute Encoder 1024/4096
Absolute Encoder Steps/Revolution:
Schritte/Umdrehung: Steps/Revolution: 1024
Absolute Encoder Number of revolutions
Umdrehungen Revolutions:: 4096 (12 bit)

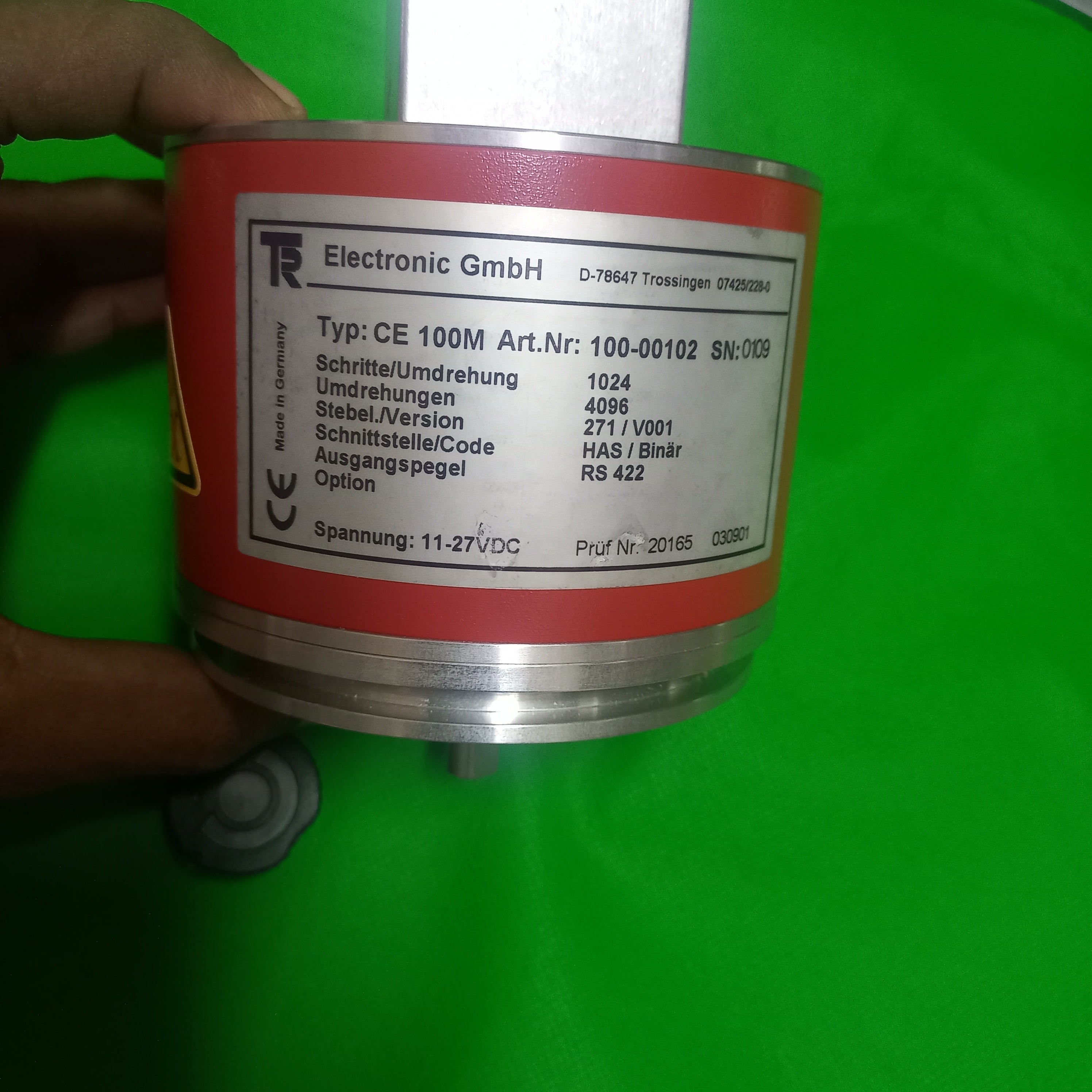

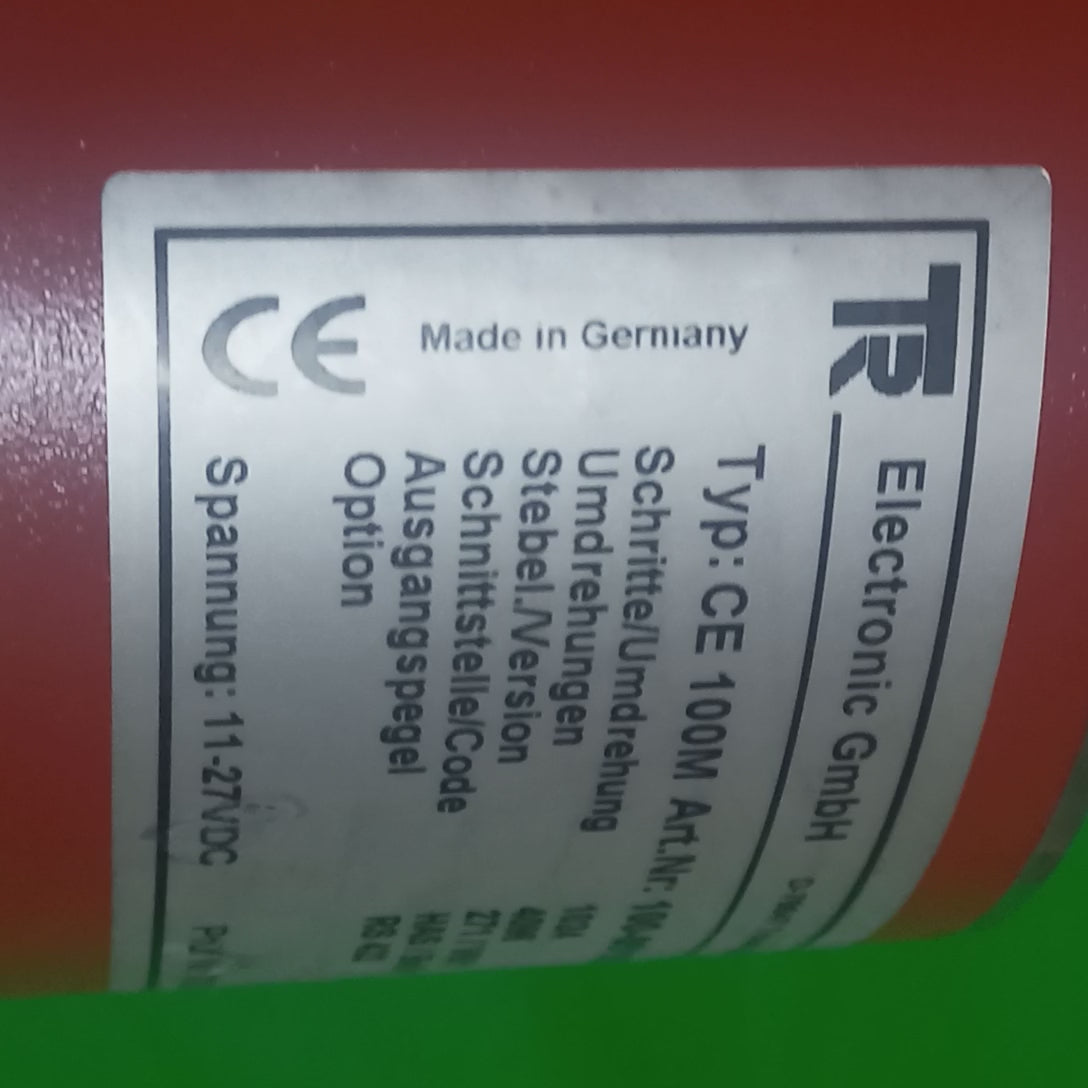

Stebel./Version:271/V001 - We have the PIn configuration/ Details of pin out available on a seperate page that page is sent with the bought encoder. The Pin out of 271 shows which pins are used for HAS_Data+_Out (Datenausgang+) RS422, HAS_Data-_ (Datenausgang-) RS422, and supply voltage IN and Ground IN.
Schnittstelle/Code = HAS/Binar
Ausgabepegel: RS 422
Spannung: 11 - 27 VCC
