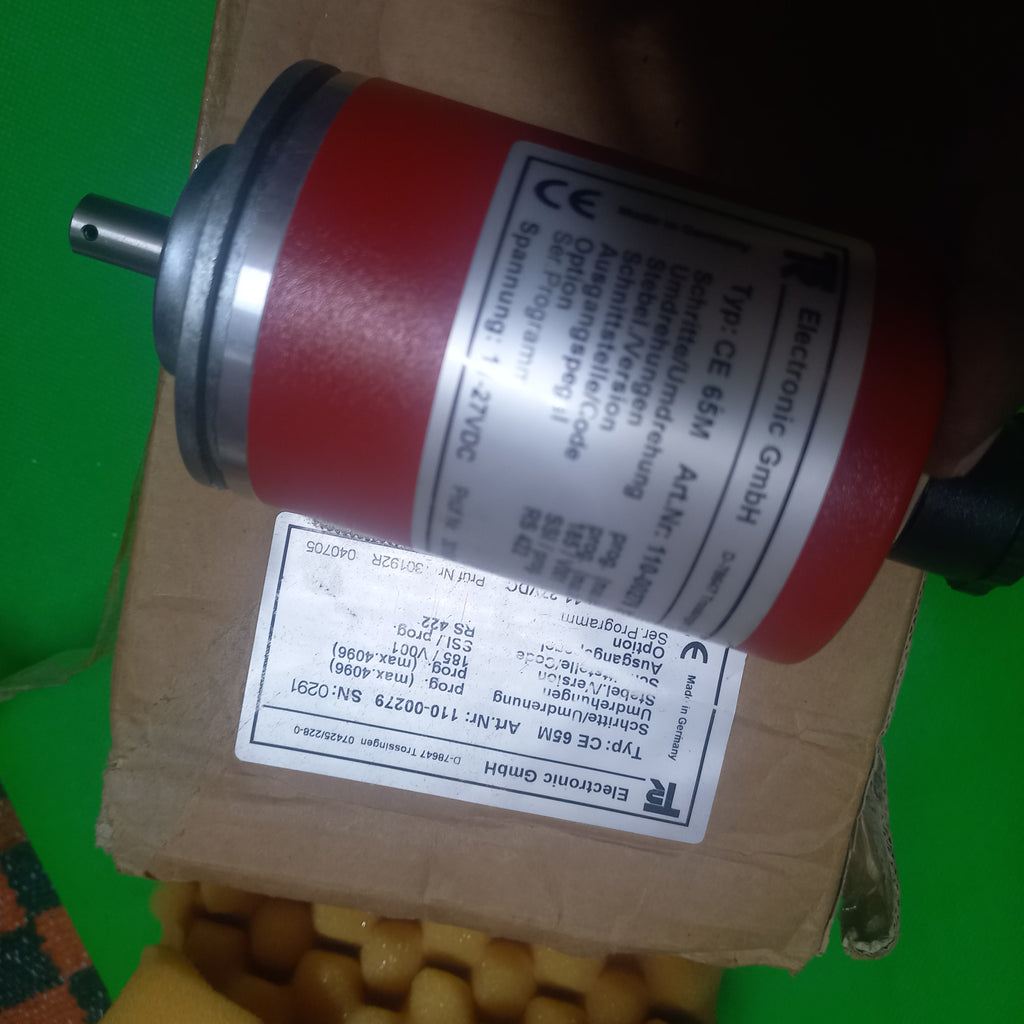

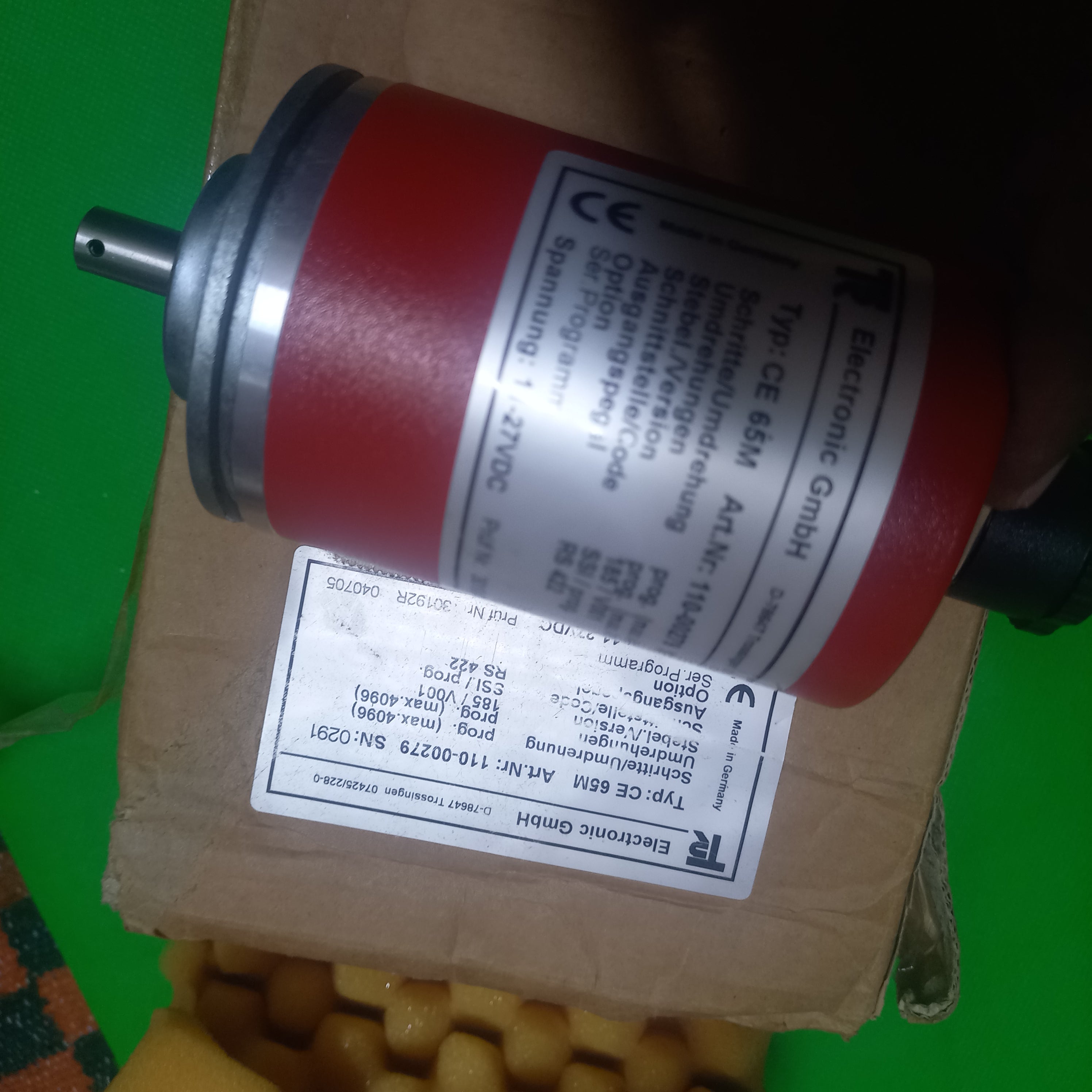

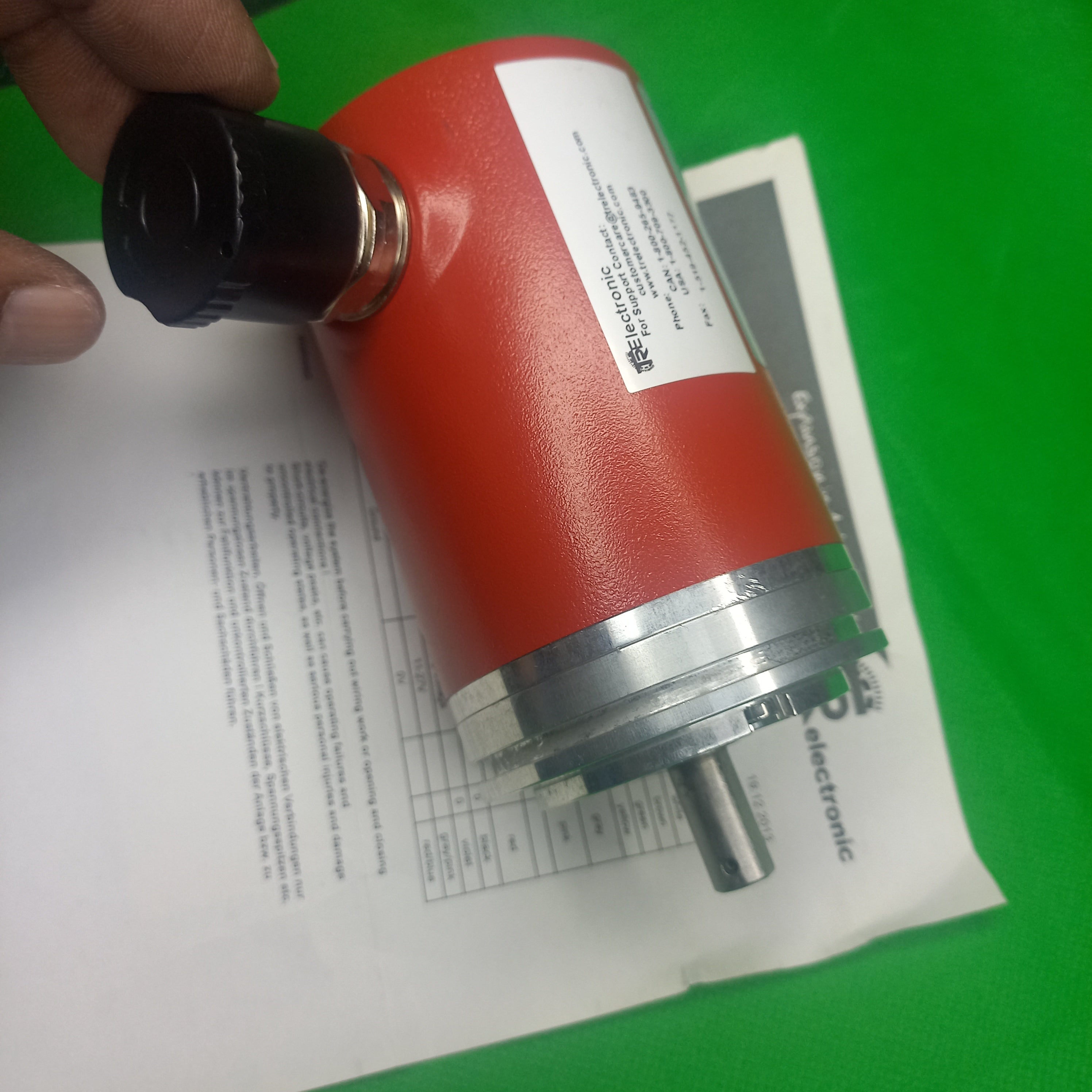

TR Electronic CE 65M Art.Nr. 110-00279 | 4096x4096 | SSi/Prog
$2,680.00
Skip to product information
Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days
TR Electronic CE 65M Art.Nr. 110-00279 | 4096x4096 | SSi/Prog
$2,680.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = CE65M Art.Nr. 11000279
- Manufacturer MPN = CE 65M Art.Nr. 110-00279
- Encoder Type = Absolute Encoder
- Supply voltage = 11-35 VDC
- ID. NR. = CE 65 M Art.Nr. 110 00279
- indent Nr. = CE65-M SSI PROg
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = CE65M Art.Nr. 11000279
Mechanical Design Features of this Encoder:

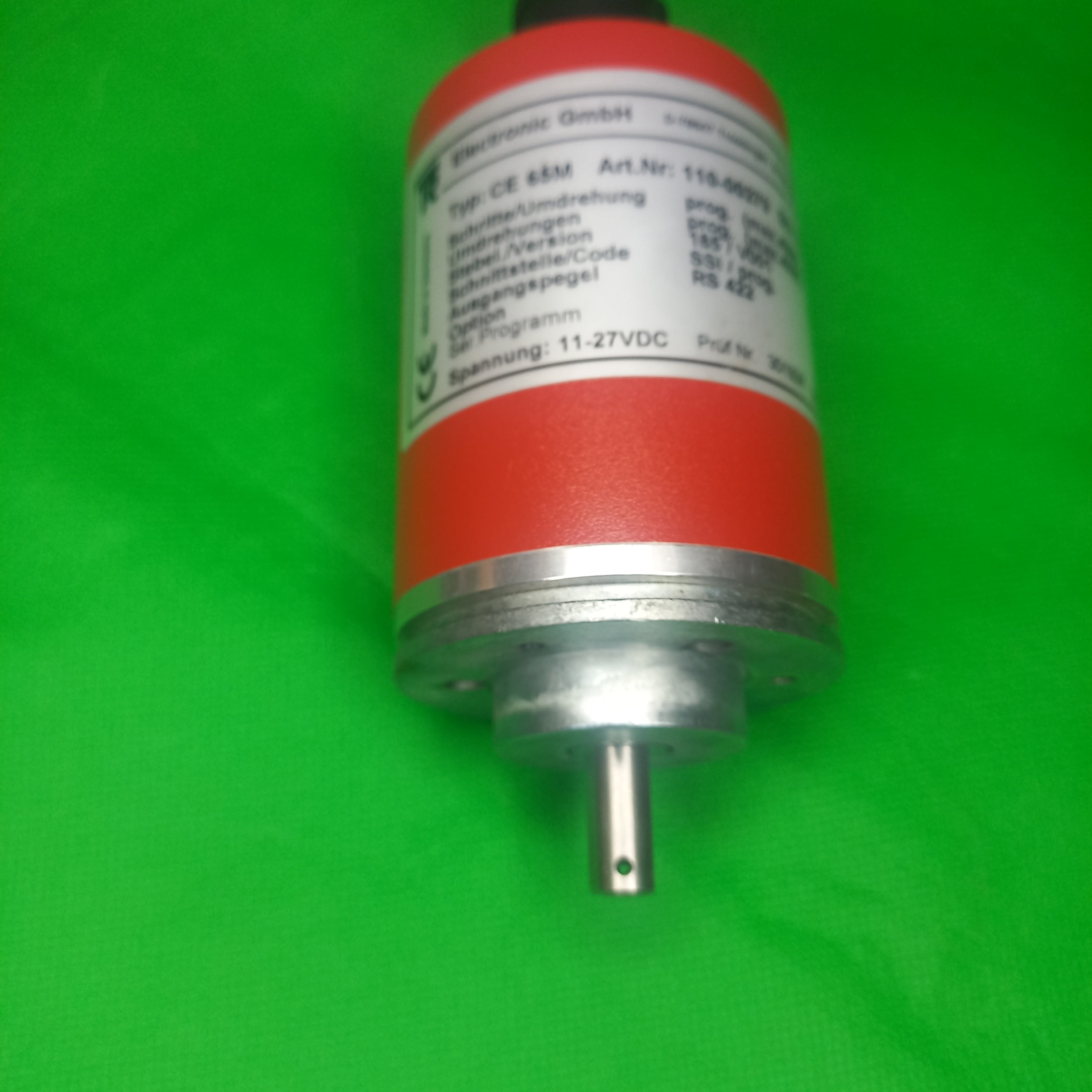

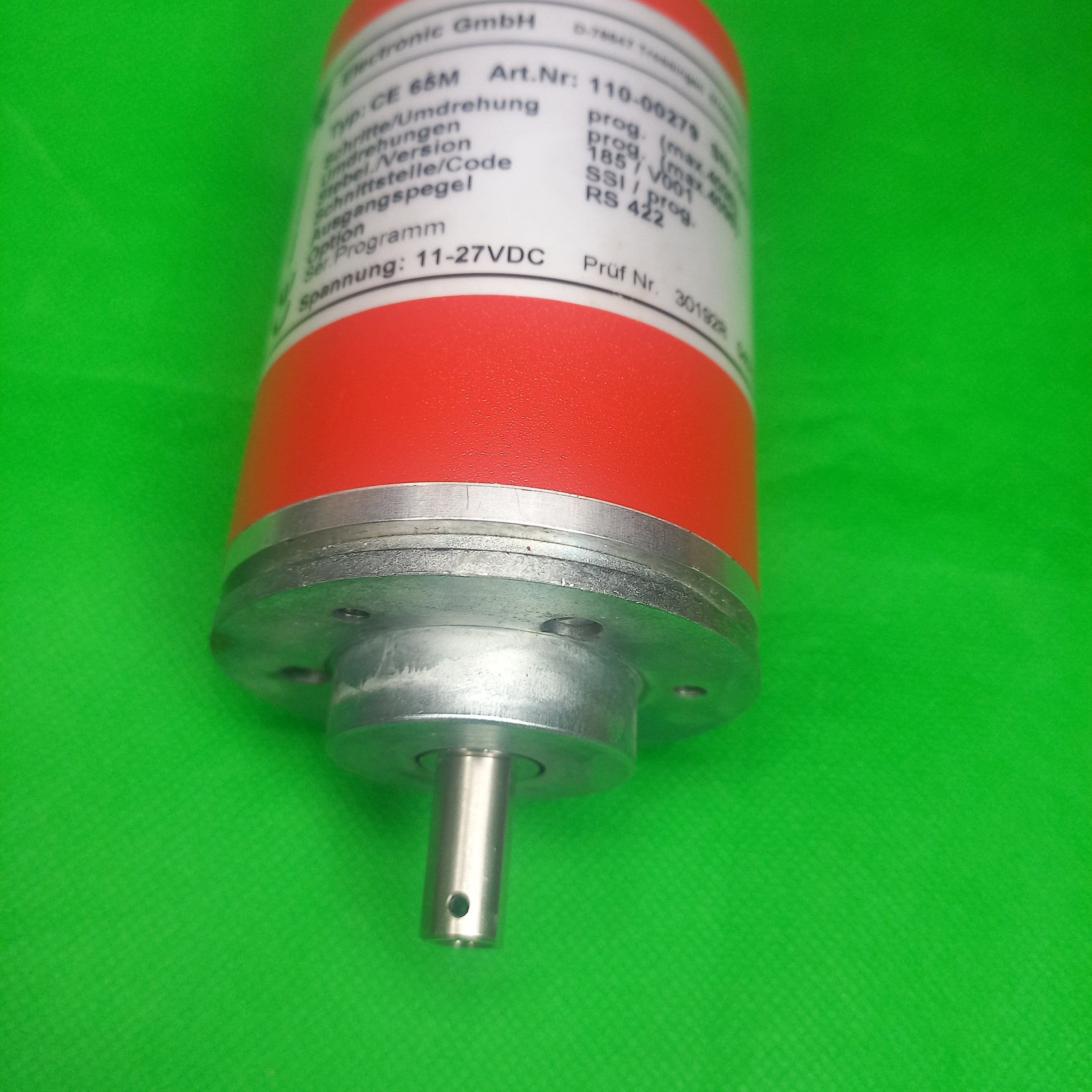

- Absolute Encoder Mechanical Design = Solid shaft, Servo flange
- Absolute Encoder Construction size (flange) = Ø 65 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = SSI
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 4096 (12 bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
- Absolute Encoder Resolution (Bits) =
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection =

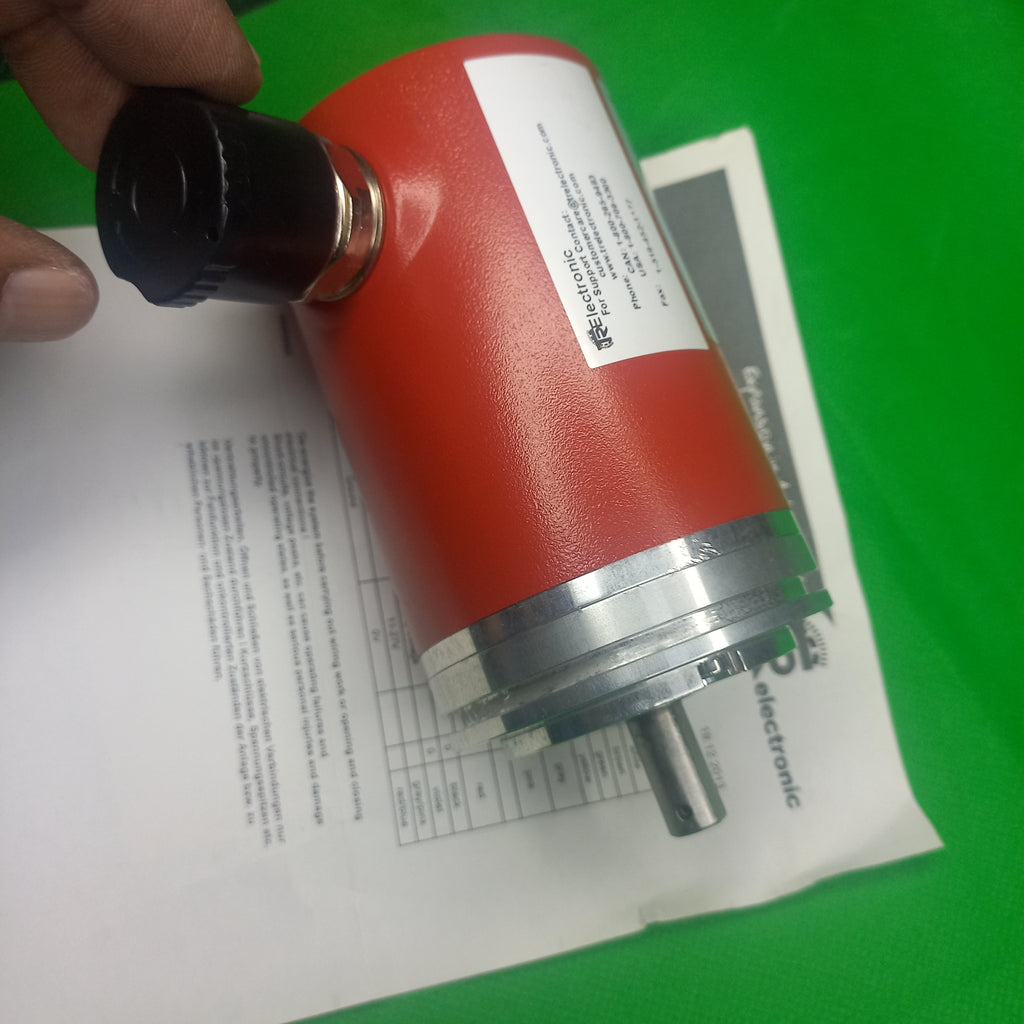

- Connection Type Detail = M23, Male connector on Encoder Body, 12-pin
- ABS- INC Length of cable =
How Encoder body is Mouted ? Mouting Flange Design Data:
Ready Stock | Collect from our Store Today SSI Programmable TR Electronics Art Nr. 11000279 ; CE65M Series. TR Electronic CE 65M Art.Nr. 110-00279 | 4096x4096 | SSi/Prog.

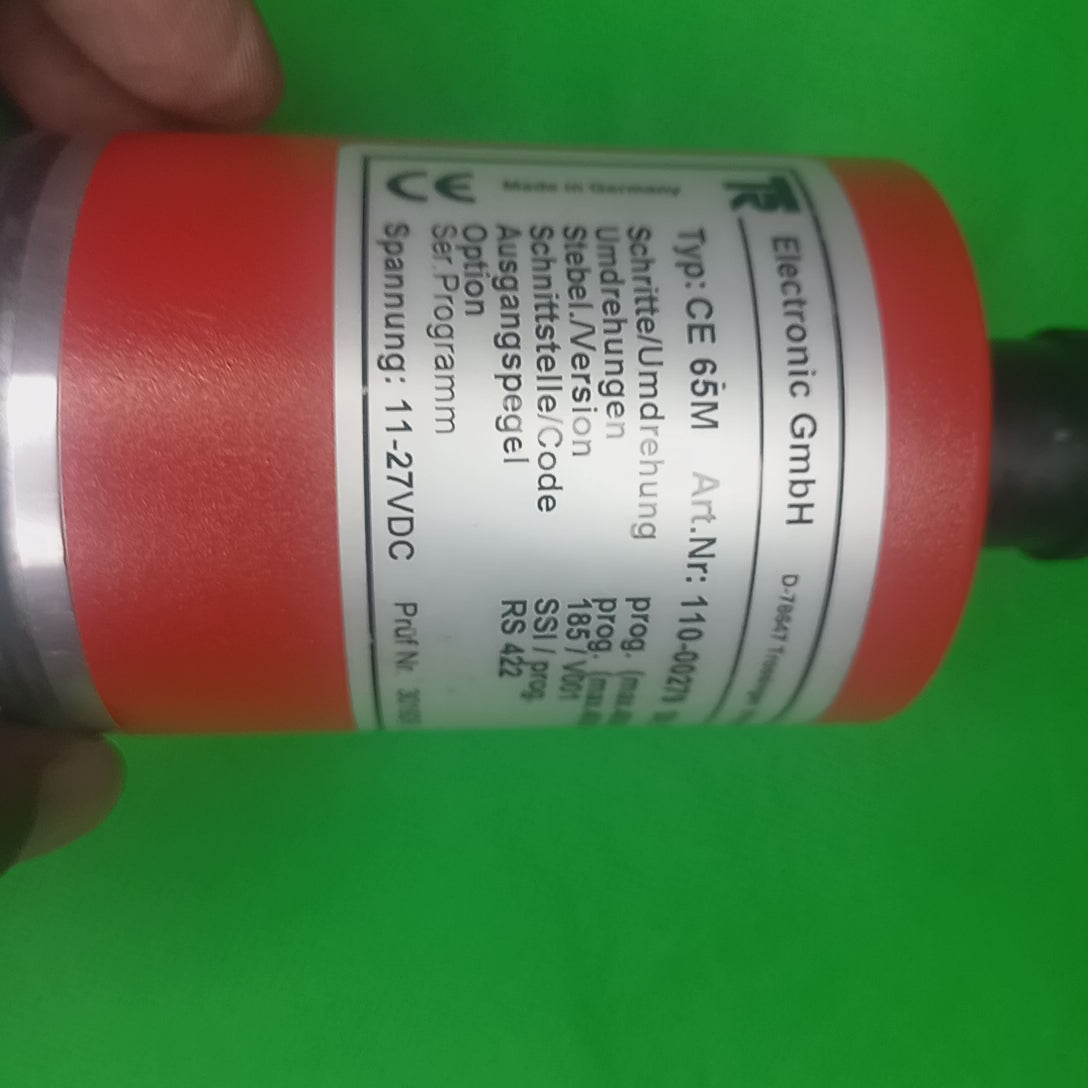

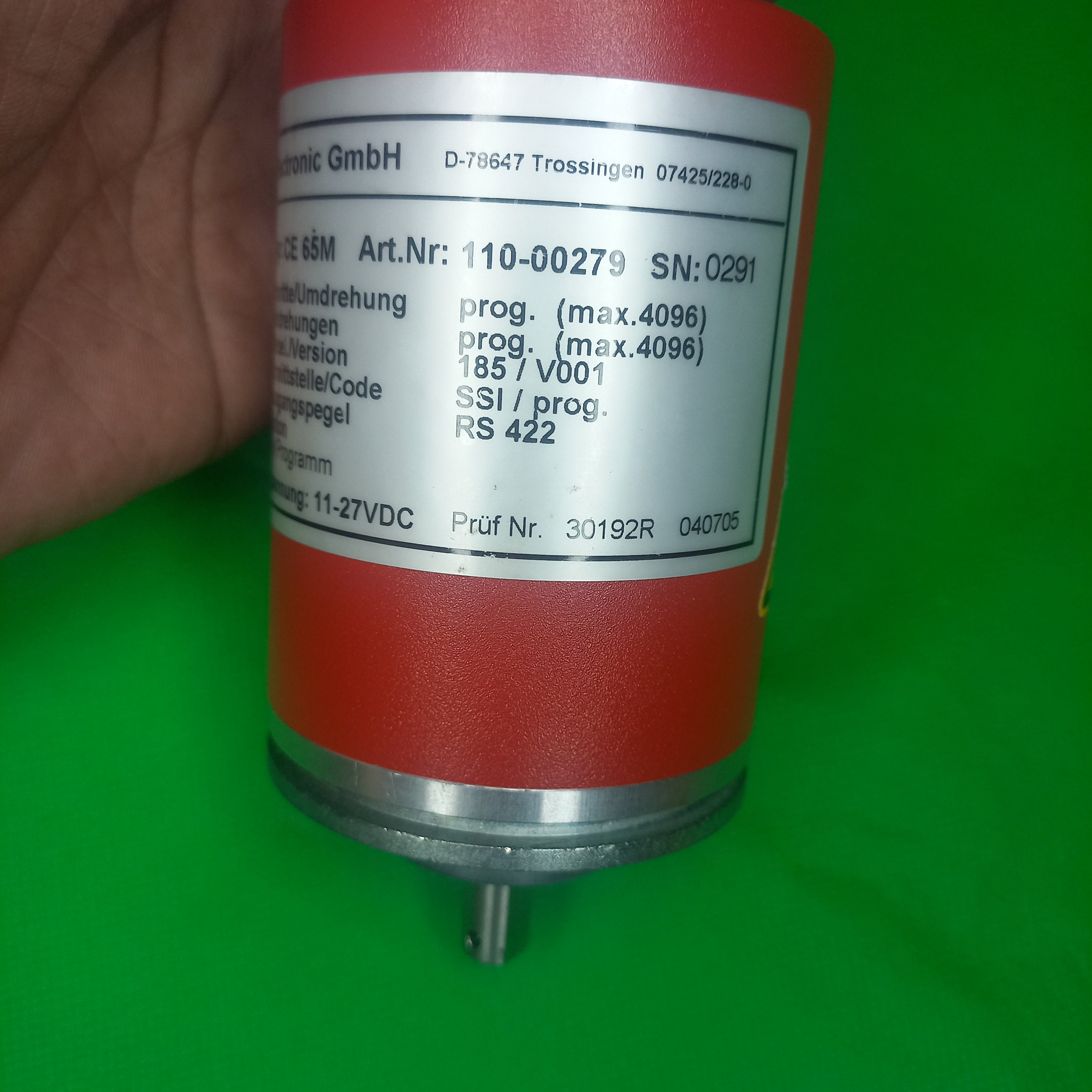

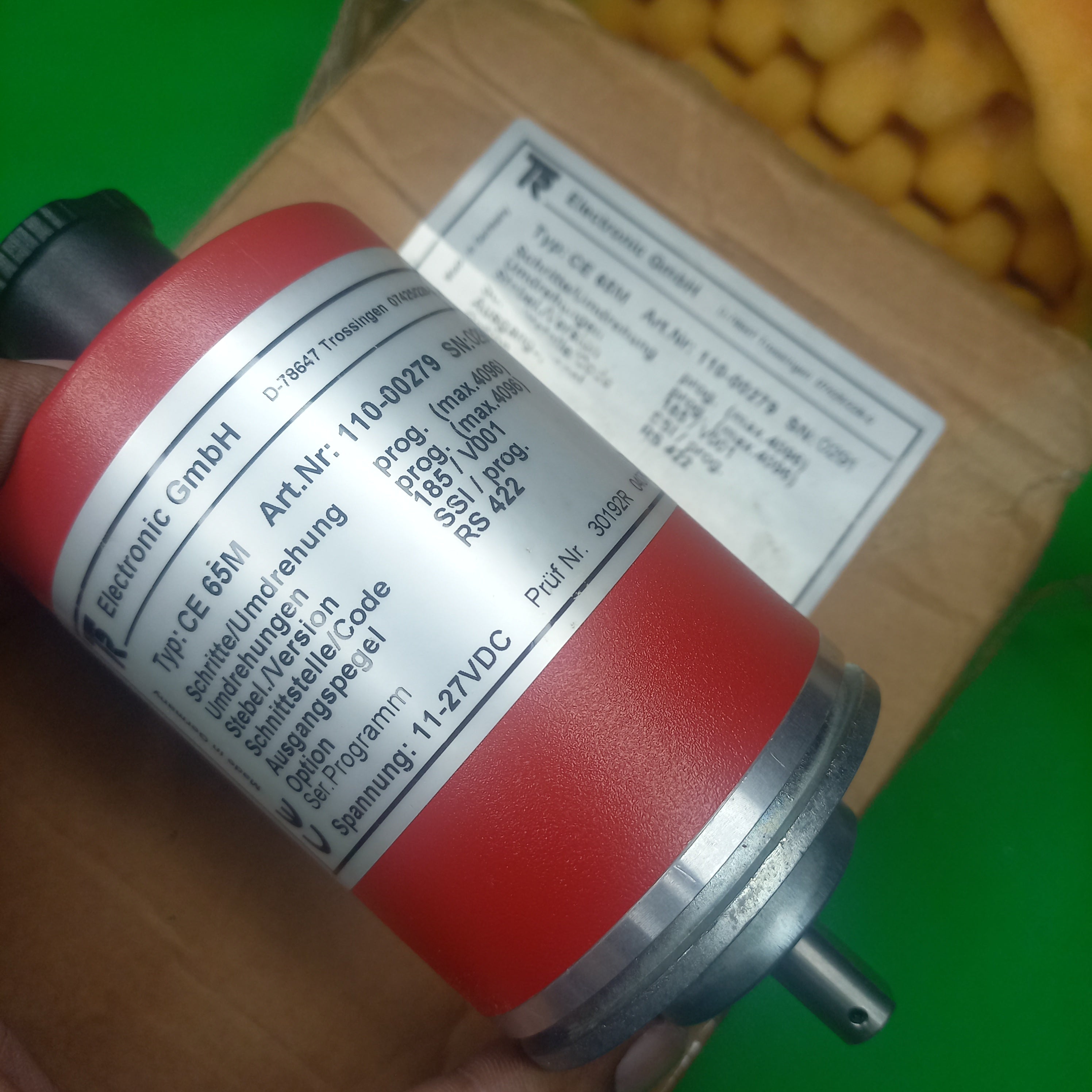

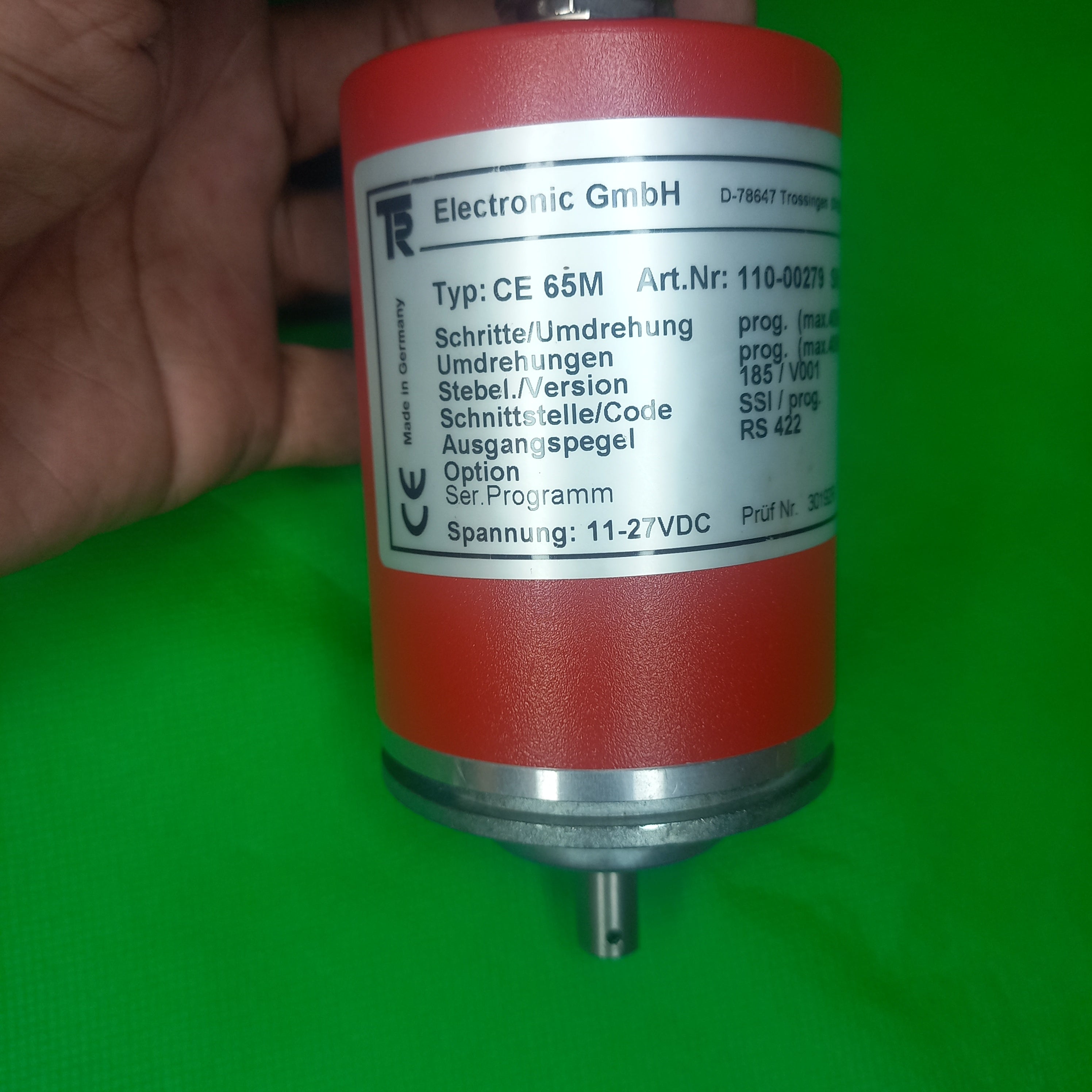

TR Electronic GmbH,
Daten:
Absolute Encoder - Number of steps per revolution
Schritte/Umdrehung: prog Steps/Revolution: prog (max 4096 (12 bit))
Absolute Encoder Number of revolutions
Umdrehungen Revolutions:: prog (max 4096 (12 bit))

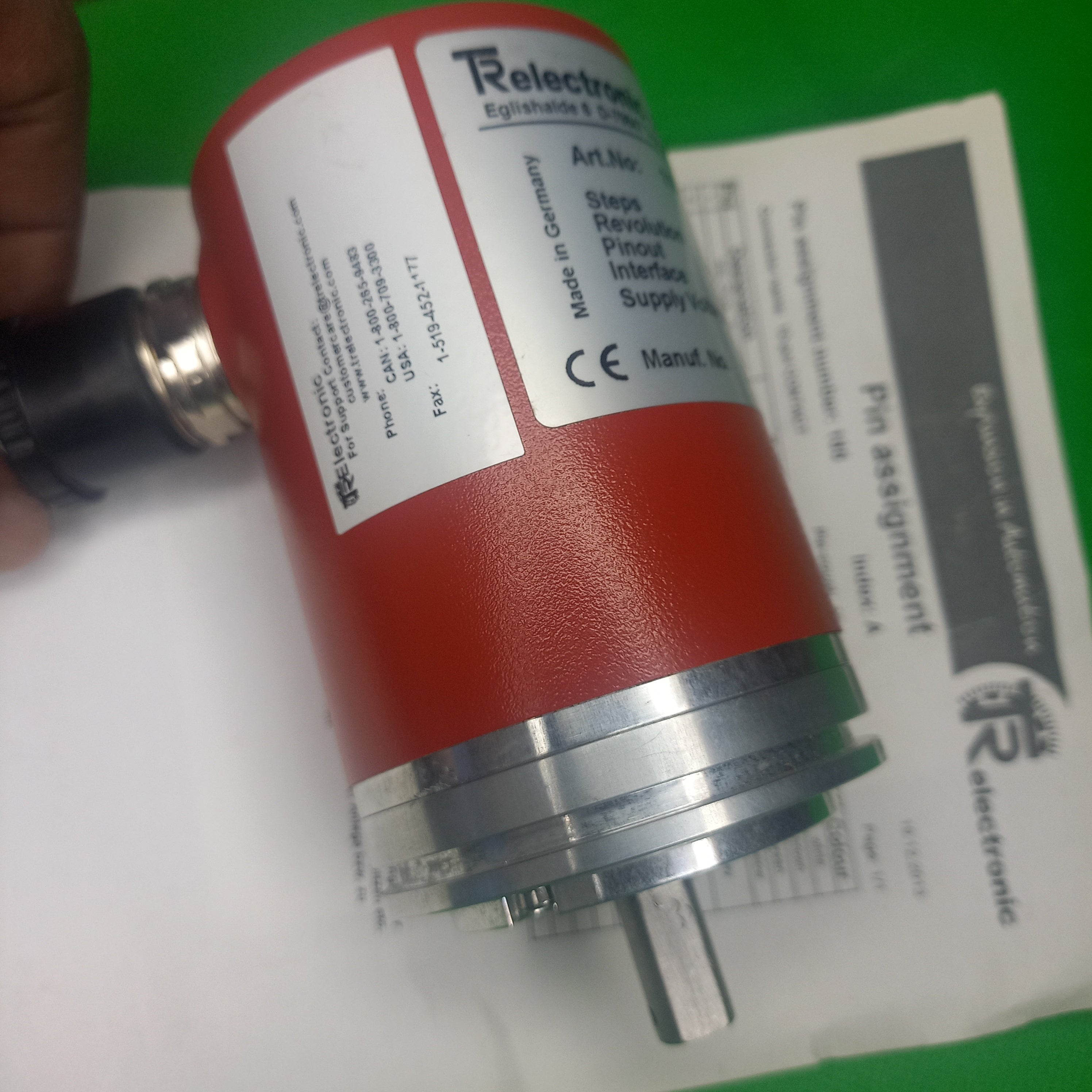

Stebel./Version: 185/V001 - We have the PIn configuration/ Details of pin out on a seperate page that page is sent with the bought encoder.
Output via M23 connector on Encoder body :
apart from Supply voltage 11-27V/ Ground IN there are the signals SSI_Clock+_IN | SSI_DATA+_OUT | SSI_Clock-_IN | SSI_DATA-_OUT | Direction IN | Ser. Program +_IN/OUT | Preset1_iN |Ser. Program -_IN/OUT | Reset2_In.
We have Complete Pin Assignment number : 185 for connector name: 12 pol Contact.
DAten/Ubertragung/Code = SSI/ Prog
Ausgabepegel: RS 422
Option
Ser. Programm
Spannung: 11 - 27 VCC
Details
