TR Electronic CEV58M Profibus DP MultiTurn Programmable Encoder 12bitx12bit
$1,580.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = CEV58M-0026
- Manufacturer MPN = CEV58M-00026
- Encoder Type = Absolute Encoder
- Supply voltage = 11-27vDC
- ID. NR. = CEV58M-026
- indent Nr. = CEV 58 M 00026
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = CEV58M-0026
Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = Flange type : ZB36
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = PROFIBUS DP
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 4096 (12 bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
- Absolute Encoder Resolution (Bits) =
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection =
- Connection Type Detail = 2XM16X1,5/1XM12X1,5
- ABS- INC Length of cable =
How Encoder body is Mouted ? Mouting Flange Design Data:

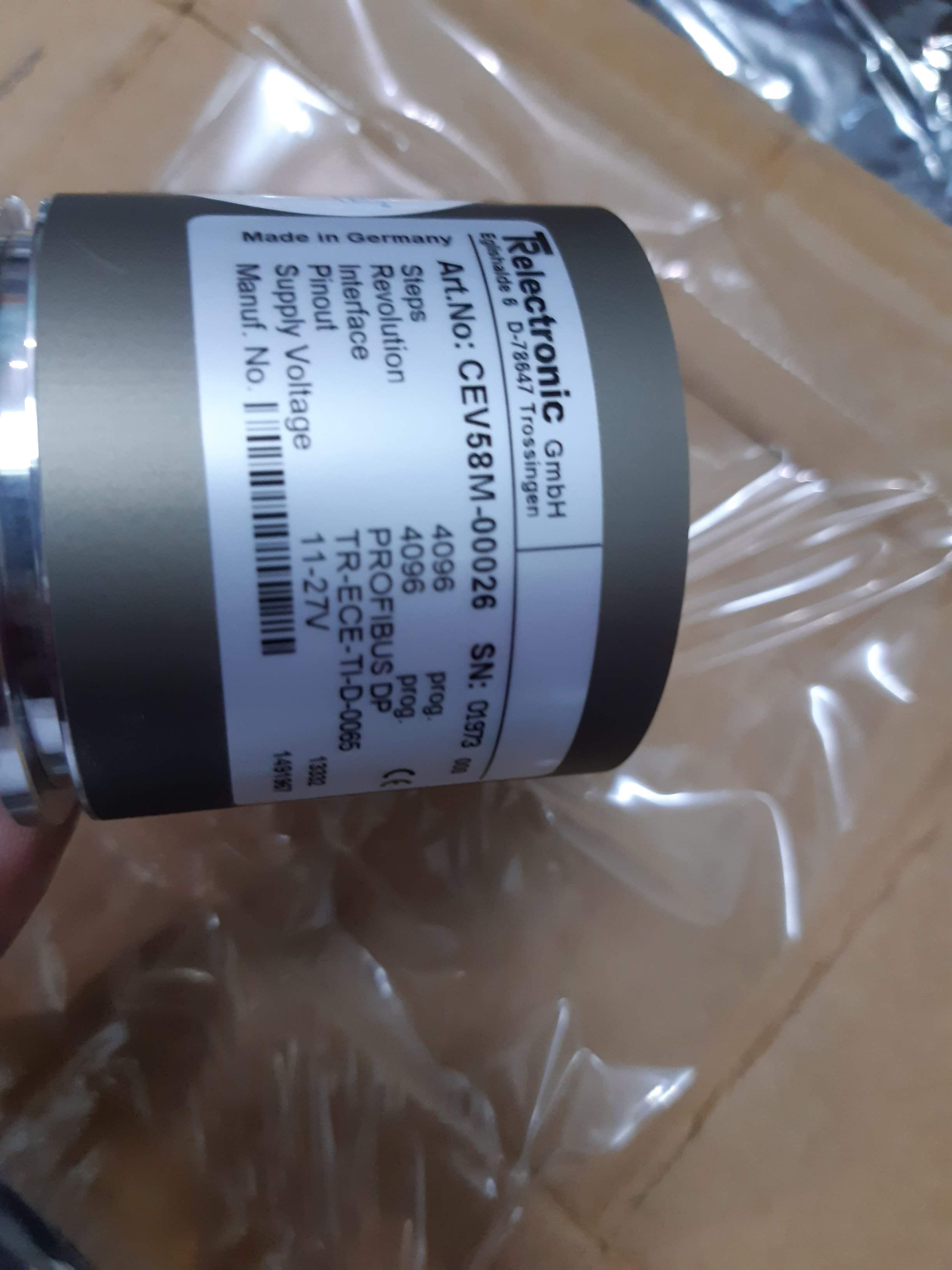

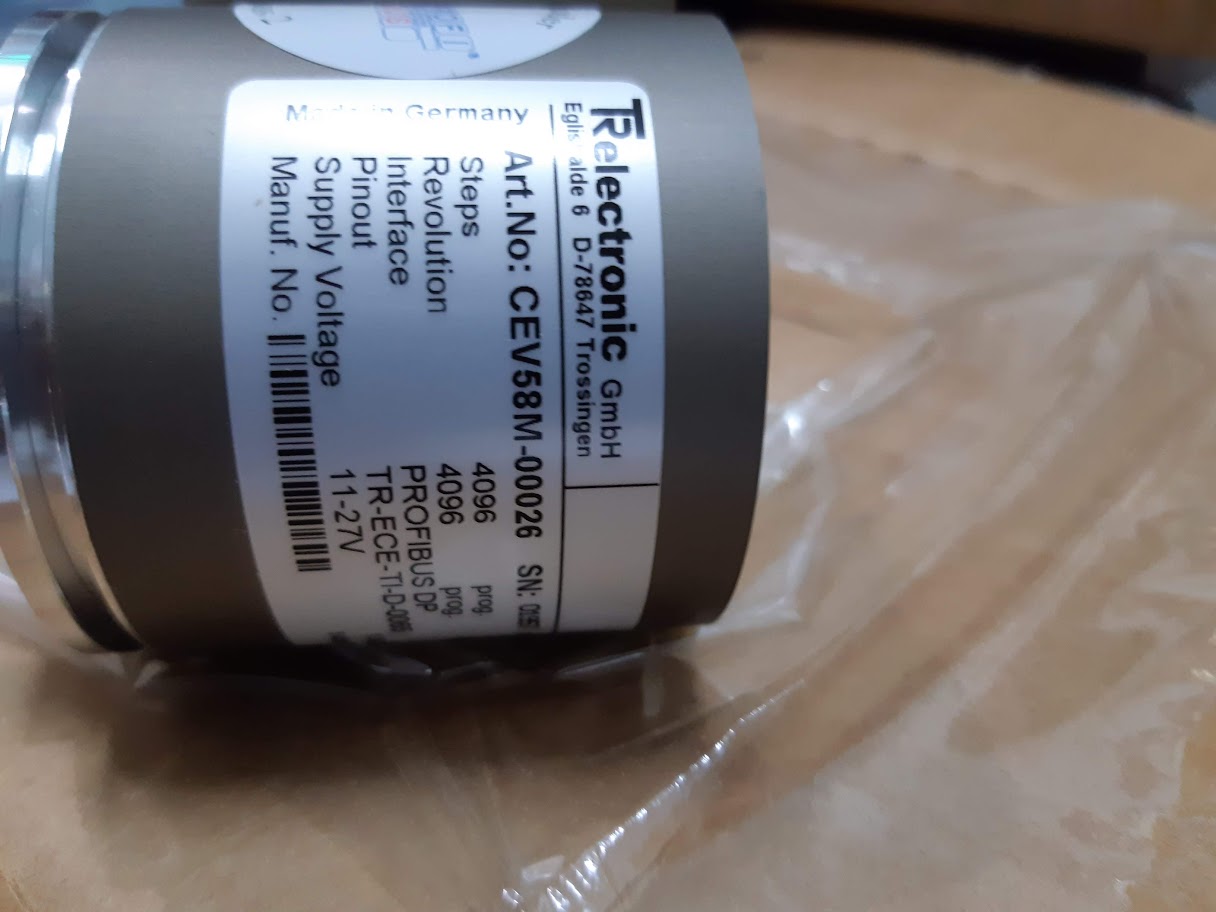

TR Electronics Multi Turn CEV58M-00026 Solid Shaft, Programmable Profibus DP Encoder Steps=4096Programmable x Revolutions 4096 Programmable, 10Mm Shaft, 11-27V

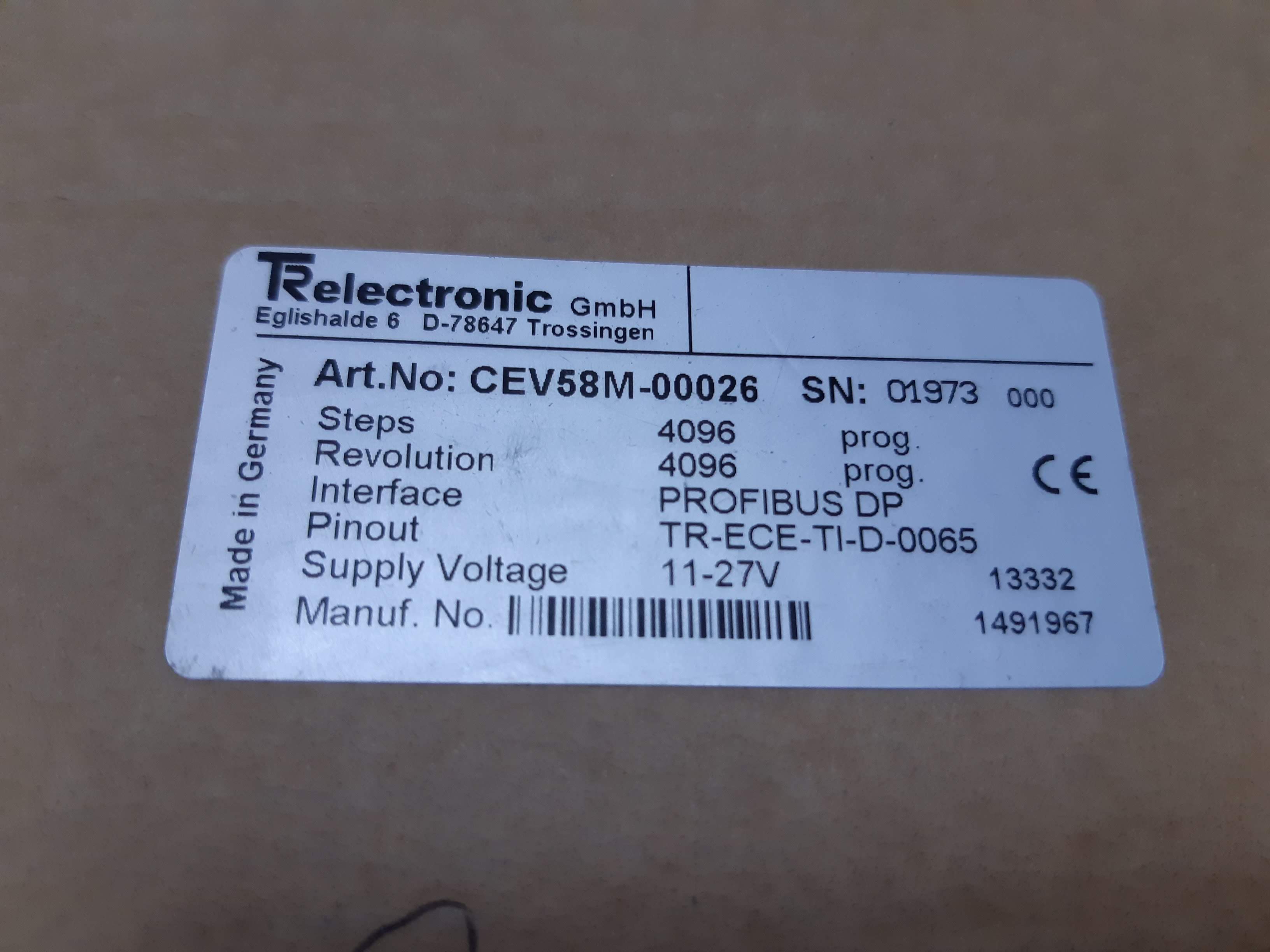

Art. No CEV58M-00026
Steps: 4096 ( pog. ) |Revolution 4096 ( Prog.)
Interface: Proibus - DP
Pin OUt: TR-ECE-TI - D-0065
Supply Voltage: 11-27 V
Produktdatenblatt / Product Data Sheet
Art.: CEV58M-00026 CEV58M*4096/4096 V000 PROFIBUS 36ZB10FL
______________________________________________________________________
NO.OF STEPS/REV 4.096,000
NO. OF REVOLUTIONS 4.096,000
INTERFACE PROFIBUS DP
CODE PROGRAMABLE
SUPPLY VOLTAGE 11-27V
OUTPUT LEVEL RS485
PROTECTION TYPE IP65
TEMPERATURE RANGE -20+70°C
FLANGE TYPE ZB36
SHAFT TYPE 10FL/19,5
CONNECTOR TYPE 2XM16X1,5/1XM12X1,5
CONNECTOR-POSITION RADIAL
cable length (m)
PINOUT NO. TR-ECE-TI-D-0065 - WE have connection details and we can share it with sold encoder upon request.
MATING PLUG NO
OPTIONS ENC 12MBAUD
PNO-PROFIL CLASS.2
DRAWING NO. 04-CEV58M-M0014
VERSIONSNR 000
DATEI
SOFTNR 4376AB
DOCUMENTATION NO
GEWOGEN
Details
