Turck Bi15U-CK40-AP6X2-H1141_Sn=15mm, Resistant to magnetic fields, DC, PNP, NO
$160.00
Skip to product information
BI15U-CK40-AP6X2-H1141 | Order ID no. 1625600,Resistant to magnetic fields, uprox+, DC, PNP, NO FLUSH,
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
Turck Bi15U-CK40-AP6X2-H1141_Sn=15mm, Resistant to magnetic fields, DC, PNP, NO
$160.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Turck | IFM
- Sensor Type: Block | Cube Housing - Rectangular Square- Inductive Sensor ( Limit Switch Style)Inductive Sensor
- Sensor Dimensions: 40 x 40 x67 mm
- Sensor Range : Sensing range [mm] 15 | flush
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
BI15U-CK40-AP6X2-H1141 | Order ID no. 1625600,Resistant to magnetic fields, uprox+, DC, PNP, NO FLUSH,
Type designation B115U-CK40-AP6X2-H1141
Features
Rectangular, height 40 mm
Variable orientation of active face in 5
directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and
switching state from any position
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO, PNP output
Connector, M12 × 1
Technical data
Application area
Magnetic field immune Immune to magnetic AC and DC fields
Detection area/measuring range
Rated switching distance 15 mm
Secured operating distance ≤ (0.81 × Sn) mm
Power supply
Operating voltage UB 10...30 VDC
Voltage drop at Ie ≤ 1,8 V
Electrical data
AC field stability 300 mTSS
No-load current 15 mA
Output function 3-wire, NO contact, PNP
Short-circuit protection yes/Cyclic
Wire break/reverse polarity protection yes/Complete
DC field stability 300 mT
DC rated operational current ≤ 200 mA
Insulation class II
Isolation test voltage ≤ 0,5 kV
Residual current ≤ 0,1 mA
Residual ripple ≤ 10 % Uss
Switching frequency 0,25 kHz
Accuracy/deviation
Hysteresis 3 % v. E...15 % v. E.
Temperature drift 10 %
Repeat accuracy ≤ 2 % v. E.
≤ ± 15 %, ≤ ‐25 °C v ≥ +70 °C
Mechanical data
Design Rectangular, CK40
Construction type designation CK40
Dimensions 65 mm x 40 mm x 40 mm
variable orientation of active face in 5 directions
Housing material Plastic, PBT-GF20-V0, Black

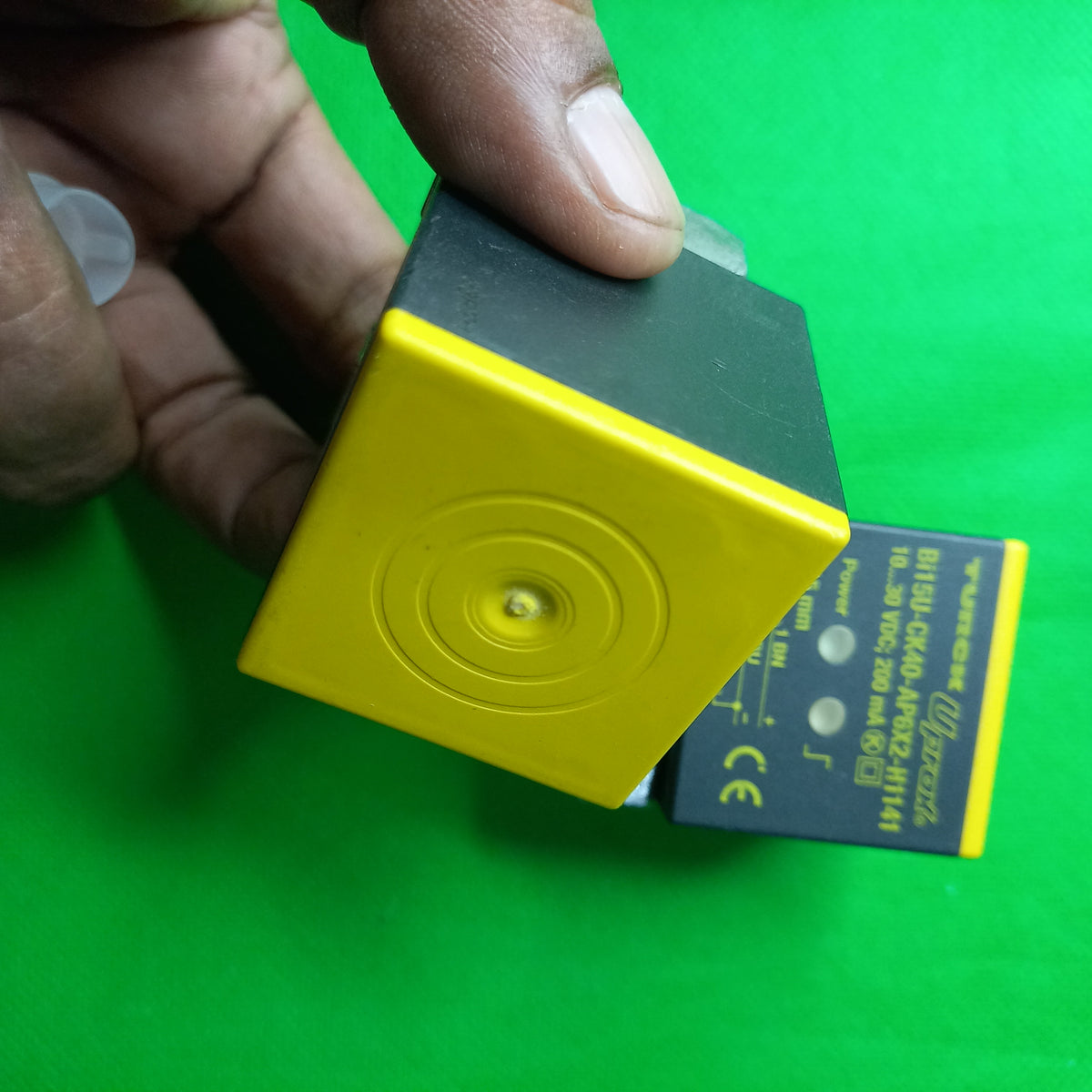

Active area material Plastic, PA12-GF30, yellow

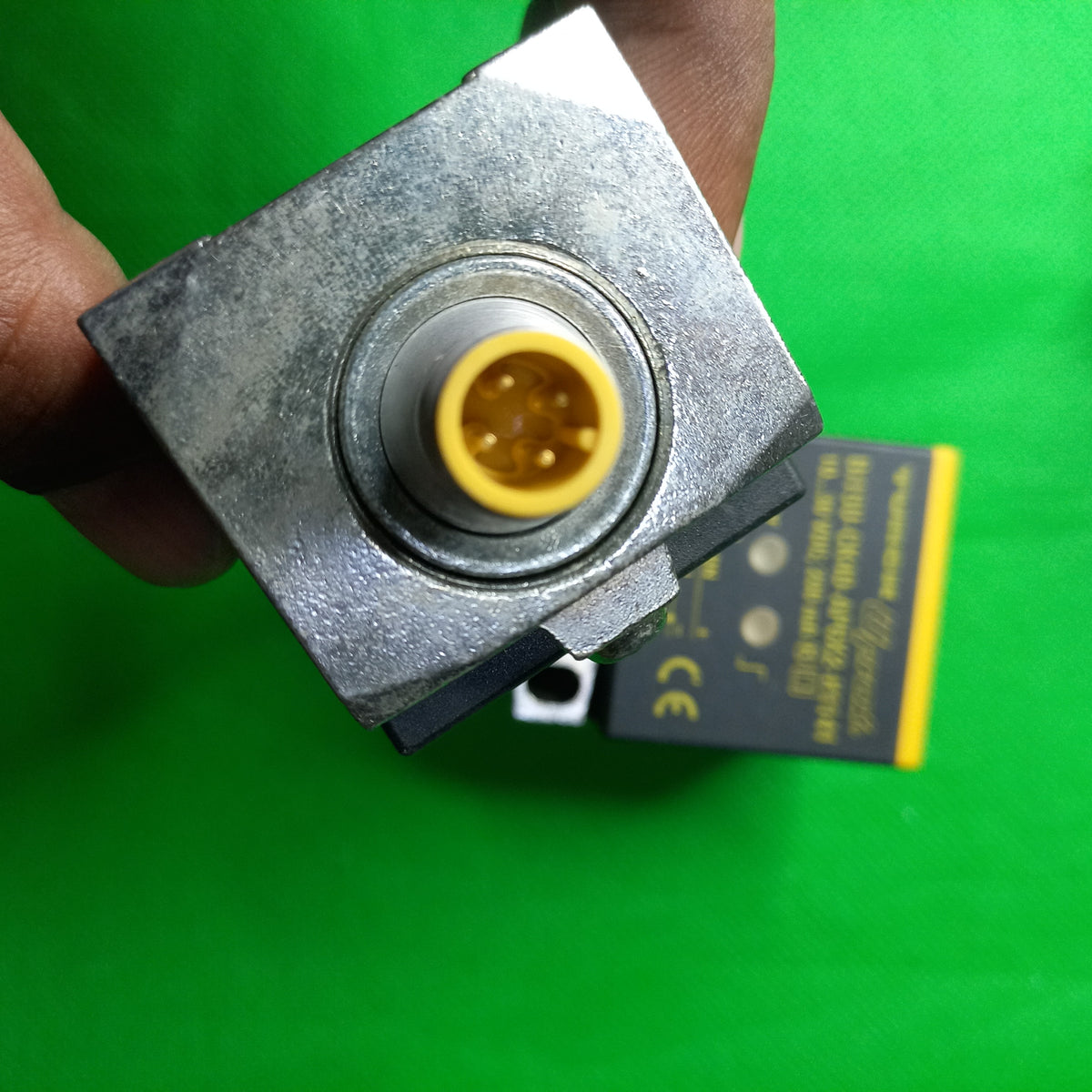

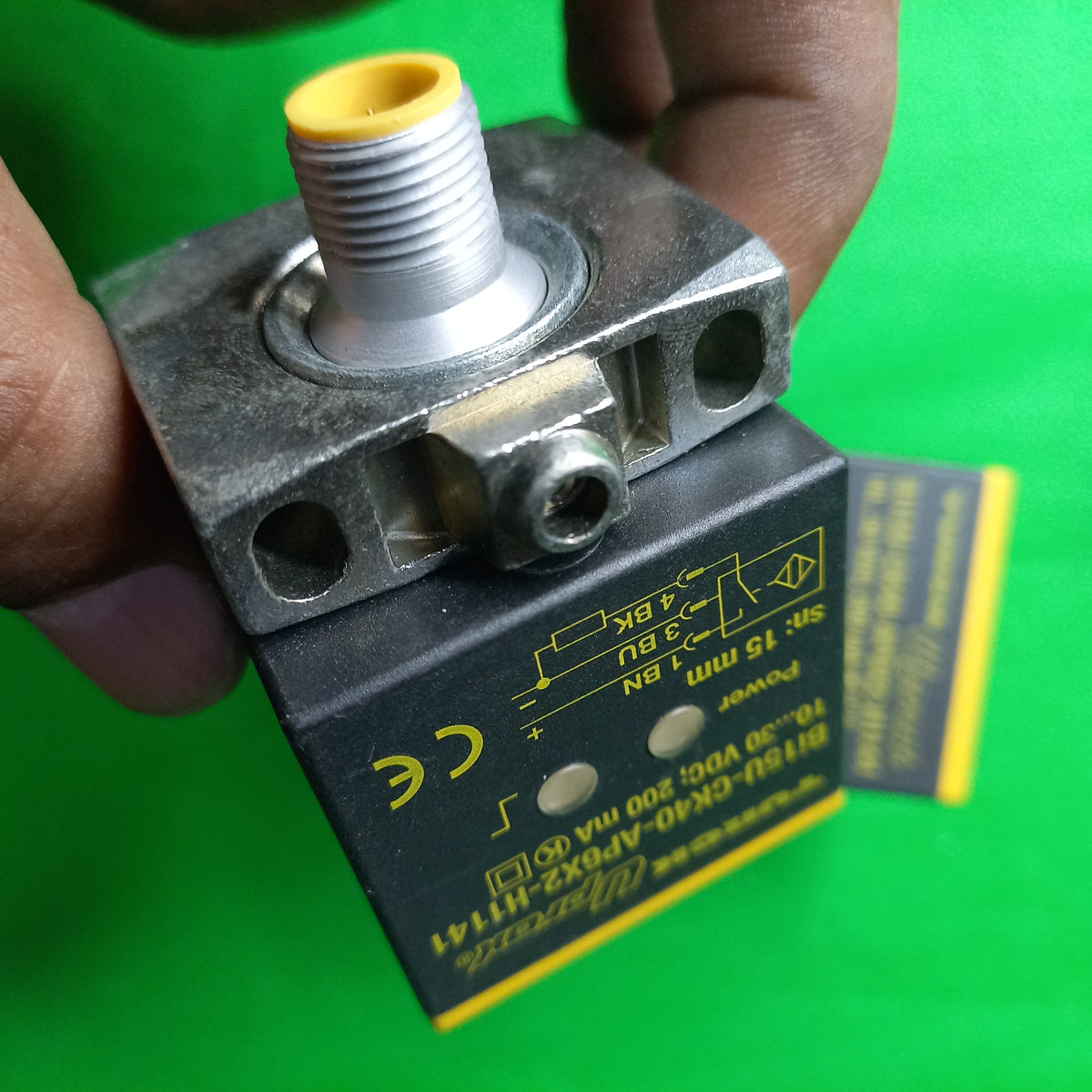

Electrical connection Connector, M12 x 1
Number of pins 4
Pressure resistant no
Mounting conditions Flush
Ambient conditions
Ambient temperature -30...+85 °C
Pollution degree 3
Shock resistance 30 g (11 ms)
Vibration resistance 55 Hz (1 mm)
Protection class IP68
Tests/approvals
MTTF 874 Years acc. to SN 29500 (Ed. 99)
40 °C
Displays/controls
Power-on indication 2 × LEDs, Green
Switching state 2 × LEDs, Yellow
Other properties
RoHs compatibility yes
Comments
Included in delivery BS1-CK40
- MPN : BI15U-CK40-AP6X2-H1141
- Manufacturer indent Nr. : BI15U-CK40-AP6X2-H1141BII5U-CK40-AP6X2-H1141
- Manufacturer Product number : B115U-CK40-AP6X2-H1141
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
