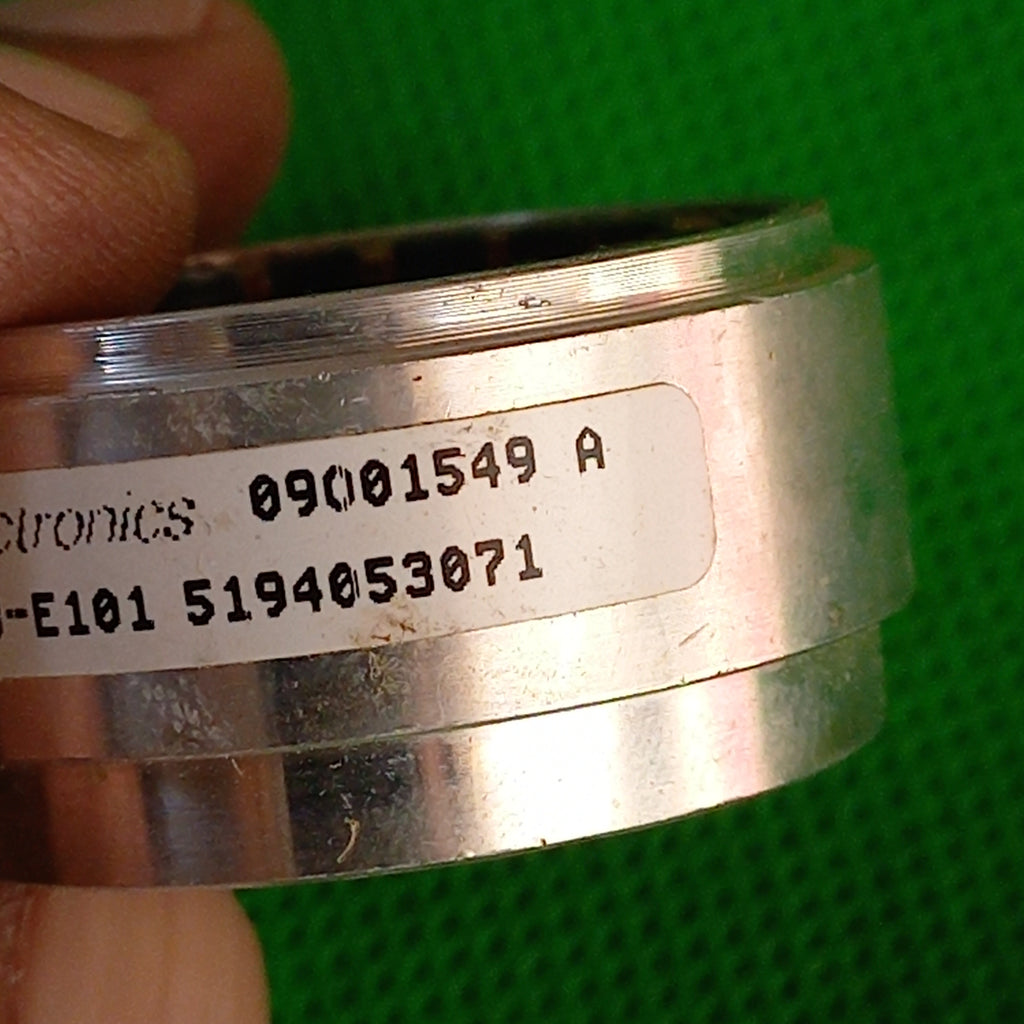

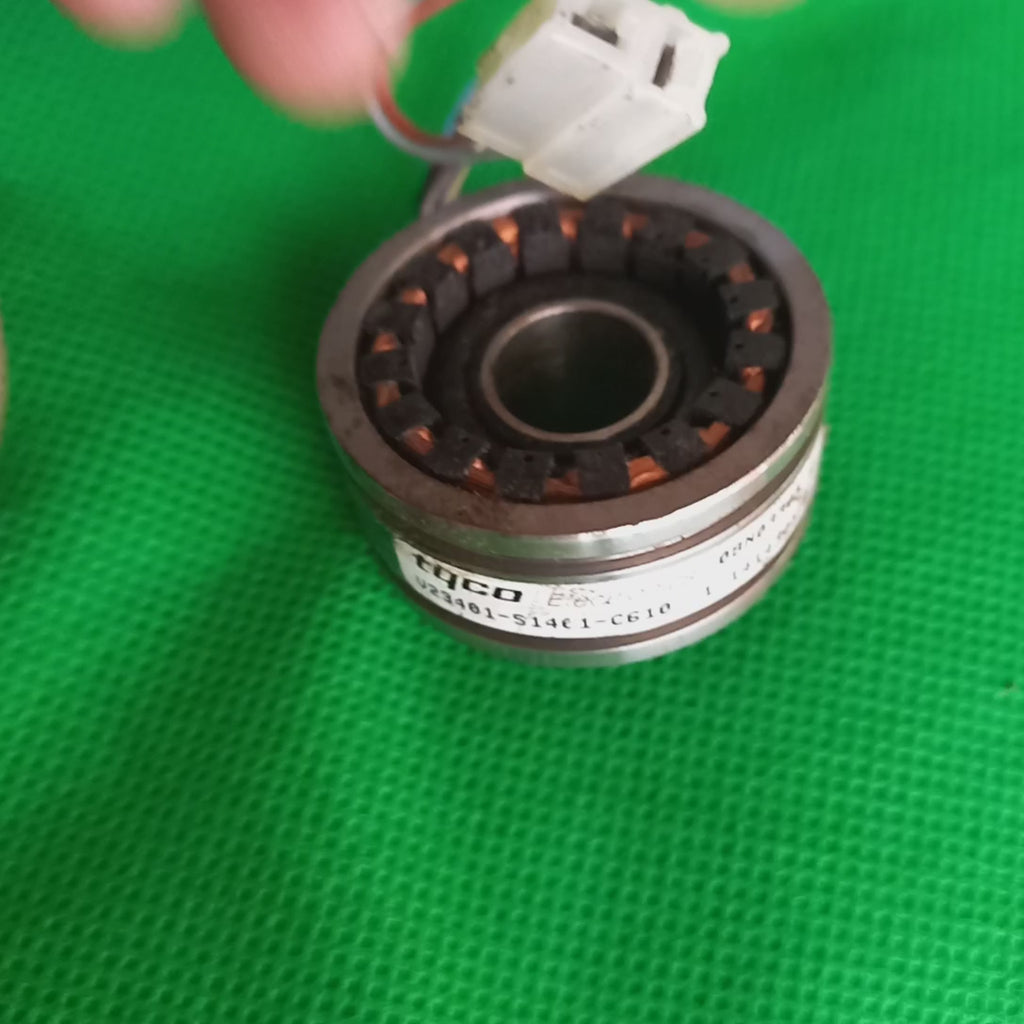

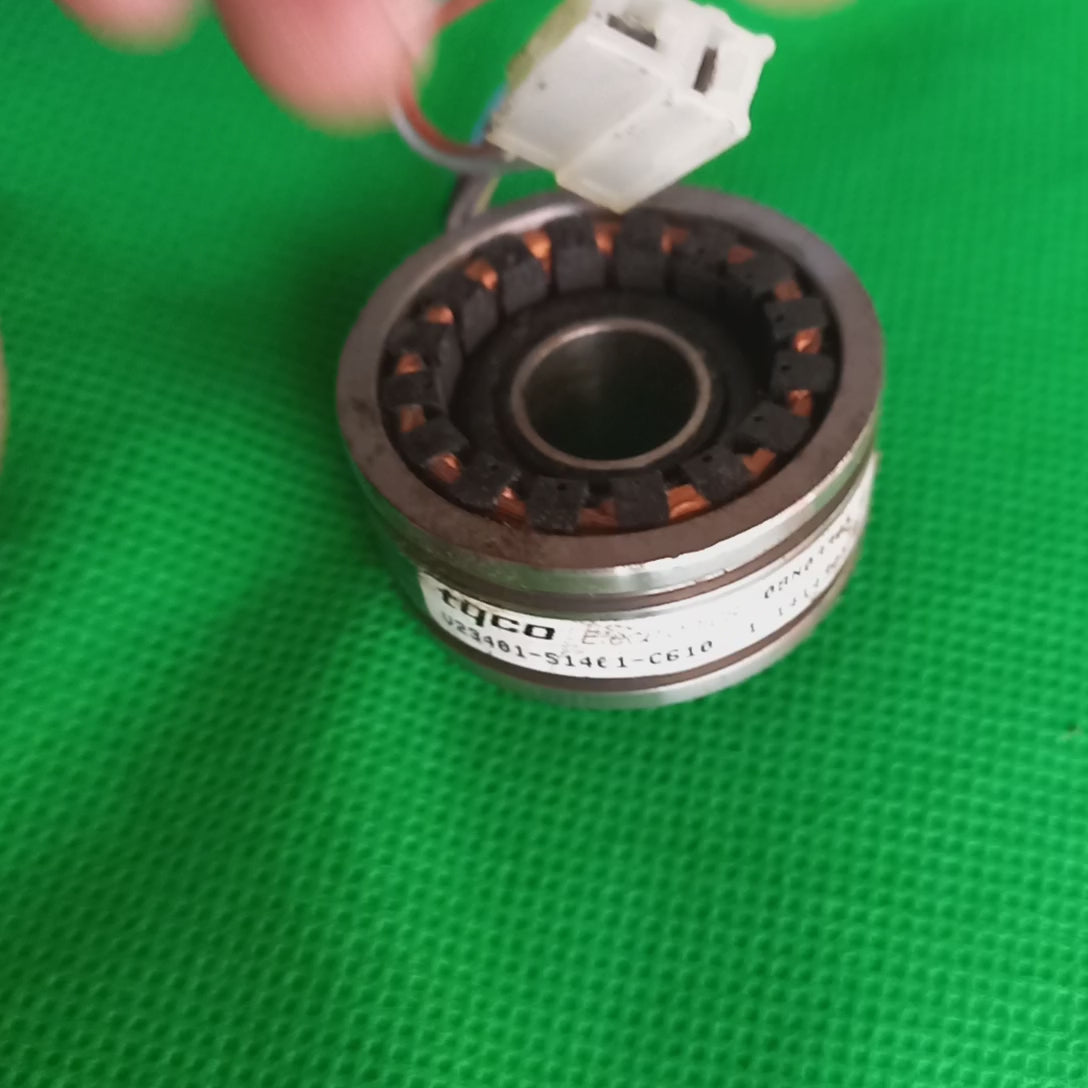

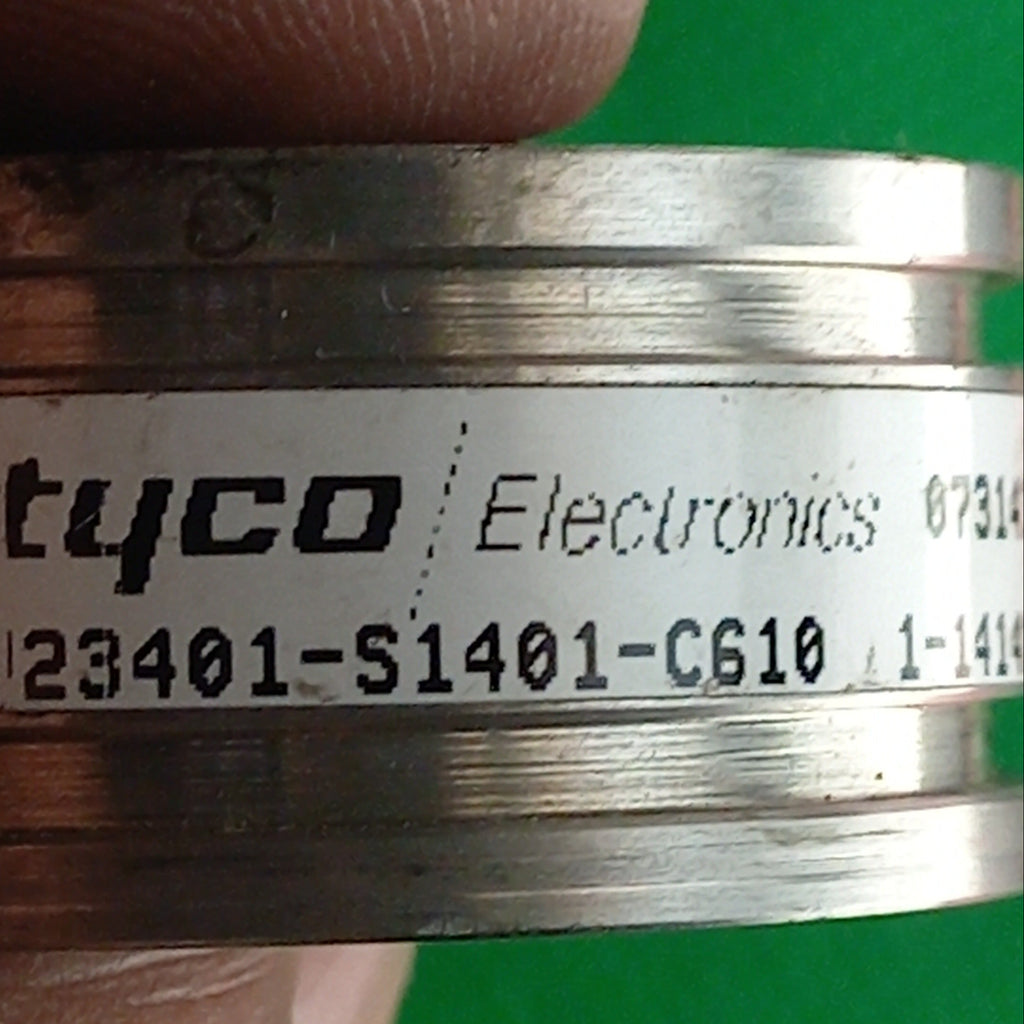

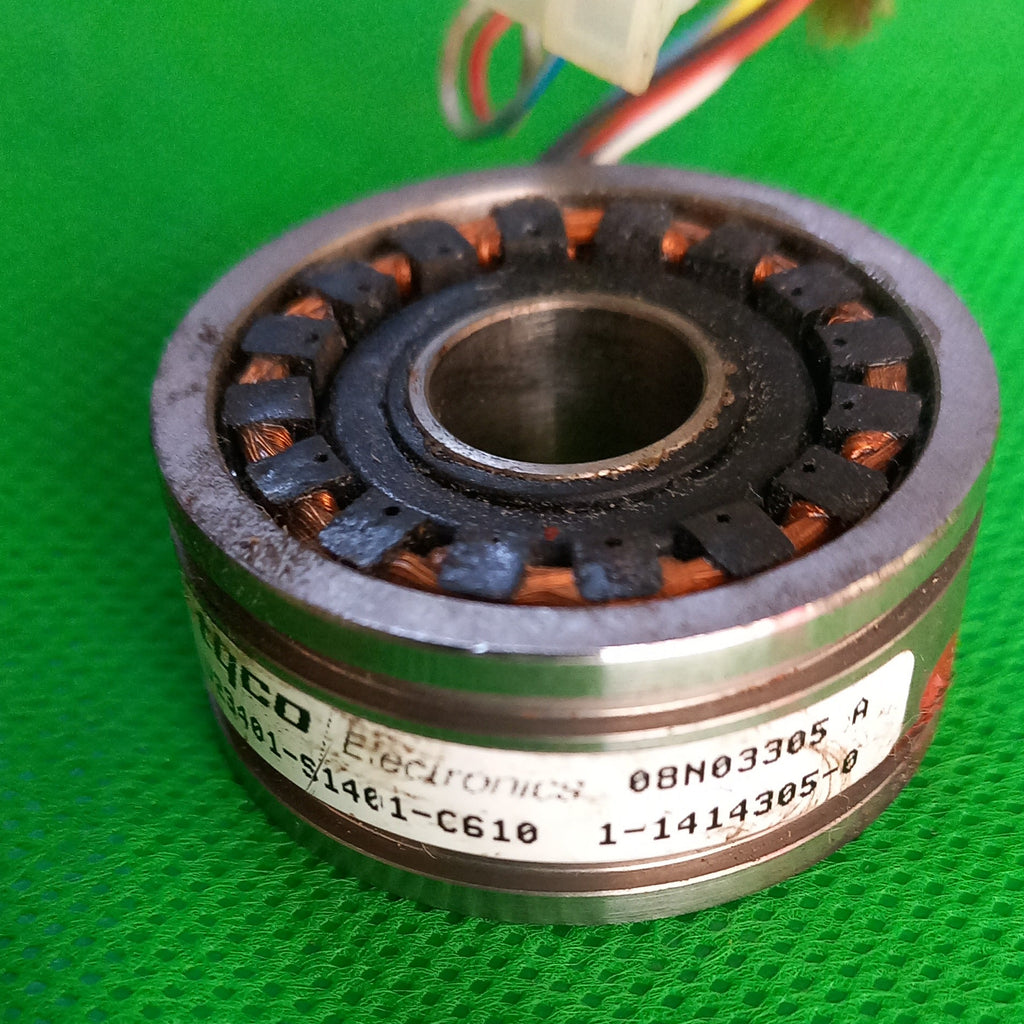

TYCO ETE V23401-S1401-C610 / S1401C610

TE Connectivity's resolvers  for SEW
Analog angular position sensors for industrial servo motors. The size 21 T7X resolver

TE Connectivity's resolvers provide a complete range of general market solutions for a wide variety of applications

TE Connectivity AMP's ResolverTE Connectivity's resolvers are analog angular position sensors for industrial servo motors. The size 21 T7X resolver products provide a complete range of general market solutions that can be applied in a variety of applications. Due to its design, the hollow shaft resolver boasts of above-average service life. Reliability, as well as high-precision and low space requirements, supplement its favorable characteristics. It remains fully operable even under extreme environmental conditions. Mechanically, the resolver consists of a stationary stator and a movable rotor. Electrically, it consists of a transformer for supplying the rotor with power and a second transformer for determining angles. As one of the largest sensor and connectivity companies in the world, TE Connectivity offers a resolver portfolio which can connect with a wide range of servo motor connectors and further sensor application.

Features

• Stable against humidity and many lubricants

• Available in single-speed and multi-speed variants

• Direct cable assemblies with TE’s Intercontec connectors

• Resistant to shock and vibration

• Lifetime is above average due to the design of the mechanical structure and
• automated coil incorporation

Applications

• Industrial servo motors

• Robotics

• Textile weaving machines

• Factory automation equipment

• Target Markets

• Factory automation

• Industrial motors
