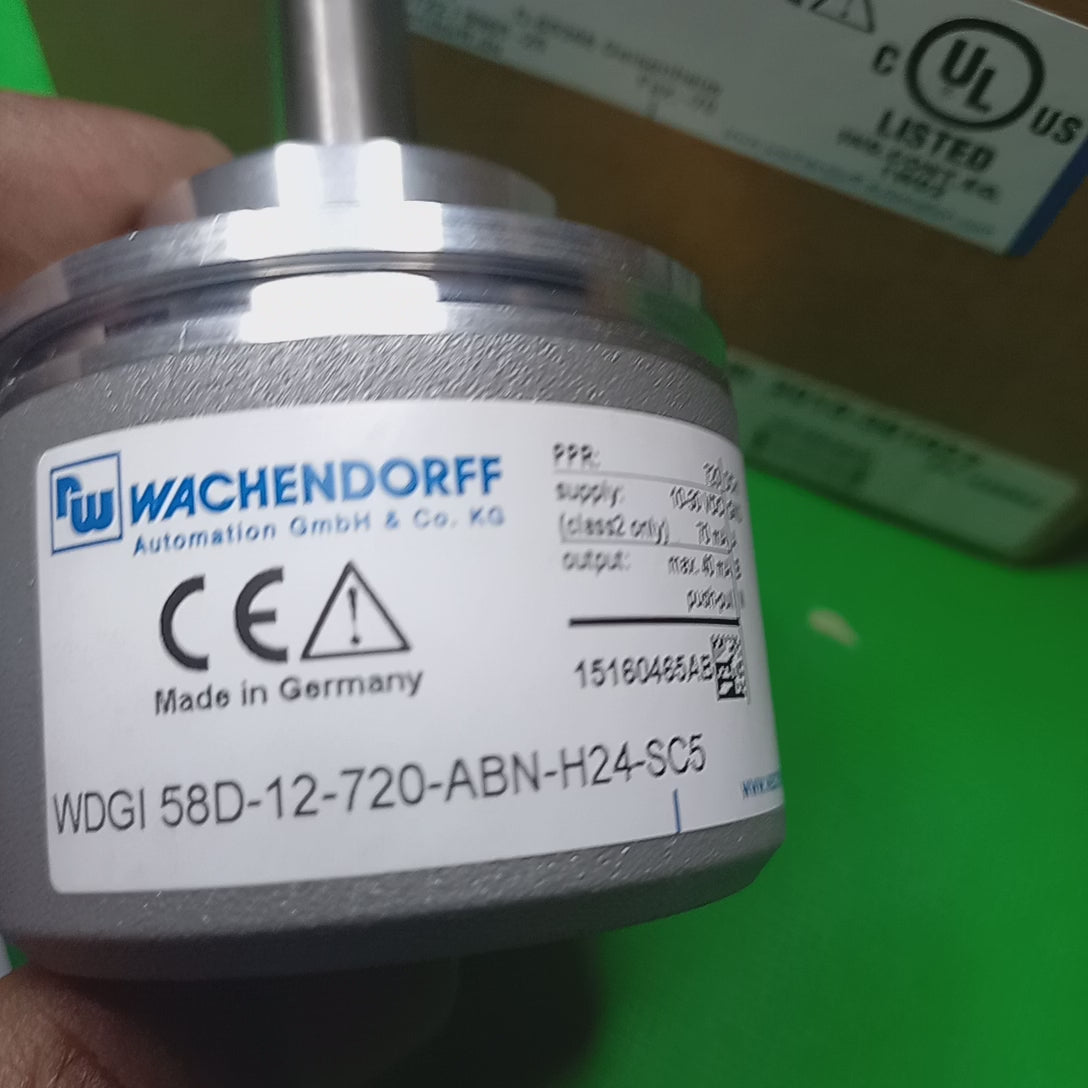

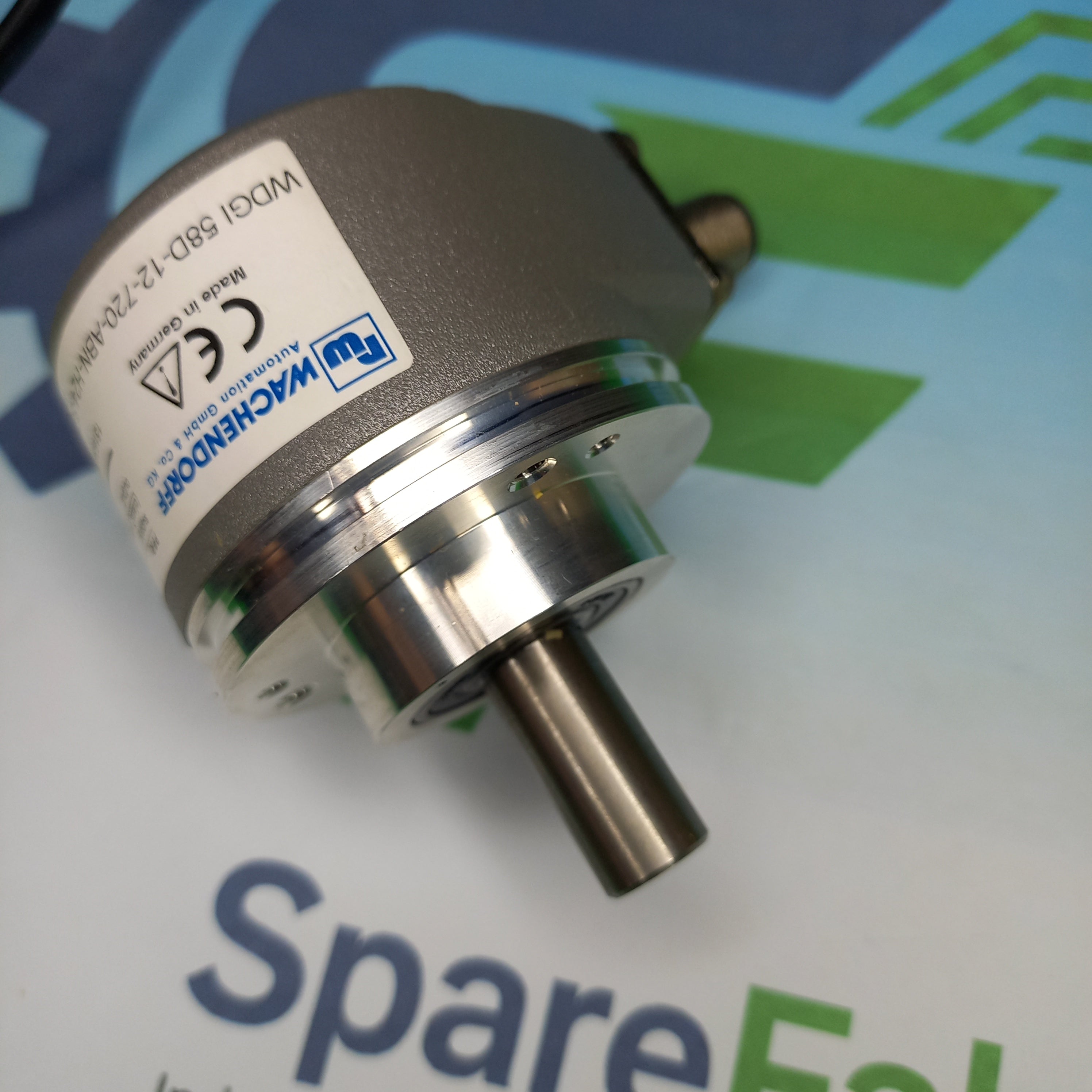

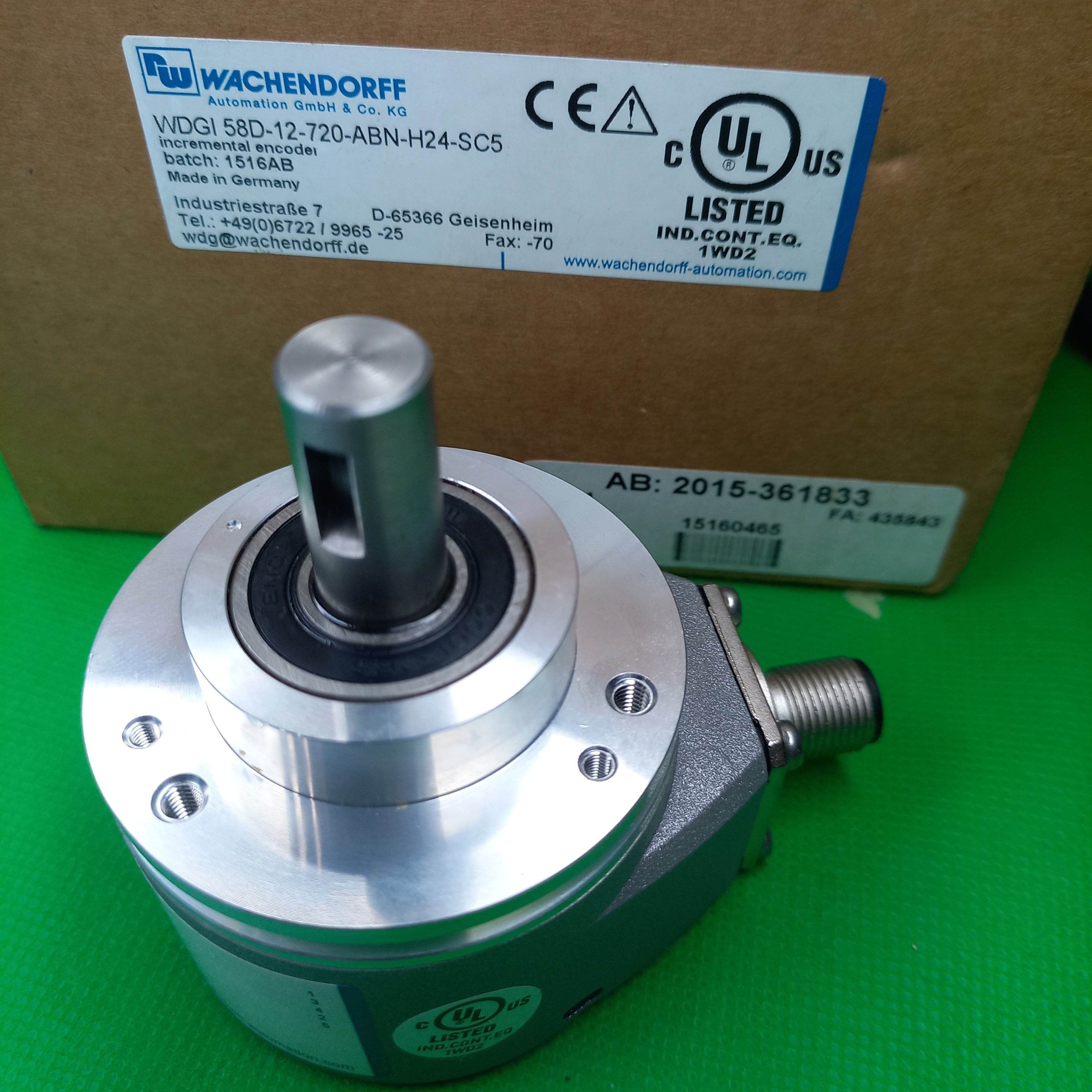

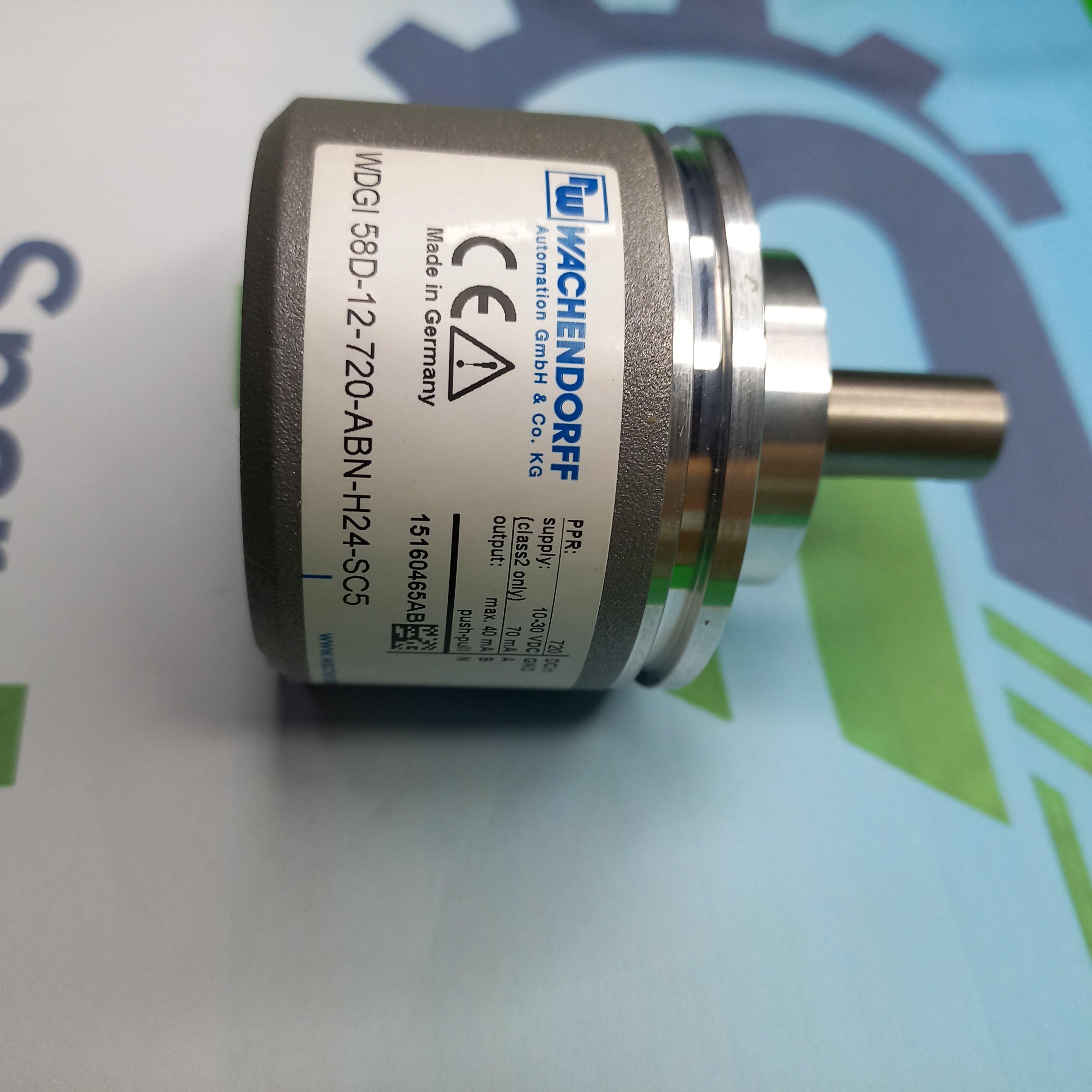

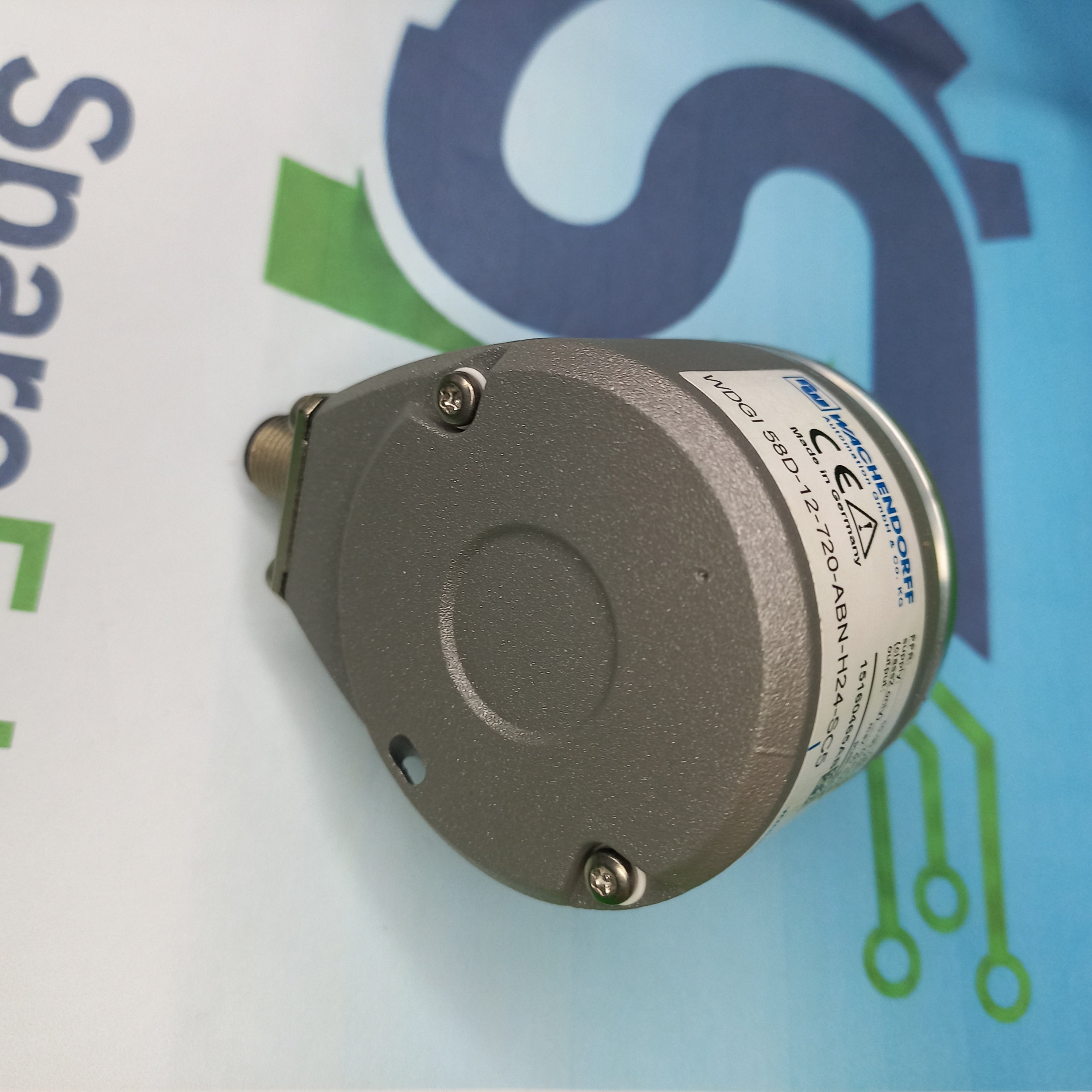

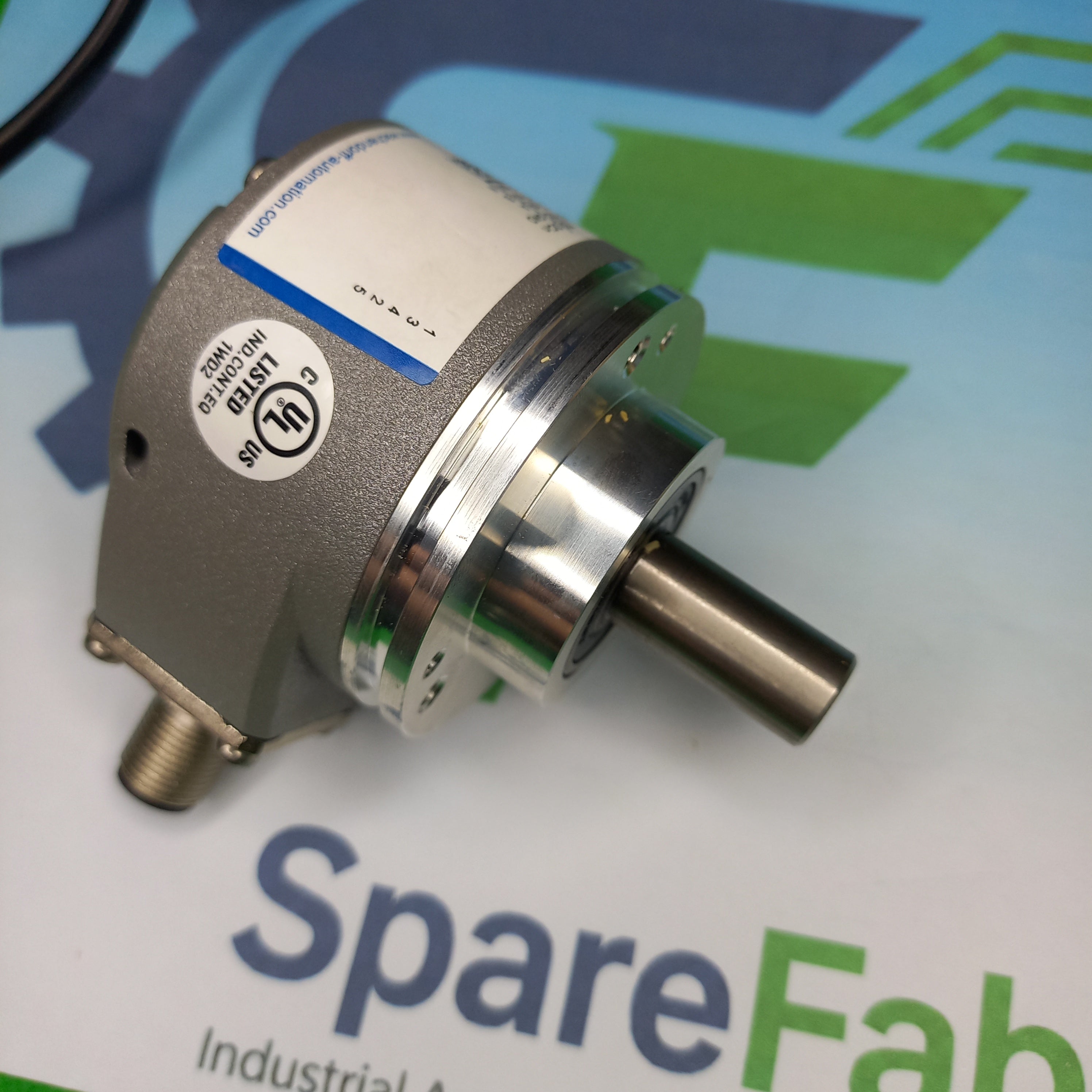

Wachendorff Encoder WDGI 58D | WDGI-58D-12-720-ABN-H24-SC5

Ready Stock | Collect from our Store Today | We ship Same Day : : Worldwide| USA Shipping 3-4 Days

Wachendorff Encoder WDGI 58D | WDGI-58D-12-720-ABN-H24-SC5

Name: Wachendorff Encoder WDGI 58D | WDGI-58D-12-720-ABN-H24-SC5
Brand: Wachendorff
SKU: ENC7A40
Price: 1480.00 USD
Availability: InStock

$1,480.00

Taxes included. Shipping calculated at checkout.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

Manufacturer Part Number: WDGI 58D 12 720 ABN H24 SC5
Encoder Type: Incremental encoder
2 Supply voltage 10v=30VDC
Encoder ID. NR.WDGI58
Encoder SIgnal Square Wave Ouptut Signals: ABN : The encoder outputs Track A, Track B, Track N | 10 - 30 VDC, HTL,
| 720 | HTL | Ø 60 mm | M12 male connector on Encoder Body, 5-pin

View Manufacturer Product Page

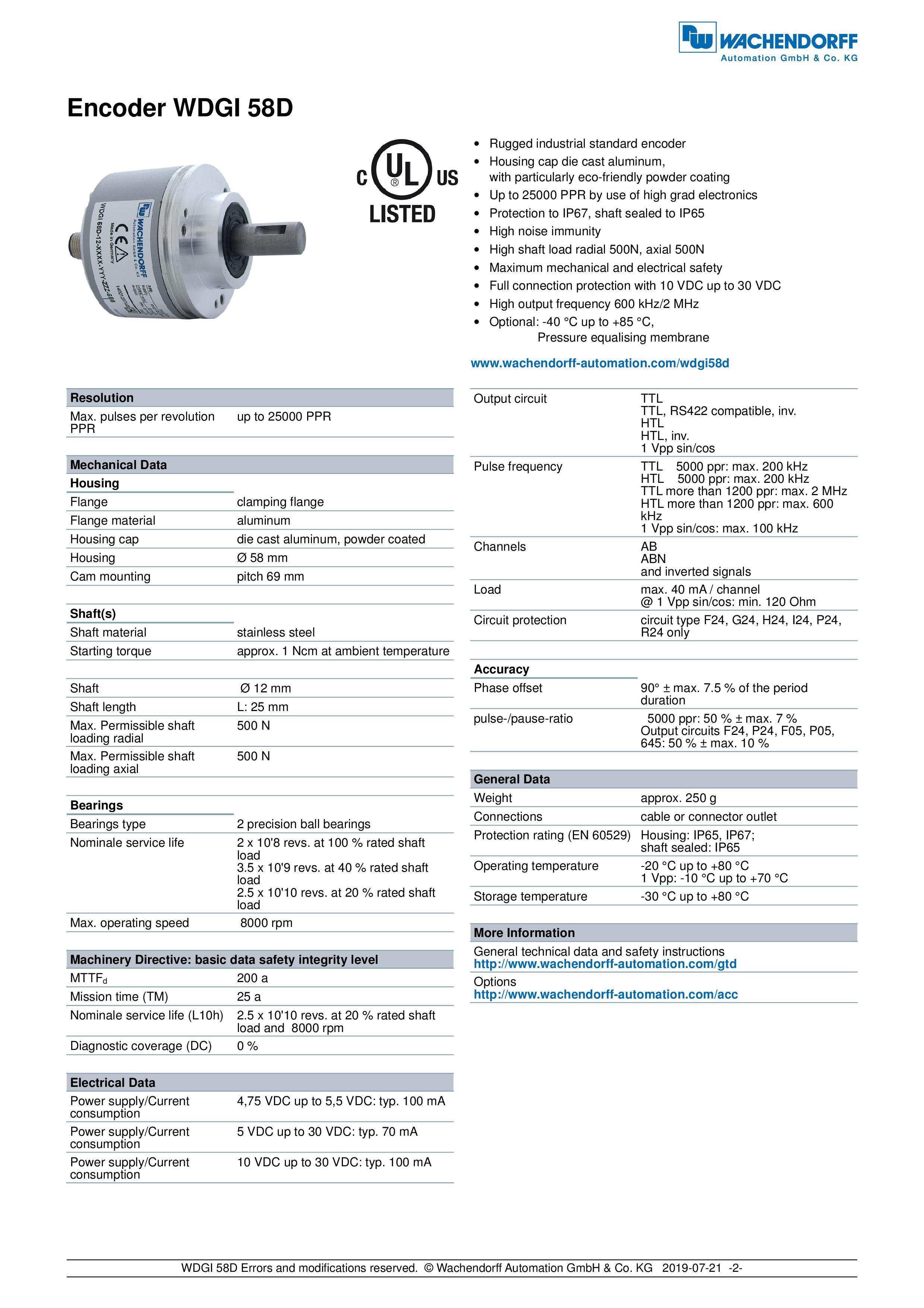

Download Product Datasheet

Product Condition New in Generic Brown Packett:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : NO Original packaging - Brown Cardboard Generic Packing

Dispatch Lead | Processing time

Same day ship if paid before 2 PM Local time

Shipping Time (Transit) : Local Inside UAE shipping to your factory|Office|Home or Hotel address: [ Max Courier ] : Same Day/ Next day
USA Shipping : [by UPS Express: Saver] : 3-4 Days
Canada: : [by UPS Express: Saver] : 3-4 Days
Mexico and other North American countries: : [by UPS Express: Saver] : 4-6 Days
Germany, UK, France, Italy Shipping : [by UPS Express: Saver] :3-4 Days
Rest of Europe: [by UPS Express: Saver] : 4-5 Days

Oman: Next Day by Bestline express
Kingdom of Saudi Arabia, Bahrain, Qatar, Kuwait : DHL Samsa Express : 2-3 Days

Question about Return | Payment or After sales support . Call us

Encoder Type:

Incremental or Absolute

Salient | Special features of Encoder: WDGI 58D | Shaft Encoder incremental,
Resolution: 720 ppr,
Clamping flange: Ø 58 mm [2.283"] | Shaft Ø: 12 mm [0.472"],
Protection to IP67, shaft sealed to IP65,
High shaft load: radial 500 N [50.984 kp], axial 500 N [50.984 kp],
Signal shape: square-wave
Operating principle: optical.

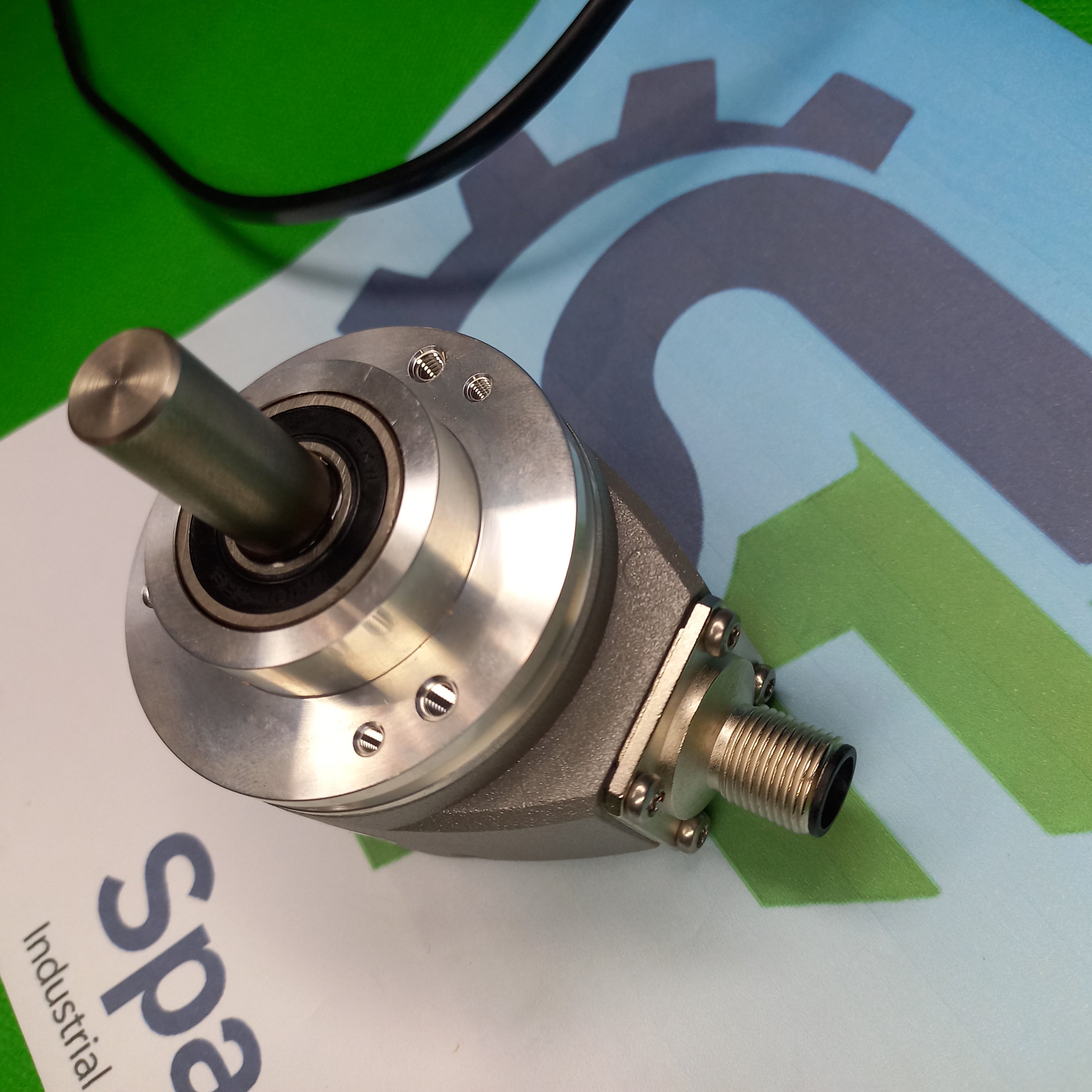

Encoder mechanical Design

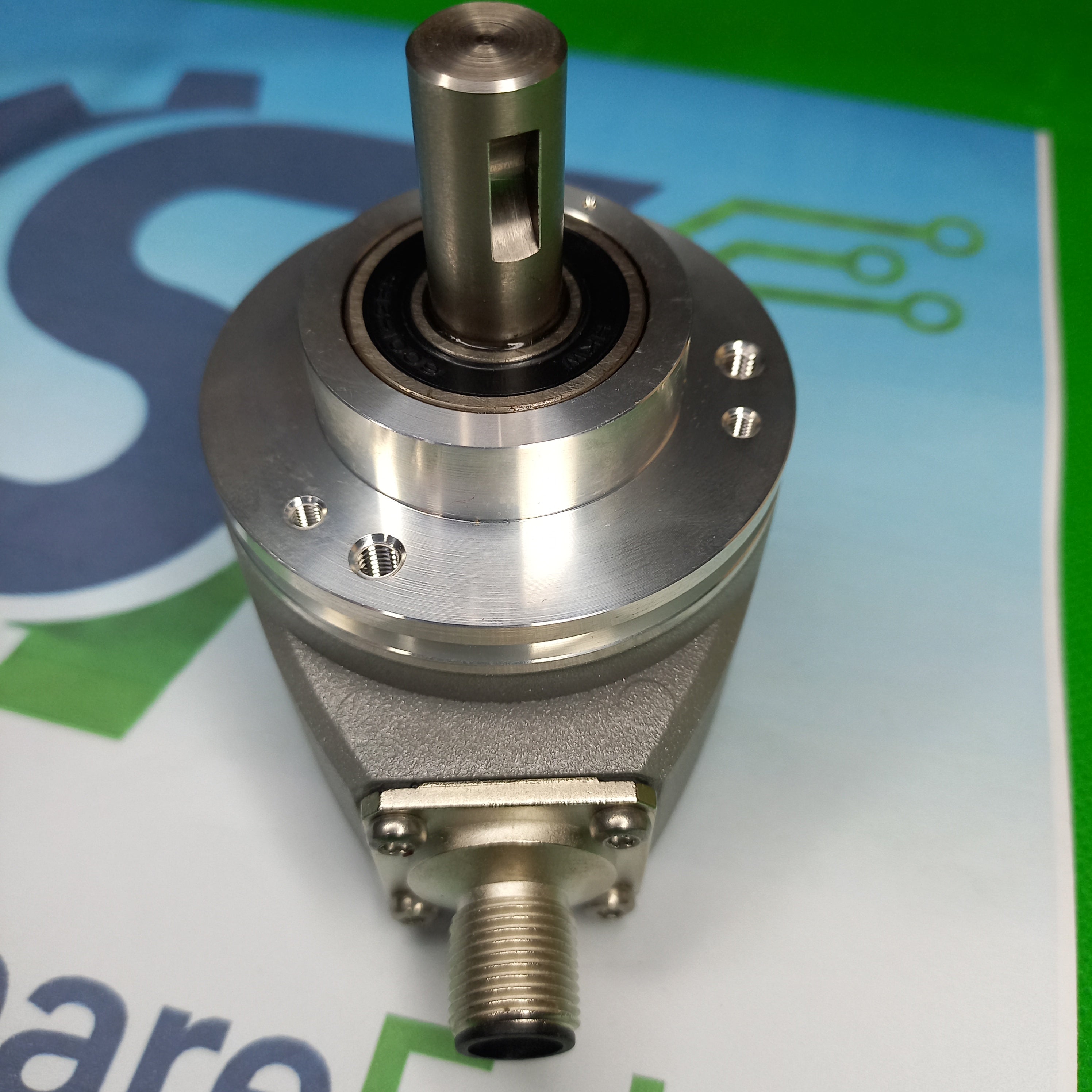

Increental Encoder Mechanical Design Solid shaft, face mount flange
Incremental Encoder Construction size (flange) Ø 60 mm
Incremental Encoder Shaft diameter 12 mm

Encoder Signal Interface | Communication

Incremental Encoder Communication Interface detail HTL

Performance Data:

Incremental encoder PPR | Impulse | Pulses per revolution720

Incremental Encoder Resolution
incremental Encoder Range of pulses per revolution0 ... 1024
Signal Details: Square Wave Ouptut Signals: ABN : The encoder outputs Track A, Track B, Track N | 10 - 30 VDC, HTL,

Connection Details of encoder

Connection

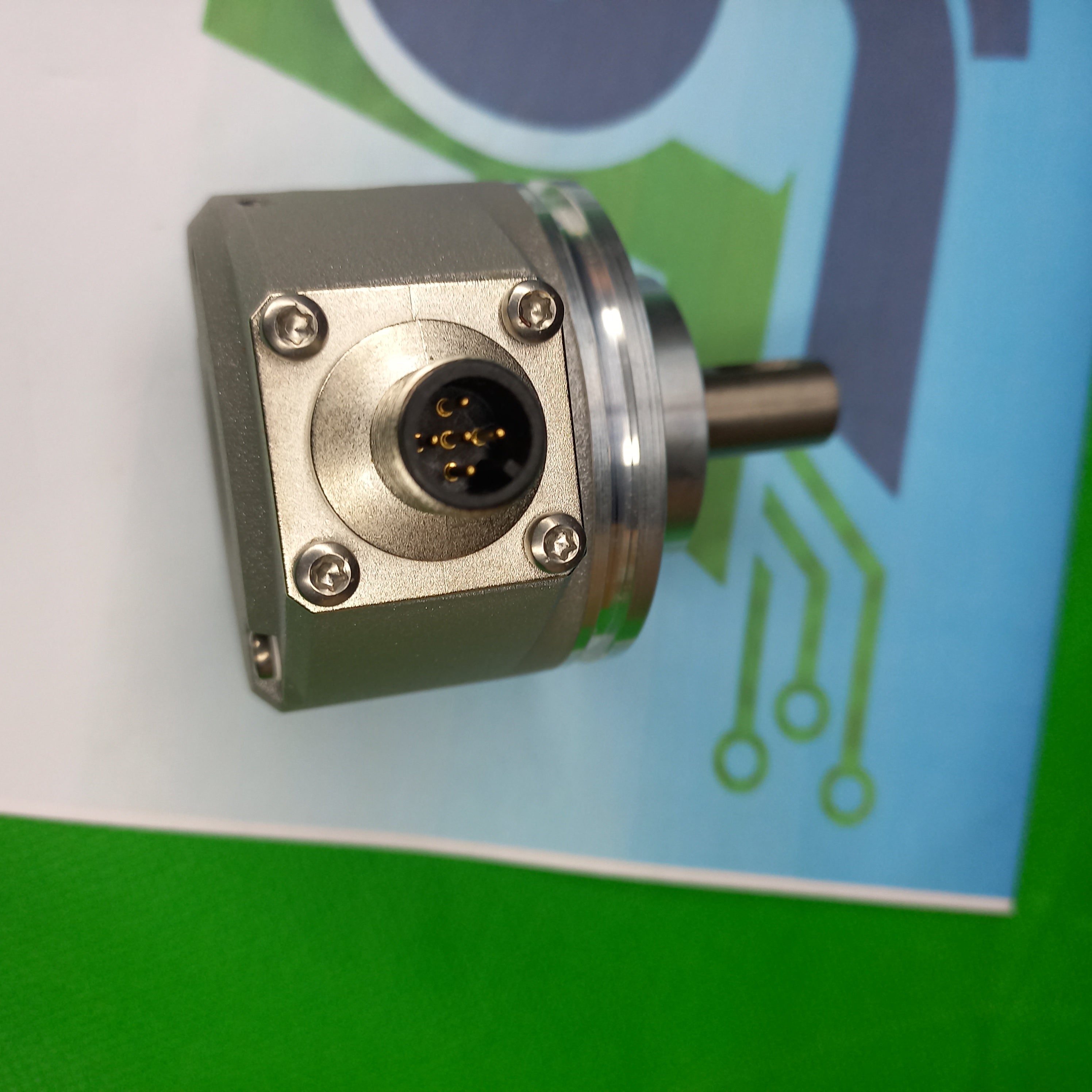

Connection type (Detail)M12 male connector on Encoder Body, 5-pin
Direction of connection Radial
Length of cable

Mounting Arrangement for Encoder Body

PCD - Pitch circle diameter
Face clamping Diameter 24mm

Manufacturer Alternative MPNWDGI-58D-12-720-ABN-H24-SC5
Manufacturer indent Nr.WDGI58D
1 Manufacturer Part Number (MPN) WDGI 58D 12 720 ABN H24 SC5
Alternative ways of identifying | Part Numbers | Compatible Parts WDGI58D, WDGI58D12, WDGI58D12720,WDGI58D12720ABN, WDGI58D12720ABNH24
Typographic Errors in MPN | Mistakenly Known as WDG1-58D-12-720-ABN-H24-SC5, WDG158D12720

signal ABN, 10 - 30 VDC, HTL, Circuit : H24: Shaft : 12mm
