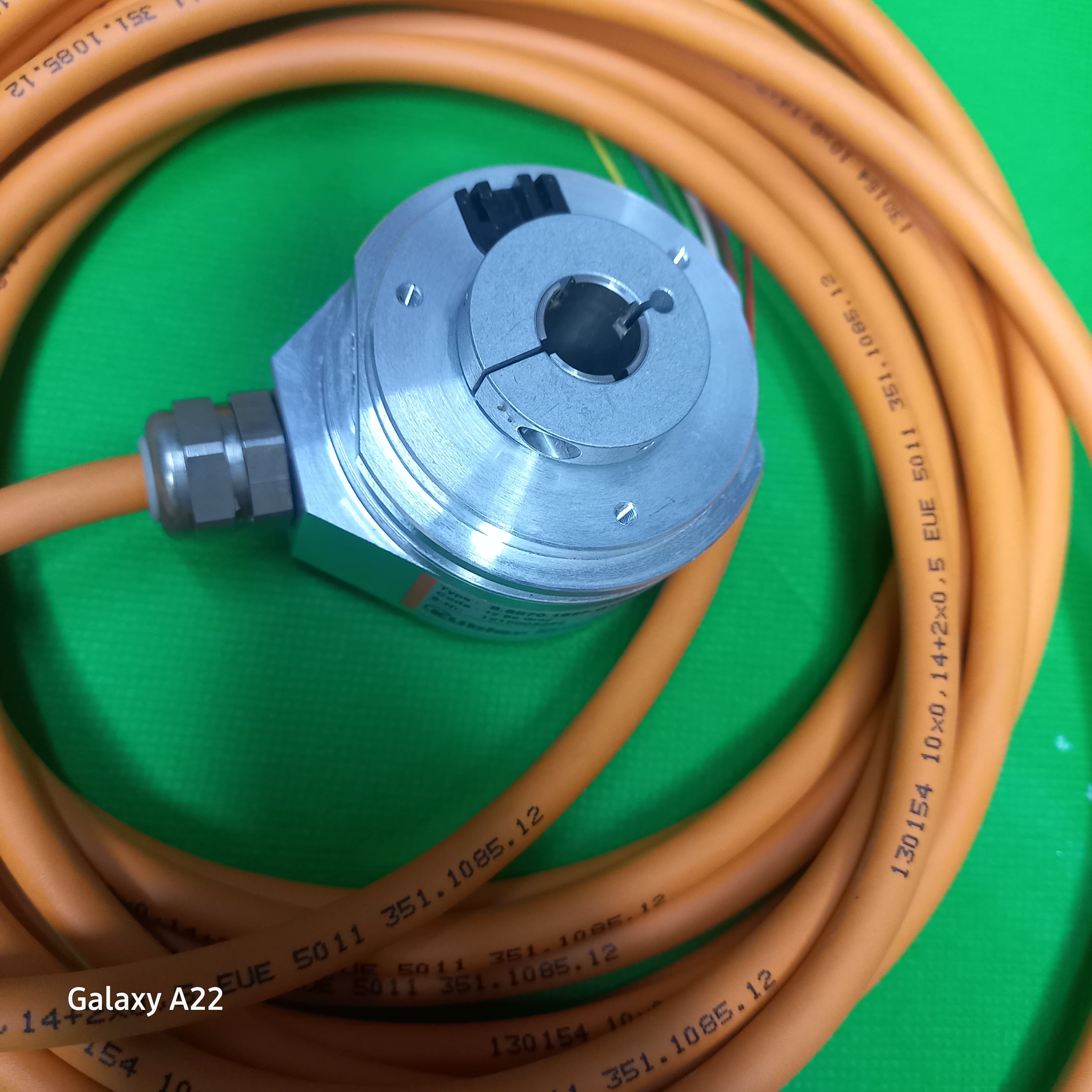

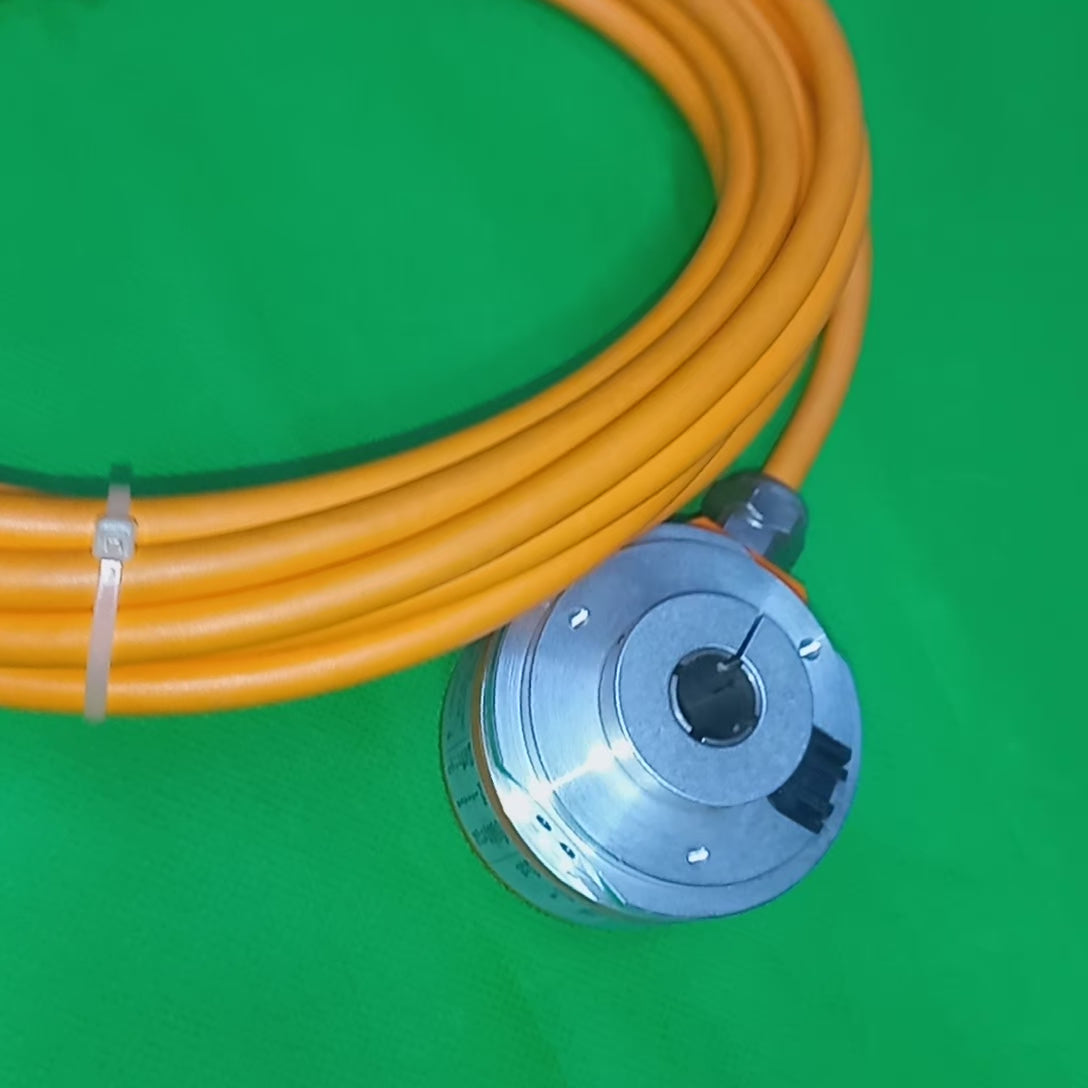

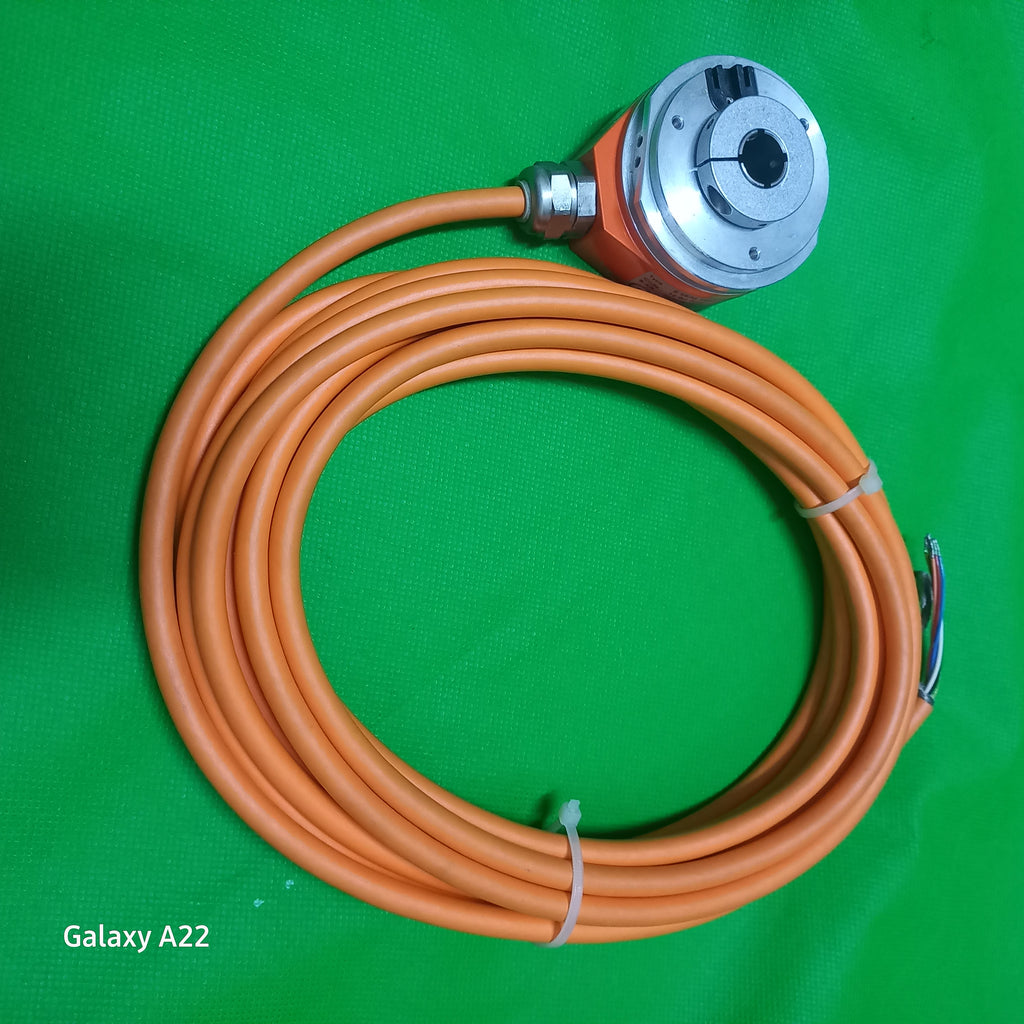

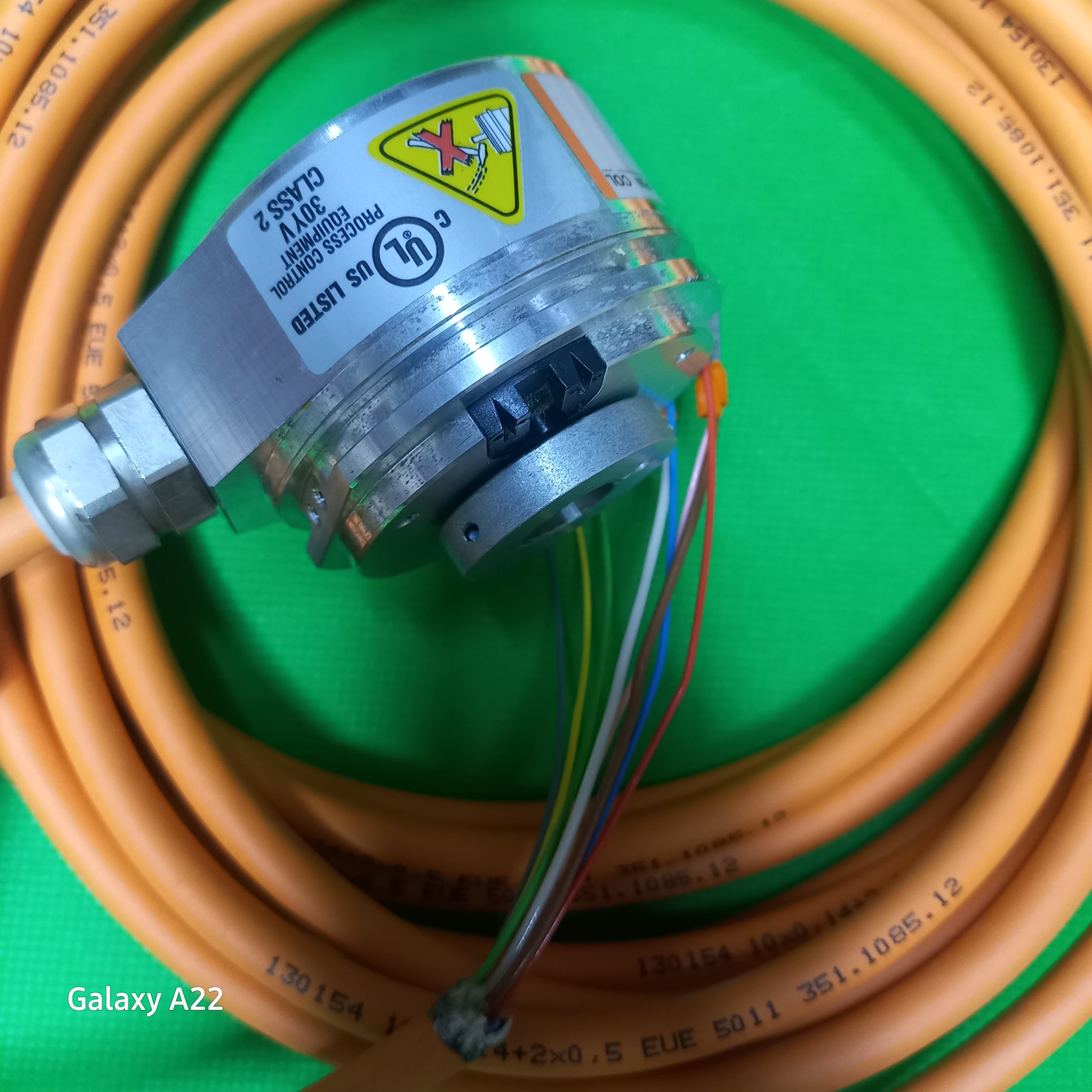

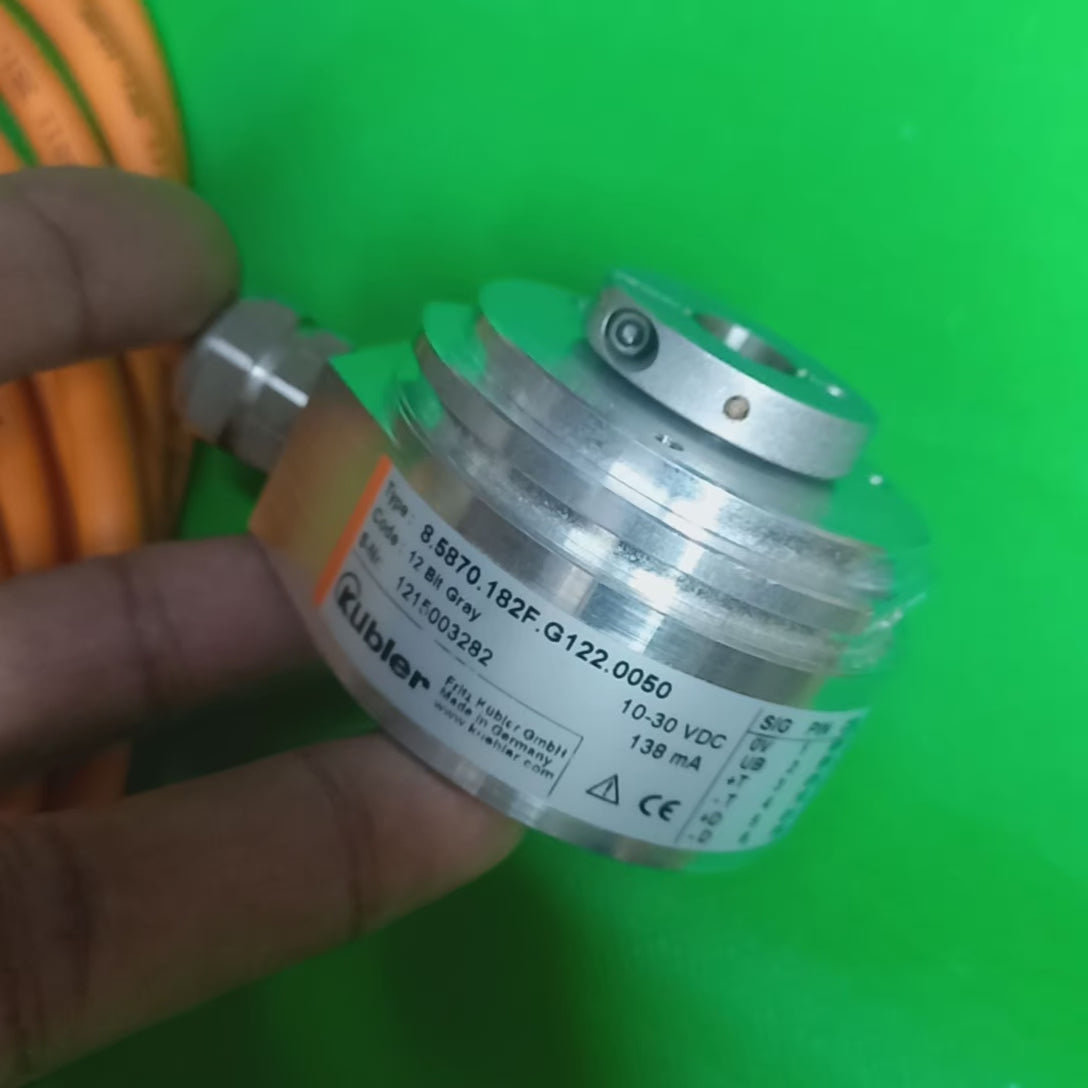

Absolute Singleturn 8.5870 Hollow 12mm encoder, SSI, 12 Bit Gray Code, 4096 (12bit), 5m
$1,680.00
Skip to product information
Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days
Absolute Singleturn 8.5870 Hollow 12mm encoder, SSI, 12 Bit Gray Code, 4096 (12bit), 5m
$1,680.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = 85870 1 8 2 F G12 2 0050
- Manufacturer MPN = 8.5870.182F.G122.0050
- Encoder Type = Absolute Encoder
- Supply voltage = 10-30VDC
- ID. NR. = 8.5870 1 8 2 F G12 2 0050
- indent Nr. = 8.5870 1 8 2 F G12 2 0050
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = 85870 1 8 2 F G12 2 0050
Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = through hollow shaft
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 12mm Hollow ( Through)
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = SSI
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Singleturn
- Absolute Encoder - Number of steps per revolution = 4096 (12 bit)
- Absolute Encoder Number of revolutions =
- Absolute Encoder Resolution (Bits) =
Absolute Encoder Programmable/configurable = NOT : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection =
- Connection Type Detail = cable, 8-wire
- ABS- INC Length of cable =

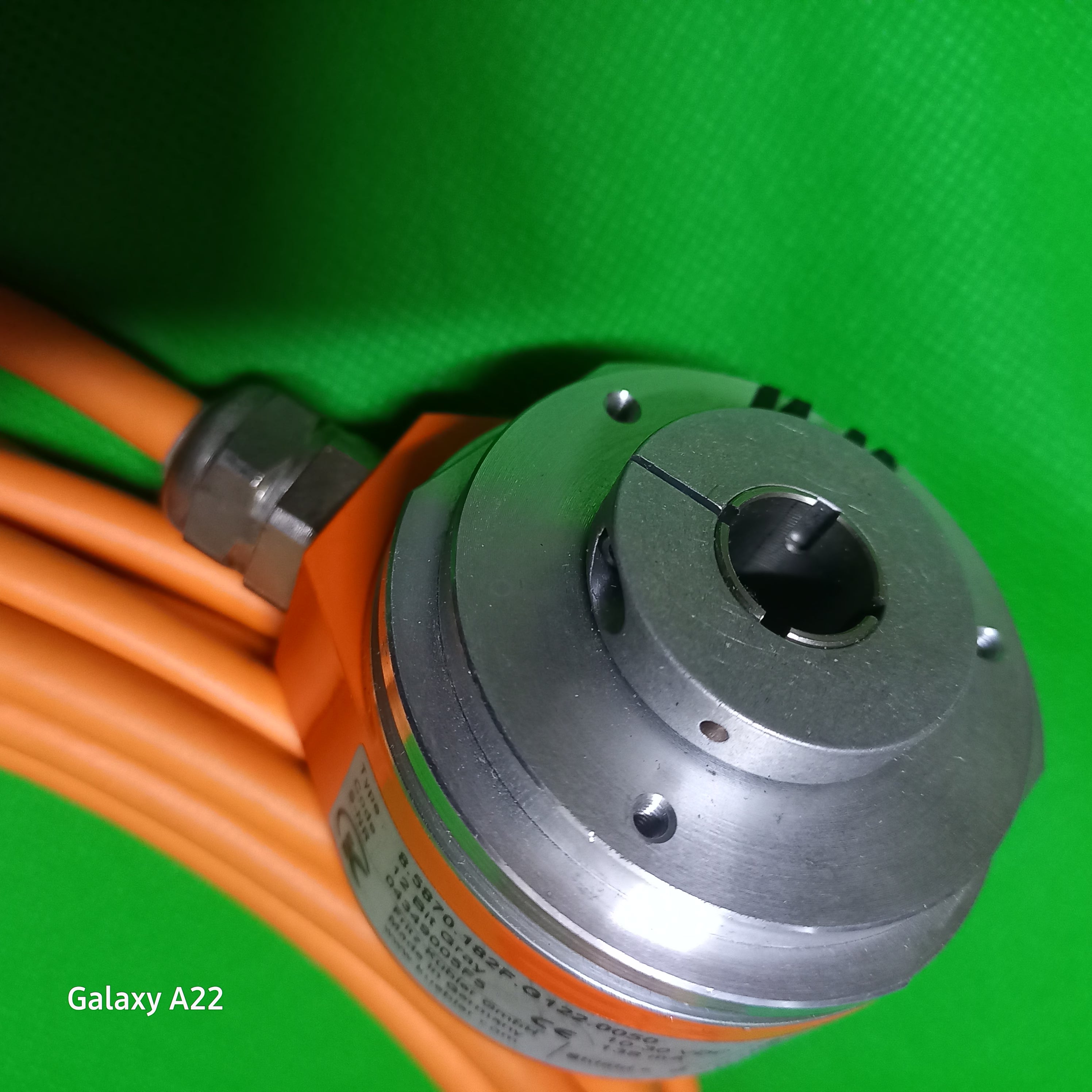

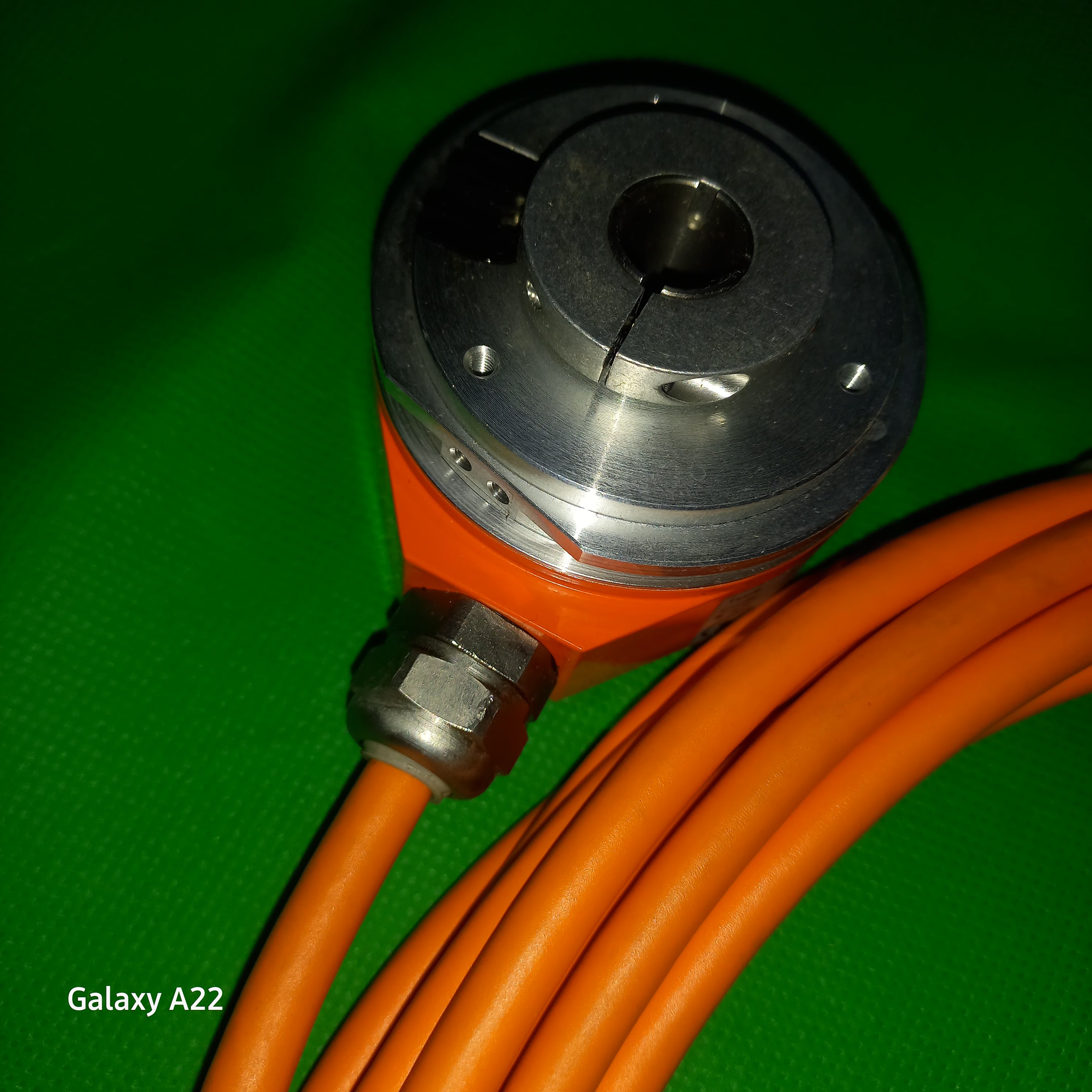

How Encoder body is Mouted ? Mouting Flange Design Data:

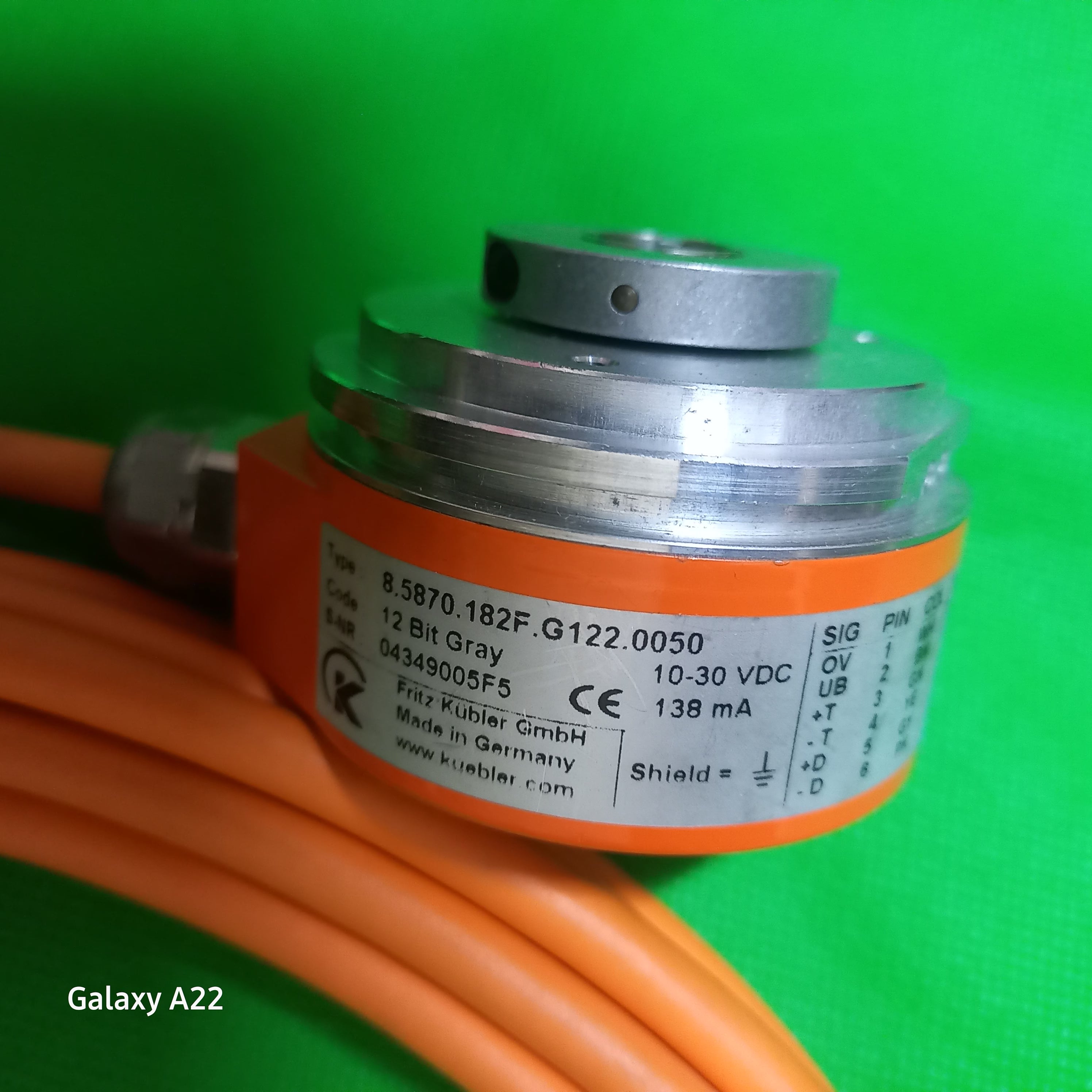

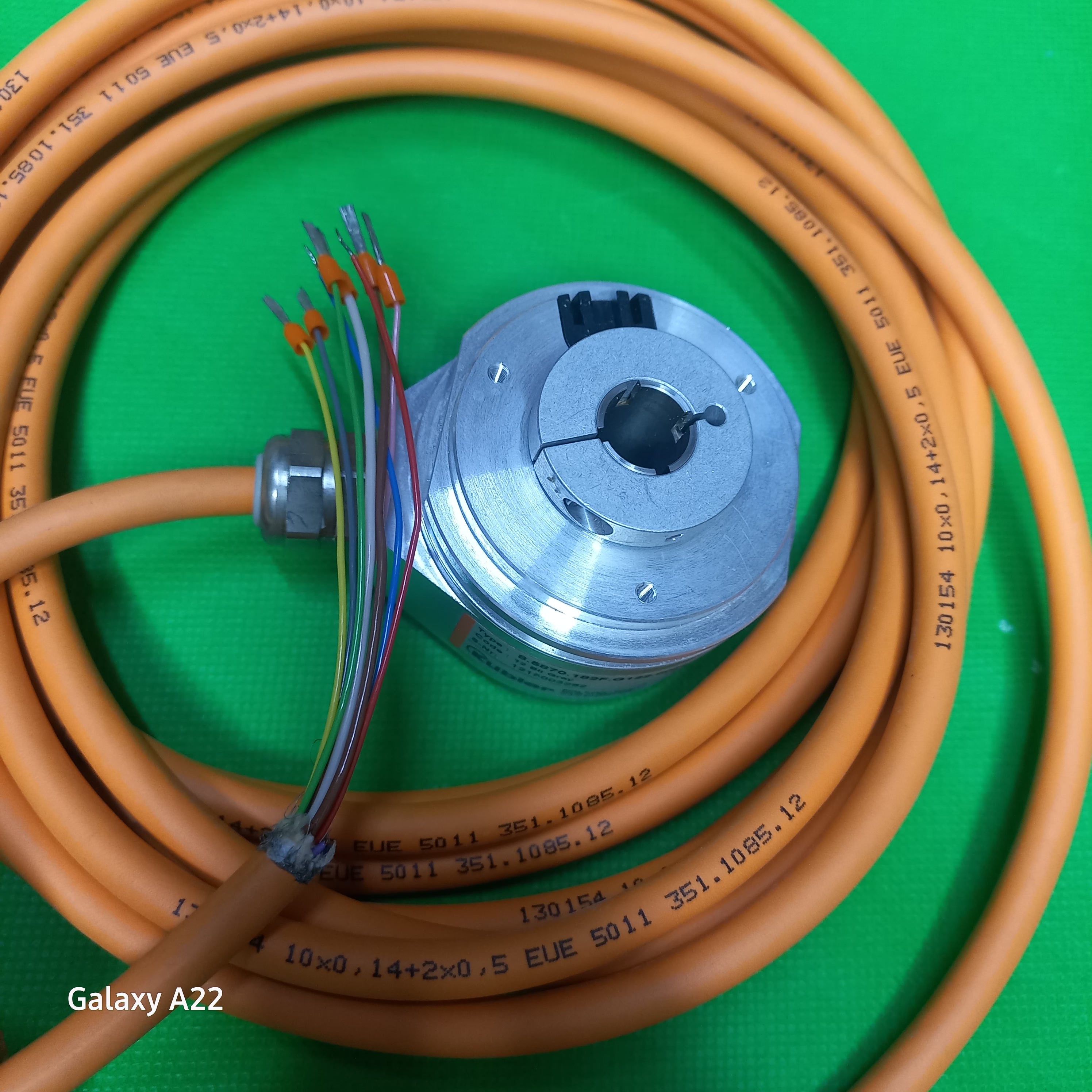

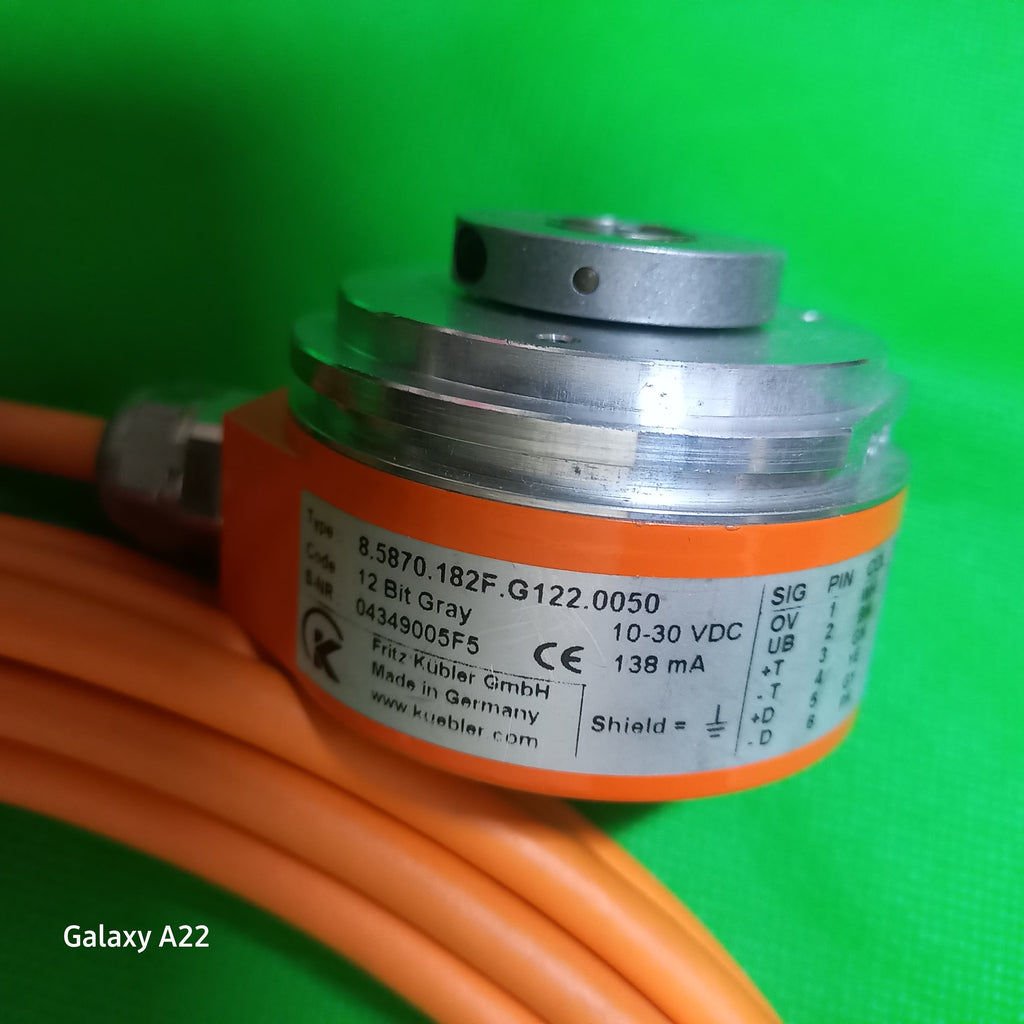

Ready Stock | Collect from our Store Today Kubler Rotary encoder Absolute Singleturn 8.5870 ; 12mm Hollow, SSI 4096/12bit Gray Single turn encoder. Cable 5 meter Signals:

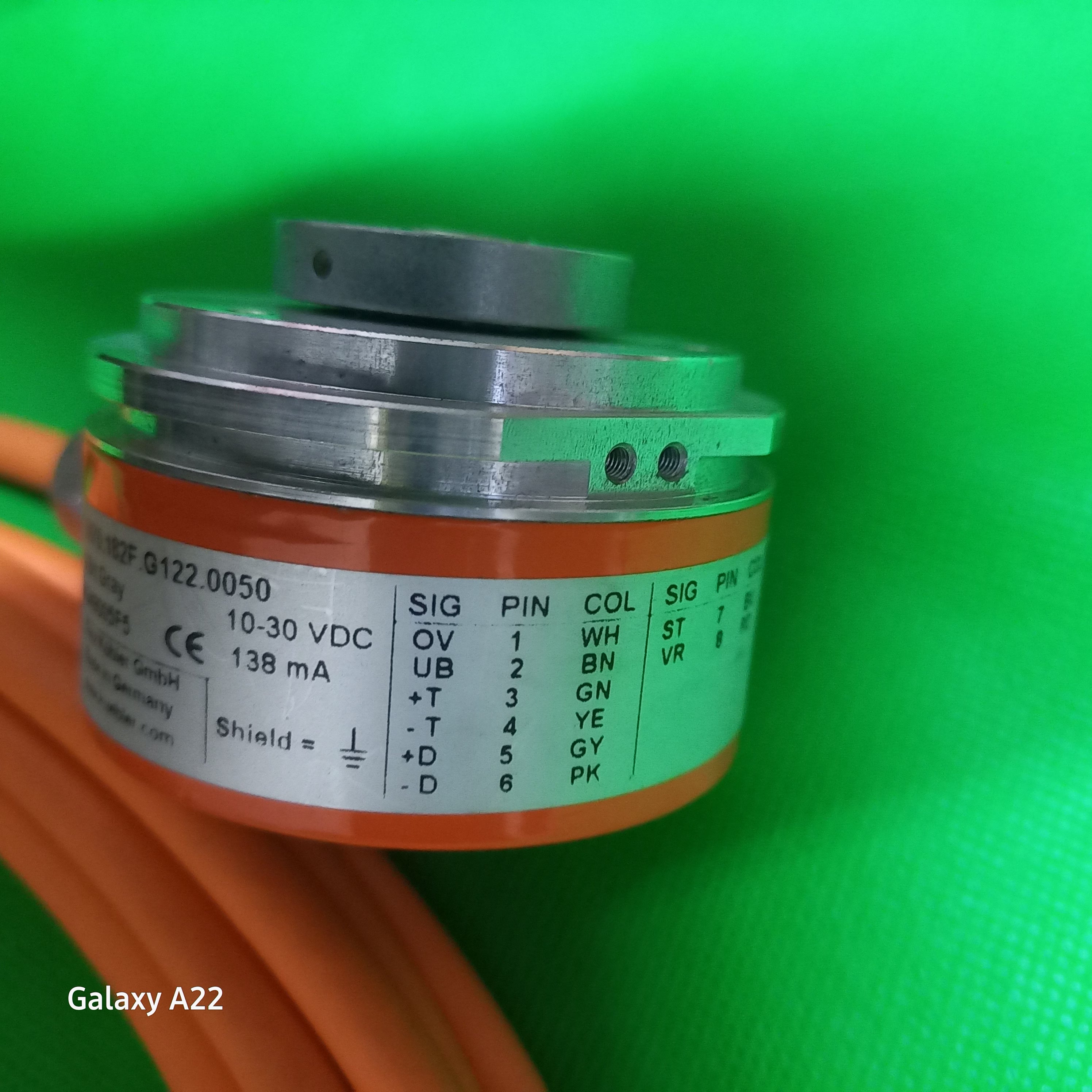

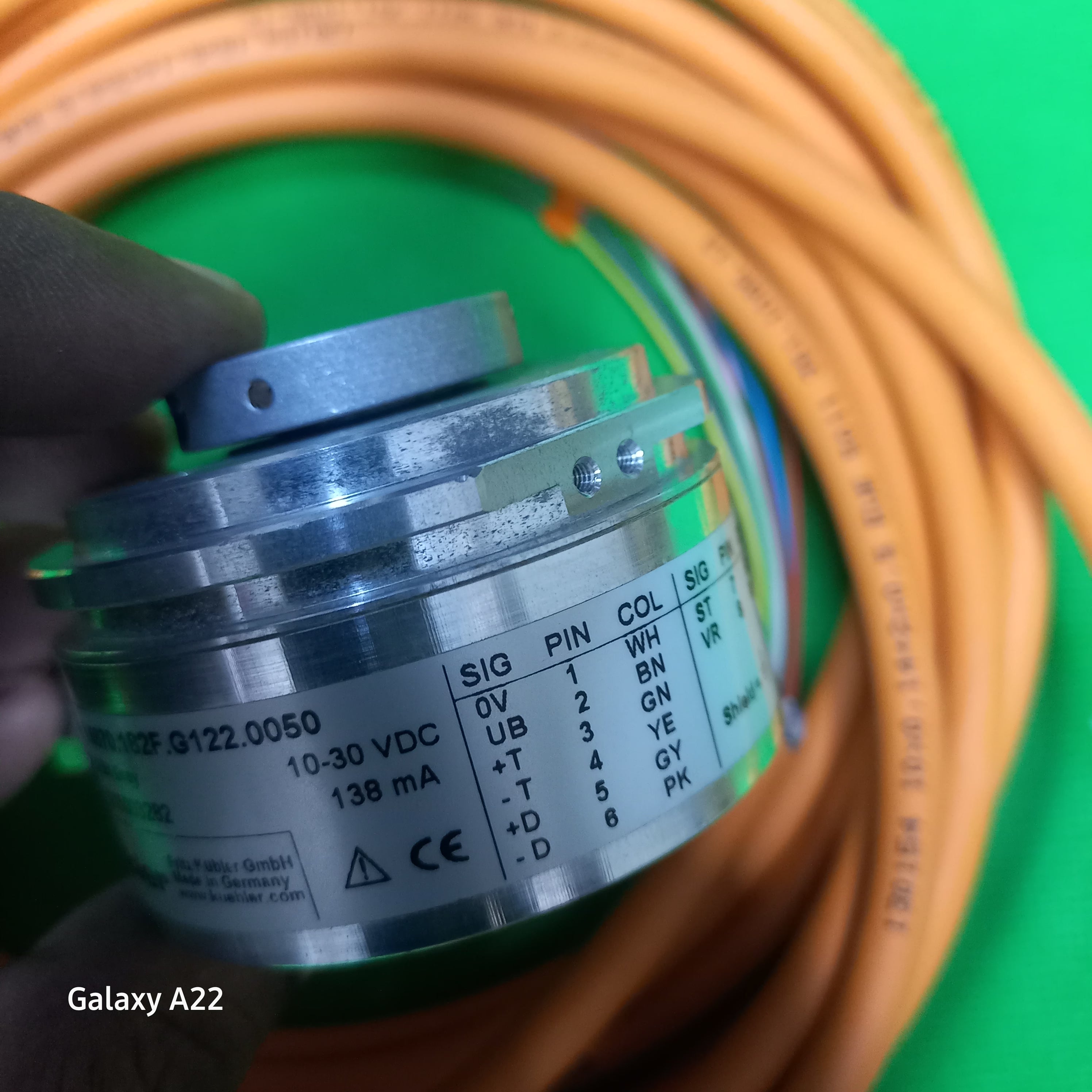

| signal | 0v | UB | +T | -T | +D | -D | ST | VR |
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Colour | WH | BN | GN | YE | GY | PK | BU | RD |
| White | Brown | Green | Yellow | Grey | Pink | Blue | Red |

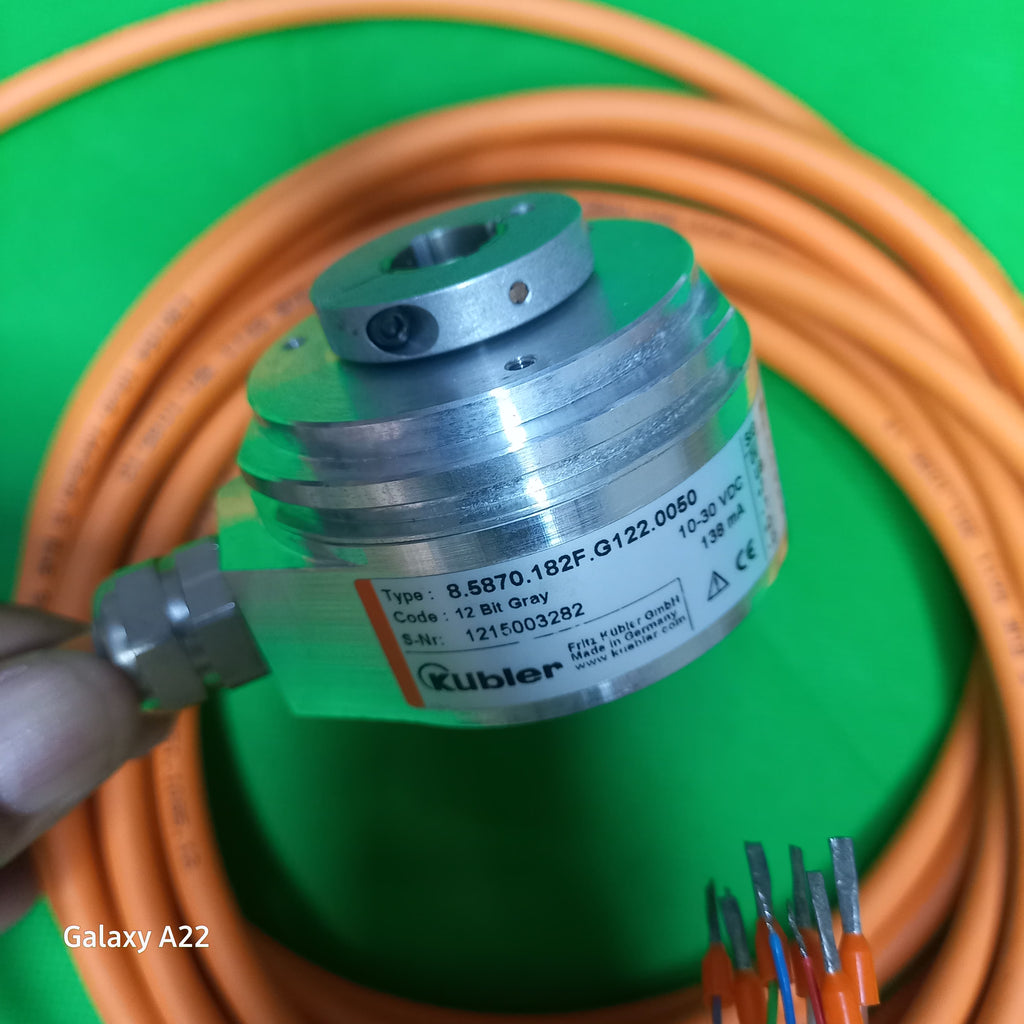

Order Code Breakup is as follows:
G = SSI, gray | 4096(12bit) Gray 10-30VDC |
Encoders Absolute singleturn 5870
Order code Hollow shaft
8.5870.182F.G122.0050
1 = Flange= hollow shaft with spring element, short
8 = Hollow shaft = ø 12 mm [0.47“]
2 = Interface / power supply = code: 12 bit Gray |10-30 VDC
F = Type of connection = Cable. 5 Meter.
G=Code type and division = [G = SSI, gray] 4096 12 bit | G12
Cable length in dm 1)
0050 = 5 m [16.40‘]
ST: SET input
Parallel: The current position value is stored as new zero position.
4 ... 20 mA: measured value set to 4 mA
VR: Up/down input. As long as this input is active, decreasing code values
are transmitted when shaft turning
Details
