3RG623 Ultrasonic proximity switch, 3RG6232-3AB00, 3ZX1012-0RG62-2AA1, M18, 300mm
$350.00
Skip to product information
3RG623, Sonar-BERO Compact Range M18
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
3RG623 Ultrasonic proximity switch, 3RG6232-3AB00, 3ZX1012-0RG62-2AA1, M18, 300mm
$350.00
Taxes included.
Shipping calculated at checkout.
SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 3RG6232-3AB00
- Manufacturer Alternative MPN ; 3RG62323AB00
- Manufacturer Id Nr. 3RG62323AB00
3RG623, Sonar-BERO Compact Range M18
Bestell-Nr./Order No.: 3ZX1012-0RG62-2AA1

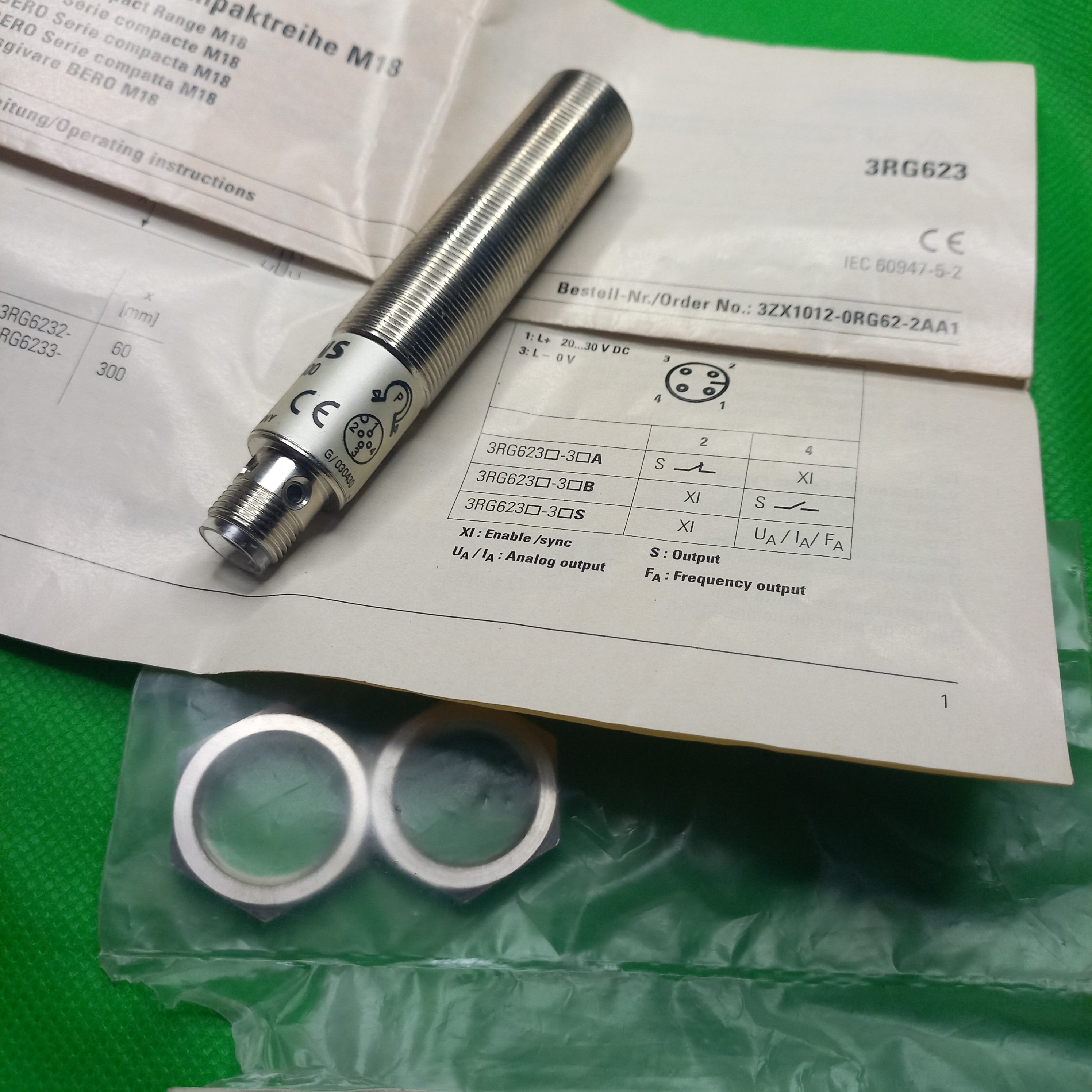

Siemens 3RG6232-3AB00 Ultrasonic sensor Sonar BERO 20-30VDC 50...300 mm
Ultrasonic proximity switch, 3RG62323AB00, cylindrical M18,Sensing range/Erfassungsbereich : 50 ... 300 mm,
Operating instructions
Because of their physical properties, Sonar-BERO devices
must NOT be used for personal safety or EMERGENCY OFF
functions!
3RG 6232-3AB00
Technical Data
Degree of protection : IP 67
Weight : max. 67 g
Perm. ambient temperature : -25 to 70°C
Switching point error : ±2,5 % (-25 to 70°C)
Rated operational voltage Ue DC 24 V
Permiss. tolerance range UB DC 20 to 30 V (at DC 12 to 20 V | sensitivity reduced by up to 20%)
Residual ripple 10 %
Current input (no load) < 50 mA
> Switching output (NC/NO) / Frequency output (FA):
Rated operational current le ≤ 150 mA
Voltage drop Ud <3 V at 150 mA
> Analog output (UA/IA):
Current range 3RG623-3TS: 0 to 20 mA
3RG623-3LS: 4 to 20 mA
Load 0 bis 300 2
Voltage range 3RG623-3JS: 0 to 10 V
Load > 2k Ohm
Accuracy +/-2.5%
> Enabling-
Sensor active : Operating voltage or high-resistance
Input current le max. 16 mA
Sensor not active- 0 to 3 V
Input current lε max. -11 mA

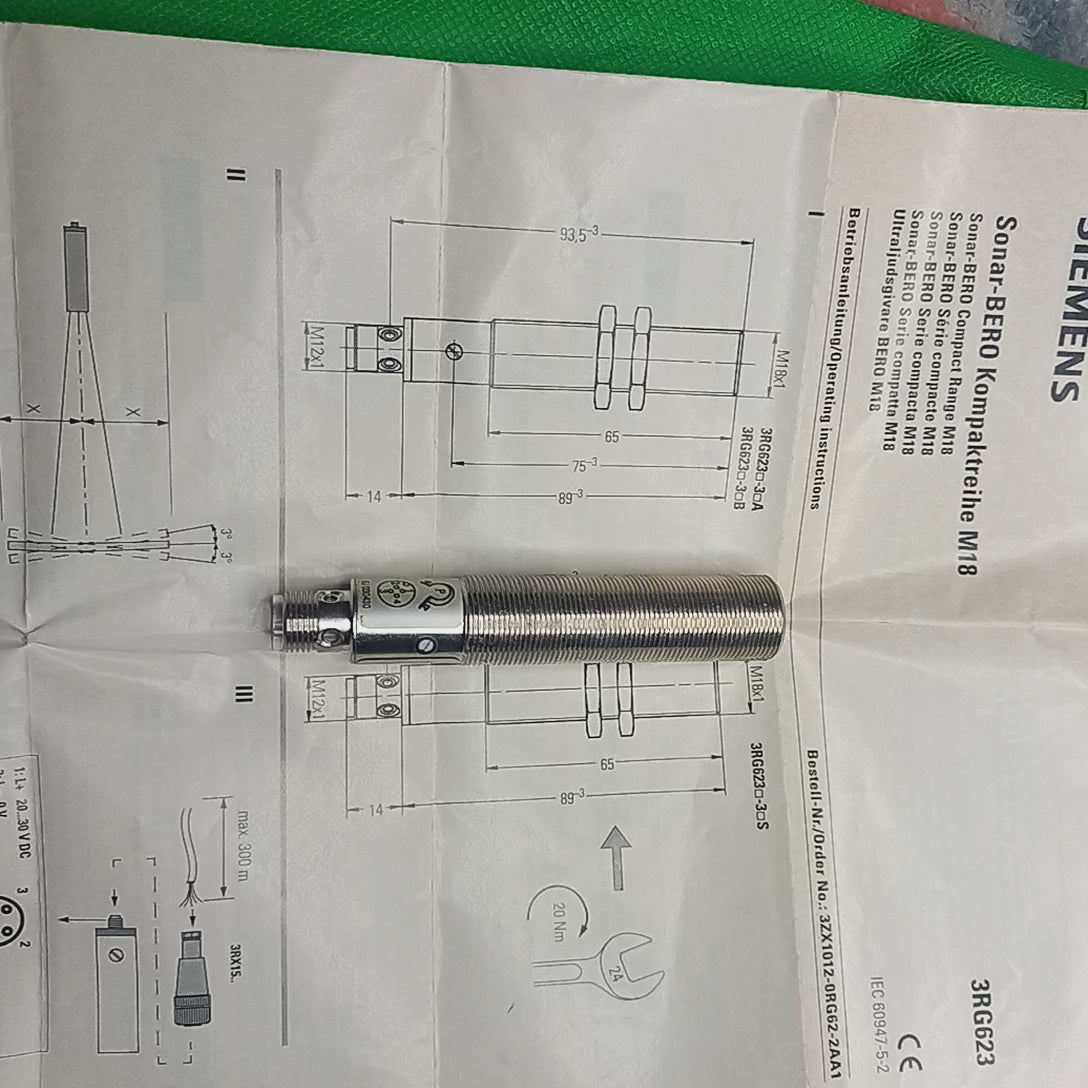

Dimension: in mm
Note: Keep a space of distance "x" round the sound cone axis free from
interfering objects. The angular deviation of 3° applies to smooth
surfaces.
Connection. The connections have reverse polarity protection
and are short-circuit-proof and overload-proof. The use of shiel-
ded cables is recommended when there is severe electrical inter-
ference
Operating range
A: Beginning of operating range (programmable)
E: End of operating range'
Synchronization. Max. 10 BERO by connecting pins XI
Enabling (XI: Enable/sync)
If enabling is blocked (XI), the switching state is stored in accordance with
the last measurement. On re-enabling, the output is updated.

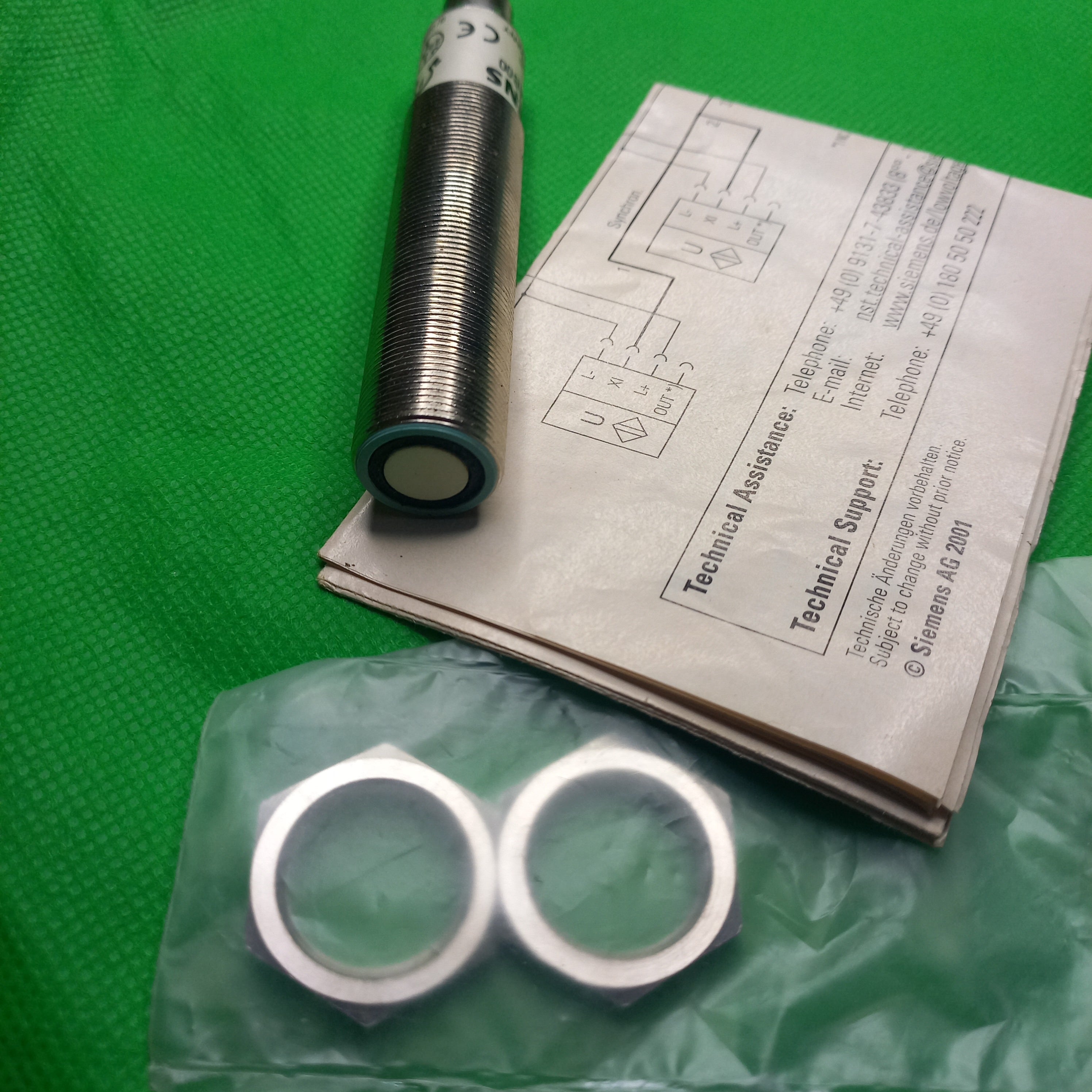

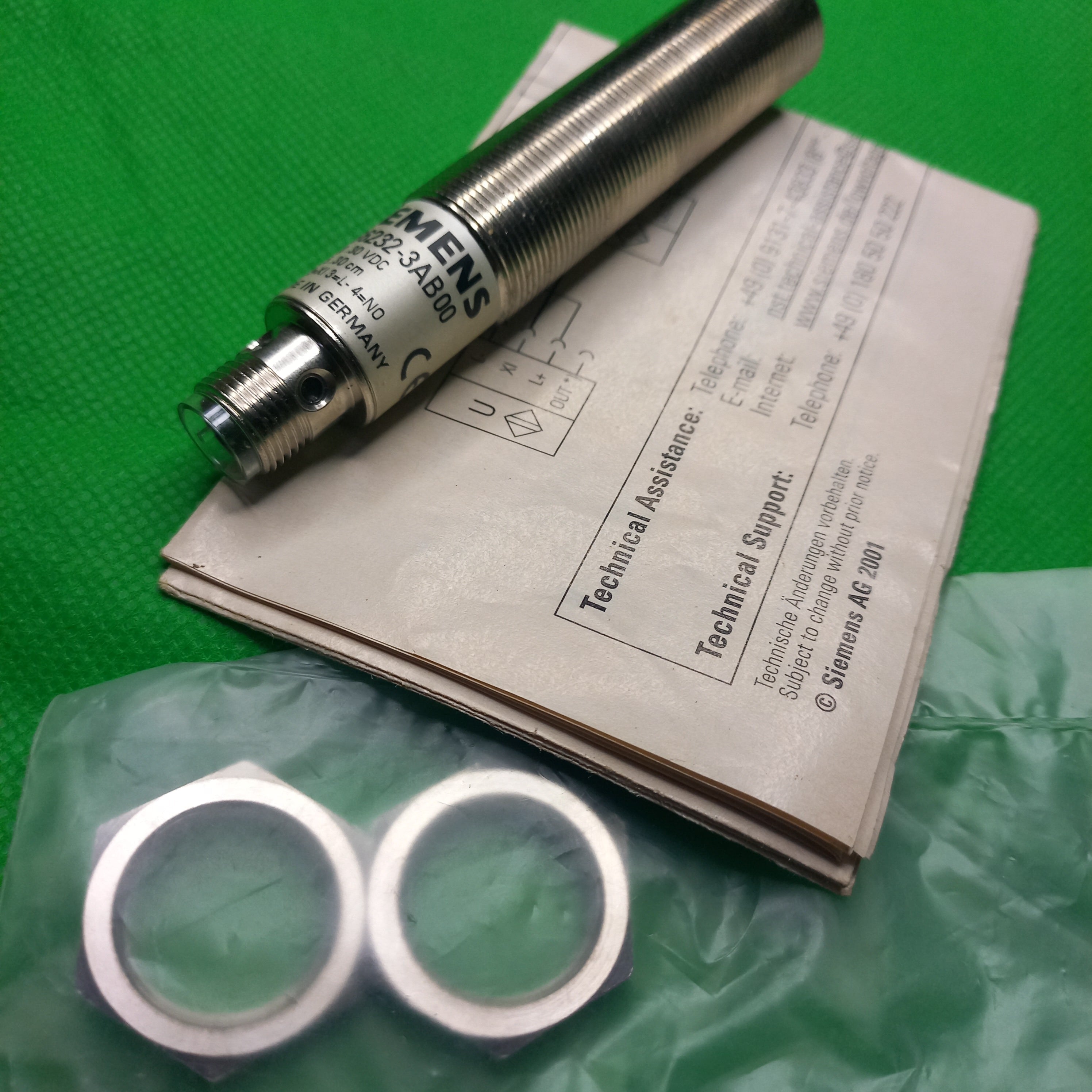

Ultrasonic proximity switch, 3RG6232-3AB00, cylindrical M18,Sensing range: 50 ... 300 mm,
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
- Manufacturer indent Nr.3RG 6232-3AB00
