Are 1Vss and 1Vpp Different encoders ?
1Vss and 1Vpp are completely identical, 1Vcc is fundamentally different because it refers to power supply voltage, not a signal waveform measurement.

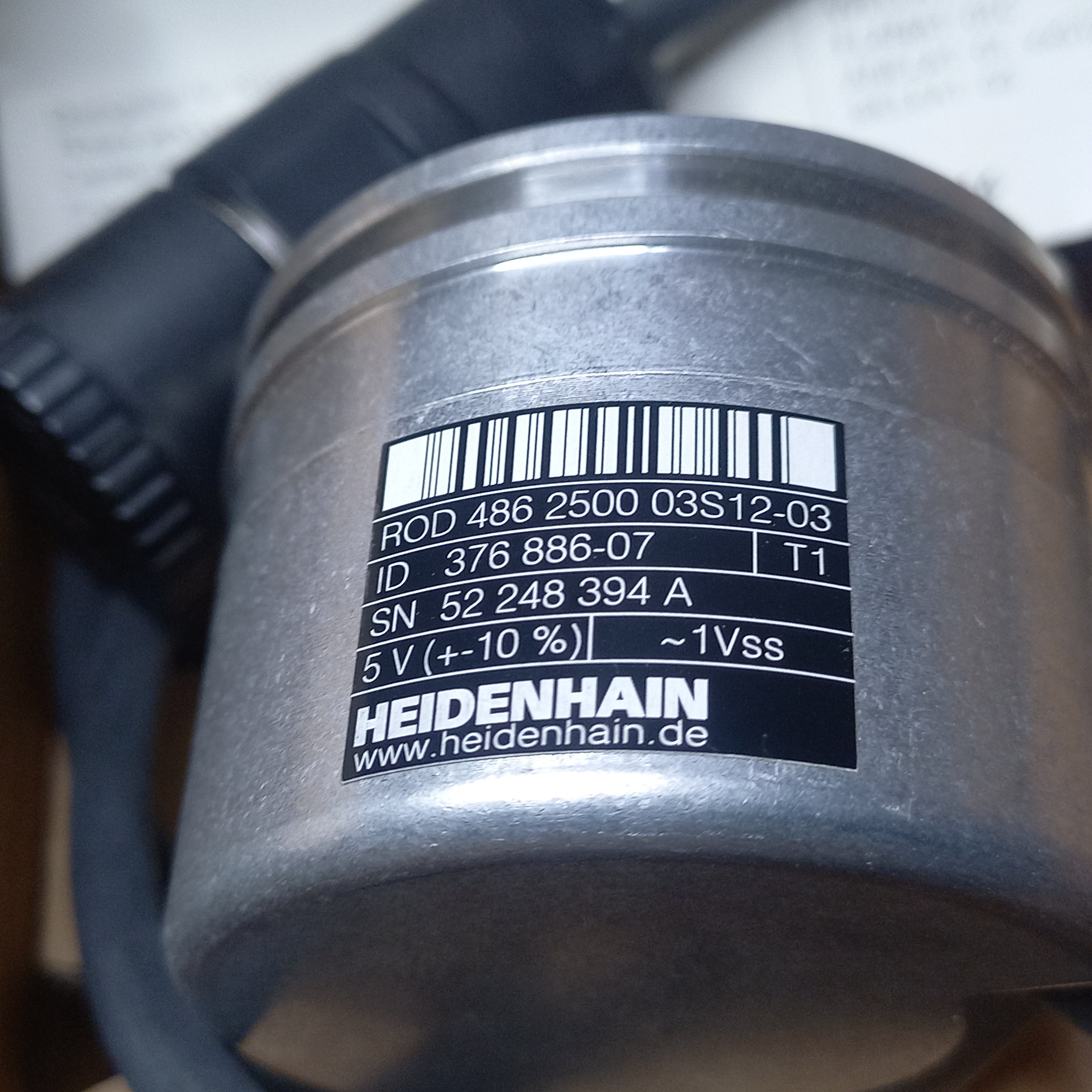

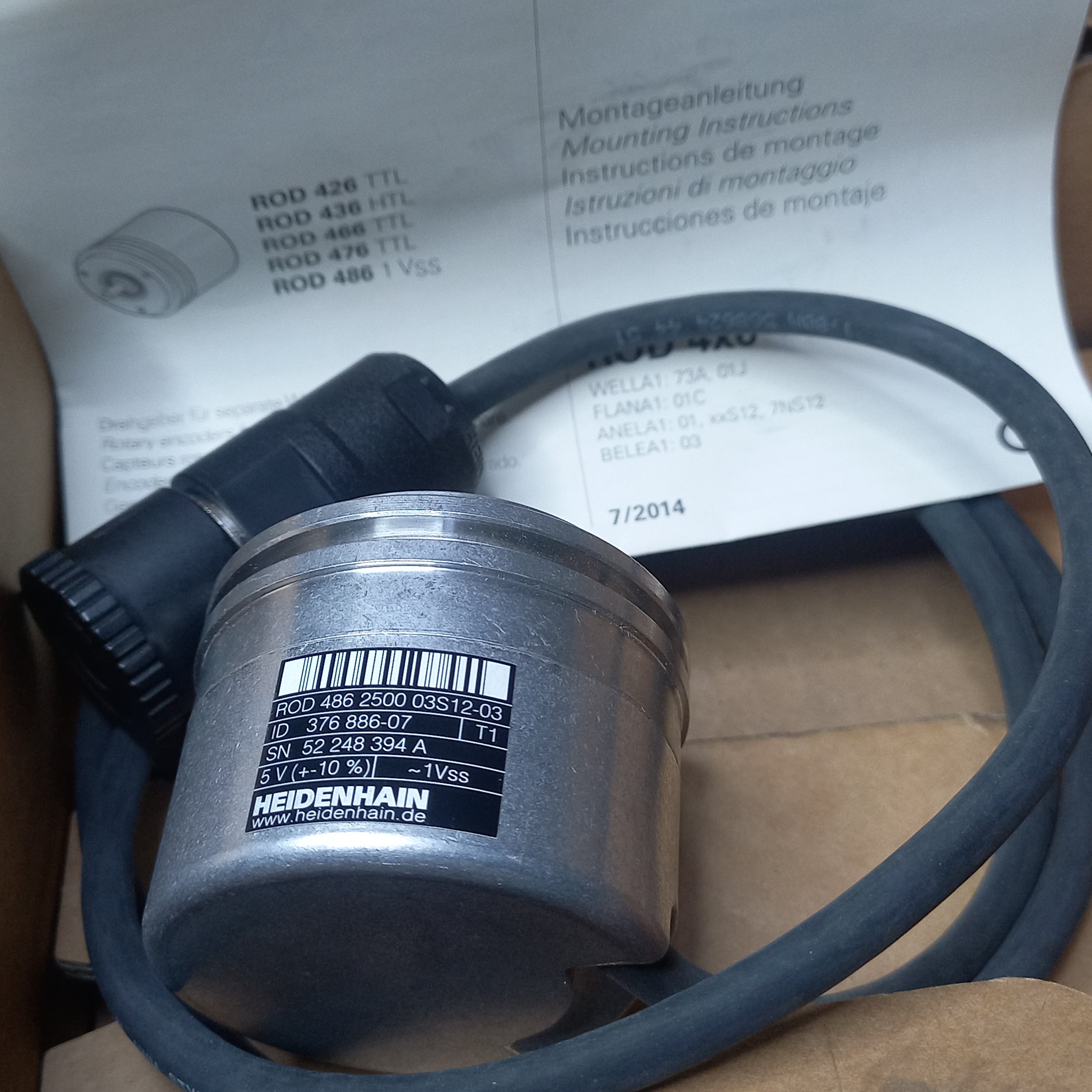

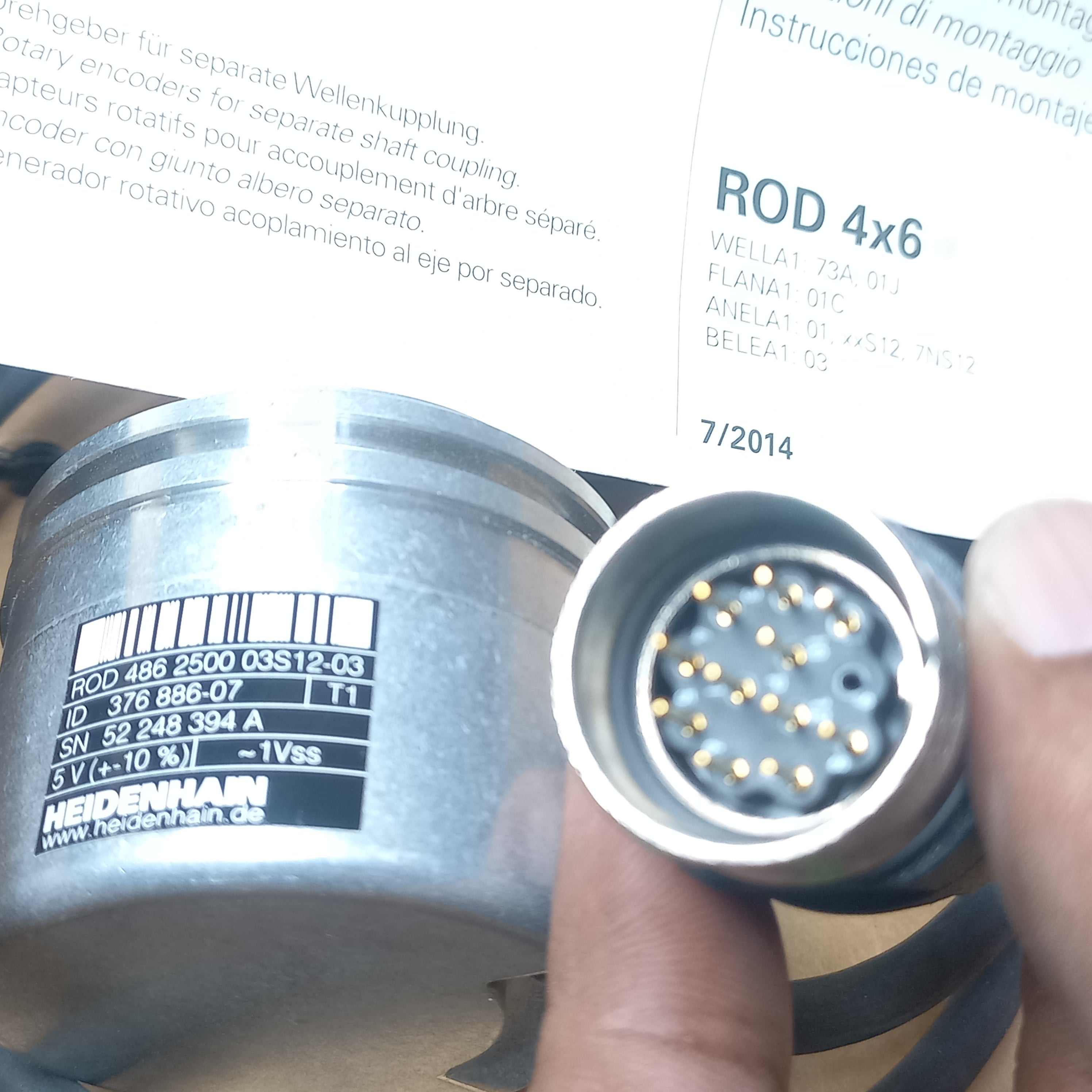

The Identical Twin Signals (1Vss and 1Vpp)
- Definition: Analog sinusoidal encoder signals.
- Amplitude: Exactly 1 Volt from the lowest peak to the highest peak.
- 1Vpp: English abbreviation for Volt peak-to-peak.
- 1Vss: German abbreviation for Volt Spitze-Spitze (peak-to-peak).
The terms 1Vss and 1Vpp mean the exact same thing when describing encoder output signals: an analog sinusoidal waveform with a 1-volt peak-to-peak amplitude. "Vss" is German (Spitze-Spitze) and "Vpp" is English (peak-to-peak) for the same electrical measurement.
Signal Characteristics
Waveform type: Continuous analog sine and cosine waves phase-shifted by 90 degrees.

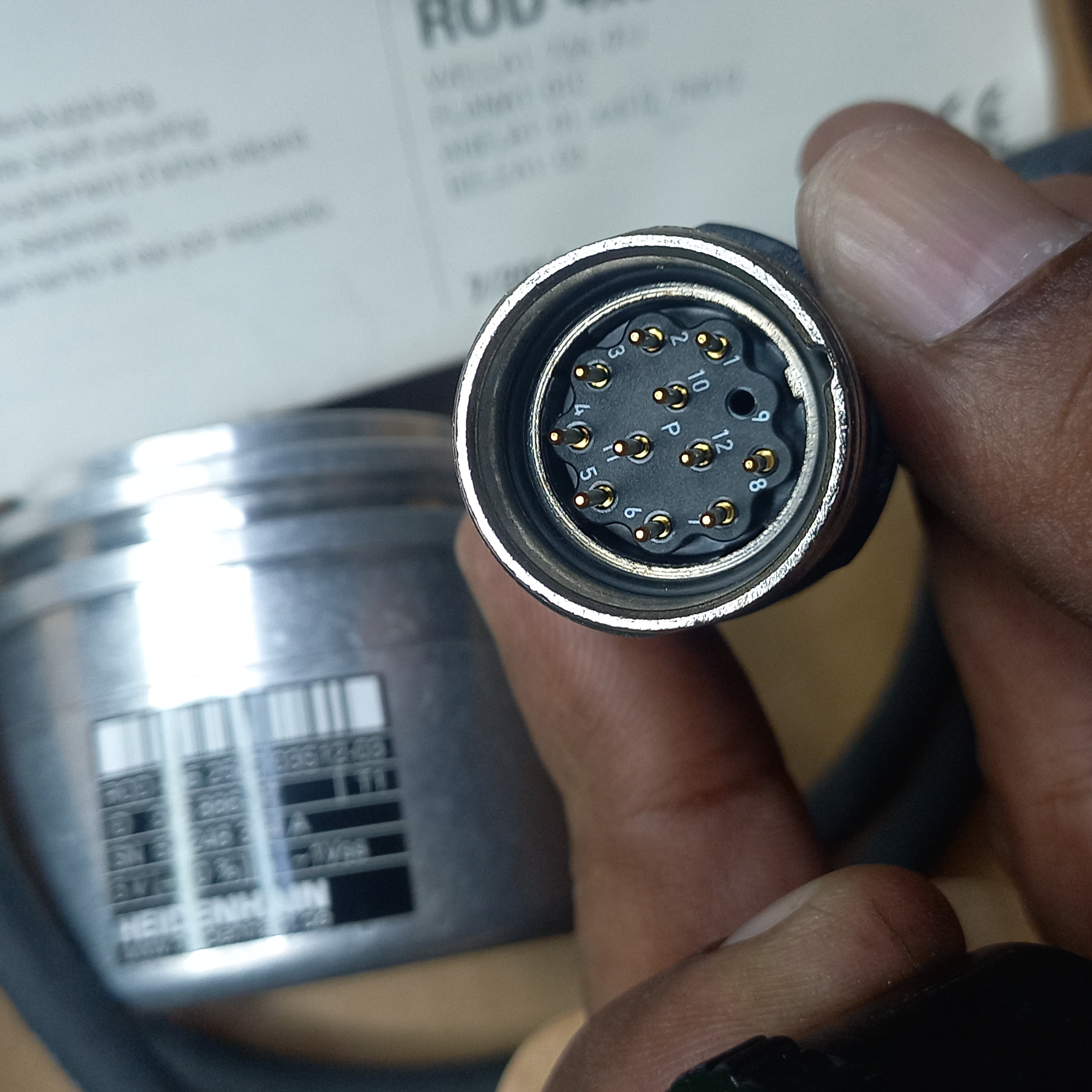

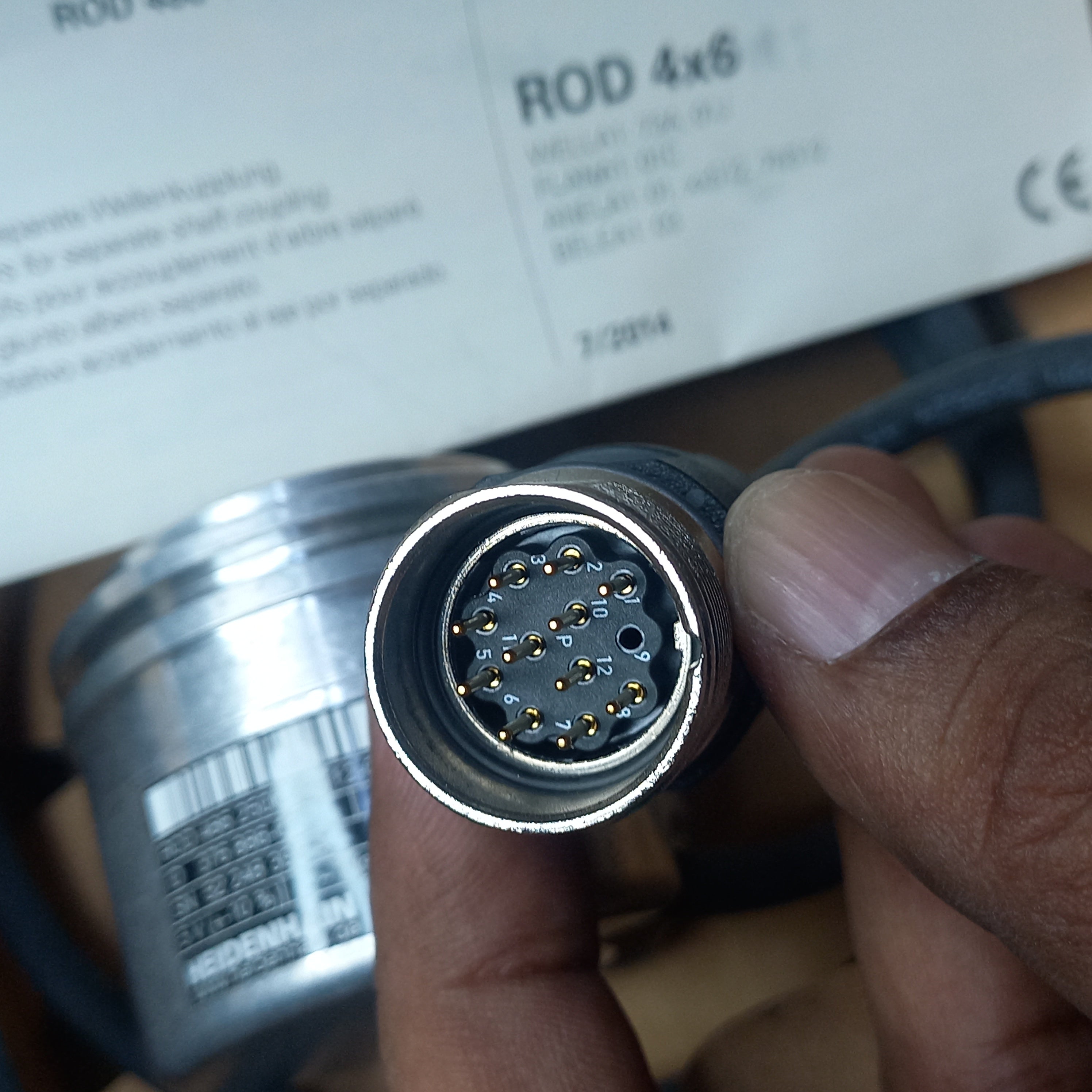

Voltage level: 1 V peak-to-peak differential voltage across output pairs (e.g., A+ and A-).
Interpolation: High-resolution position data is achieved by electronically dividing the sine wave periods inside the drive or controller.
Terminology Comparison
1Vpp: Commonly used in English-language technical documentation and international manufacturer datasheets.
1Vss: Frequently used in European or German automation manuals (where ss stands for Spitze-Spitze).
If you are configuring a drive or control card, tell me the manufacturer/model of your drive so I can confirm if it natively accepts this analog feedback type.
1Vss, 1Vpp, 1Vcc Recommended circuitory for subsequenty electronics 1vss, 1vpp 1vcc
