ROD 480 Clamping flange shaft view

Heidenhain 376880-43 ROD480 5000 27s12-03, Clamping Flange, Shaft 10mm, 1Vss Encoder

$1,480.00
Skip to product information

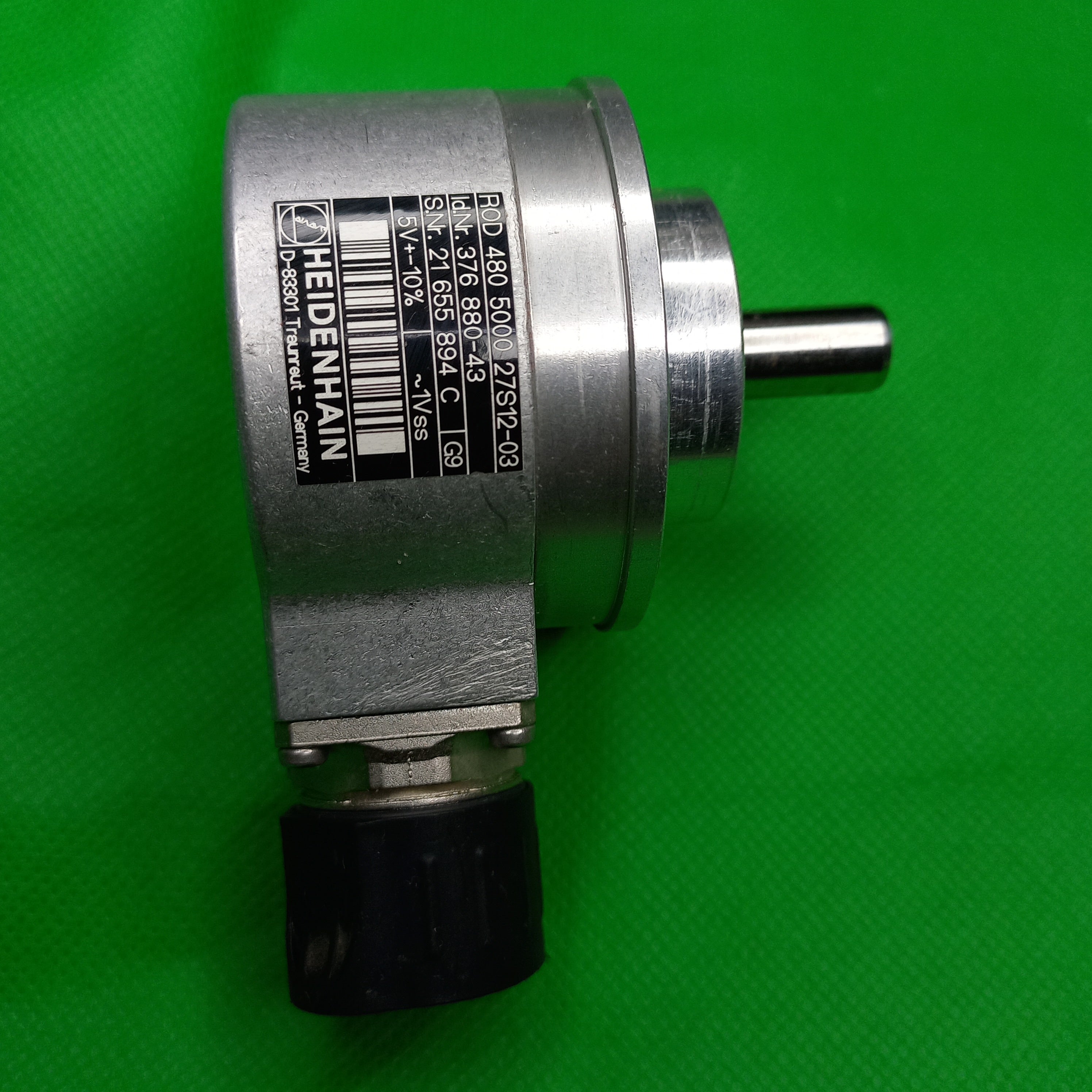

ROD 480 Clamping flange shaft view
  • ROD 480 Clamping flange shaft view

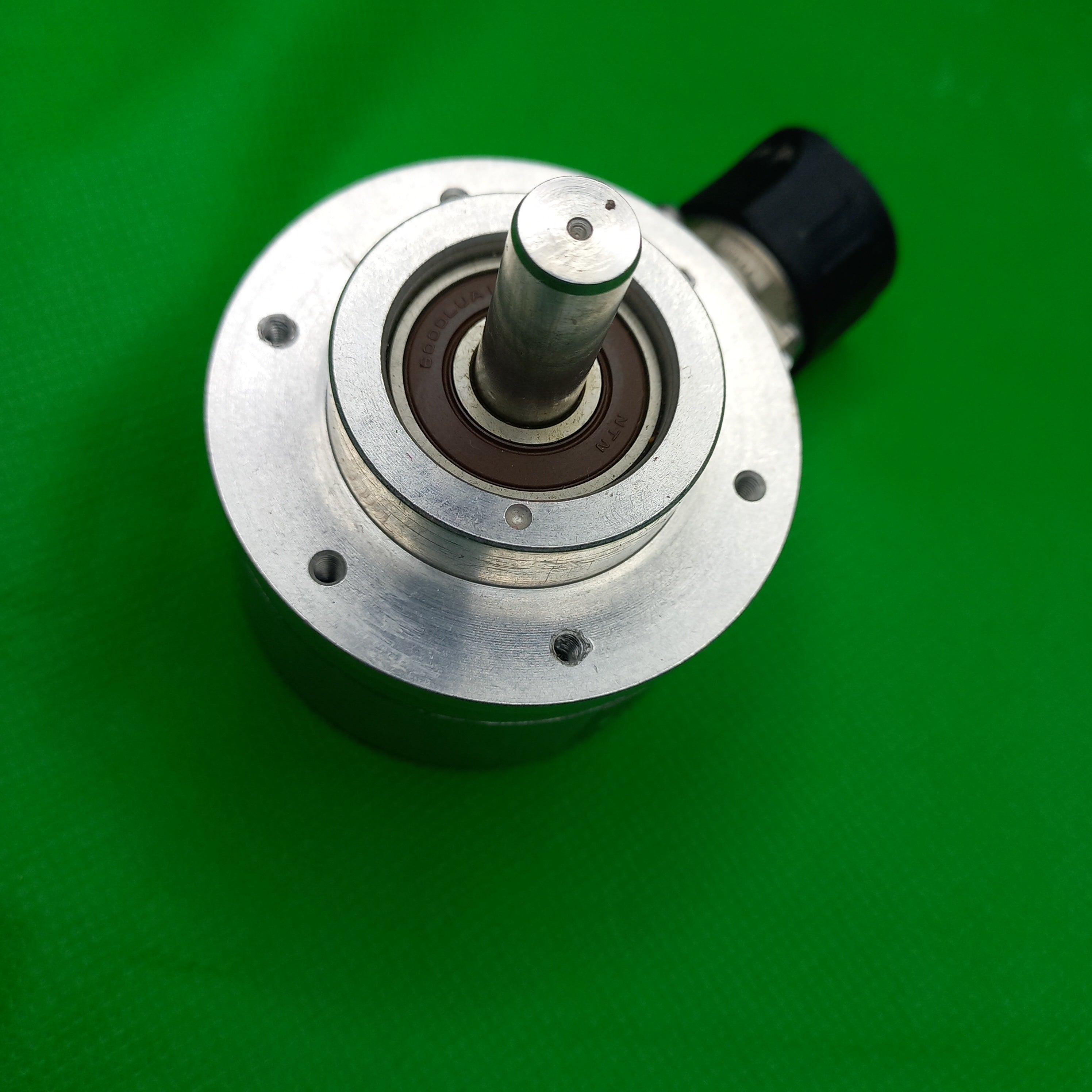

  • Shaft PCD and clamping Hub , viewable

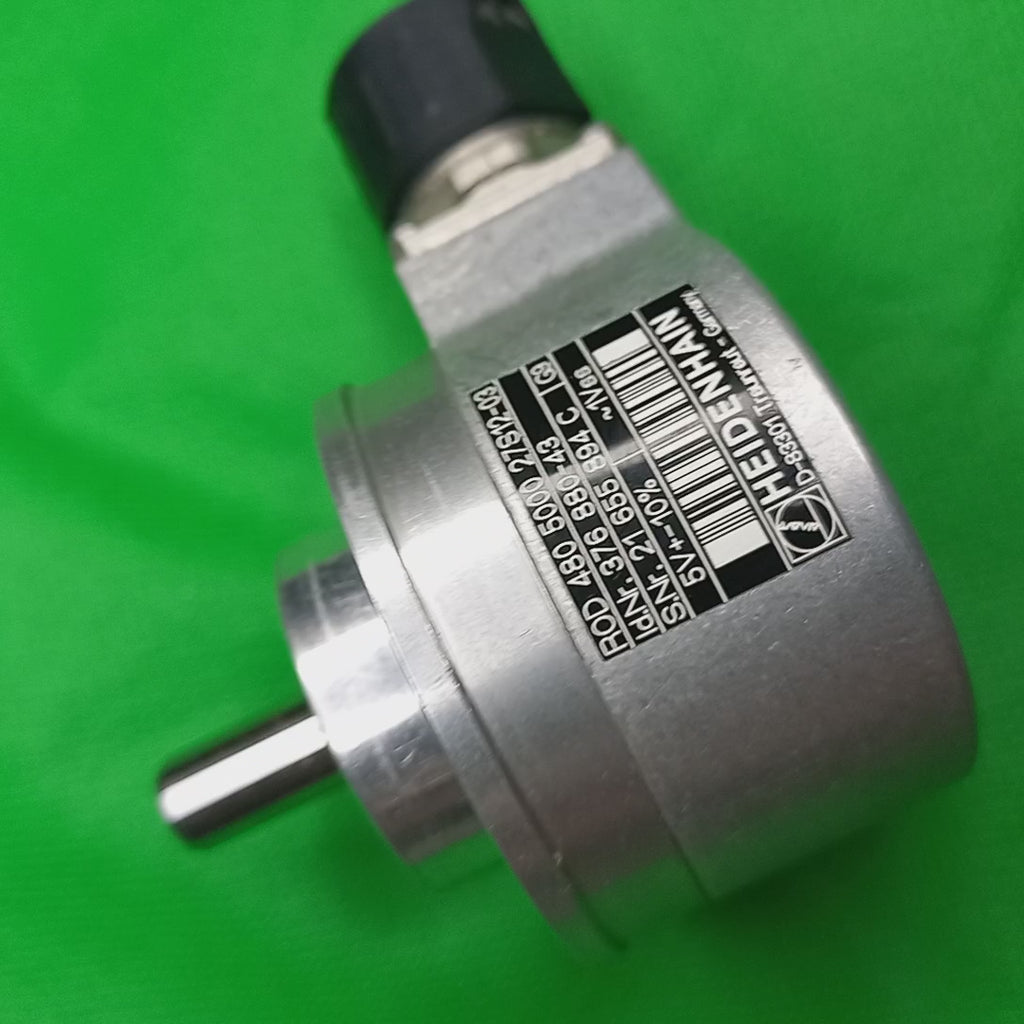

  • Heidenhain 376880-43 ROD480 5000 27s12-03, Clamping Flange, Shaft 10mm, 1Vss Encoder

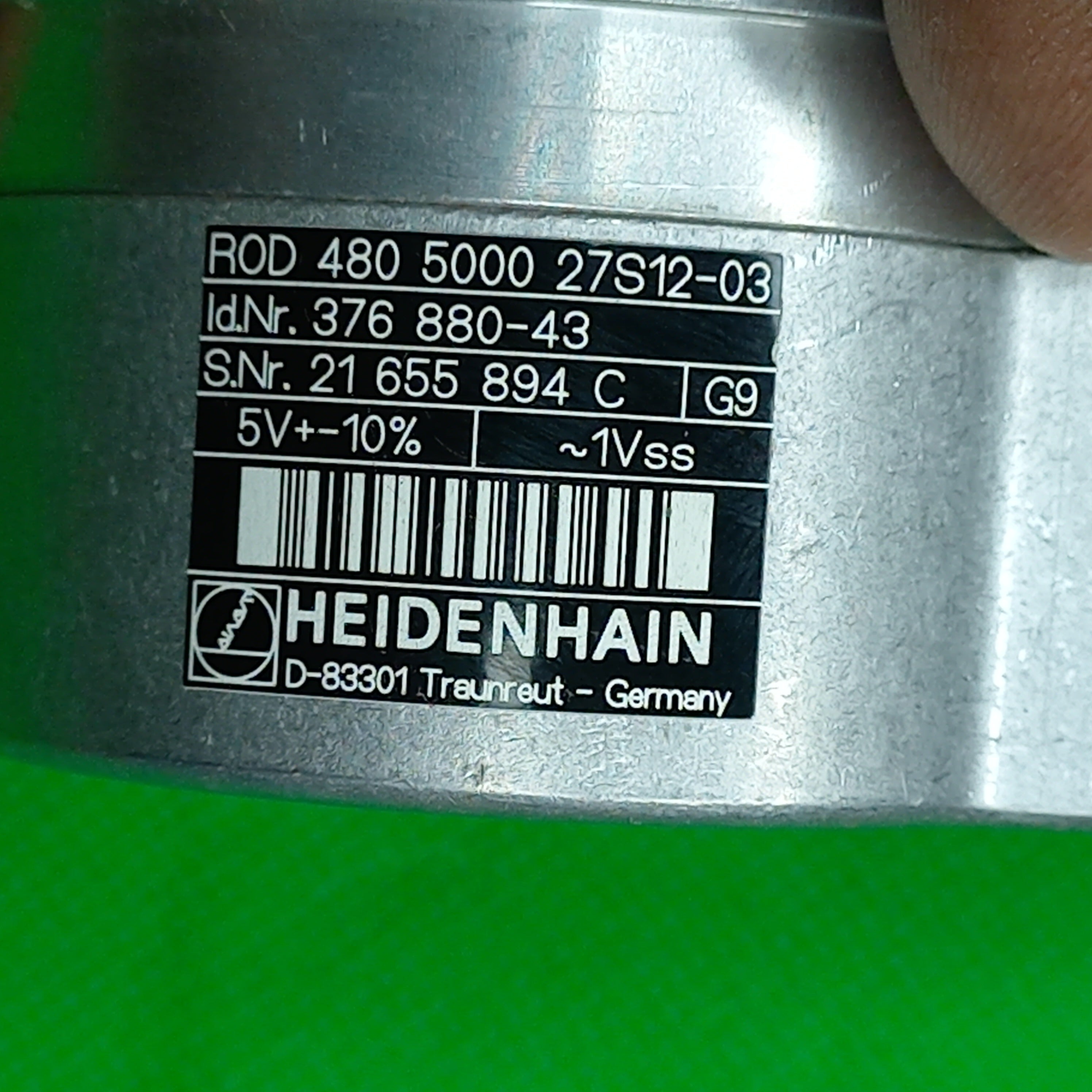

  • Specification sticker photo of Heidenhain 376880-43 ROD480 5000 27s12-03,

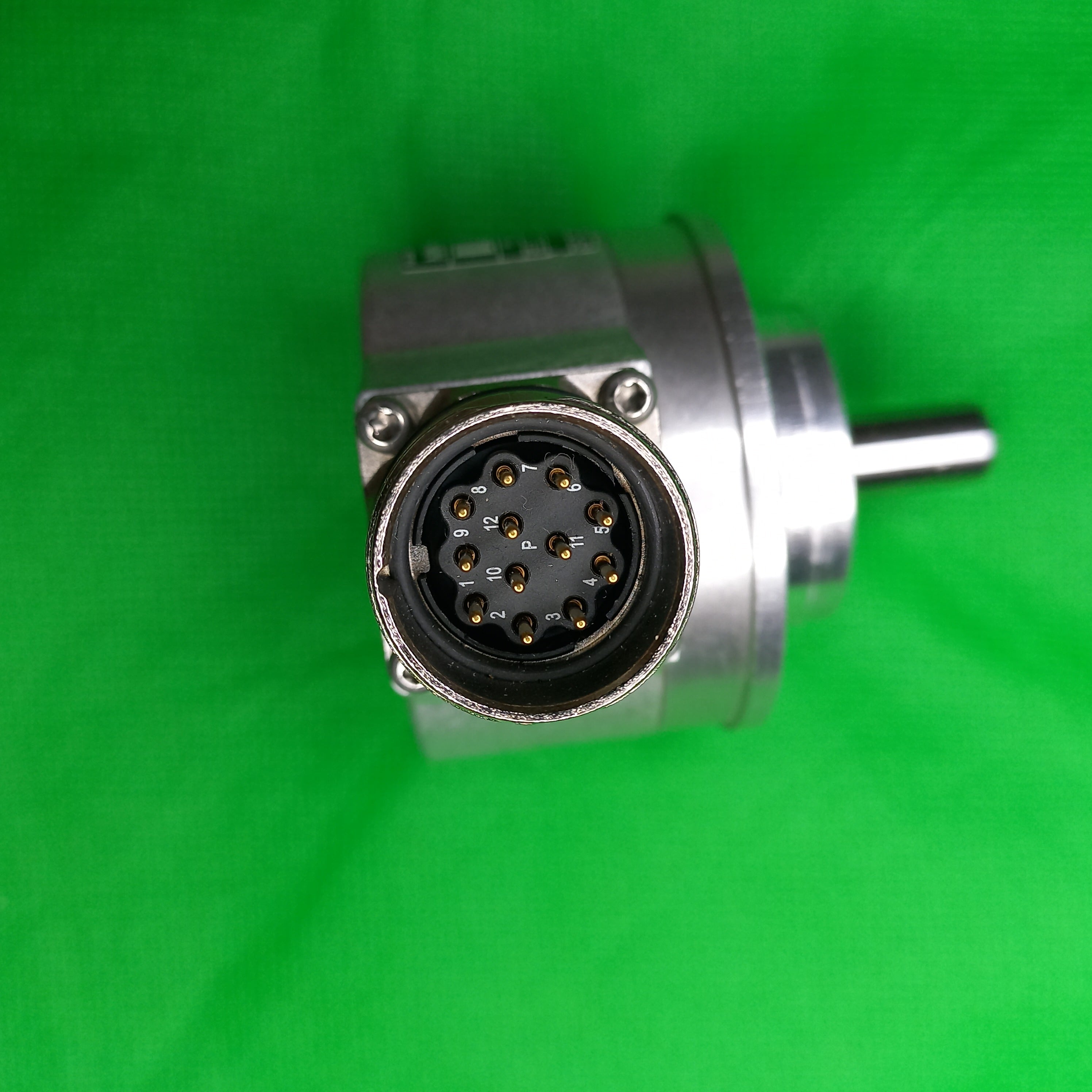

  • COnnector 12 pin male on Encoder photo
  • ROD 480 Clamping flange shaft view
  • Shaft PCD and clamping Hub , viewable
  • Heidenhain 376880-43 ROD480 5000 27s12-03, Clamping Flange, Shaft 10mm, 1Vss Encoder
  • Specification sticker photo of Heidenhain 376880-43 ROD480 5000 27s12-03,
  • COnnector 12 pin male on Encoder photo
Heidenhain 376880-43 ROD480 5000 27s12-03, Clamping Flange, Shaft 10mm, 1Vss Encoder
  • Ready Stock | Ship Worldwide
  •  Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
  •  Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation

Heidenhain 376880-43 ROD480 5000 27s12-03, Clamping Flange, Shaft 10mm, 1Vss Encoder

$1,480.00
Taxes included. Shipping calculated at checkout.

You Are Welcome to use your OWN COURIER Account for Shipping.

Please Choose: In Store PICKUP option (instead of Ship)  at Checkout/Payment Screen.

You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS  account.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
  • Manufacturer Part Number: IdNr. 376 880-43
  • Encoder Type: Incremental encoder
  • Supply voltage 5VDC
  • Encoder ID. NR. IdNr. 376880-43
  • Encoder SIgnal Ouptut Signals: The encoder outputs Track A, Track A inv, Track B, Track Binv, Track N( Zero Pulse) ,and , Track N inv( Zero Pulse) , | 5000 | 1 Vpp sin/cos | Ø 58 mm | M23, Male connector on Encoder Body, 12-pin
View Manufacturer Product Page
Download Product Datasheet

Ready Stock Heidenhain

ROD 480 5000 27s12-03

Ident. Nr.: 376880-43


Sin Cos REf : A, B, R Signals.

Encoder Type:

Salient | Special features of Encoder: Robust encoder

Encoder mechanical Design

  • Increental Encoder Mechanical Design Solid shaft, face mount flange
  • Incremental Encoder Construction size (flange) Ø 58 mm
  • Incremental Encoder Shaft diameter 10 mm

Encoder Signal Interface | Communication

  • Incremental Encoder Communication Interface detail 1 Vpp sin/cos

Performance Data:

Incremental encoder PPR | Impulse | Pulses per revolution5000

  • incremental Encoder Range of pulses per revolution2501 ... 5.000
  • Signal Details: Ouptut Signals: The encoder outputs Track A, Track A inv, Track B, Track Binv, Track N( Zero Pulse) ,and , Track N inv( Zero Pulse) ,

Connection Details of encoder

  • Connection type (Detail)M23, Male connector on Encoder Body, 12-pin
  • Direction of connection Radial

Mounting Arrangement for Encoder Body

- Check Datasheet or Contact us
  • Manufacturer Alternative MPNROD 480 5000 27s12-03
  • Manufacturer indent Nr.376-880-43
  • 1 Manufacturer Part Number (MPN) IdNr. 376 880-43
  • Alternative ways of identifying | Part Numbers | Compatible Parts
  • Typographic Errors in MPN | Mistakenly Known as IdNr. 37688063
