ERN 1387.035-2048, Id. Nr. 749 147-02 ; ~1,05 Vss, 5v+-5%
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
Heidenhain_ERN-2048_Id.Nr. 749147-02; ERN 1387035-2048, ~1,05Vss, 5v+-5%
Sale price
$1,088.00
Regular price
$1,280.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: ERN1387035-2048
- Encoder Type: Incremental encoder
- Supply voltage 5v
- Encoder ID. NR. Id. Nr. 749147-02
- Encoder SIgnal | 2048 | 1 Vpp sin/cos | Ø 58 mm | PCB Connector 12 PIn
ERN 1387.035-2048, Id. Nr. 749 147-02 ; ~1,05 Vss, 5v+-5%

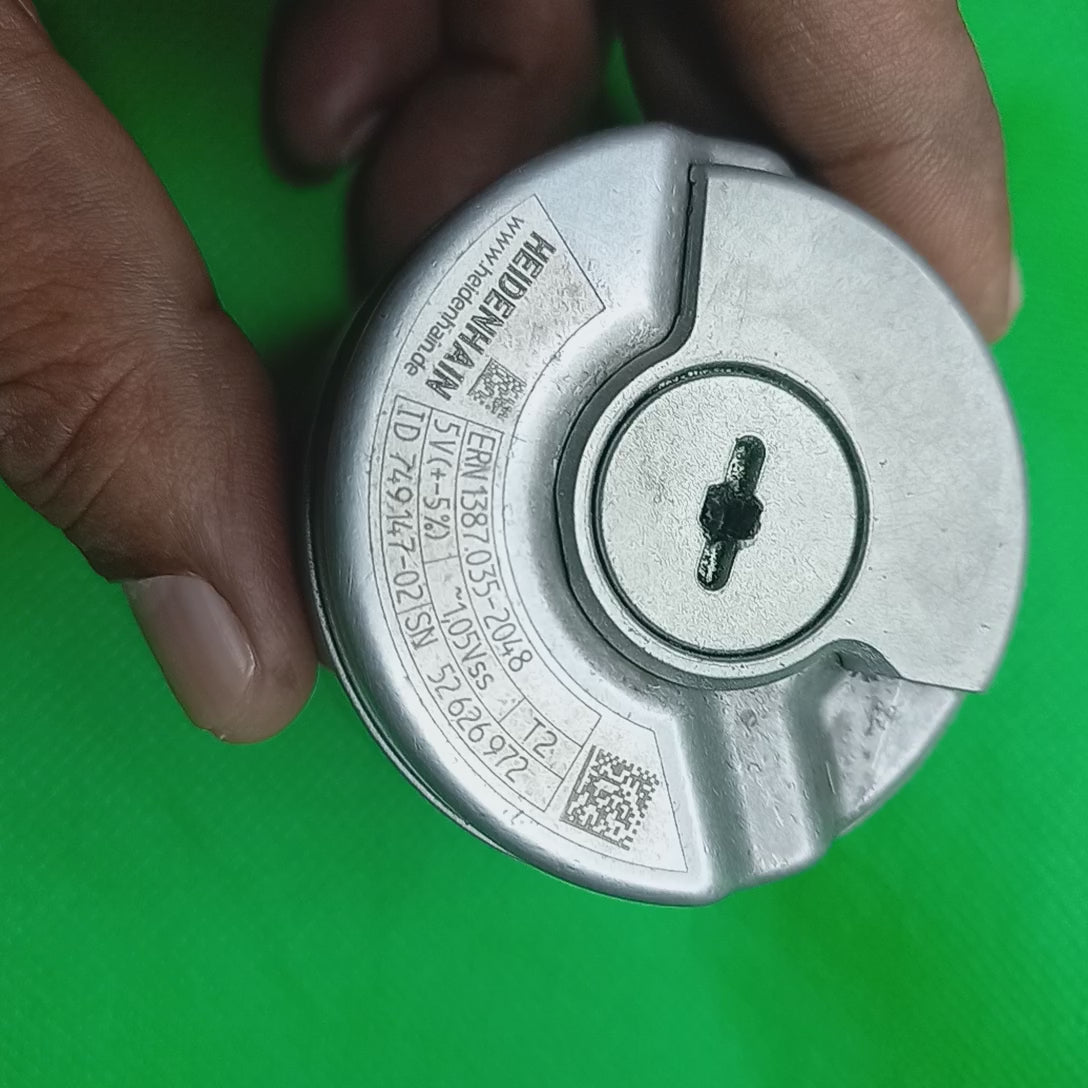

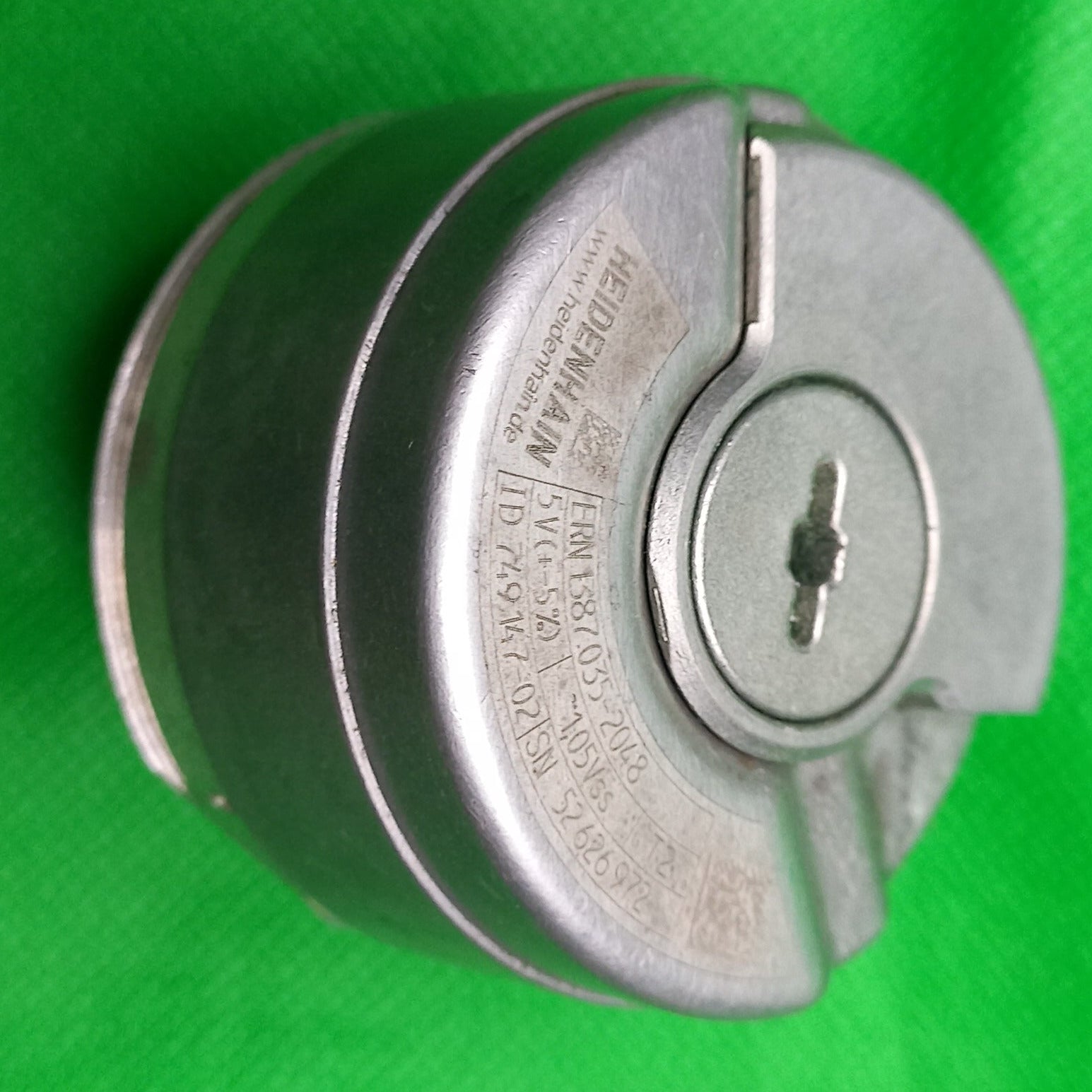

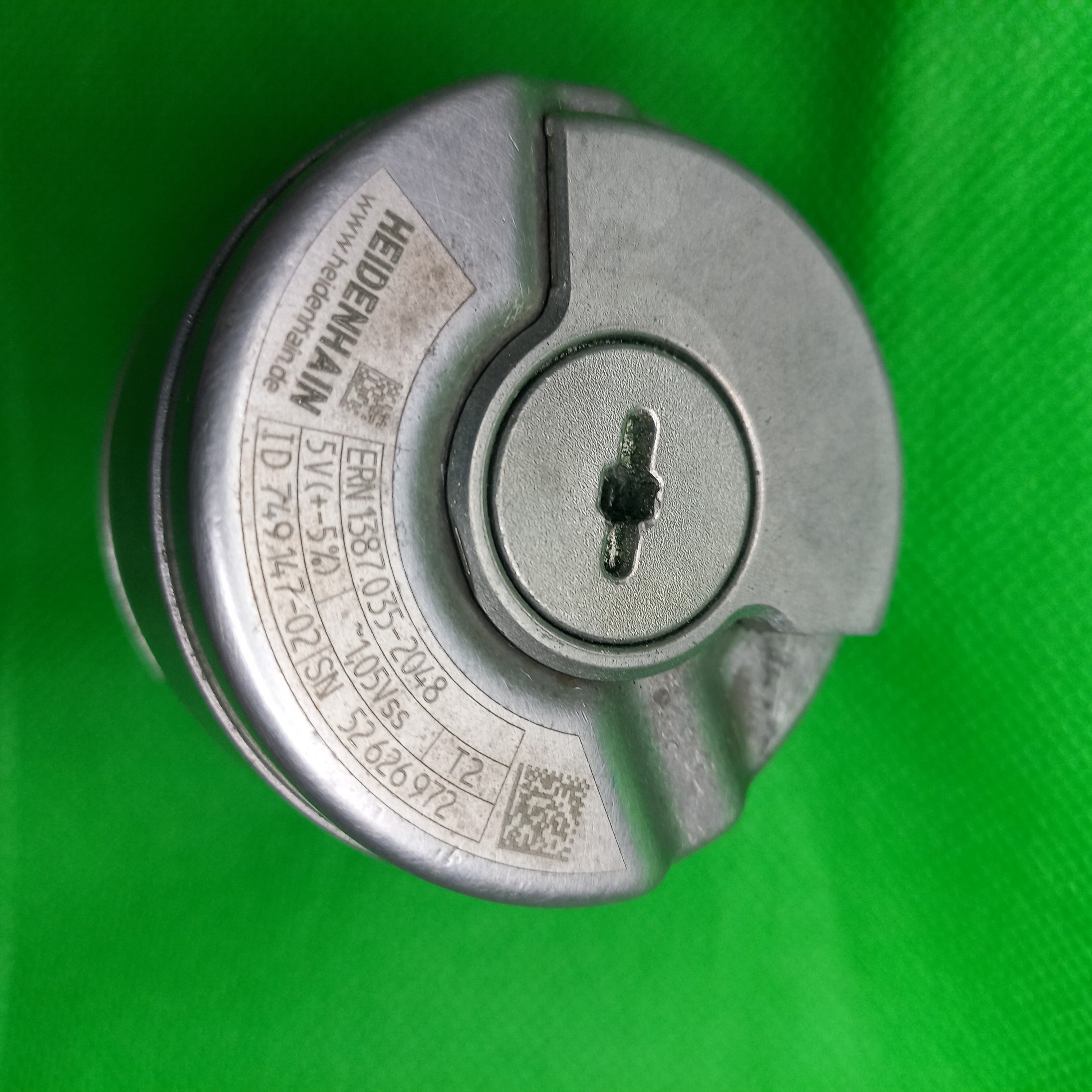

Heidenhain ERN 1387 – 2048, ID 749147-02
Use it to replace your encoder :
Heidenhain ERN 1387 2048 62S14-70 K 0.00 .. 65B.. 40 09 .. .. RA ~1.05Vpp 05 01
Incremental rotary encoder with integral bearing
for mounting by strator coupling
Interface: ~1.05Vpp
Additional circular scale track: 1 sine and 1 cosine signal/revolution
Shaft: Tapered shaft 1:10, Ø 9.25mm
Connection: Plug connector, double-row, 14-pin
Cable direction: Axial and radial
Incremental rotary encoder with integral bearing for mounting by stator coupling
Line count: 2048
Output signal: ~1.05Vpp
Additional circular scale track: 1 sine and 1 cosine signal/revolution
Power supply: 5 V (+-5 %)
Coupling version: without coupling
Shaft: tapered shaft 1:10, functional diameter 9.25mm, back-off thread M10 and M6
Degree of protection: IP 40 (EN 60529)
Operating temperature: -40/+120 °C
Electrical connection: plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration: D319274
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer plates and central screw
Please note: The coupling is not included in the scope of delivery. It will be used from old encoder.
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Taper Shaft Heidenhain
- Incremental Encoder Construction size (flange) Ø 58 mm
- Incremental Encoder Shaft diameter Shaft: 1:10 tapered shaft, functional diameter 9.25 mm, pull-out threads M10 and M6.
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail 1 Vpp sin/cos
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution2048
- incremental Encoder Range of pulses per revolution1 … 2048 programmable
- Signal Details:
Connection Details of encoder
- Connection type (Detail)PCB Connector 12 PIn
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNERN 1387.035-2048
- Manufacturer indent Nr.749147-02
- 1 Manufacturer Part Number (MPN) ERN1387035-2048
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
