AccuCoder 725I-S-S-2500-R-HV-1-F-N-SX-N-N | Quadrature A & B with Index | Line Driver
$1,080.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 725I S S 2500 R HV 1 F N SX N N
- Encoder Type: Incremental encoder
- Supply voltage 5-28 DCV
- Encoder ID. NR.725ISS2500R-HV1FNSXNN
- Encoder SIgnal | 2500 | TTL, RS422 compatible, inv. | Square 2.5 Inch | MS, Male connector on Encoder Body, 10-Pin
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

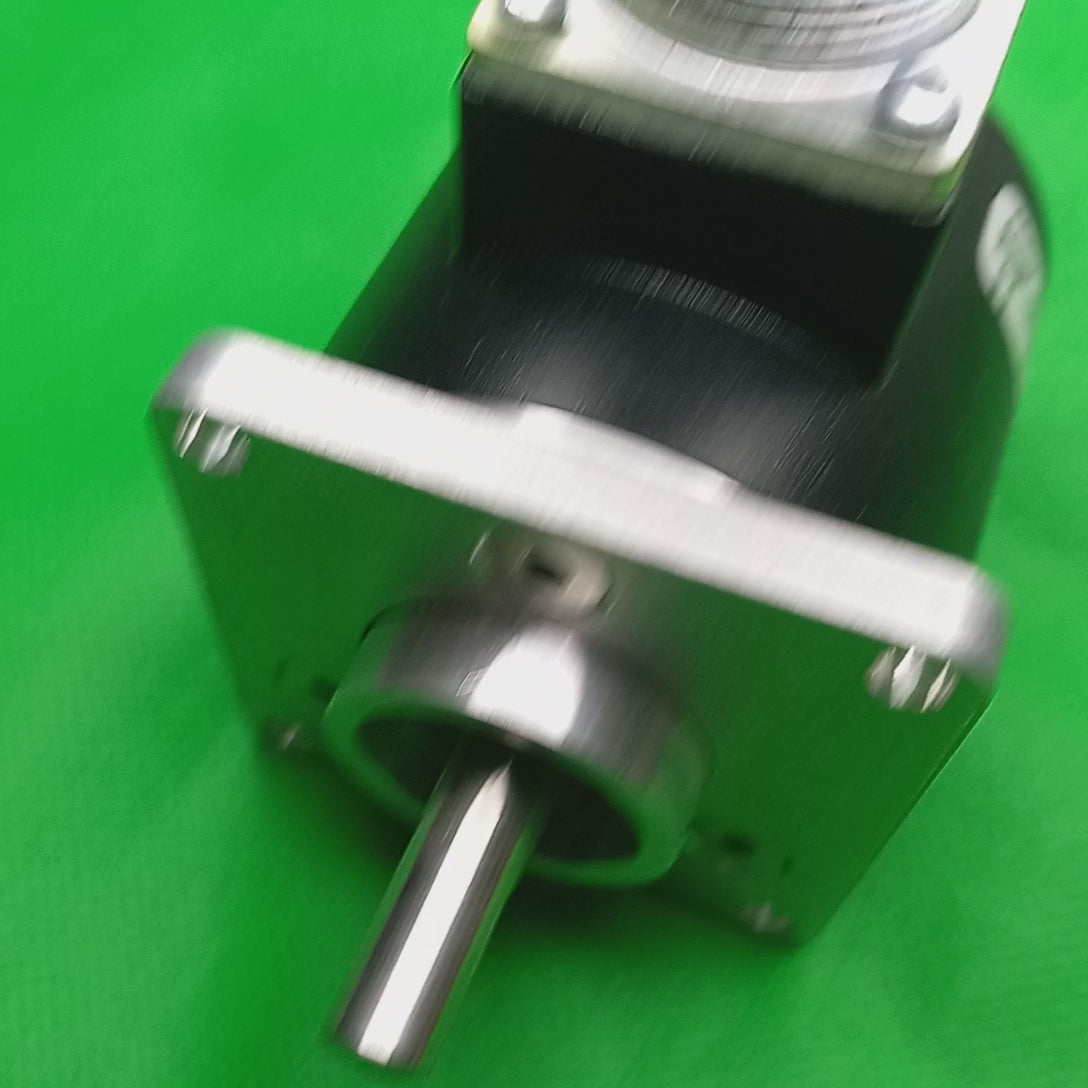

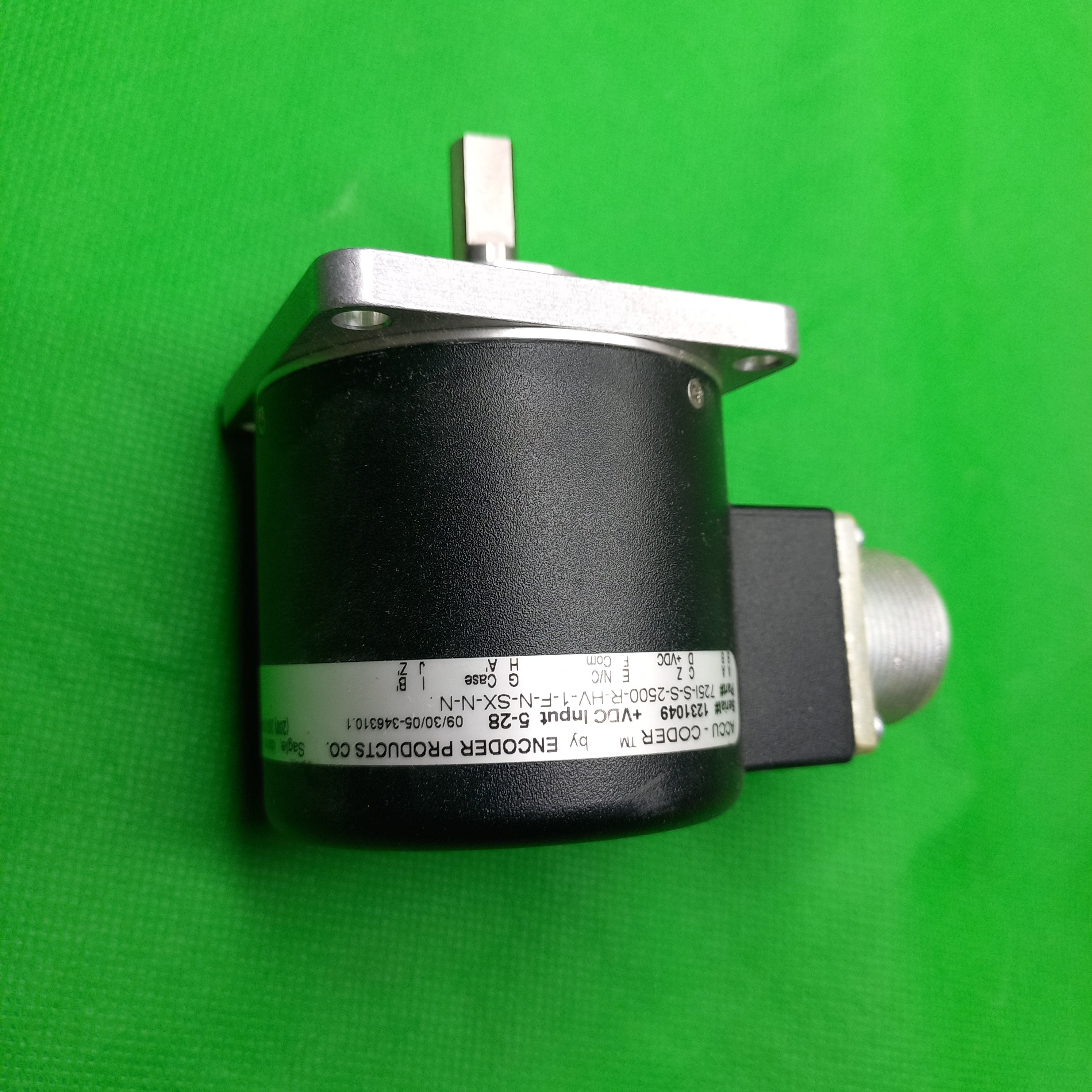

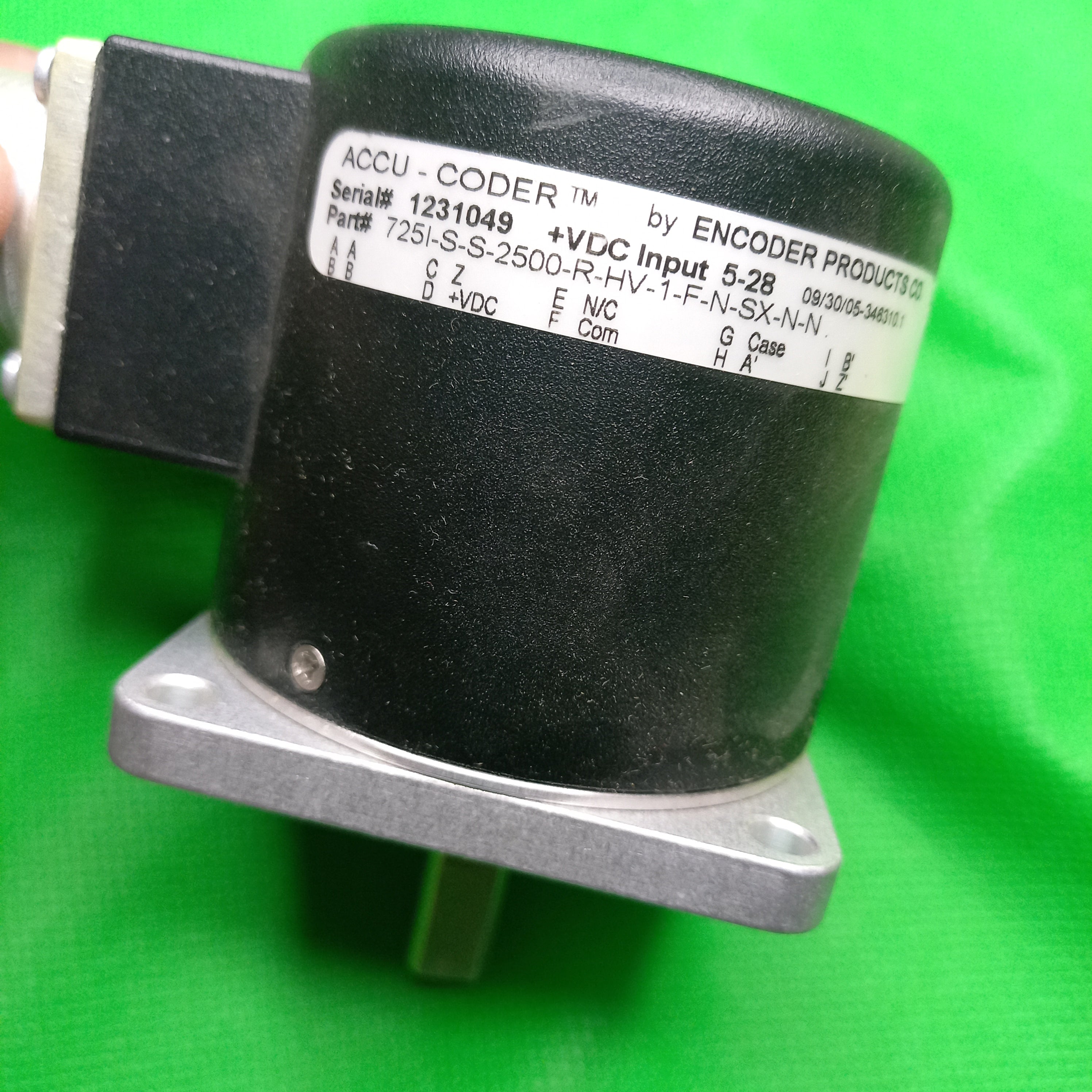

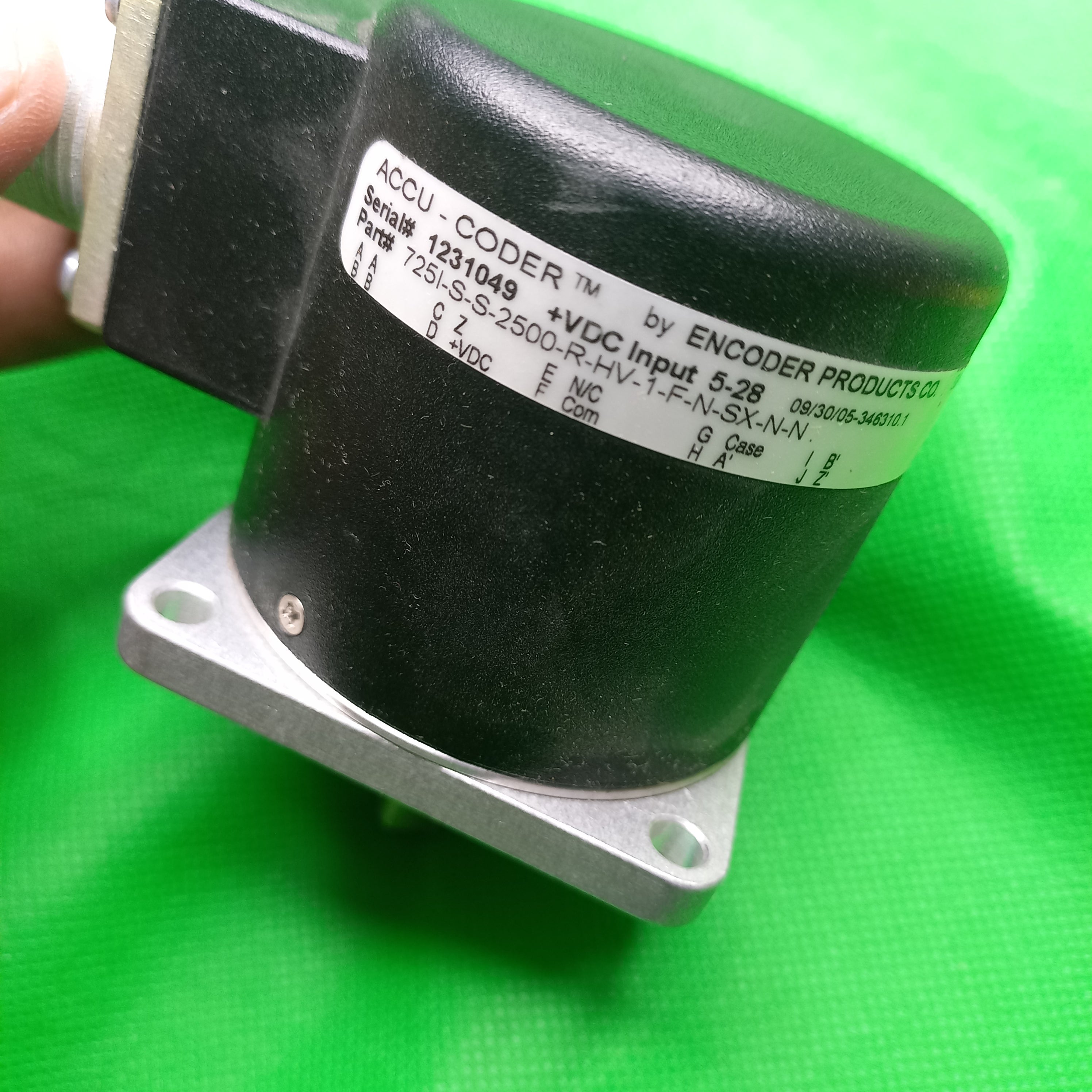

AccuCoder Encoder by Encoder Products
725I-S-S-2500-R-HV-1-F-N-SX-N-N
+/vcc input 5-28V
HEAVYDUTY ABN A-B-N- 2500PPR
alternative replacement for :
Encoder Products Company 725I-S-S-2500-R-HV-1-F-1-SX-N-N Encoder, 2.5in housing, 1/4in shaft, square flange, 2500 CPR, A, A, B, B, Z
MFR Part #: 725I-S-S-2500-R-HV-1-F-1-SX-N-N
RS Stock Number: 72459830
Housing style: Heavy duty industrial with internal flex mount
Shaft size: 3/8", 0.375" (standard)
Operating temperature: 0to70Degree C
Cycles per Revolution: 2500 PPR
Output Type: LIne Driver
MAXIMUM FREQUENCY: Standard 100 kHz
Sealing: No seal
SX: Connector location Side/ 6Pin MS
No mating connector supplied
Certificaiton: None
MODEL 725 SPECIFICATIONS
Electrical
Input Voltage 4.75 to 28 VDC max for temperatures up to 70° C
4.75 to 24 VDC for temperatures between 70° C and 100° C
Input Current 100 mA max with no output load
Input Ripple 100 mV peak-to-peak at 0 to 100 kHz
Output Format Incremental – Two square waves in quadrature with
channel A leading B for clockwise shaft rotation, as viewed
from the encoder mounting face. See Waveform Diagrams.
Output Types Open Collector – 100 mA max per channel
Pull-Up – Open Collector with 2.2K ohm internal resistor,
100 mA max per channel
Push-Pull – 20 mA max per channel
Line Driver – 20 mA max per channel
(Meets RS 422 at 5 VDC supply)
Index Occurs once per revolution. The index for units >3000 CPR
is 90° gated to Outputs A and B. See Waveform Diagrams.
Max Frequency Up to 1 MHz
Electrical Protection Reverse voltage and output short circuit protected.
NOTE: Sustained reverse voltage may result in permanent
damage.
Noise Immunity Tested to BS EN61000-4-2; IEC801-3;
BS EN61000-4-4; DDENV 50141;
DDENV 50204; BS EN55022
(with European compliance option);
BS EN61000-6-2; BS EN50081-2
Symmetry 1 to 6000 CPR: 180° (±18°) electrical at
100 kHz output
6001 to 20,480 CPR: 180° (±36°) electrical
Quad Phasing 1 to 6000 CPR: 90° (±22.5°) electrical at
100 kHz output
6001 to 20,480 CPR: 90° (±36°) electrical
Min Edge Separation 1 to 6000 CPR: 67.5° electrical at 100 kHz output
6001 to 20,480 CPR: 54° electrical >20,480 CPR: 50°
electrical
Rise Time Less than 1 microsecond
Accuracy Instrument and Quadrature Error: For 200 to 1999 CPR,
0.017° mechanical (1.0 arc minutes) from one cycle to
any other cycle. For 2000 to 3000 CPR, 0.01° mechanical
(0.6 arc minutes) from one cycle to any other cycle.
Interpolation error (units > 3000 CPR only) within 0.005°
mechanical. (Total Optical Encoder Error = Instrument +
Quadrature + Interpolation)
Mechanical
Max Shaft Speed 8000 RPM. Higher shaft speeds may be achievable,
contact Customer Service.
Shaft Material 303 Stainless Steel
Shaft Rotation Bi-directional
Radial Shaft Load. 80 lb max. Rated load of 20 to 40 lb for bearing life of 1.5 x
10⁹ revolutions
Axial Shaft Load 80 lb max. Rated load of 20 to 40 lb for bearing life of 1.5 x
10⁹ revolutions
Starting Torque 1.0 oz-in typical with IP64 seal or no seal
3.0 oz-in typical with IP66 shaft seal
7.0 oz-in typical with IP67 shaft seal
Moment of Inertia 5.2 x 10-⁴ oz-in-sec2
Housing Black non-corrosive finish
Bearings Precision ABEC ball bearings
Weight 20 oz typical
Environmental
Storage Temp -25° to 85° C
Humidity 95% RH non-condensing
Vibration 20 g @ 58 to 500 Hz
Shock 75 g @ 11 ms duration
Sealing IP50 standard; IP64, IP66 or IP67 optiona
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Special version

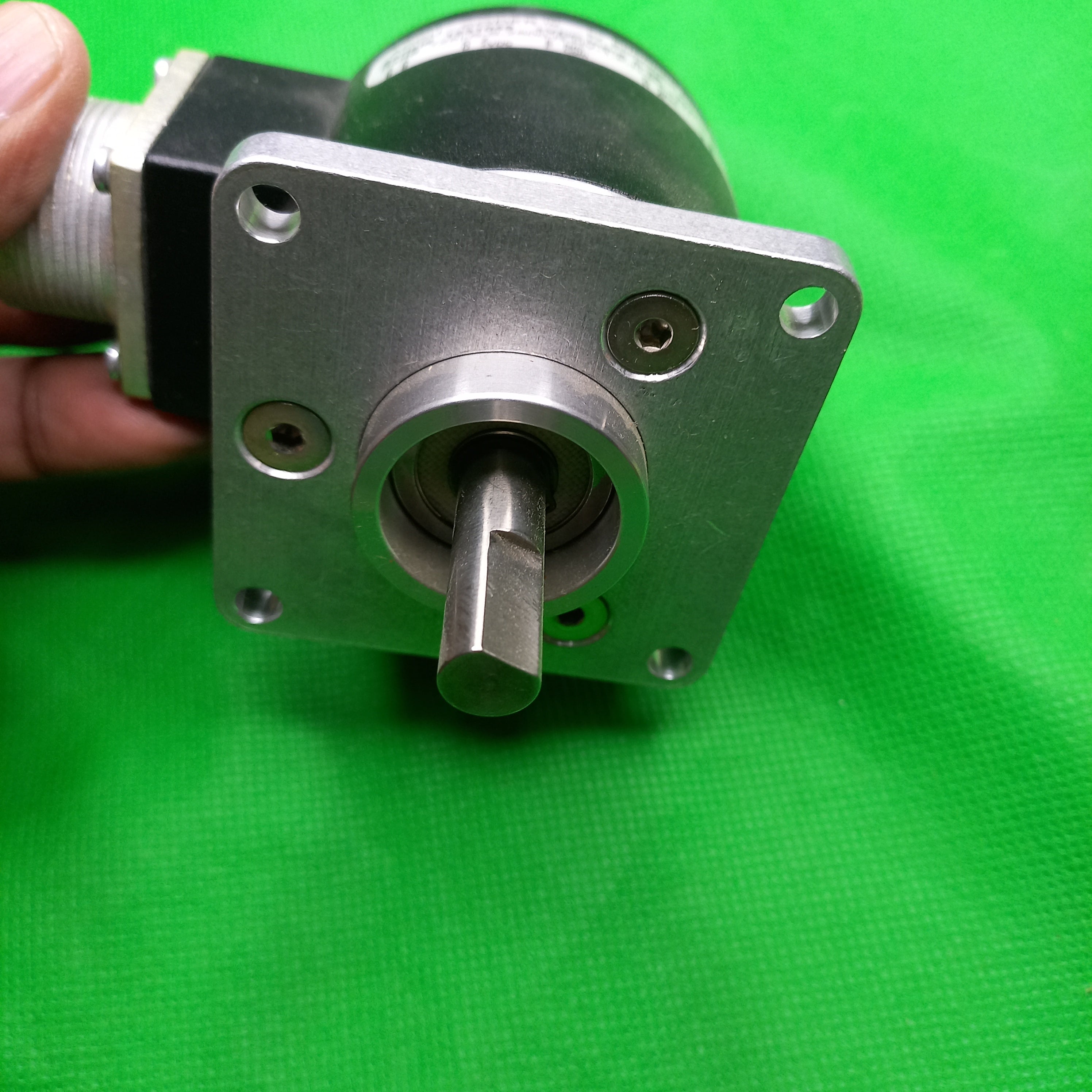

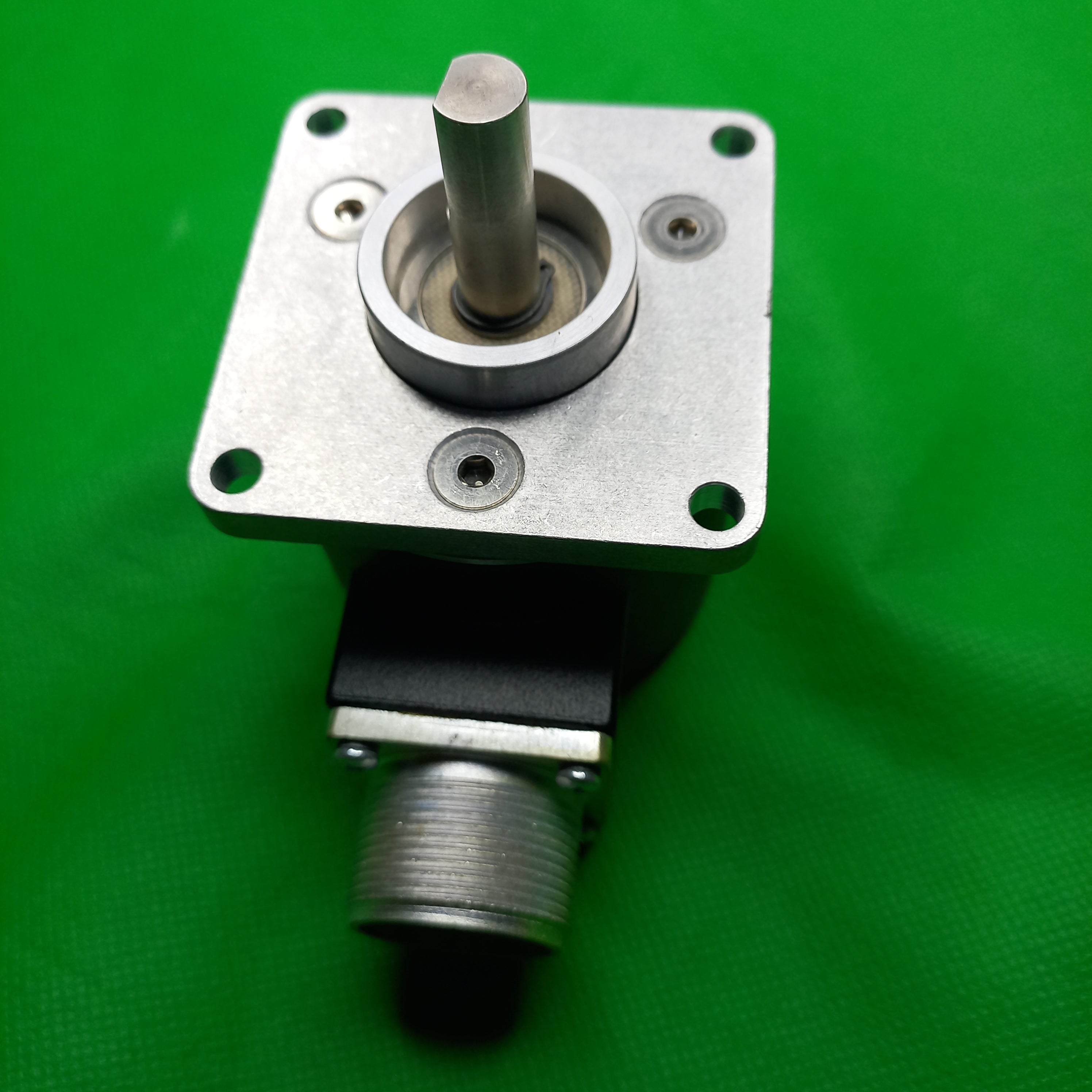

- Incremental Encoder Construction size (flange) Square 2.5 Inch
- Incremental Encoder Shaft diameter 3/8" Inch
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail TTL, RS422 compatible, inv.
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution2500
- incremental Encoder Range of pulses per revolution1025 ... 2.500
- Signal Details:
Connection Details of encoder

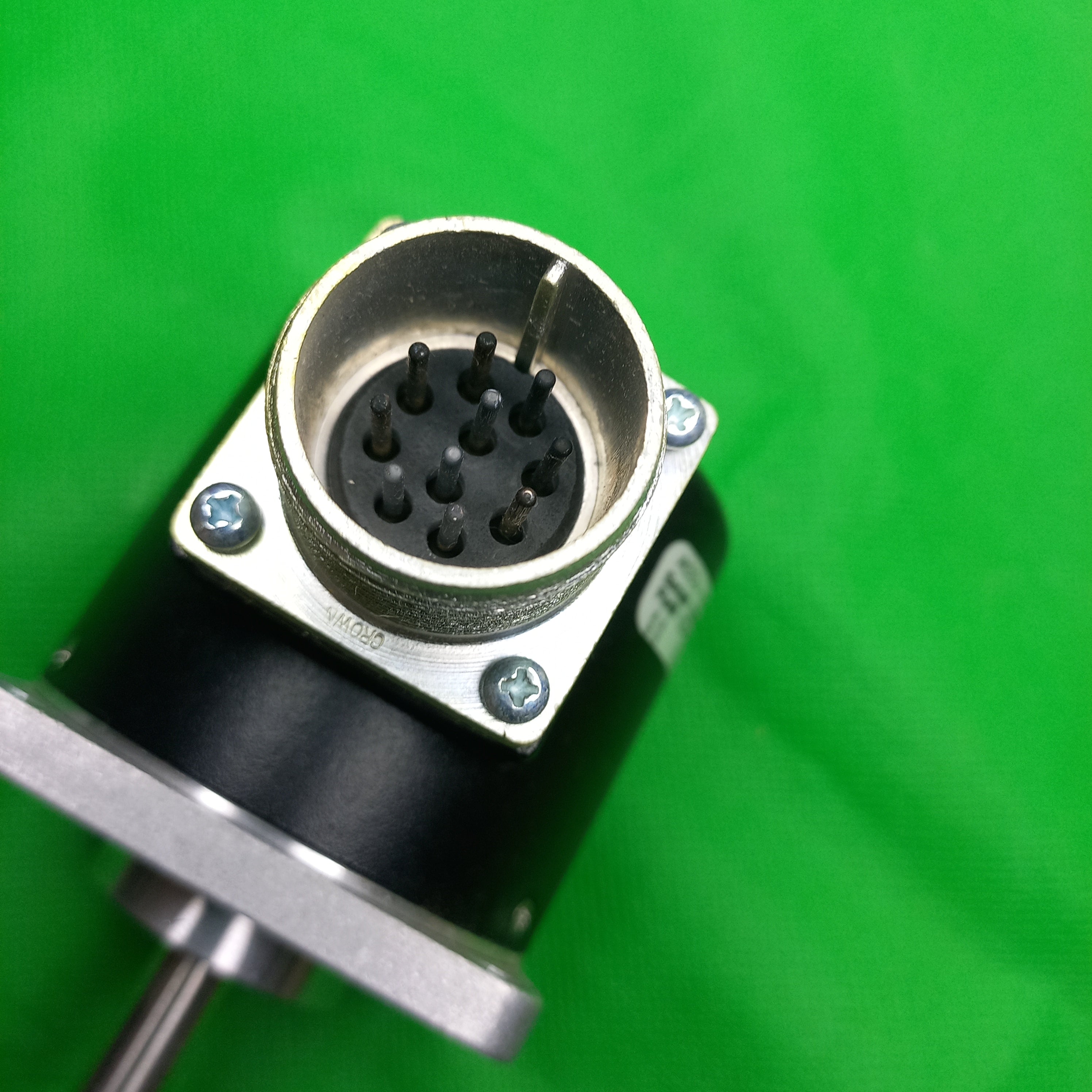

- Connection type (Detail)MS, Male connector on Encoder Body, 10-Pin
- Direction of connection Radial
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPN725I-S-S-2500-R-HV-1-F-N-SX-N-N
- Manufacturer indent Nr. 725 I-S-S-2500-R-HV-1-F-N-SX-N-N
- 1 Manufacturer Part Number (MPN) 725I S S 2500 R HV 1 F N SX N N
