Baumer MAGRES BMSV 58K1N 24C12/00C0 G base encoder (no bus cover) Encoder
$1,280.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Baumer MAGRES BMSV 58K1N 24C12/00C0 G base encoder (no bus cover) Encoder
$1,280.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: BMSV58K1N 24C12/00C0 G
- Manufacturer Alternative MPN ; BMSV58K1N24C12/00C0 G
- Manufacturer Id Nr. BMSV58K1N24C1200C0 G

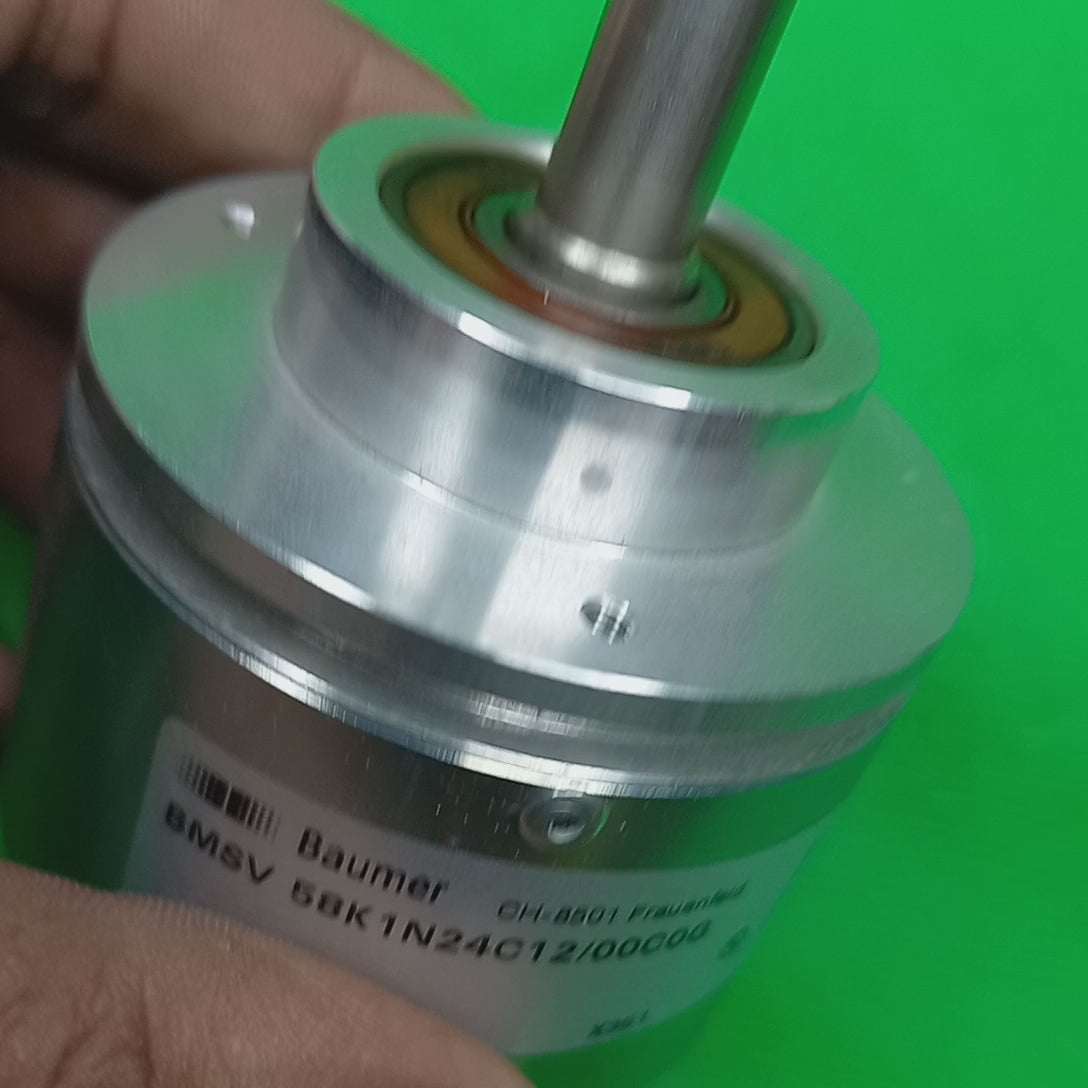

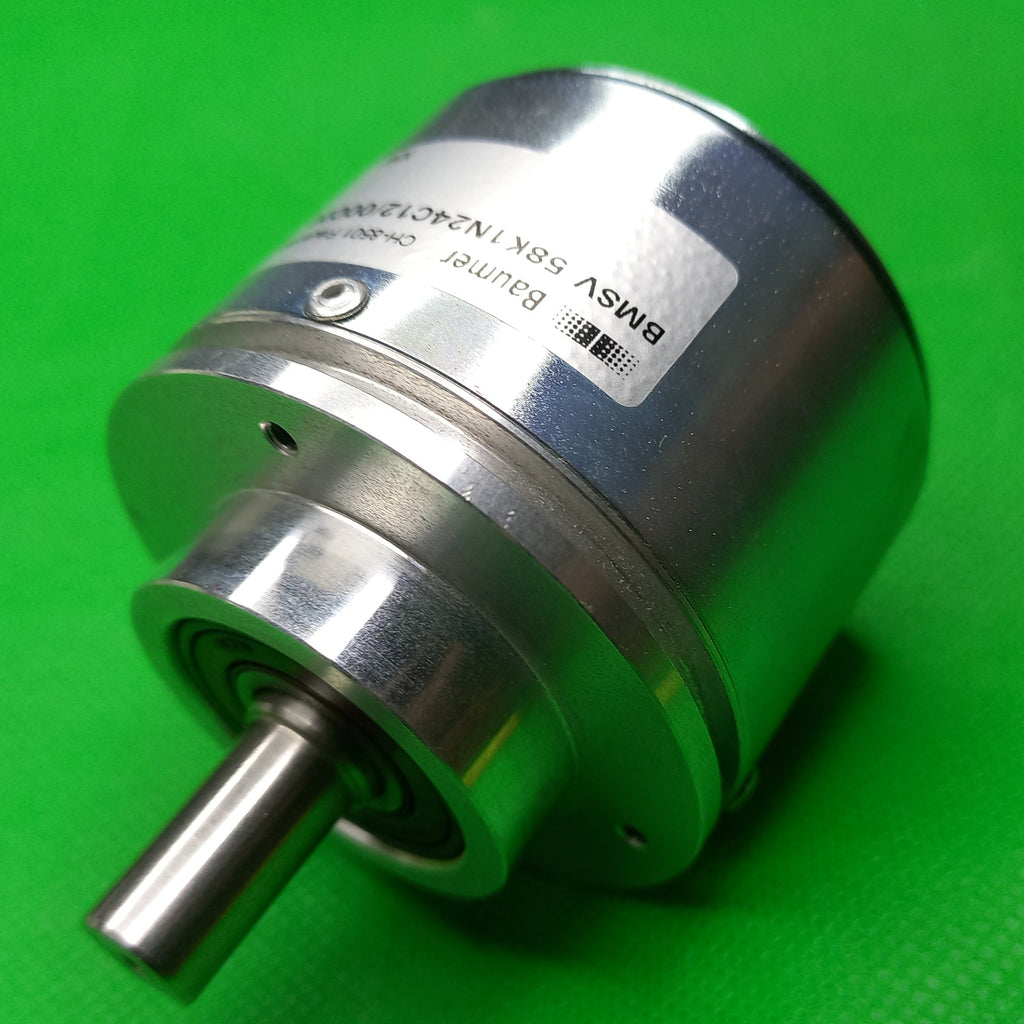

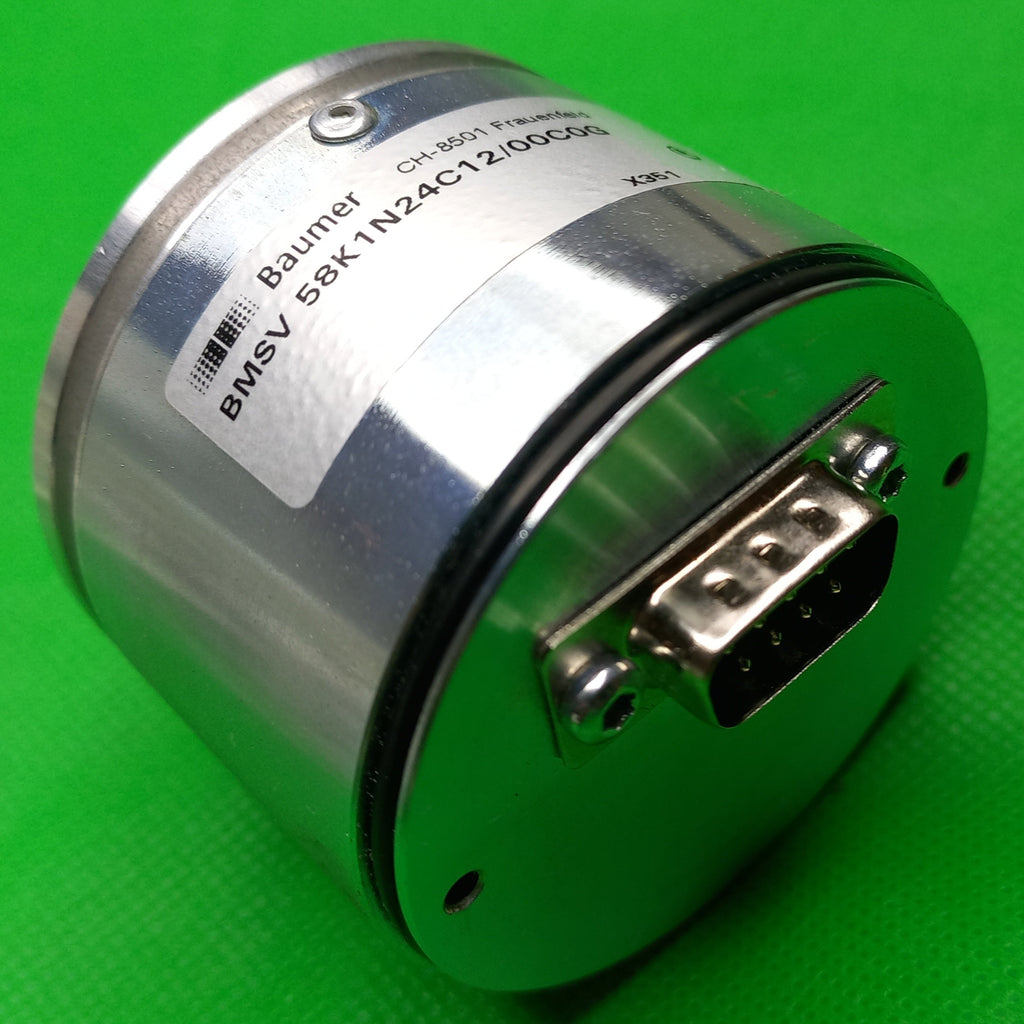

BMSV 58K1N 24C12/00C0 G base encoder
(no bus cover)
Magnetic absolute single-turn shaft encoder
BMSV flexible – MAGRES
• single-turn encoder / bus cover
• magnetic sensing principle
• resolution: 12 bit
• modular fieldbus system
• high resistance against shock and vibration
• resolution and zero point programmable
• clamping or servo flange
voltage supply 10 - 30 VDC
max. supply current typ. 100 mA (at 24 VDC)
no load
output circuit CANopen, DeviceNet, Profibus-DP,
EtherCAT
max. resolution 12 bit (1 step = 5' 16'')
max. error limit ±1°
repeatability 0,3°
preset value programmable within
resolution range
address selectable via rotary switches
(B, D, P) or bus (E)
baud rate selectable via dip switches (B, D)
or bus (E)
direction of rotation looking at the flange, position
counts up as the shaft rotates
clockwise (CW), programmable
max. revolutions 12'000 rpm (mechanical)
6'000 rpm (electrical)
moment of inertia
C6 typ. 11,8 x 10-7 kgm2
C0 typ. 17,8 x 10-7 kgm2
torque typ. 2,3 cNm
(3'000 rpm / 20 °C)
max. shaft load
C6 axial: 10 N radial: 20 N
C0 axial: 40 N radial: 60 N
product life dependening on ambient
conditions (typ. 109
revolutions)
max. protection class IP 65
material housing: steel
bus cover/flange: aluminium
weight approx. 480 g
- Product Condition New in Generic Brown Packett:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
- Manufacturer indent Nr.BMSV 58K1N24C12 00C0 G
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
Brand, Condition & Warranty Disclosure
We are Independent Reseller for this Brand - Not Authorised by manufacturer
