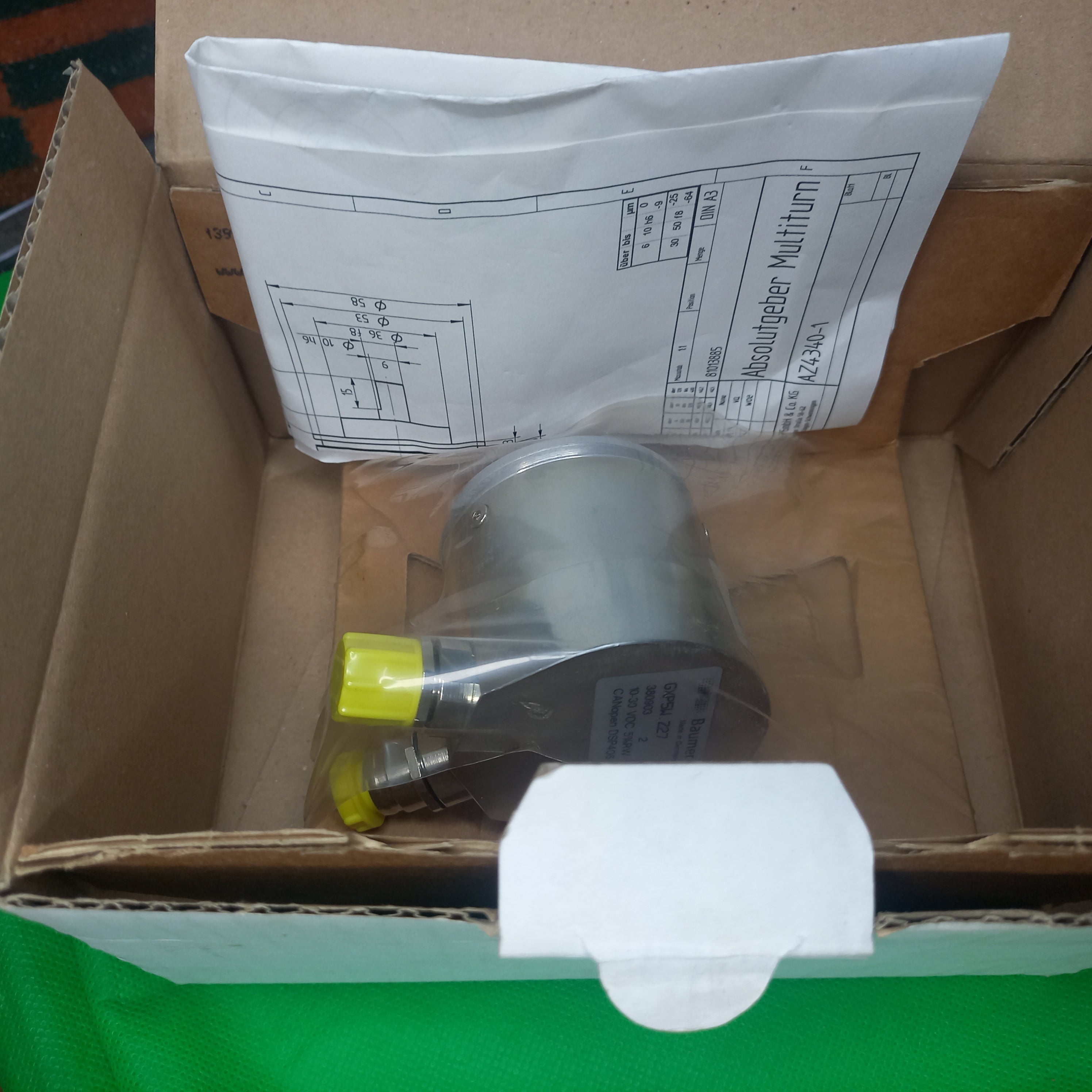

GXP5W Multiturn Baumer encoder CanOpenDSP406 Ready stock 13bitSTx16bit MT

Ready Stock | Ship Worldwide
Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
We ship Same day if Order is confirmed before 2 PM on Weekdays

GXP5W Multiturn Baumer encoder CanOpenDSP406 Ready stock 13bitSTx16bit MT

$1,080.00

Taxes included. Shipping calculated at checkout.

Dispatch Lead time = Same day ship if paid before 2 PM Local time
Warranty = One-year limited seller warranty

Manufacturer Part Number = GXP5W.Z27 | 380903
Manufacturer MPN = GXP5W GXP5W.Z27 | 11052694
Encoder Type = Absolute Encoder
Supply voltage = 11-30vDC

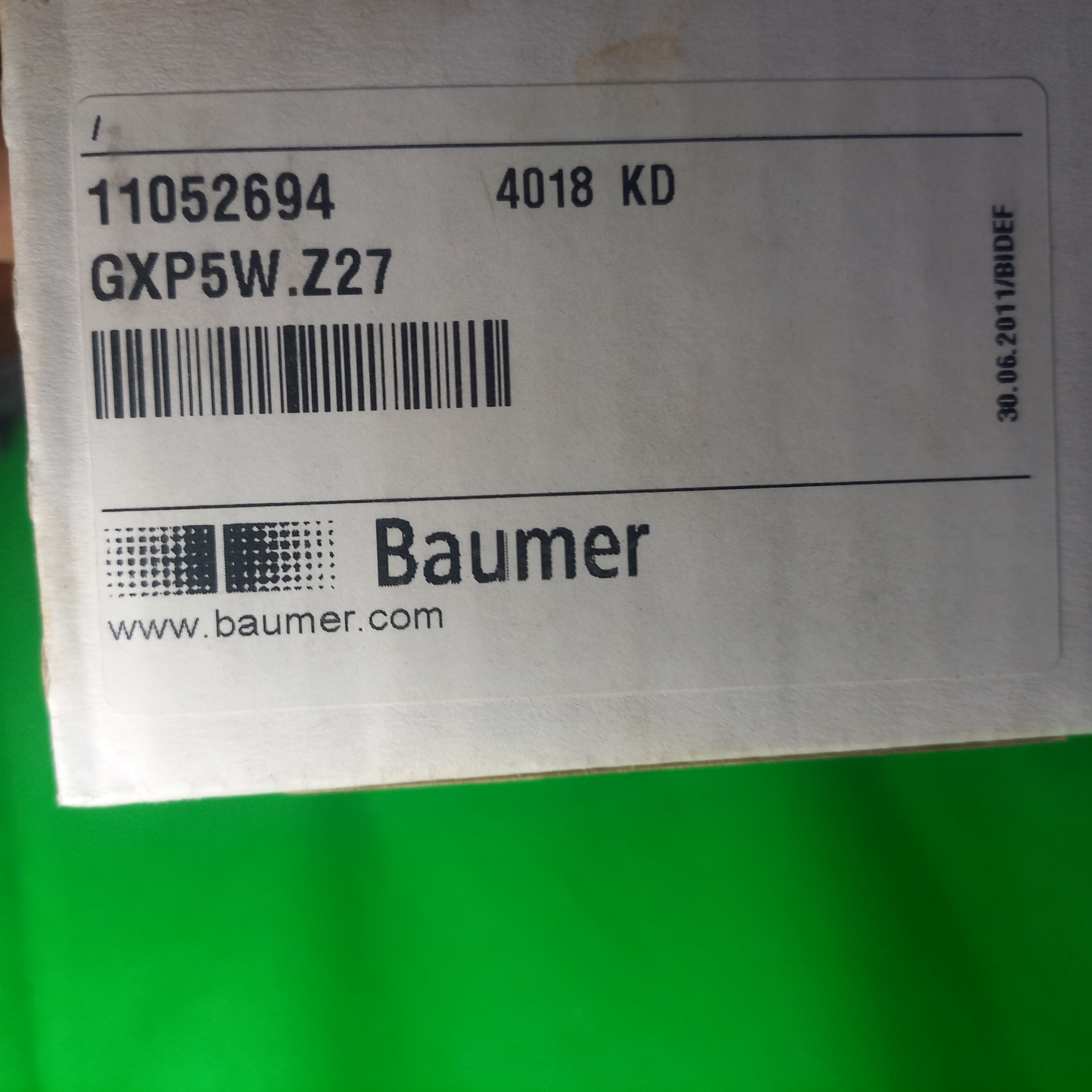

ID. NR. = GXP5W.Z27 | 11052694
indent Nr. = GXP5W Z27 | 110 52 694

Alternative Part Numbers | Compatible Parts = GXP5W.010M216, GXP5W.A10M216, GXP5W.010M316,
GXP5W.A10M316
Typographic Errors in MPN | Mistakenly Known as = GXPSW.Z27 | 11 05 26 94
Manufacturer Part Number (MPN) = GXP5W.Z27 | 380903

View Manufacturer Product Page

Mechanical Design Features of this Encoder:

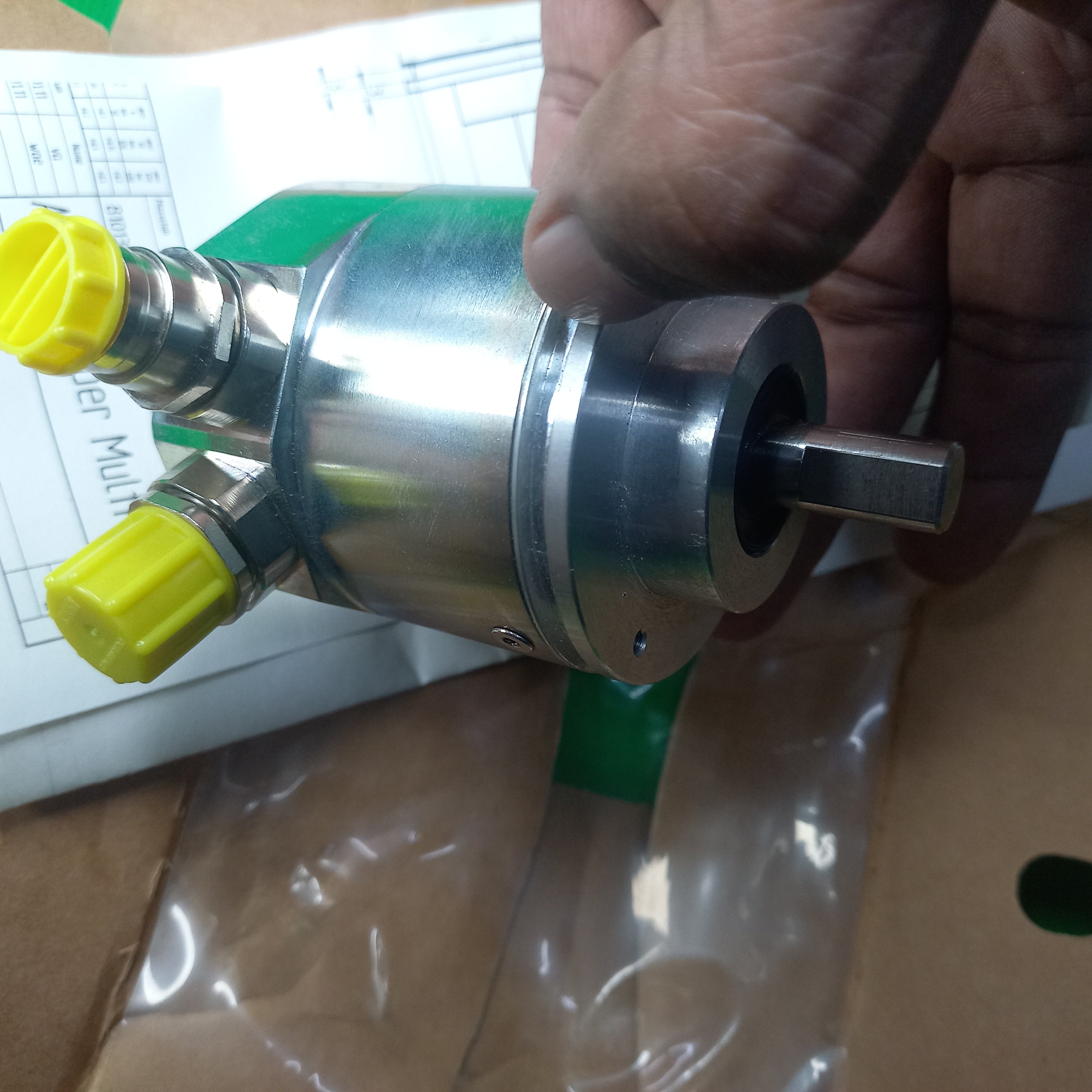

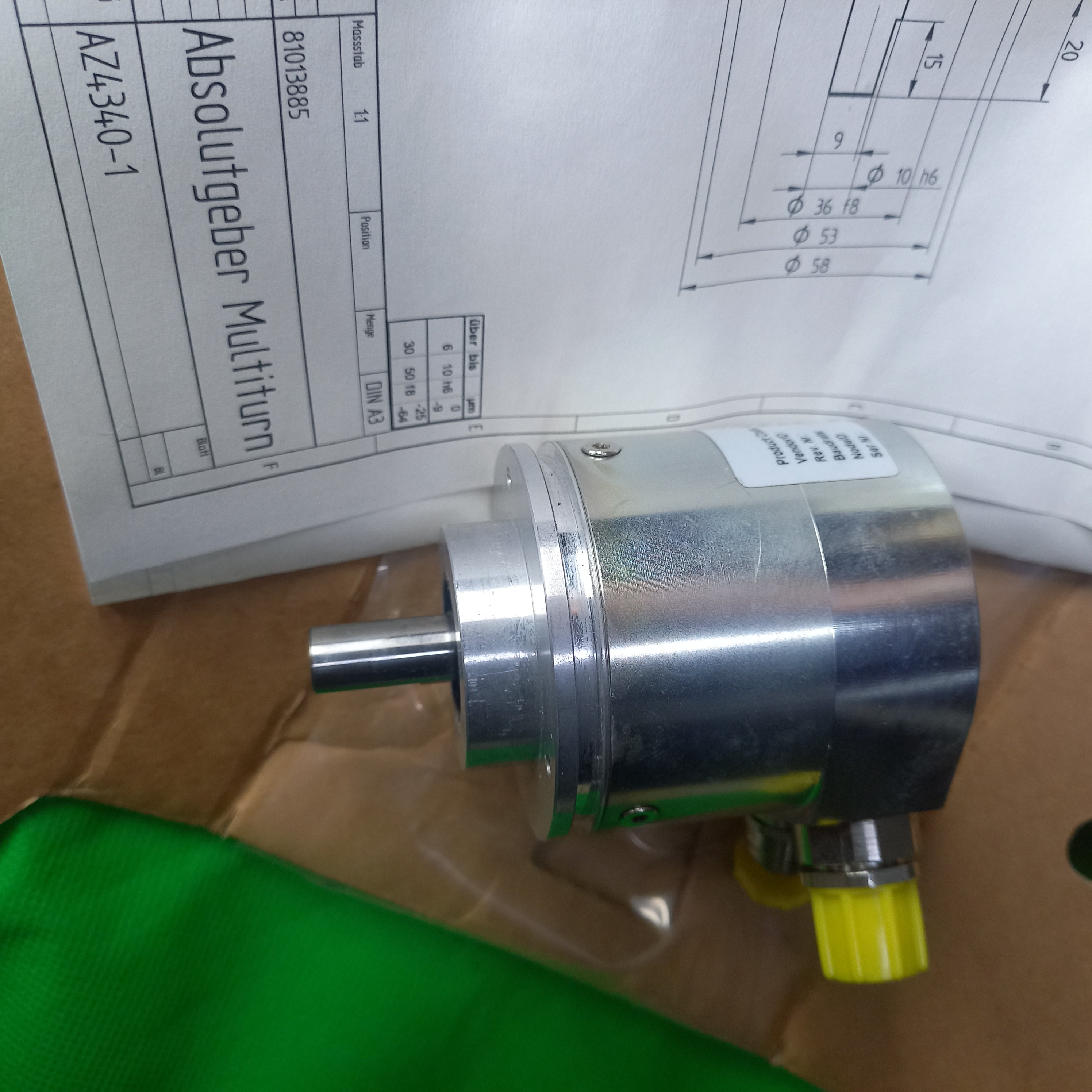

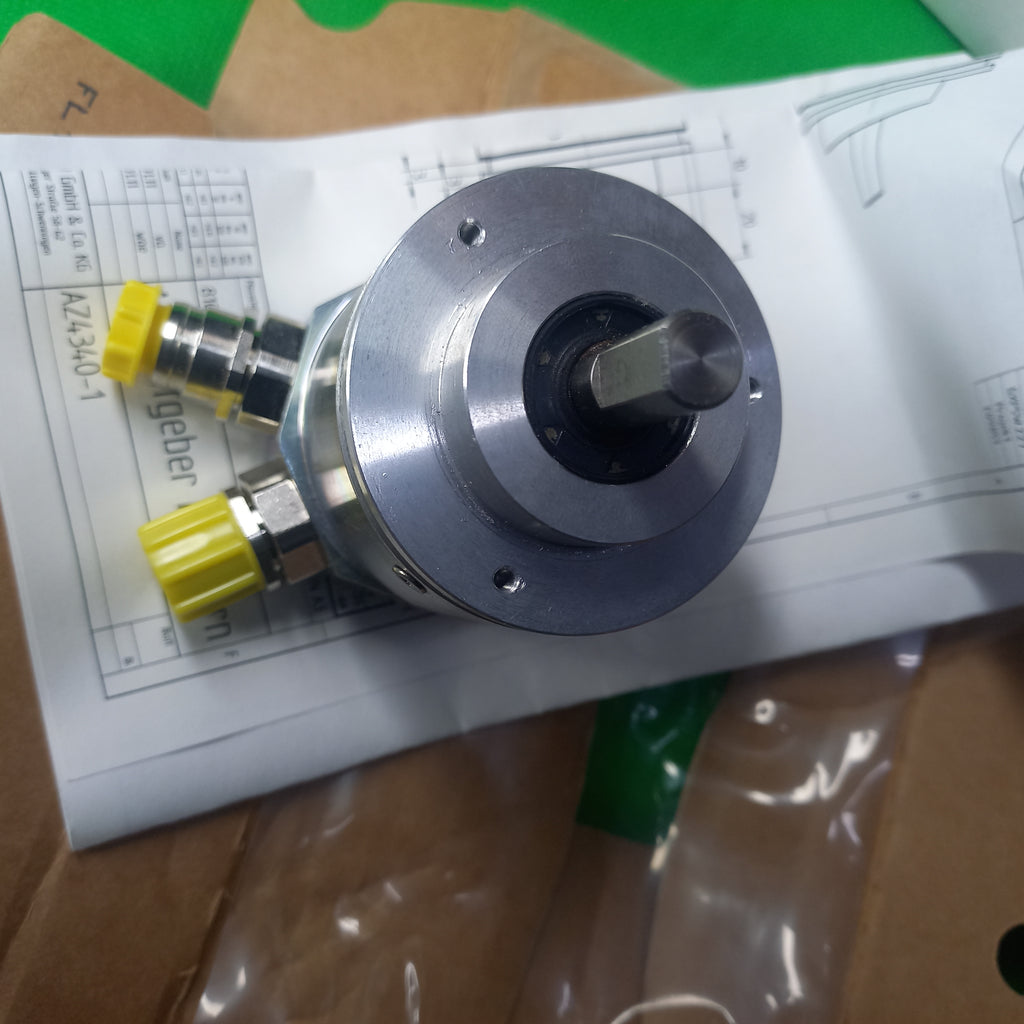

Absolute Encoder Mechanical Design = Solid shaft, face mount flange
Absolute Encoder Construction size (flange) = Ø 58 mm

Design data for Selection | design of Shaft Coupling for this encoder

Absolute Encoder Shaft diameter = 10 mm

Encoder Communication Protocall & interface

Absolute Encoder Communication interface = CANopen

Encoder Performance Parameters

Absolute Encoder - Singleturn or multiturn version = Multiturn
Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
Absolute Encoder Number of revolutions = 65536 (16 bit)

Absolute Encoder Programmable/configurable = YES : Programmable/configurable

Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE

Direction of Connection = Radial
Connection Type Detail = Bus Cover

How Encoder body is Mouted ? Mouting Flange Design Data:

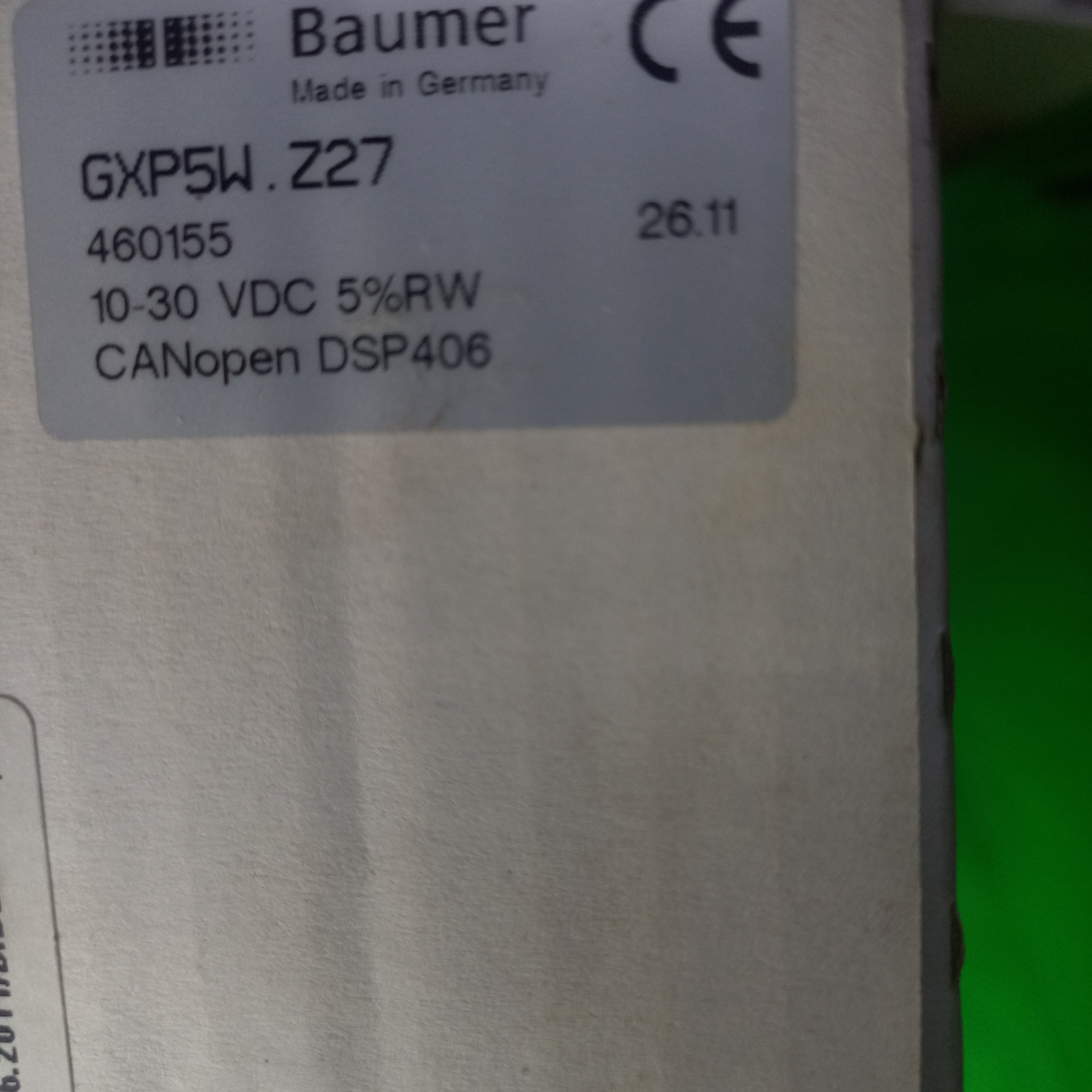

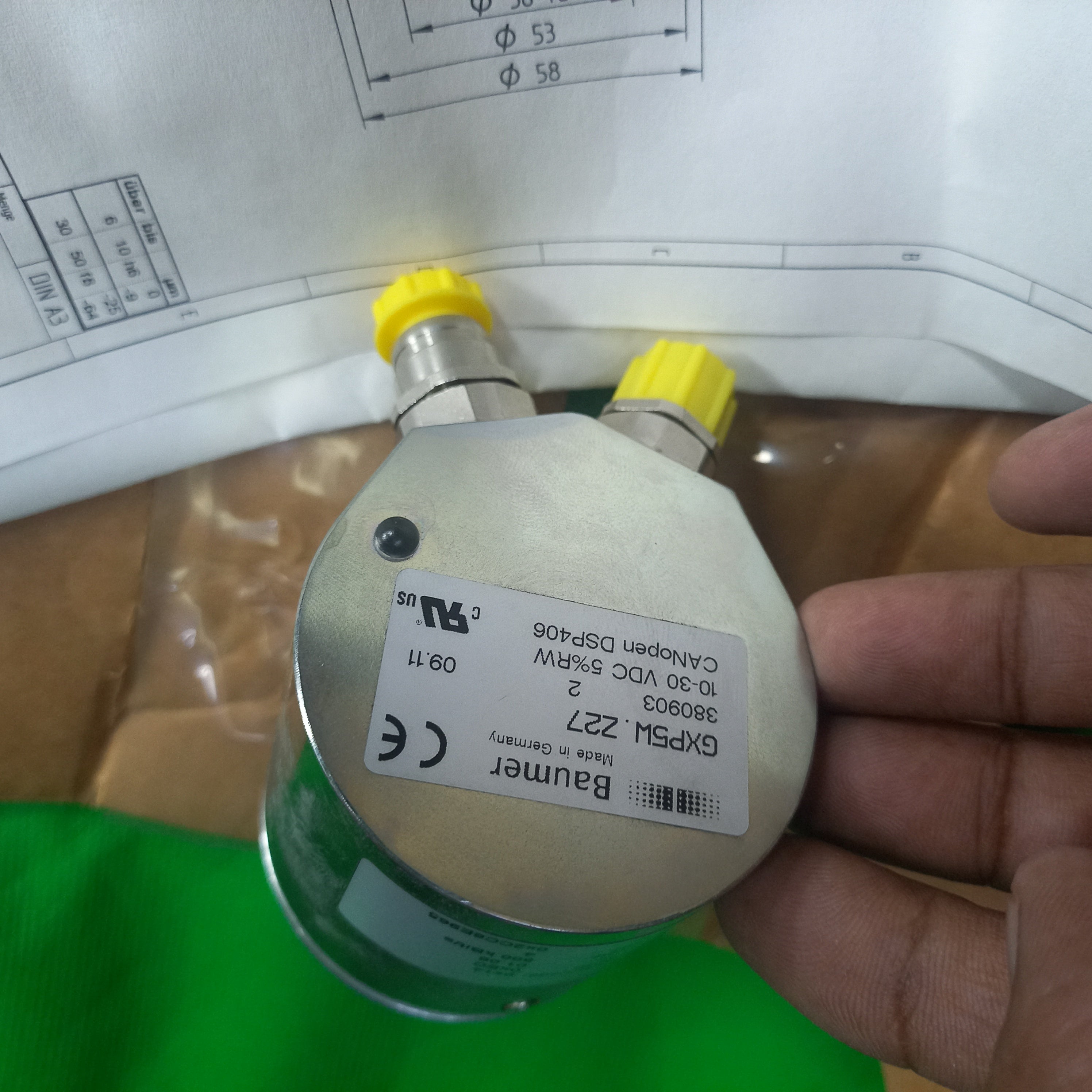

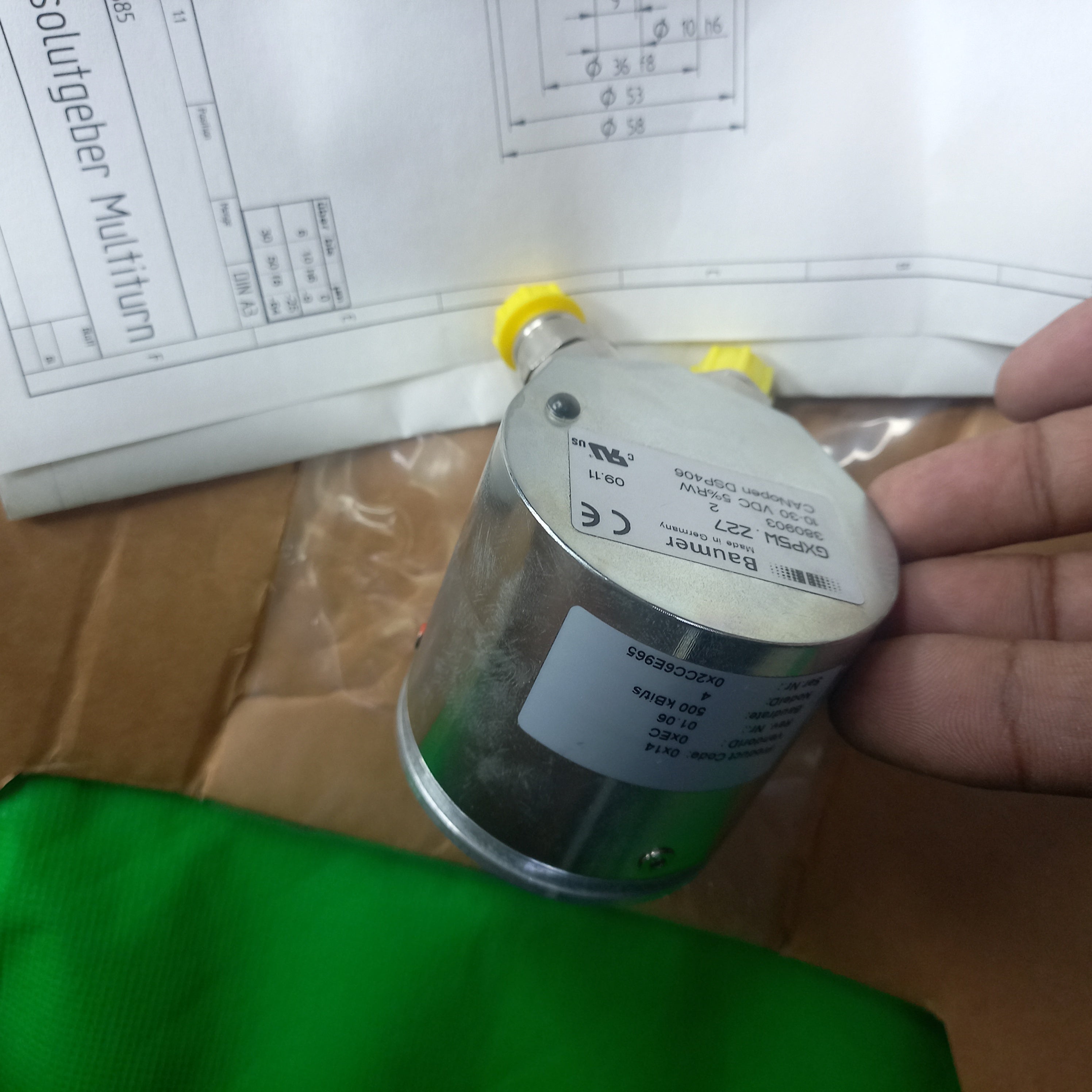

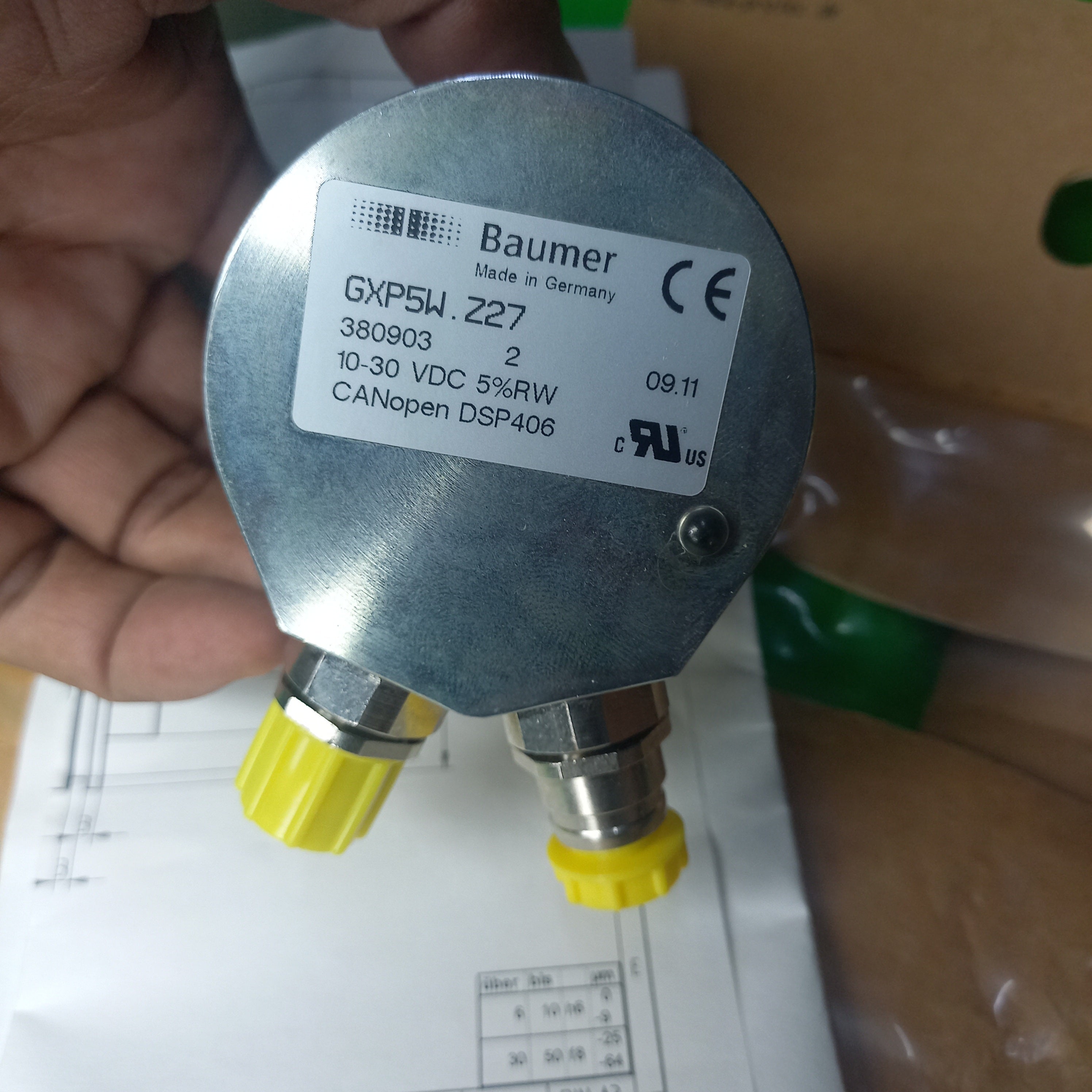

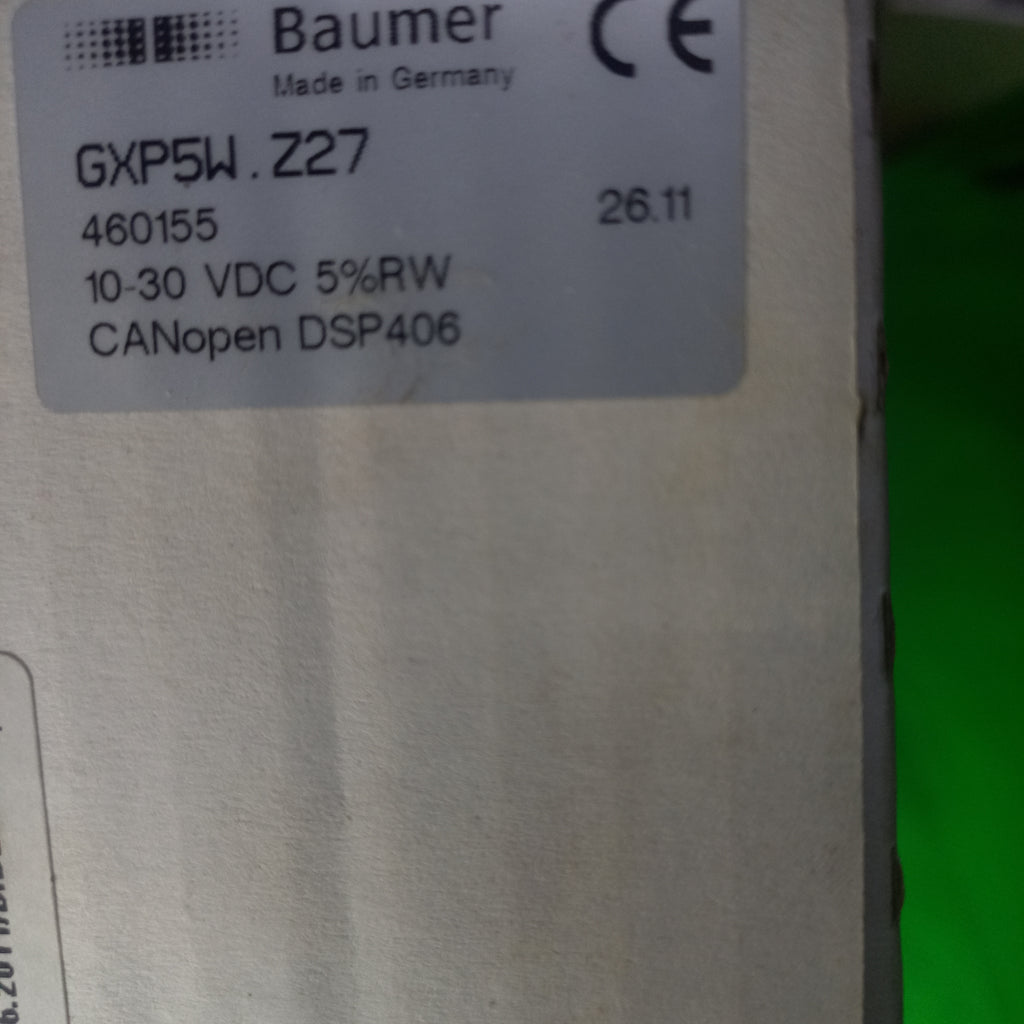

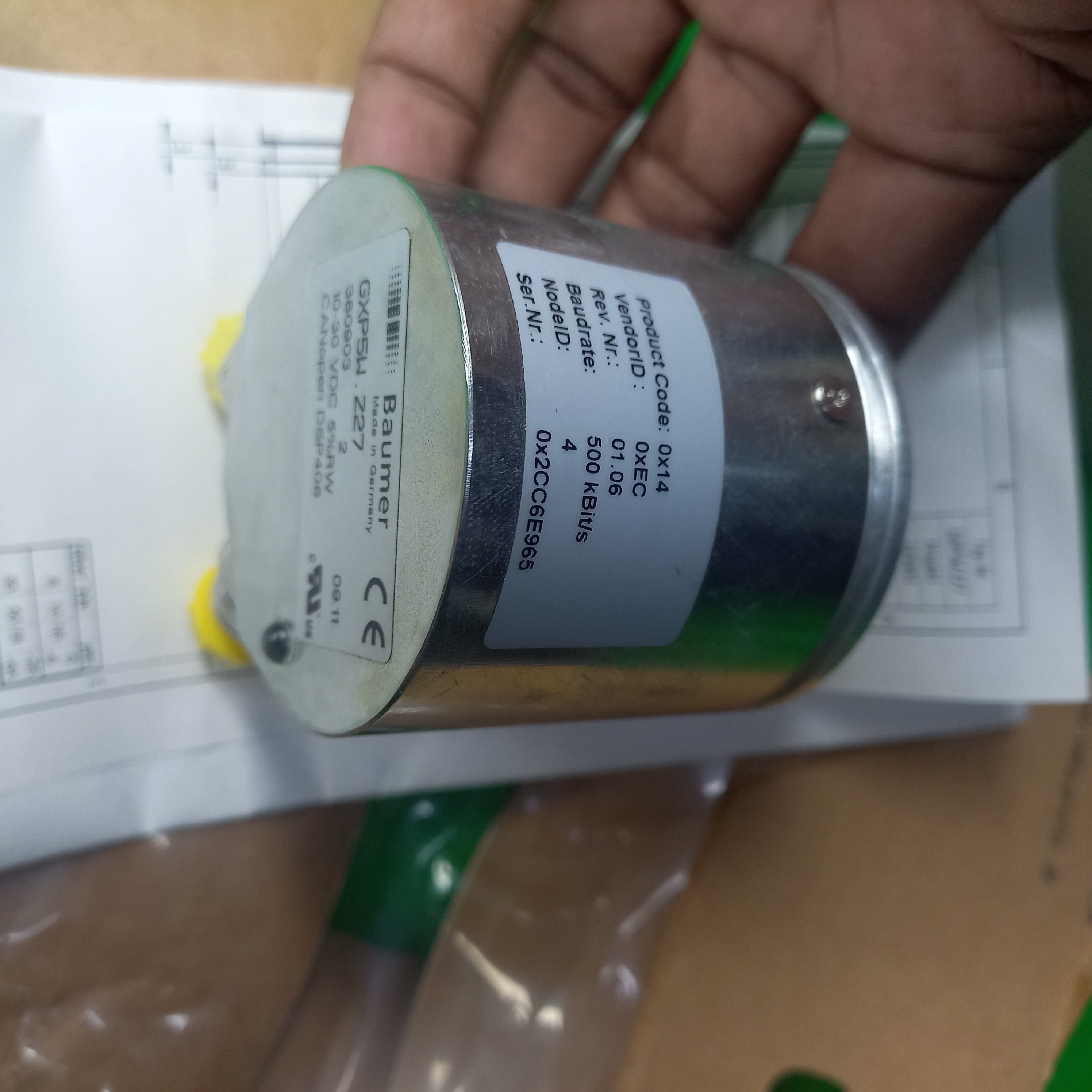

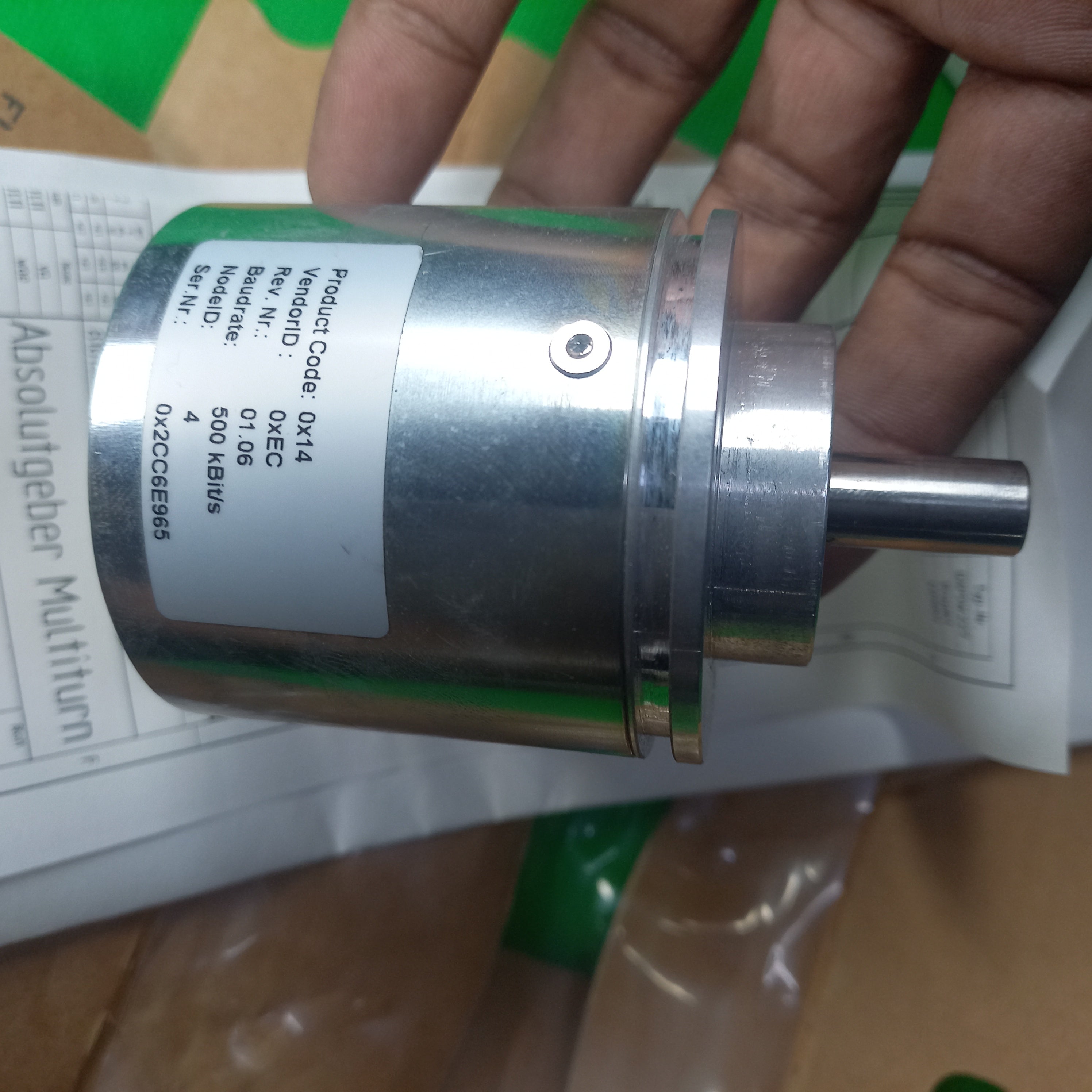

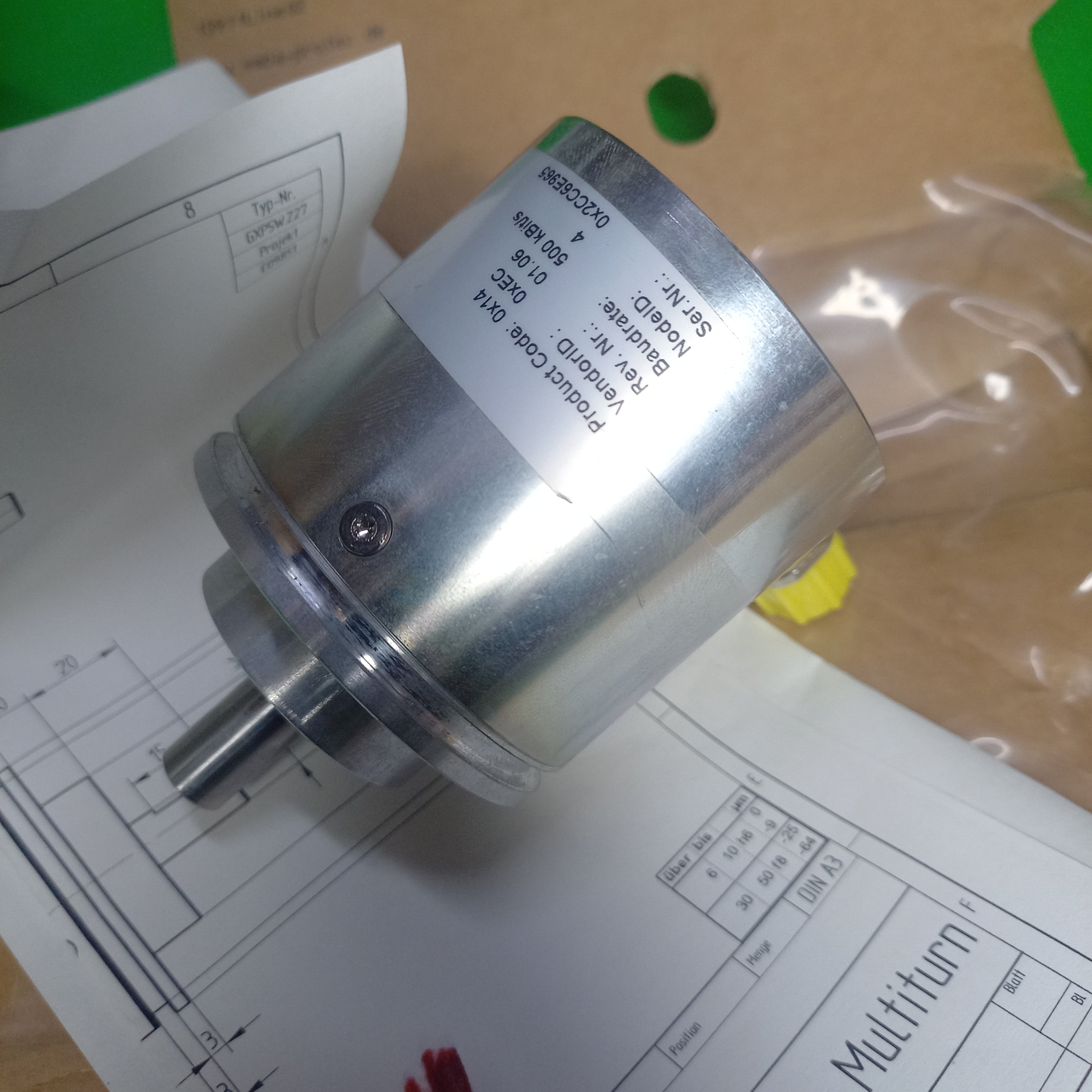

GXP5W.Z27 | 11052694, GXP5W.Z27 | 380903 , 10-30VDC 5% RW, CanOpen DSP406

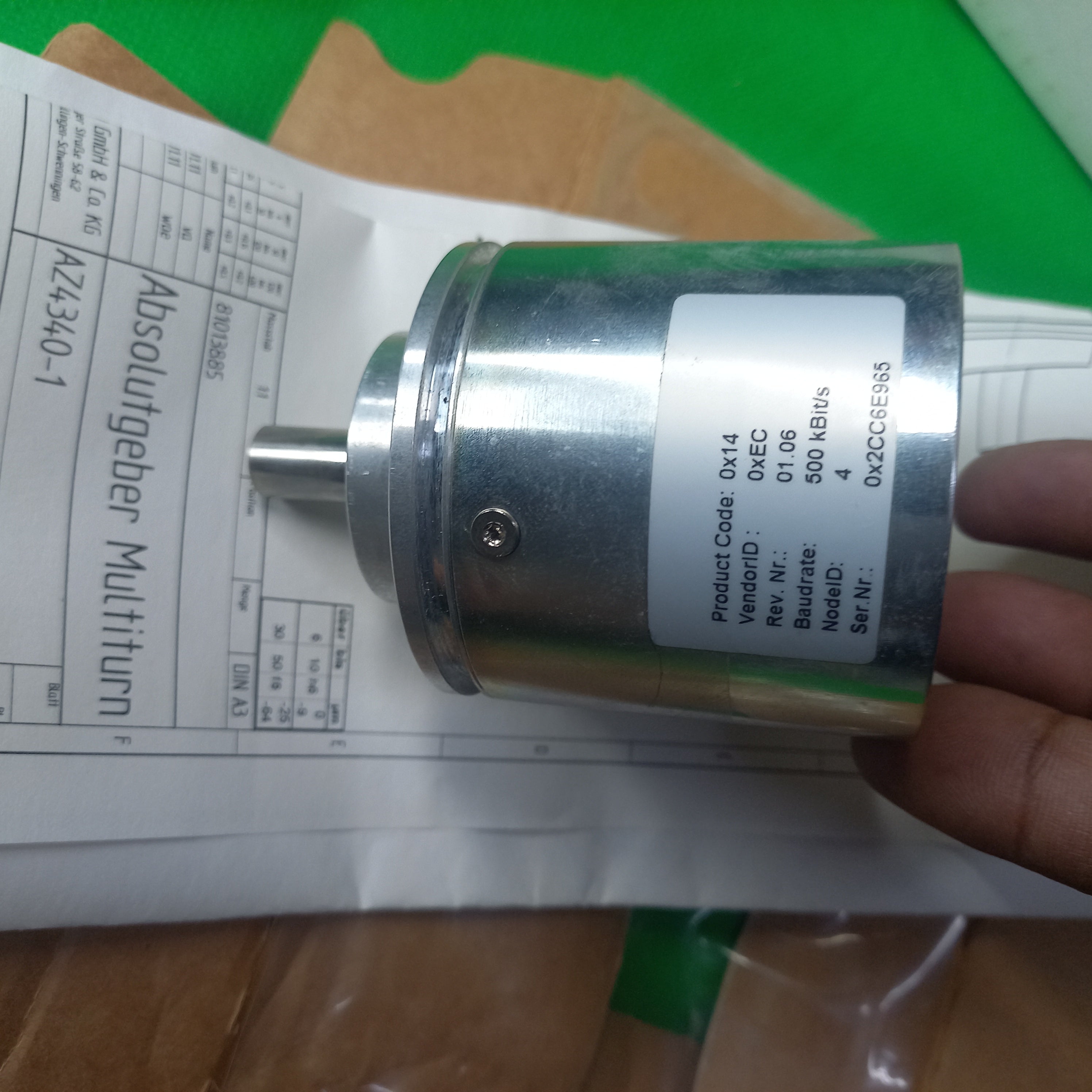

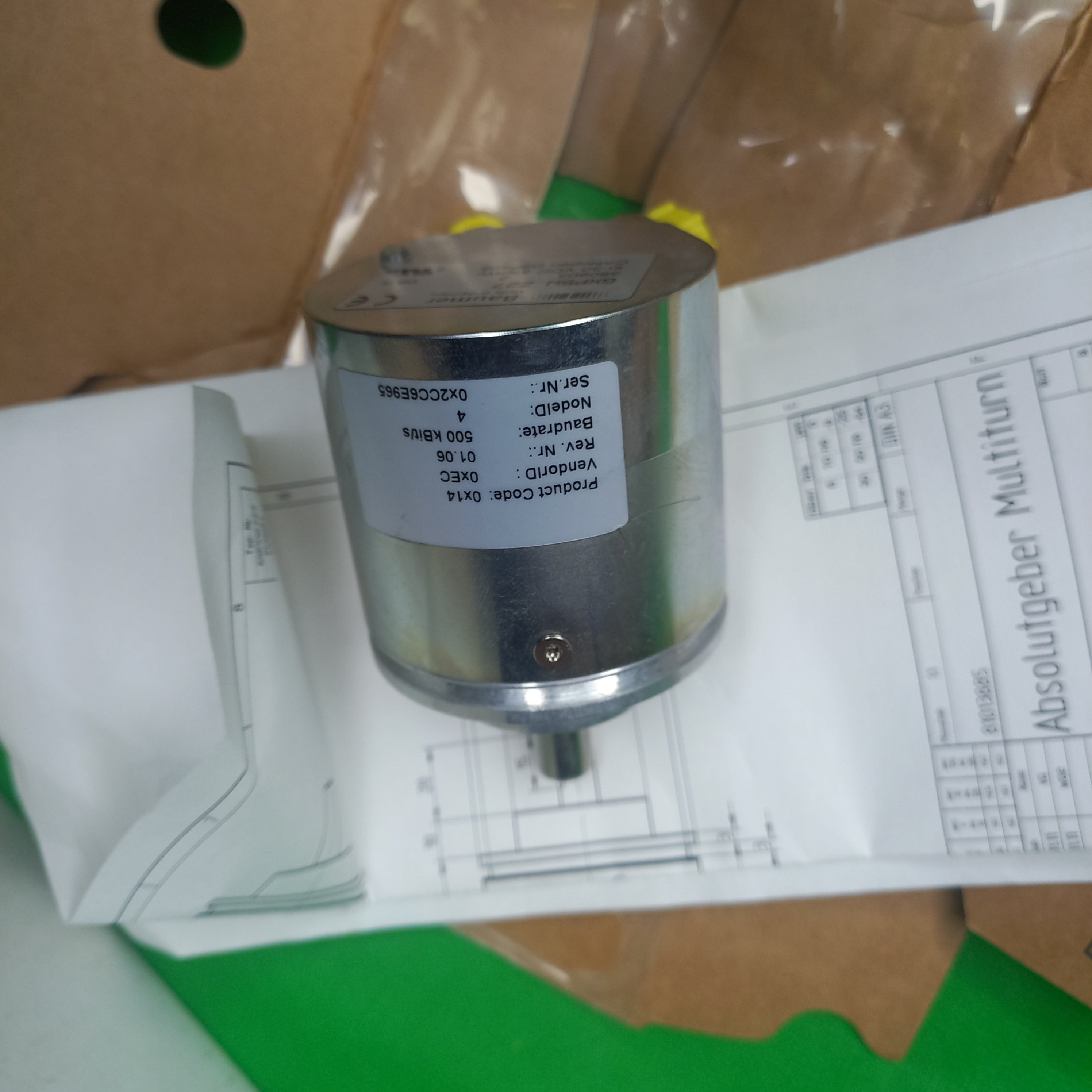

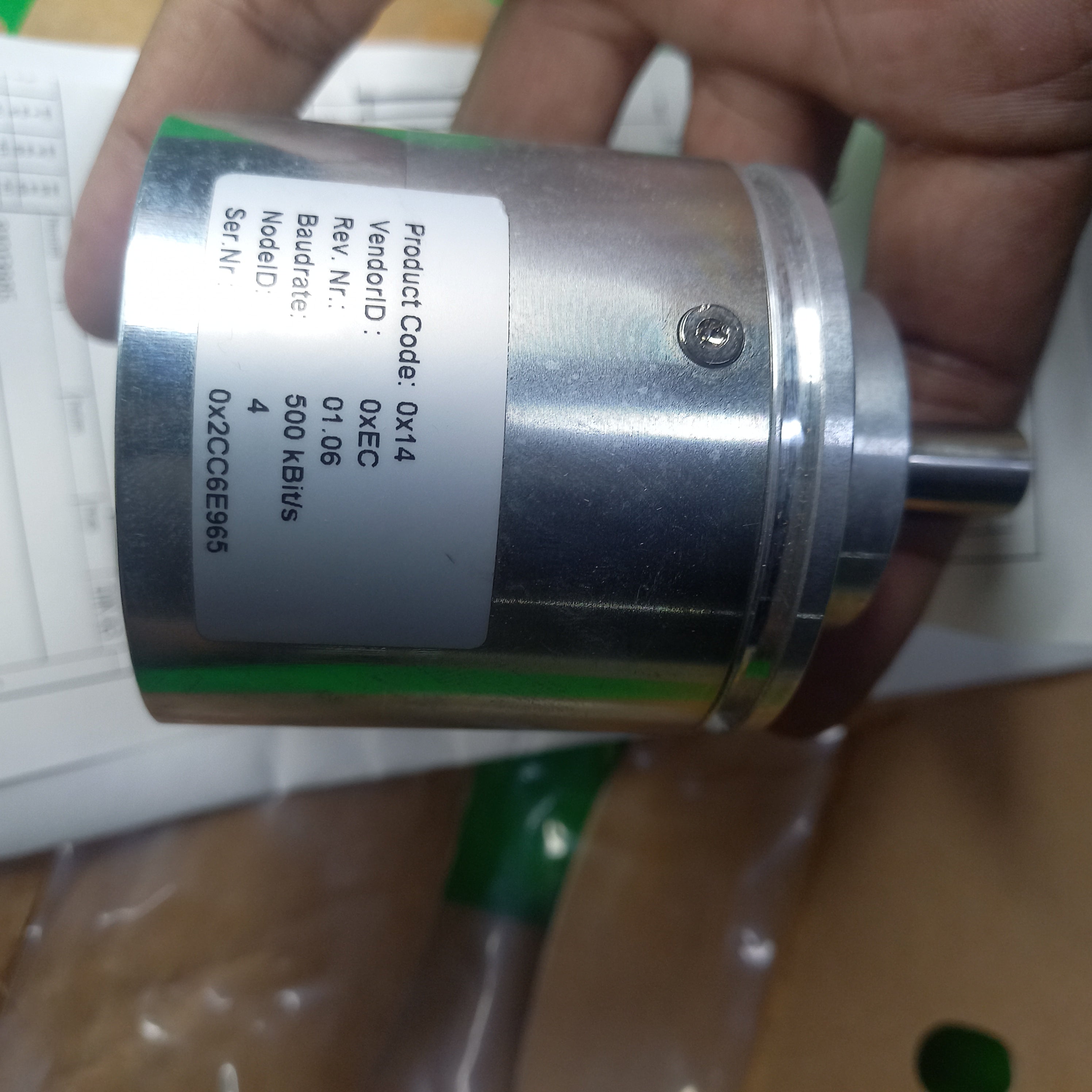

Product Code: 0x14
Vendor ID: 0xEC
Rev. Nr. ; 01.06
Baudrate: 50kbit/s
NodeiD: 4
Ser. Nr. : 0x2CC6E965

Can be used with expert help to replace: GXP5W.010M216
GXP5W.A10M216
GXP5W.010M316
GXP5W.A10M316

GXP5W - CANopen®
Solid shaft with clamping or synchro flange
Optical multiturn encoders 13 bit ST / 16 bit MT, CANopen®DSP 406 V 3.0
Voltage supply 10...30 VDC
Reverse polarity protection : Yes
Consumption w/o load : ≤50 mA (24 VDC)
Interface : CANopen®
Function : Multiturn
Steps per revolution : ≤8192 / 13 bit
Number of revolutions : ≤65536 / 16 bit
Profile conformity : CANopen® CiA DSP 406
Operating mode :
Event-triggered / Time-triggered Remotely-requested Sync (cyclic) / Sync (acyclic)
Identifier :11 bit
Absolute accuracy : ±0.025 °
Sensing method : Optical
Code : Binary
Code sequence : CW/CCW programmable
Output stages : CAN bus standard ISO / DIS 11898

■ Encoder multiturn / CANopen®
■ Optical sensing method
■ Resolution: singleturn 13 bit, multiturn 16 bit
■ Clamping or synchro flange
■ LED status indicator
■ CANopen® Profile CIA DSP 406 / DSP 417 Lift
■ Permanent check of code continuity
■ Maximum resistant against magnetic fields
