HENGSTLER 0875107 Totalizing Counters Piccolo 0 875 107 - 5 digit / with Reset
$130.00
Skip to product information
- Same day service is possible if we recieve motor by 7 AM,
HENGSTLER 0875107 Totalizing Counters Piccolo 0 875 107 - 5 digit / with Reset
$130.00
Taxes included.
Shipping calculated at checkout.
- Totalizing Counters „Piccolo“ Types 872-877
- Hengstler 0 875 107
- o 875 107
- 0875107
- 875 107

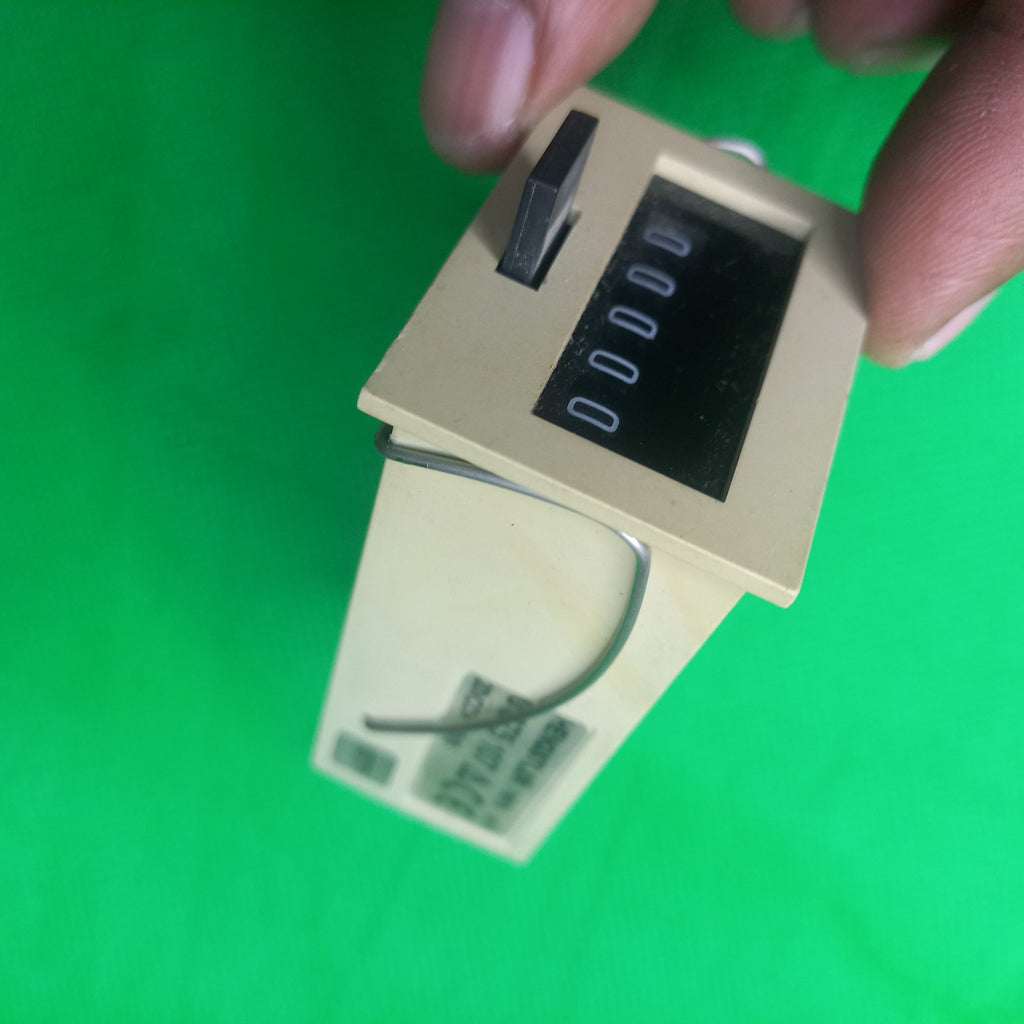

Totalizing Counters „Piccolo“Panel pulse counters, type Hengstler 0875.
General product data for the series:

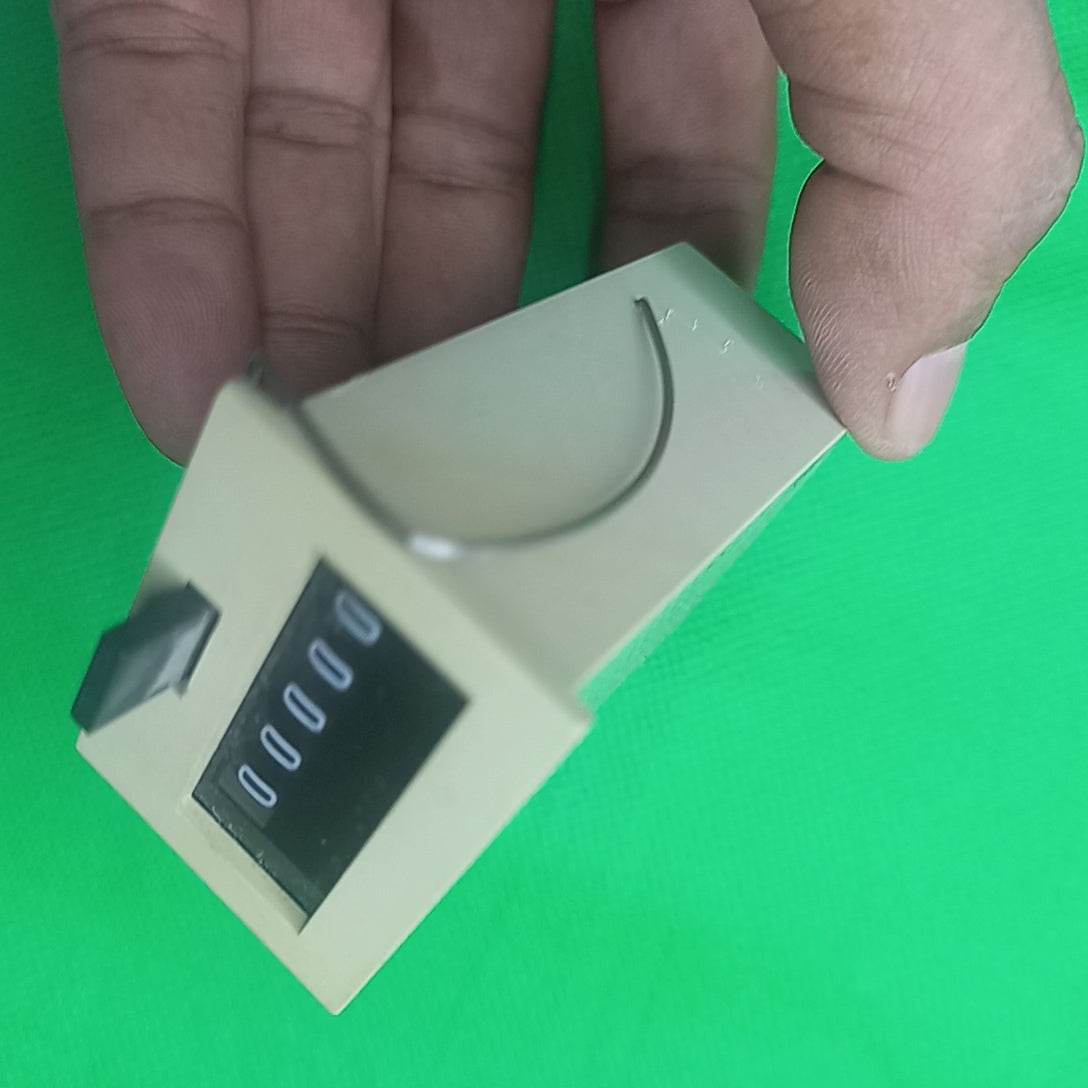

Type: 0875-107, 24 VDC Miniature size | 5digit display | Connection with AMP plug
5-digit, with reset key (zero reset), tension spring fastener and plastic front-panel cap. Operation; depending on the type: 12 V and 24 VDC, as well as 230 VAC. Connection: 2.8 x 0.8 mm tab terminal. Dimensions: W 41.5, H 31, D 64.2 mm. Weight: approx. 100 g.
Type: 0875.107, 24 VDC
Display 4, 5, 6 or 7-digit, depending on version
Digit height 4 mm
Supply voltage Vop according to order information table ± 10 %, 230 VAC +6–10 %*
Current consumption DC versions 1.5 W; AC versions 2.5 VA
Operating temperature – 10 … + 50 °C
Storage temperature – 20 … + 85 °C

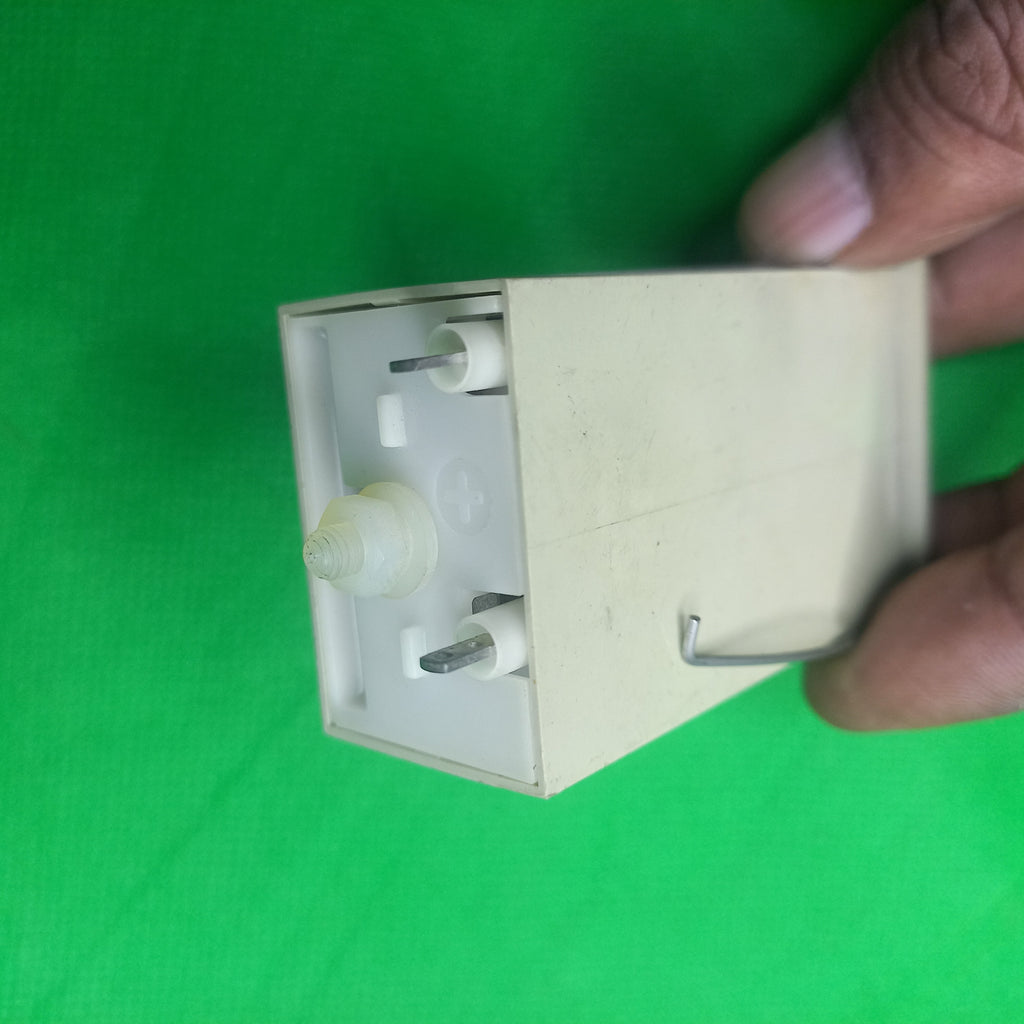

El. connection AMP plug 0.8 x 2.8 mm
Mounting Central or clamping spring attachment, depending on version
Protection class (EN 60529) Typ 872/874/ – front IP 40
876/877
– connections IP 00
Typ 873/875 – front IP 30
– connections IP 00
General design EN 61010-1, EN 50178
Protection class II
Contamination class 2
Overvoltage category II
Noise emittance EMC EN 50081-2
Noise immunity EMC EN 50082-2
Duty cycle at 25 °C 100 %
Maintenance-free operation 107 pulses
Weight approx. 80 g
Approvals UL: E 41784-6
Count input adding
Pulse length min. DC versions 25 ms, AC versions 50 ms
Counting frequency max. DC versions 20 Hz, AC versions 10 Hz
Pulse duty factor 1:1
Reset depending on version
– manua
