IFM IG5554 | IGA3005-BPKG/US PNP, NO, Flush, Sn=5mm, M18x80
$80.00
Skip to product information
Sensing range[mm] 5
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
IFM IG5554 | IGA3005-BPKG/US PNP, NO, Flush, Sn=5mm, M18x80
$80.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IFM
- Sensor Type: Cylinderical Inductive Proximity SensorInductive Sensor
- Sensor Dimensions: Ø 18 x80 mm
- Sensor Interface:
- Sensor Range : Range 8 mm | Flush
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Inductive sensor IG5554 | IGA3005-BPKG/US -Electrical design = PNP; Output function normally open , Sensing range[mm] 5, M18 x 1 / L = 80, flush mountable
Robust metal housing for use in harsh industrial environments
Wide operating temperature range
High protection rating for the requirements of harsh industrial environment
Product characteristics
Electrical design PNP
Output function normally open
Sensing range[mm] 5
Housing threaded type
Dimensions[mm] M18 x 1 / L = 80
Application
Special feature Gold-plated contacts
Electrical data
Operating voltage[V] 10...30 DC
Current consumption[mA] < 10
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 200
Switching frequency DC[Hz] 500
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range[mm] 5Real sensing range Sr[mm] 5 ± 10 %
Operating distance[mm] 0...4.05
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] 3...15
Switch point drift[% of Sr] -10...10
Operating conditions
Ambient temperature[°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
MTTF[years] 1083
Embedded software included no
UL approval
Ta 0...40 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
UL approval no. A069
File number UL E174191
Mechanical data
Weight[g] 56.5
Housing threaded type
Mounting flush mountable

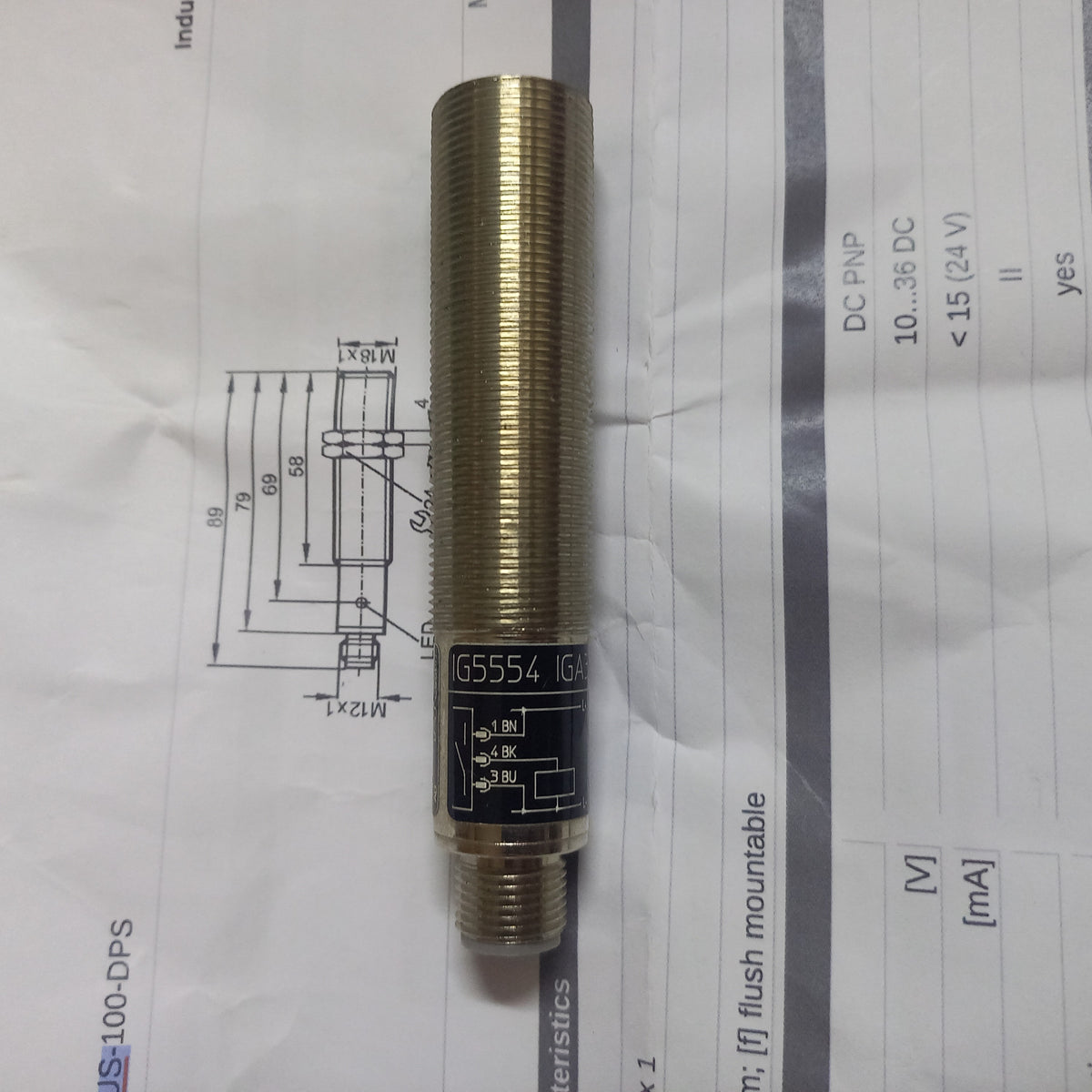

Dimensions[mm] M18 x 1 / L = 80
Thread designation M18 x 1

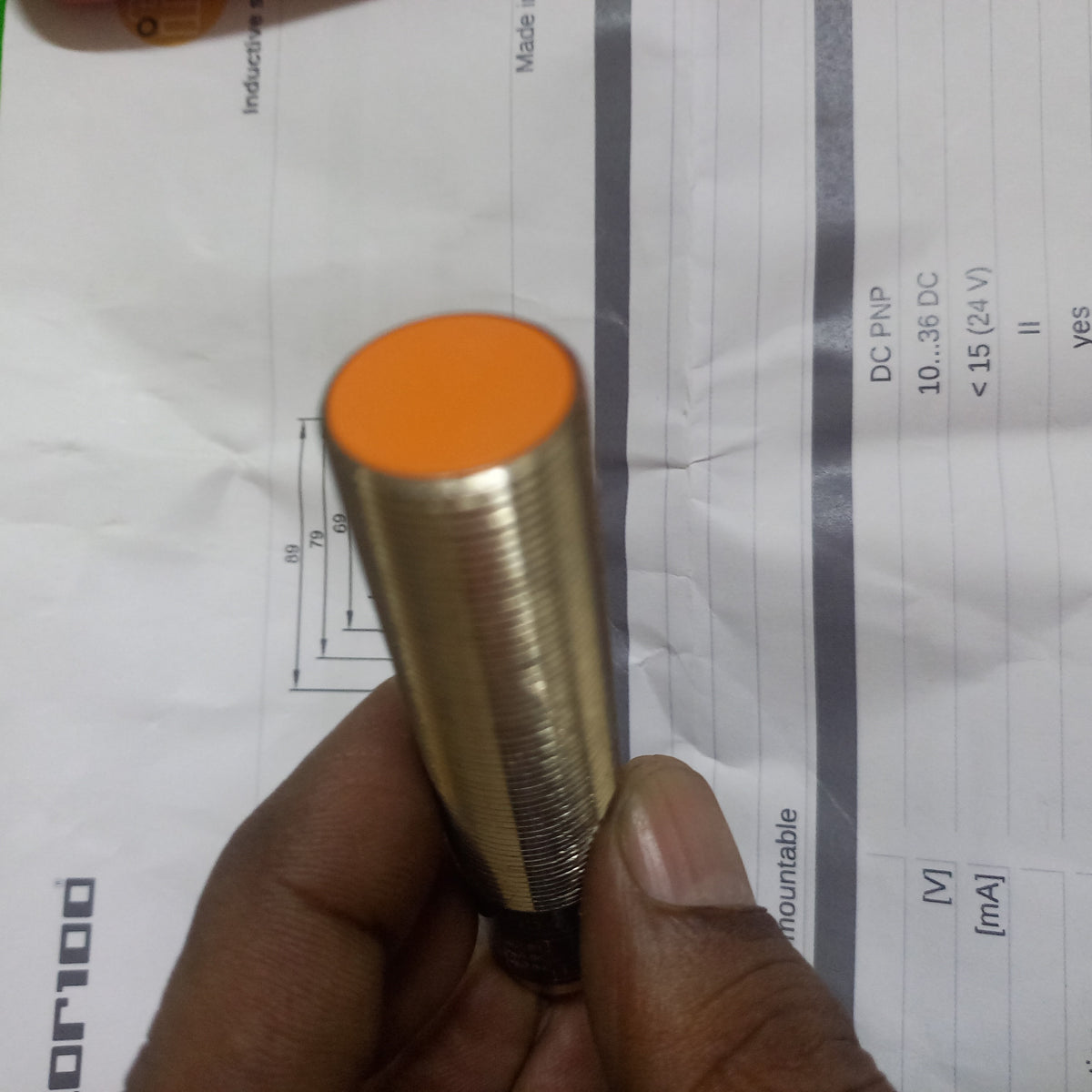

Materials housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Displays / operating elements
Display
switching status 4 x 90° LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug

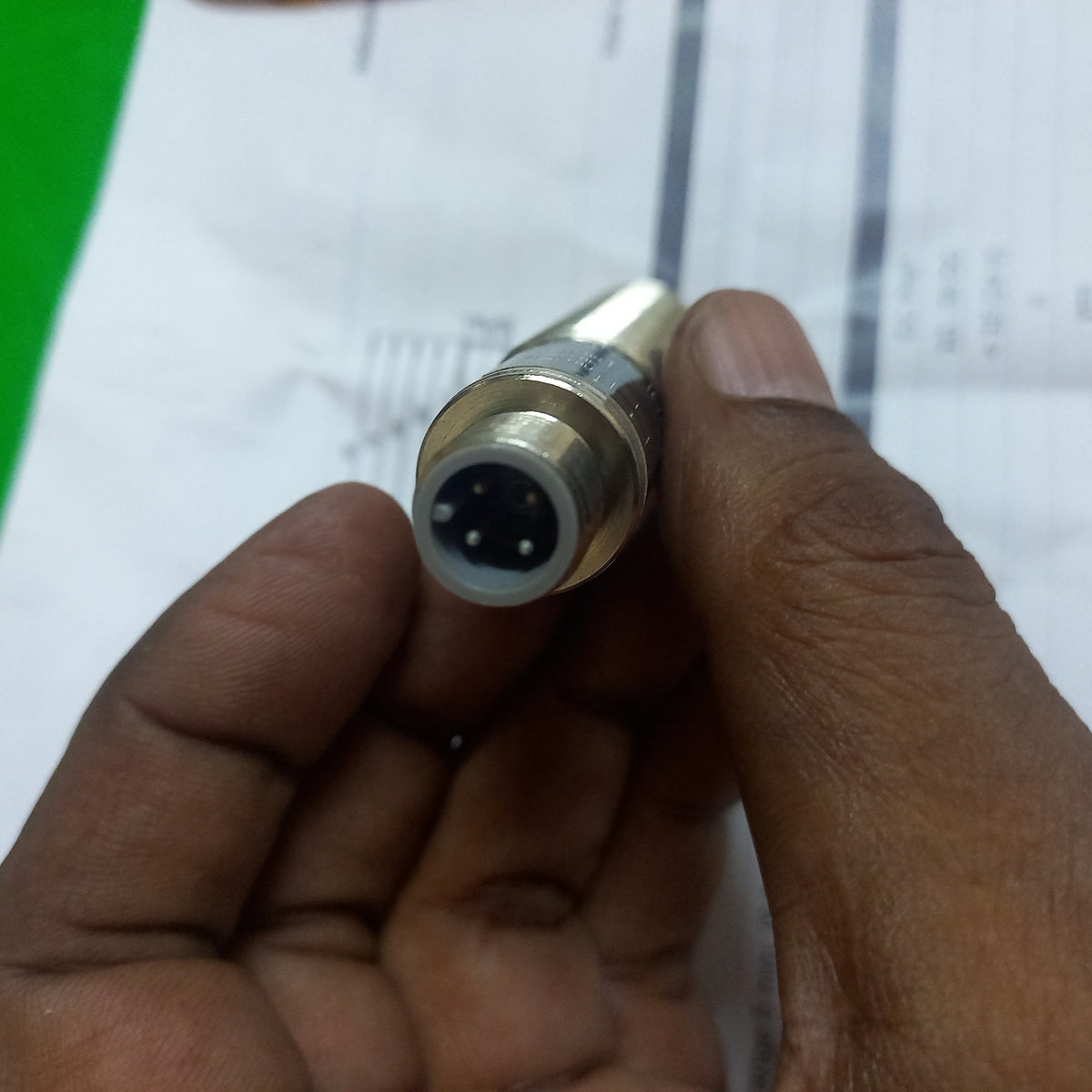

Connector 1 x M12; coding: A; Contacts: 3, gold-plated
- MPN : IG5554
- Manufacturer indent Nr. : IG5554IGA3005BPKGUS
- Manufacturer Product number : IGA3005BPKG/US
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
