K17-06, Ident. Nr. 296746-06, Bore D=6mm, D=5mm, OD=22mm, L=30mm | 296 746-06
$250.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
K17-06, Ident. Nr. 296746-06, Bore D=6mm, D=5mm, OD=22mm, L=30mm | 296 746-06
$250.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: K17/06 296746-06
- Manufacturer Alternative MPN ; 296 746-06
- Manufacturer Id Nr. K17-06 296.746-06

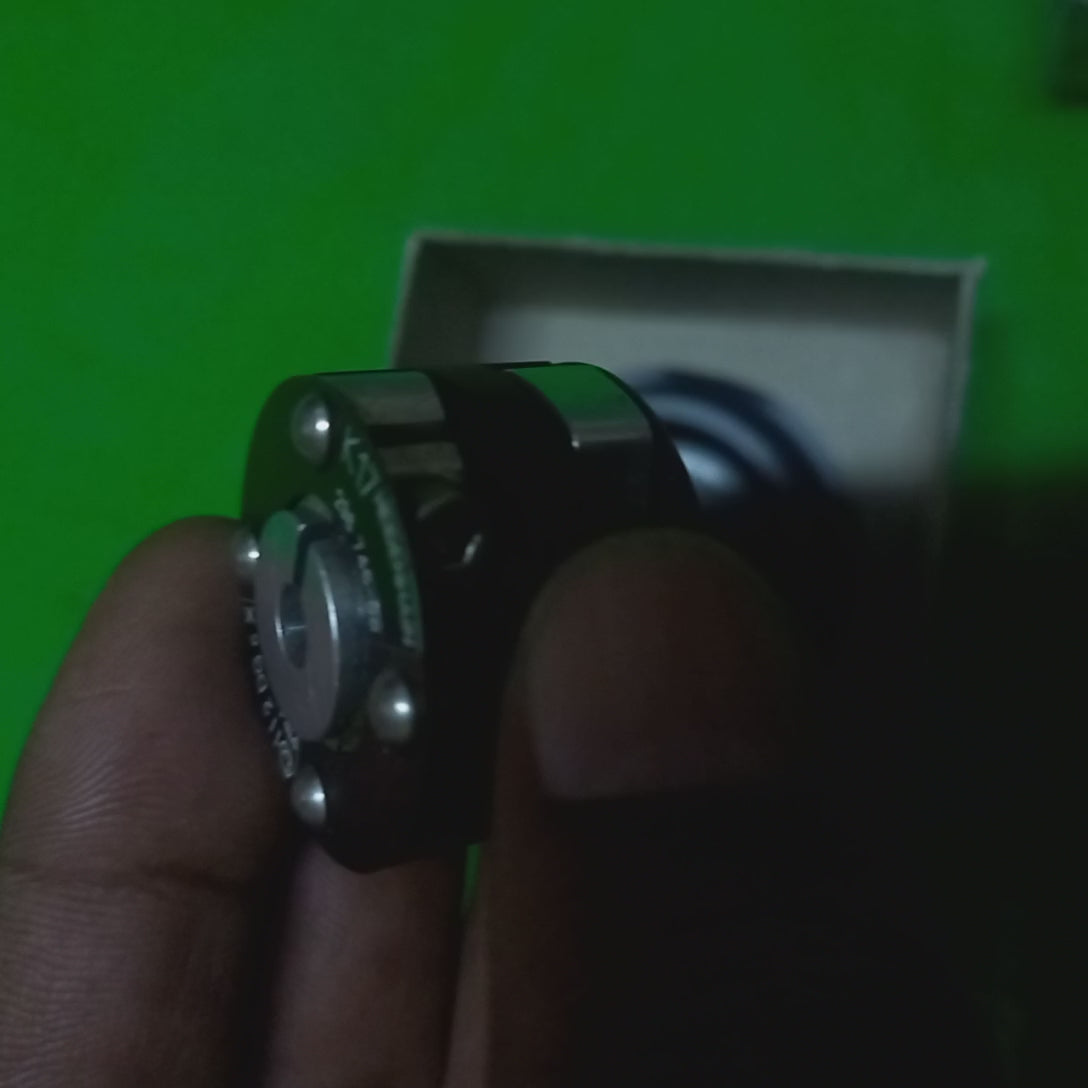

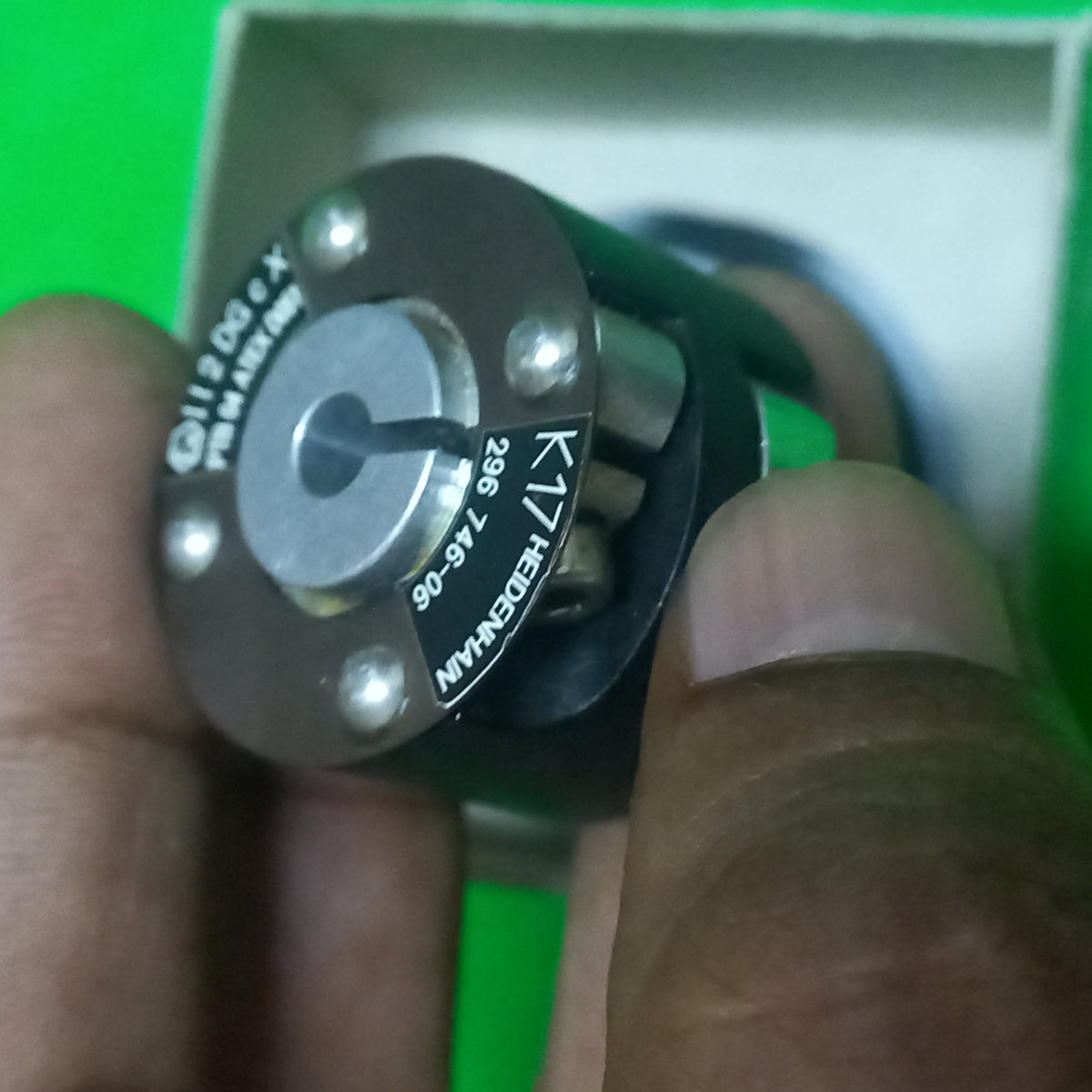

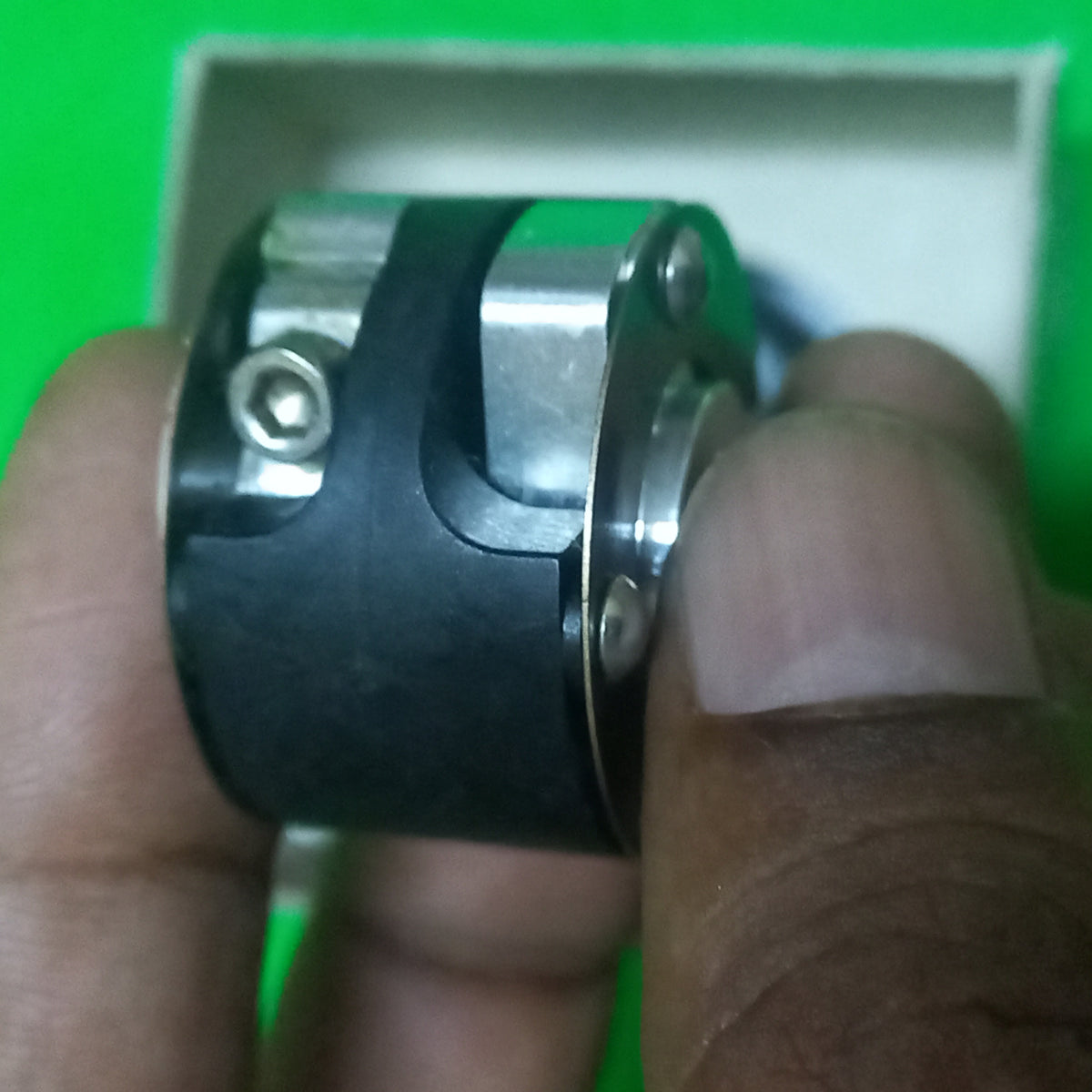

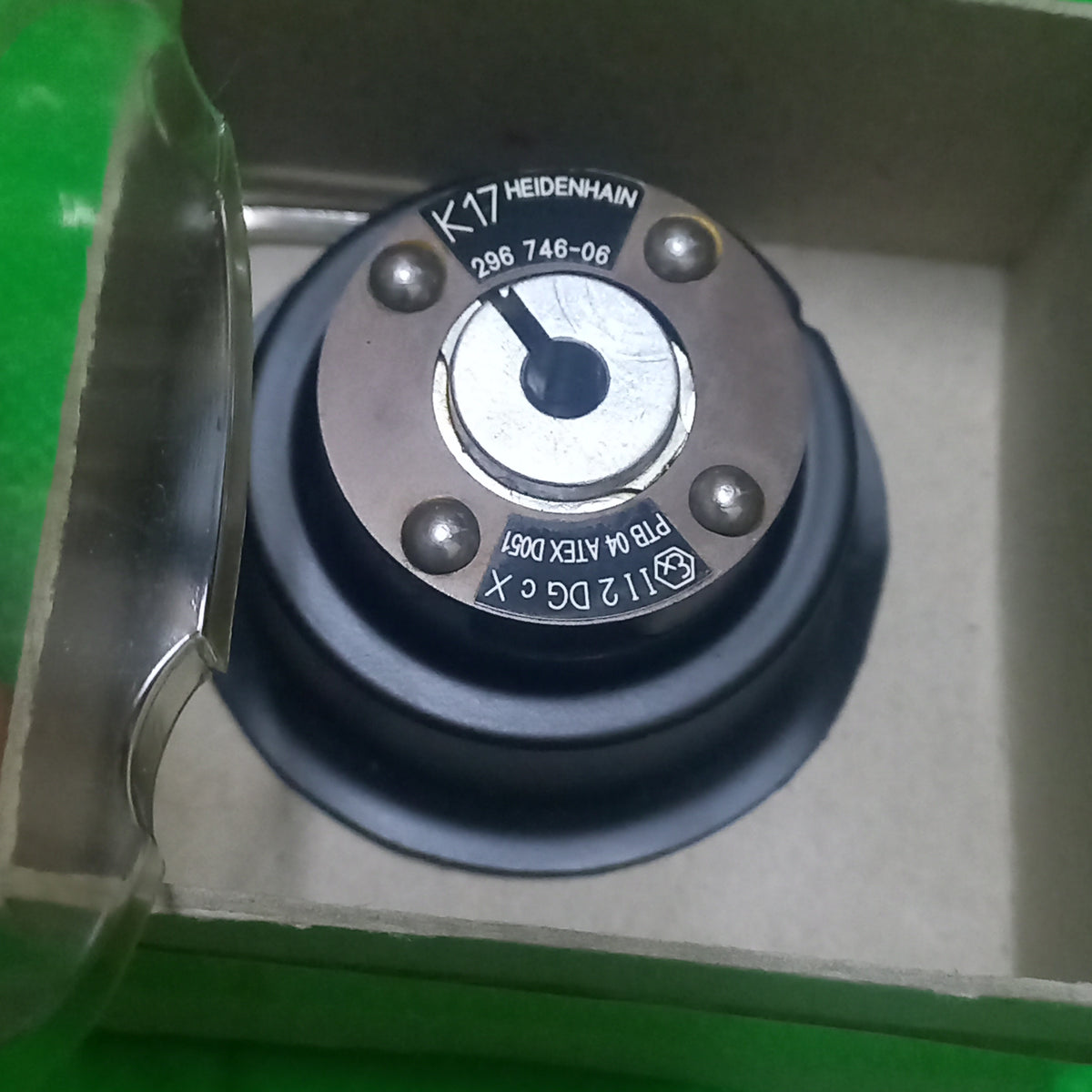

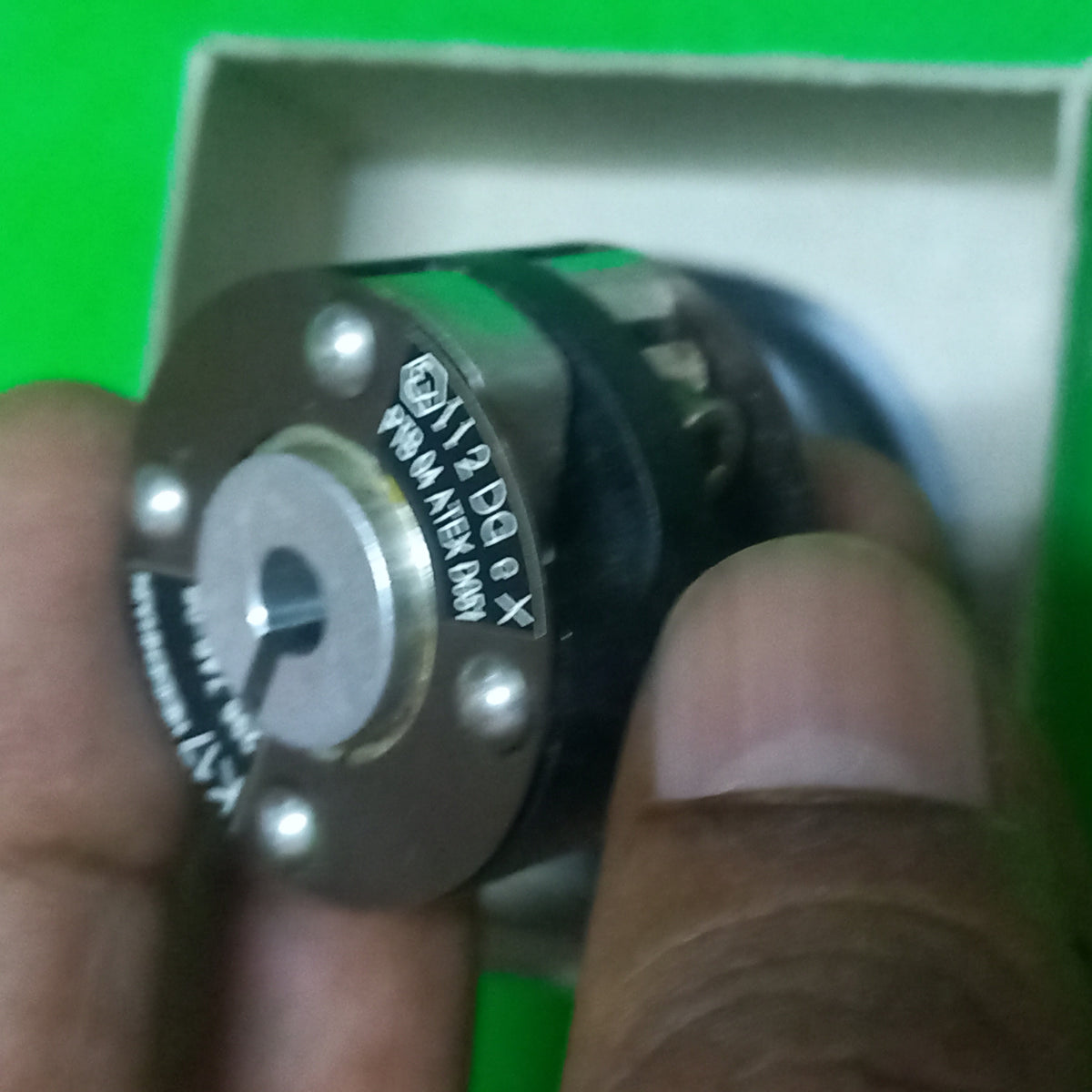

K17/02 Heidenhain Membrane coupling | Clutch K17 296 746 06 bore=5mmx6mm (Overall Dia-30mmx L=22mm)
Bore Size d1: 5mm | Bore Size d2: 6 mm
Outside Diameter (D2): 30 mm | Overall Length (L): 22 mm
- K17 coupling, multilingual installation instructions
- Membrane coupling K17, multilingual assembly instructions
K17/06 Diaphragm coupling Specifications
Hub bore = 5/06 mm
Galvanic isolation : Yes
Kinematic transfer error*= ±10"
Torsional rigidity= 300 Nm/rad
Torque= ≤0.2 Nm
Radial offset λ ≤0.5 mm
Angular error α = 0.1°
Axial offset ; ≤0.5 mm
Moment of inertia = 4.10 kgm-6 kgm²
Permiss. shaft speed = 16000 rpm
Tightening torque of clamping screws= 1.2 Nm(approx.)
Mass = 27.5 g
K17 Coupling Benefits
- Ideal for encoder applications
- Easy Installation
- Space Saving
- Electrically Isolating Flex Element
- Large bore range, small to large shaft diameters available in any given size
- Ultra-low reaction loads, with a moderate misalignment capacity
- Zero Backlash Design
- Maintenance Free
- Product Condition :
Authorization status :
Manufacturer warranty status :
SpareFaber warranty :
Packaging condition :
- Manufacturer indent Nr.K17.06 296.746-06 Membrane coupling
