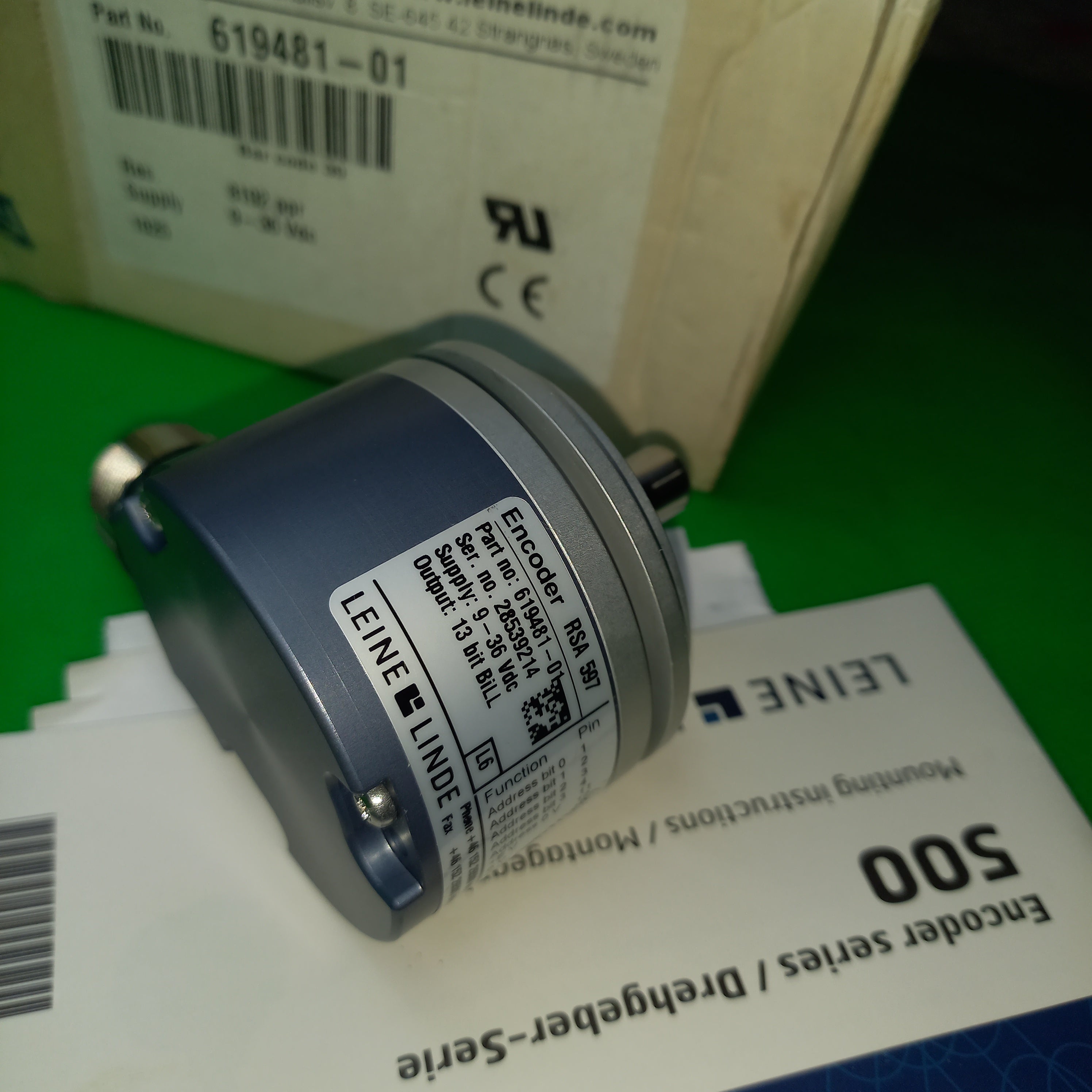

Leine Linde Series 507 Robust | RSA597 619481-01 Absolute Encoder 13 Bit singleturn
$1,680.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Leine Linde Series 507 Robust | RSA597 619481-01 Absolute Encoder 13 Bit singleturn
$1,680.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = RSA 597
- Manufacturer MPN = RSA597
- Encoder Type = Absolute Encoder
- Supply voltage = 10-30vDC
- ID. NR. = 619481-01
- indent Nr. = 61948101
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = RSA 597
Ready Stock Series 500 | Leine Linde RSA 597 619 481-01 Absolute Encoder 13Bit singleturn BiLL Supply 9-36Vdc, Output : 13bit BiLL, BiLL, 10mm Shaft, Connector

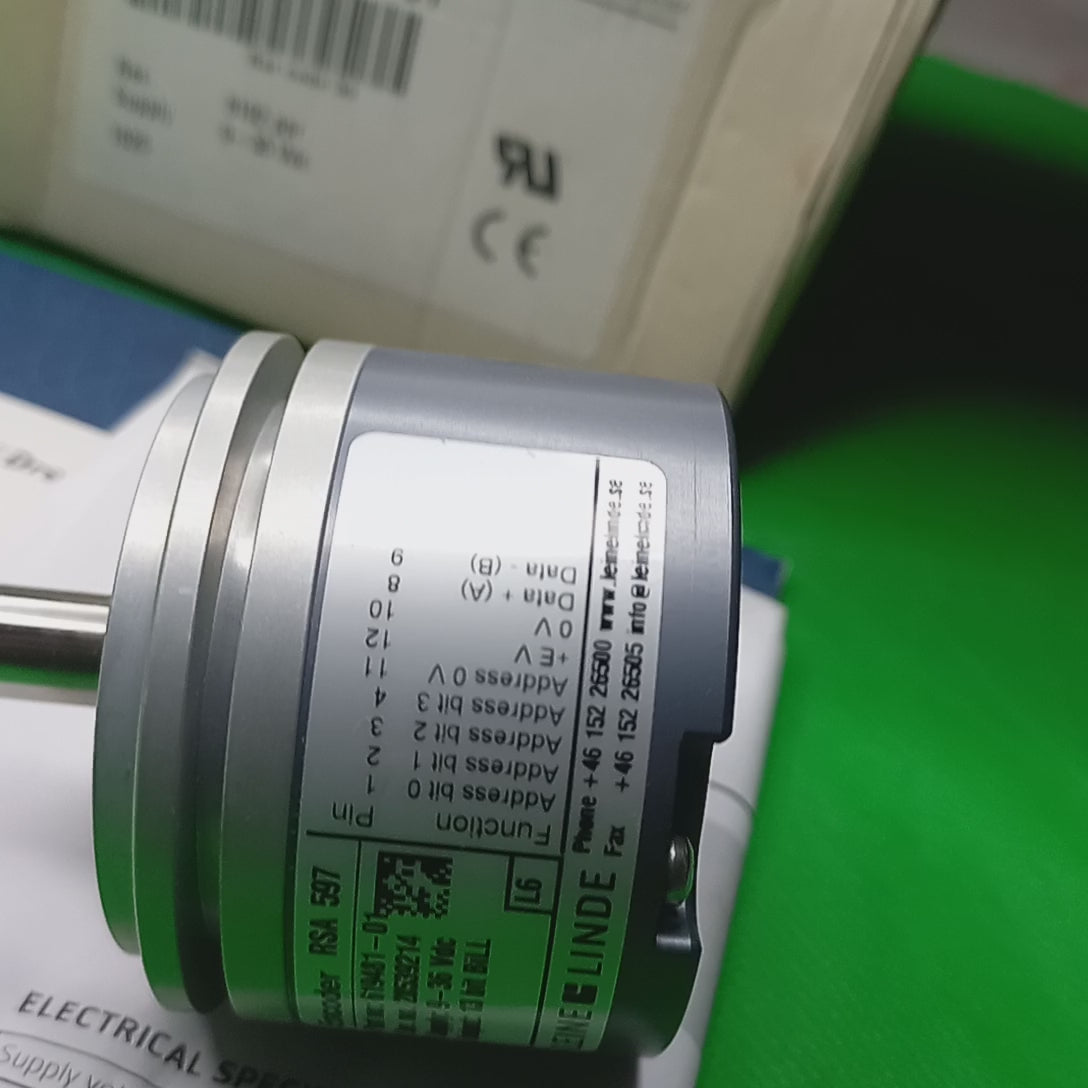

Connecctions:
- Function: Address Bit 0
- Function: Address Bit 1
- Function: Address Bit 2
- Function: Address Bit 3
- Address 0 V
- +E V
- 0V
- Data +(A)
- Data - (B)

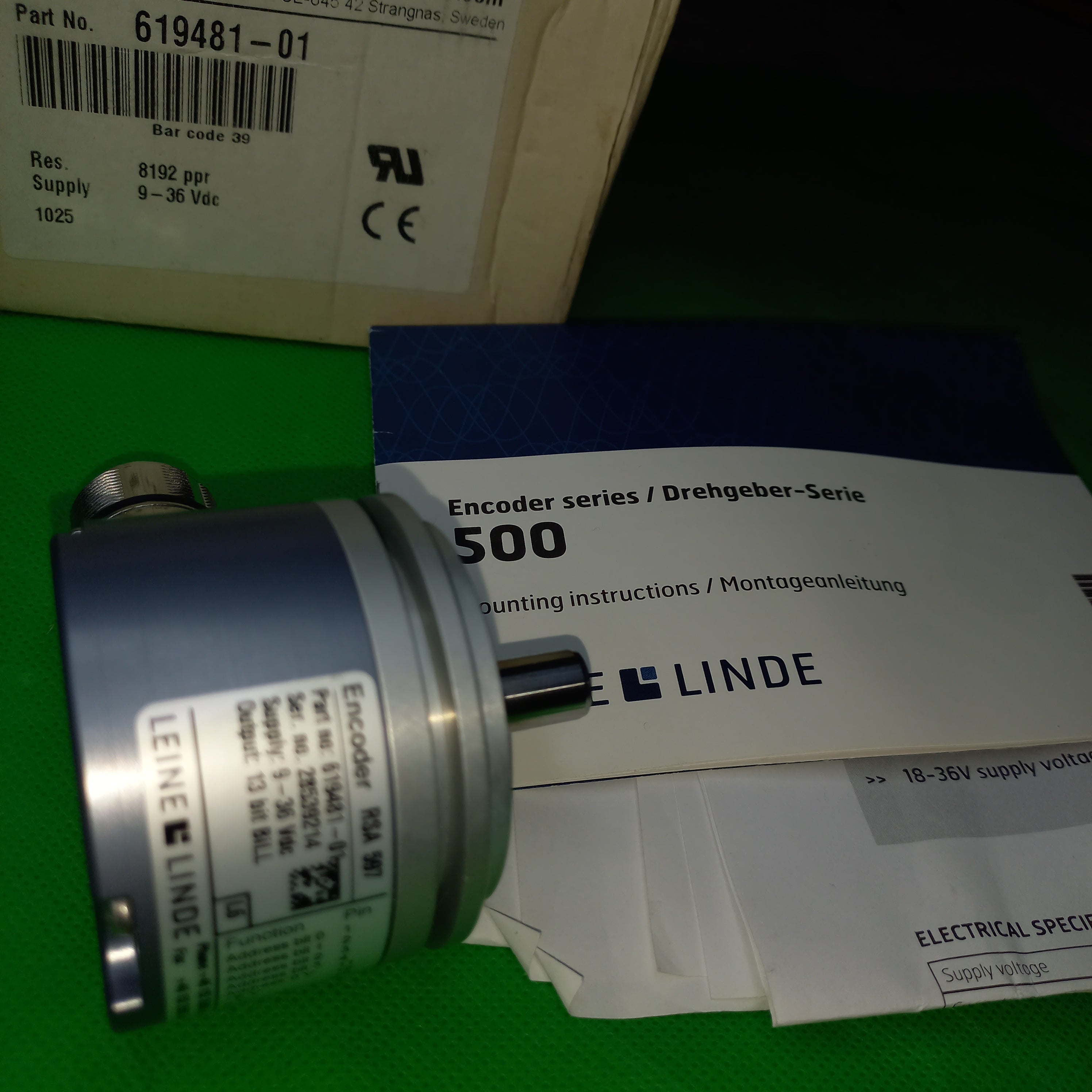

Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = Solid shaft, face mount flange
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = Bill ( Leine Linde)
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Singleturn
- Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
- Absolute Encoder Number of revolutions = ONE Revolution- SINGLE Turn Version
Absolute Encoder Programmable/configurable = NOT : Programmable/configurable

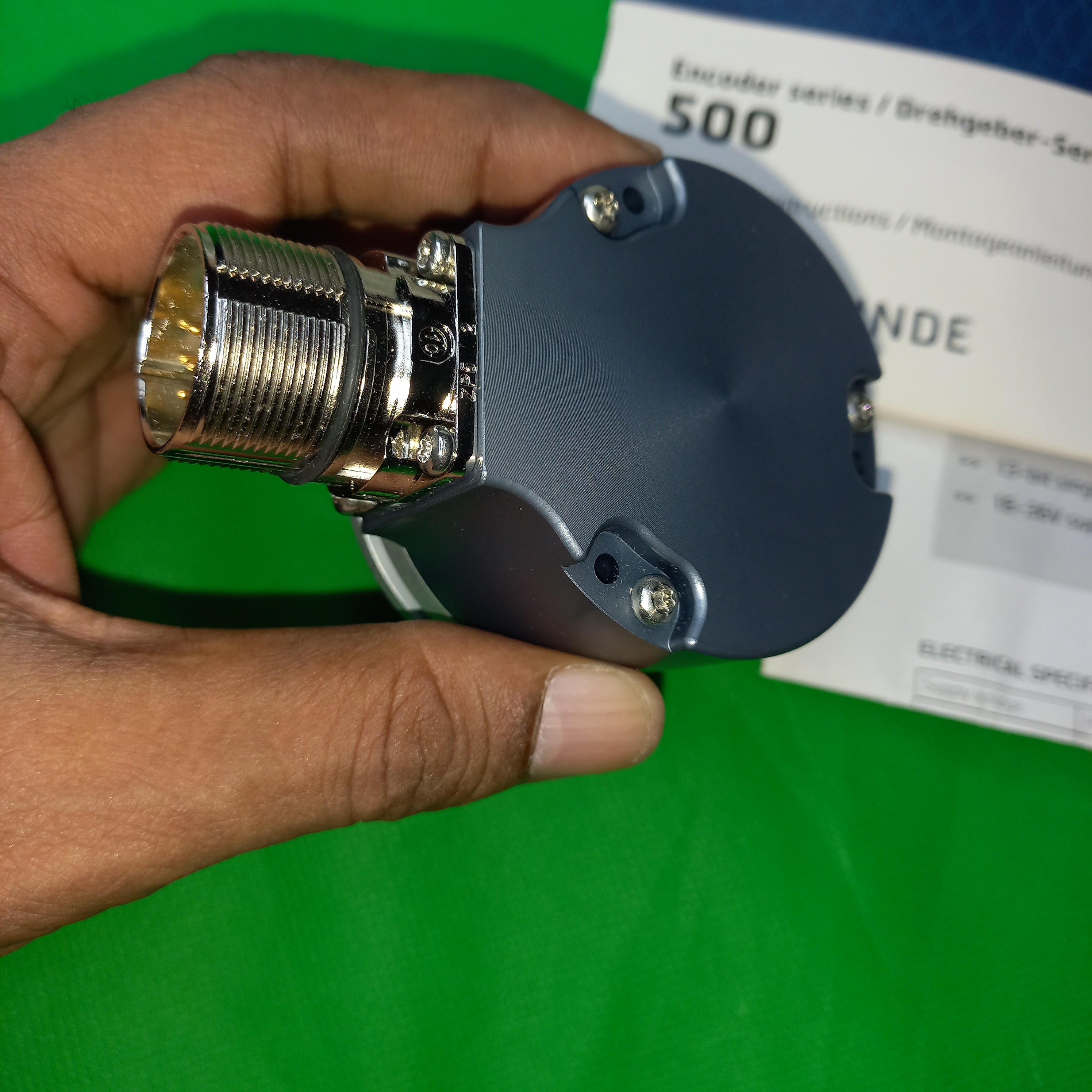

Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial

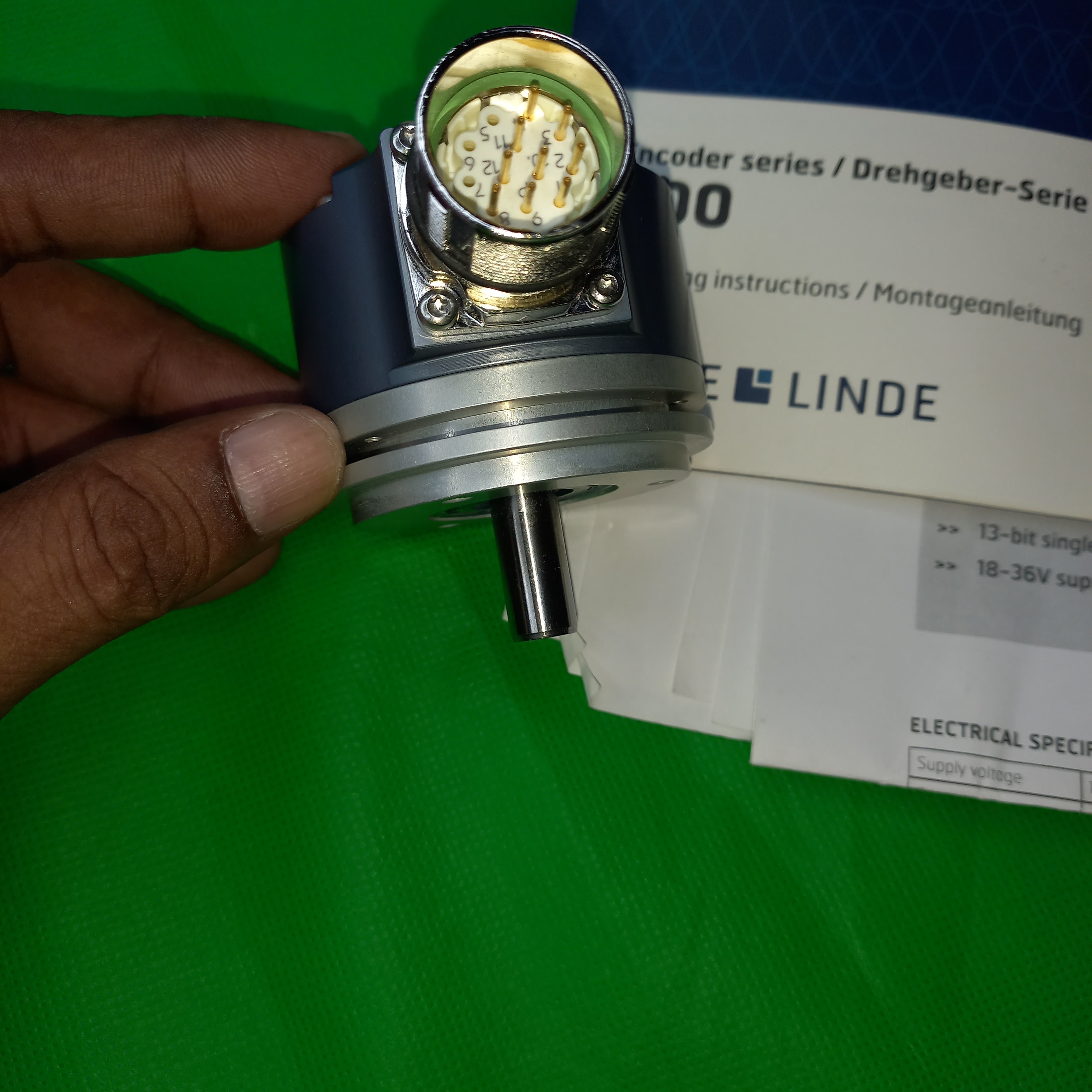

- Connection Type Detail = M23, Male connector on Encoder Body, 12-pin

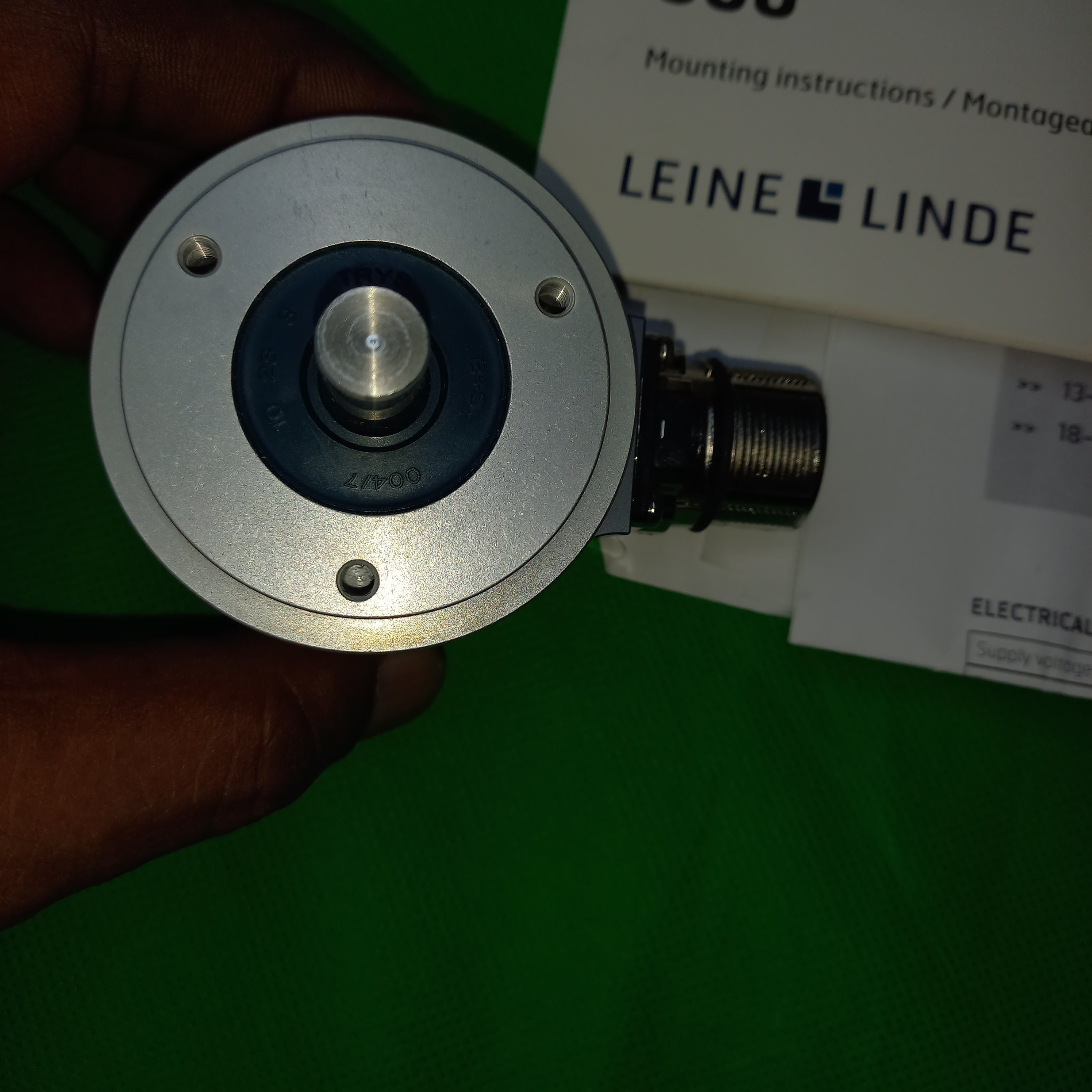

How Encoder body is Mouted ? Mouting Flange Design Data:
