Pressure sensor with display PN7572 PN-100-SEG14-QFRKG/US/ /V
Sale price
$520.00
Regular price $582.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Pressure sensor with display PN7572 PN-100-SEG14-QFRKG/US/ /V
Sale price
$520.00
Regular price $582.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: PN7572
- Manufacturer Alternative MPN ; PN-100-SEG14-QFRKG/US/ /V
- Manufacturer Id Nr. PN 7572
Pressure sensor with display
PN7572
PN-100-SEG14-QFRKG
- Two switching outputs, one of them with IO-Link communication interface

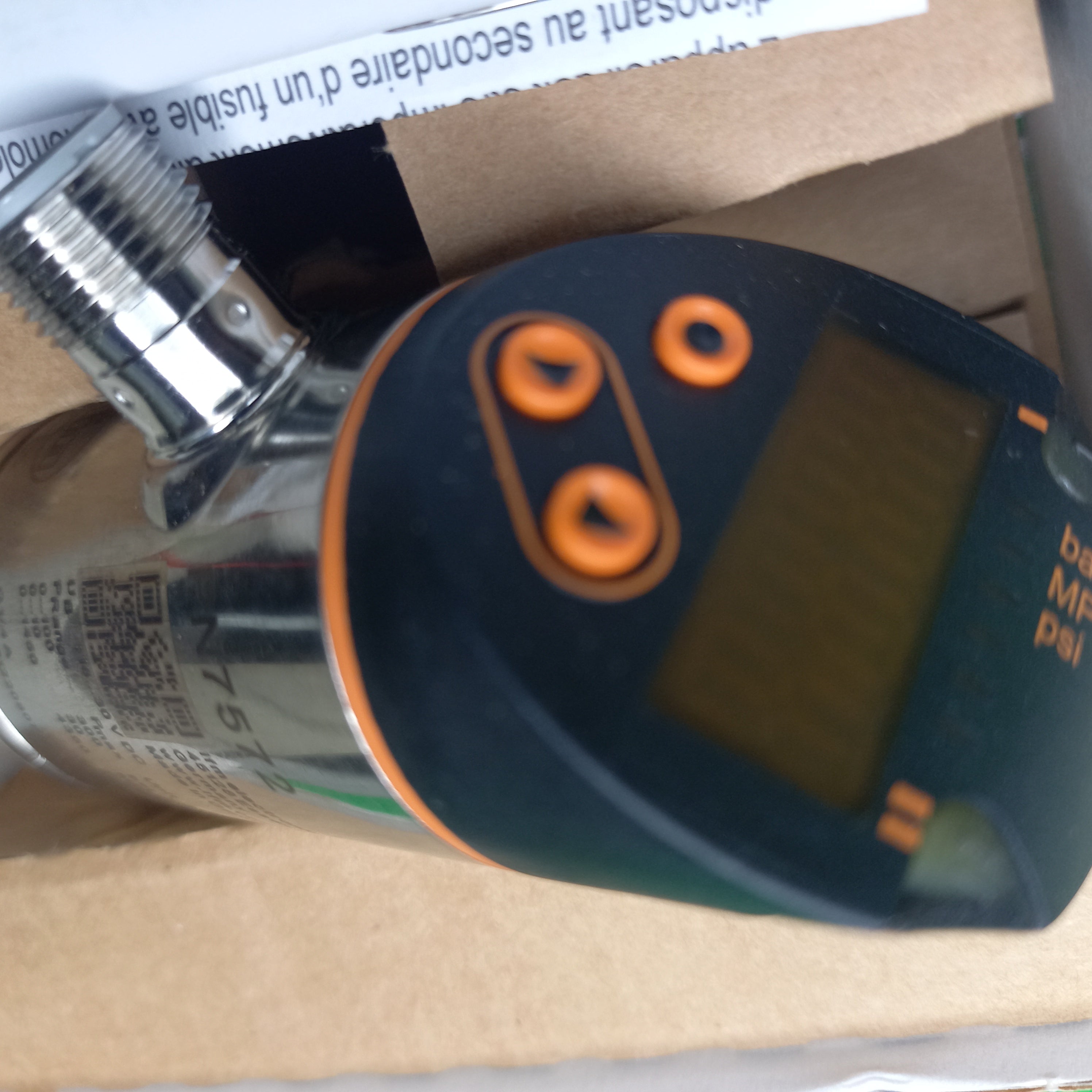

- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 | |||
| Measuring range |
|
|||

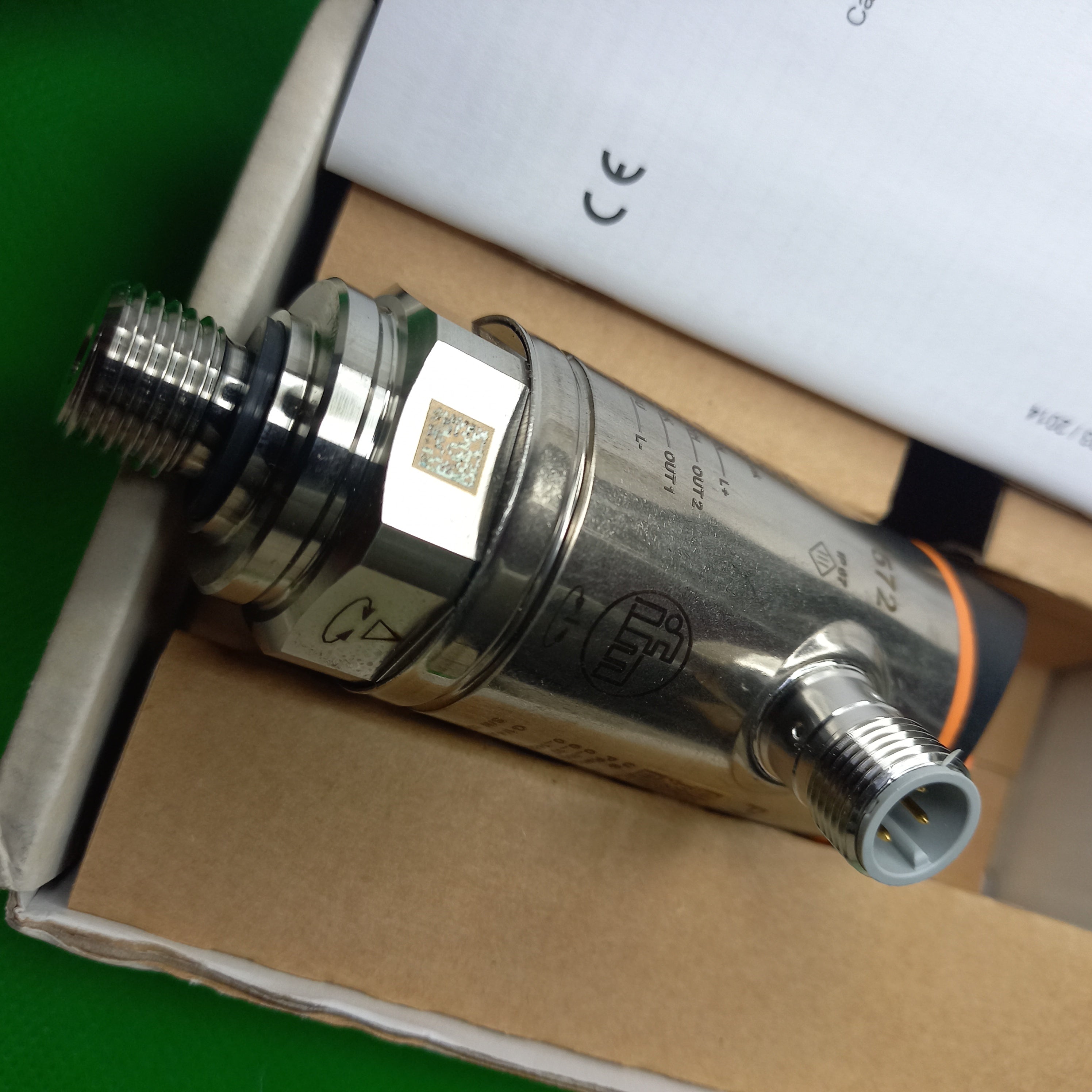

| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
Application
| Special feature | Gold-plated contacts | |||
| Measuring element | metallic thin film cell | |||
| Application | for industrial applications | |||
| Media | Liquids | |||
| Medium temperature[°C] | -25...80 | |||
| Min. burst pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] | 18...30 DC; (to SELV/PELV) |
| Current consumption[mA] | < 35 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 150; (200 (...60 °C) 250 (...40 °C)) |
| Switching frequency DC[Hz] | < 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
- Manufacturer indent Nr.PN100SEG14QFRKGUSV
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
EMERGENCY BREAKDOWN ? Need it Right away ( After Office hours?) .. No Problem | Can be arranged. Send us a Message.
