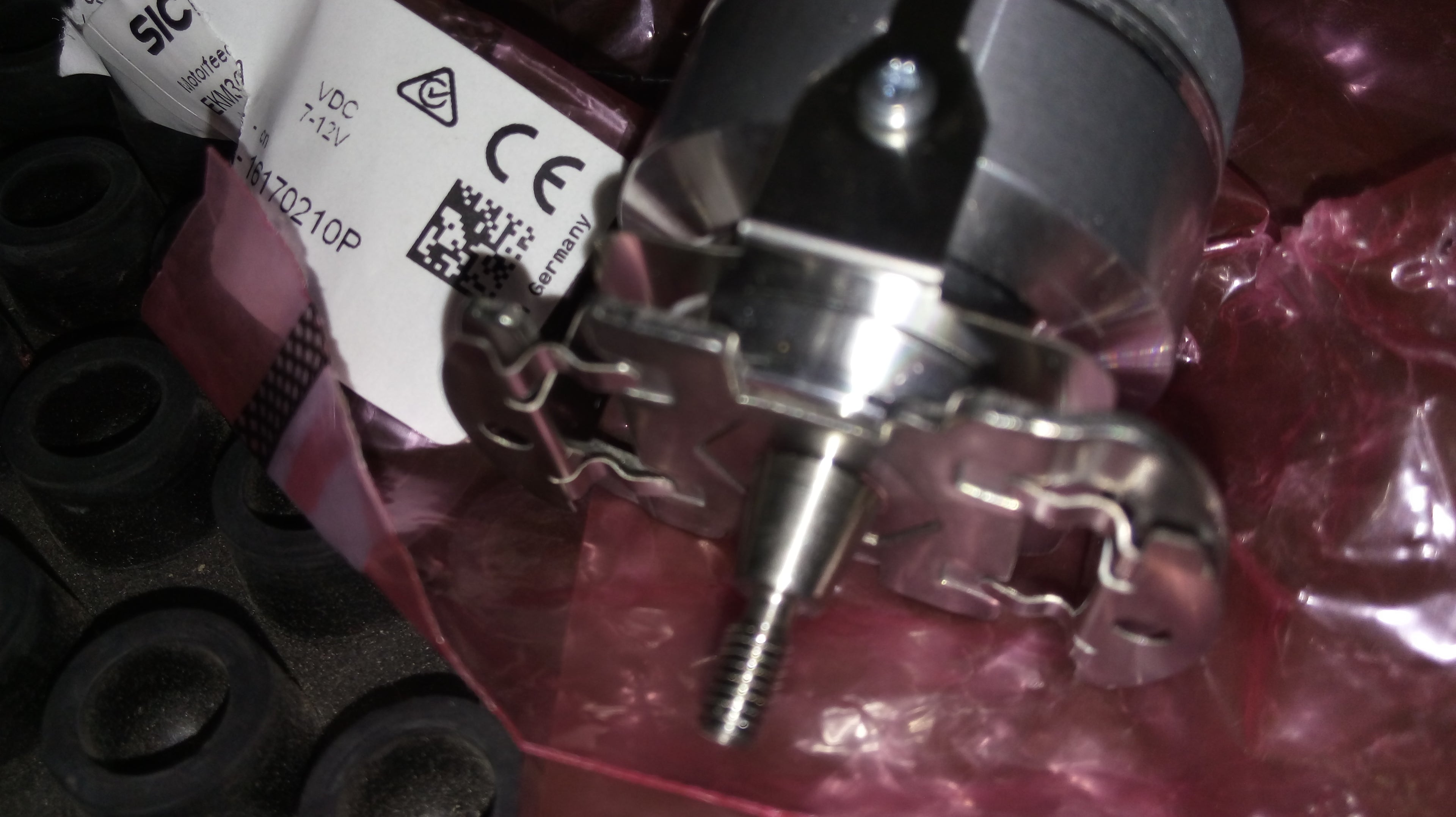

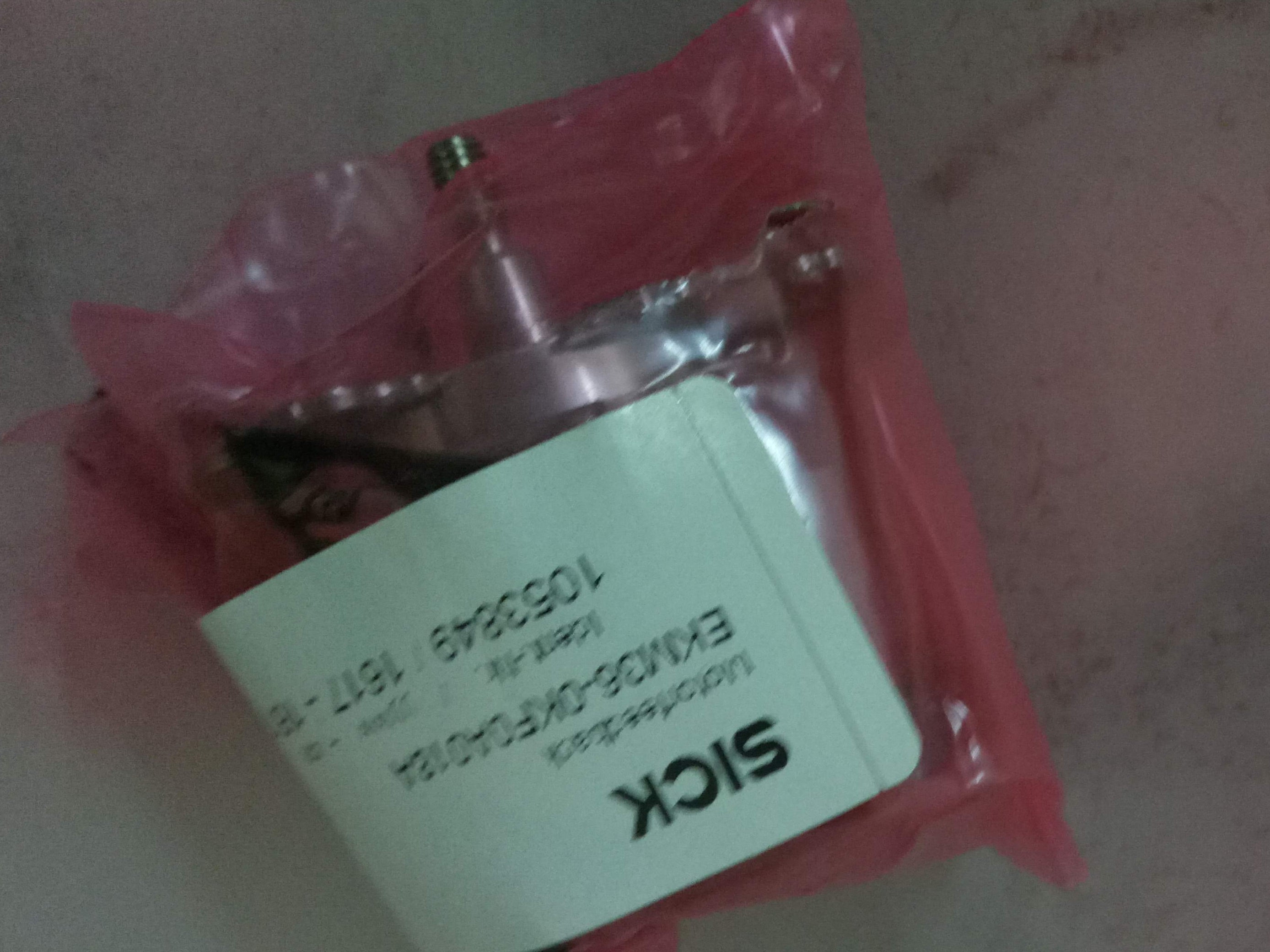

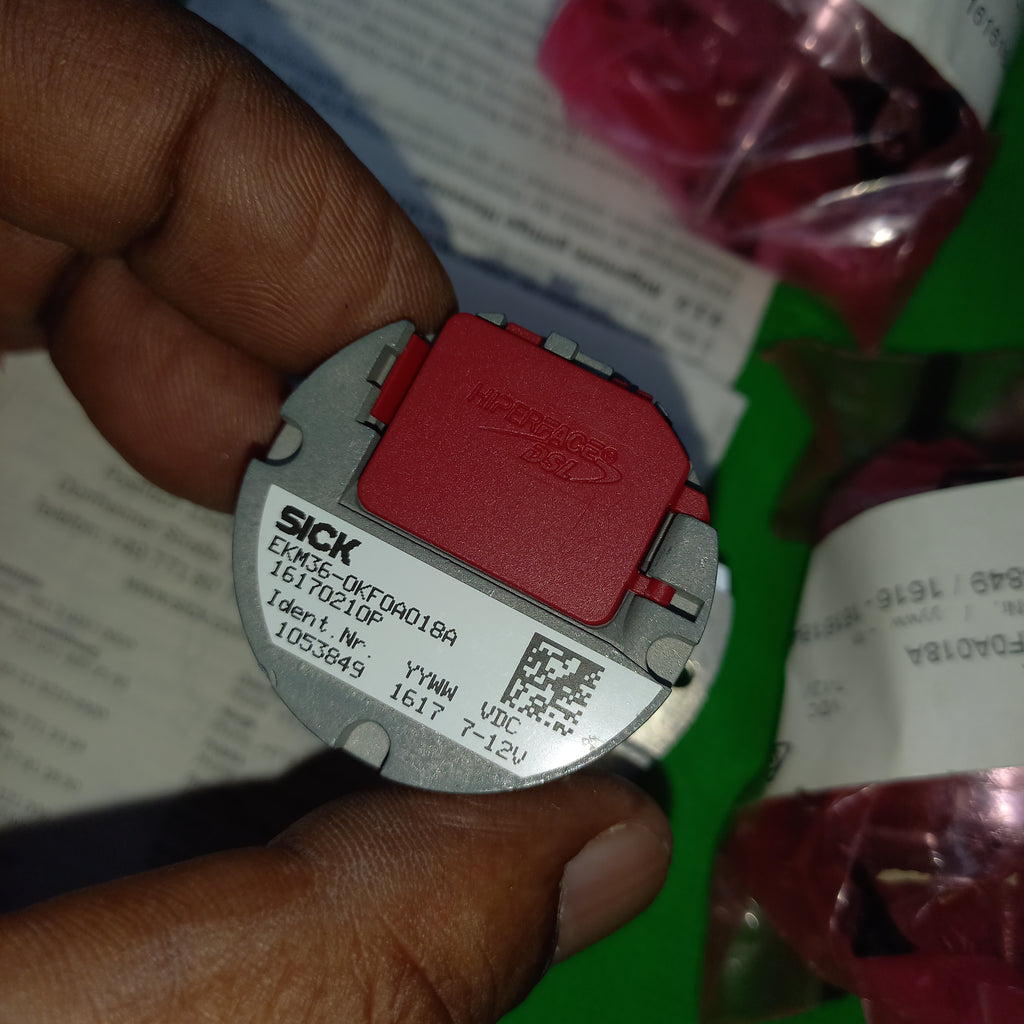

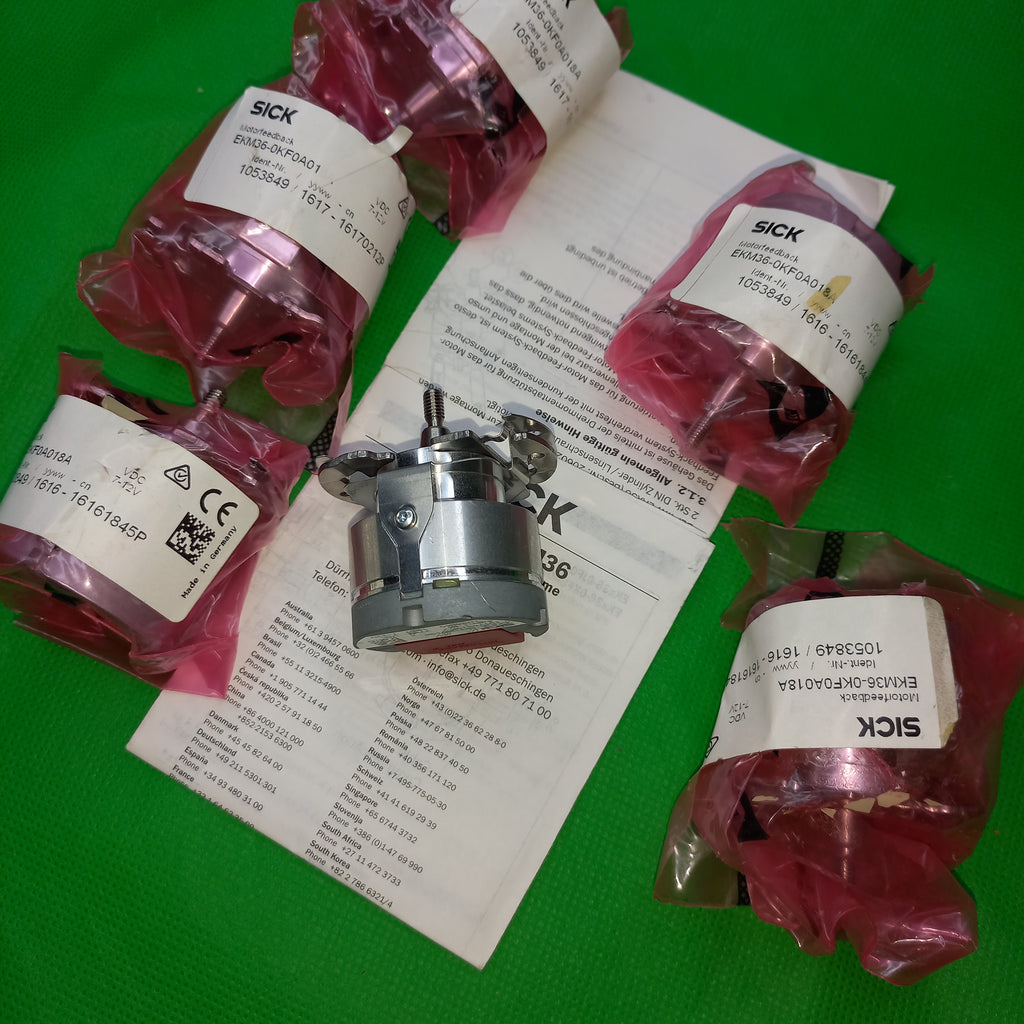

Sick Motor feedback EKM36-0KF0A018A 1053849 Multiturn Hiperface DSL 18bit STx12bit MT
$480.00
Skip to product information
Ready Stock Sick1053849 Multiturn Motor feedback EKM360KF0A018A | Ident.Nr: 105 3 849
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Sick Motor feedback EKM36-0KF0A018A 1053849 Multiturn Hiperface DSL 18bit STx12bit MT
$480.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = EKM360KF0A018A, 1053849
- Manufacturer MPN = EKM36-0KF0A018A
- Encoder Type = Absolute Encoder
- Supply voltage = 10-32 VDC
- ID. NR. = EKM36 1053849
- indent Nr. = EKM 36 0KF0A018A
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = EKM360KF0A018A, 1053849
Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = Special version
- Absolute Encoder Construction size (flange) = Ø 36 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter =
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = HIPERFACE DSL
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 262144 (18 bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
Absolute Encoder Programmable/configurable = NOT : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection =
- Connection Type Detail =
How Encoder body is Mouted ? Mouting Flange Design Data:
Ready Stock Sick1053849 Multiturn Motor feedback EKM360KF0A018A | Ident.Nr: 105 3 849

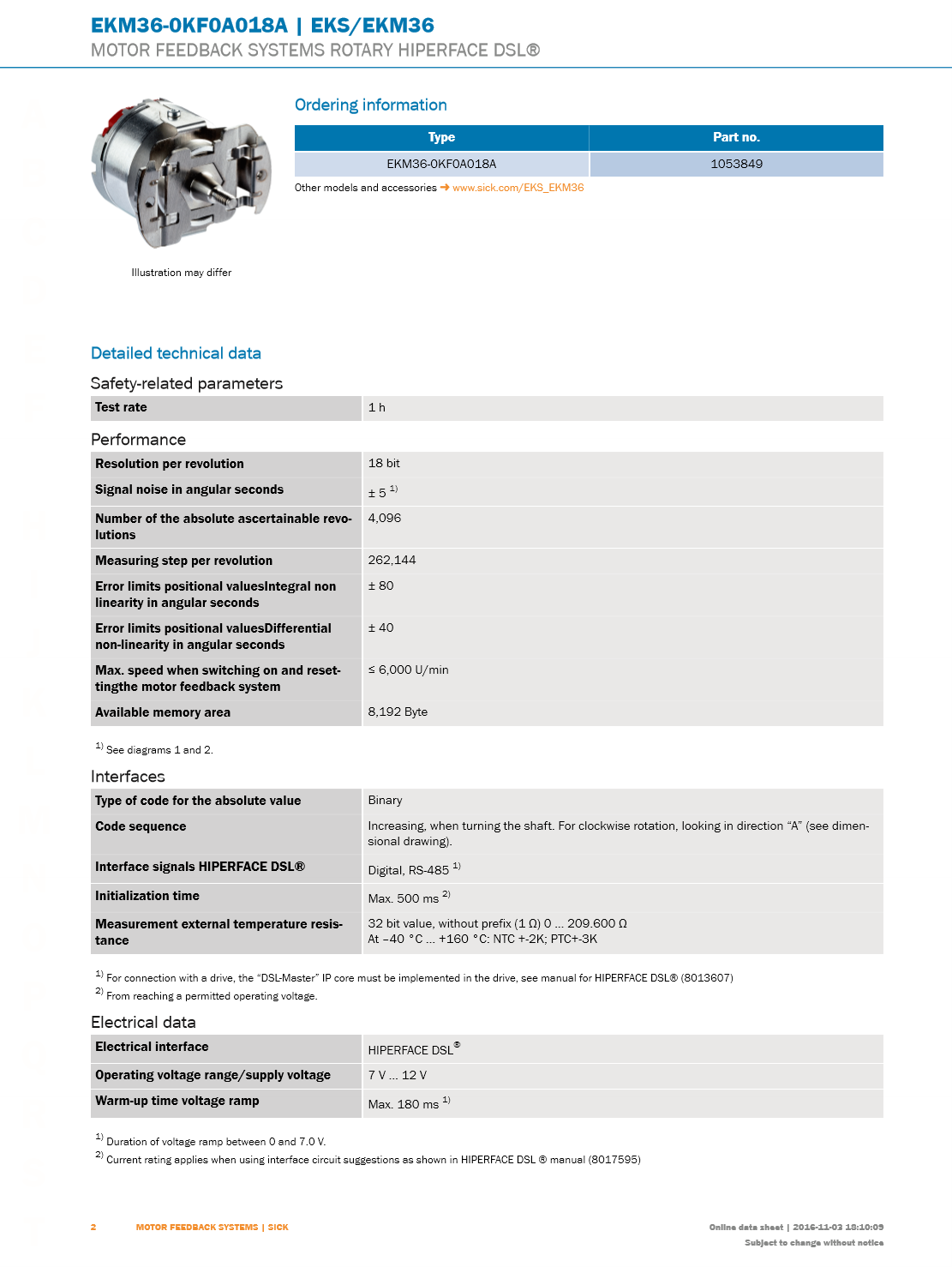

Resolution per revolution 18 bit
Number of the absolute ascertainable revolutions
4,096
Measuring step per revolution 262,144
Type of code for the absolute value Binary
Communication interface HIPERFACE DSL®

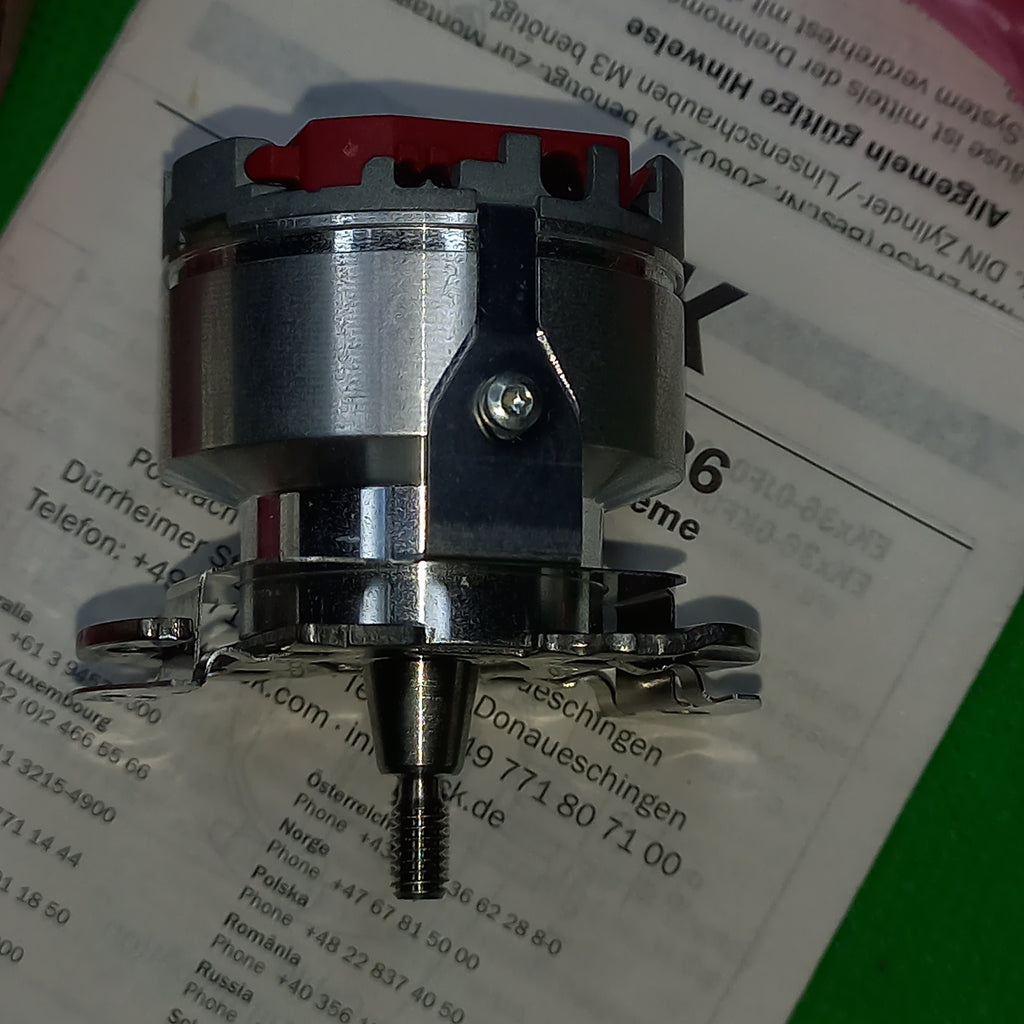

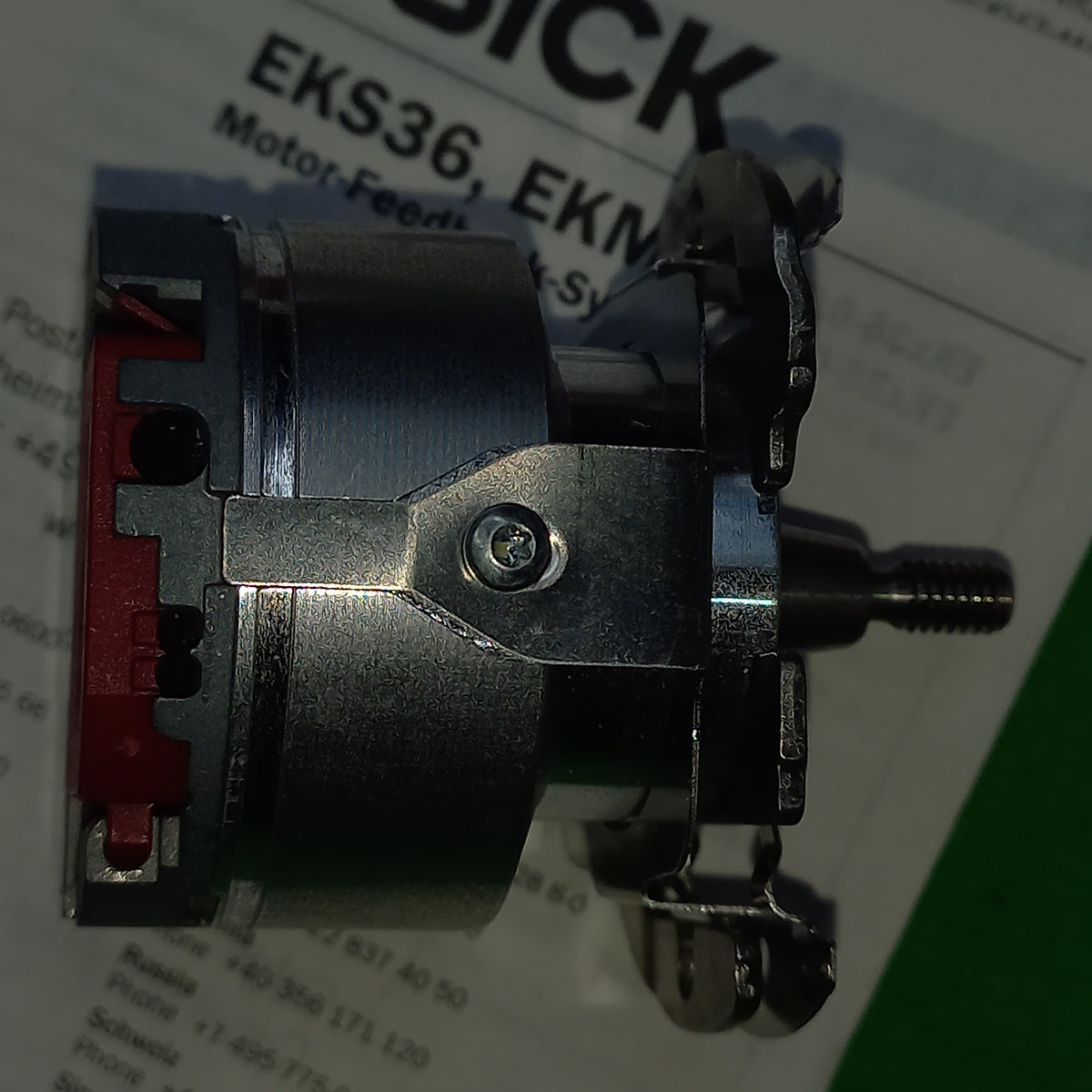

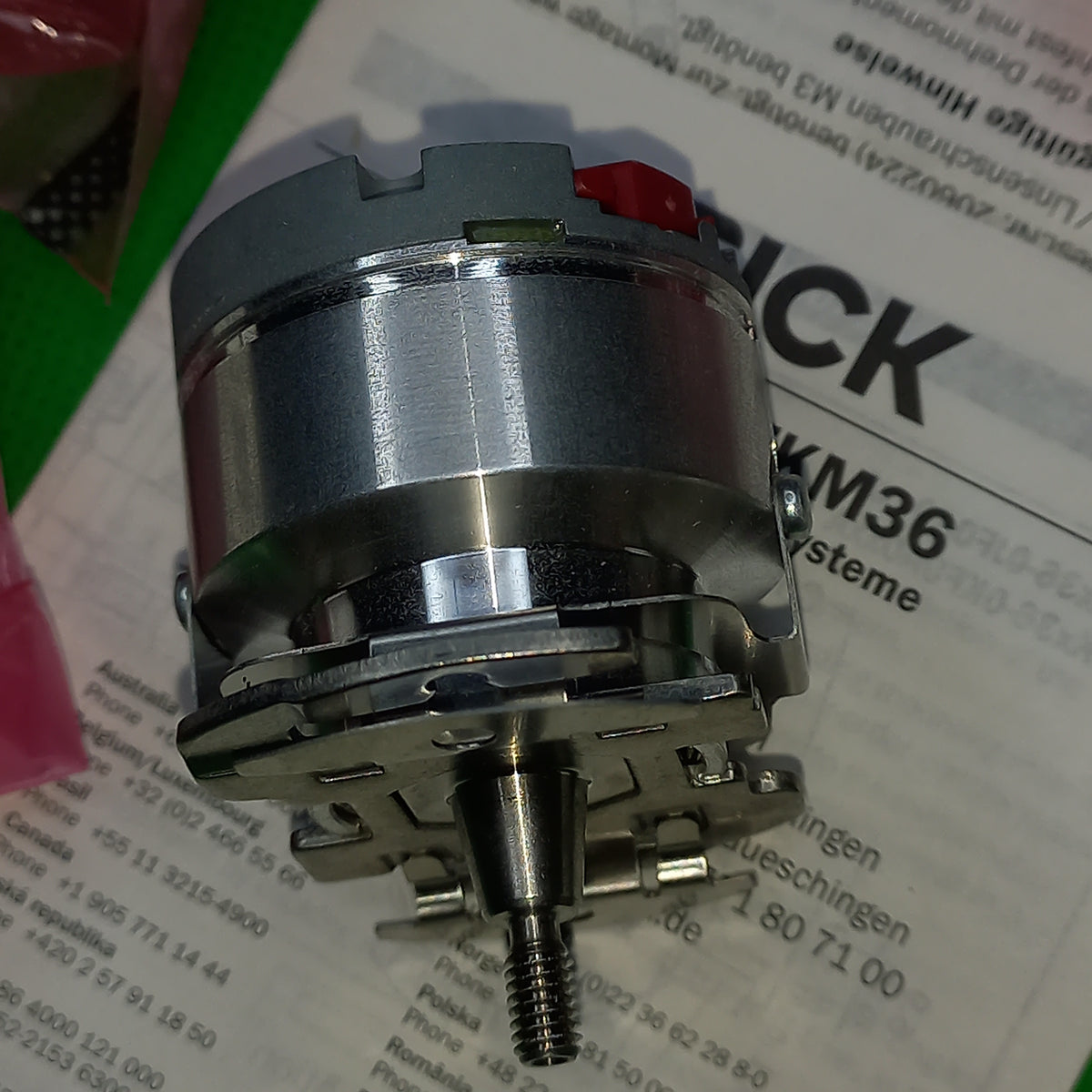

Supply voltage range 7 V ... 12 VShaft version Tapered shaft

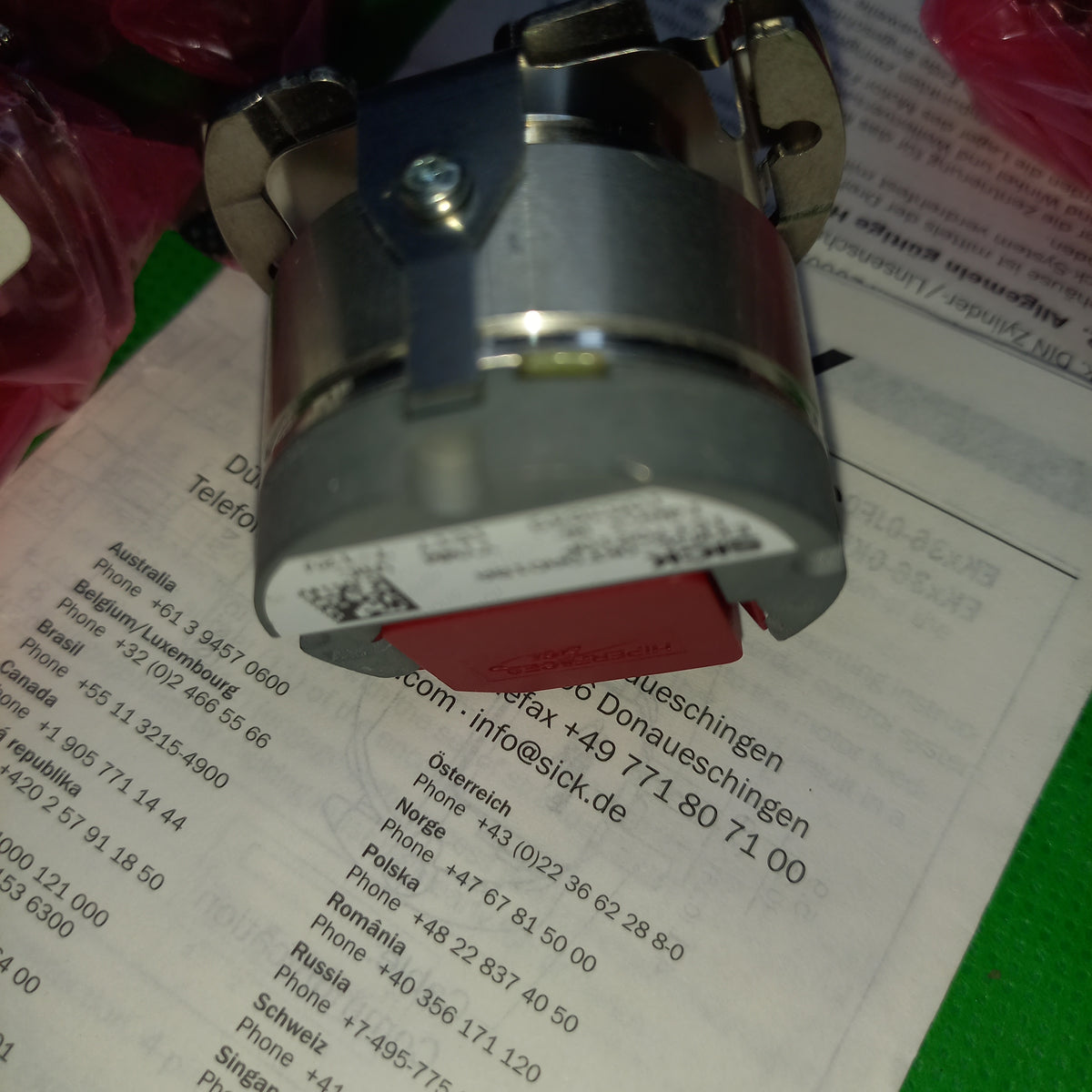

Flange type / stator coupling Stator coupling
