Sick Stegmann CNS 50 7mm plug in shaft, 2rowx8 pin =16 pin Connector | Vdc 4.5-5V, Lines=4096 , PP = 4
$1,280.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 103 3 984
- Encoder Type: Incremental encoder
- Supply voltage 4.5-5 VDC
- Encoder ID. NR. Ident. Nr. 1033984
- Encoder SIgnal | 4096 | incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | | | Ø 47 mm |
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

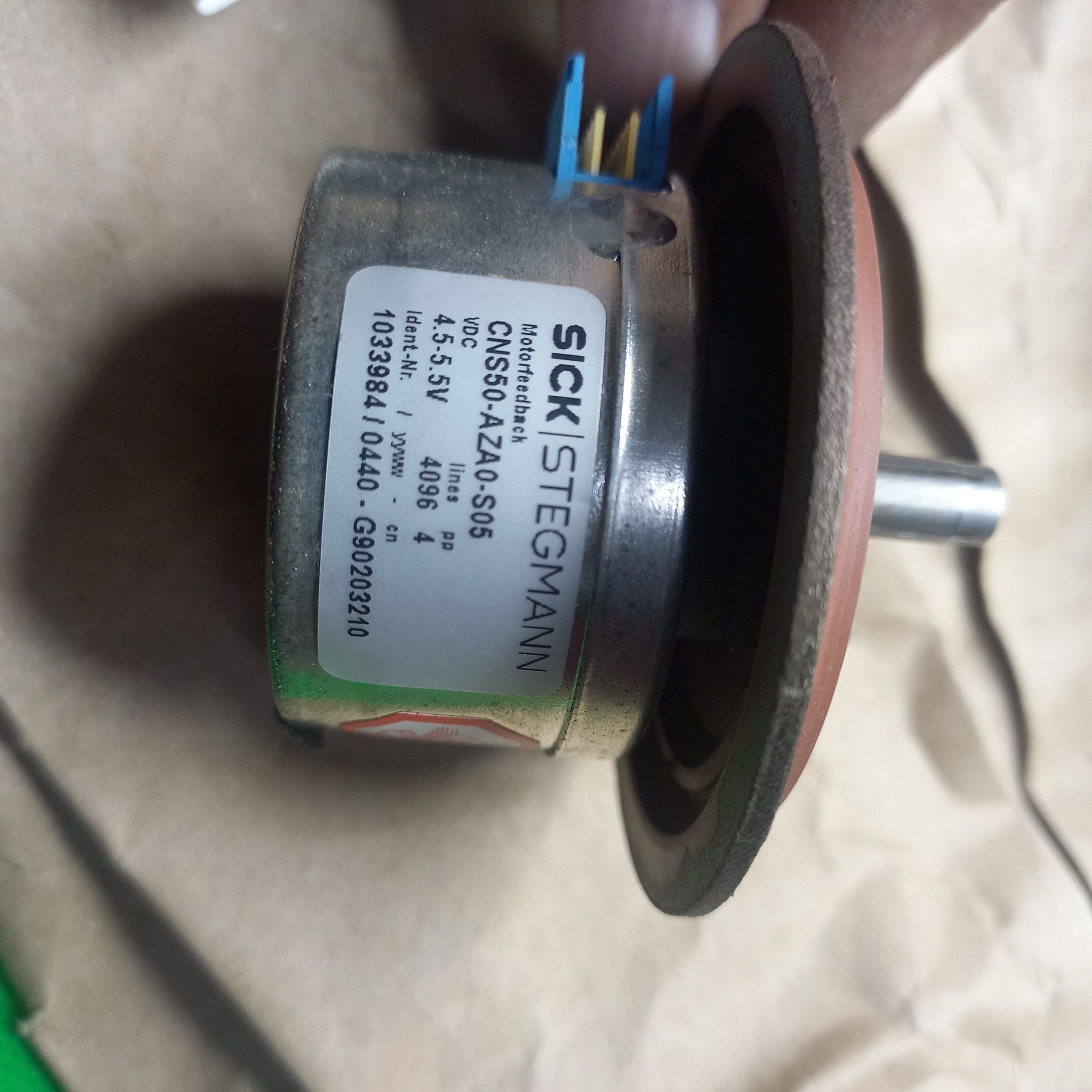

Sick Stegmann Motorfeedback CNS 50-AZA0-S05, Ident. Nr. 103 3 984, Vdc 4.5-5V, Lines=4096 , PP = 4 |
-
Default encoder, which the special encoder is based on: CNS50-AAA012X04
-

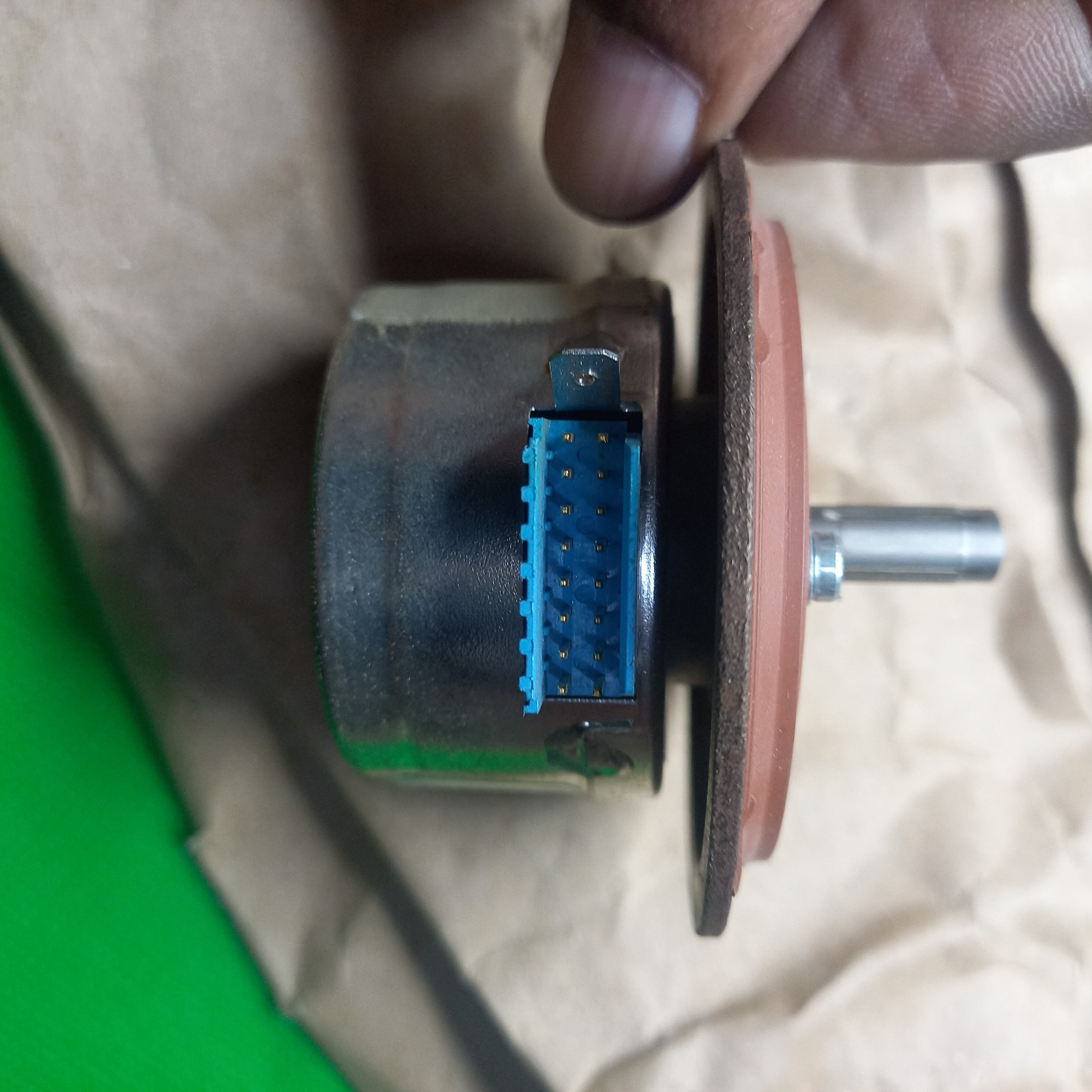

Sick Stegmann CNS 50 7mm plug in shaft, 2rowx8 pin =16 pin Connector
- Stator Coupling -Round Flange rubber stator coupling

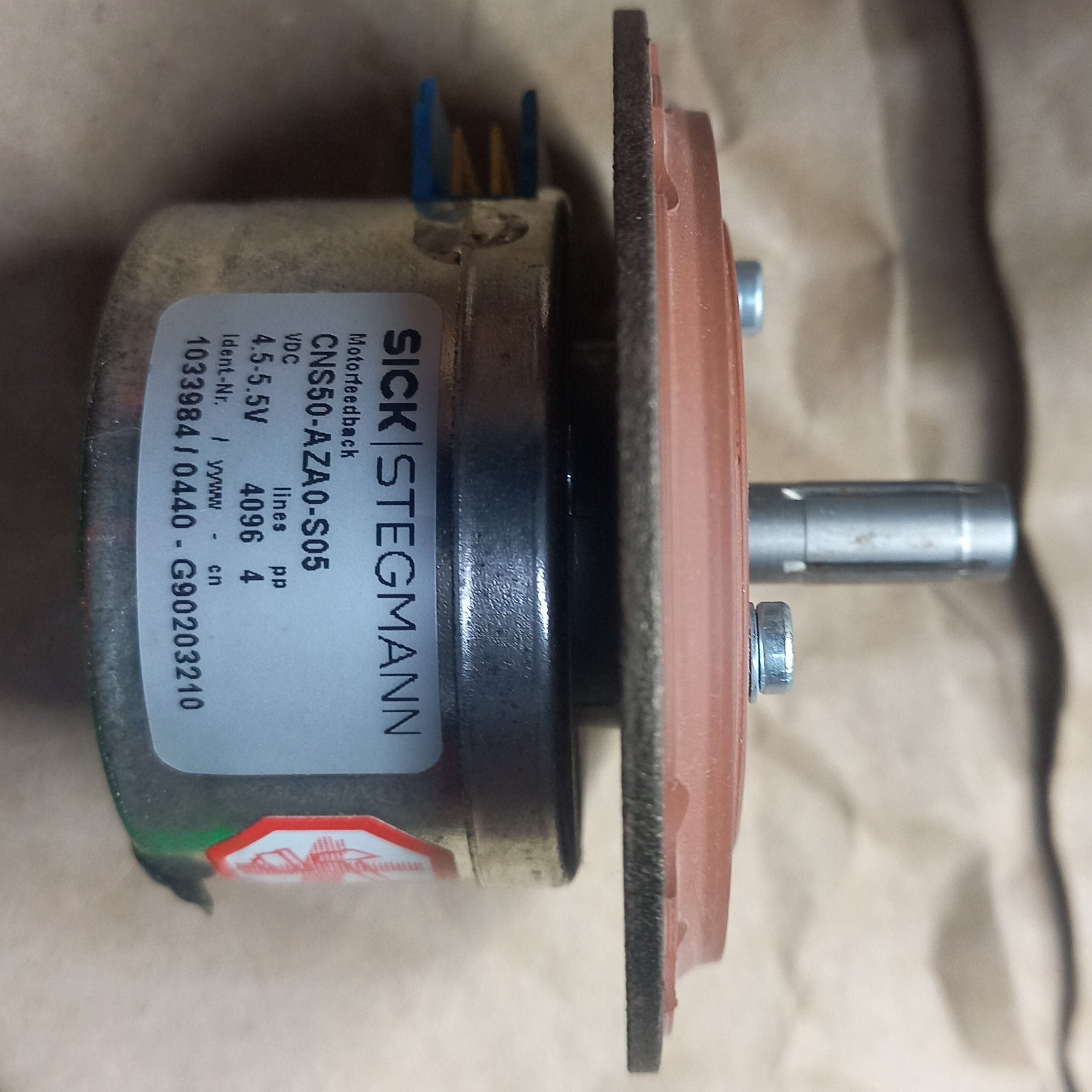

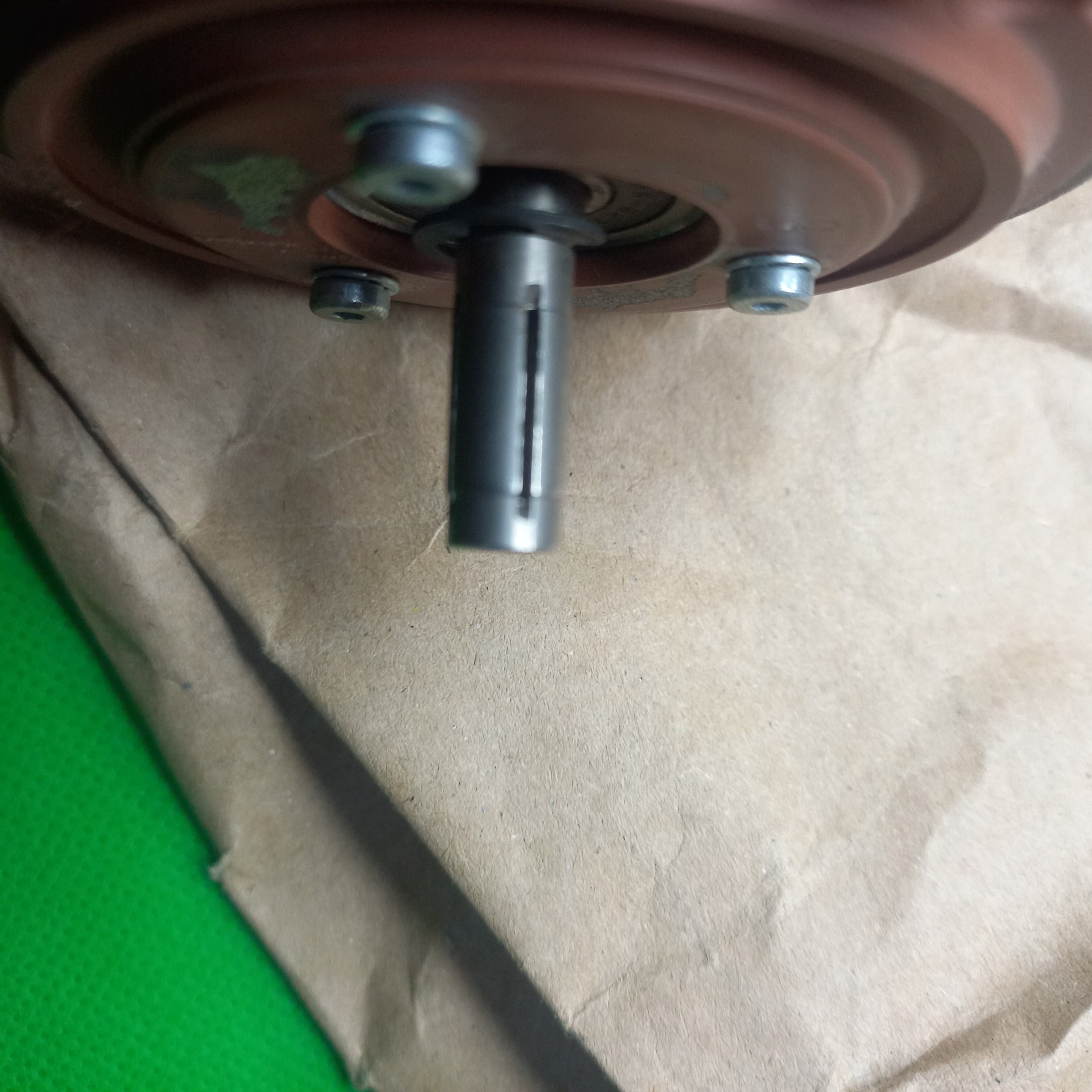

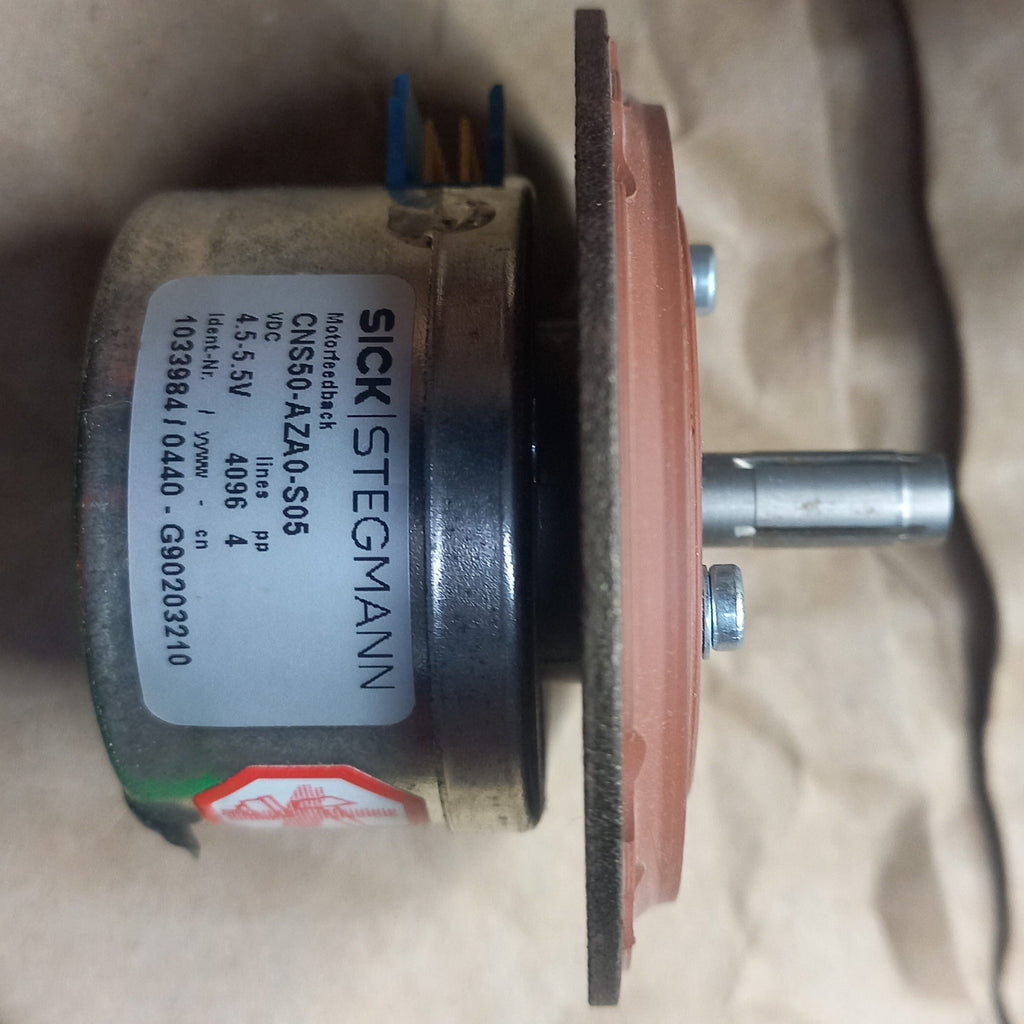

- Shaft : 7mm plug in shaft

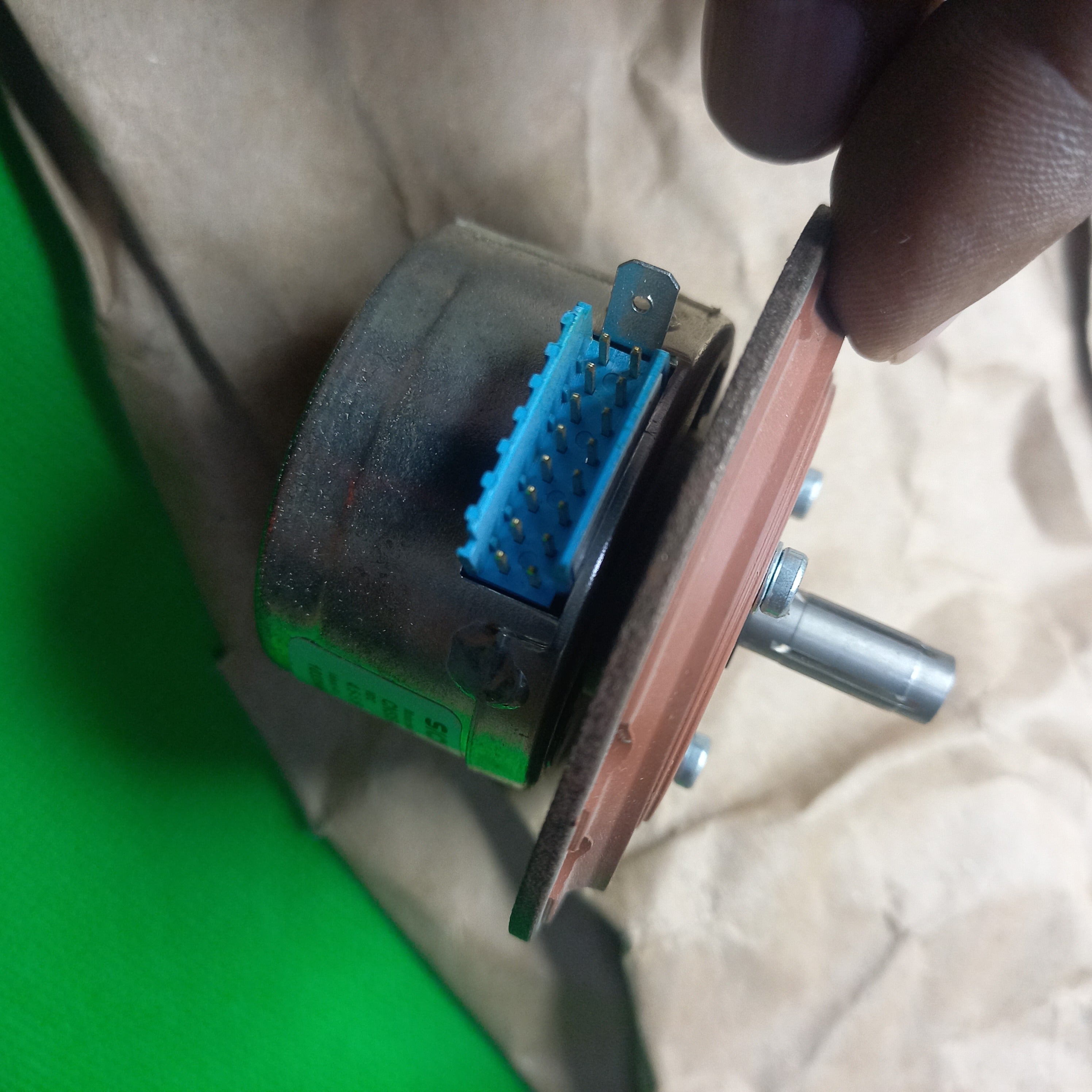

Connection : Connector ( 2rows x 8pins ) 16 PIn - incremental resolution : 4096
- PolePair 04
- Default encoder, which the special encoder is based on: CNS50-AAA012X04
The CNS50 is an incremental motorfeedback series, for servo motors, with commutation signals.
Incremental signal: high resolution, for the speed evaluation
Z Signal (index): for a single turn positioning (after referencing one turn)
Commutation signals: For the commutation of the servo motor (synchron motor)
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design 7mm plug in shaft
- Incremental Encoder Construction size (flange) Ø 47 mm
- Incremental Encoder Shaft diameter 7mm plug in shaft ( sick stegmann)
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | |
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution4096
- incremental Encoder Range of pulses per revolution2501 ... 5.000
- Signal Details:
Connection Details of encoder
- Connection type (Detail)
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNCNS 50-AZA0-S05
- Manufacturer indent Nr.CNS50-AZA0-S05
- 1 Manufacturer Part Number (MPN) 103 3 984
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
