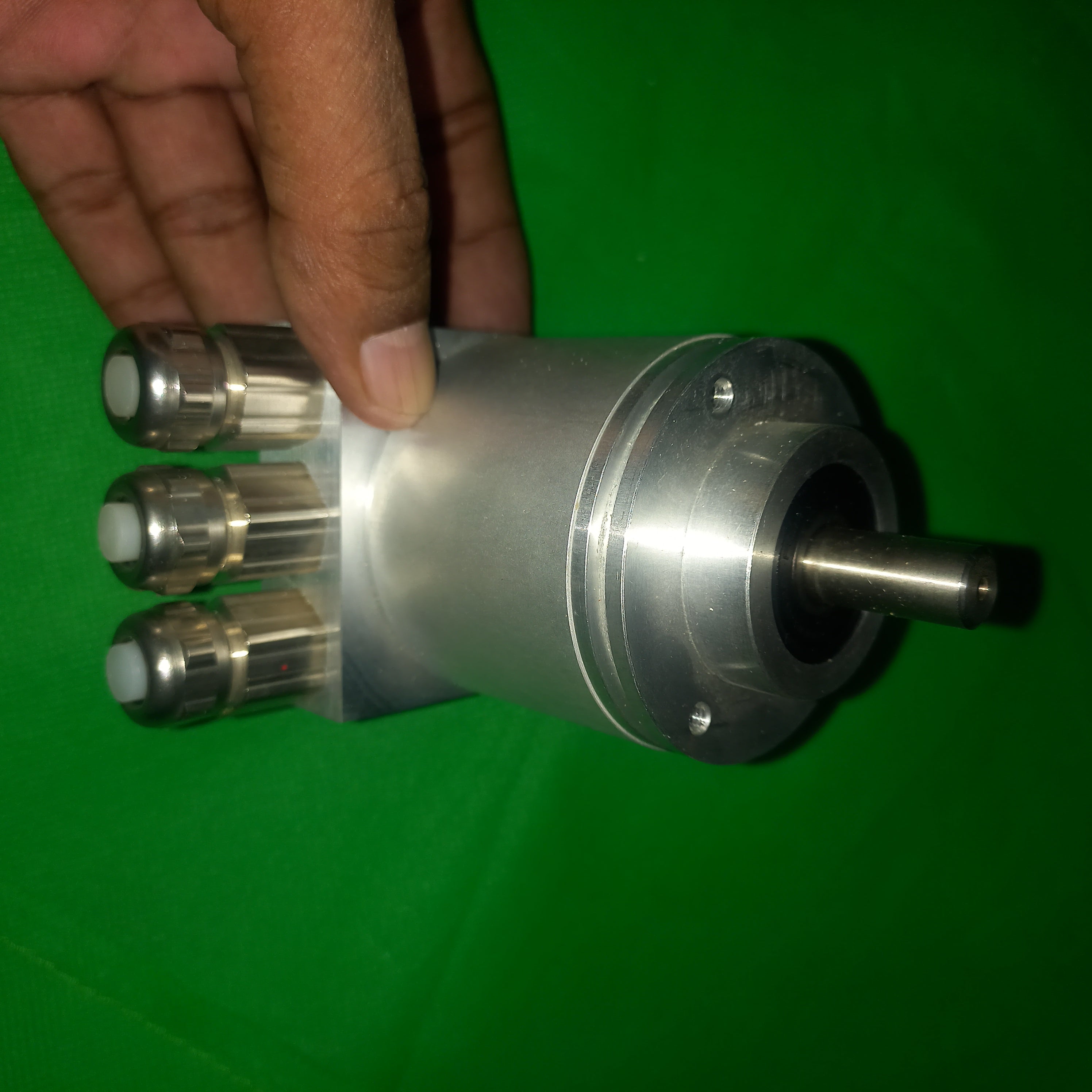

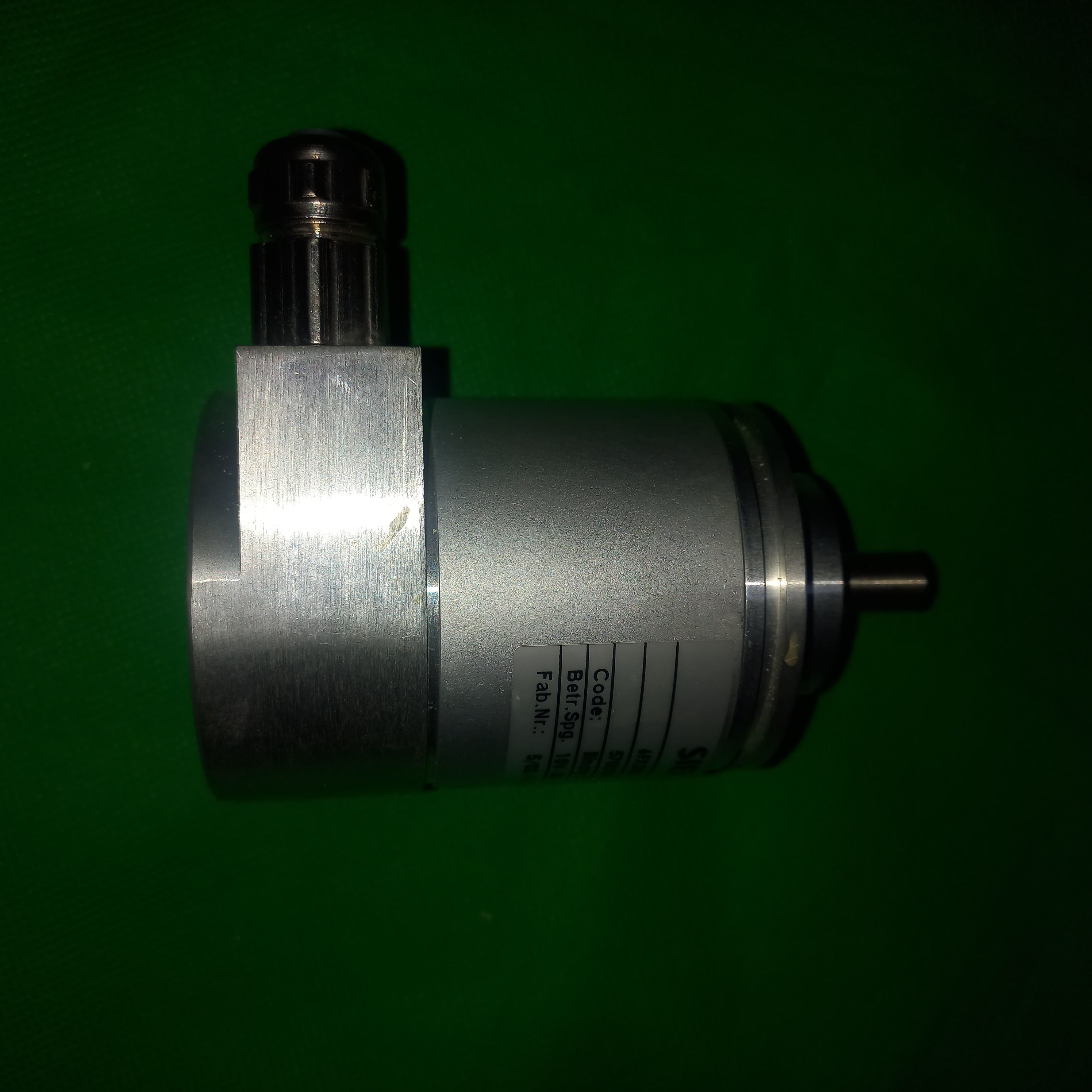

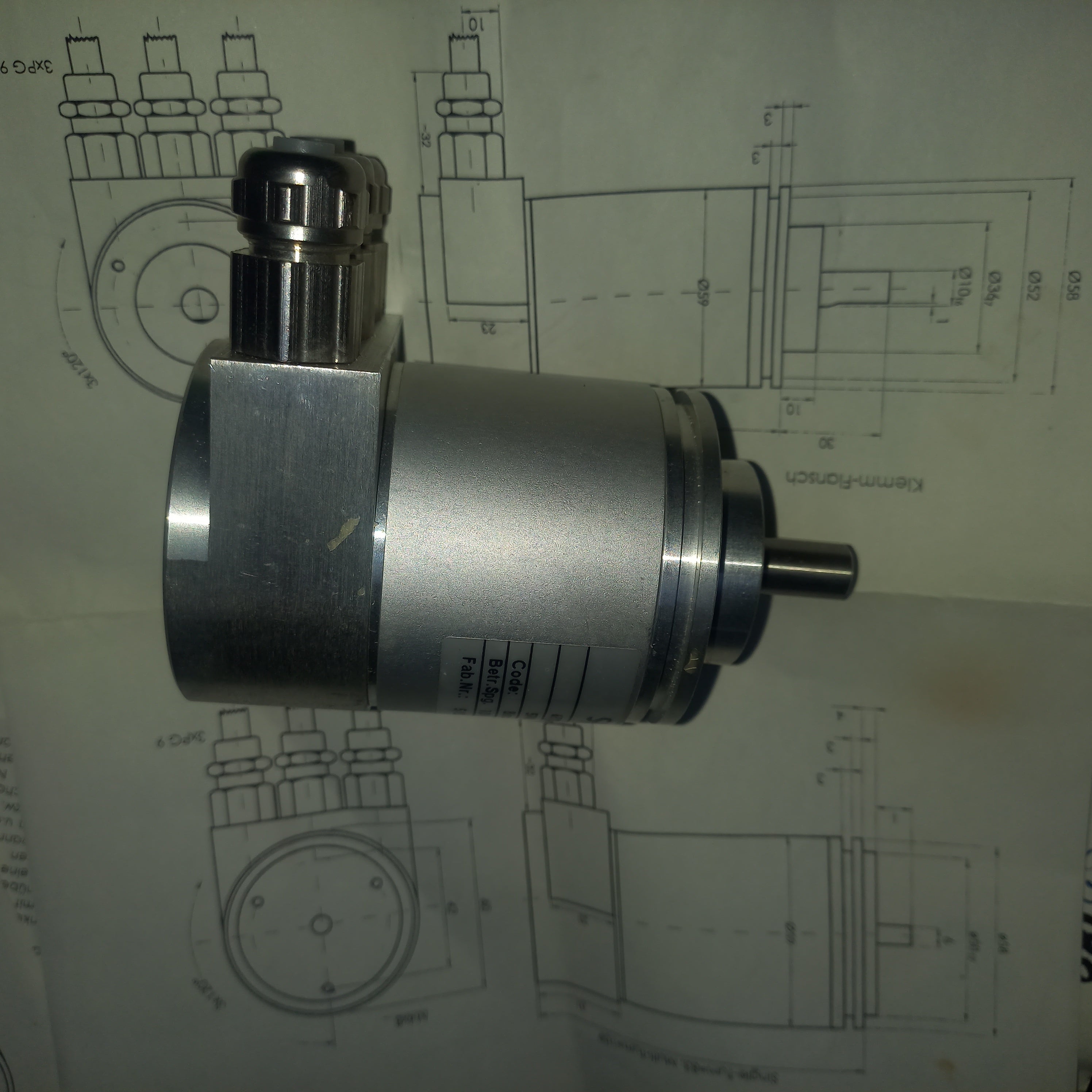

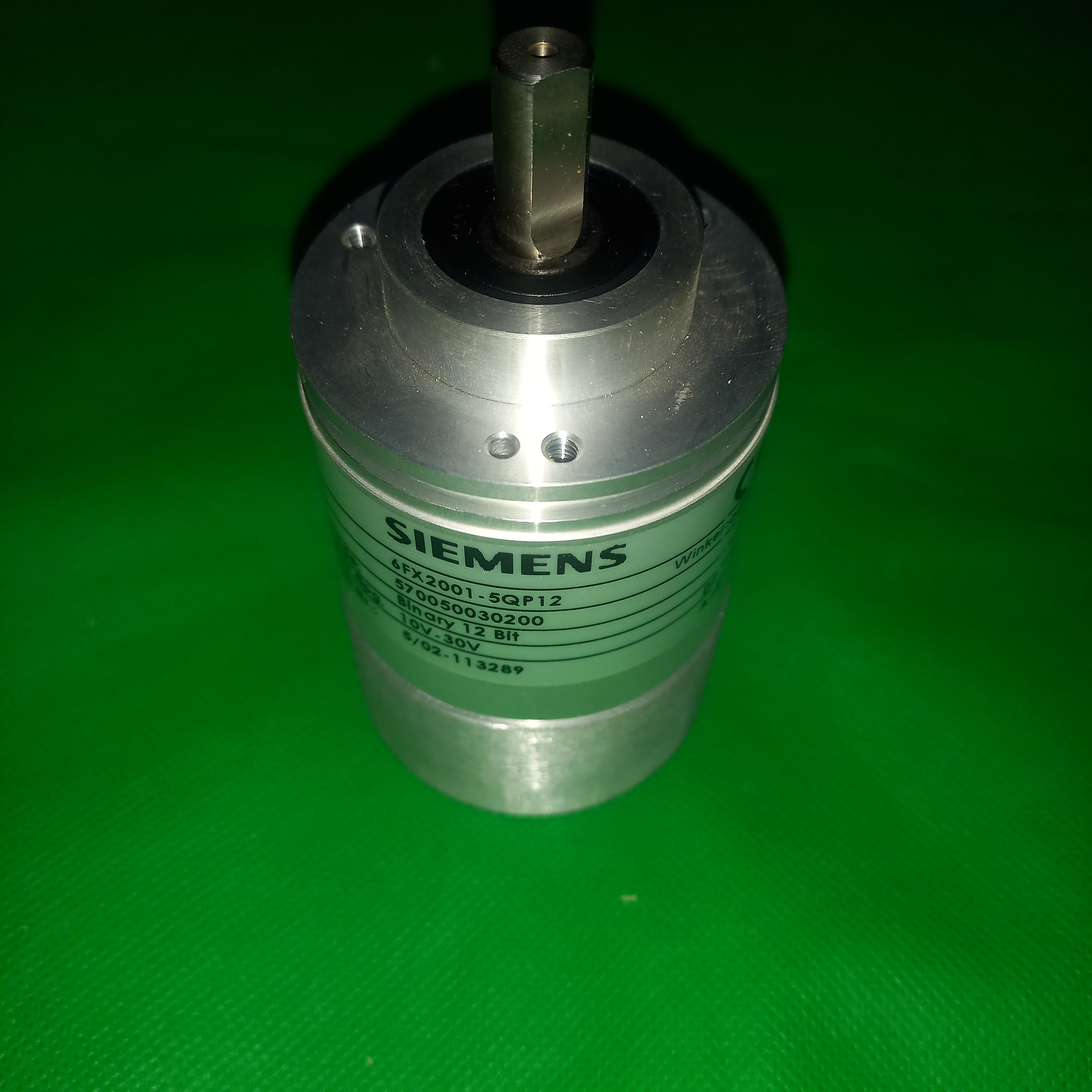

Siemens Absolute ST Encoder 6FX2001-5QP12,10mmshaft, Clamping, 13Bit, Binary Profibus
$1,480.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Siemens Absolute ST Encoder 6FX2001-5QP12,10mmshaft, Clamping, 13Bit, Binary Profibus
$1,480.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = 6FX20015QP12
- Manufacturer MPN = 6FX2001-5QP12
- Encoder Type = Absolute Encoder
- Supply voltage = 10-30 VDC
- ID. NR. = 6FX 2001-5QP12
- indent Nr. = 6FX 2001 5QP12
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = 6FX20015QP12
Mechanical Design Features of this Encoder:

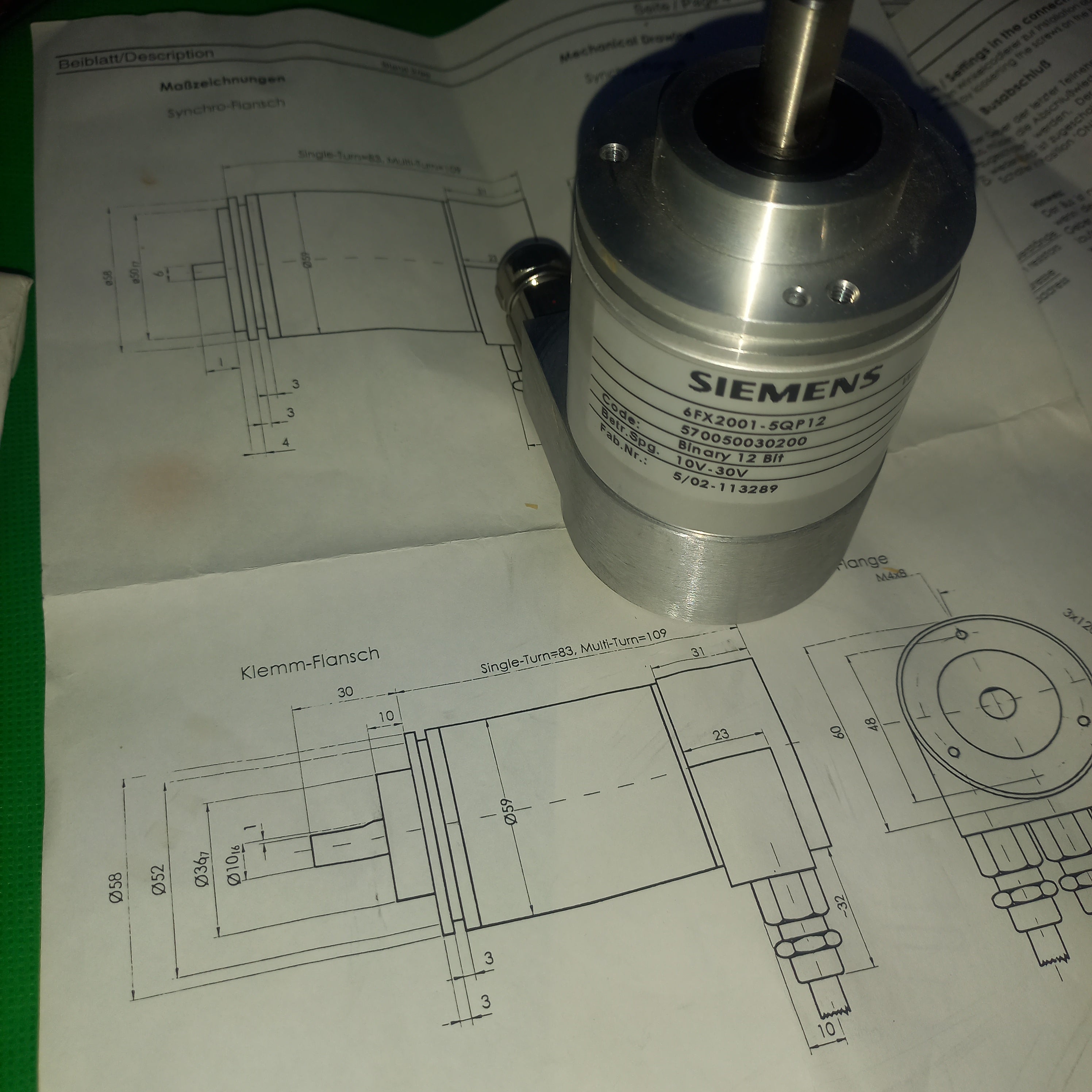

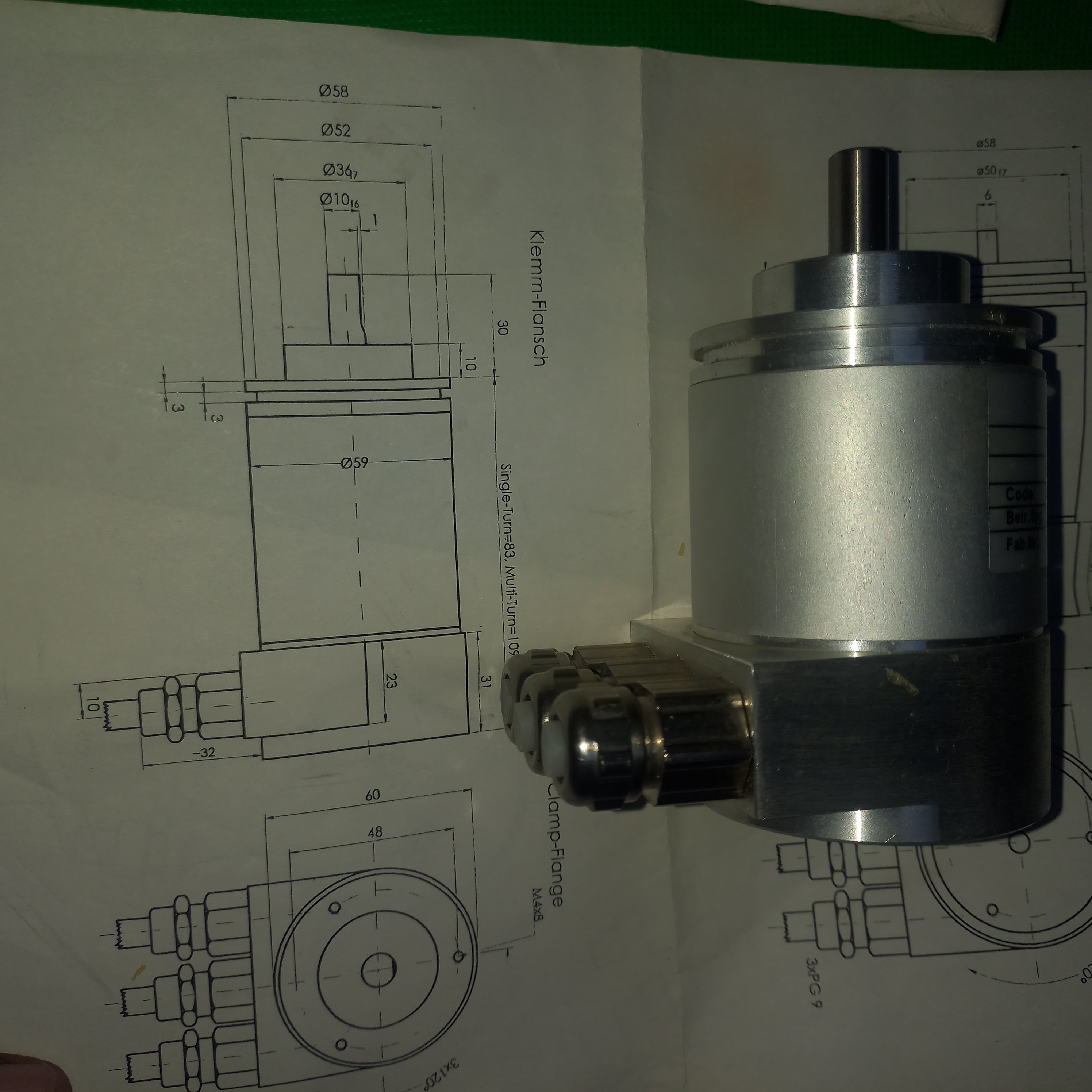

- Absolute Encoder Mechanical Design = Solid shaft, face mount flange
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = PROFIBUS DP
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Singleturn
- Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
- Absolute Encoder Number of revolutions =
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection Type Detail =
How Encoder body is Mouted ? Mouting Flange Design Data:
Ready Stock ABS. VALUE ENCODER ST 13 BIT 6FX2001-5QP12 SYNCHRONE WITH PROFIBUS DP OPERATING VOLTAGE 10-30 V STRIP FLANGE WITH HOOD AND RADIAL PG

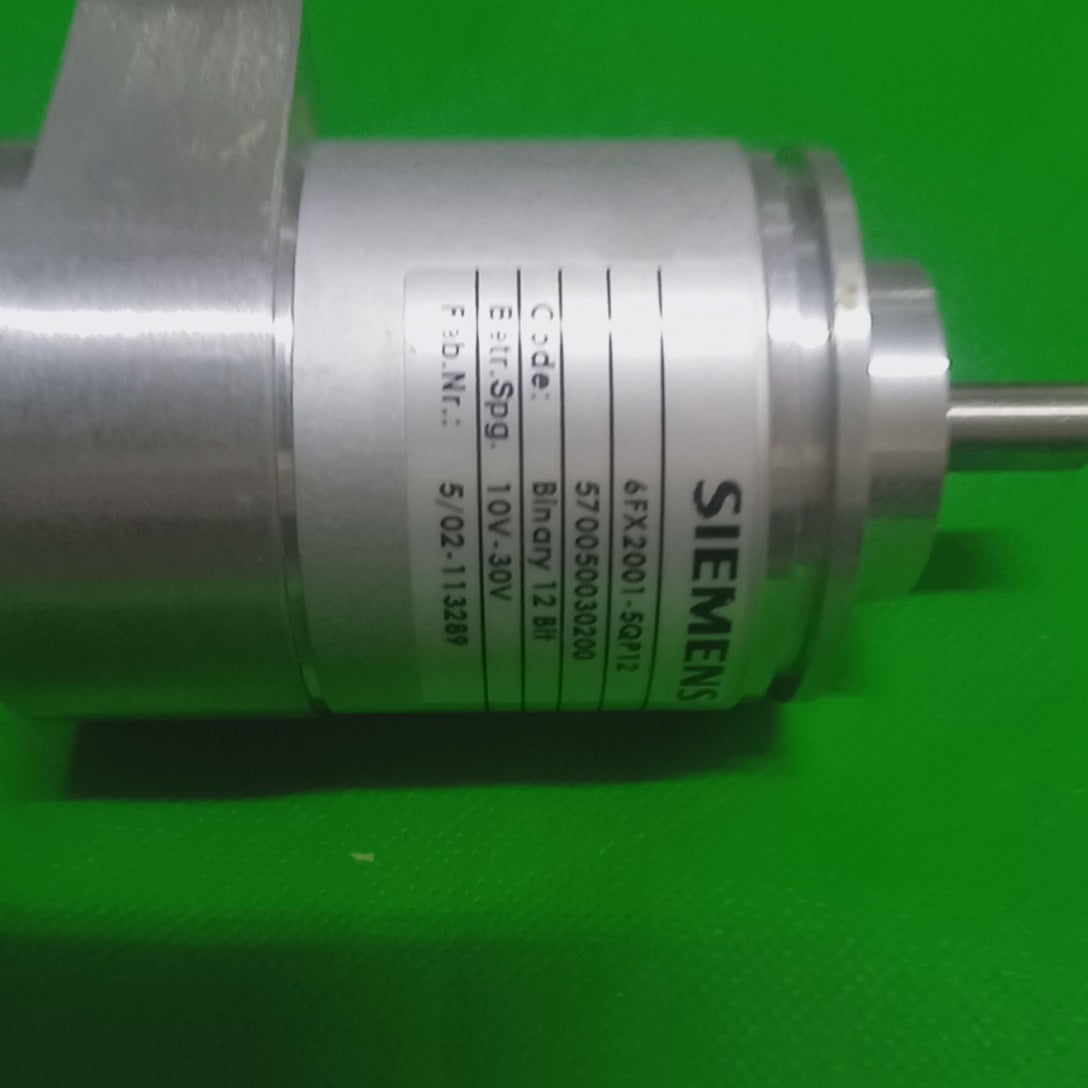

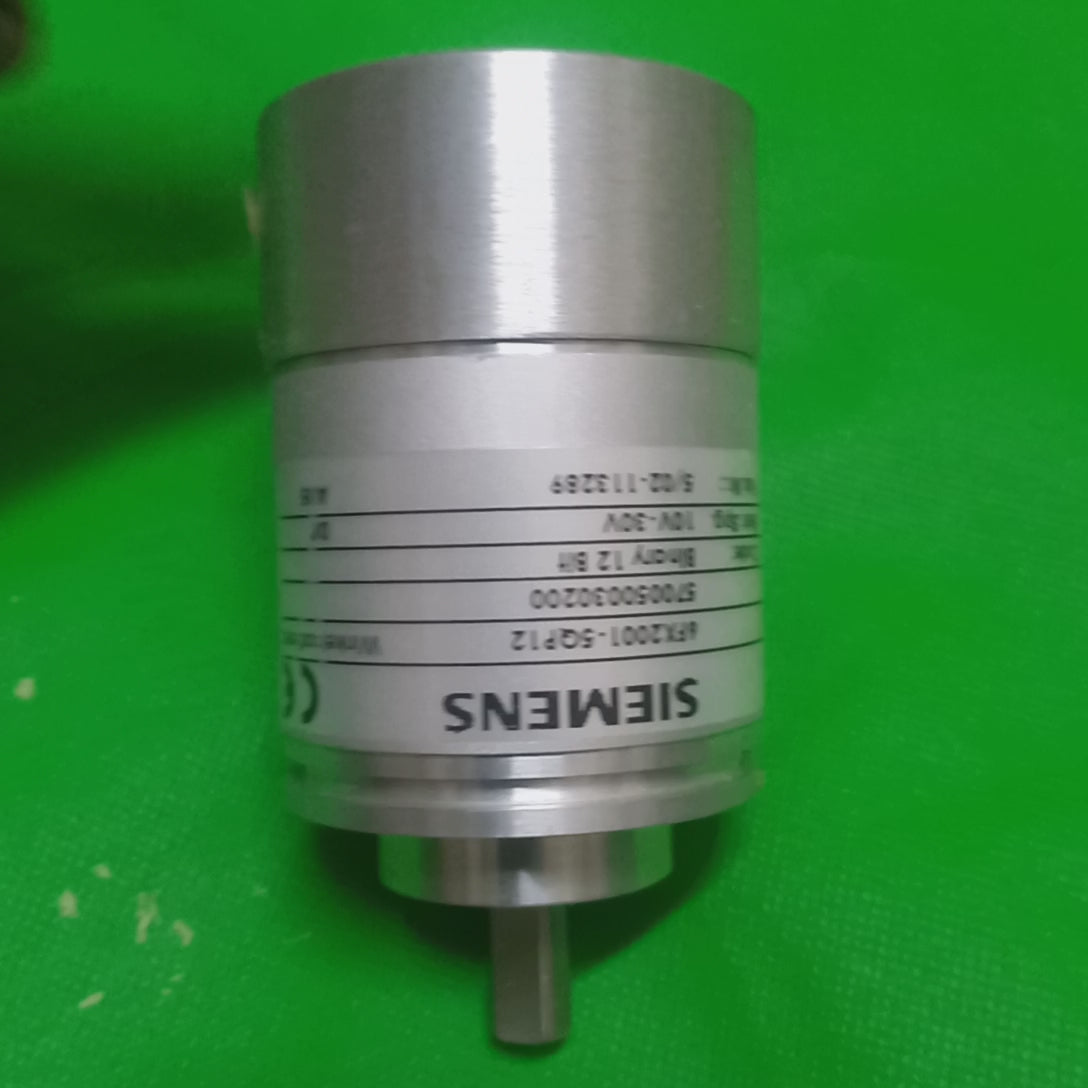

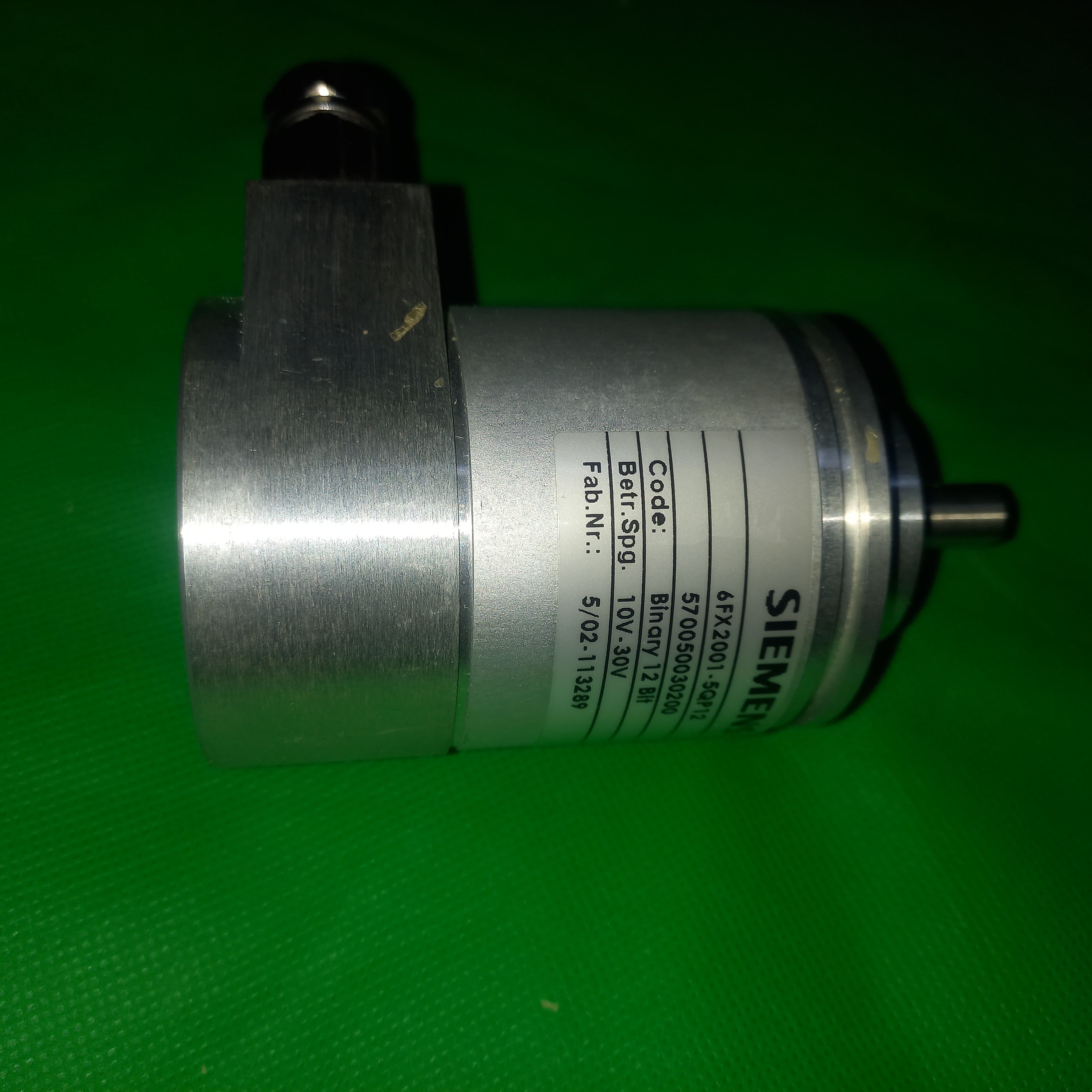

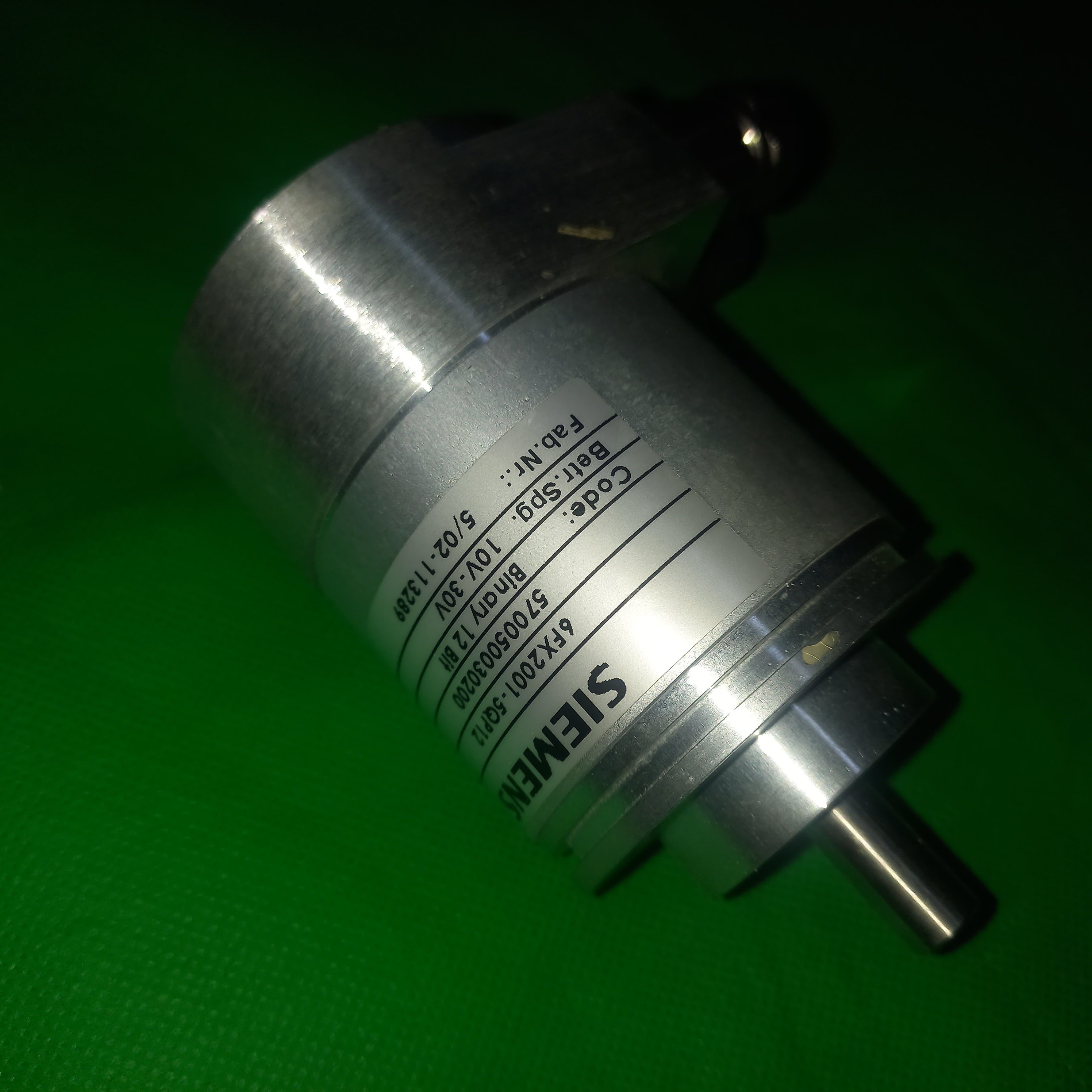

Shaft : 10mm | MLFB:6FX2001-5QP12 | Code: Binary 12 Bit | Power supply 10V-30V
GWE: 570050030200
Measuring method / for position feedback Absolute
Operating principle of absolute encoder Singleturn
Operating voltage VP at the encoder / min. 10 V
Operating voltage VP at the encoder / max. 30 V
Design of the interface PROFIBUS DP-V2
Digital resolution 13 bit (8192 increments)
Code type
• Sampling Gray
• Transfer Binary, PROFIBUS
Design of the electrical connection

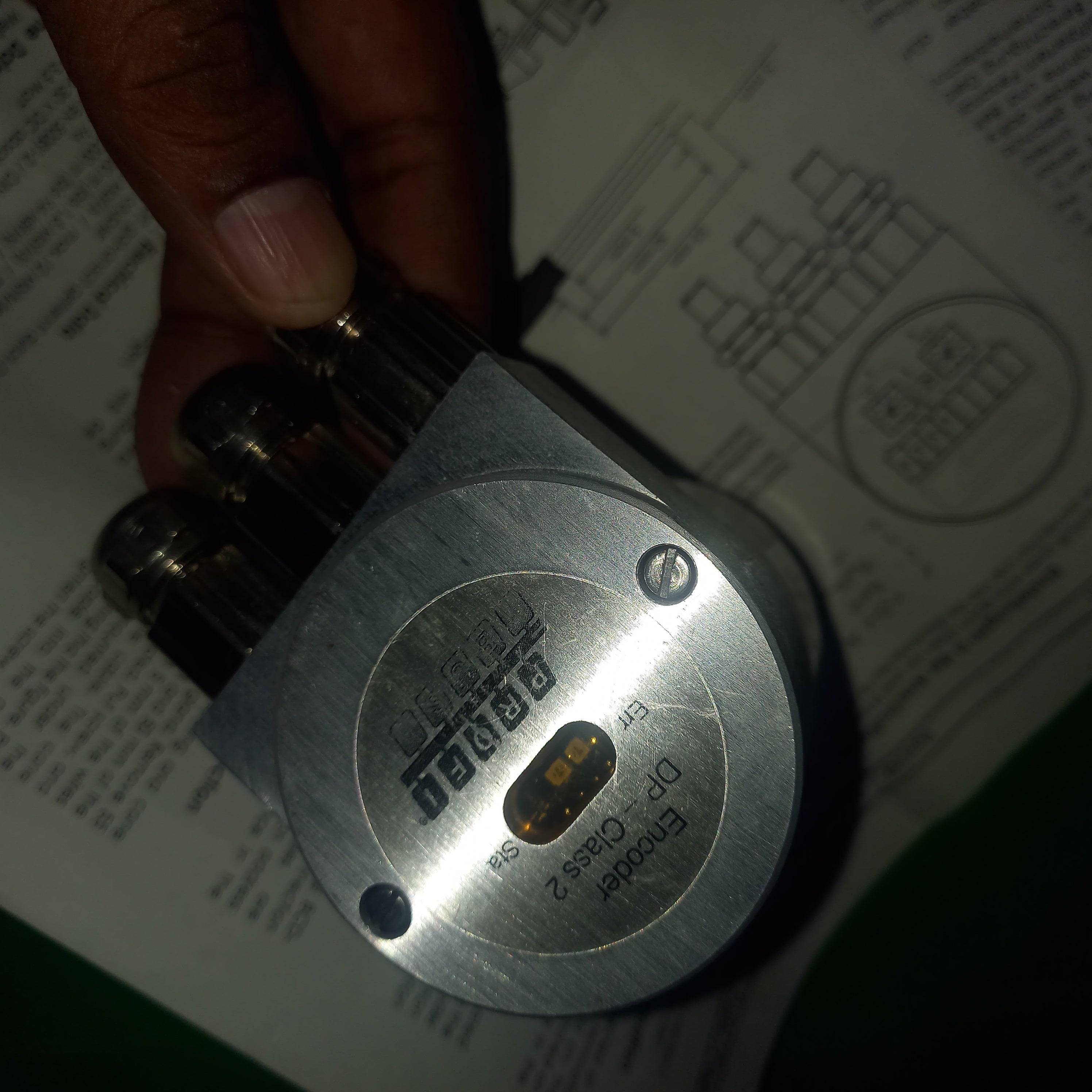

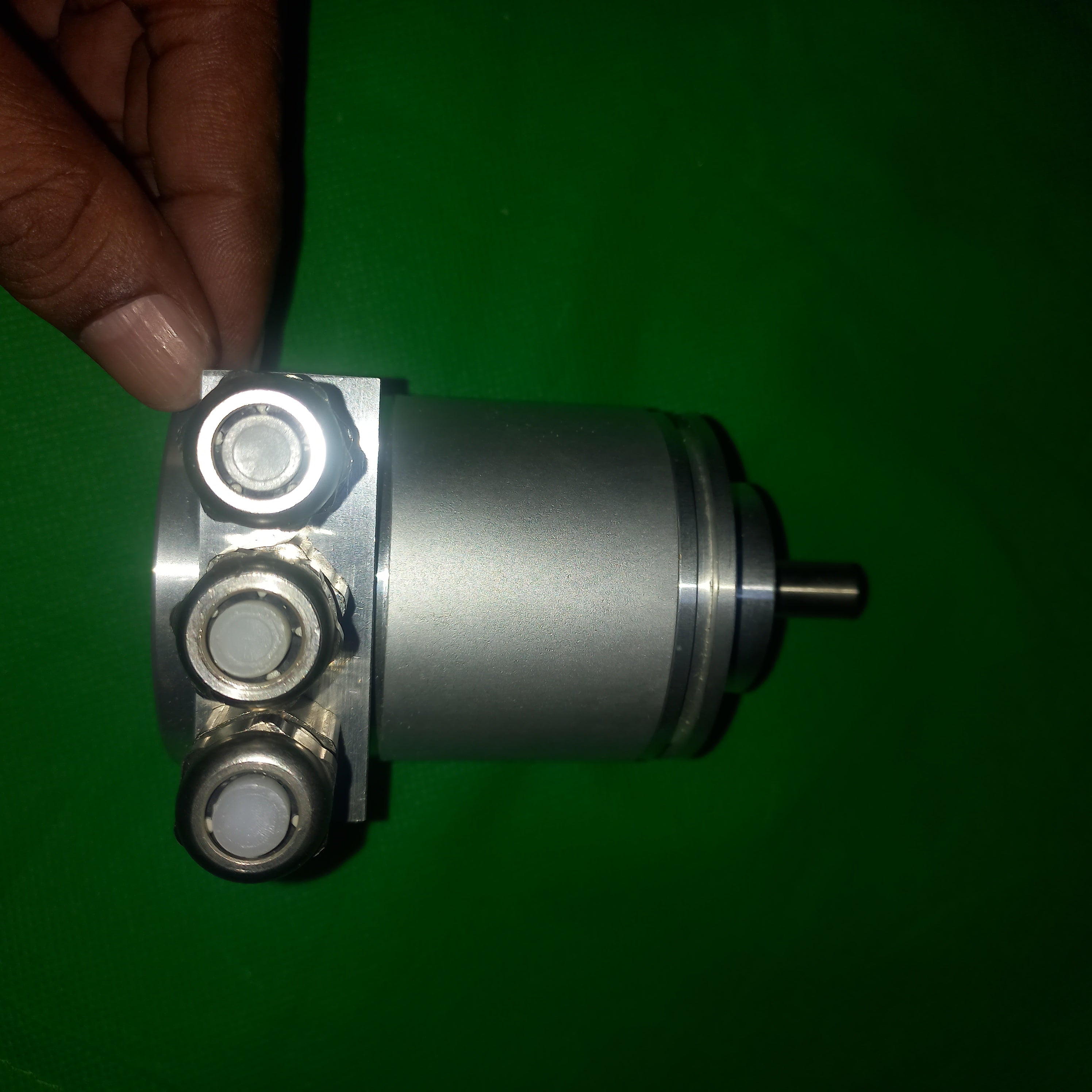

Terminal block with address selector switch and bus
terminating resistor in removable cover with radial
cable glands (3 units) terminating resistor in removable
cover with radial cable glands (3 units)
