Stegmann CDD 50 4096 4pp | Stegmann CDD 50/68 4096 4pp

Ready Stock | Ship Worldwide
Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
We ship Same day if Order is confirmed before 2 PM on Weekdays

Stegmann CDD 50 4096 4pp | Stegmann CDD 50/68 4096 4pp

Name: Stegmann CDD 50 4096 4pp | Stegmann CDD 50/68 4096 4pp
Brand: Stegmann
SKU: cdd34
Price: 1280.00 USD
Availability: InStock

$1,280.00

Taxes included. Shipping calculated at checkout.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

Manufacturer Part Number: CDD5068
Encoder Type: Incremental encoder
Supply voltage 5 VDC
Encoder ID. NR.CDD 5068
Encoder SIgnal CDD 5068 4096 4pp | 4096 | TTL | Ø 47 mm |

View Manufacturer Product Page

Download Product Datasheet

Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

Ready Stock DiCoder Motor Feedback System

• DiCoder motor feedback system for installation in electric motors.

• Two square-wave signals, ofset by 90°, reference pulse and the respectively inverted signals

• Commutation signals

SICK Stegmann CDD 50/68 (4096 pulses per revolution, 4 pole pairs) is an optical motor feedback encoder operating on 5V DC. It provides high-resolution position and speed feedback for industrial servo motors. [1]

Encoder Specifications

Brand/Manufacturer: SICK Stegmann

Model Series: CDD 50/68

Resolution: 4096 pulses per revolution (ppr)

Pole Pairs: 4 pole pairs (4pp)

Operating Voltage: 5V DC

Application: Industrial motor feedback, commutation, and motion control.

Encoder Type:

Salient | Special features of Encoder: Sick Stegmann CNS 50 7mm plug in shaft, 2rowx8 pin =16 pin Connector | Sick Stegmann Motorfeedback CNS 50-AZA0-S05, Ident. Nr. 103 3 984, Vdc 4.5-5V, Lines=4096 , PP = 4

Encoder mechanical Design

Increental Encoder Mechanical Design 7mm plug in shaft
Incremental Encoder Construction size (flange) Ø 47 mm

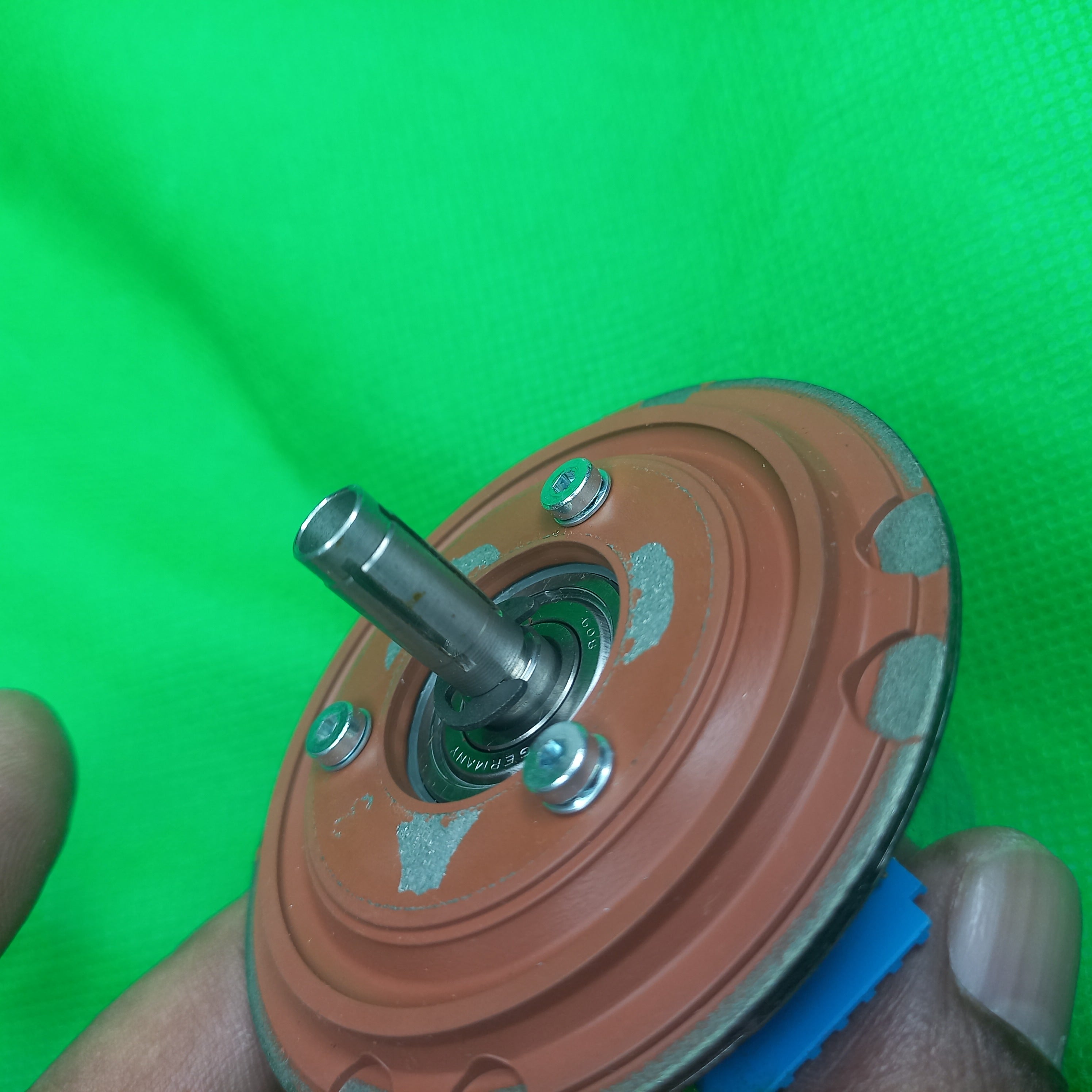

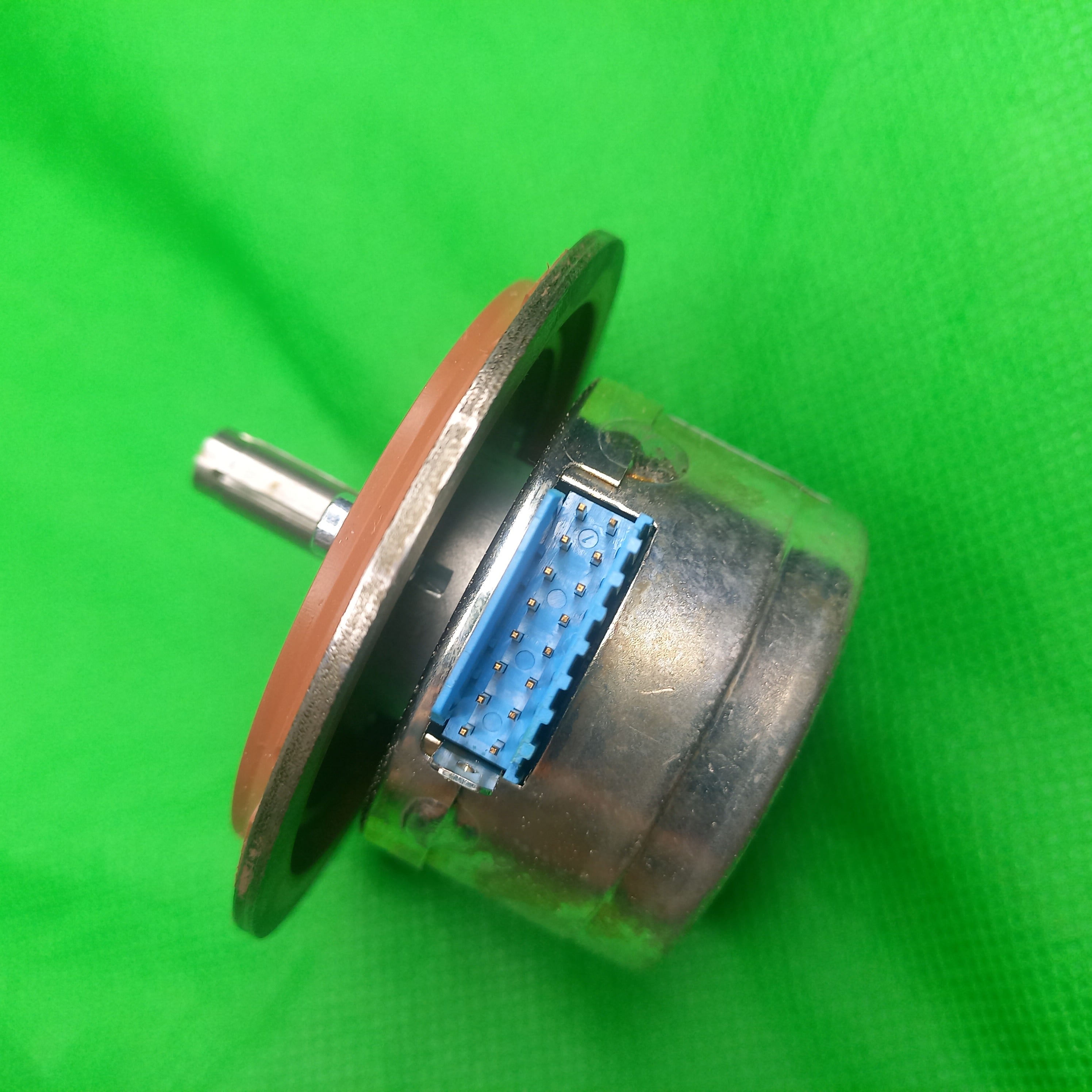

Incremental Encoder Shaft diameter 7mm plug in shaft ( sick stegmann)

Encoder Signal Interface | Communication

Incremental Encoder Communication Interface detail TTL

Performance Data:

Incremental encoder PPR | Impulse | Pulses per revolution4096

incremental Encoder Range of pulses per revolution2501 ... 5.000
Signal Details: CDD 5068 4096 4pp

Connection Details of encoder

Connection type (Detail)
Direction of connection

Mounting Arrangement for Encoder Body

- Check Datasheet or Contact us

Manufacturer Alternative MPNCDD 50/68
Manufacturer indent Nr.CDD 50/68 4096 4pp
1 Manufacturer Part Number (MPN) CDD5068
Alternative ways of identifying | Part Numbers | Compatible Parts CDD5068 4096 4pp
Typographic Errors in MPN | Mistakenly Known as CDD 5068 4096 4pp

Ships from DUBAI

Ready Stock - Collect from Ajman store today

Sold by Ajman FET [ Established 2003 ]

Worldwide Shiping
