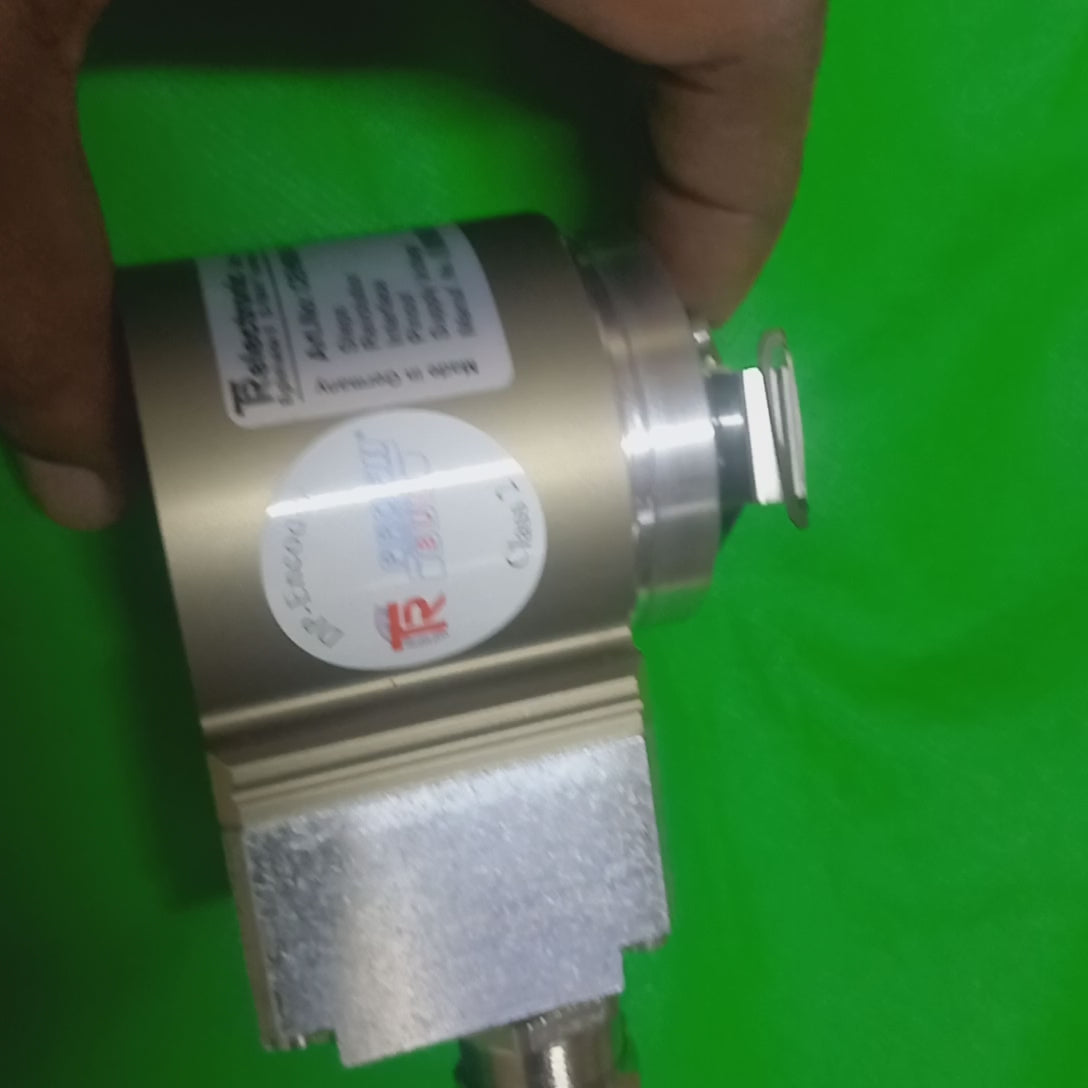

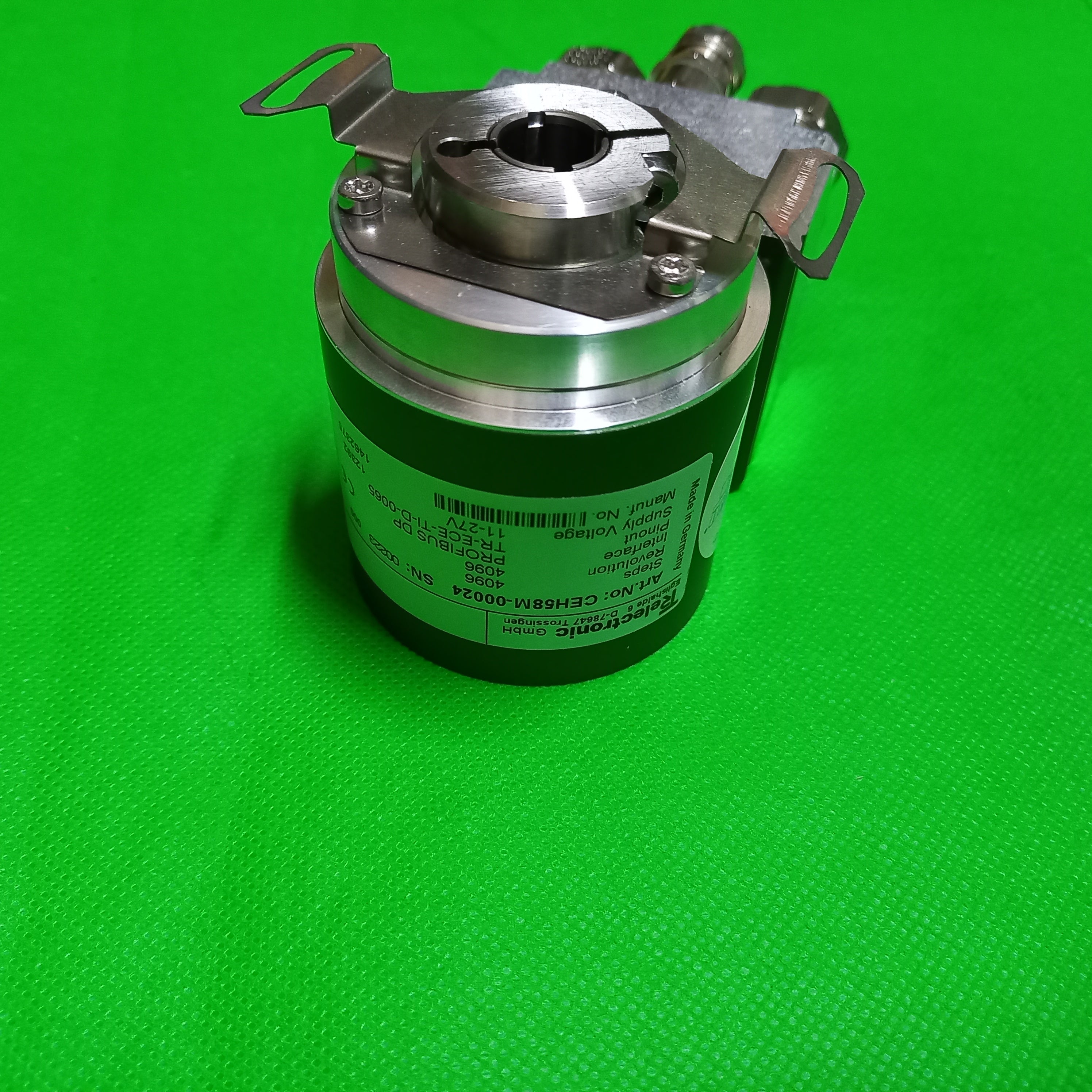

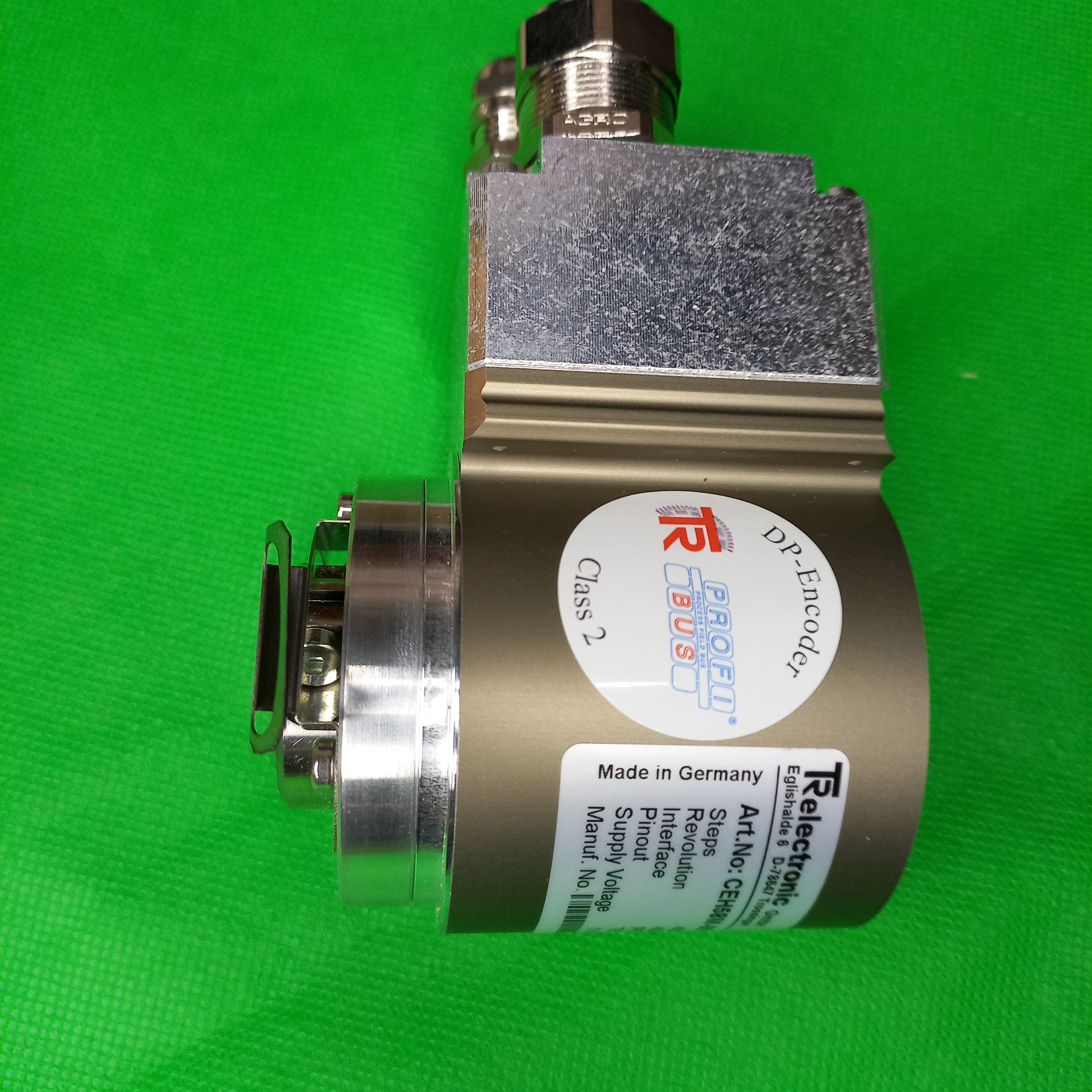

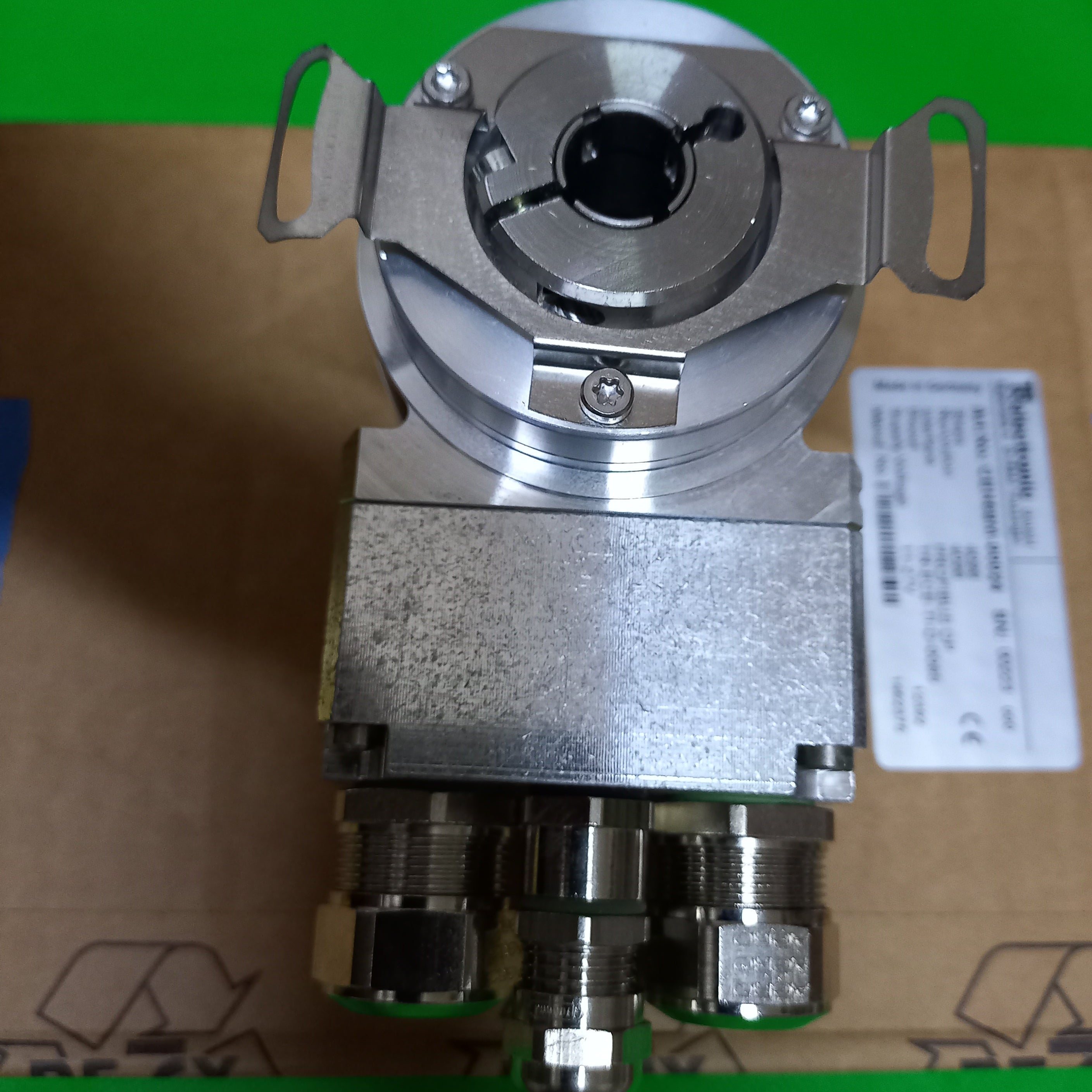

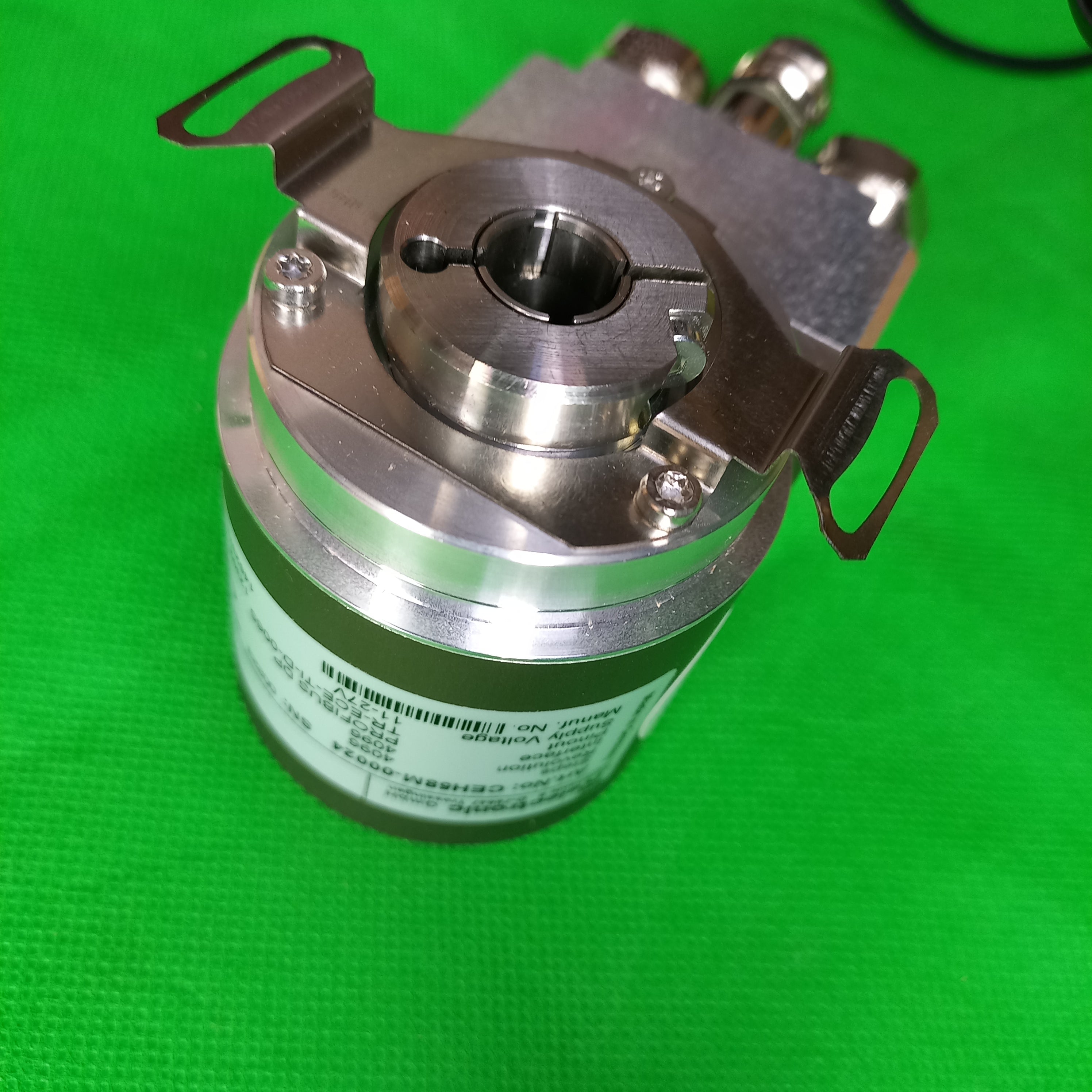

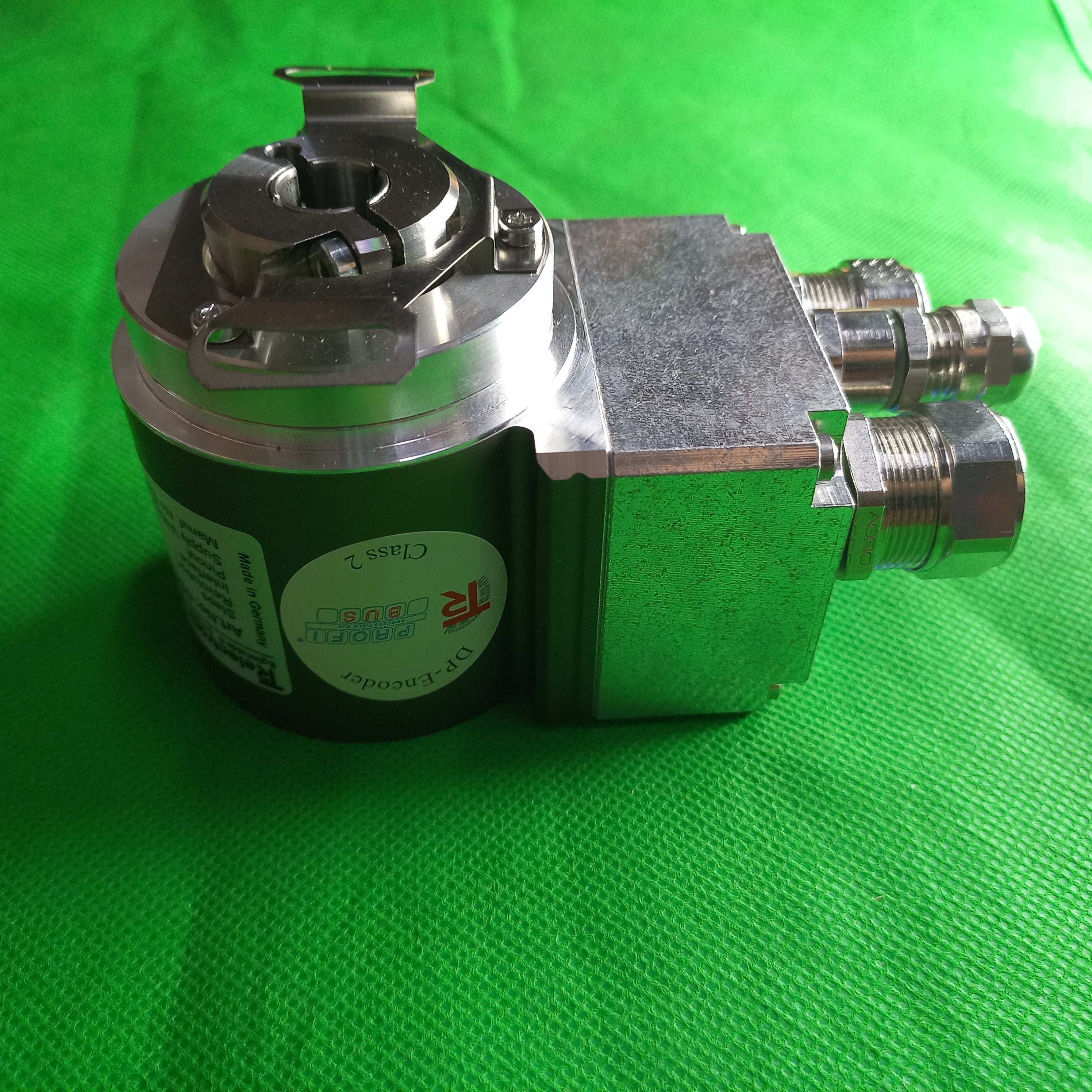

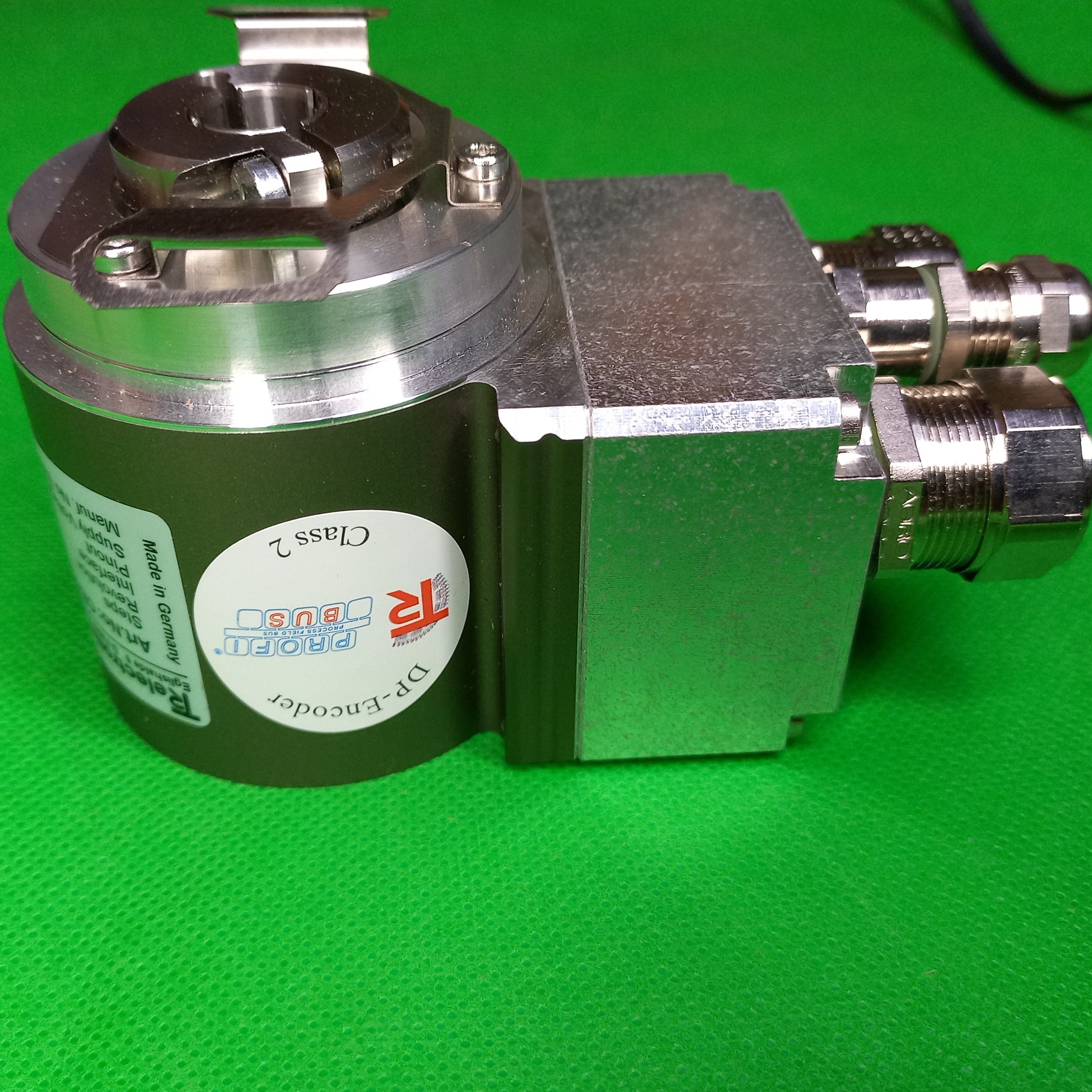

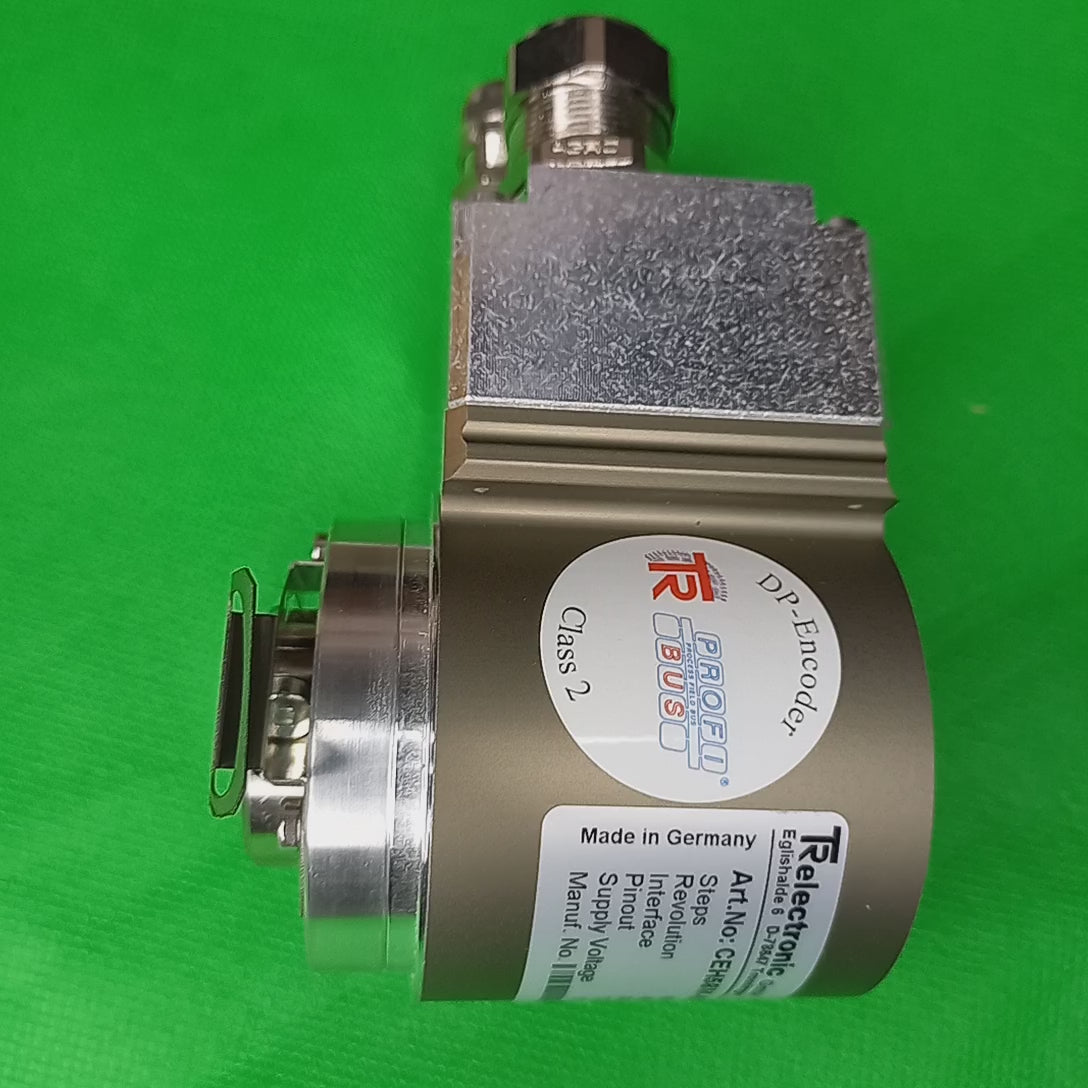

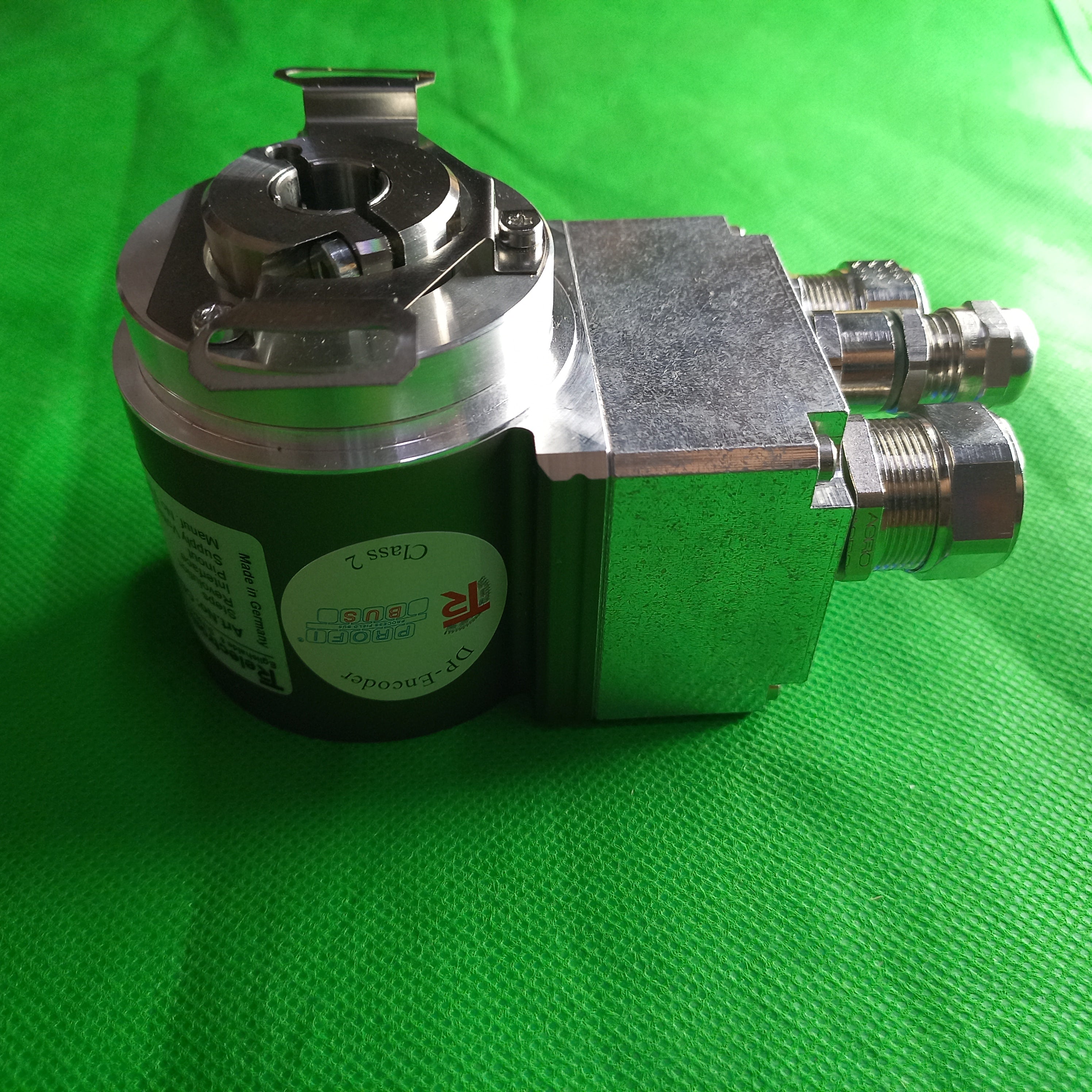

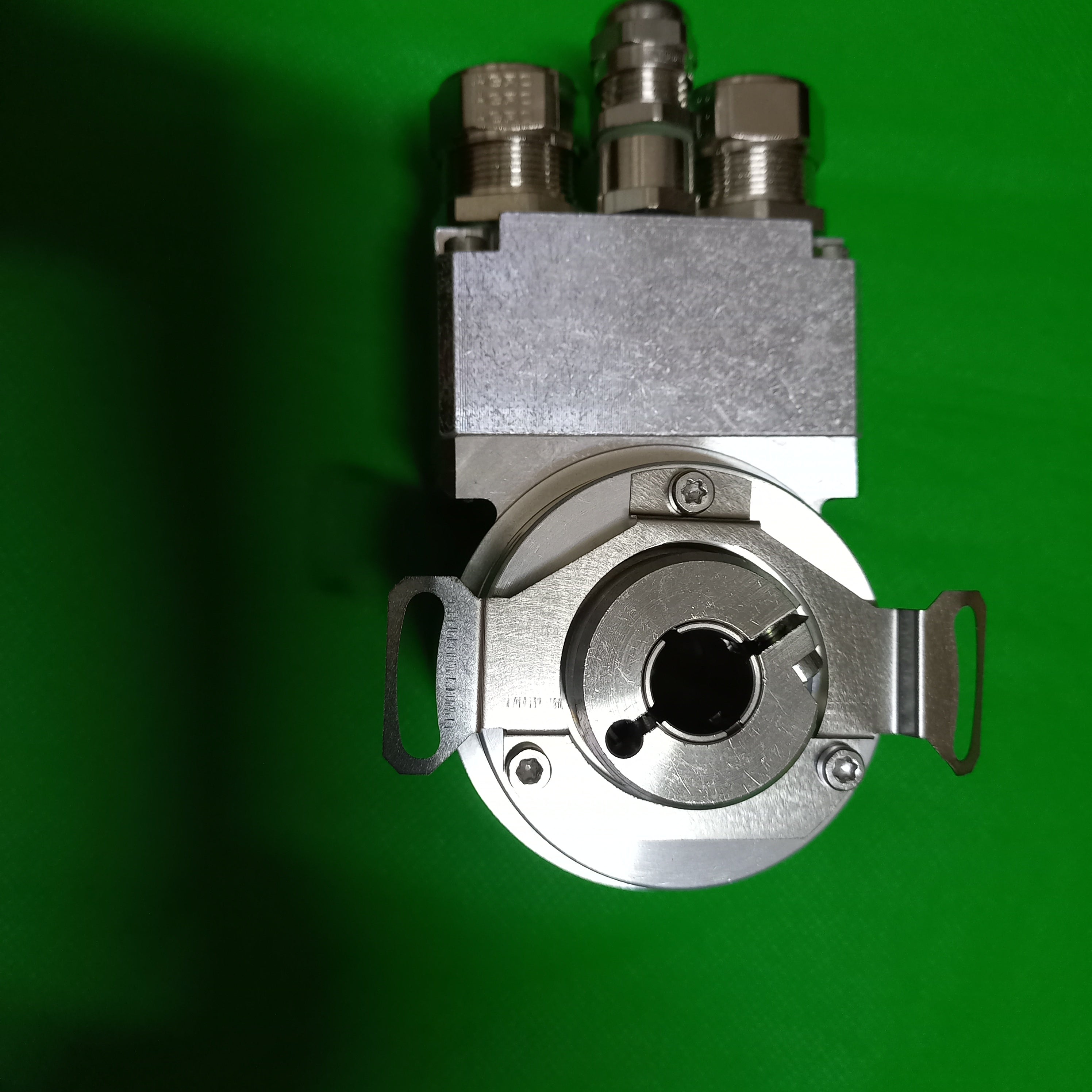

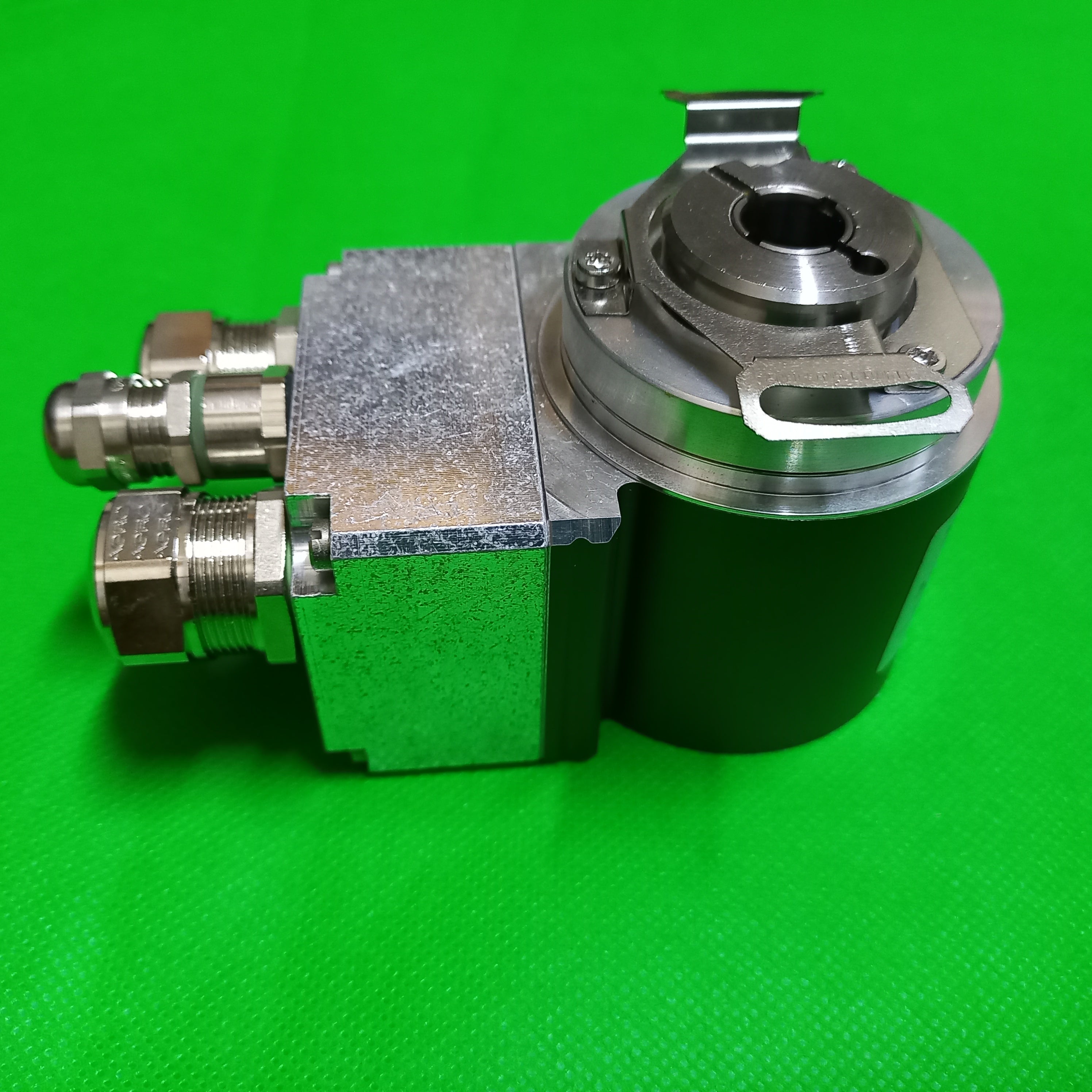

TR Electronics Absolute Multiturn CEH58M-00024 | Hollow12mm| profibus DP, 4096x4096

Ready Stock | Ship Worldwide
Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
We ship Same day if Order is confirmed before 2 PM on Weekdays

TR Electronics Absolute Multiturn CEH58M-00024 | Hollow12mm| profibus DP, 4096x4096

$1,880.00

Taxes included. Shipping calculated at checkout.

Dispatch Lead time = Same day ship if paid before 2 PM Local time
Warranty = One-year limited seller warranty

Manufacturer Part Number = CEH 58M-00024
Manufacturer MPN = Ready Stock TR Electronics CEH58M Absolute Multiturn CEH58M00024
Encoder Type = Absolute Encoder
Supply voltage = 11-27vDC

ID. NR. = CEH58M-00024
indent Nr. = CEH 58 M 00024

Alternative Part Numbers | Compatible Parts = CEH-58-M-00024, CEH-58-M-24
Typographic Errors in MPN | Mistakenly Known as = CEH58M24,CEH58M00024
Manufacturer Part Number (MPN) = CEH 58M-00024

View Manufacturer Product Page

Mechanical Design Features of this Encoder:

Absolute Encoder Mechanical Design = through hollow shaft
Absolute Encoder Construction size (flange) = Ø 58 mm

Design data for Selection | design of Shaft Coupling for this encoder

Absolute Encoder Shaft diameter = 12mm Hollow ( Through)

Encoder Communication Protocall & interface

Absolute Encoder Communication interface = PROFIBUS DP

Encoder Performance Parameters

Absolute Encoder - Singleturn or multiturn version = Multiturn
Absolute Encoder - Number of steps per revolution = 4096 (12 bit)
Absolute Encoder Number of revolutions = 4096 (12 bit)

Absolute Encoder Programmable/configurable = YES : Programmable/configurable

Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE

Direction of Connection = Radial

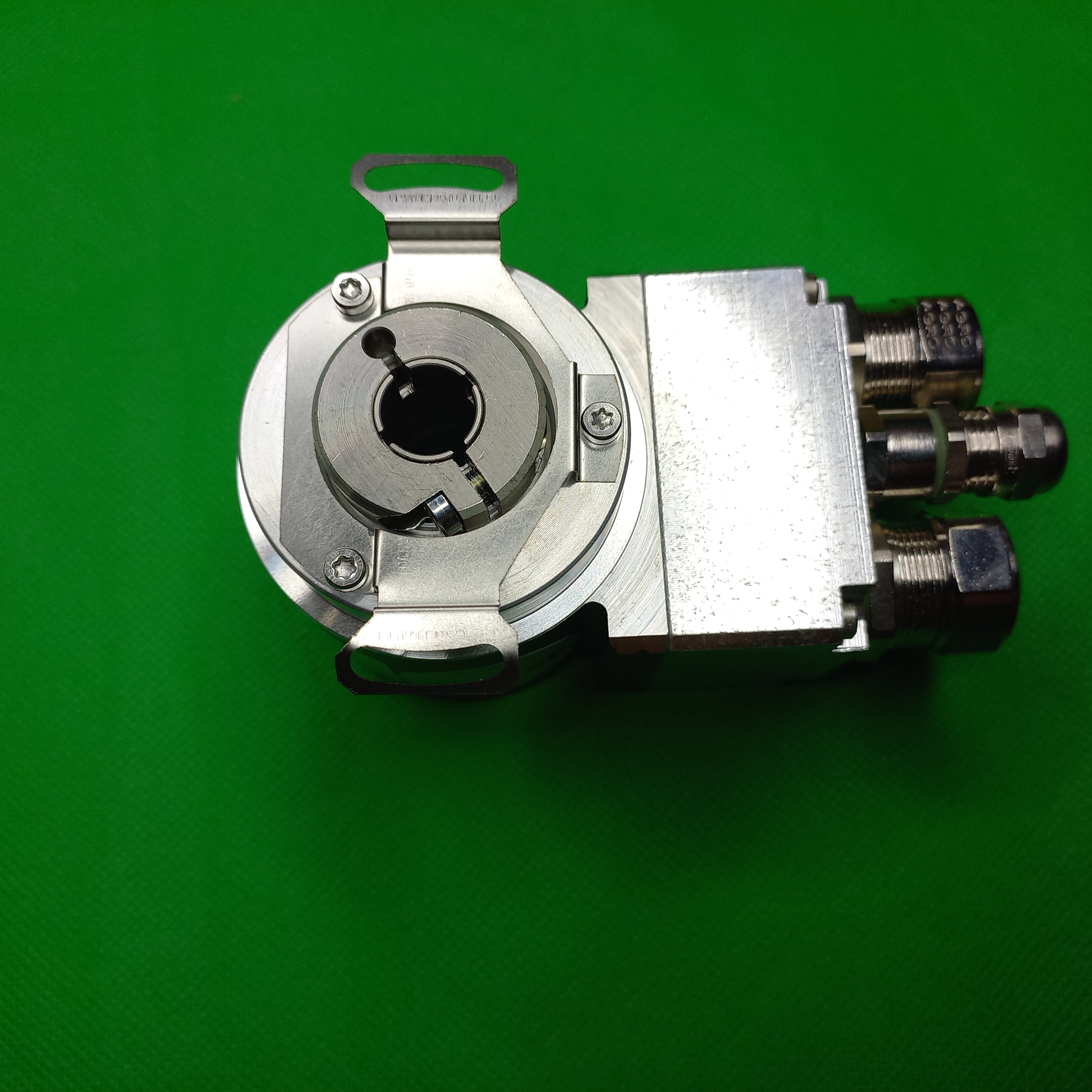

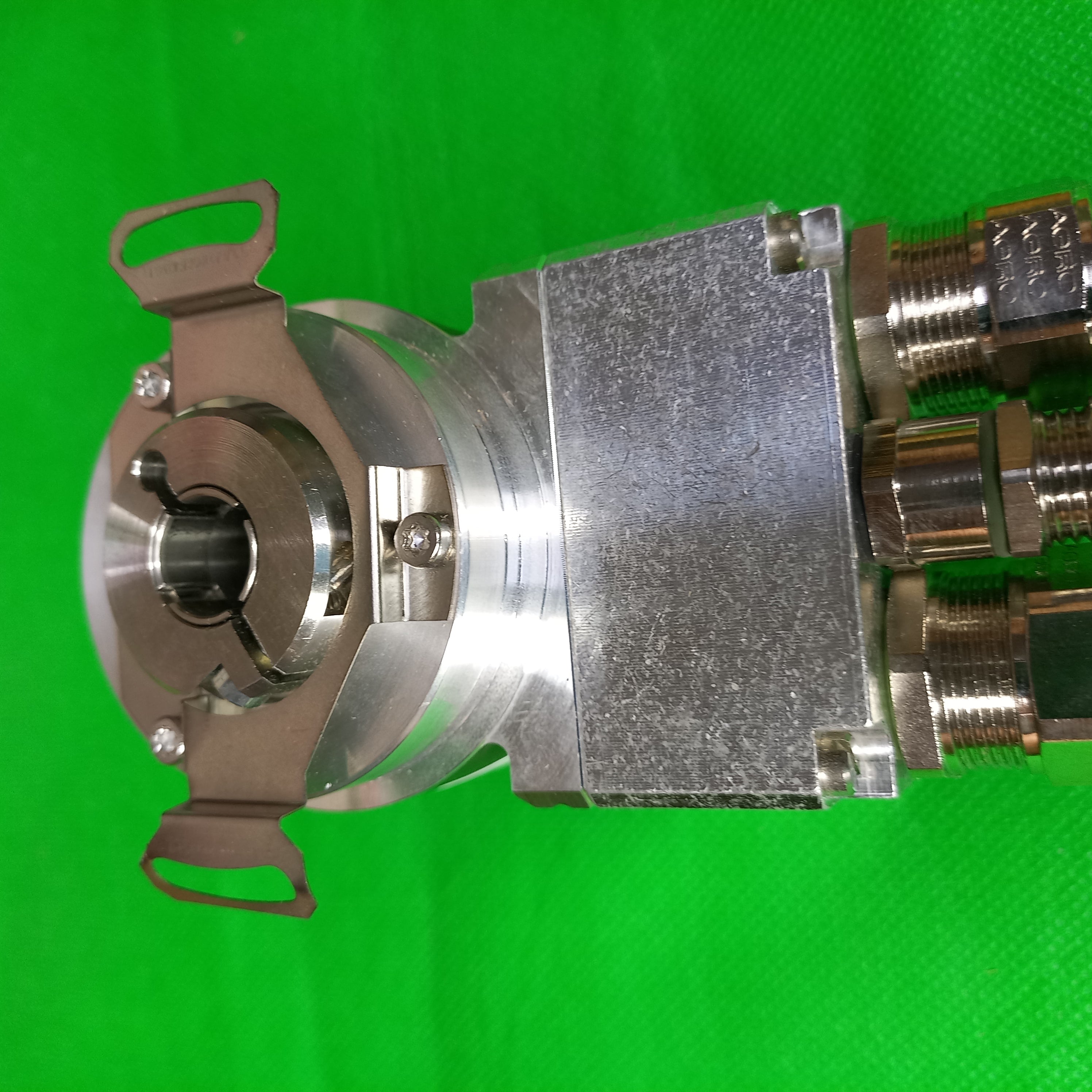

Connection Type Detail = 2XM16X1,5/1XM12X1,5 (2xM16, 1xM12)

How Encoder body is Mouted ? Mouting Flange Design Data:

Ready Stock TR Electronics CEH58M Absolute Multiturn CEH58M00024 | Hollow12mm| profibus DP, 4096 12bit ST x4096 12 bit MT

HOLLOW : 12 mm

Absolute Encoder Steps/Revolution:
Schritte/Umdrehung: Steps/Revolution: : 4096 (12 bit)

Absolute Encoder Number of revolutions
Umdrehungen Revolutions:: | Umdrehungen : 4096 (12 bit)

Schnittstelle | Code Profibus DP

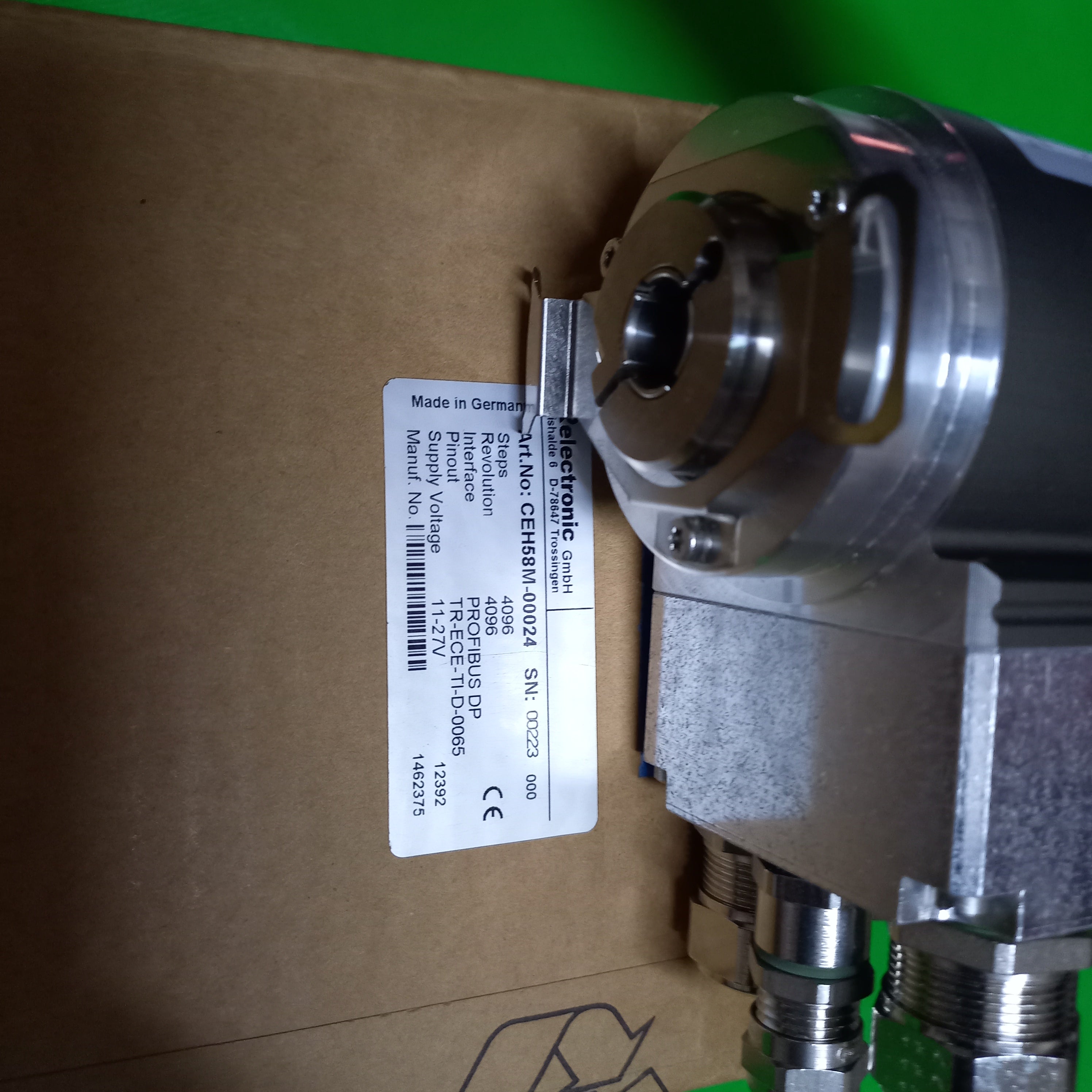

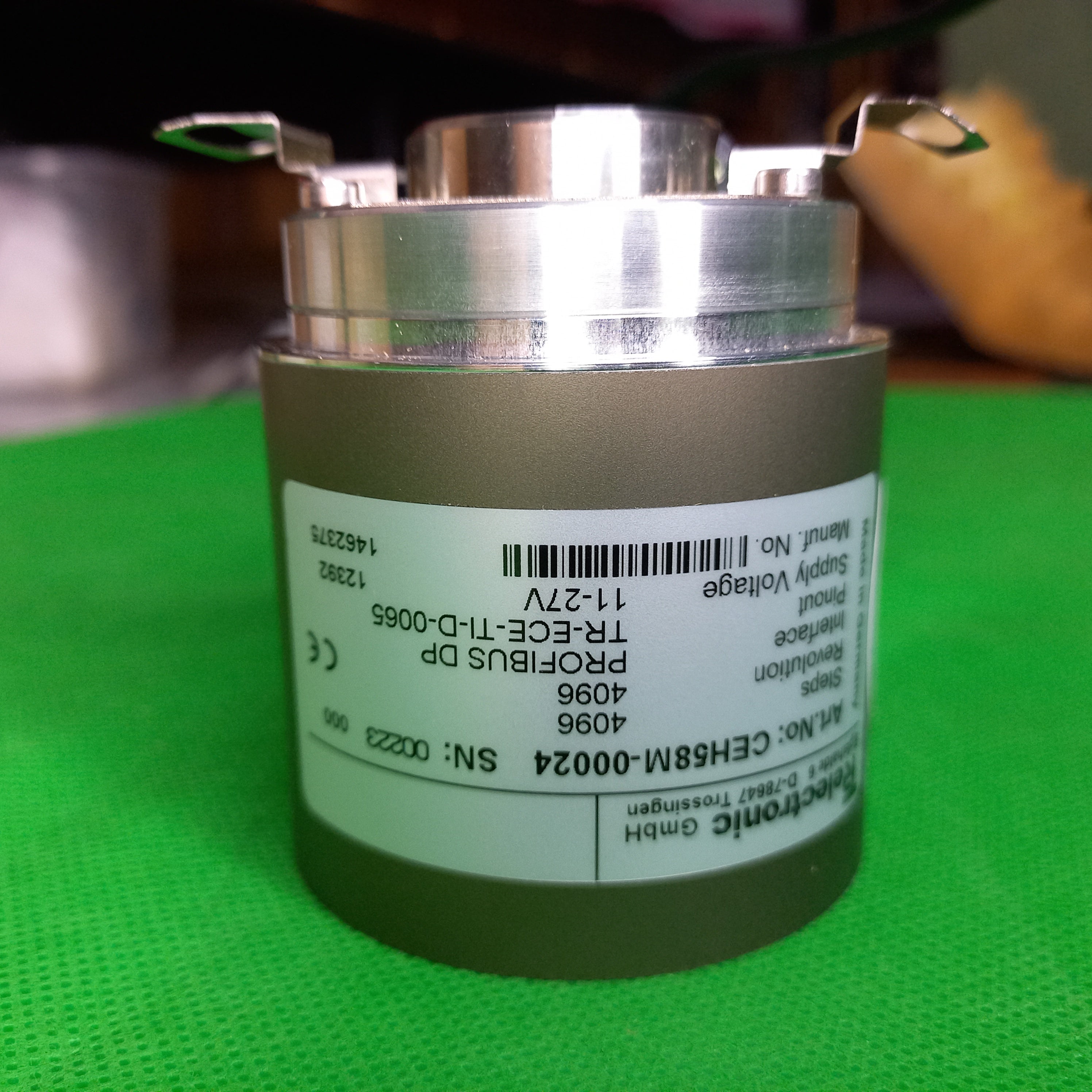

Version TR-ECE-TI-D-0065 | Power supply 11-27V

Ships from DUBAI

Ready Stock - Collect from Ajman store today
