Balluff_BES00LF_BES5163025GE5CS49, Ø6.5x55 mm, flush, 2mm, NPN, NC
$250.00
Skip to product information
Electrical data
Load capacitance max. at Ue 0.5 μF
Min. operating current Im 0 mA
No-load current Io max., damped 3 mA
No-load current Io max., undamped 11 mA
Operating voltage Ub 10...30 VDC
Output resistance Ra 100.0 kOhm
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 200 mA
Rated operating voltage Ue DC 24 V
Rated short circuit current 100 A
Ready delay tv max. 20 ms
Residual current Ir max. 20 μA
Ripple max. (% of Ue) 15 %
Switching frequency 1500 Hz
Utilization category DC -13
Voltage drop static max. 2.5 V
Environmental conditions
Ambient temperature -25...70 °C
Contamination scale 3
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
IP rating IP67
Functional safety
MTTF (40 °C) 605 a
Interface
Switching output NPN normally closed (NC)
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Balluff_BES00LF_BES5163025GE5CS49, Ø6.5x55 mm, flush, 2mm, NPN, NC
$250.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Balluff
- Sensor Type: Cylinderical Inductive Proximity SensorInductive Sensor
- Sensor Dimensions: Ø6.5x55 mm long
- Sensor Interface:
- Sensor Range : Range 2 mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Balluff D6.5, Sn =2 mm Sensing distance, NPN, Normally Close, BES00LF
BES516-3025-G-E5-C-S49
Range/Distance
Assured operating distance Sa 1.6 mm
Hysteresis H max. (% of Sr) 15.0 %
Rated operating distance Sn 2 mm
Real switching distance sr 2 mm
Repeat accuracy max. (% of Sr) 5.0 %
Switching distance marking ■■
Temperature drift max. (% of Sr) 10 %
Tolerance Sr ±10 %
Assured operating distance Sa 1.6 mm
Hysteresis H max. (% of Sr) 15.0 %
Rated operating distance Sn 2 mm
Real switching distance sr 2 mm
Repeat accuracy max. (% of Sr) 5.0 %
Switching distance marking ■■
Temperature drift max. (% of Sr) 10 %
Tolerance Sr ±10 %
Material
Housing material Stainless steel
Material sensing surface PBT
Mechanical data

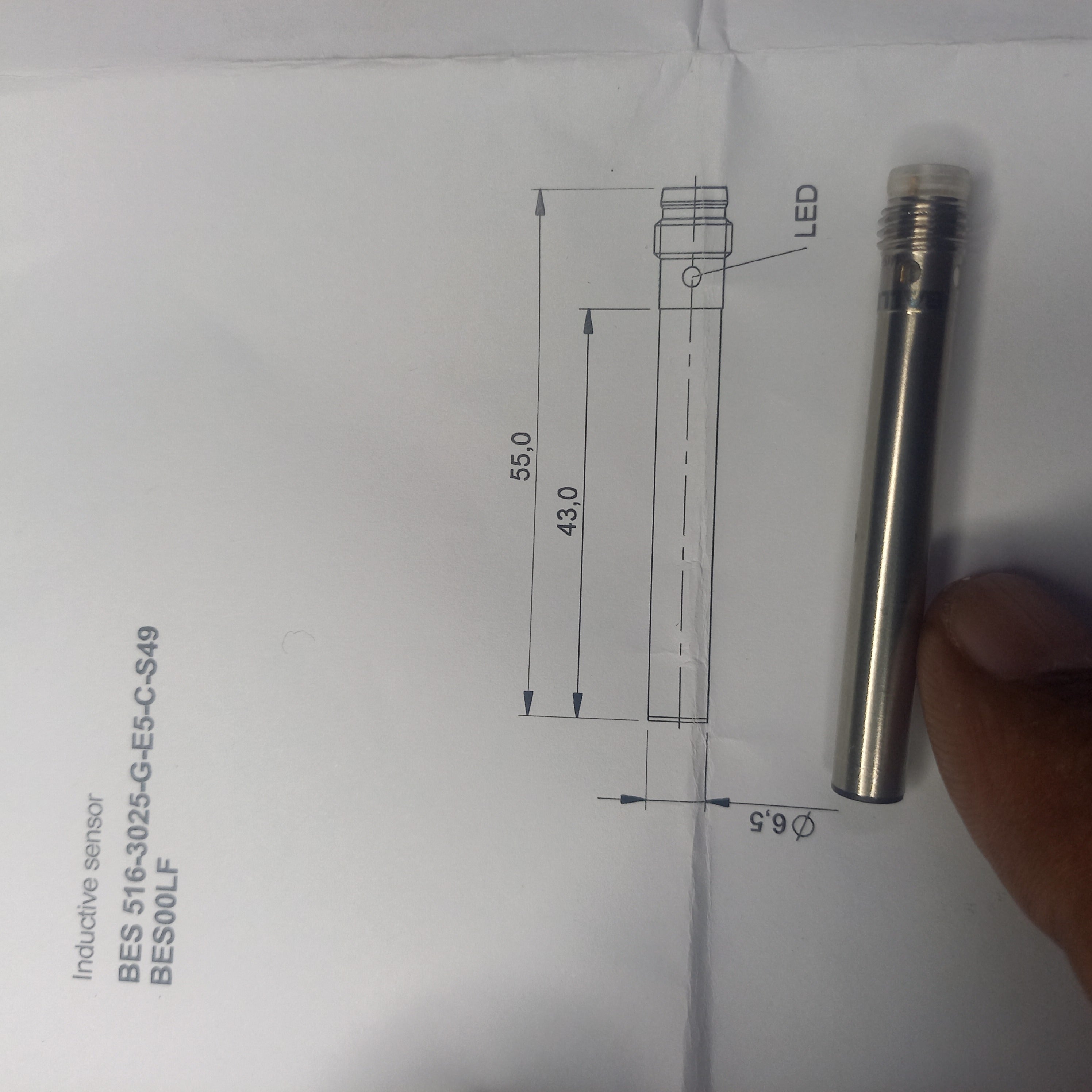

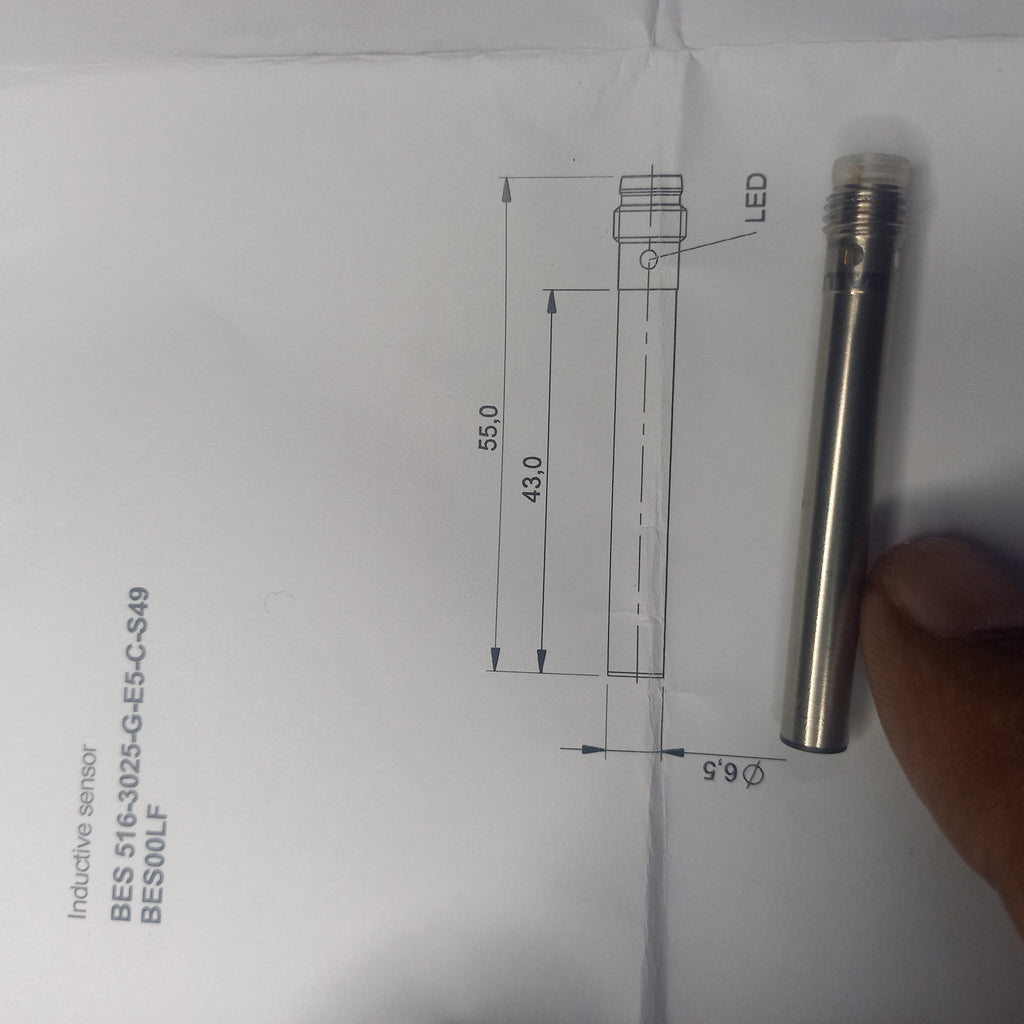

Dimension Ø 6.5 x 55 mm
Installation for flush mounting
Mounting length 42.30 mm
Size D6.5
Housing material Stainless steel
Material sensing surface PBT
Mechanical dataDimension Ø 6.5 x 55 mm
Installation for flush mounting
Mounting length 42.30 mm
Size D6.5
Electrical data
Load capacitance max. at Ue 0.5 μF
Min. operating current Im 0 mA
No-load current Io max., damped 3 mA
No-load current Io max., undamped 11 mA
Operating voltage Ub 10...30 VDC
Output resistance Ra 100.0 kOhm
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 200 mA
Rated operating voltage Ue DC 24 V
Rated short circuit current 100 A
Ready delay tv max. 20 ms
Residual current Ir max. 20 μA
Ripple max. (% of Ue) 15 %
Switching frequency 1500 Hz
Utilization category DC -13
Voltage drop static max. 2.5 V
Environmental conditionsAmbient temperature -25...70 °C
Contamination scale 3
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
IP rating IP67
Functional safety
MTTF (40 °C) 605 a
Interface
Switching output NPN normally closed (NC)
Display/Operation

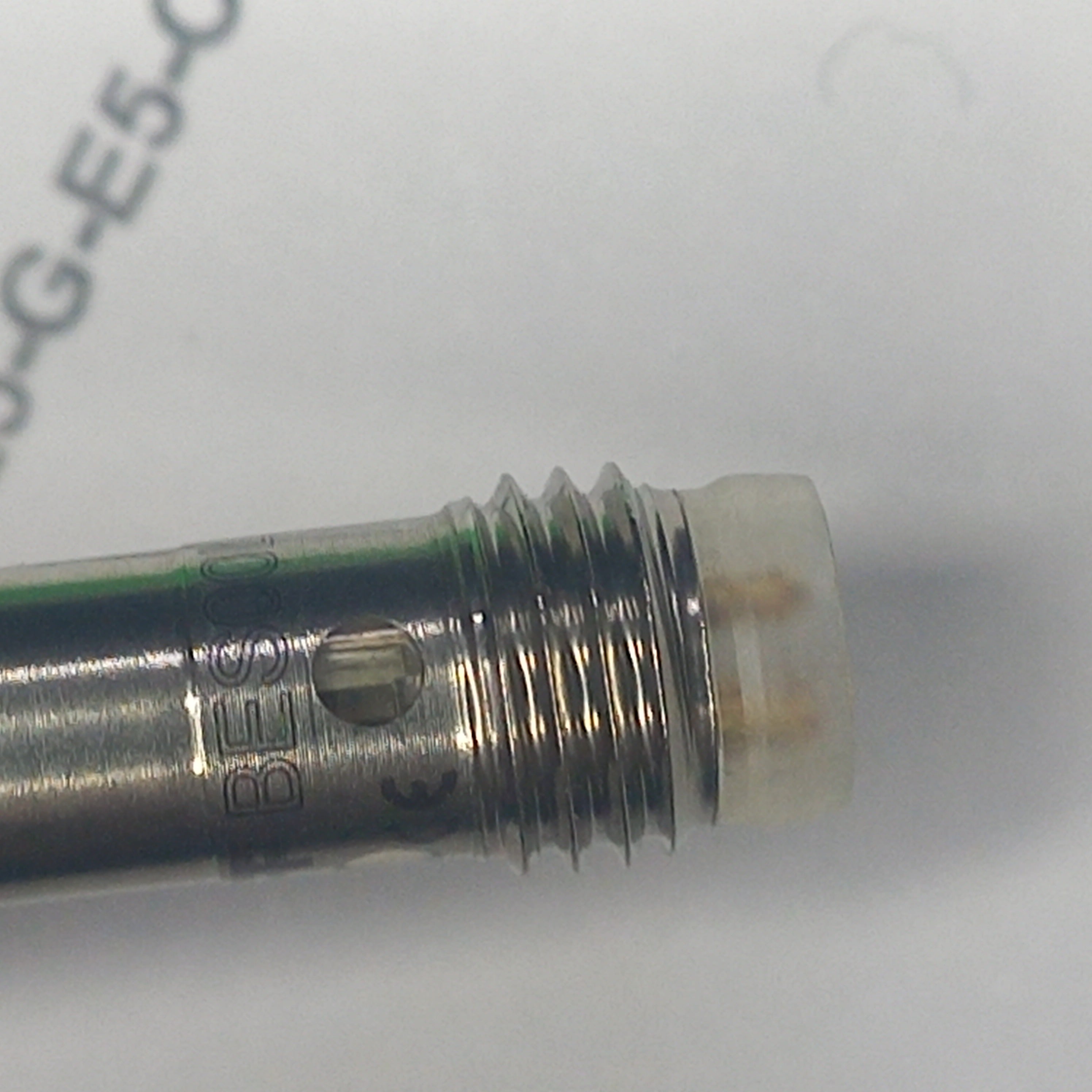

Function indicator yes
Power indicator no
Electrical connection

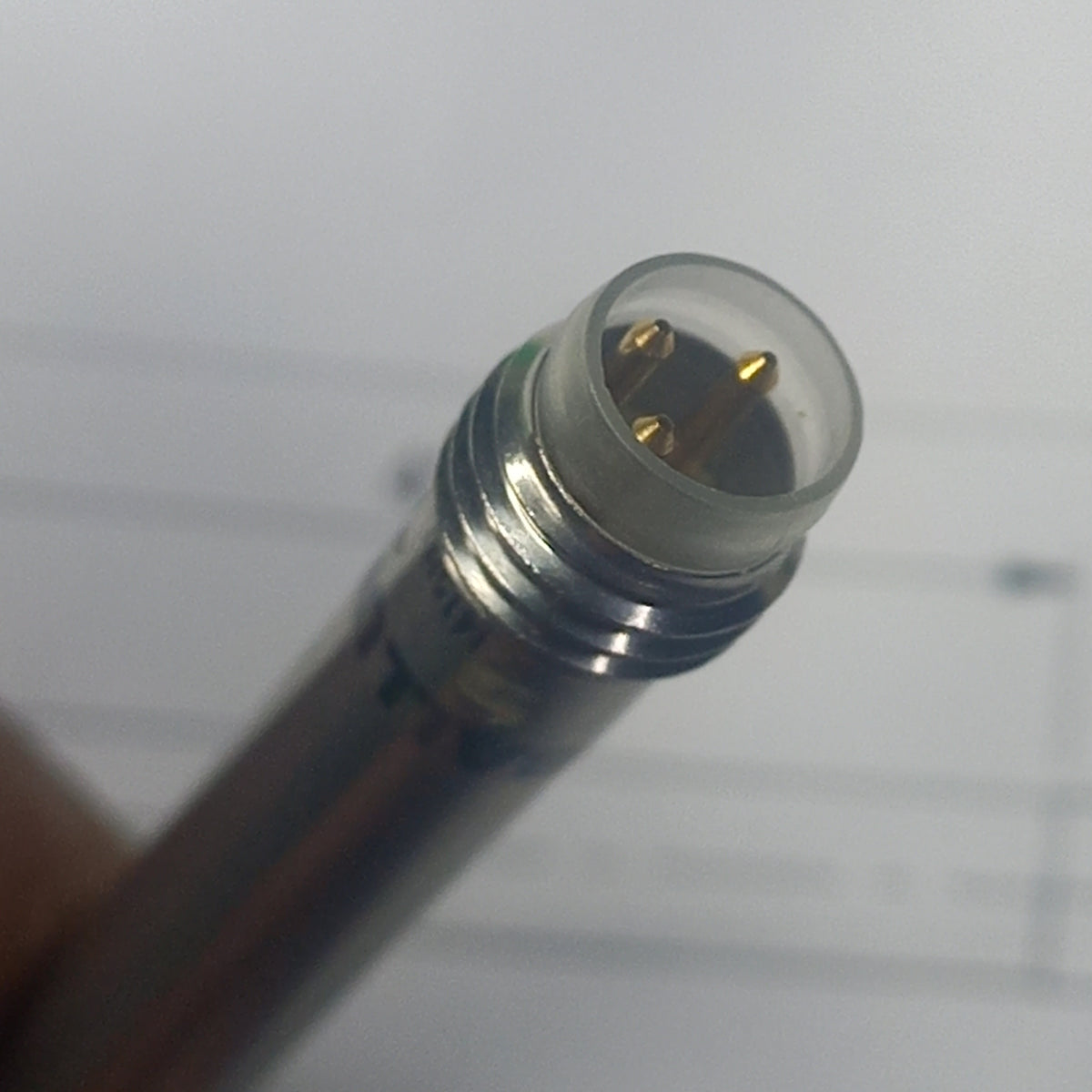

Connection M8x1-Male, 3-pin
Polarity reversal protected yes
Protection against device mix-ups yes
Short-circuit protection yes
Function indicator yes
Power indicator no
Electrical connection
Connection M8x1-Male, 3-pin
Polarity reversal protected yes
Protection against device mix-ups yes
Short-circuit protection yes
- MPN : BES00LF
- Manufacturer indent Nr. : BES00LFBES5163025GE5CS49
- Manufacturer Product number : BESOOLF
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
