SEW Sin/cos Encoder ES7S | EV7S | 13616560 | Baumer OG73 SN 1024

Name: SEW Sin/cos Encoder ES7S | EV7S | 13616560 | Baumer OG73 SN 1024
Brand: SEW Eurodrive | Baumer
SKU: AM788
Price: 1280.00 USD
Availability: InStock

$1,280.00

Taxes included. Shipping calculated at checkout.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

Manufacturer Part Number: OG 73 SN 1024
Manufacturer Alternative MPN ; 136 16 560
Manufacturer Id Nr. 13616560

View Manufacturer Product Page

Download Product Datasheet

SEW EURODRIVE ES7S/EV7S , Order number : 136 16 560

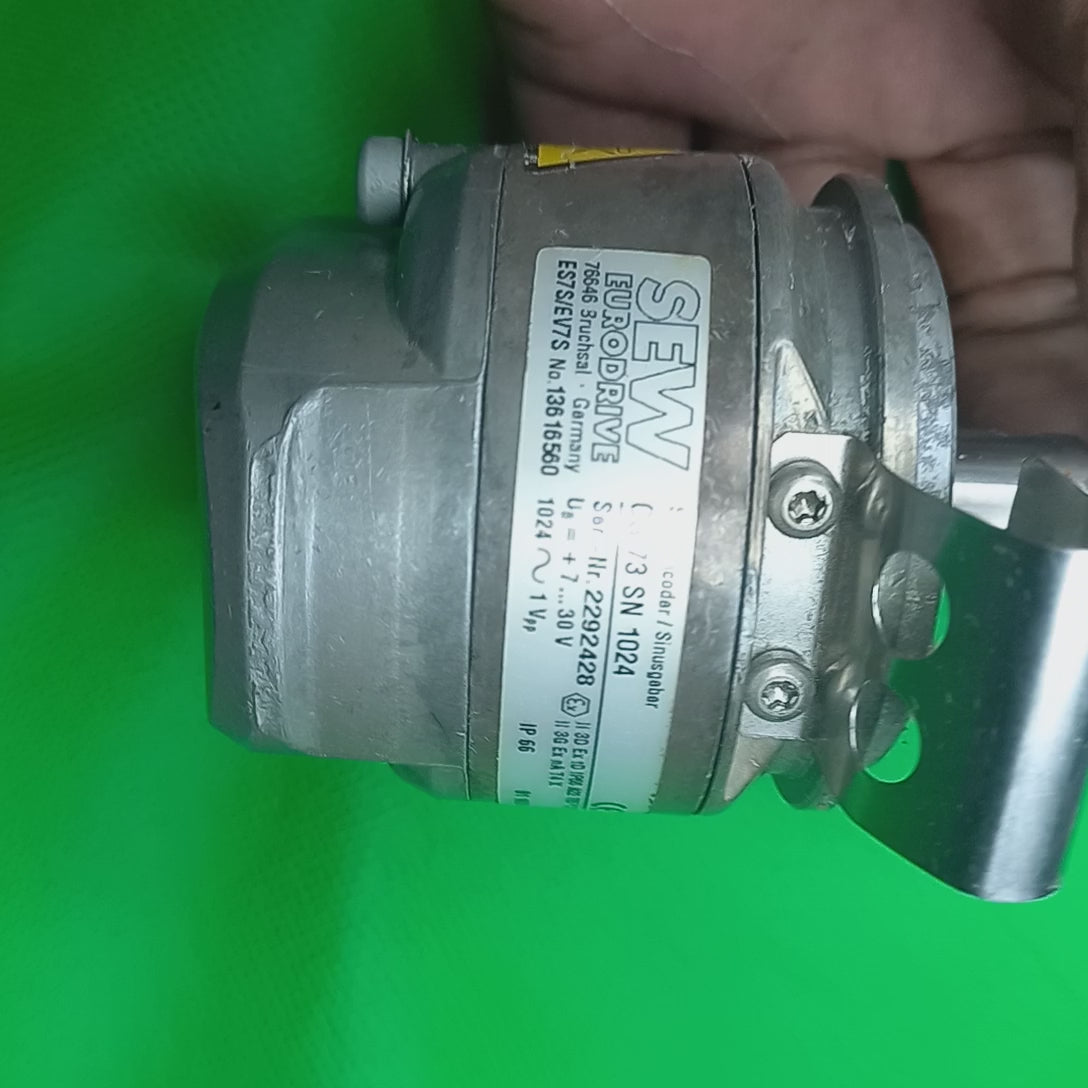

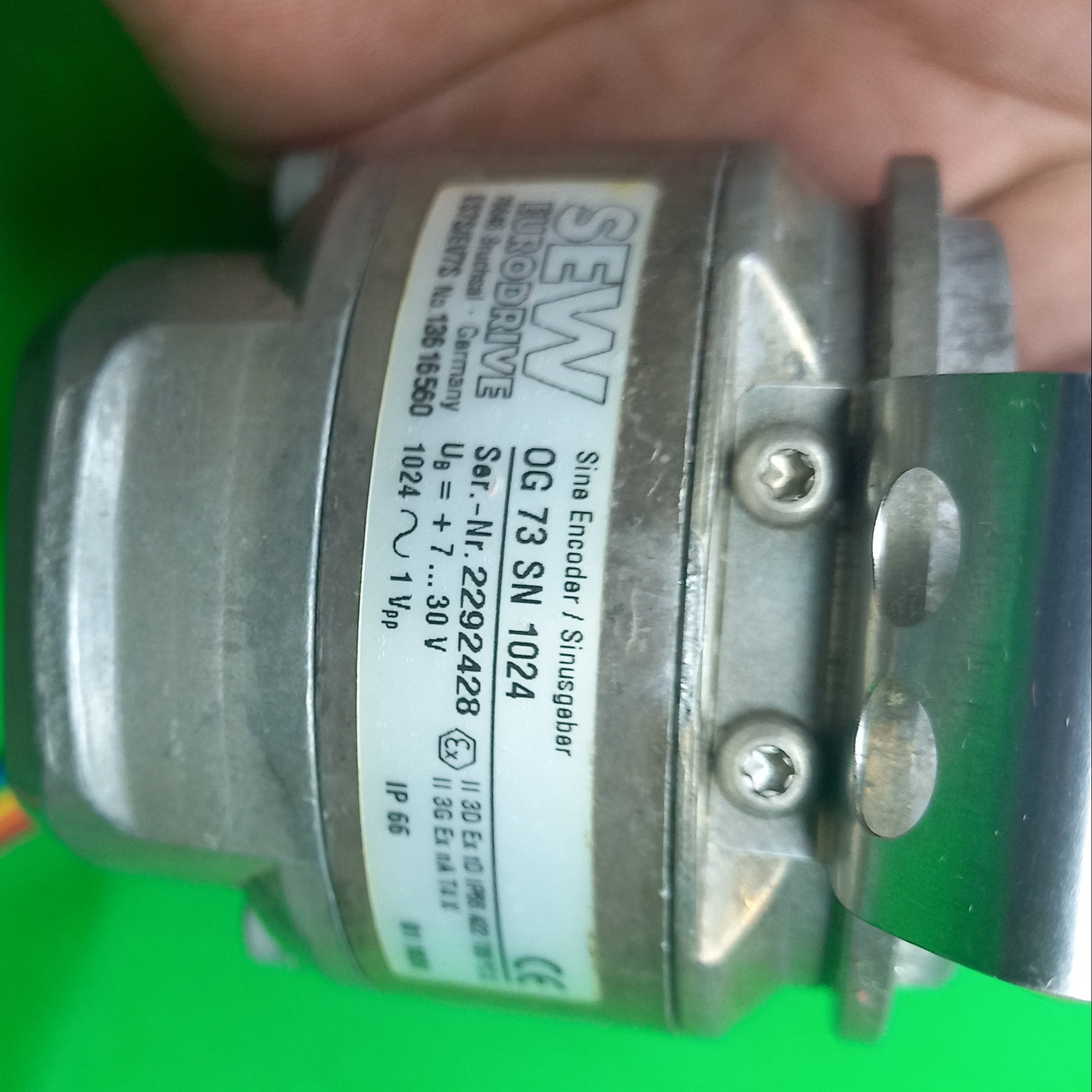

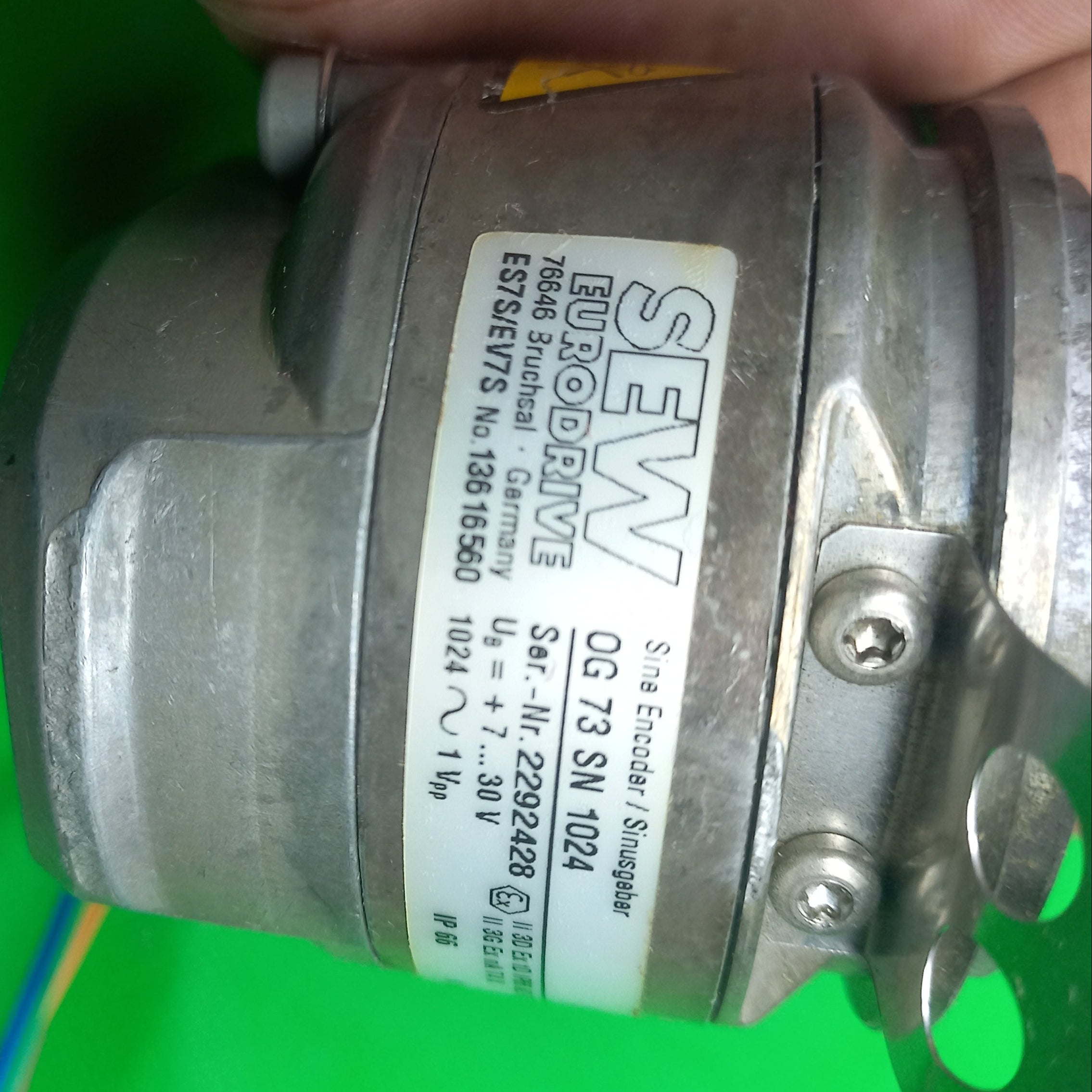

OG 73 SN 1024 , Us: +7..30V, 1024~1Vpp. Sin Encoder Sinusgeber

ES7S, EV7S

Encoder		Size, unit	ES7S	EV7S
Motor series and size			DRN../DRU../DR2.71 – 315
Pulse output			Sin/cos
Supply voltage		U_B	DC 7 V – 30 V	DC 7 V – 30 V
Maximum current consumption, effective value		I_in	140 mA
Maximum pulse frequency		f_max	150 kHz	150 kHz
Incremental tracks; periods per revolution		A, B	1024 (10 bits)
Incremental tracks; periods per revolution		C	1
Position resolution, increments per revolution		A, B	4096 (12 bits)
Output amplitude per track (peak-to-peak)		U_high	1 V
Output amplitude per track (peak-to-peak)		U_low	1 V
Output current per track, effective value		I_out	10 mA
Pulse duty factor in accordance with IEC 60469-1, n = constant			–
Phase offset A : B n = constant			90° ±2°	90° ±2°
Accuracy			0.0194°	0.0194°
Vibration resistance in accordance with EN 60068‑2‑6			≤ 100 m/s² (at 10 Hz to 2 kHz)
Shock resistance in accordance with EN 60068‑2‑27			≤ 1000 m/s²	≤ 1000 m/s²
Maximum speed		n_max	6000 min^-1
Maximum cable length			100 m
Duration until fault message (disabled outputs)			25 ms	25 ms
Activation time of rotary encoder internal diagnostics after switching on			–
Storage temperature		°C	-15 to +70
Maximum angular acceleration			10⁴ rad/s²
Degree of protection according to EN 60529			IP66	IP66
Explosion protection mark ATEX/IECEx			ATEX equipment category 3 (3G, 3D, 3GD) IECEx EPL .c (3G-c, 3D-c, 3GD-c)	ATEX equipment category 3 (3G, 3D, 3GD)IECEx EPL .c (3G-c, 3D-c, 3GD-c)
IECEx certificate of conformity			IECEx IBE 13.0015X	IECEx IBE 13.0015X
Connection			Terminal box on the encoder	Terminal box on the encoder
Maximum degree of pollution during installation work			Degree of pollution 2 (IEC 61010-1, EN 60664-1, VDE 0110-1)
Ambient temperature of motor	DRN../DR2../DRU71 – 132S	°C	-30 to +80 With FS encoder: -30 to +60	–
	DRN../DR2../DRU71 – 225	°C	–	-30 to +80
	DRN../DR2../DRU250/280	°C	–	-30 to +60
	EDRN..	°C	-30 to +60	-30 to +60
Functional safety			✔	–

Product Condition New in Generic Brown Packett:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

Manufacturer indent Nr.ES7S | EV7S
Alternative ways of identifying | Part Numbers | Compatible Parts SEW OG 73 SN 1024
Typographic Errors in MPN | Mistakenly Known as SEW ES7S, SEW EV7S, SEW 13616560, SEW OG73SN1024
