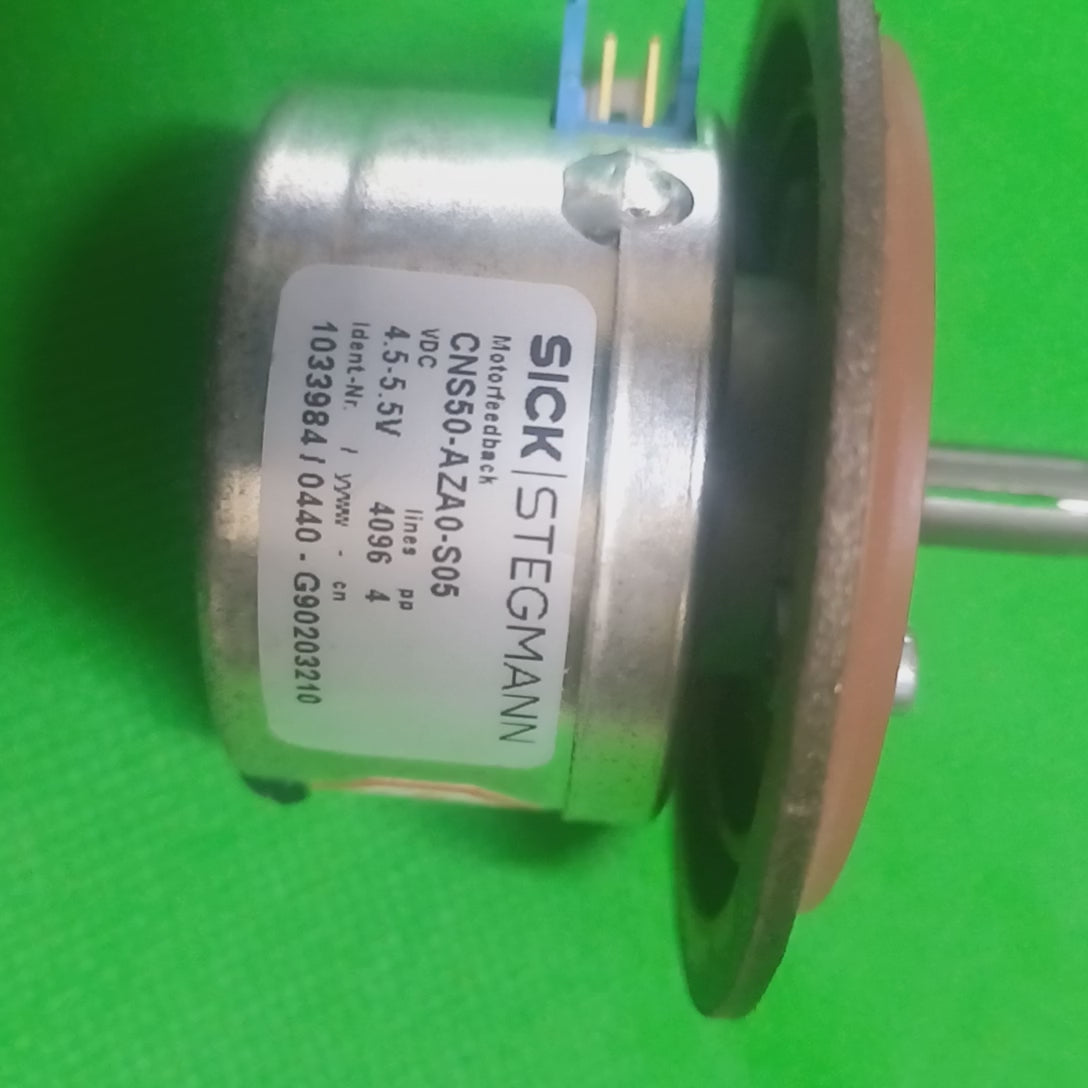

Sick CNS50,7mmshaft;16Pin,4096 lines,4pp, id.nr. 1033984; CNS50-AZA0-S05

Name: Sick CNS50,7mmshaft;16Pin,4096 lines,4pp, id.nr. 1033984; CNS50-AZA0-S05
Brand: Sick
SKU: cNS369
Price: 1280.00 USD
Availability: InStock

$1,280.00

Taxes included. Shipping calculated at checkout.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

Manufacturer Part Number: 103 3 984
Encoder Type: Incremental encoder
Supply voltage 4.5-5 VDC
Encoder ID. NR. Ident. Nr. 1033984
Encoder SIgnal The CNS50 is an incremental motorfeedback series, for servo motors, with commutation signals.

Incremental signal: high resolution, for the speed evaluation
Z Signal (index): for a single turn positioning (after referencing one turn)
Commutation signals: For the commutation of the servo motor (synchron motor) | 4096 | incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | | | Ø 47 mm |

View Manufacturer Product Page

Download Product Datasheet

Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

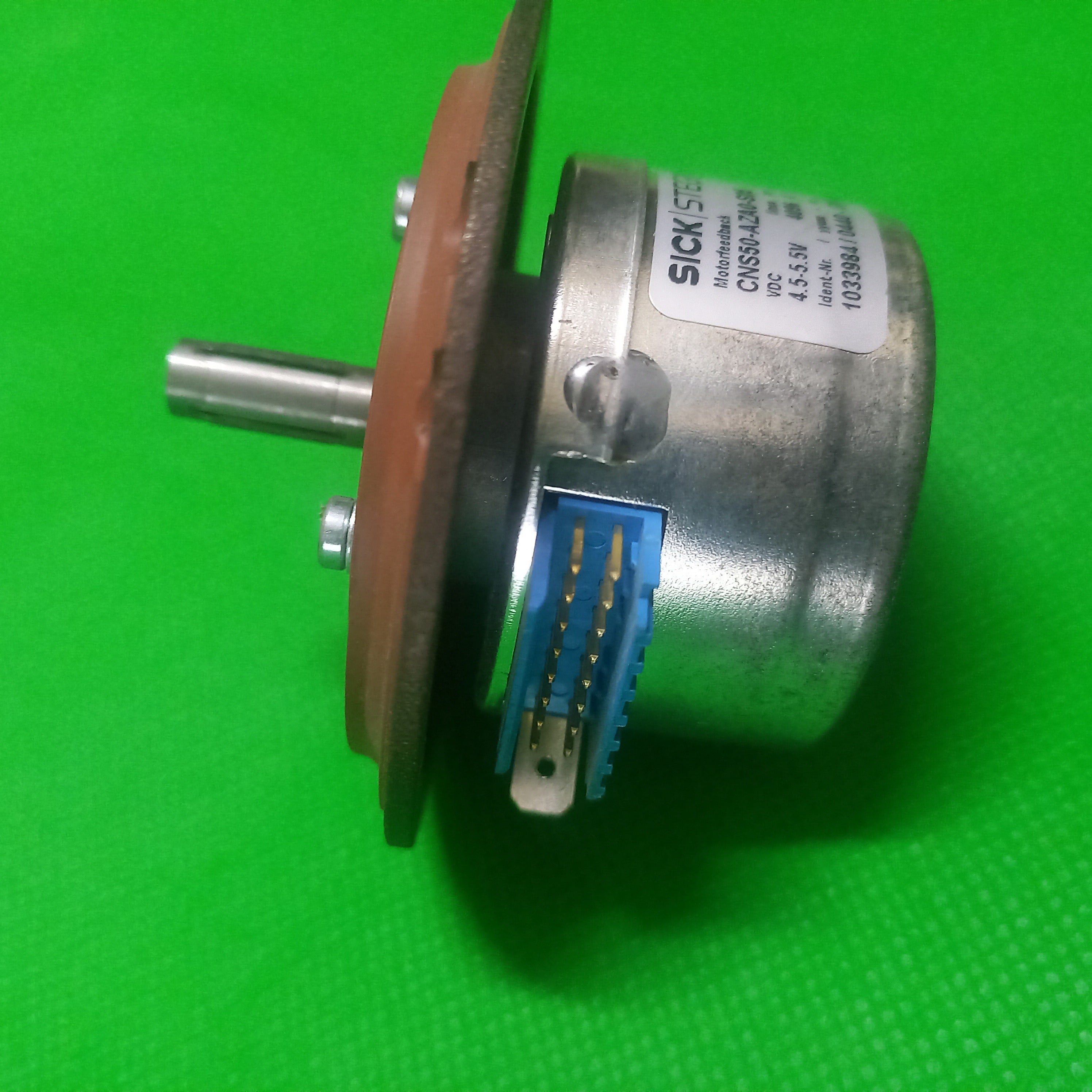

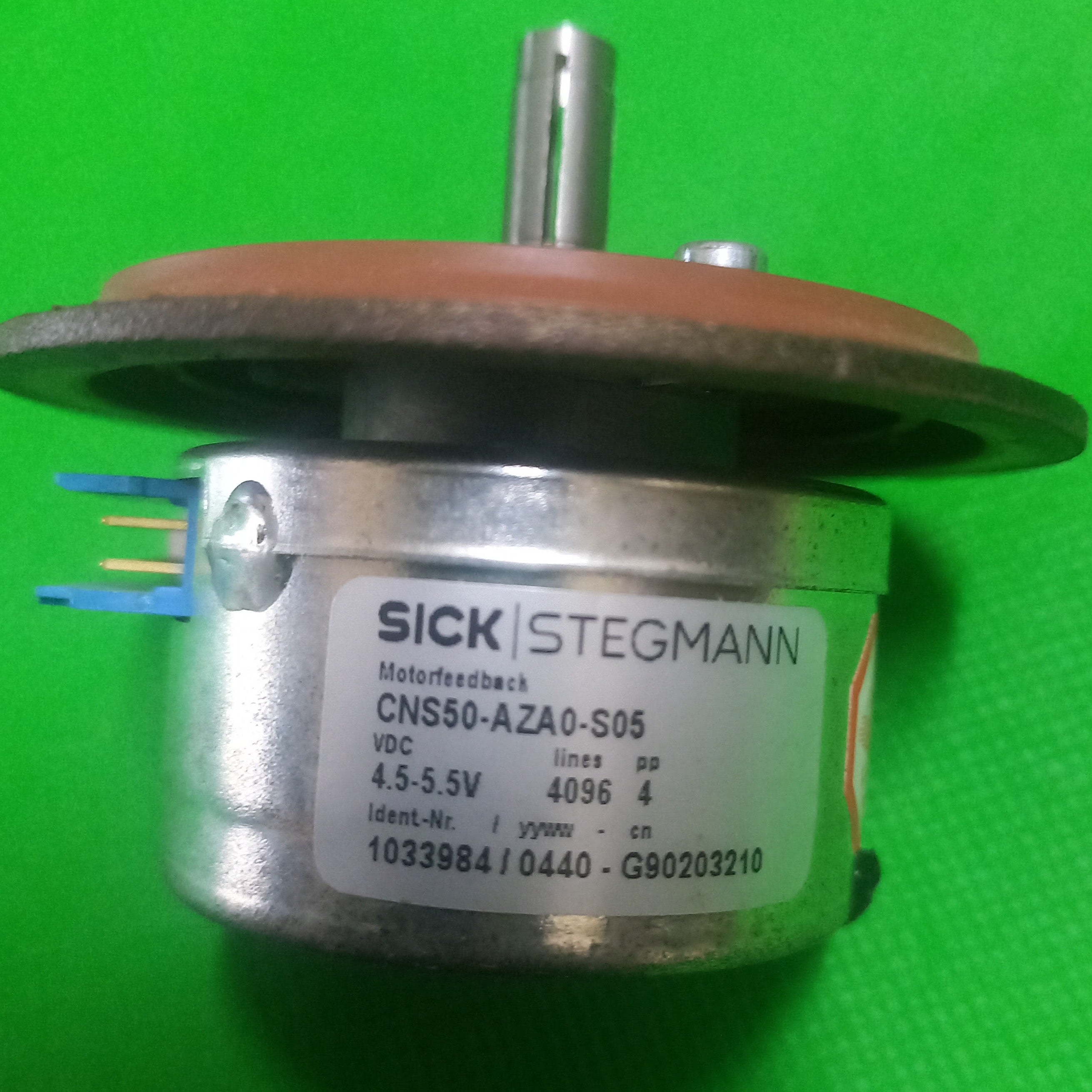

Sick CNS50,7mmshaft;16 Pin,4096 lines,4pp id.nr. 1033984; CNS50 AZA0 S05

Default encoder, which the special encoder is based on: CNS50-AAA012X04
Sick Stegmann CNS 50
7mm Plugin Shaft

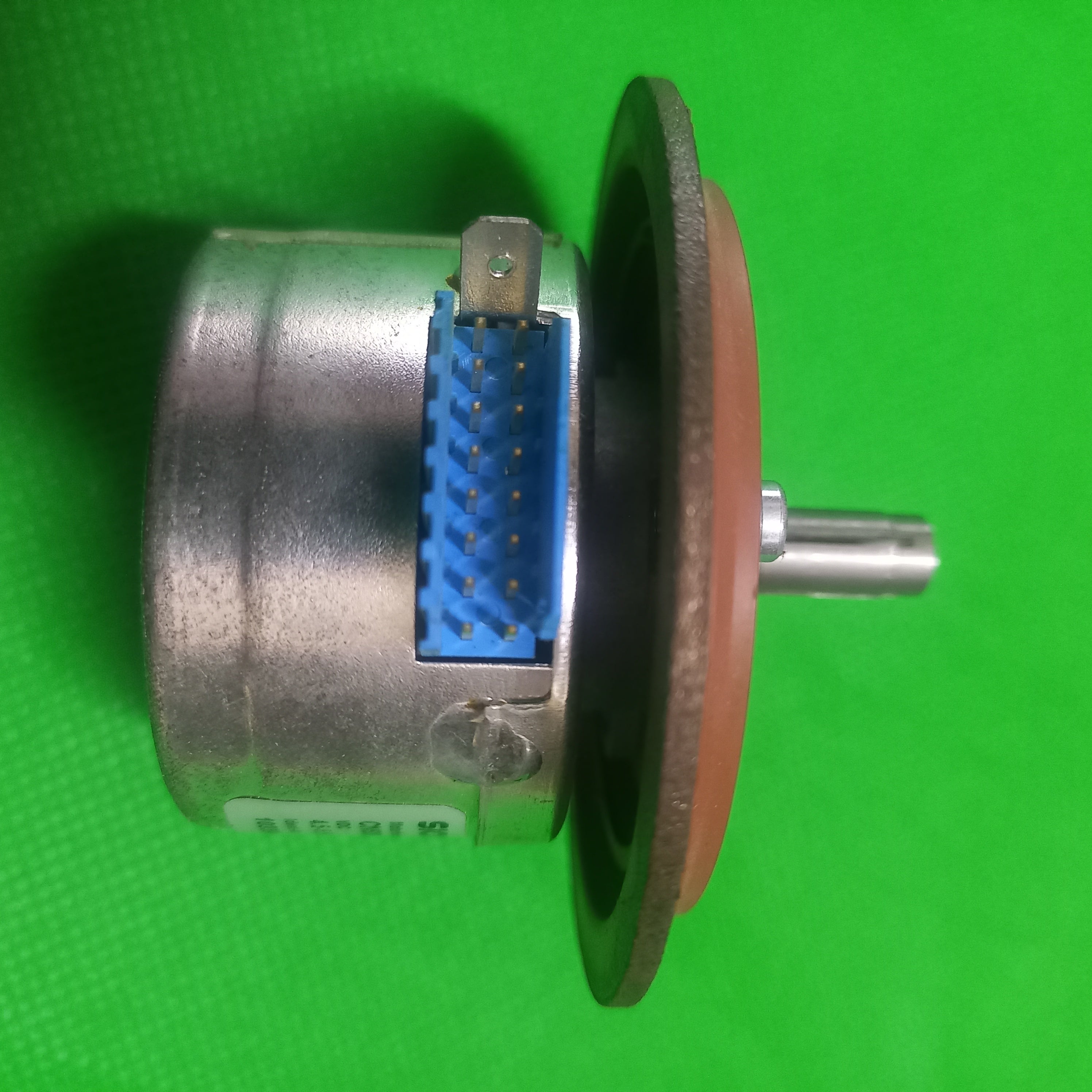

2rowx8 pin =16 pin Connector

Stator Coupling -Round Flange rubber stator coupling
Shaft : 7mm shaft
Connection : Connector ( 2rows x 8pins ) 16 PIn
incremental resolution : 4096
PolePair 04
Default encoder, which the special encoder is based on: CNS50-AAA012X04

The CNS50 is an incremental motorfeedback series, for servo motors, with commutation signals.

Incremental signal: high resolution, for the speed evaluation
Z Signal (index): for a single turn positioning (after referencing one turn)
Commutation signals: For the commutation of the servo motor (synchron motor)

Encoder Type:

Salient | Special features of Encoder: Sick Stegmann CNS 50

Encoder mechanical Design

Increental Encoder Mechanical Design Sick Motorfeedback Mounting option Z = taper with Special ROUND Flange
Incremental Encoder Construction size (flange) Ø 47 mm
Incremental Encoder Shaft diameter 7mm plug in shaft ( sick stegmann)

Encoder Signal Interface | Communication

Incremental Encoder Communication Interface detail incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | |

Performance Data:

Incremental encoder PPR | Impulse | Pulses per revolution4096

incremental Encoder Range of pulses per revolution2501 ... 5.000
Signal Details: The CNS50 is an incremental motorfeedback series, for servo motors, with commutation signals.

Incremental signal: high resolution, for the speed evaluation
Z Signal (index): for a single turn positioning (after referencing one turn)
Commutation signals: For the commutation of the servo motor (synchron motor)

Connection Details of encoder

Connection type (Detail)
Direction of connection

Mounting Arrangement for Encoder Body

- Check Datasheet or Contact us

Manufacturer Alternative MPNCNS 50-AZA0-S05
Manufacturer indent Nr.CNS50-AAA012X04 103 3 968
1 Manufacturer Part Number (MPN) 103 3 984
Alternative ways of identifying | Part Numbers | Compatible Parts CNS50-AAA012X04_1033968
Typographic Errors in MPN | Mistakenly Known as CNS 50-AZAO-SO5

Ships from DUBAI

Ready Stock - Collect from Ajman store today
