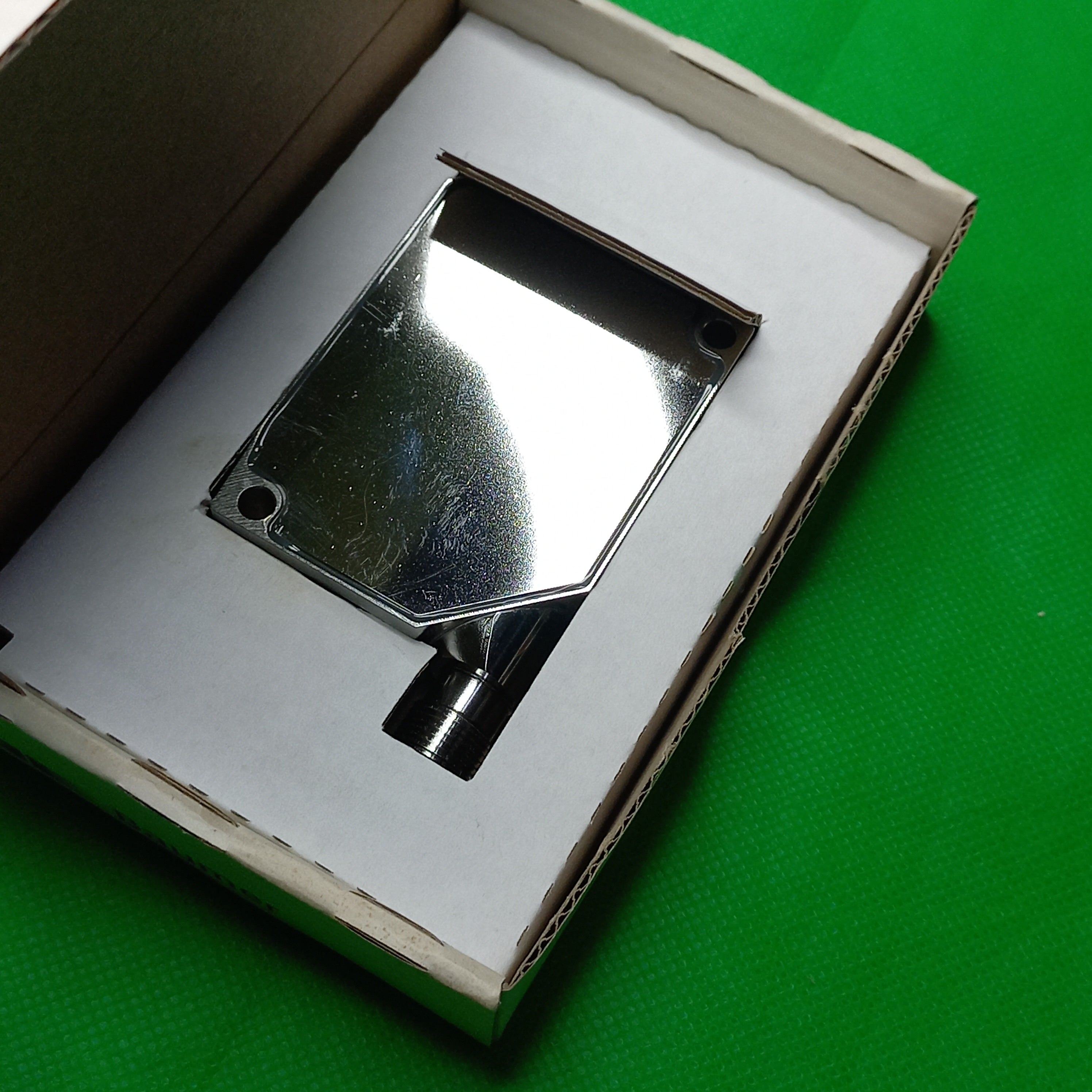

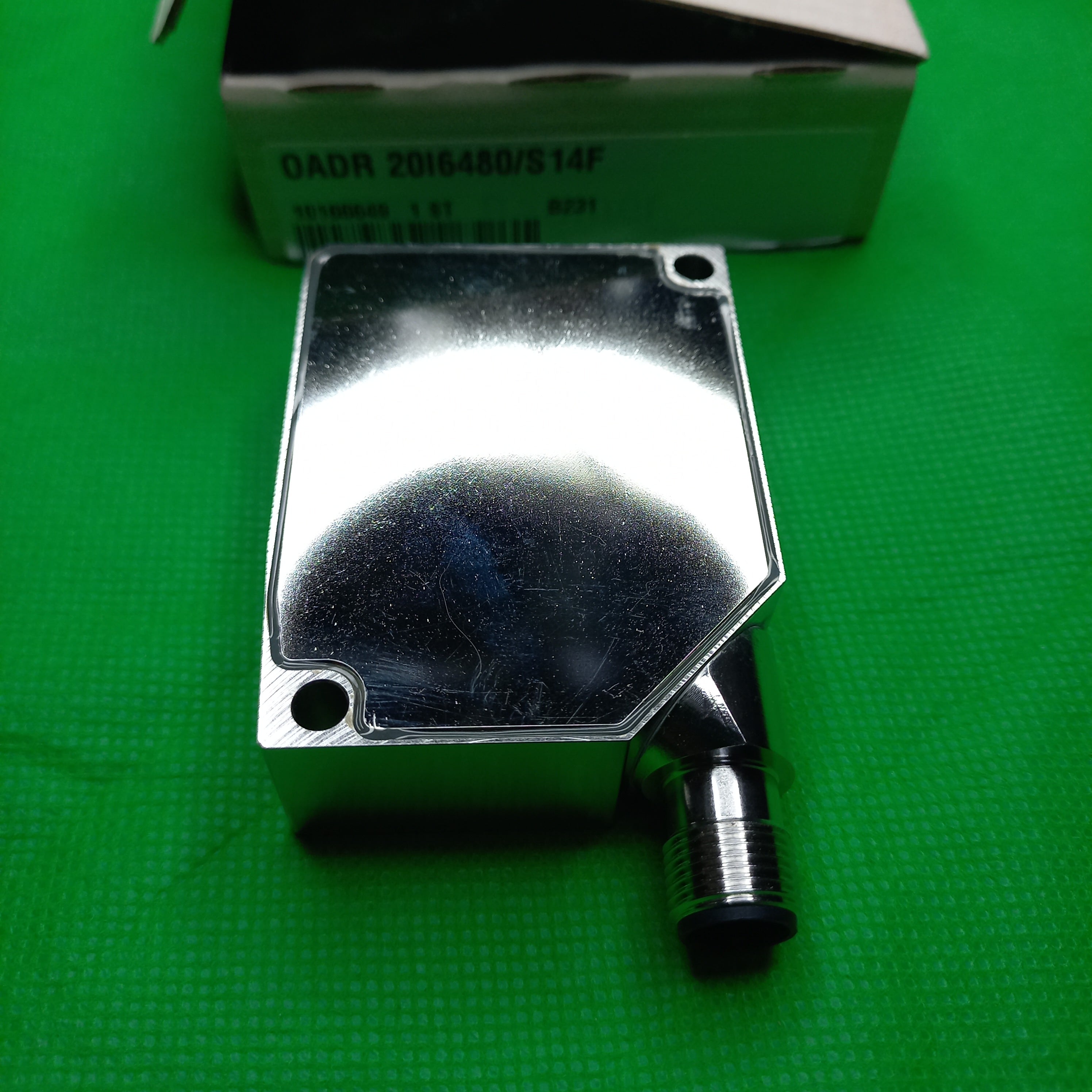

Baumer OADR Laser Distance Sensor 100-600mm, OADR 20I6480/S14F, OADR 2016480/S14F
$2,300.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Baumer OADR Laser Distance Sensor 100-600mm, OADR 20I6480/S14F, OADR 2016480/S14F
$2,300.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Baumer
- Sensor Type: Distance Sensor (Laser, variable sensing range)Photoelectric sensor
- Sensor Dimensions: 65mmx50mmx20.3mm
- Sensor Interface:
- Sensor Range : 100 ... 600 mm ( measuring distance Sd)
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Photoelectric sensors / Distance sensors / OADR 20 (Laser, variable sensing range)
Baumer OADR 20I6480/S14F ; OADR20i6480/S14F Laser Distance Sensor
Baumer OADR 20I6 480 S14F has a Measuring distance Sd 100 … 600 mm
- order reference : OADR20I6480S14F
- measuring distance Sd : 100..600mm
- beam diameter : 2mm
- beam type : Point.
general data
- adjustment external
- power on indication LED green
- soiled lens indicator LED red / LED red blinking
- light source pulsed red laser diode
- wave length 650 nm
- laser class 2
- measuring distance Sd = 30 ... 130 mm
- Teach-in range min. > 3 mm
- resolution 0,005 ... 0,06 mm
- linearity error ± 0,015 ... ± 0,2 mm
- measuring distance Sd = 50 ... 300 mm
- Teach-in range min. > 5 mm
- resolution 0,01 ... 0,33 mm
- linearity error ± 0,03 ... ± 1 mm
- measuring distance Sd = 100 ... 600 mm
- Teach-in range min. > 10 mm
- resolution 0,015 ... 0,67 mm
- linearity error ± 0,05 ... ± 2 mm
Electrical data
- response time / release time < 0,9 ms
- voltage supply range +Vs 12 ... 28 VDC
- current consumption max. 100 mA
- output circuit analog
- output signal 4 ... 20 mA / 0 ... 10 VDC
- load resistance (analog I) < (+Vs - 6 V) / 0,02 A
- load resistance (analog U) > 100 kOhm
- output current < 100 mA
- alarm output PNP
- short circuit protection yes
- reverse polarity protection yes, Vs to GND
mechanical data
- width / diameter 20,3 mm
- height / length 65 mm
- depth 50 mm
- type rectangular
- housing material stainless steel 1.4404 (A4)

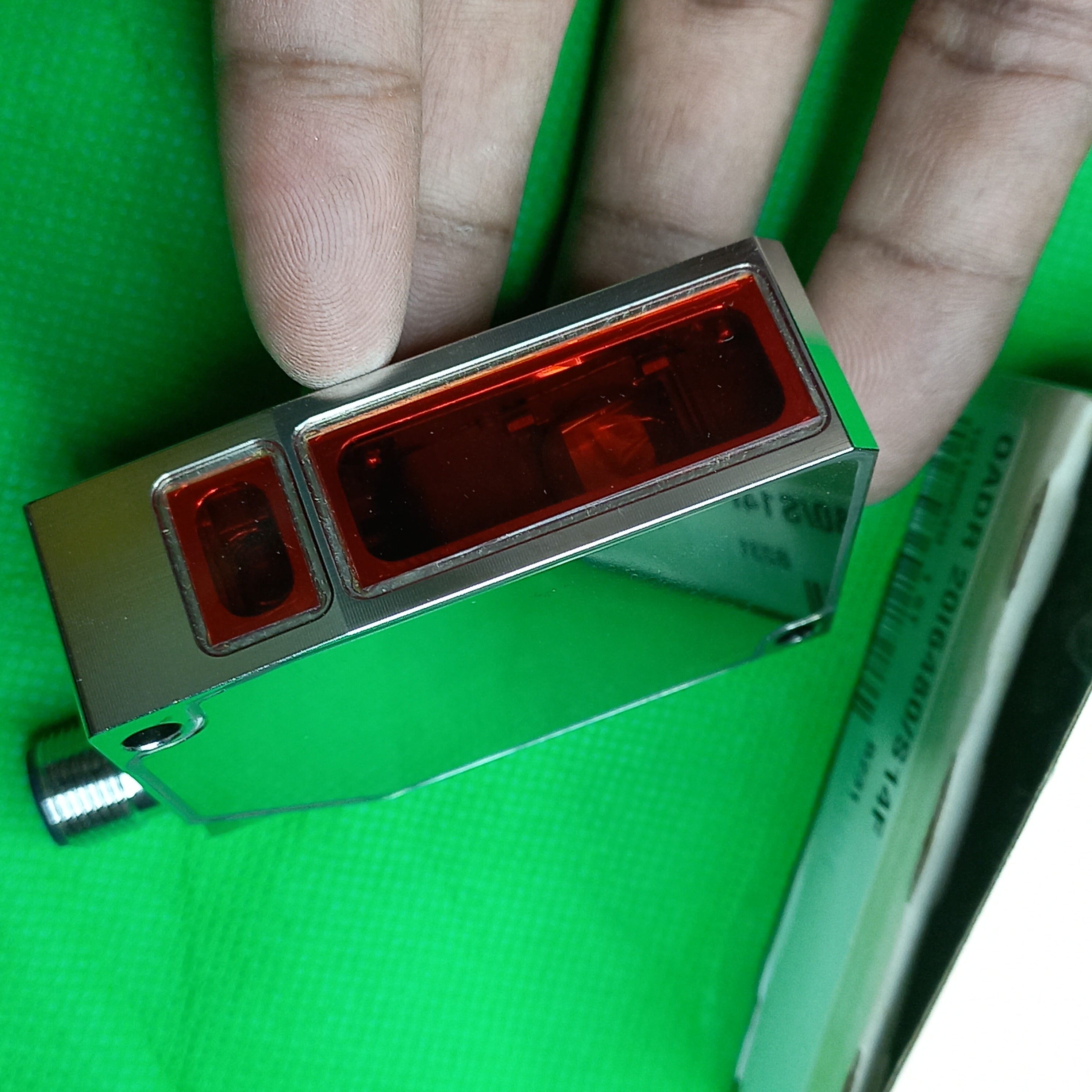

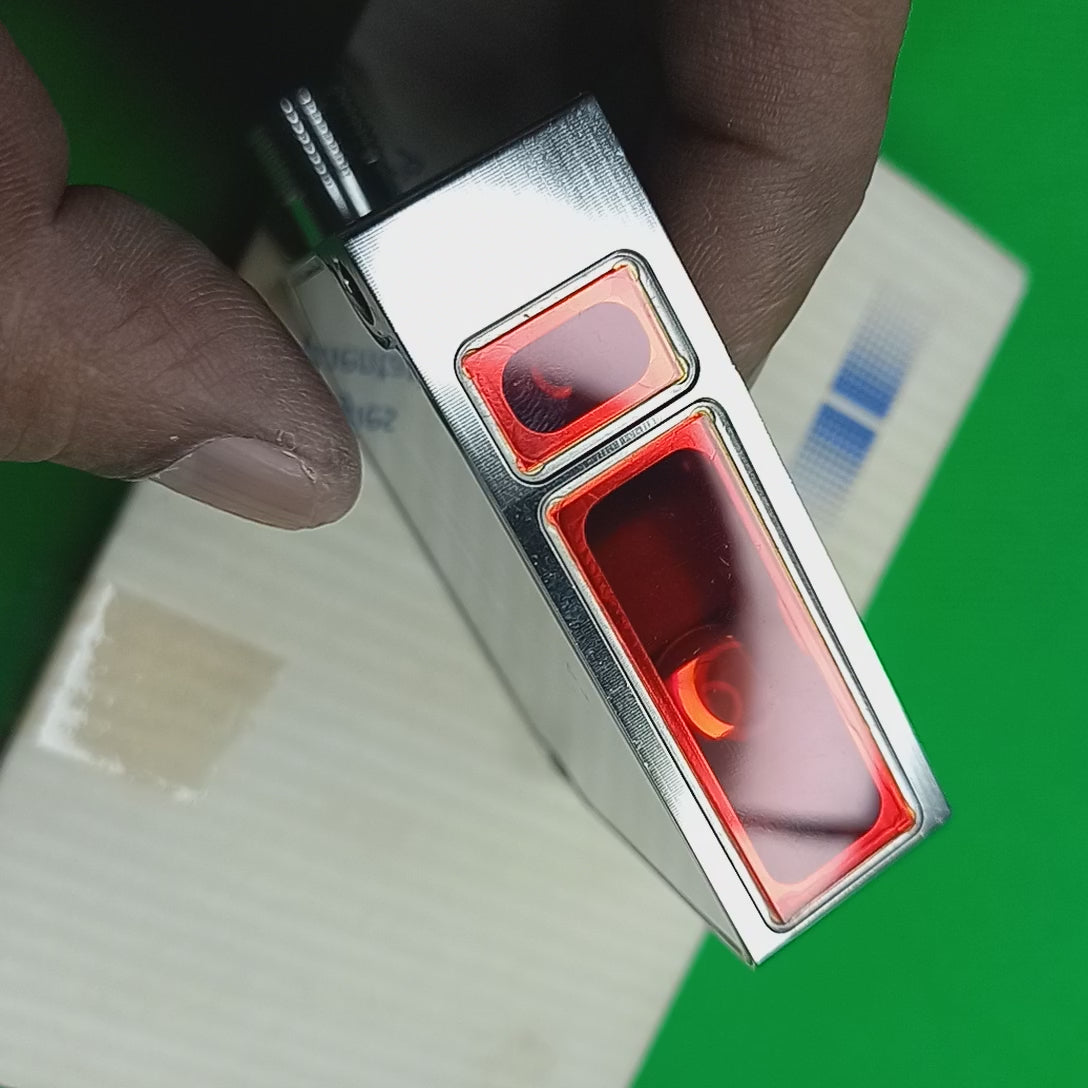

- front (optics) PMMA
- connection types connector M12 8 pin, rotatable
ambient conditions
- operating temperature 0 ... +50 °C
- protection class IP 69K
- MPN : OADR 20i6480/S14F
- Manufacturer indent Nr. : OADR 20i6480/S14FOADR 2016480/S14F
- Manufacturer Product number : 0ADR 20i6480/S14F
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
