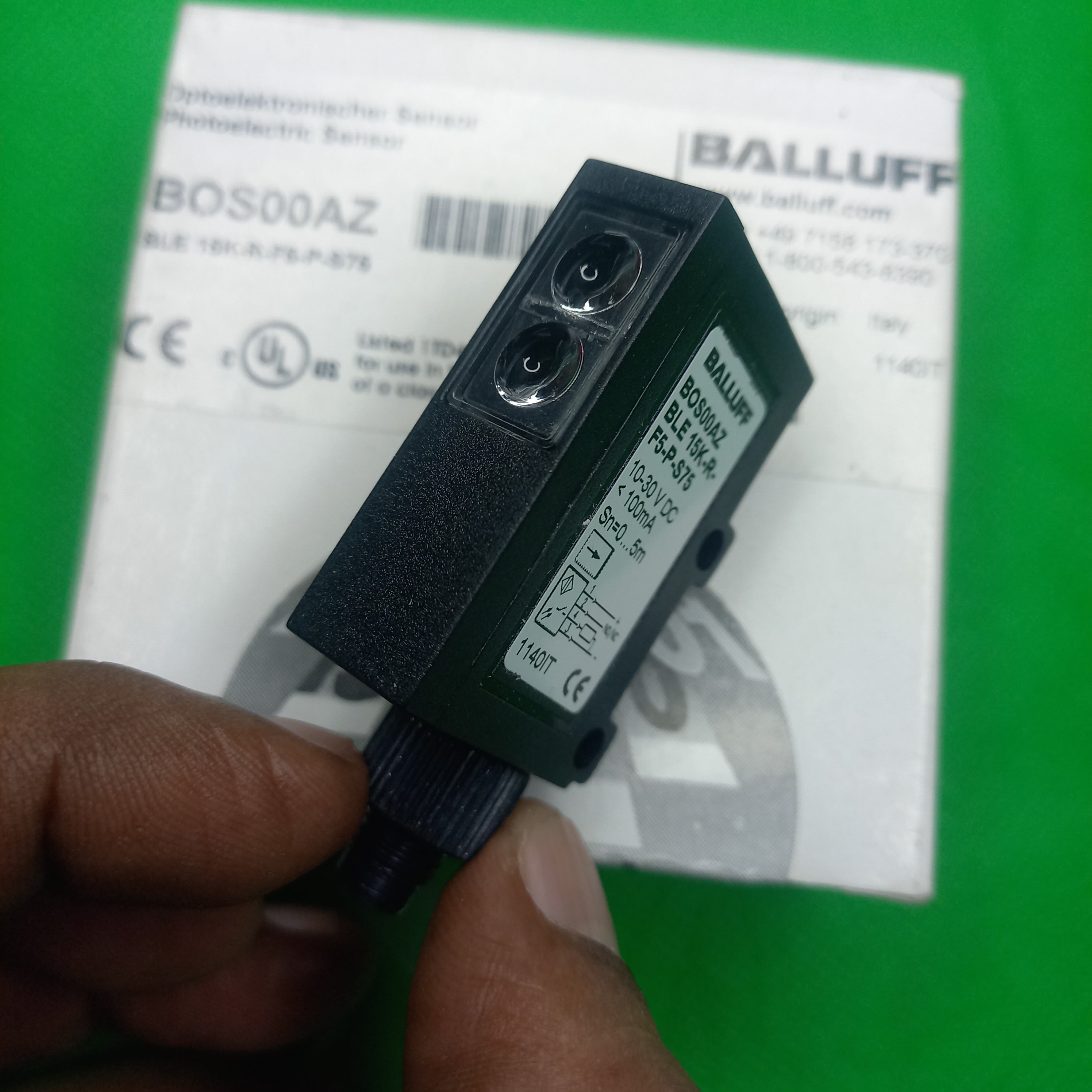

Balluff, Series 15K, Photoelectric Sensors | BLE 15K-R-F5-P-S75  | Order Code: BOS00AZ

Range/Distance

• Range 0...5 m

• Rated operating distance Sn 5 m, Adjustable

Optical features

• Ambient light max. 3000 Lux

• Light type Infrared

• Principle of optical operation Through-beam sensor (receiver)

• Switching function, optical dark-on/light-on

Interface

• Switching output PNP normally open/normally  closed (NO/NC)

• Material Housing material ABS
• Material sensing surface PMMA

Mechanical data

• Dimension 13 x 59.5 x 29 mm
• Mounting part Screw M3

Electrical data
Load capacitance max. at Ue 0.5 µF
No-load current Io max. at Ue 30 mA
Operating voltage Ub 10...30 VDC
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 100 mA
Rated operating voltage Ue DC 24 V
Ripple max. (% of Ue) 8 %
Switching frequency 250 Hz
Turn-off delay toff max. 2 ms
Turn-on delay ton max. 2 ms
Utilization category DC -13
Voltage drop Ud max. at Ie 1.5 V

Environmental conditions
Ambient temperature -15...55 °C
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms, 3x6
EN 60068-2-6, Vibration 10…55 Hz, amplitude 1.5 mm, 3x2h
IP rating IP66

Basic features
Approval/Conformity CE
WEEE
Basic standard IEC 60947-5-2
Principle of operation Photoelectric sensor
Reference emitter BLS 15K-R-G5-..
Series 15K
Style Square
Connection 90°
Display/Operation
Adjuster Potentiometer 270°
Display Output function - LED red
Stability - LED green
Setting Sensitivity (Sn)
Electrical connection
Connection Connector, M8x1-Male, 4-pin
Polarity reversal protected yes
Short-circuit protection yes
