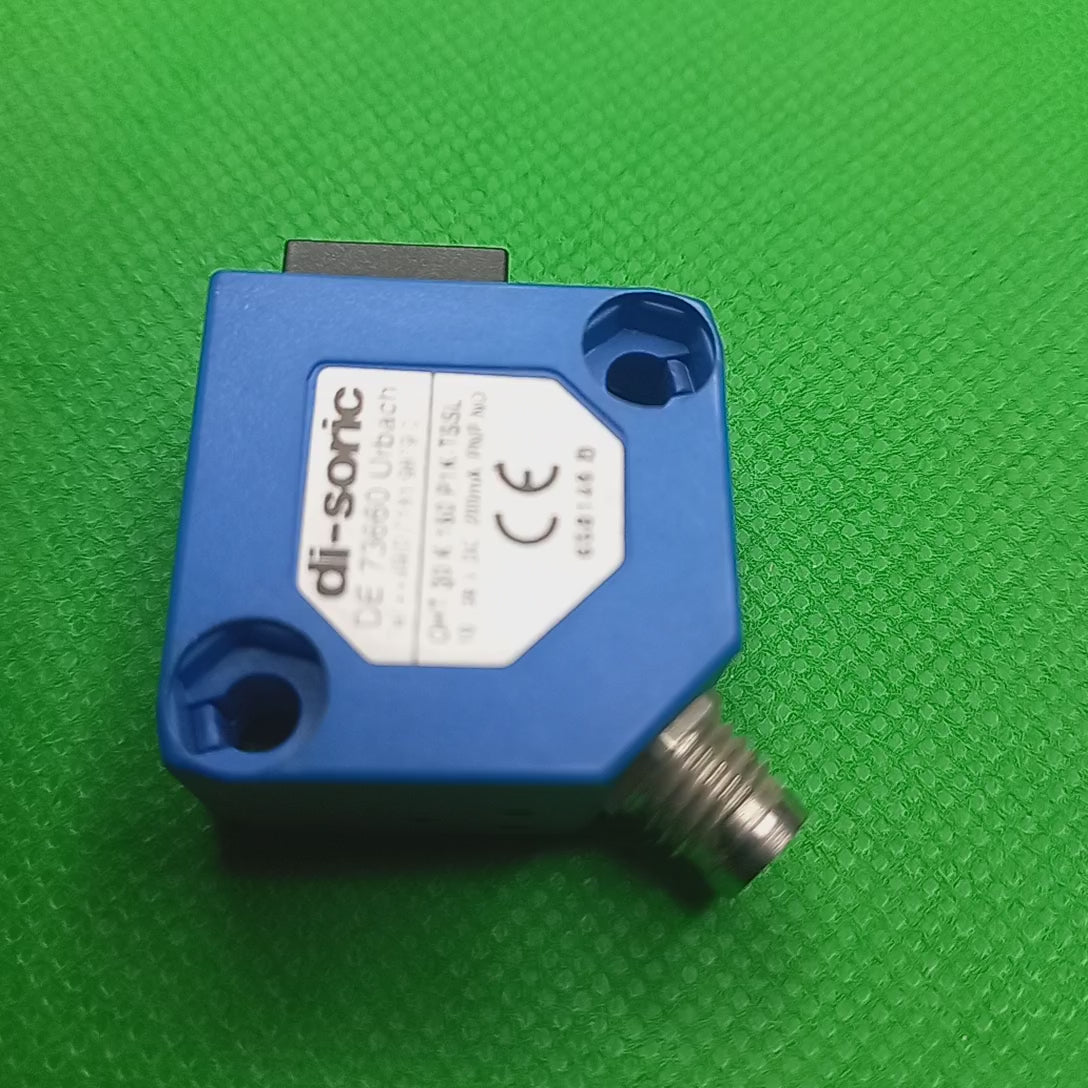

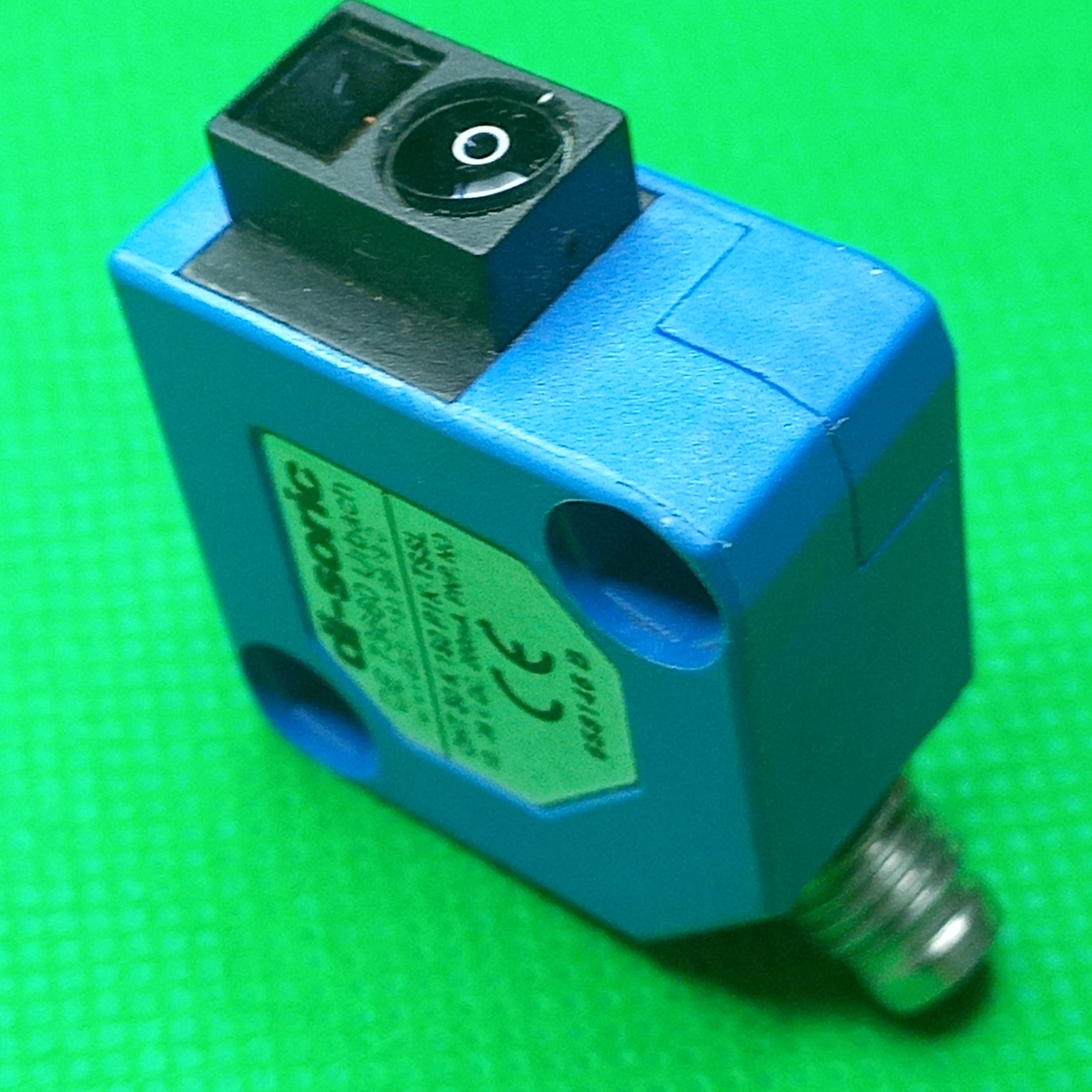

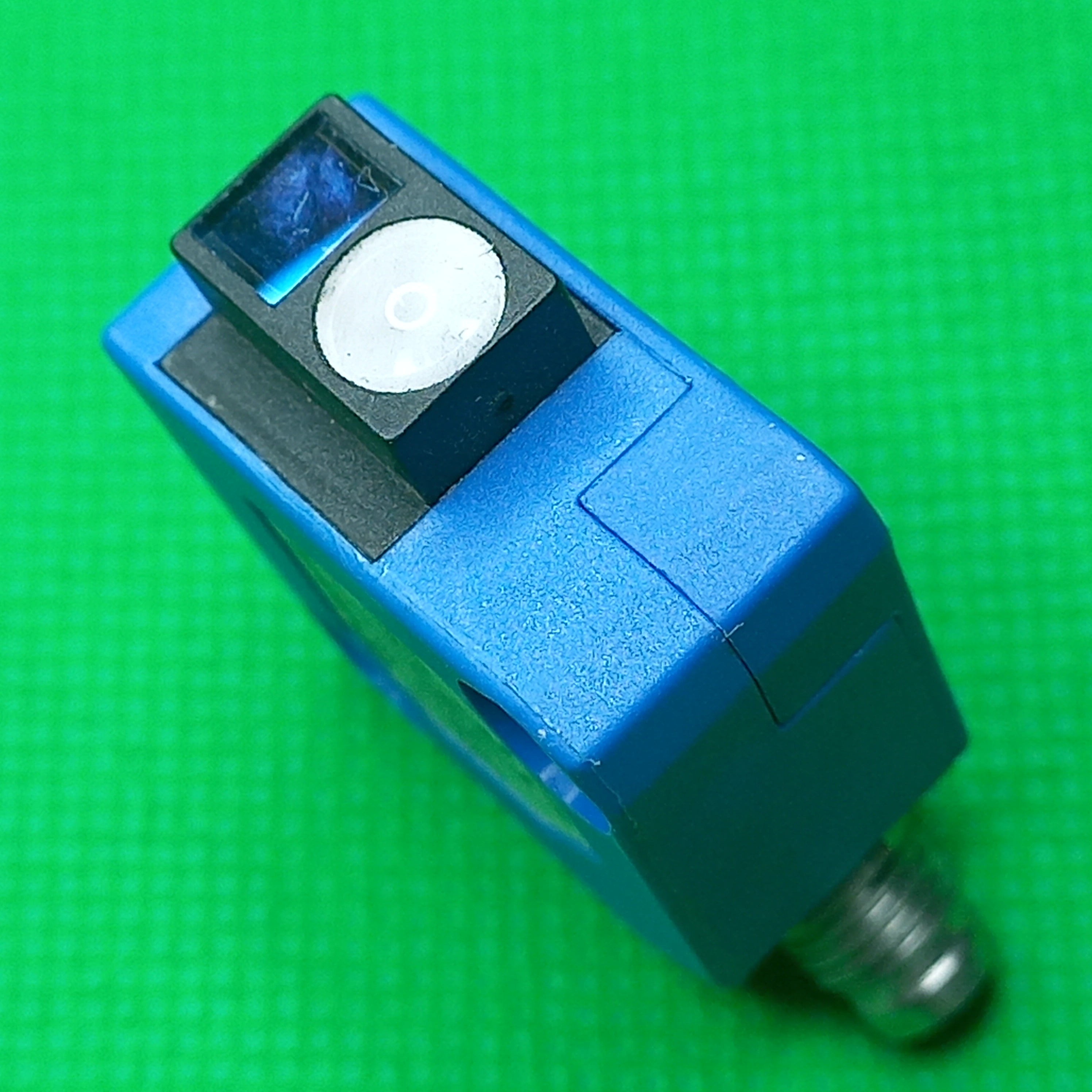

Di-Soric 201420, OHT30 K 150 P1K-TSSL, Diffuse sensor with background suppression

DiSoric 201420 OHT30K 150 P1K-TSSL Diffuse sensor with PNP, NO, 10-36V DC, 200mA

20 1 420
OHT30K150 P1K-TSSL
Diffuse sensor with background suppression
■ Compact design
■ Red light
■ 12-turn potentiometer
■ Background suppression
■ Sensitivity adjustable, large operating distance

Technical data (typ.) +20°C, 24 V DC
Electrical features
Service voltage 10 … 36 V DC
No-load current (max.) 25 mA
Insulation voltage endurance 1000 V
Mechanical features

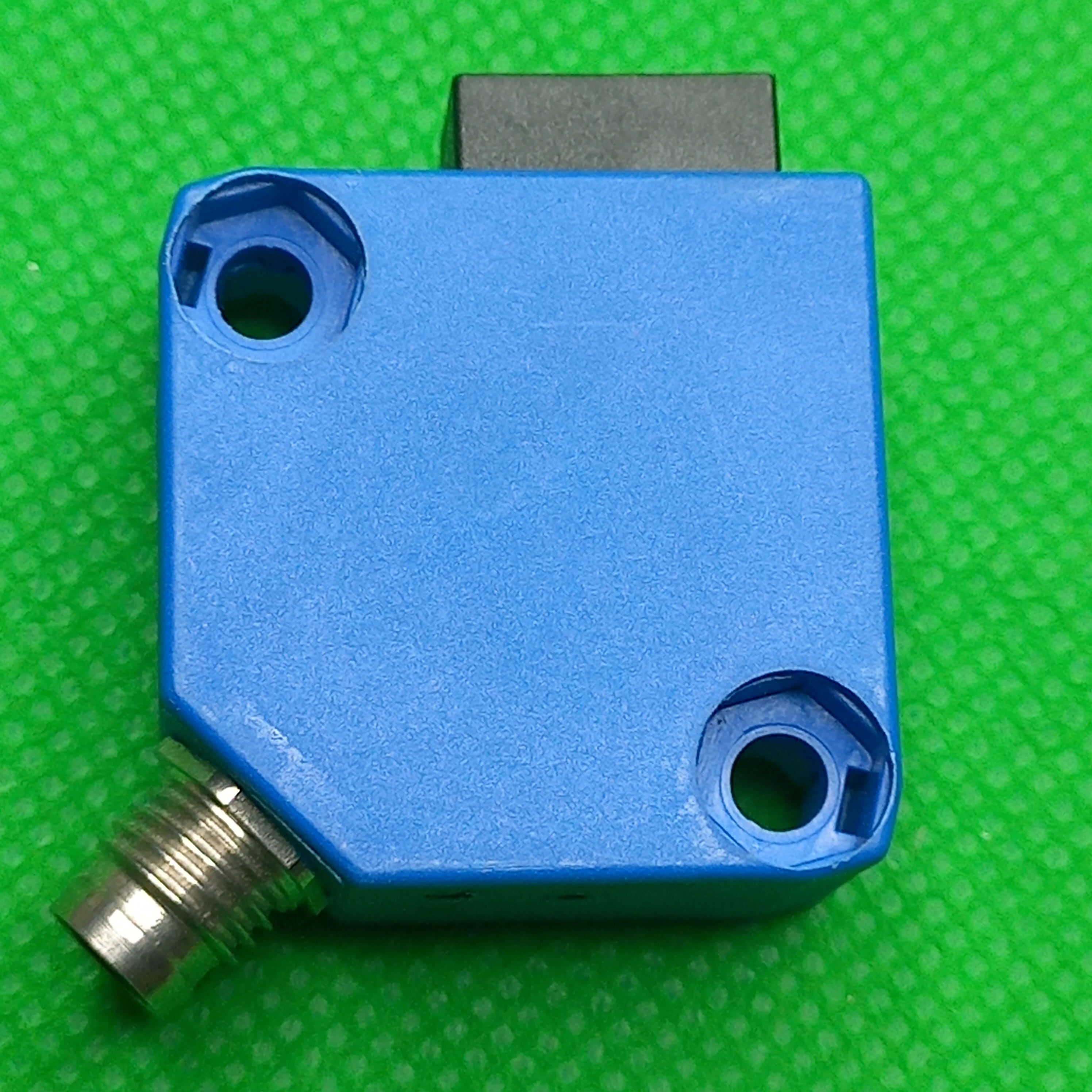

Housing dimensions 30 x 30 x 15 mm
Housing length 30 mm
Housing height 30 mm
Housing width 15 mm
Housing material Plastic
Material Glass (Window)
Certifications, approvals
Protection class III, operation on protective low voltage
Approvals UL
General features
Operating principle Diffuse sensor with background suppression
Evaluation digital
Design Cuboid design
Output, input, interface :  Switching output pnp, 200 mA, NO
Voltage drop (max.) 2 V

Technical data (typ.) +20°C, 24 V DC
Optical data
Light source LED
Color Red
Wavelength 660 nm
Modulation Clocked
Background suppression Yes
Ambient light immunity 10 kLx
Detection range, measuring range, tolerance limits
Range 15 … 150 mm
Standardized measuring plate 100 x 100 mm (white)
Switching hysteresis (max.) 10 %
Display, operation
Sensitivity adjustment Potentiometer
Time behavior
Switching frequency 500 Hz
Response time 1.0 ms
Release time 1.0 ms
Ambient conditions
Ambient temperature during operation -25 … +55 °C
Temperature drift 0.3 %/K
Protection type IP 65
Electrical connection

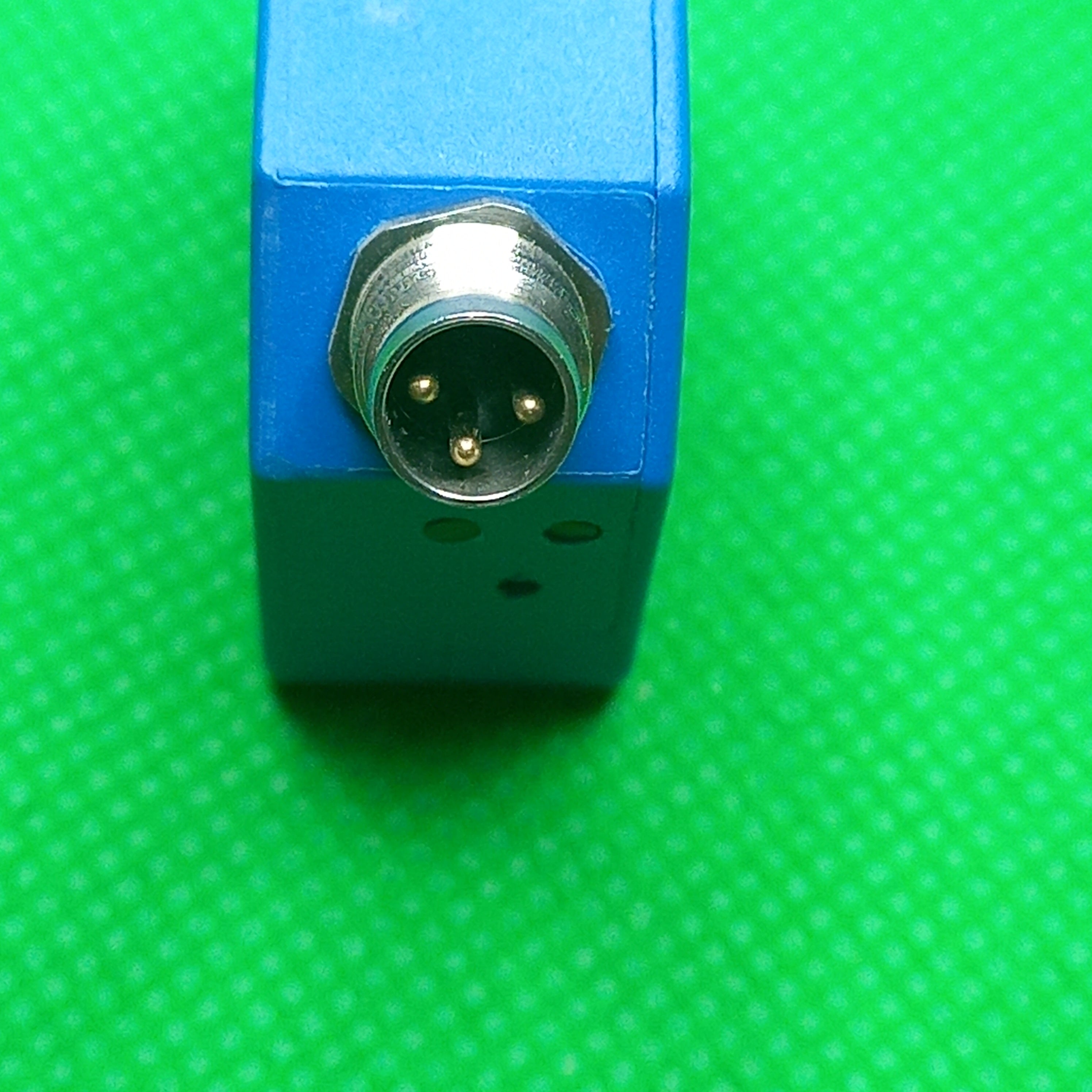

Connection Connector, M8, 3-pin
Accessories
Connection cable TK …
