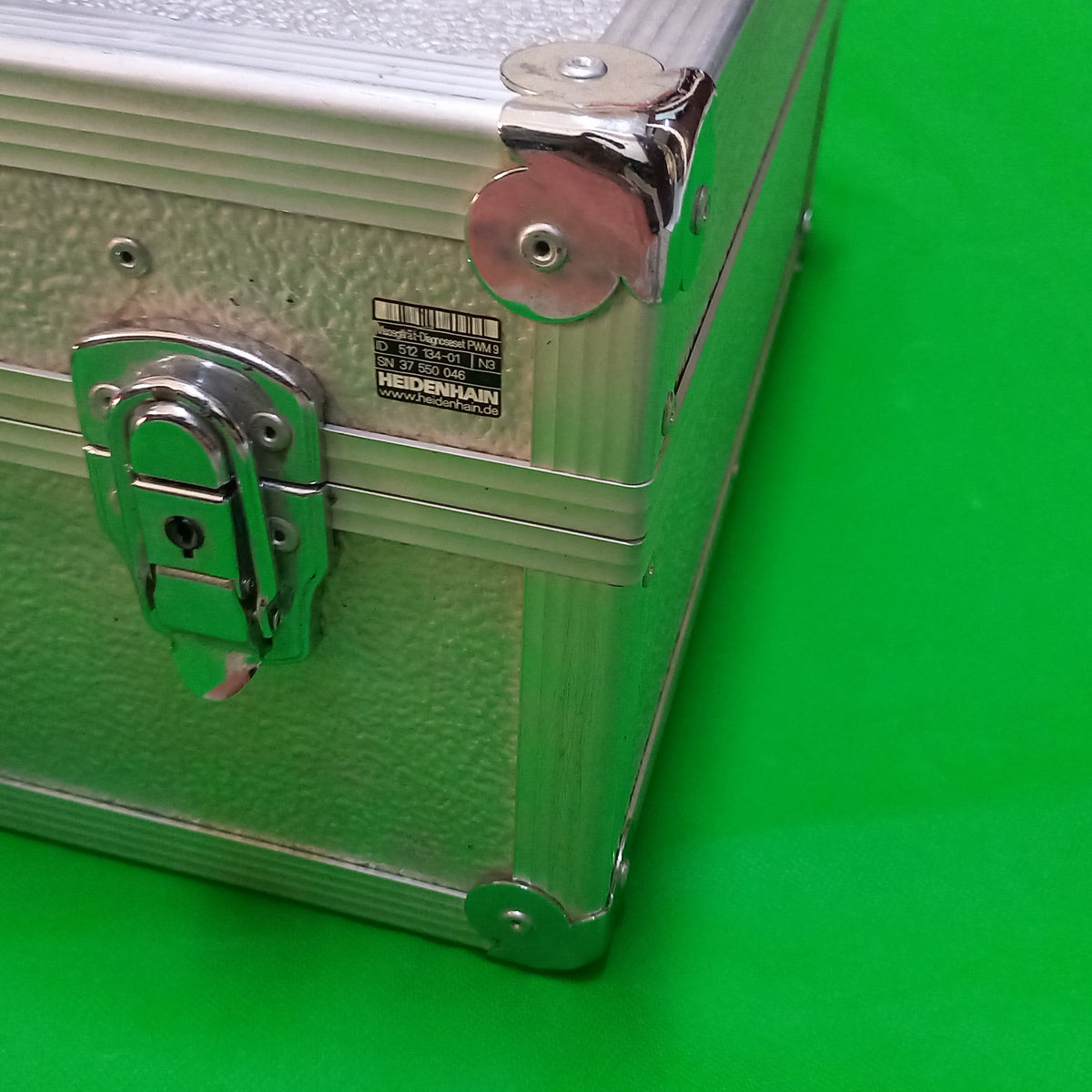

Brand New, Encoder Testing Diagnosis Allignment Equipment PWM9, ID 512 134-01 (interface Boards Not included)

• The PWM 9 can be connected in series between the encoder and the subsequent electronics. Because the control loop is not interrupted, it is
  also possible to conduct measurements during running operations.

• The user can measure quantities such as on-off ratios, phase angle and amplitudes of current and voltage.

• The encoder signals are displayed on an LCD monitor. Soft keys provide ease of operation

Encoder Testing Diagnois Allignment Equipment PWM9, ID 512 134-01

Heidenhain PWM-9 ID-Nr. 512 134-01 / 374 976-01

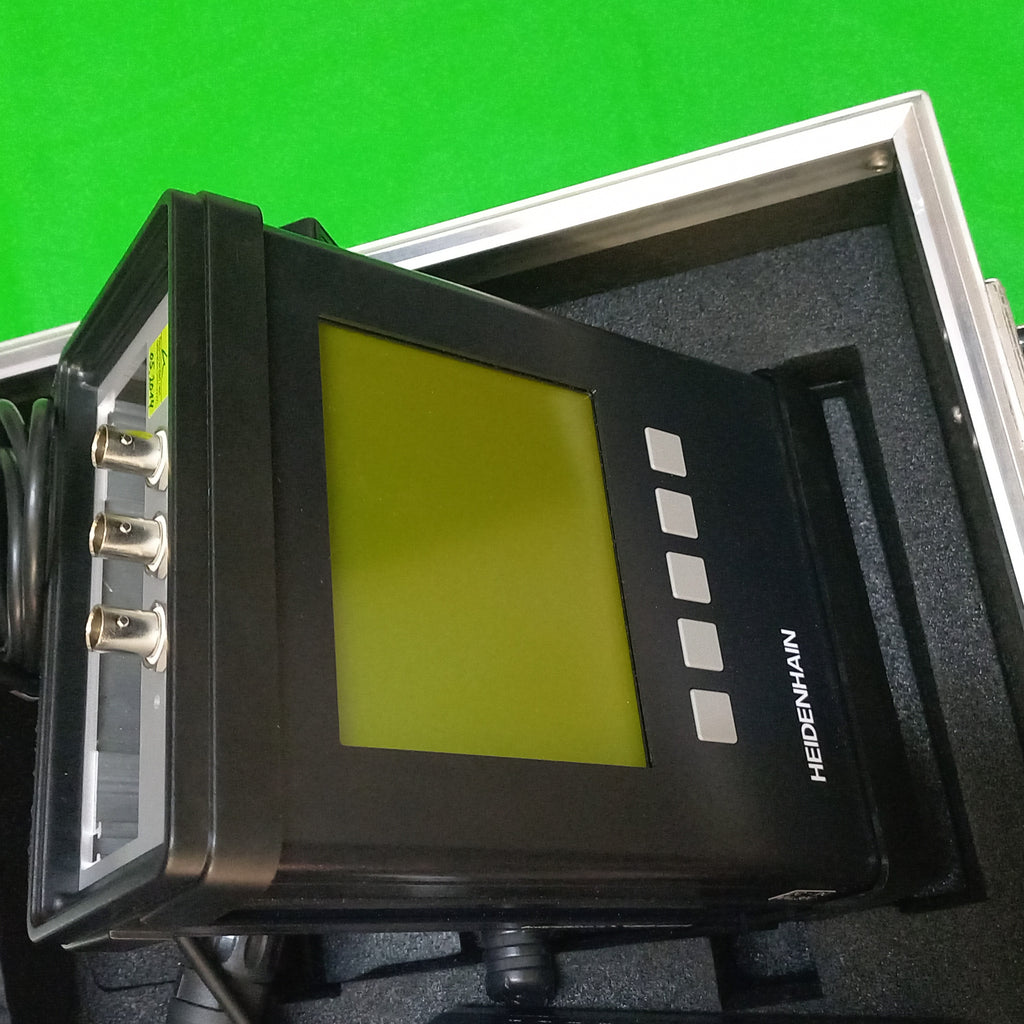

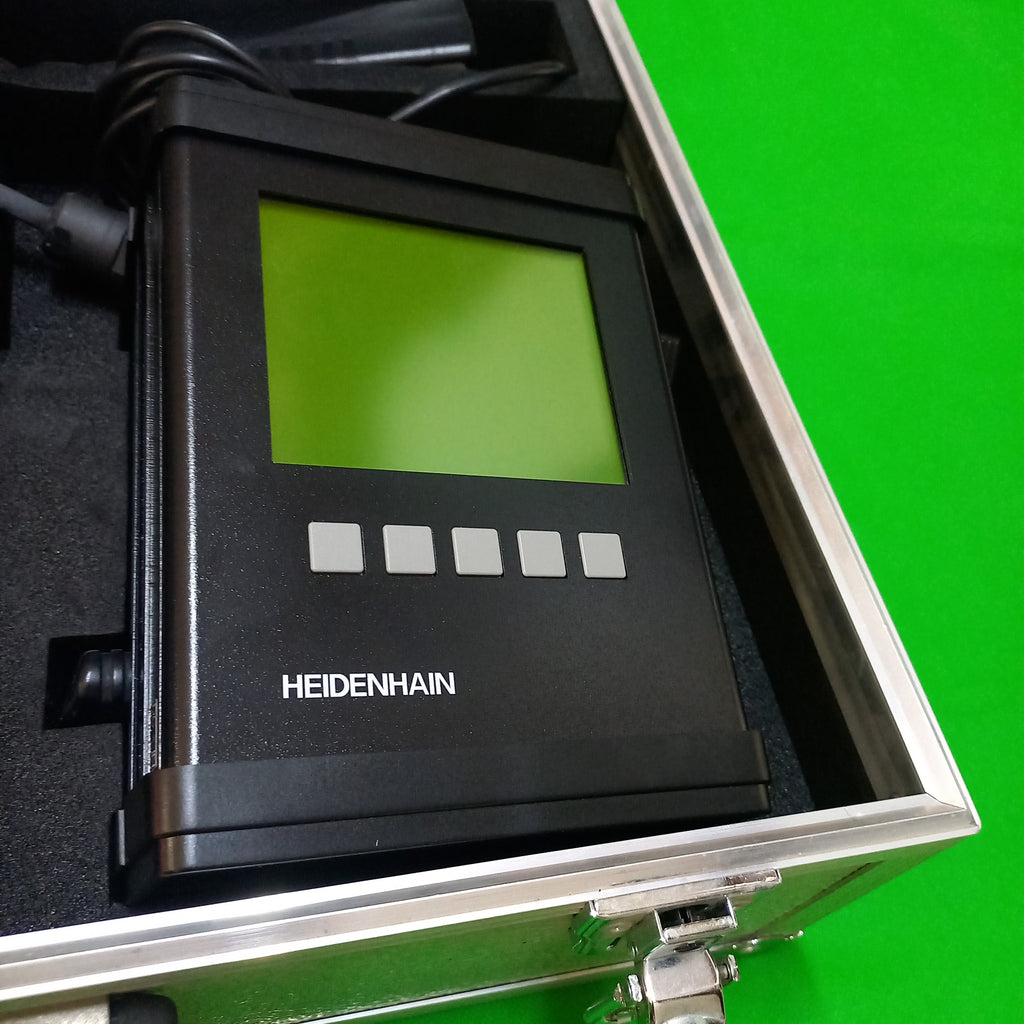

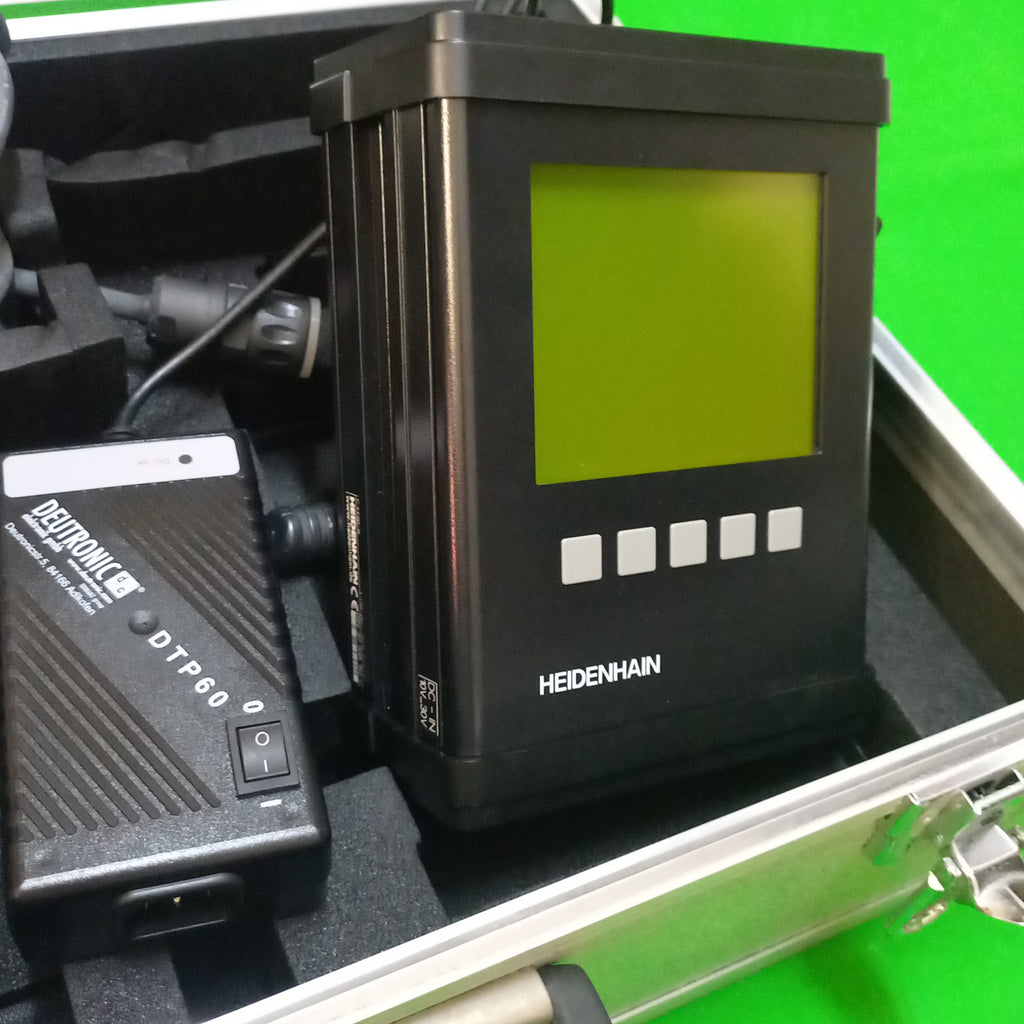

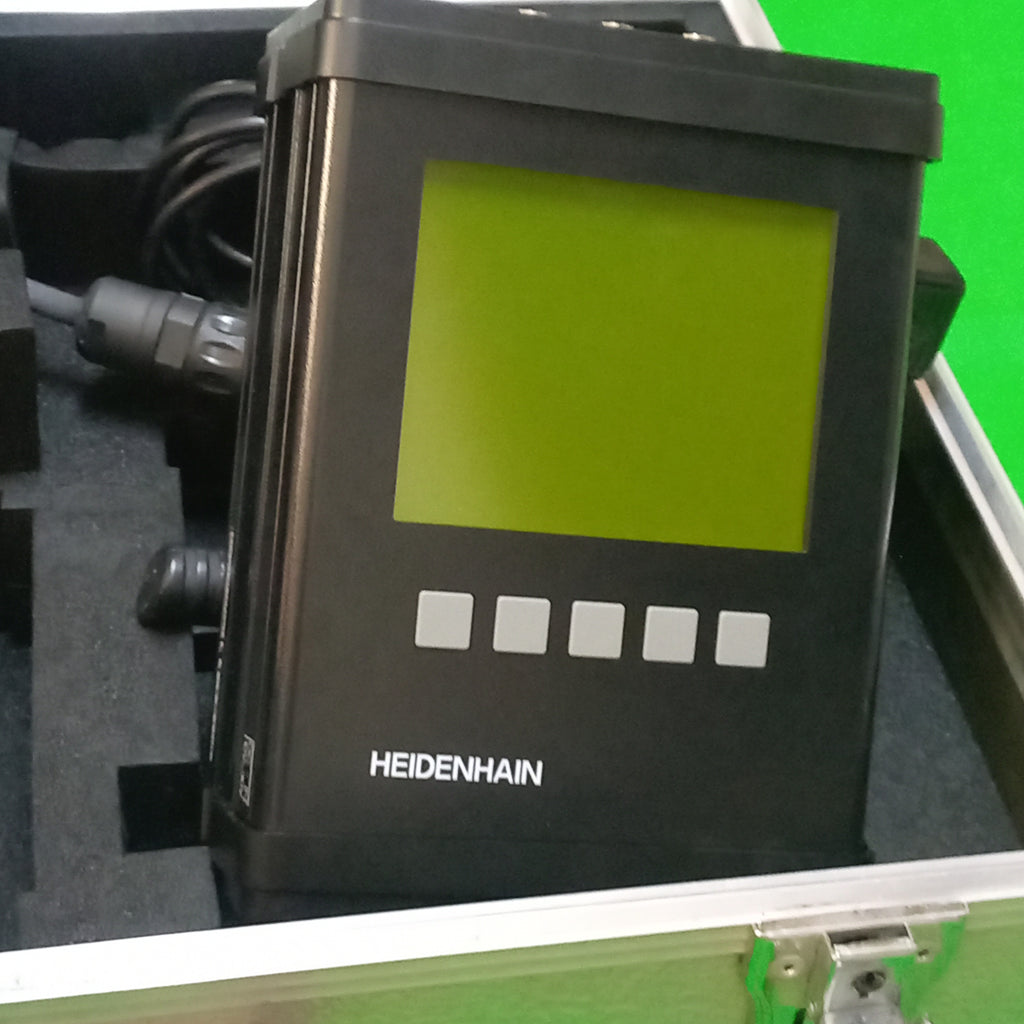

Heidenhain PWM 9 Encoder-Diagnostic-Kit (Phase Angle Measuring Unit)

Id-Nr. 512 134-01 / 374 976-01

Depending on the desired application, the measuring device can be equipped with different interface boards.

Interface-Boards in Shop available for purchase seperately at extra price.

No Interface Board is NOT included in This price

For Glas-Scales or Rotary-Encoder usable.

The PWM-9 is a stand-alone and compact measurement tool. No PC Required.

The PWM 9 phase angle measuring unit can be connected in series between the Glas-scale/encoder and the subsequent electronics. So it's possible to check the Qualtiy of Signal by move the machine. Phase position can be displayed on an external oscilloscope.

Dialog-Language switchable between: En, De, Fr.

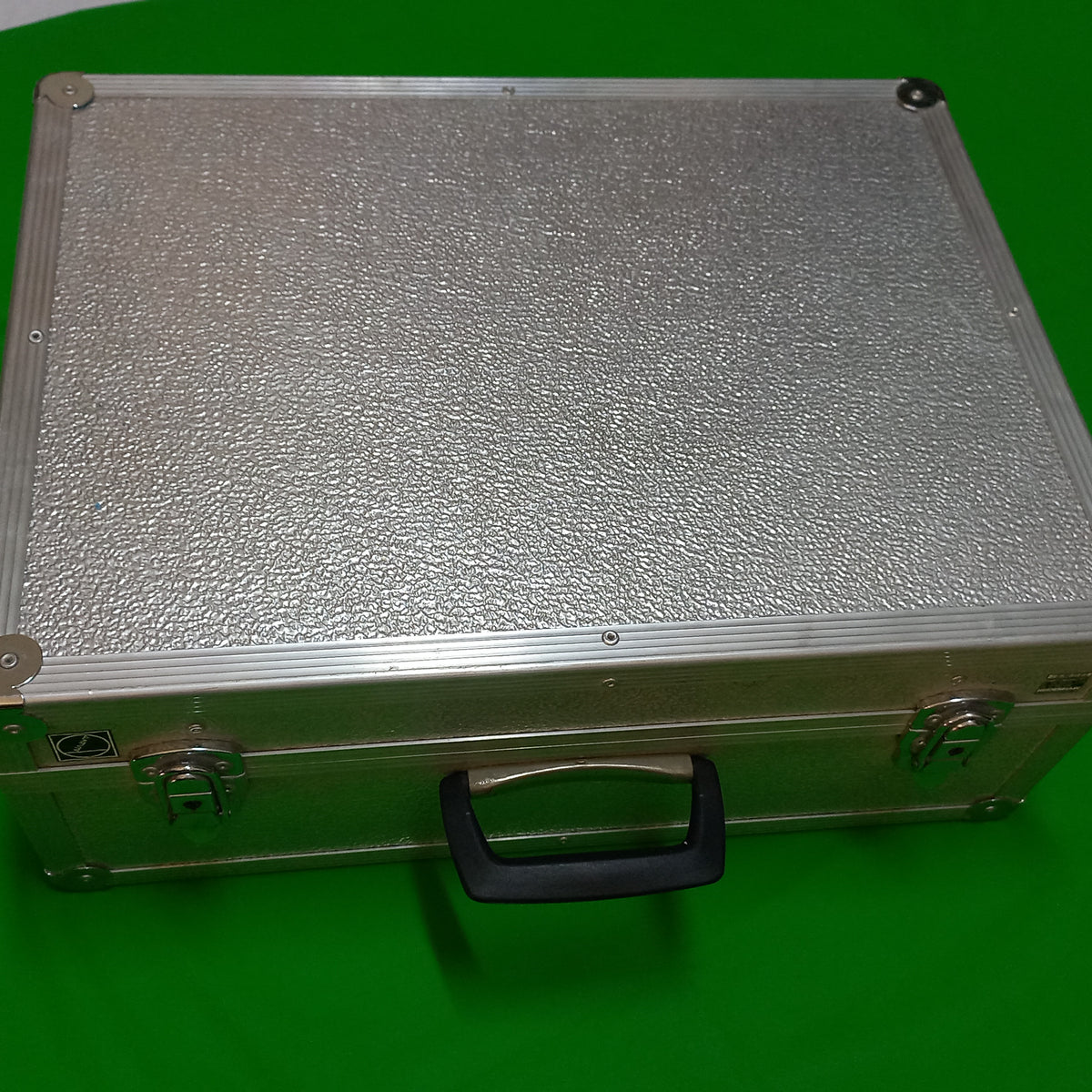

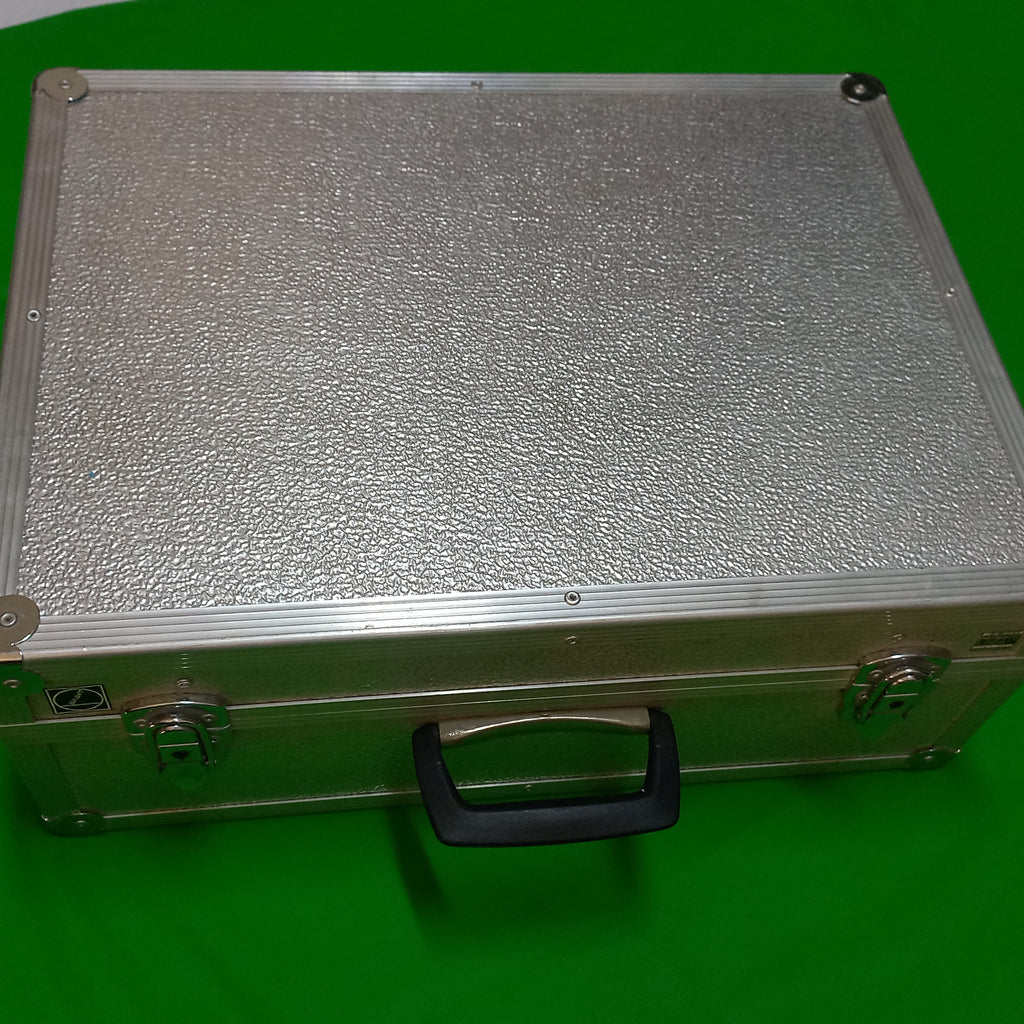

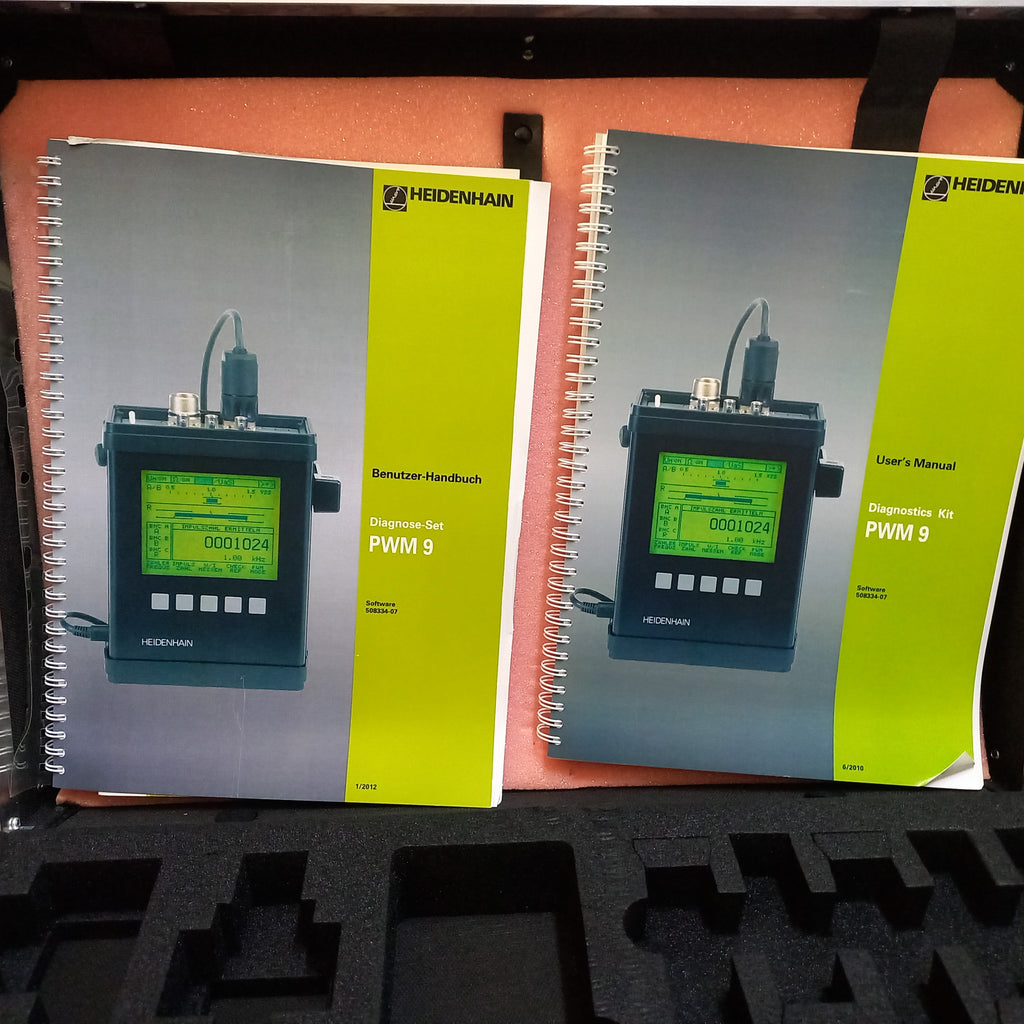

Scope of delivery: PWM-9, Power-Supply (100 - 240V), User-Manual (De) , Connecting-cable (9, 12 & 17 PIN) & Scope, Aluminium-case.

Condition: NEW (Basic-unit & POWer supply BRAND new), Case (NEW).

Test unit for incremental encoders
• A measuring device for checking incremental encoders
• On- or off-line measurements
• Universal counter
• Graphic LCD display of encoder signals
