LS106C ML2640mm Brand new with Warranty Equivalent linear Scale to Heidenhain ID: 295712-33 fitted with AELS106C | 29474203.
$2,930.00
Skip to product information
- Made to Order: at Factory
- 4-5 Weeks Delivery Time ( May be Expedited)
- BRAND NEW | Made in EU | from Factory with 1 year Manufacturer Warranty
- Heidenhain No longer supplies or Supports these linear scales
- No need to buy Used unreliable solutions from likes of Ebay.. buy BRAND new replacment for obsolete encoders.
LS106C ML2640mm Brand new with Warranty Equivalent linear Scale to Heidenhain ID: 295712-33 fitted with AELS106C | 29474203.
$2,930.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
- Manufacturer Warranty Applicable [ we are Independent reseller for UAE- Oman]
- Condition : Factory NEW
- 5V DC ±5%
- Linear Encoder Equivalent to Heidenhain obsolete Series LS1xC | LS 106 | LS 106C
- When you Get Delivery ( in UAE ) : 4-5 Weeks Delivery ( May be Expedited)
- 5V DC ±5%5V DC ±5%
- ls106c | Heidenhain ID 295712-33 fitted with AE-LS-106C 294 742 03
- LS 106 C ID. 295712-33
- LS 106C
- LS 106 C Id. Nr. 295712-33
"

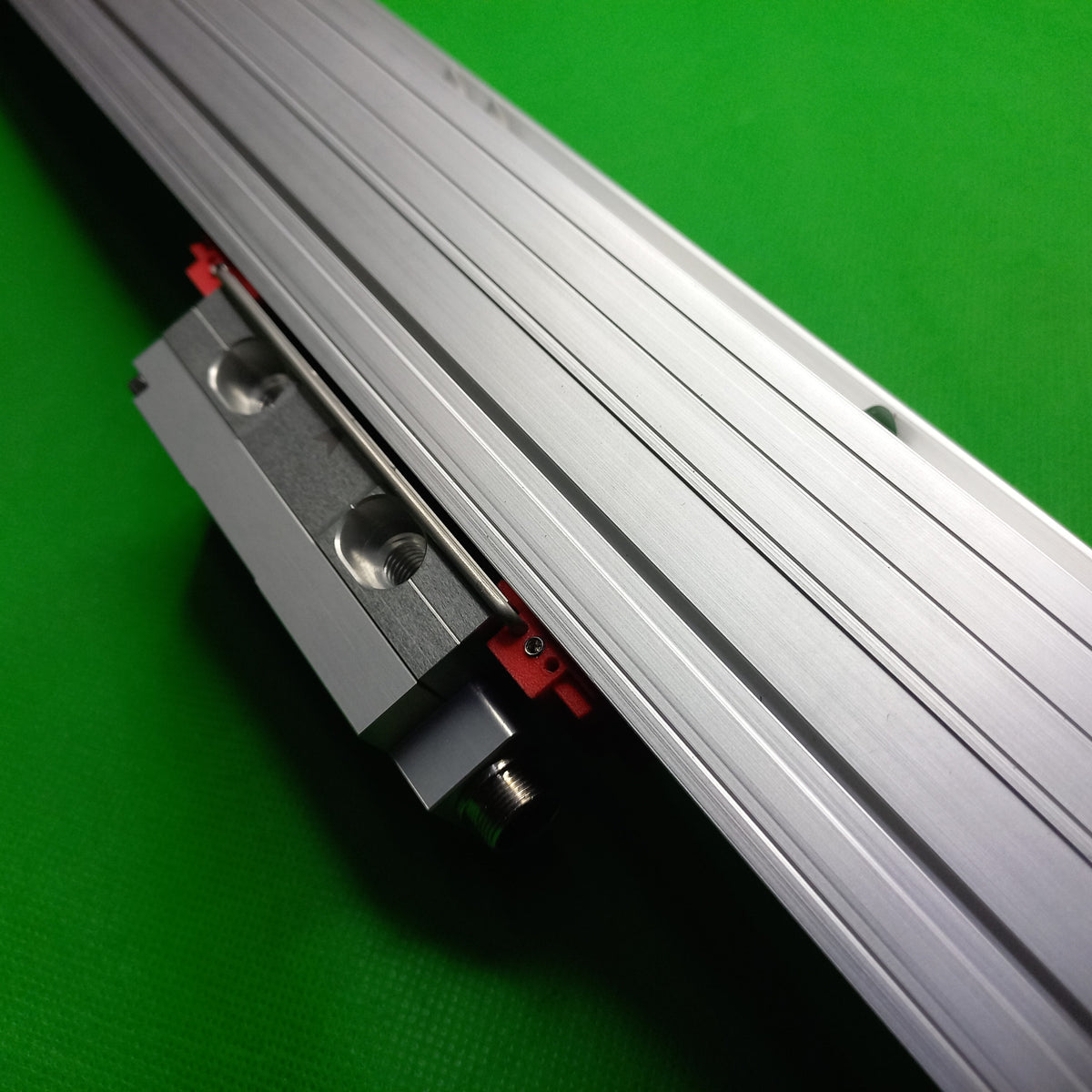

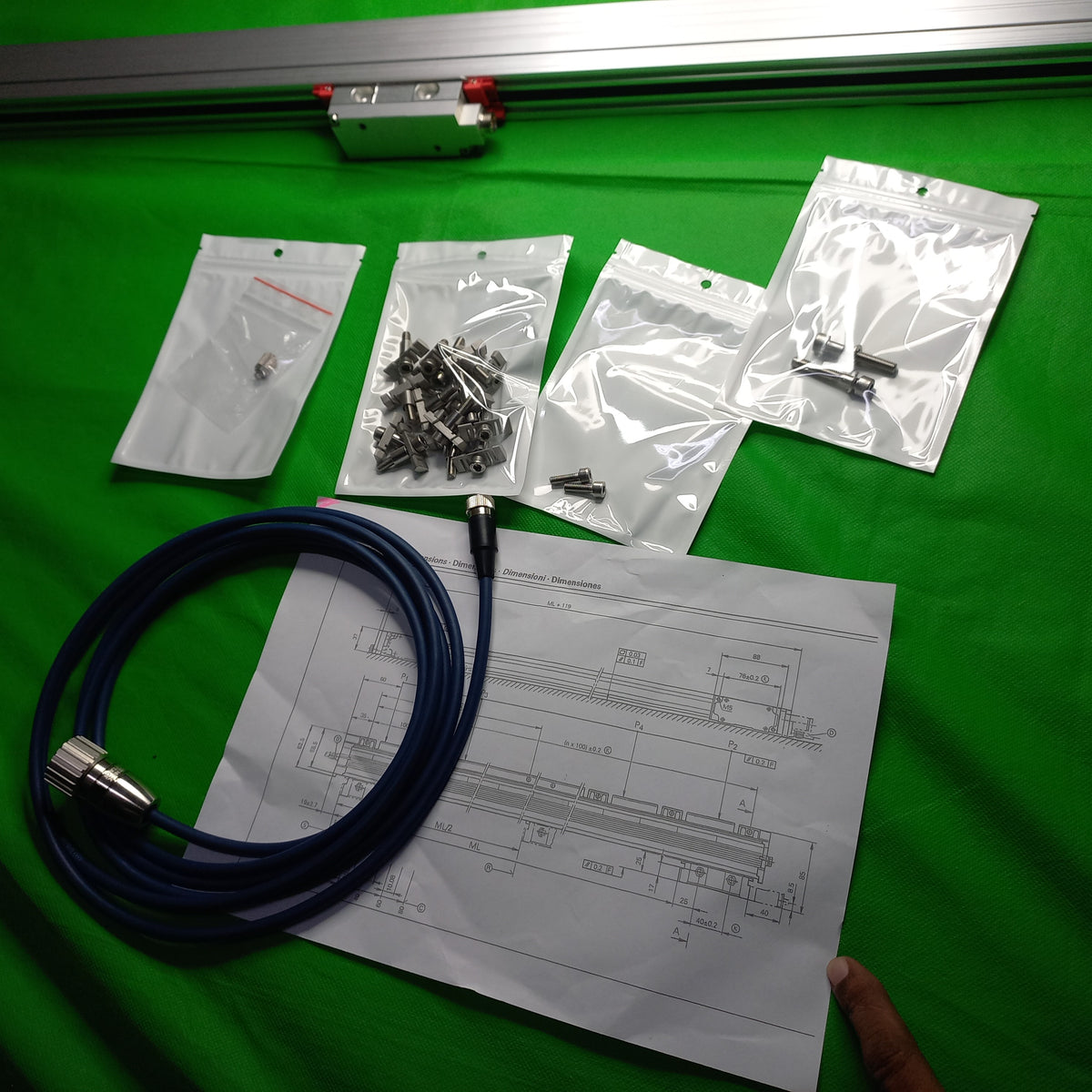

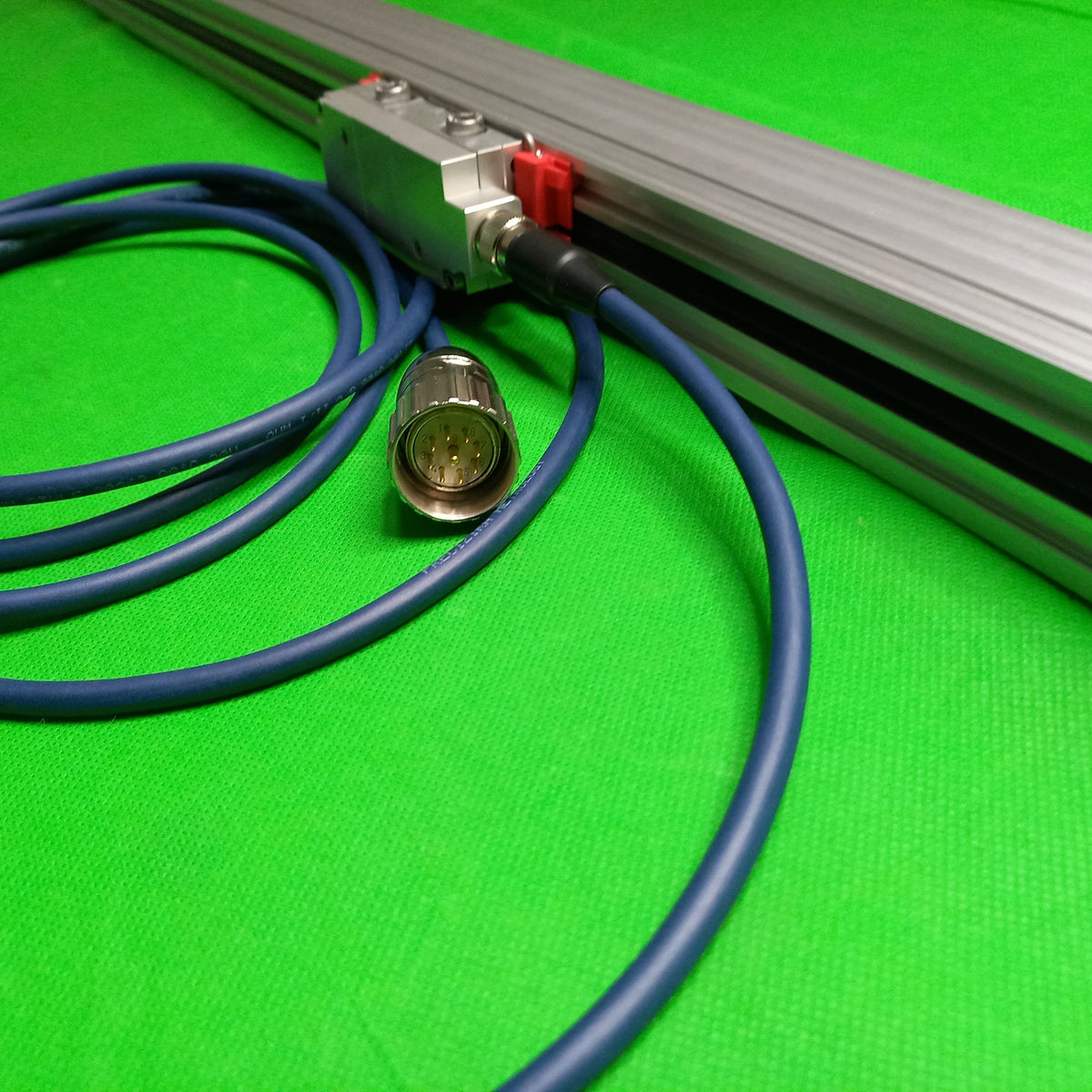

Replace your Obsolete LS 106 C linear Encoder with Factory new Linear scale. Supplied encoder has same dimensions for mounting as LS106C ML2640 - Heidenhain Id.Nr. 295 712-33.
The reader head is equivalent to heidenhain Reader Head AE LS 106C - Id.nr.294-742-03. we supply cable to output the signals via same 9 Pin M23 Connector.
why buy Unreliable, used stuff from Ebay & risk your Controller & CNC machine? Get Brand new Exact 1to1 equivalent. with Warranty & installation support.
-
Replace your Obsolete HEIDENHAIN LS 106 / 106C - We supply BRAND NEW equivalent to use as DROP In replacment 1: 1 replacement.
-
Supplied encoder has same Pin out/ Electrical Signals/ Characteristics and Connector dimensions;

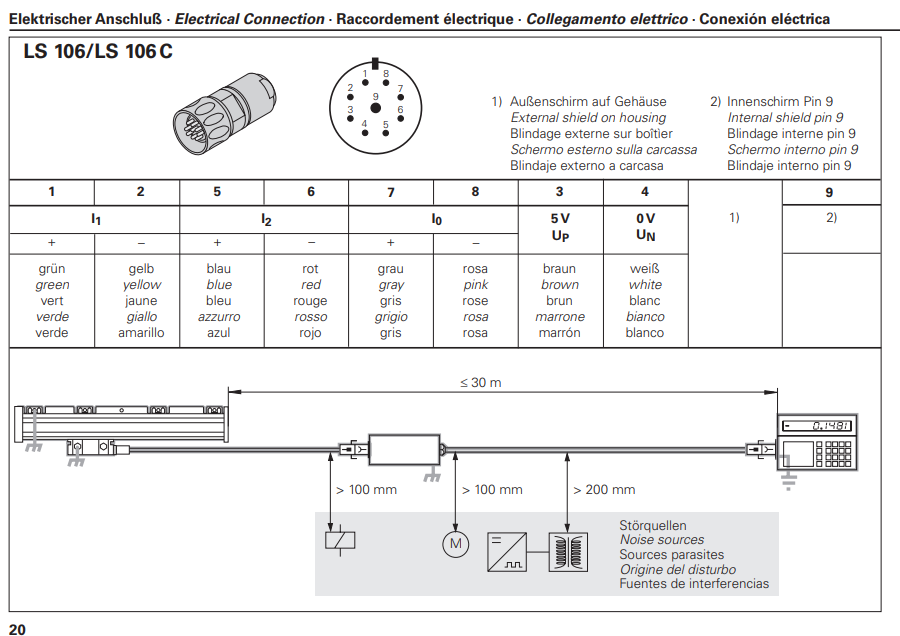

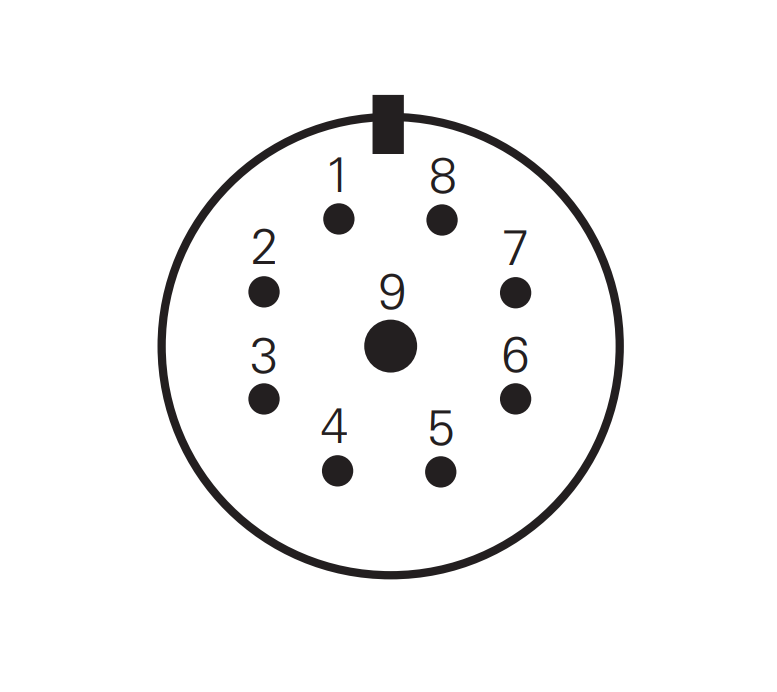

Pin out of Heidenhain LS 106C | use connector
295 712-33 for connecting to scale . We provide same connection .

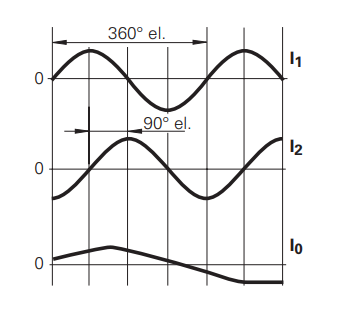

Pin number 1 2 5 6 7 8 3 4 9 Signals I1 I2 I0 5V Up 0v Un internal shield pin 9 External shield on housing -
Equivalent Linear Encoder with 1 Year Warranty for replacing The HEIDENHAIN LS 106c sealed linear encoders
-

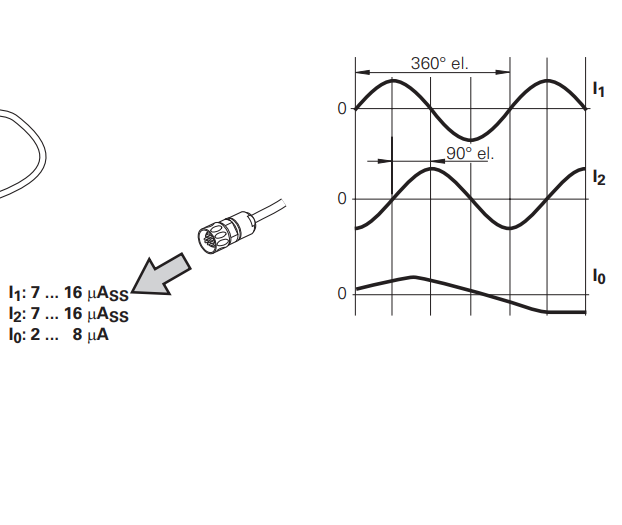

These are highly Reliable Sealed Encoders,desired for machine tools and offer measuring steps of 1µm and 0.5µm with 11uApp signal output. We have different measuring lenghts available.
- Replacement for LS106C ML2640 - Heidenhain Id.Nr. 295 712-33 | Brand New Scale with Same Mounting Dimension & Signal Connection
"

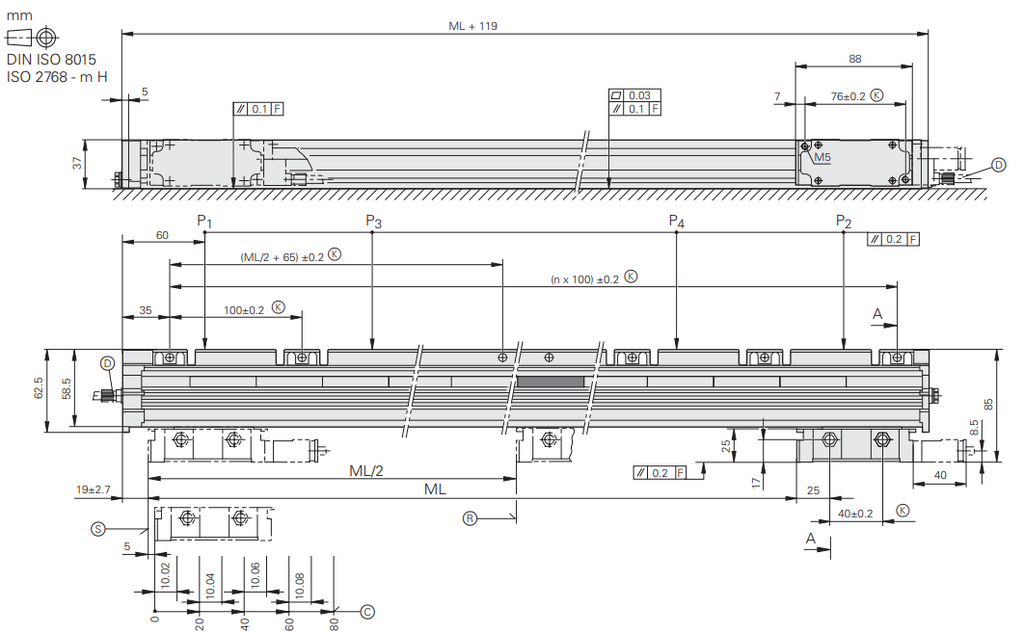

DImensions Same : as Heidenhain
Signals| Pin outs | connectors | Same : as Heidenhain
Sold by Ajman FET [ Established 2003 ]
Support for Installation at Site Available
When will I get my order?
This is Made to order ; Normal delivery is 4 Weeks from Factory + 1 Week Shipping to Dubai ; We offer 5 Weeks Delivery Ex Ajman/ United Arab Emirates.
About LS106 | 106c | LS1x6
Heidenhain No longe supplies these linear scales. Buy brand new Drop in replacement instead of buying Used stock from Ebay etc. Your Precision Machine tools deserves to have a Reliable Feedback system.
- Other Lenghts available.
- Other Configuration available contact with your Heidenhain ID number
- Installation support at your site available.
- If you want to check if your Existing Linear scale is Faulty or not , We can check its signal health using - Heidenhain specialised Encoder checking equipments.
