Heidenhain EQN1125 512 5PS15-R8; id 606 689-54
Sale price
$833.00
Regular price
$980.00
Skip to product information
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
Heidenhain EQN1125 512 5PS15-R8; id 606 689-54
Sale price
$833.00
Regular price
$980.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
- Dispatch Lead time = Ready Stock - Collect (In-person pickup) From Store Same day - 3~4 Hours After Cleared Payment.
- Warranty = One-year limited seller warranty

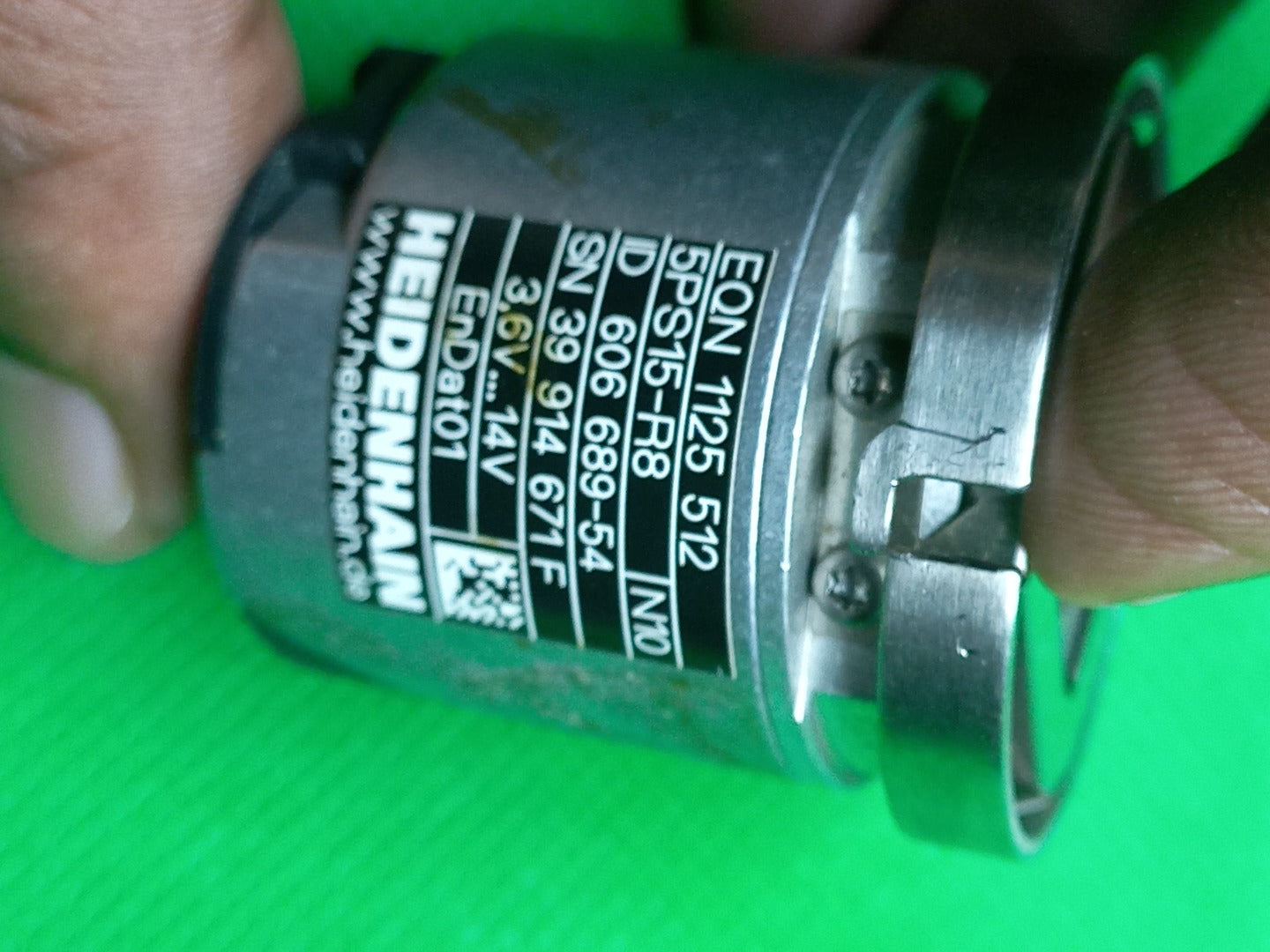

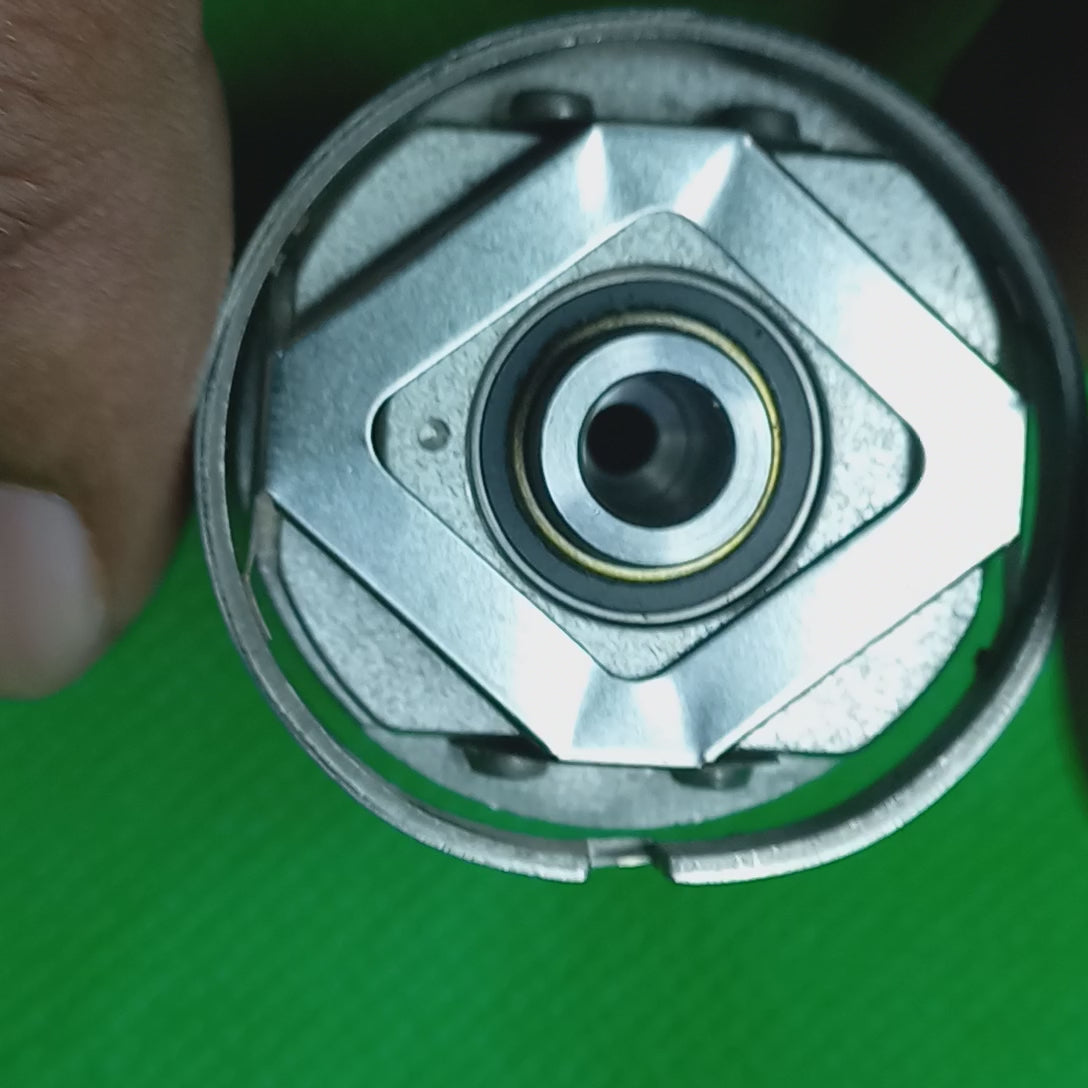

- Manufacturer Part Number = EQN 1125 512 5PS15-R8
- Manufacturer MPN = EQN1125 512 5PS15-R8
- Encoder Type = Absolute Encoder
- Supply voltage = 3.6 V to 14 V
- ID. NR. = 606 689-54
- indent Nr. = 606689-54
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = EQN 1125 512 5PS15-R8
Ready Stock | HEIDENHAIN EQN1125 512 5PS15-R8; id 606 689-54
ECN 1100 and EQN 1100 series
Absolute rotary encoders with integral bearing
- Stator coupling for plane surface
- Axial tolerance of up to ±0.5 mm
- Blind hollow shaft
- Positioning accuracy of down to ± 60''
- 8 388 608 positions/rev.
- Multiturn functionality for up to 4096 revolutions
- Maximum operating temperature: 115 °C
- Interfaces: EnDat
- Housing diameter ≈ 35 mm
ID number 678096-20
Differentiable revolutions 4096
Positions per revolution 8192
Data interface EnDat01
Output code Binary
Line count 512
Output signal ~1Vpp
Cutoff frequency (-3 dB) 190.00 kHz
Power supply 3.6 V ... 14 V
Coupling version -Stator coupling for receding plane surface (hole circle Ø43mm, hole spacing = 3.25mm)
Type of Coupling 28D
Shaft Blind hollow shaft for axial fastening, diameter 6 mm
Type of Shaft 27E
Protection rating IP40 (EN60529)
Operating temperature -40/+115 °C
Electrical connection Plug connector, straight, double-row, 15-pin
Pin configuration D533387
Connecting direction Cable outlet for axial and radial use
Electrical connection
Mating Dimensions
Design your motor housing for EQN1125 installation like this '
Pin Layout
Mechanical Design Features of this Encoder:

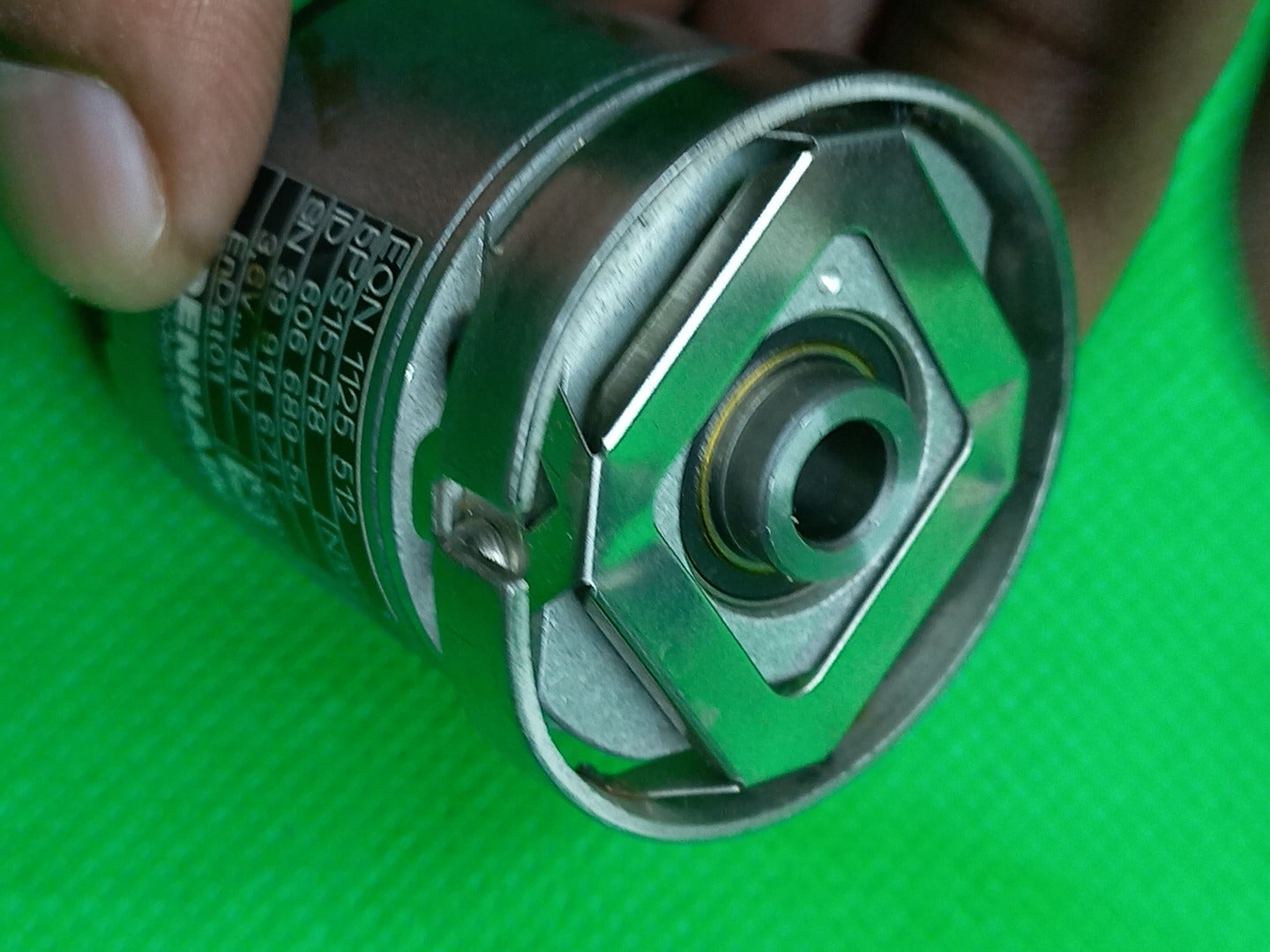

- Absolute Encoder Mechanical Design = Coupling -28D EQN1125 Stator coupling for receding plane surface (hole circle Ø43mm, hole spacing = 3.25mm)
- Absolute Encoder Construction size (flange) = Ø 35 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = Blind hollow shaft for axial fastening, diameter 6 mm | 27E (eqn1125 Heidenhain)- coupling 28D
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = Endat01
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
Absolute Encoder Programmable/configurable = NOT : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Universal
- Connection Type Detail = Plug connector, straight, double-row, 15-pin (EQN1125 Heidenhain)
How Encoder body is Mouted ? Mouting Flange Design Data:
