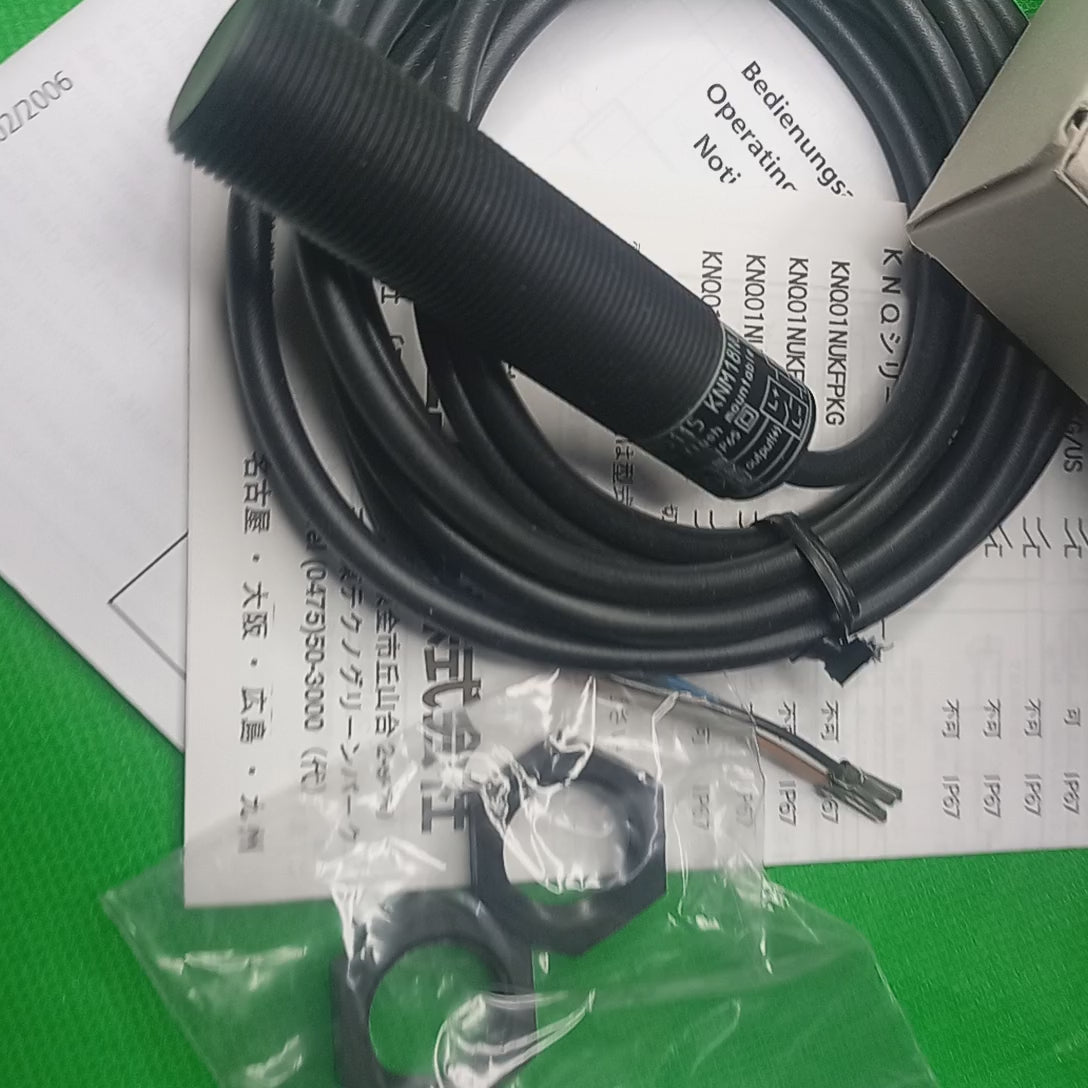

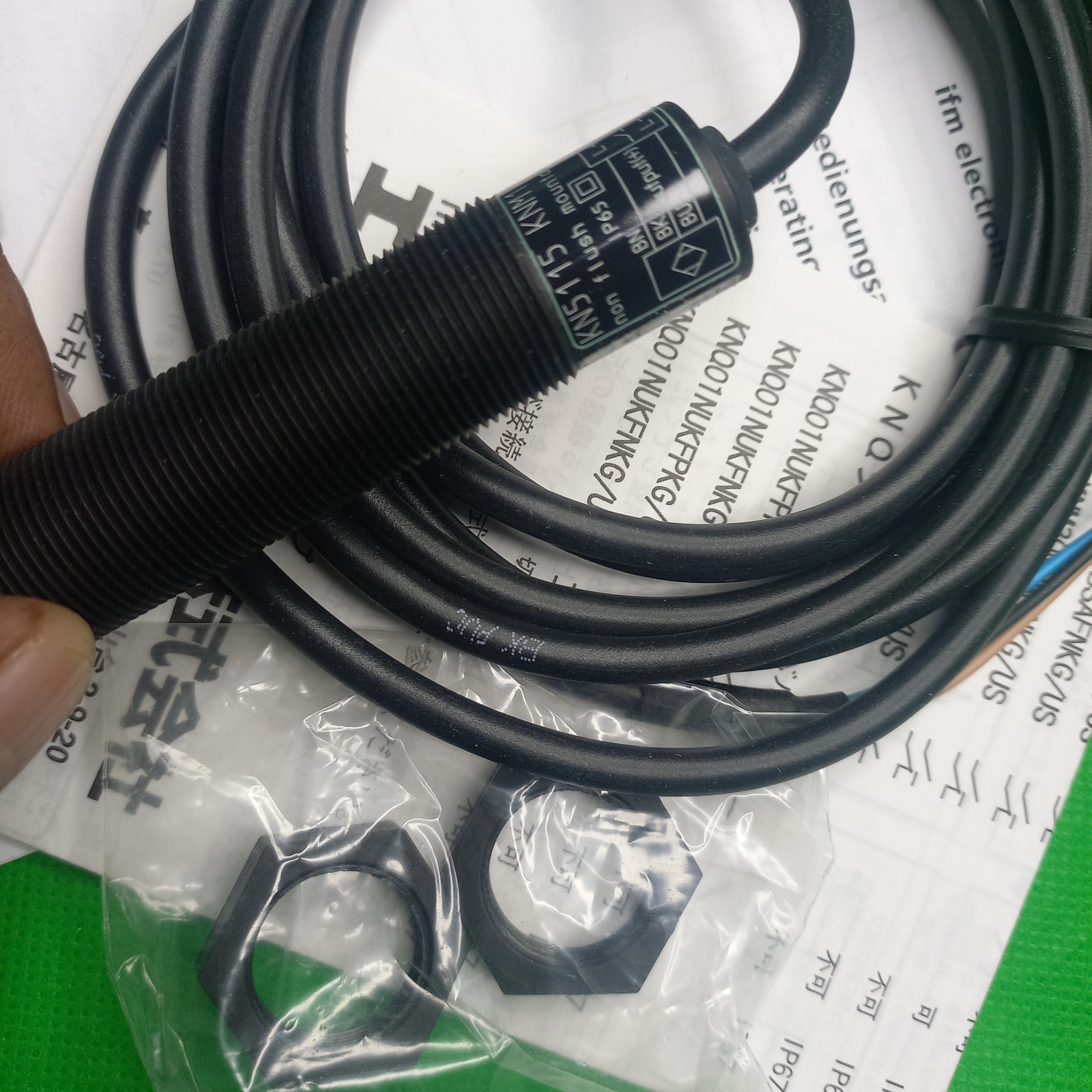

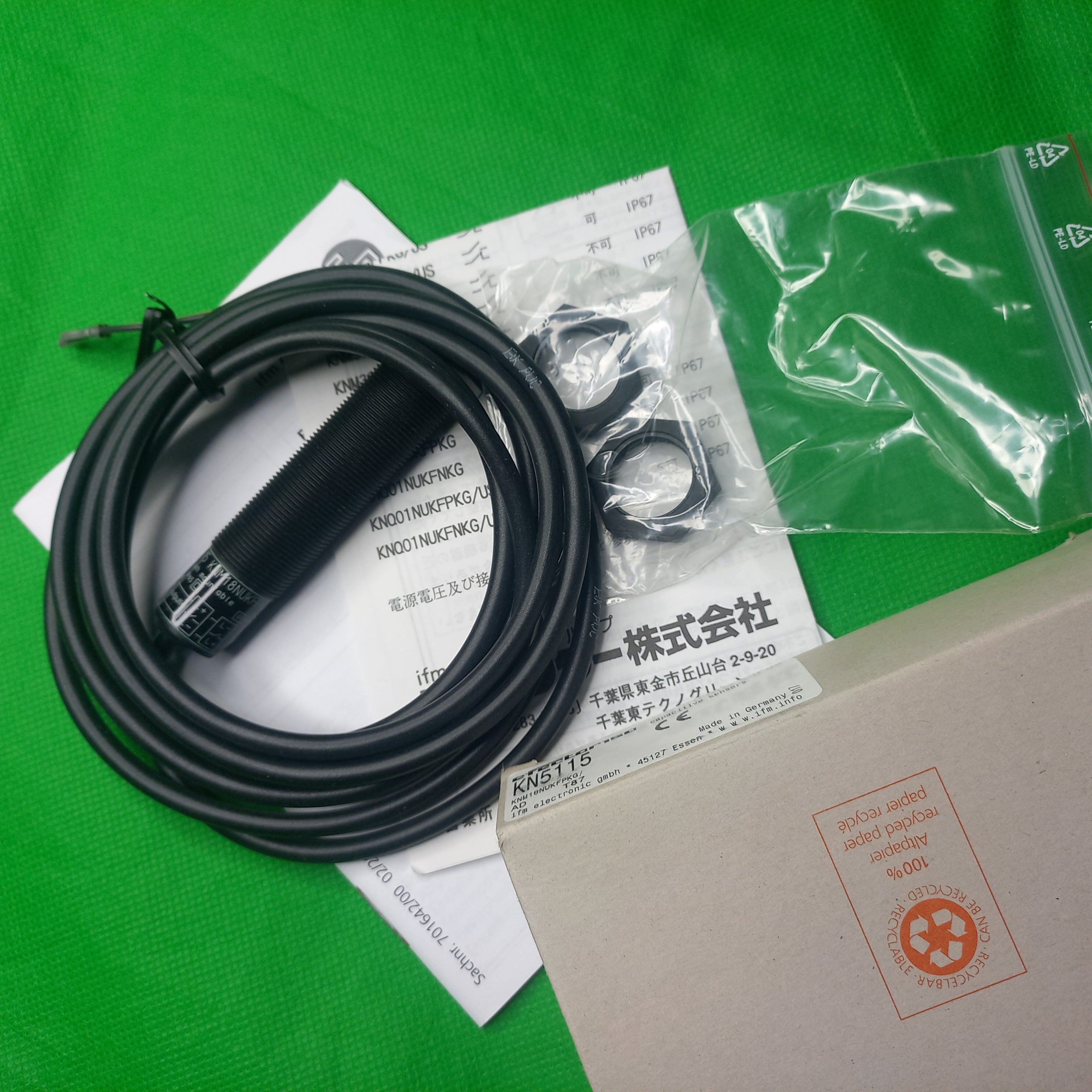

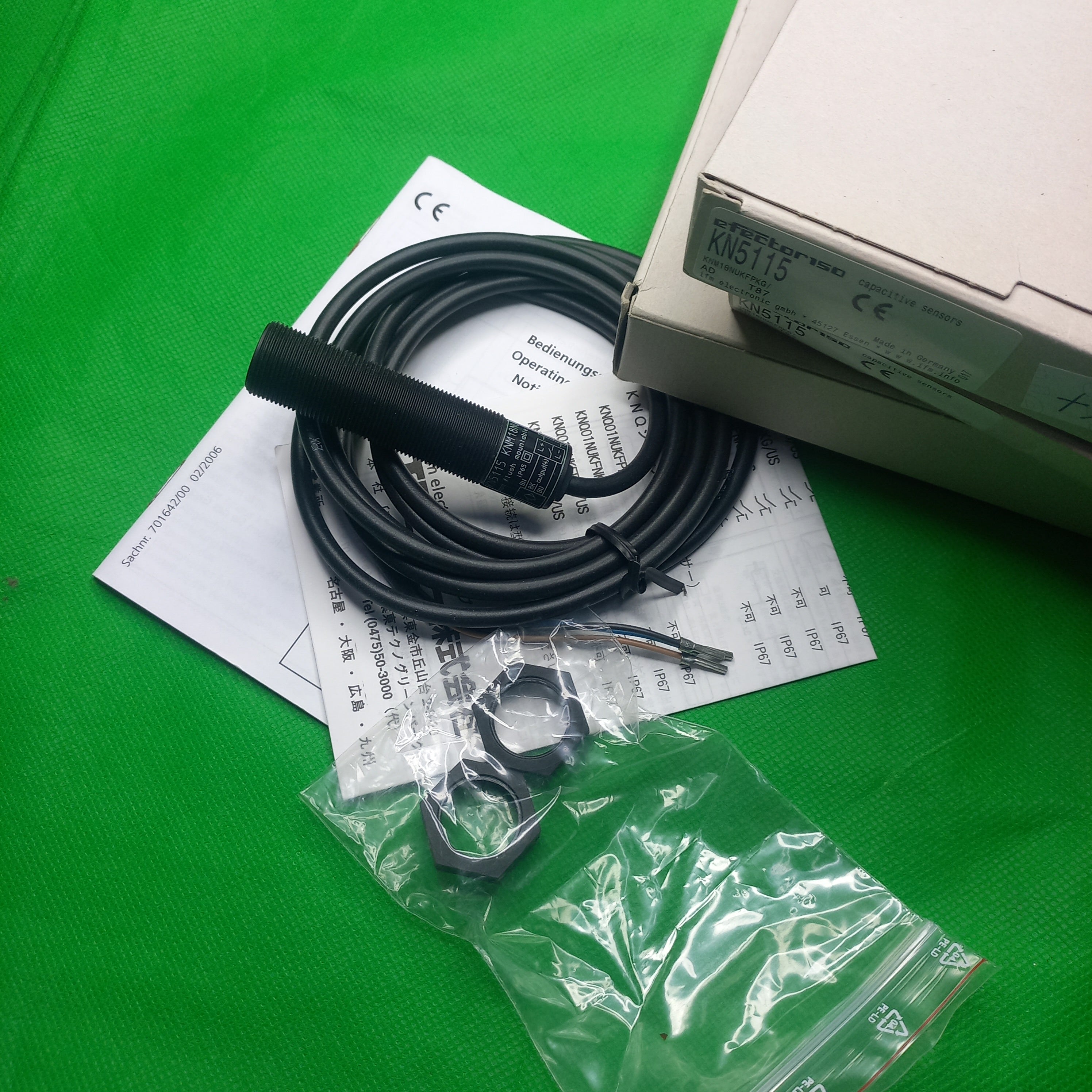

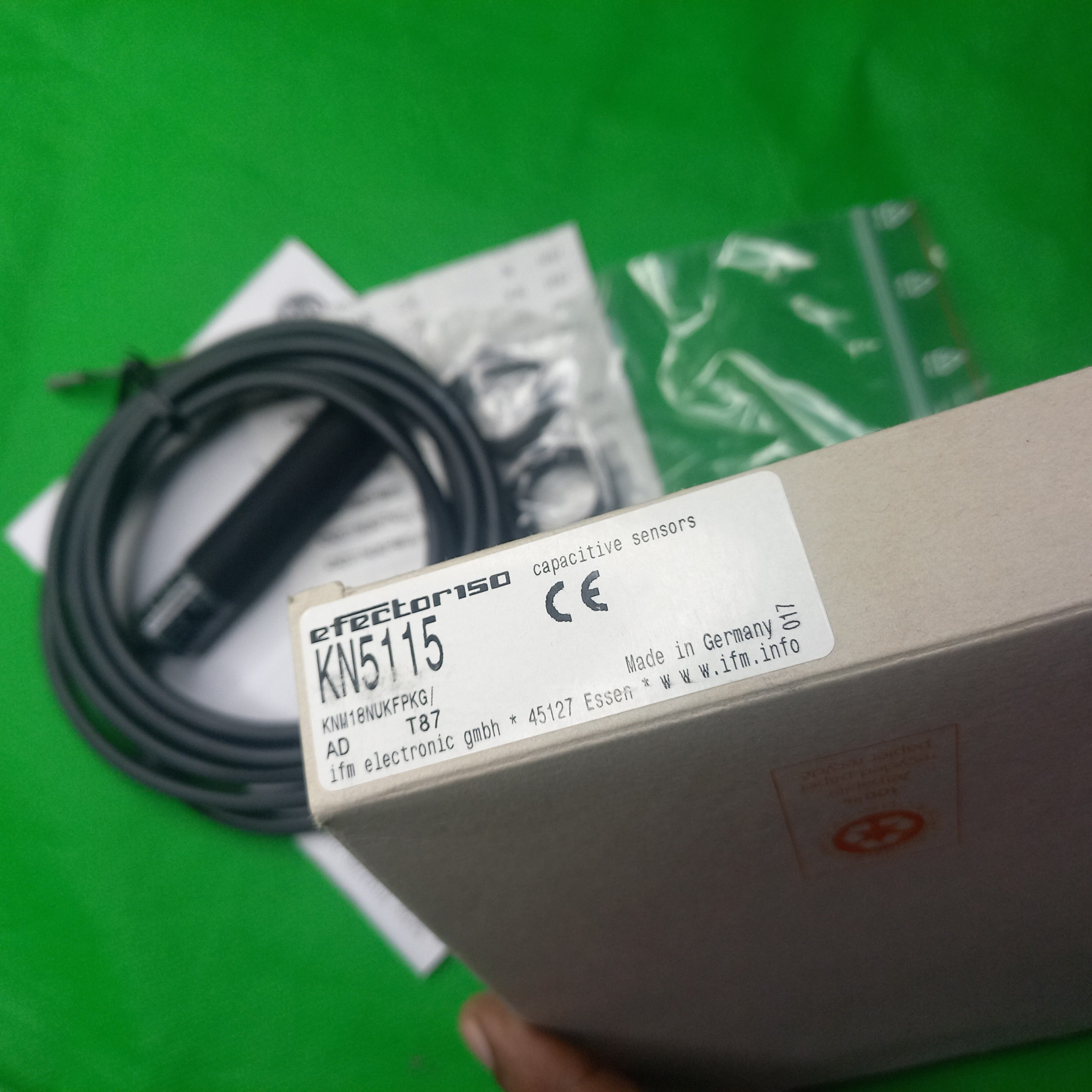

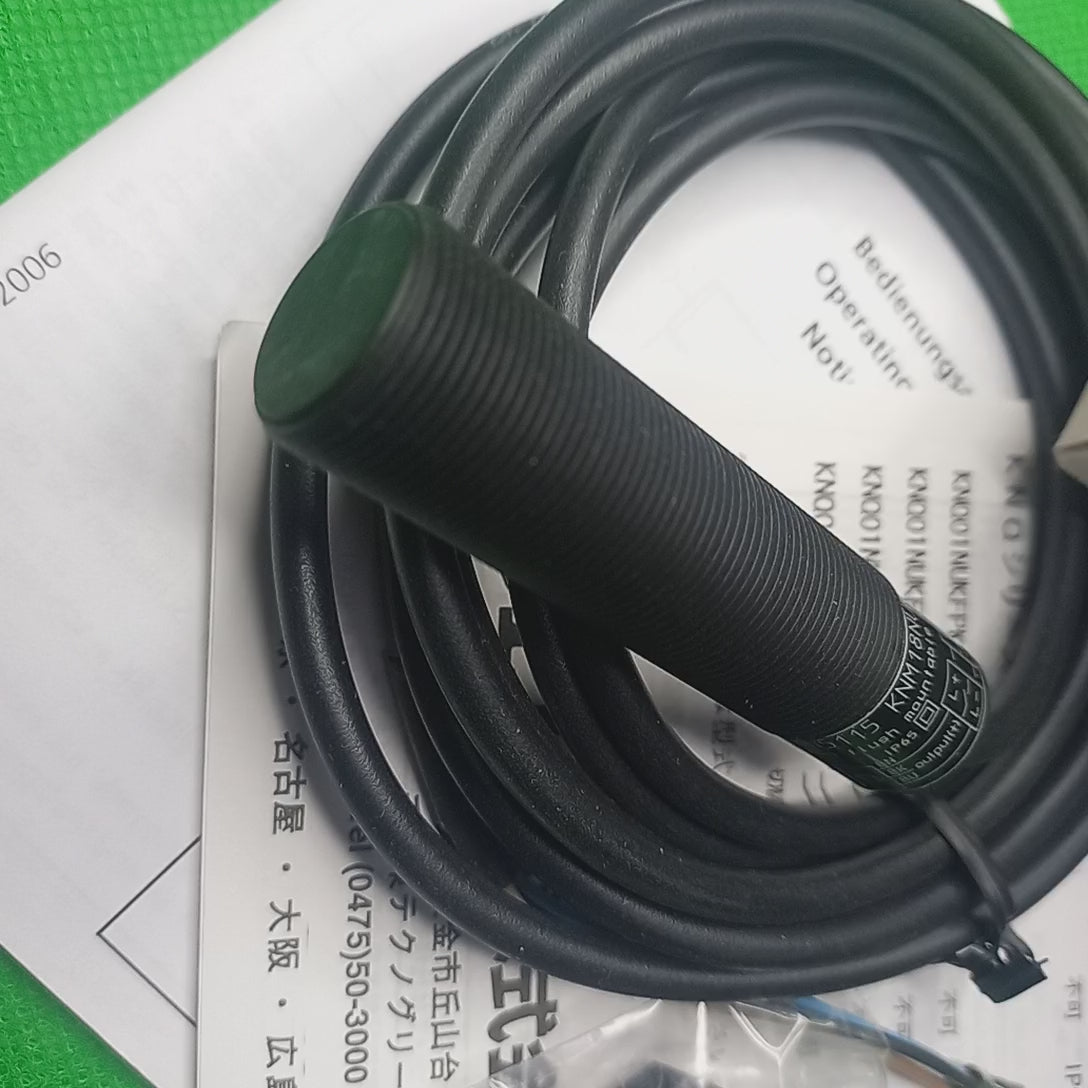

IFM Capacitive Sensor KN5115 - KNM18NUKFPKG, Level Sensor Powder liquid oil Coolant
$250.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IFM
- Sensor Type: Capacitive sensorPhotoelectric sensor
- Sensor Dimensions: M18 x 1 / L = 76.5
- Sensor Range : NO/NC
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Capacitive sensor KN5115 KNM18NUKFPKG, M18 x 1, PNP, 10...36 DC, normally open / closed; (selectable)
Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Housing Threaded type
Dimensions[mm] M18 x 1 / L = 76.5
Application Media powder; liquids; oils; Coolants
Electrical data
Operating voltage[V] 10...36 DC
Current consumption[mA] 17; (24 V)
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 250
Switching frequency DC[Hz] 5
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Operating conditions
Ambient temperature[°C] -25...80
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Housing Threaded type
Mounting non-flush mountable
Dimensions[mm] M18 x 1 / L = 76.5
Thread designation M18 x 1
Material PP black
dimensions
- MPN : KN5115
- Manufacturer indent Nr. : KN5115KN-5115
- Manufacturer Product number : KN 5115
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
