Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

• Manufacturer Part Number: IFM
• Sensor Type: DISTANCE SENSORS -MID RANGE( laser,infrared)Photoelectric sensor
• Sensor Dimensions: M18 x 1 / L = 70.5
• Sensor Range : Range[mm] < 600; (white paper 200 x 200 mm)

• Product Condition Opened original packaging:
  Authorization status : Independent reseller
  Manufacturer warranty status : Not represented as included
  SpareFaber warranty : One-year limited seller warranty

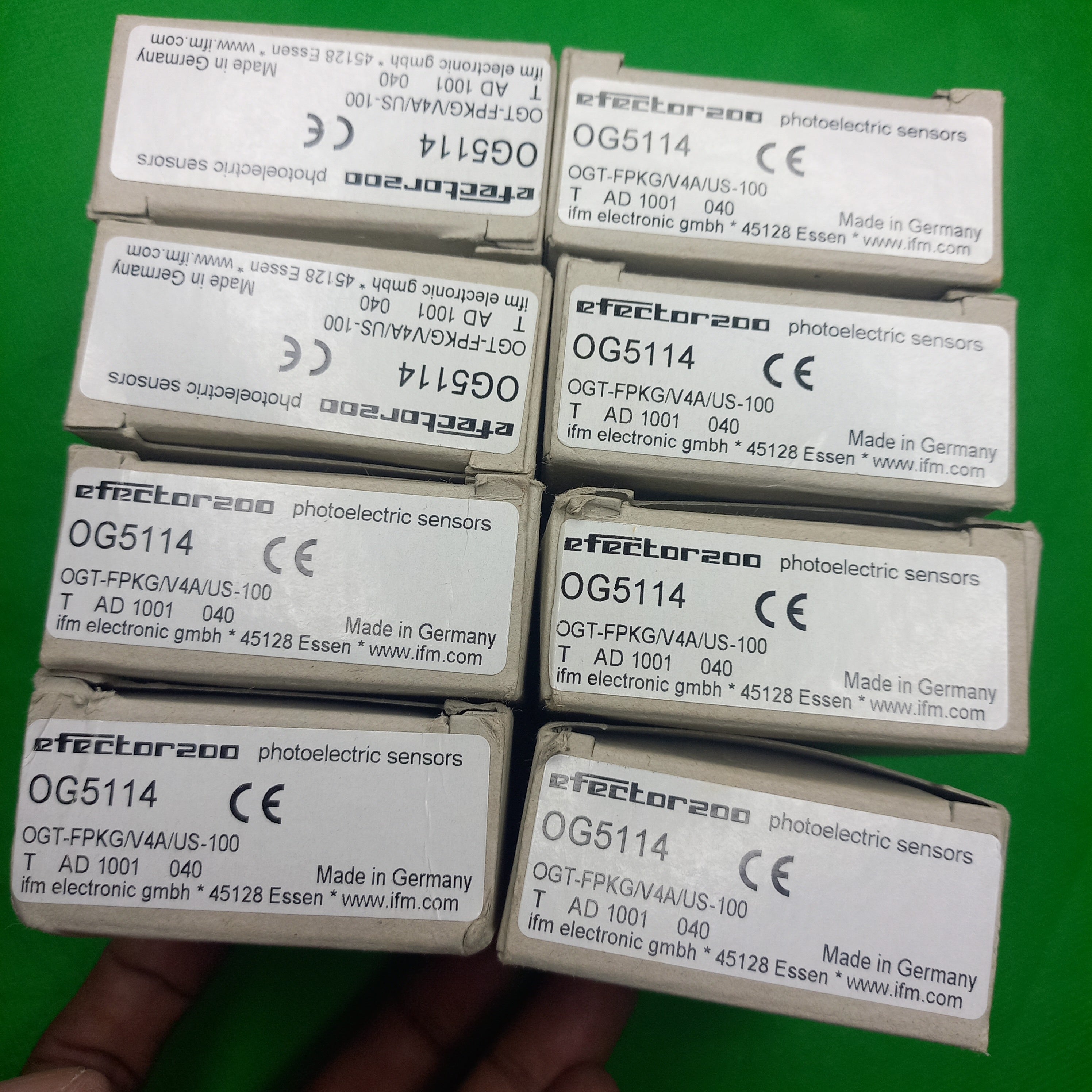

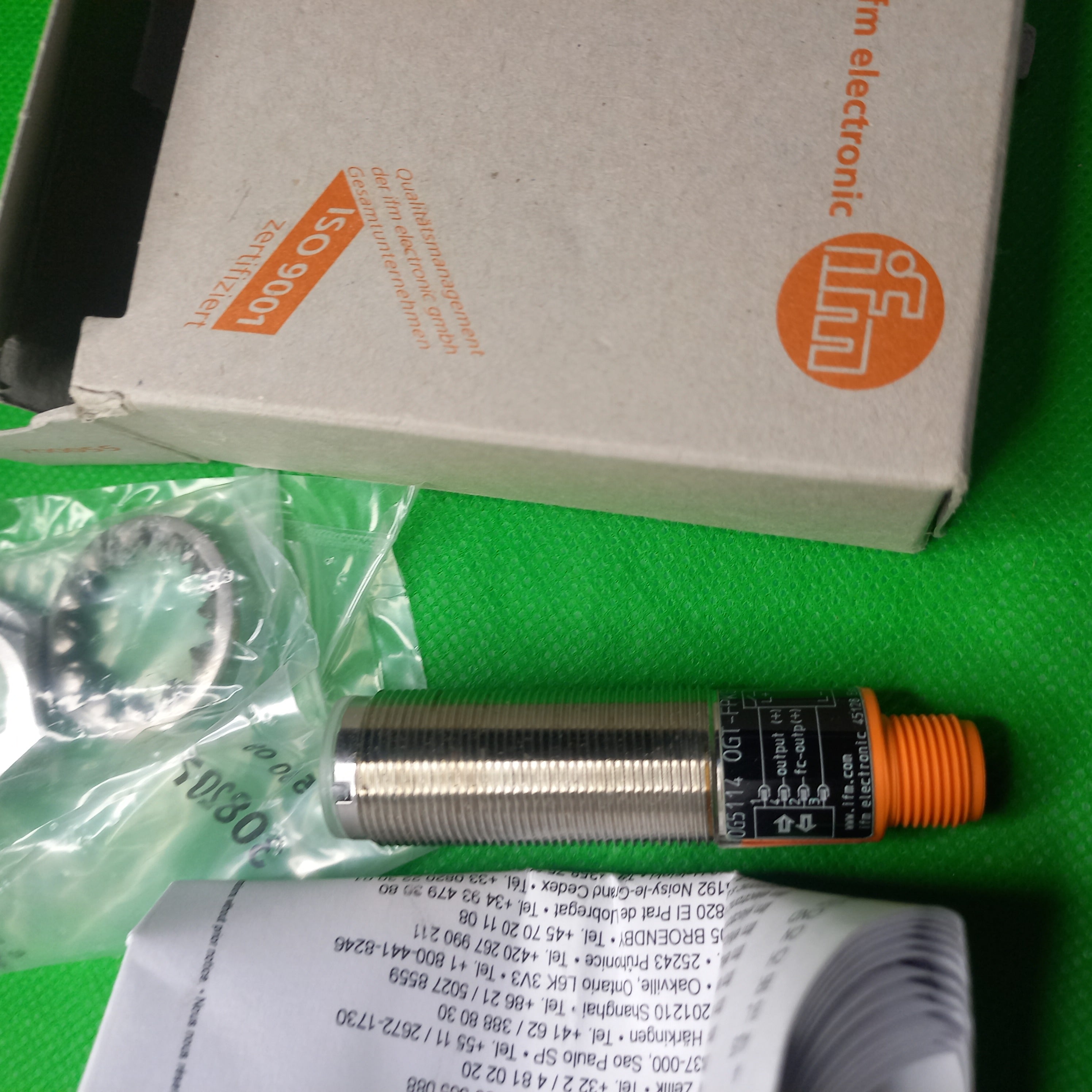

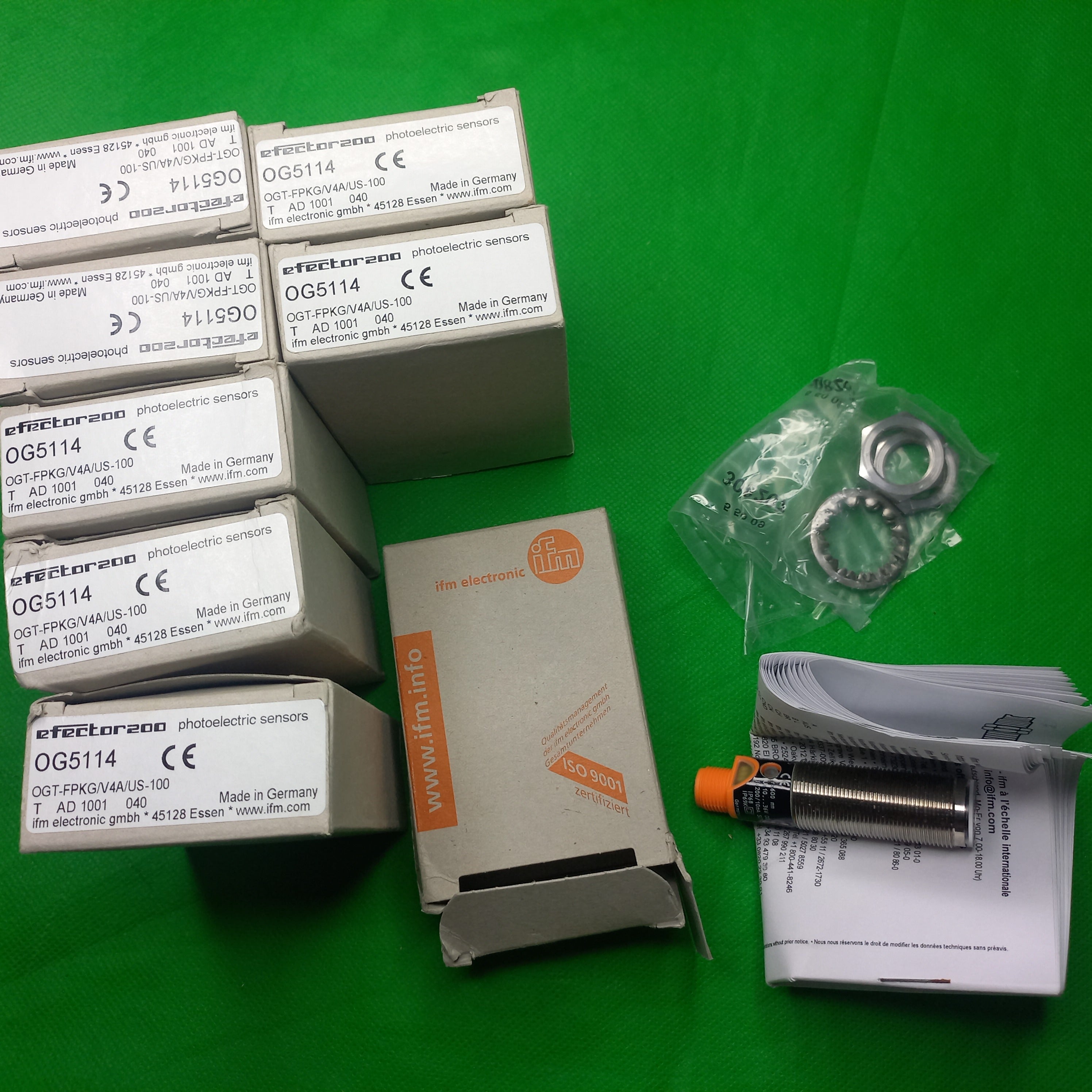

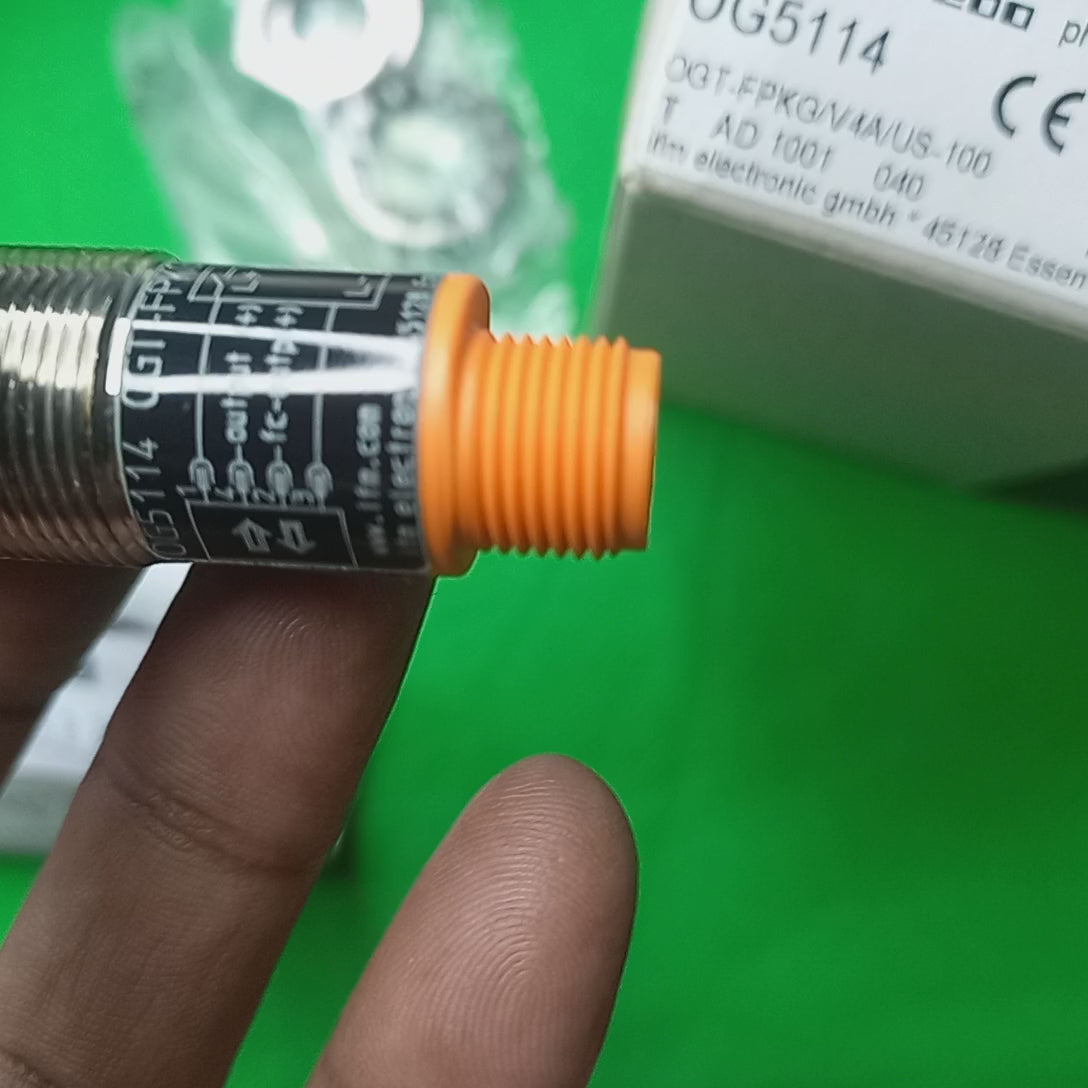

Diffuse reflection sensor OG5114 | PNP | Infrared OGT-FPKG/V4A/US-100

Product characteristics

Type of light	Infrared light
Housing	Threaded type

Application

Special feature	gold-plated contacts; Function check output
Function principle	Diffuse reflection sensor

Dimensions: for Mounting design:

Connections:

Electrical data

Operating voltage[V]	10...36 DC
Current consumption[mA]	< 32
Protection class	II
Reverse polarity protection	yes
Type of light	Infrared light
Wave length[nm]	880

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (configurable)
Max. voltage drop switching output DC[V]	2.5
Function check output	yes
Max. voltage drop of function check output[V]	3.5
Max. current load for function check output[mA]	10
Permanent current rating of switching output DC[mA]	200
Switching frequency DC[Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

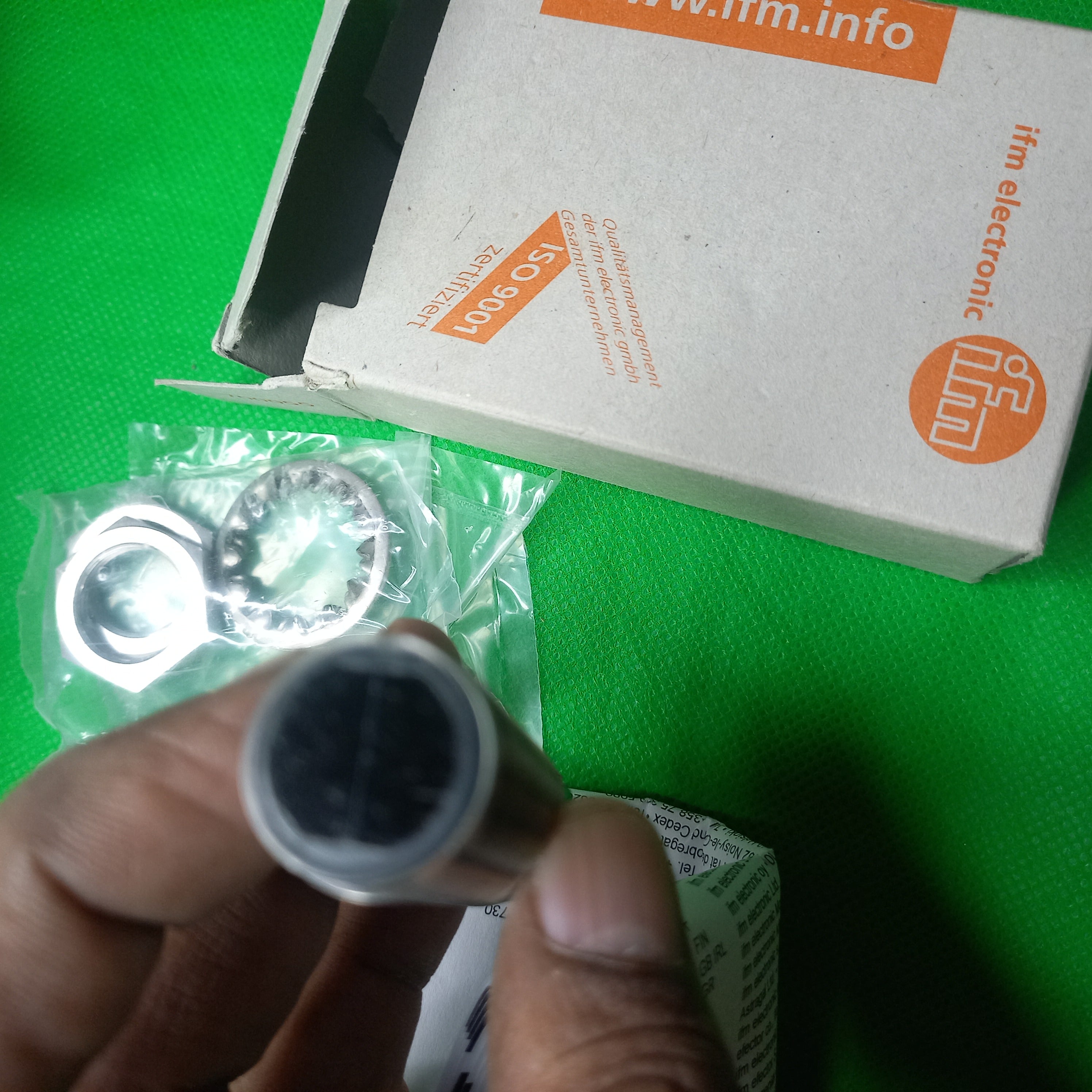

Range[mm]	< 600; (white paper 200 x 200 mm)
Range adjustable	yes
Max. light spot diameter[mm]	169
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature[°C]	-25...80
Protection	IP 68; IP 69K

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B

Mechanical data

Housing	Threaded type
Dimensions[mm]	M18 x 1 / L = 70.5
Thread designation	M18 x 1
Material	housing: stainless steel (1.4404 / 316L); End cap: PBT
Lens material	front lens:PMMA

Displays / operating elements

Display

Switching status 1 x LED, yellow Power 1 x LED, green Function 1 x LED, red

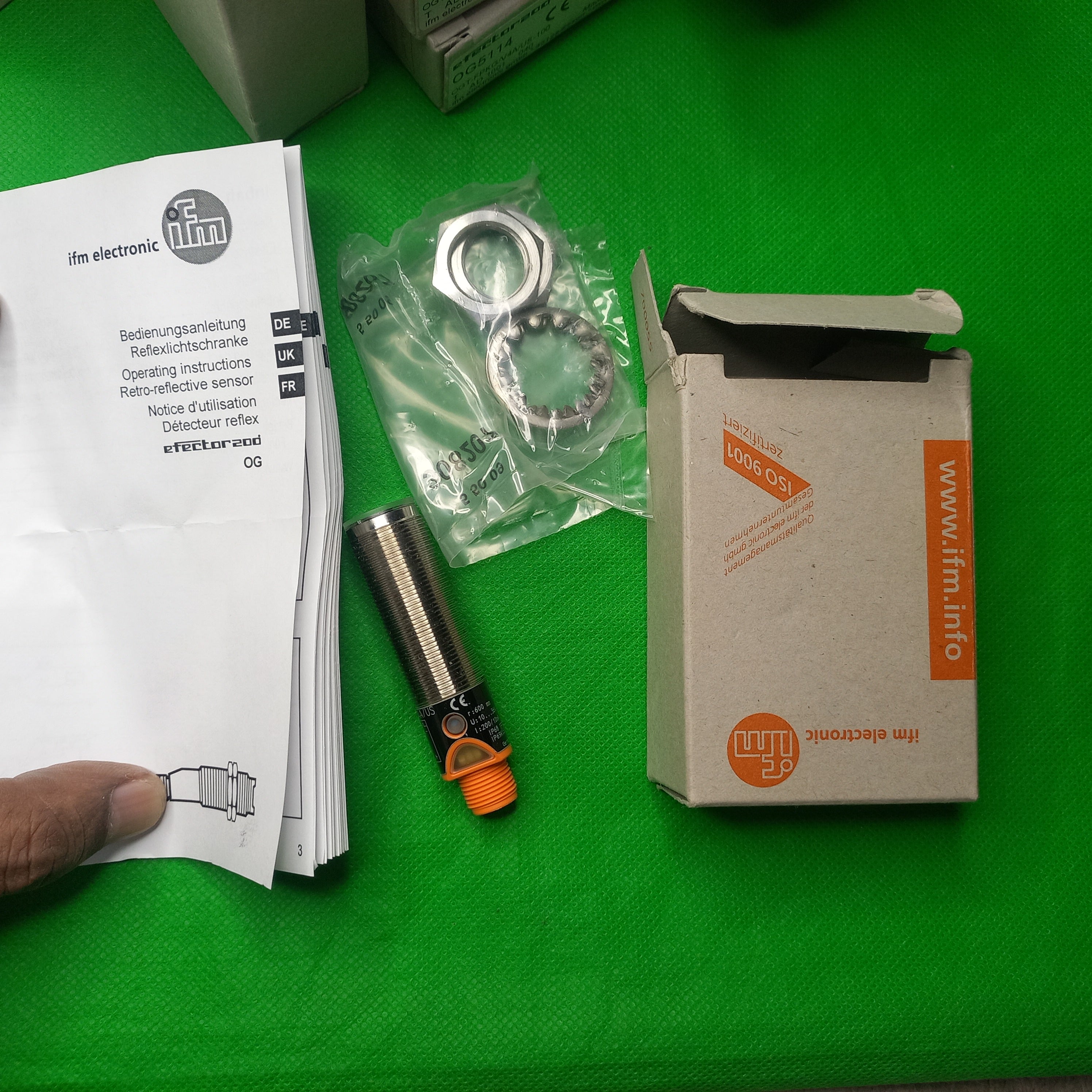

Accessories

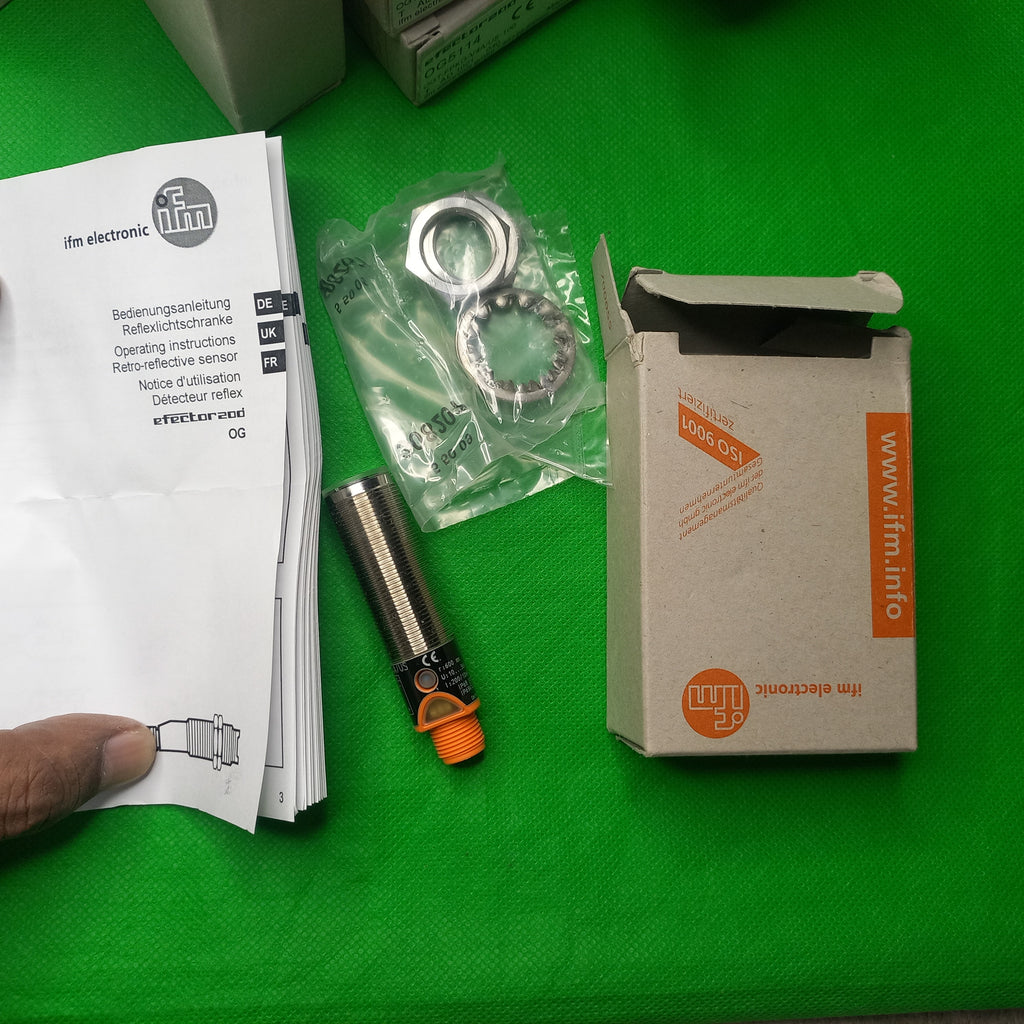

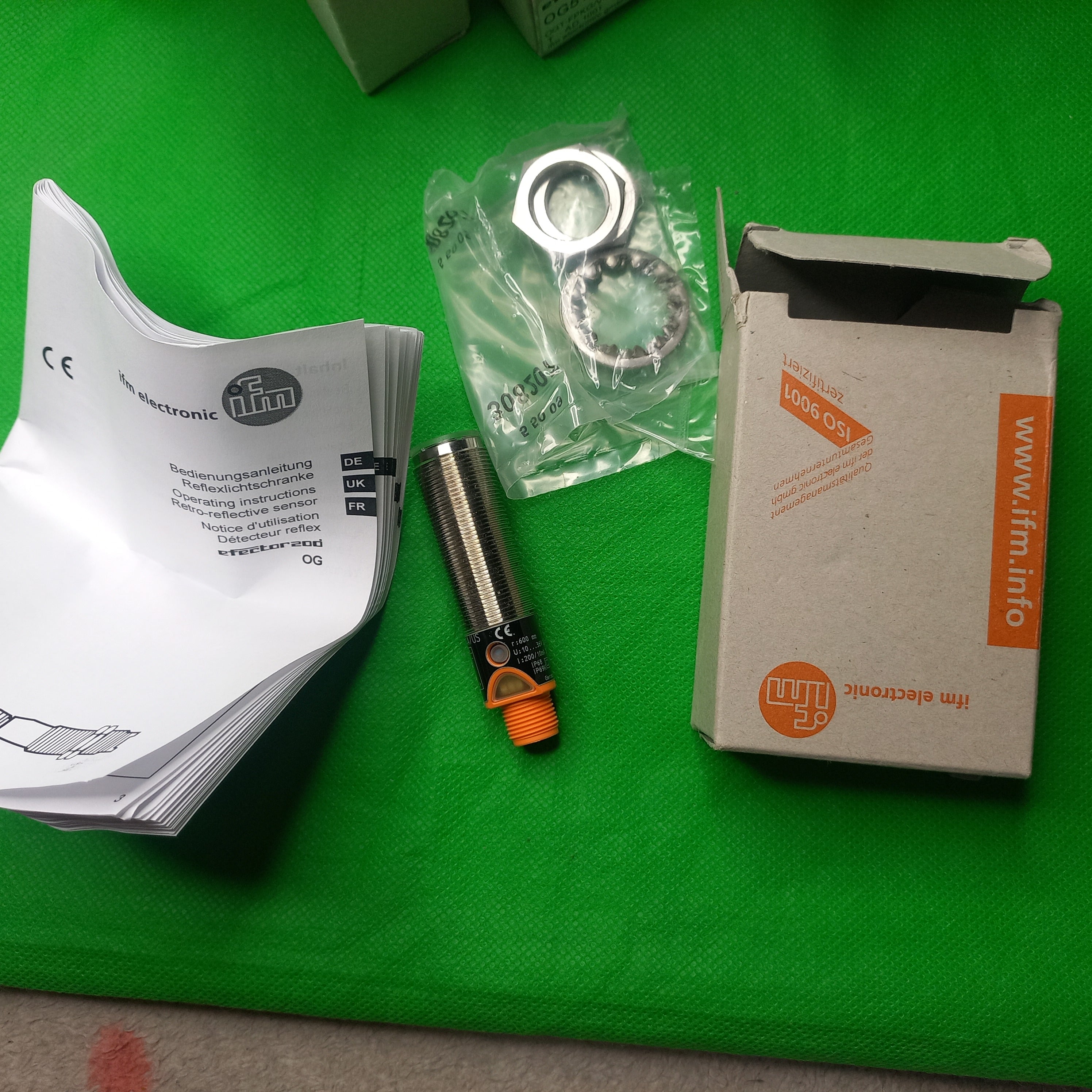

Items supplied

lock nuts: 2

Remarks

Pack quantity

1 pcs.

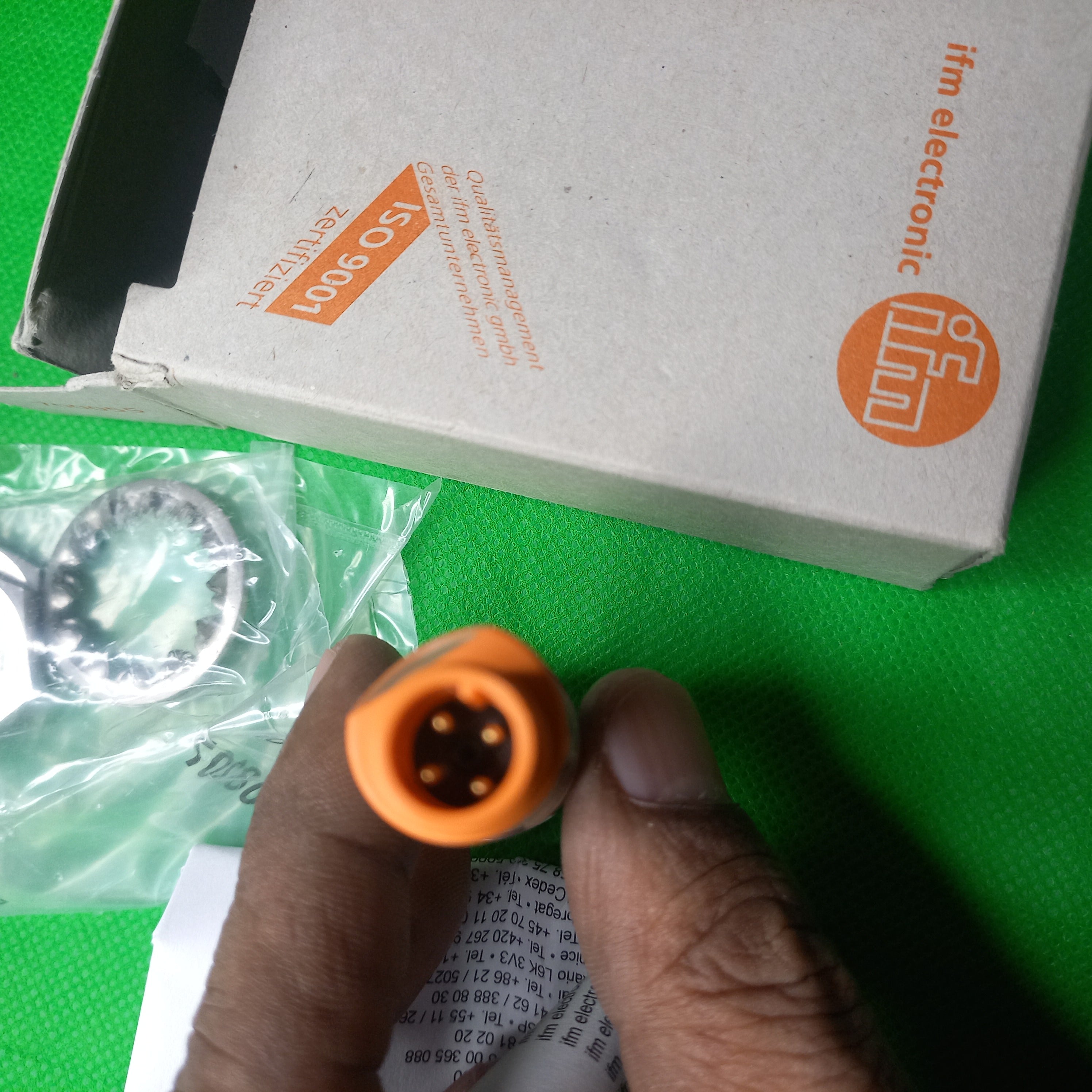

Electrical connection

Connector

1 x M12; coding: A; Contacts: 4, gold-plated

• MPN : OG5114
• Manufacturer indent Nr. : OG5114 OGTFPKGV4A/US-100
• Manufacturer Product number : OGTFPKG/V4A/US-100
• Alternative ways of identifying | Part Numbers | Compatible Parts : OG 5114, 0G5114
• Typographic Errors in MPN | Mistakenly Known as : OGTFPKGV4AUS100
