Leuze HRT96 Laser Light Scanner HRT 96M/P-3360-5000-426, 500 39470
$1,400.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Leuze HRT96 Laser Light Scanner HRT 96M/P-3360-5000-426, 500 39470
$1,400.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Leuze Electronic
- Sensor Type: Laser Light Scanner with Background SuppressionPhotoelectric sensor
- Sensor Dimensions: 90mmx70mmx38mm
- Sensor Interface:
- Sensor Range : Typ. scanning range limit (white 90%) 1) : 5500mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
LEUZE Electronic Sensor HRT96, Laser Light Scanner with Background Suppression, HRT96M/P-3360-5000-426, 50039470
LEUZE Electronic Sensor HRT 96M/P-3360-5000-426, 50039470 , 500 39470 Range 5500mm, Metal, PNP, 10-30VDC; with : 2 Switching points/ switching output , 1 Analogue output
Designation: HRT96M/P3360-5000-426
Typ. oper. range limit/ Typ. scan. range limit: 5.5 M
Housing : Metal | Light source: Red light
Opeating voltage: 10-30VDC | Output; PNP transistor
HRT 96 Series
- 100 ... 5000mm
- 10-30 V DC
- Laser scanner with large detection range for universal application
- Phase measurement makes use possible under extreme environmental conditions (brightness, light)
- Three switching points can be set independently of each other
- Analogue output, combined with switching outputs
- Switching behaviour independent of the direction of movement
- Good black/white behaviour over the entire adjustment range
Optical data
Typ. scanning range limit (white 90%) 1) : 5500mm
1) Typ. scanning range limit: max. attainable range without performance reserve
Scanning range 2) : 100... 5000mm/15m [ Reference: reflective tape]
2) Scanning range: recommended range with performance reserve
Adjustment range ) : 500.. 5000mm/15m [ Reference: reflective tape]
Light source) : laser (red light)
Wavelength) : 660nm
Laser warning notice see remarks
Timing
Switching frequency 20Hz
Response time 25ms
Delay before start-up ≤200ms
Electrical data
Operating voltage UB 10 ... 30VDC (incl. residual ripple)
Residual ripple ≤15% of UB
Bias current ≤40mA
Switching output PNP transistor
Function characteristics light or dark switching (adjustable)
Signal voltage high/low ≥ (UB-2V)/≤ 2V
Output current max. 100mA
Indicators
Sensor front
LED green ready
LED yellow reflection (Q₁)
Sensor back see table
Mechanical data
Housing Metal housing
Optics cover diecast zinc
Weight glass
Connection type 380g

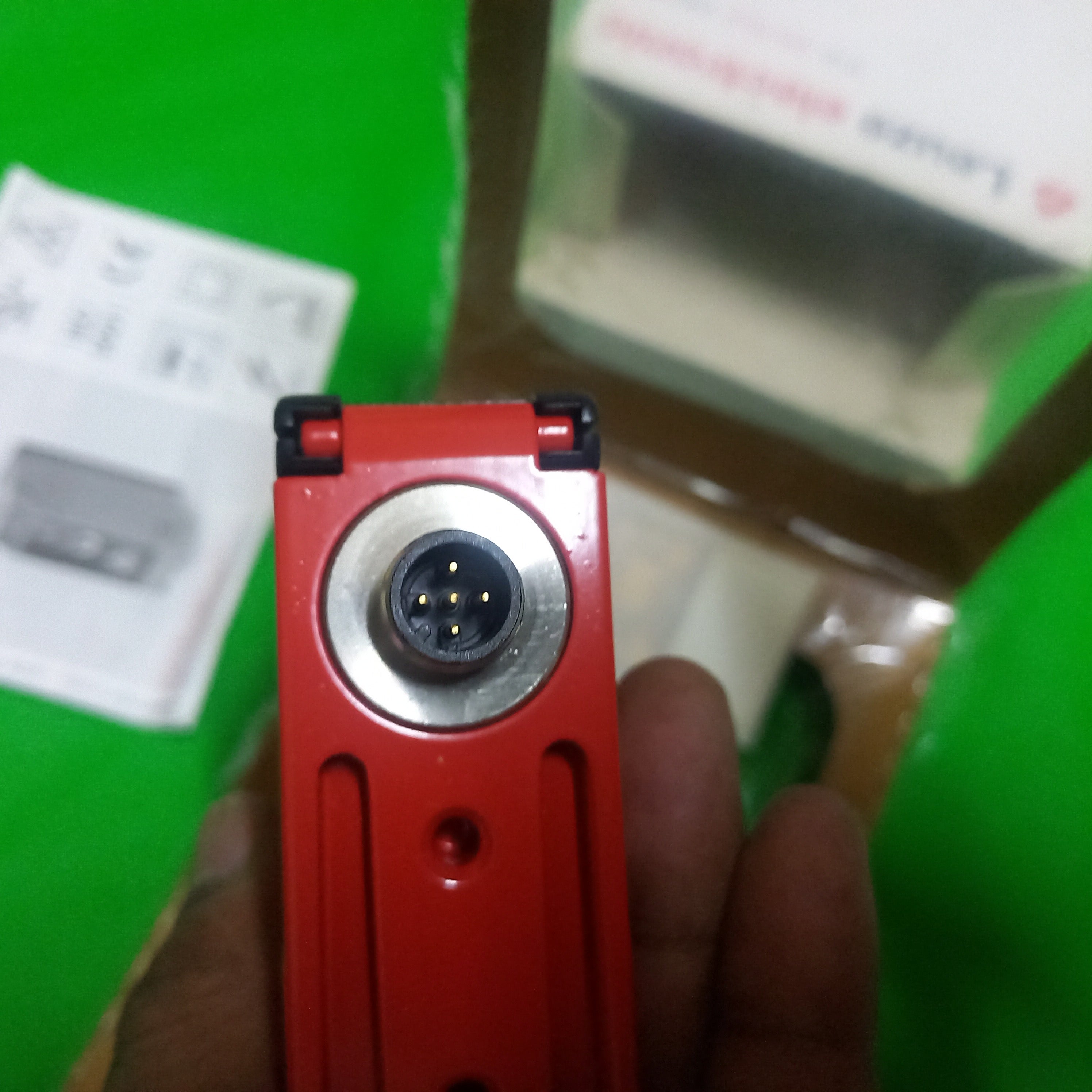

Environmental data M12 connector, 5-pin
Ambient temp. (operation/storage) 0°C .. +40°C/-30°C ... +70°C
Protective circuit 4) 1, 2, 3, 4 [4) 1-transient protection, 2-polarity reversal protection, 3-short circuit protection for all outputs, 4-interference blanking
VDE safety class 5) II, all-insulated [5) Rating voltage 250VAC]
Protection class IP 67, IP 69K 6) [6) IP 69K test acc. to DIN 40050 part 9 simulated, high pressure cleaning conditions without the use of additives, acids and bases are not part of the test]
Standards applied IEC 60947-5-2
- MPN : HRT 96M/P-3360-5000-426
- Manufacturer indent Nr. : HRT 96M/P-3360-5000-426HRT96MP-3360-5000-426
- Manufacturer Product number : 500 39470
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
