Ready Stock SET : LS 412M/P | Throughbeam photoelectric sensor | Part no.: 50081432

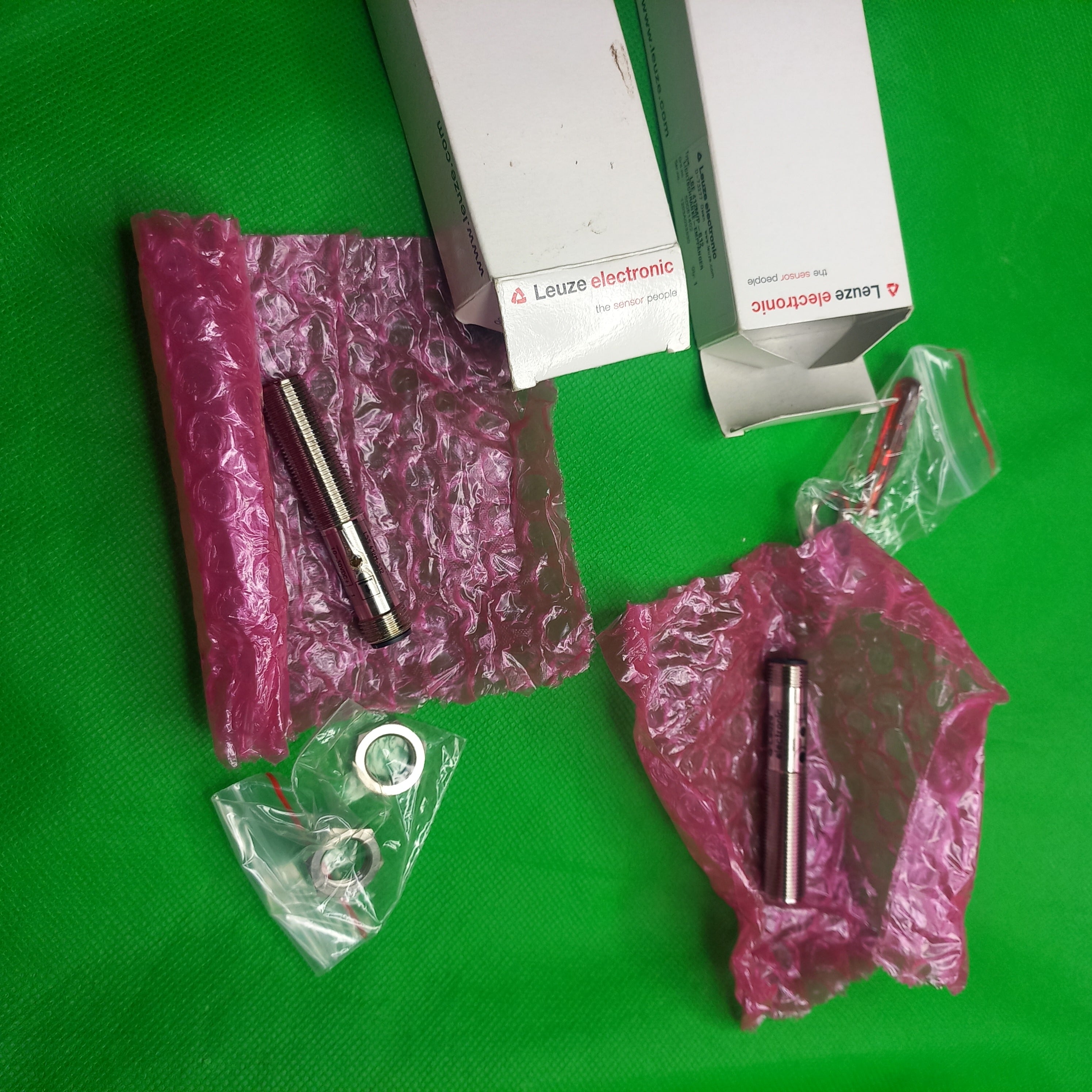

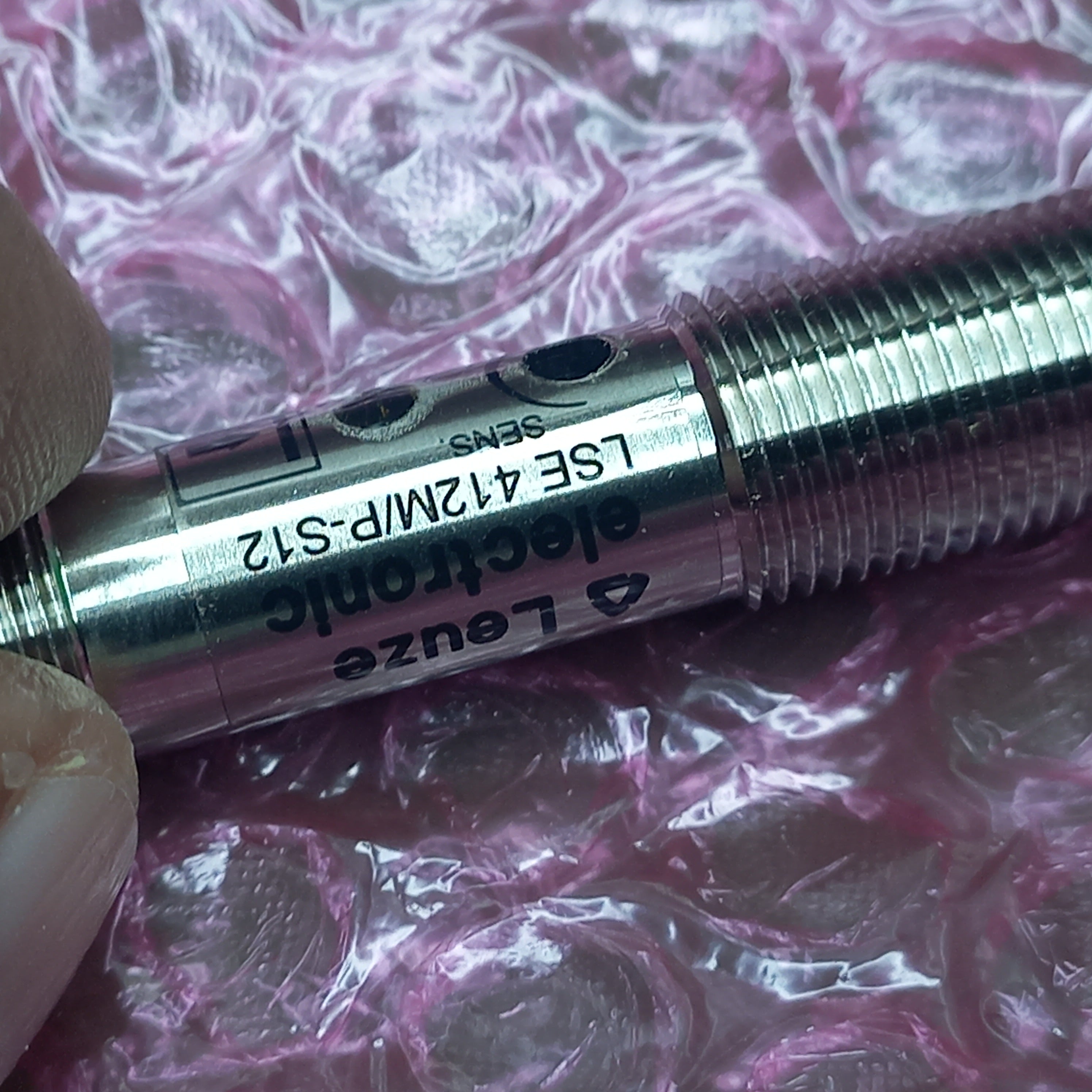

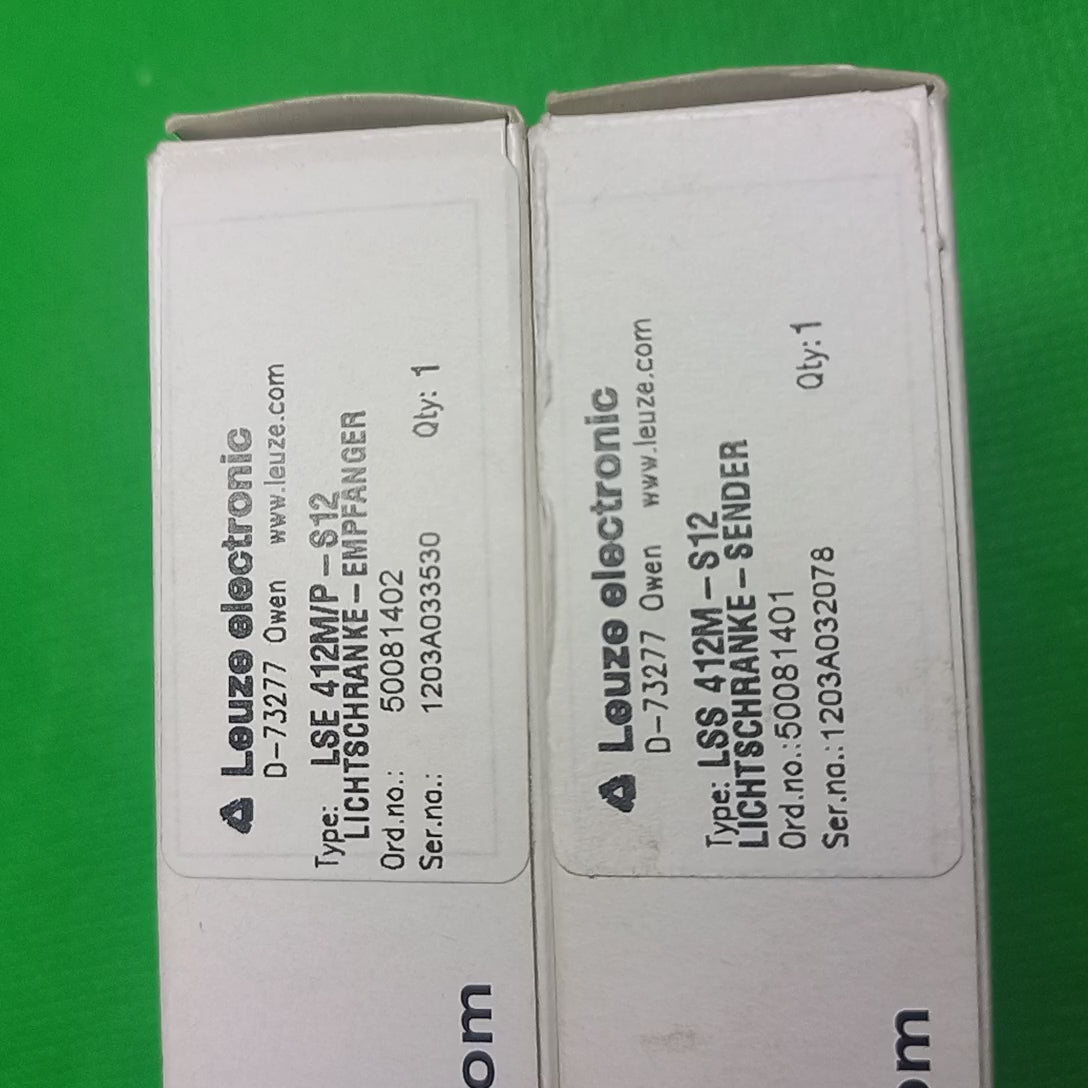

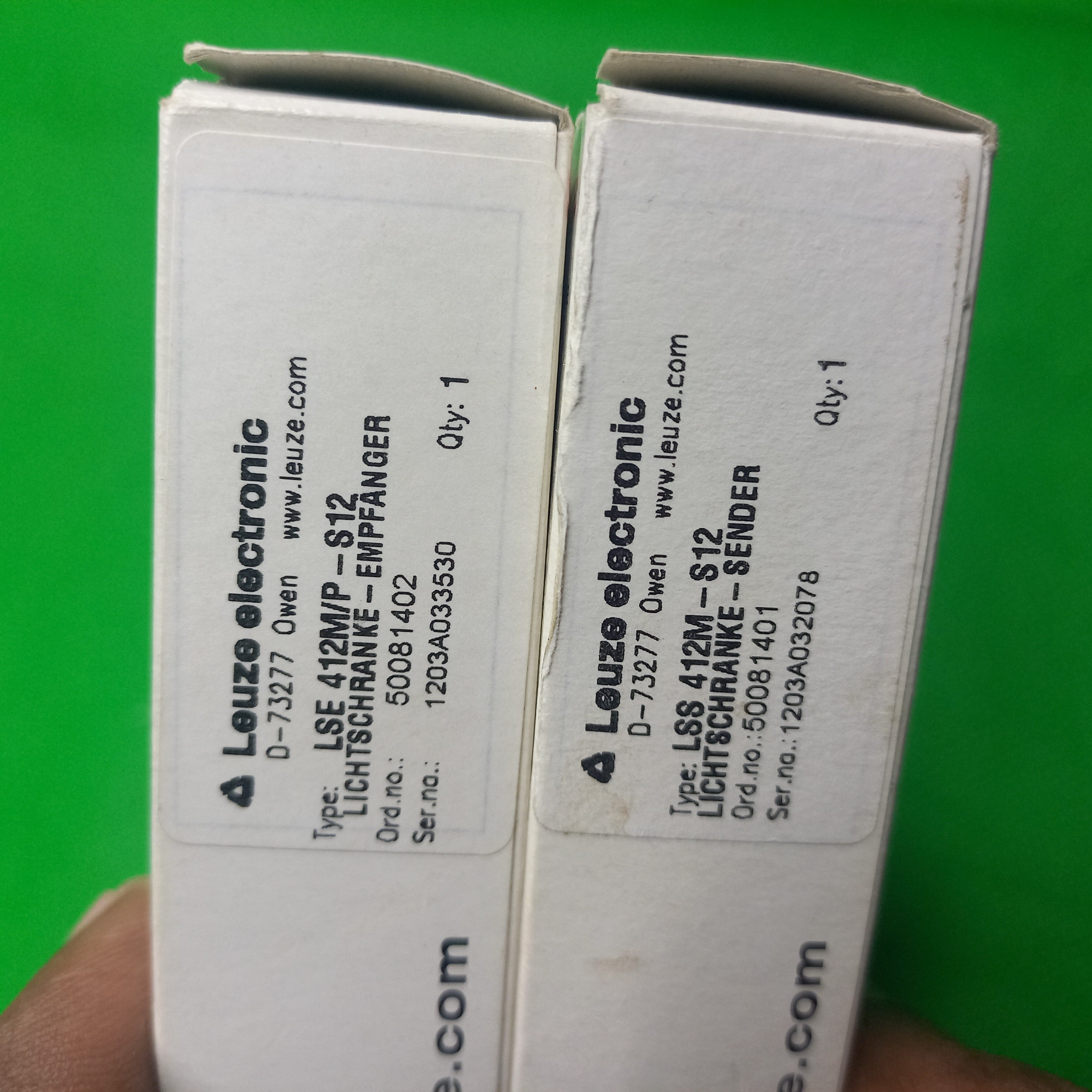

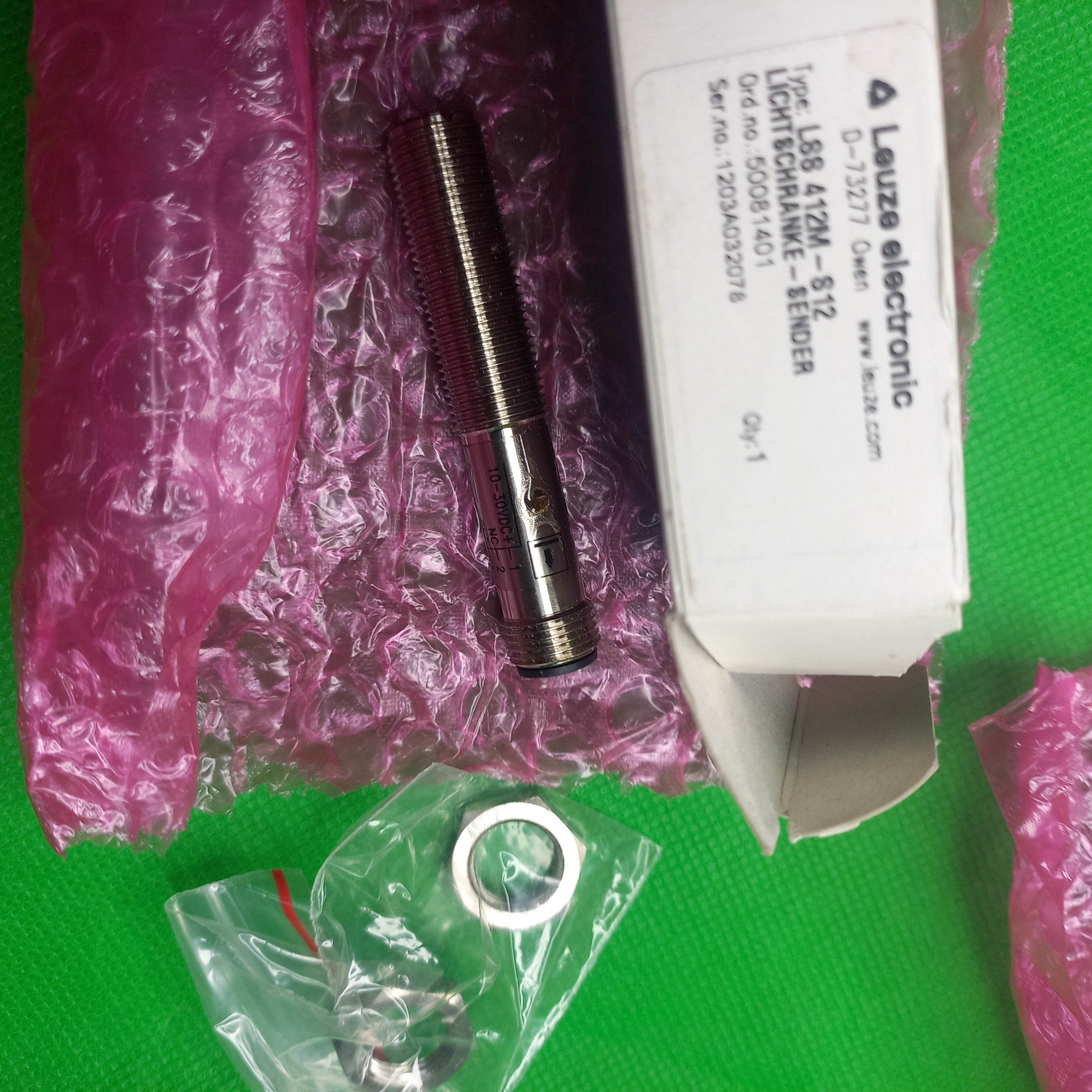

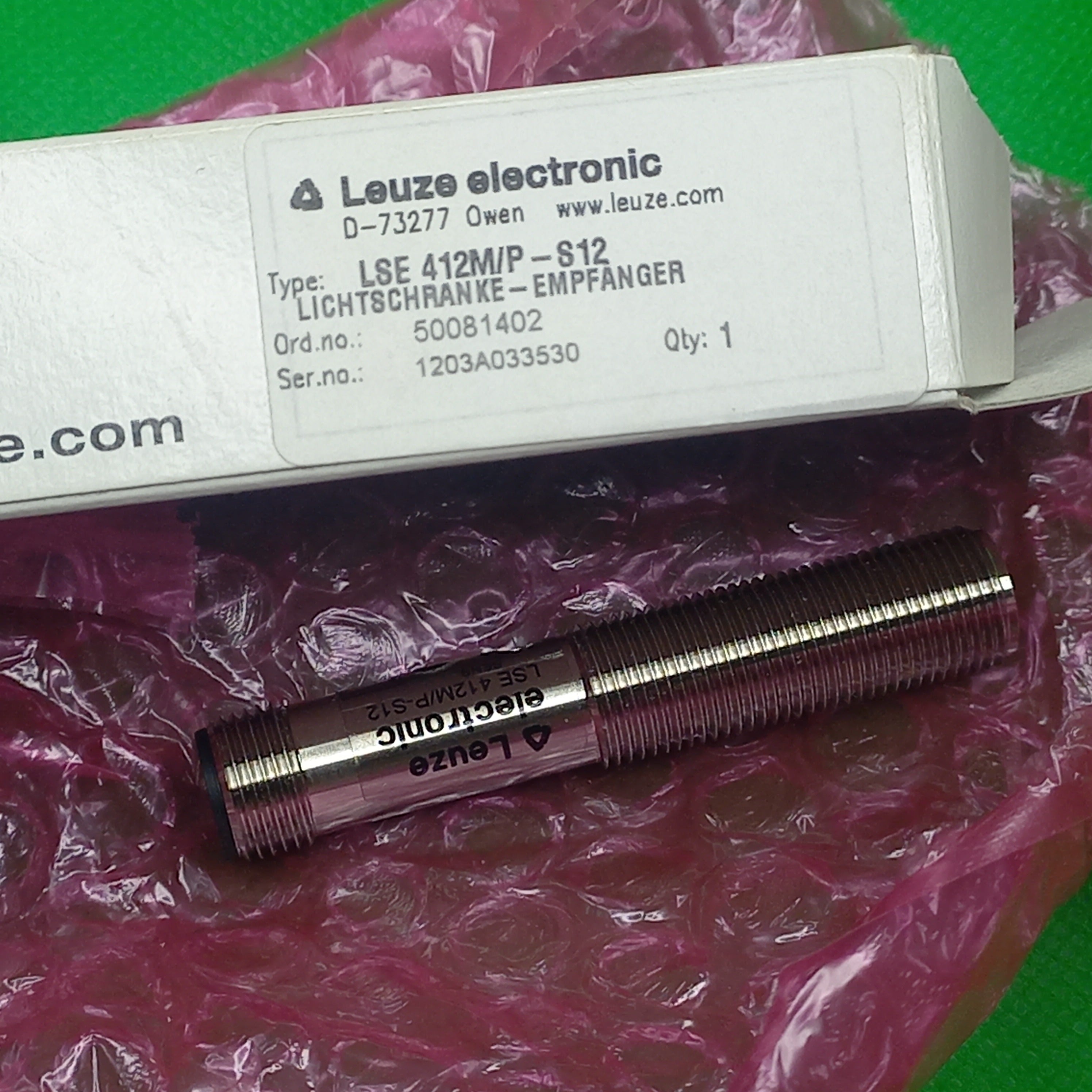

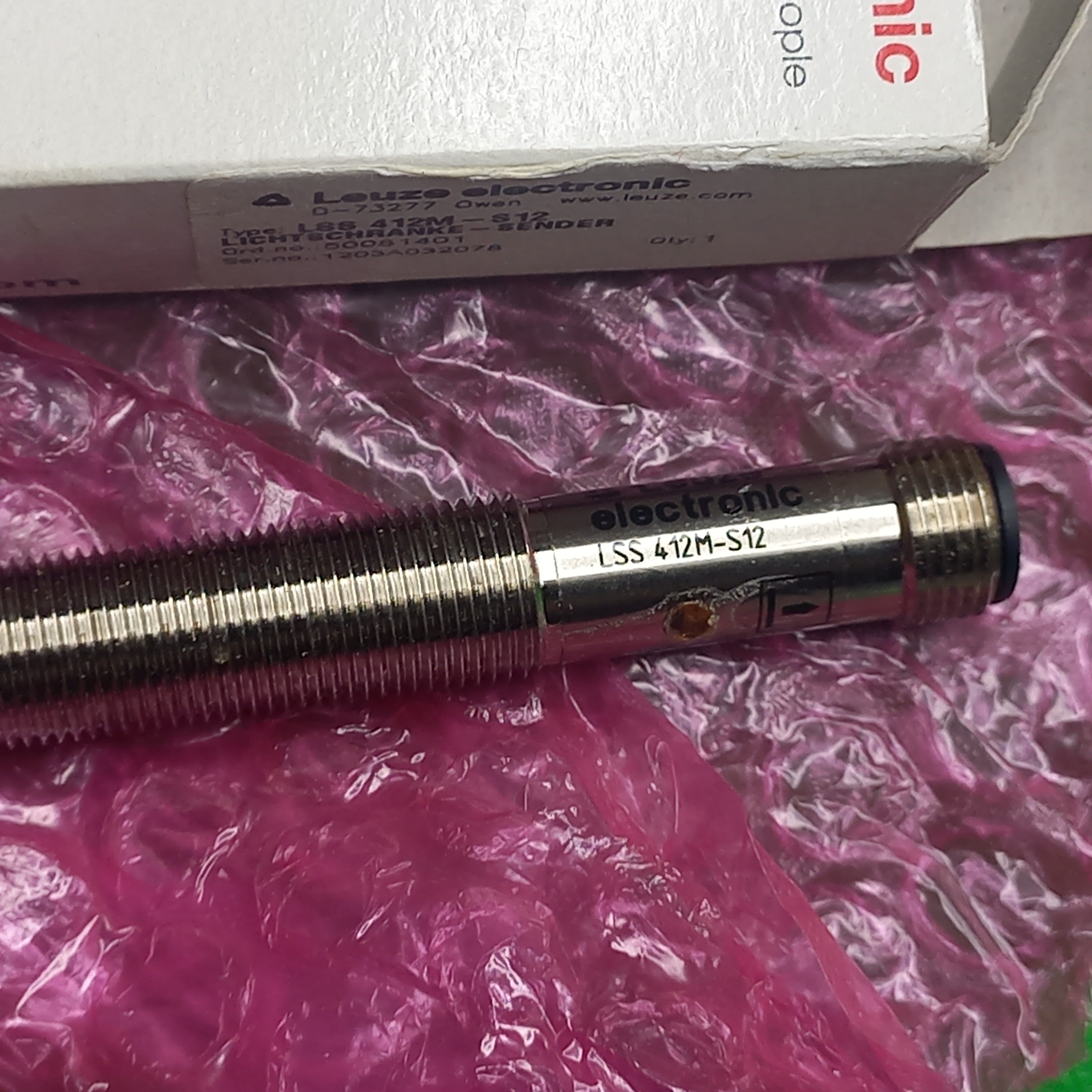

Leuze Transmitter and receiver LS 412M/P-S12 500 81431 = LSE 412M/P-S12 (500 81402)+ LSS 412M-S12 (500 81401)

• Throughbeam photoelectric sensors using visible red light

• Slim and short cylindrical metal housing M12x1

• Sensitivity adjustment for optimal adaptation to the application Light/dark switching via control line

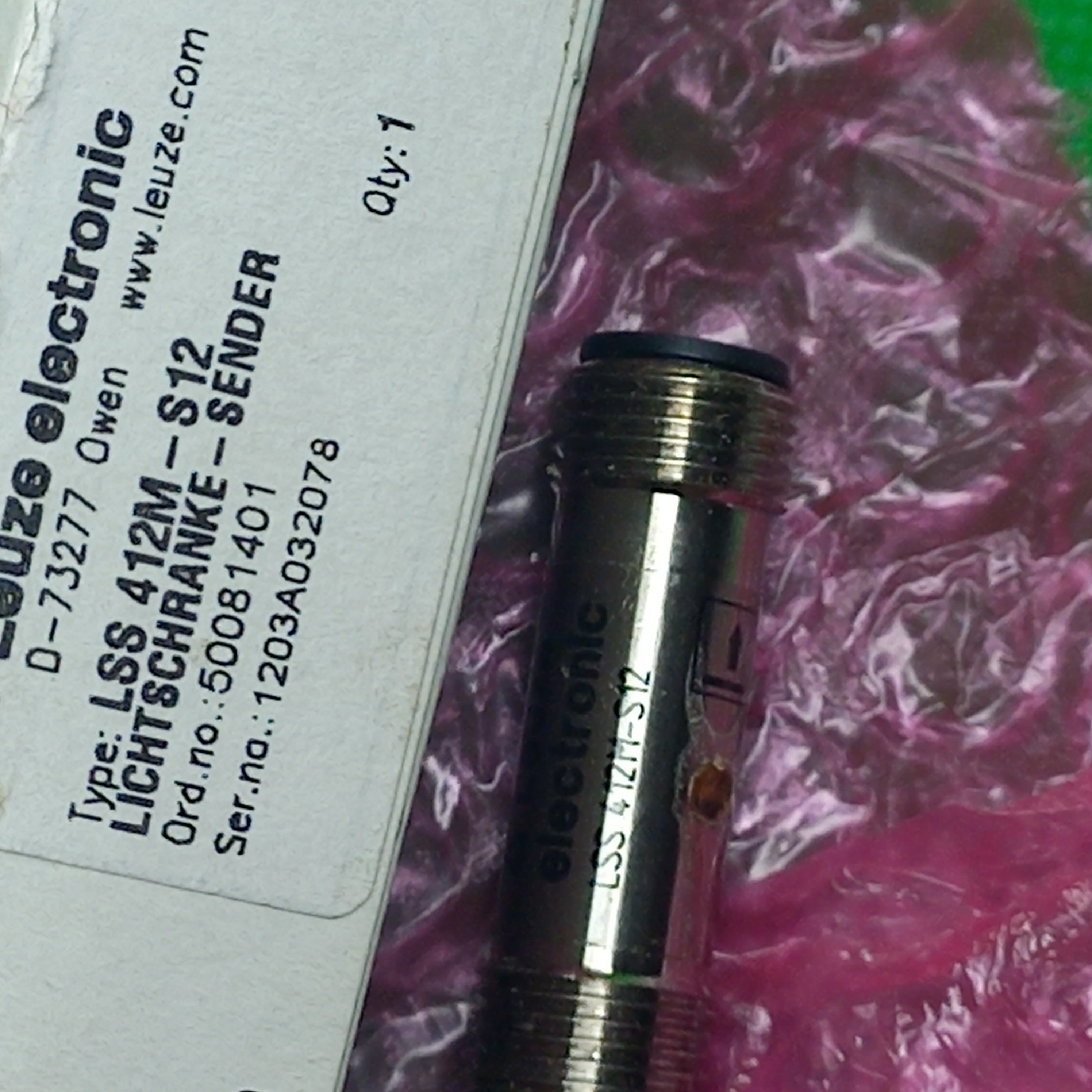

Transmitter and receiver  With M12 connector

Designation LS 412M/P-S12 | Part No.  500 81431

• Part no. : 50081431

• Part description : SET LS 412M/P-S12 50081431

• Operating range [m] : 0 ... 6 m

• Op. range limit [m] : 0 ... 8 m

• Switching frequency : 500 Hz

• Light source : LED, red

• Switching output 1 : Transistor, PNP, light/dark reversible

• Voltage Type : DC

• Connection : Connector, M12, metal

----
Throughbeam Sensors
Short and compact throughbeam photoelectric sensors with visible red light.
LS 412
Throughbeam photoelectric sensors with visible red light
in cylindrical M12 design.
Benefits:
„„ Slim and short cylindrical metal housing M12
„„ Sensitivity adjustment for optimum adaptation to the application
„„ Light/dark switching via control cable

=================
Specifications

Optical data
Typ. operating range limit 1)
1) Typ. operating range limit: max. attainable range without performance reserve
0 … 8m
Operating range 2)
2) Operating range: recommended range with performance reserve
0 … 6m
Light source LED (modulated light)
Wavelength 660nm (visible red light)
Timing -Switching frequency 500Hz
Response time 1ms
Delay before start-up ≤ 25ms
Electrical data
Operating voltage UB 10 … 30VDC (incl. residual ripple)
Residual ripple ≤ 10% of UB
Bias current ≤ 20mA
Switching output PNP transistor output
Function characteristics3)
3) Light switching for control line (ws/WH): not connected or connected to UB
Dark switching for control line (ws/WH): connected to GND
light/dark switching via control line
Signal voltage high/low ≥ (UB-3V)/≤ 3V
Output current max. 200mA
Sensitivity adjustable
Indicators - LED green (transmitter) ready
                   LED yellow (receiver) switching state
Mechanical data
Housing nickel-faced brass
Optics cover plastic
Weight 18g
Connection type M12 connector 4-pin,
cable 2m, 4x0.14mm²
Environmental data
Ambient temp. (operation/storage) -25°C … +55°C/-40°C … +70°C
Protective circuit 4)
4) 2=polarity reversal protection, 3=short-circuit protection for all outputs
2, 3
VDE safety class III
Protection class IP 67
Standards applied IEC 60947-5-2
