Diffuse sensors background suppression OHDM 20P6990/S14C | 10153490 | PNP
$1,280.00
Skip to product information
Baumer Diffuse sensors OHDM 20P6990 S14C with background suppression | Article number: 10153490
Overview
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Diffuse sensors background suppression OHDM 20P6990/S14C | 10153490 | PNP
$1,280.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Baumer
- Sensor Type: Diffuse sensors with background suppressionPolarized Retroreflective
- Sensor Dimensions: 65mmx50mmx20.6mm
- Sensor Interface:
- Sensor Range : Sensing distance Tw 210 … 1500 mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Baumer Diffuse sensors OHDM 20P6990 S14C with background suppression | Article number: 10153490
Sensing distance Tw 210 … 1500 mm
Output function Light / dark operate
Output circuit PNP
Overview■ background suppression
■ 210 … 1500 mm
■ pulsed red laser diode
■ PNP
■ Teach-in
■ connector M12 5 pin
■ 50 °C
■ IP 67
General data
Type : Background suppression
Light source : Pulsed red laser diode
Sensing distance Tw : 210 … 1500 mm
Sensing range Tb (at Tw
max.): 200 … 1500 mm
Sensing range Tb (at Tw min.) : 200 … 210 mm
Power on indication : LED green
Light indicator: LED red
Sensing distance adjustment : Teach-in
Laser class : 2
Wave length : 650 nm
Beam diameter: 2 mm
Electrical data
Response time < 6 ms
Release time < 18 ms
Voltage supply range +Vs 12 … 28 VDC
Current consumption max.(no load) 100 mA
Electrical data
Voltage drop Vd < 5 VDC
Output function Light / dark operate
Output circuit PNP
Output current < 20 mA
Short circuit protection Yes
Reverse polarity protection Yes, Vs to GND
Mechanical data
Width / diameter 20.6 mm
Height / length 65 mm
Depth 50 mm
Type Rectangular
Housing material Die-cast zinc
Front (optics) Glass

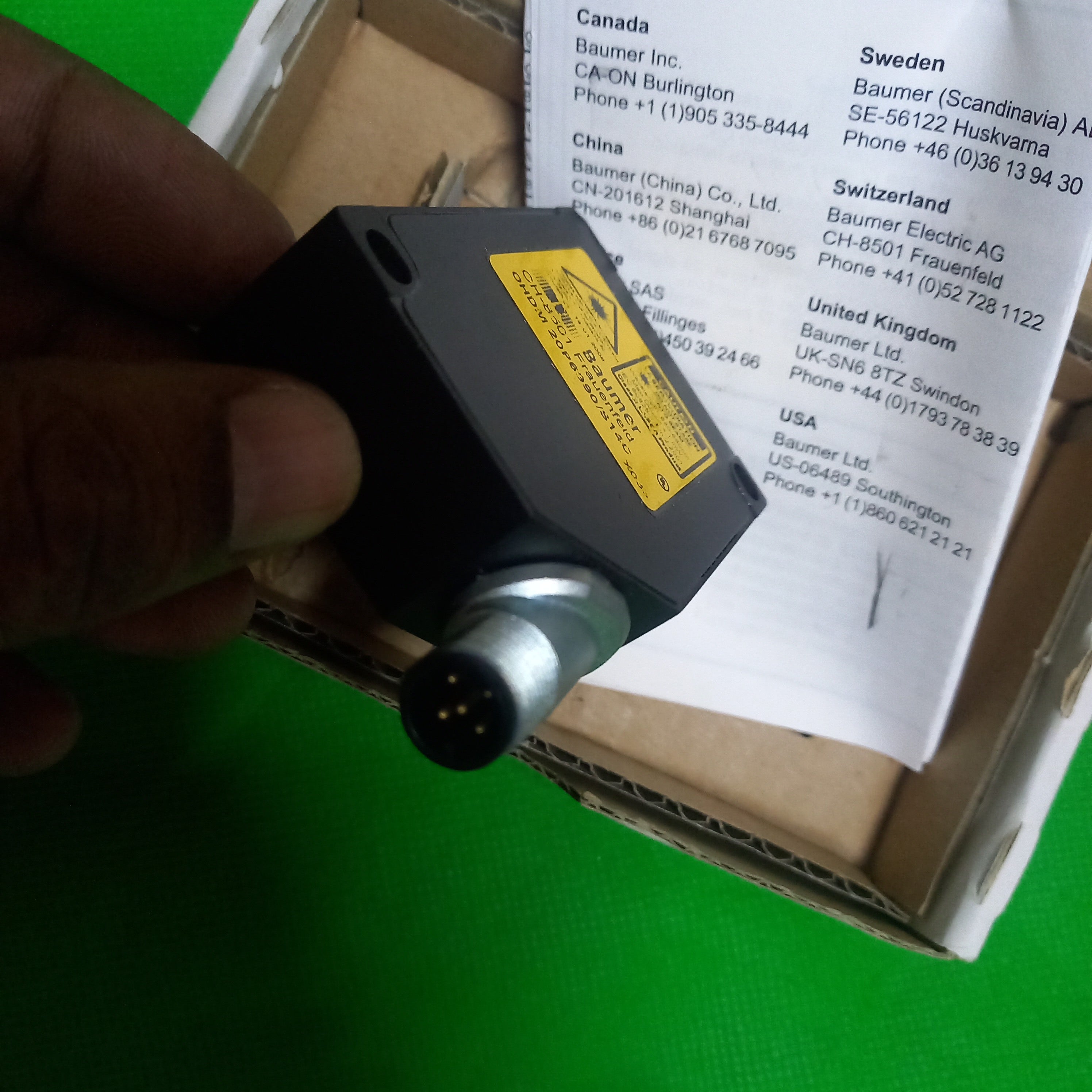

Connection types Connector M12 5 pin
Ambient conditions
Protection class IP 67
Operating temperature 0 … +50 °C
- MPN : OHDM 20P6990/S14C
- Manufacturer indent Nr. : OHDM 20P6990/S14COHDM20P6990S14C
- Manufacturer Product number : OHDM20P6990/S14C
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
