Phoenix 30Amp/24v DC Power supply 2938633, QUINT-PS-3X400-500AC/24DC/30
$590.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Phoenix 30Amp/24v DC Power supply 2938633, QUINT-PS-3X400-500AC/24DC/30
$590.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: QUINT-PS-3X400-500AC/24DC/30
- Manufacturer Alternative MPN ; QUINT-PS3X400-500AC/24DC/30
- Manufacturer Id Nr. 2938633

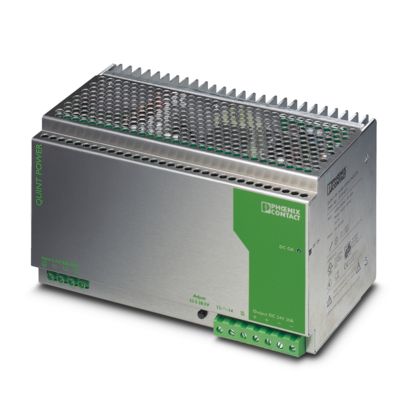

QUINT-PS-3X400-500AC/24DC/30 - Power supply
Item number 2938633
DIN rail power supply unit 24 V DC/30 A, primary switched-mode, 3-phase.
| AC operation | |
| Nominal input voltage range | 3x 400 V AC ... 500 V AC |
| Input voltage range | 3x 320 V AC ... 575 V AC (for all three phases) |
| 450 V DC ... 800 V DC | |
| Input voltage range AC | 3x 320 V AC ... 575 V AC (for all three phases) |
| Input voltage range DC | 450 V DC ... 800 V DC |
| Voltage type of supply voltage | AC/DC |
| Inrush current | < 15 A (typical) |
| AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz |
| Mains buffering time | > 20 ms (at 3 x 400 V AC) |
| > 20 ms (at 3 x 480 V AC) | |
| Current consumption | approx. 3x 2.1 A (400 V AC) |
| 3x 1.7 A (480 V AC) | |
| Nominal power consumption | 720 W |
| Typical response time | < 1 s |
| Input fuse | Externally via 3 circuit breakers 6 A, 10 A or 16 A, characteristic B |
| Efficiency | > 92 % |
| Nominal output voltage | 24 V DC ±1 % |
| Setting range of the output voltage (USet) | 22.5 V ... 28.5 V |
| Nominal output current (IN) | 30 A (up to 60 °C) |
| POWER BOOST (IBoost) | 35 A |
| Residual ripple | < 100 mVPP |
| Output power | 720 W |
| Peak switching voltages nominal load | < 100 mVPP (20 MHz) |
| Maximum no-load power dissipation | < 14 W |
| Power loss nominal load max. | < 62 W |
| Connection in parallel | yes, for assembling redundant systems and increasing efficiency |
| Connection in series | yes |
| Signal: Active | |
| Output description | UOUT > 0.9 x UN: High signal |
| Output voltage | + 24 V DC (Signal) |
| Continuous load current | max. 40 mA |
| Signal: floating | |
| Output description | Relay contact, UOUT > 0.9 x UN: Contact closed |
| Maximum switching voltage | ≤ 30 V AC/DC |
| Maximum inrush current | ≤ 1 A |
| Continuous load current | ≤ 1 A |

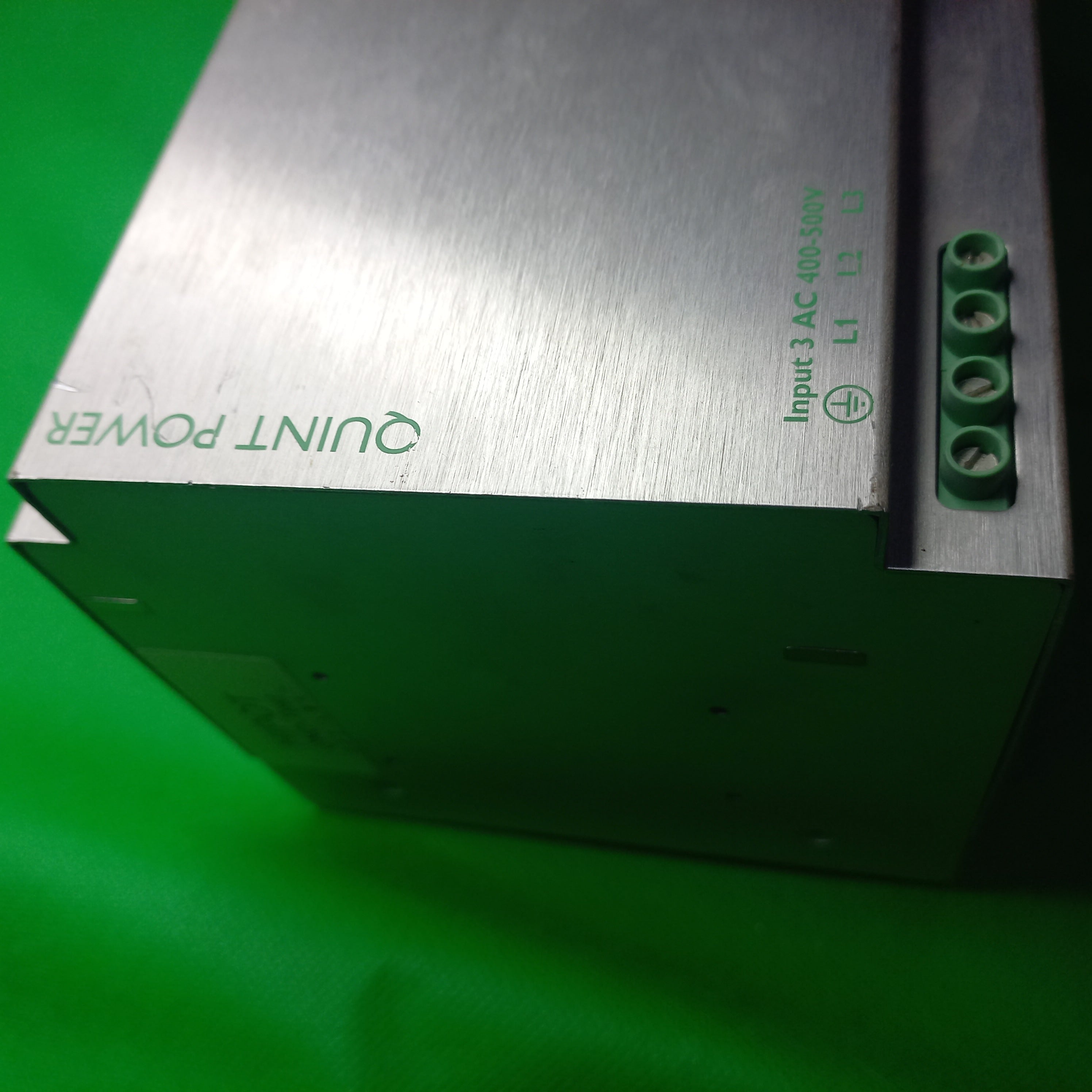

| Input | |
| Connection method | Screw connection |
| Conductor cross-section, rigid min. | 0.2 mm² |
| Conductor cross-section, rigid max. | 6 mm² |
| Conductor cross-section flexible min. | 0.2 mm² |
| Conductor cross-section flexible max. | 4 mm² |
| Conductor cross-section AWG min. | 24 |
| Conductor cross-section AWG max. | 10 |
| Stripping length | 8 mm |
| Screw thread | M3 |

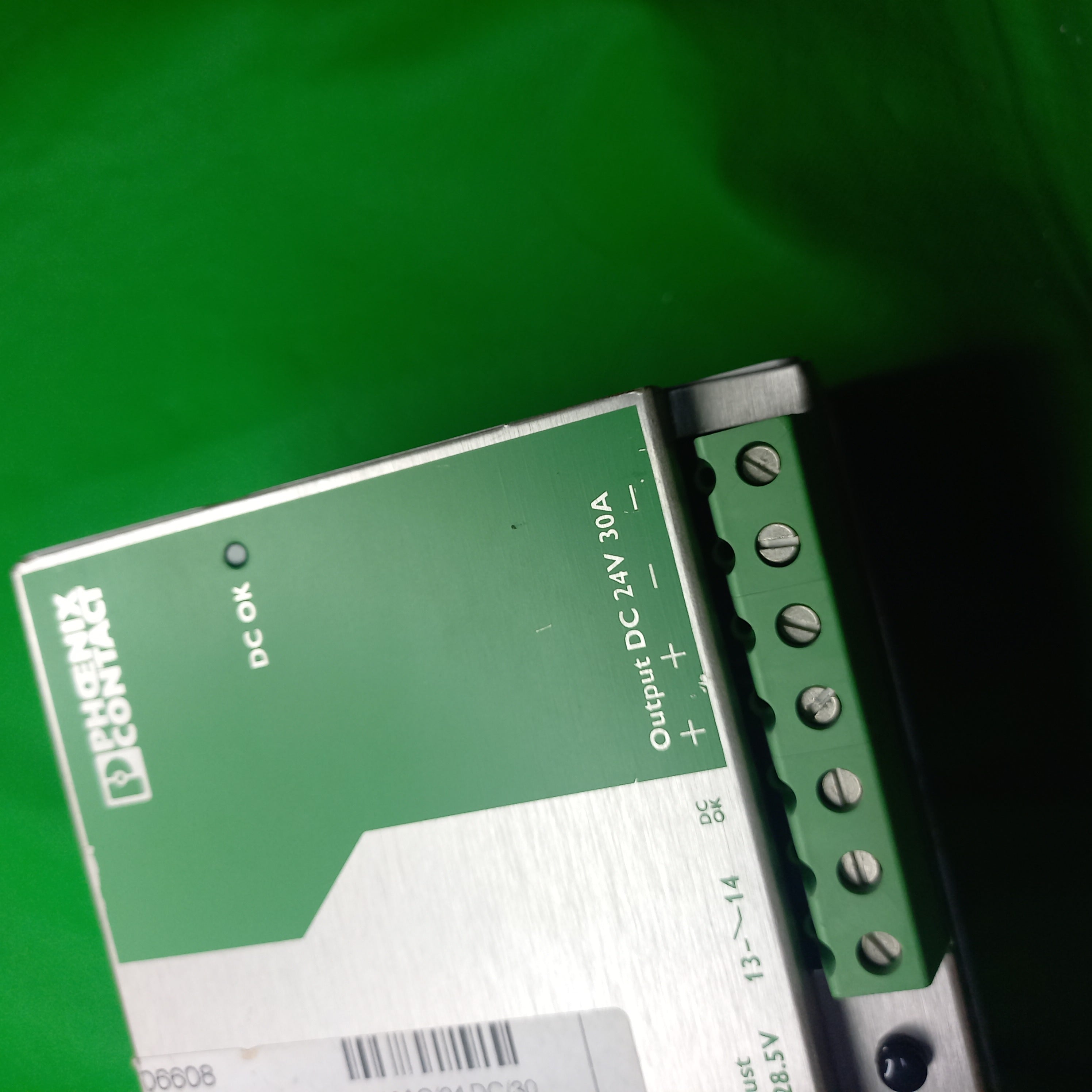

| Output | |
| Connection method | Screw connection |
| Conductor cross-section, rigid min. | 0.5 mm² |
| Conductor cross-section, rigid max. | 16 mm² |
| Conductor cross-section flexible min. | 0.5 mm² |
| Conductor cross-section flexible max. | 10 mm² |
| Conductor cross-section AWG min. | 20 |
| Conductor cross-section AWG max. | 6 |
| Stripping length | 10 mm |
| Operating voltage display | Green LED |
| Signal output: Active | |
| Status display | Green LED (Uout < 0.9 x UN: LED flashes) |
| Number of phases | 3 |
| Insulation voltage input/output | 2 kV (routine test) |
| 4 kV (type test) |
| Product type | Power supply |
| Product family | QUINT POWER |
| MTBF (IEC 61709, SN 29500) | > 500000 h |
| Insulation characteristics | |
| Protection class | I (with PE connection) |
| Width | 240 mm |
| Height | 130 mm |
| Depth | 130 mm |
| Alternative assembly | |
- Manufacturer indent Nr.QUINTPS-3X400-500AC/24DC/30
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
