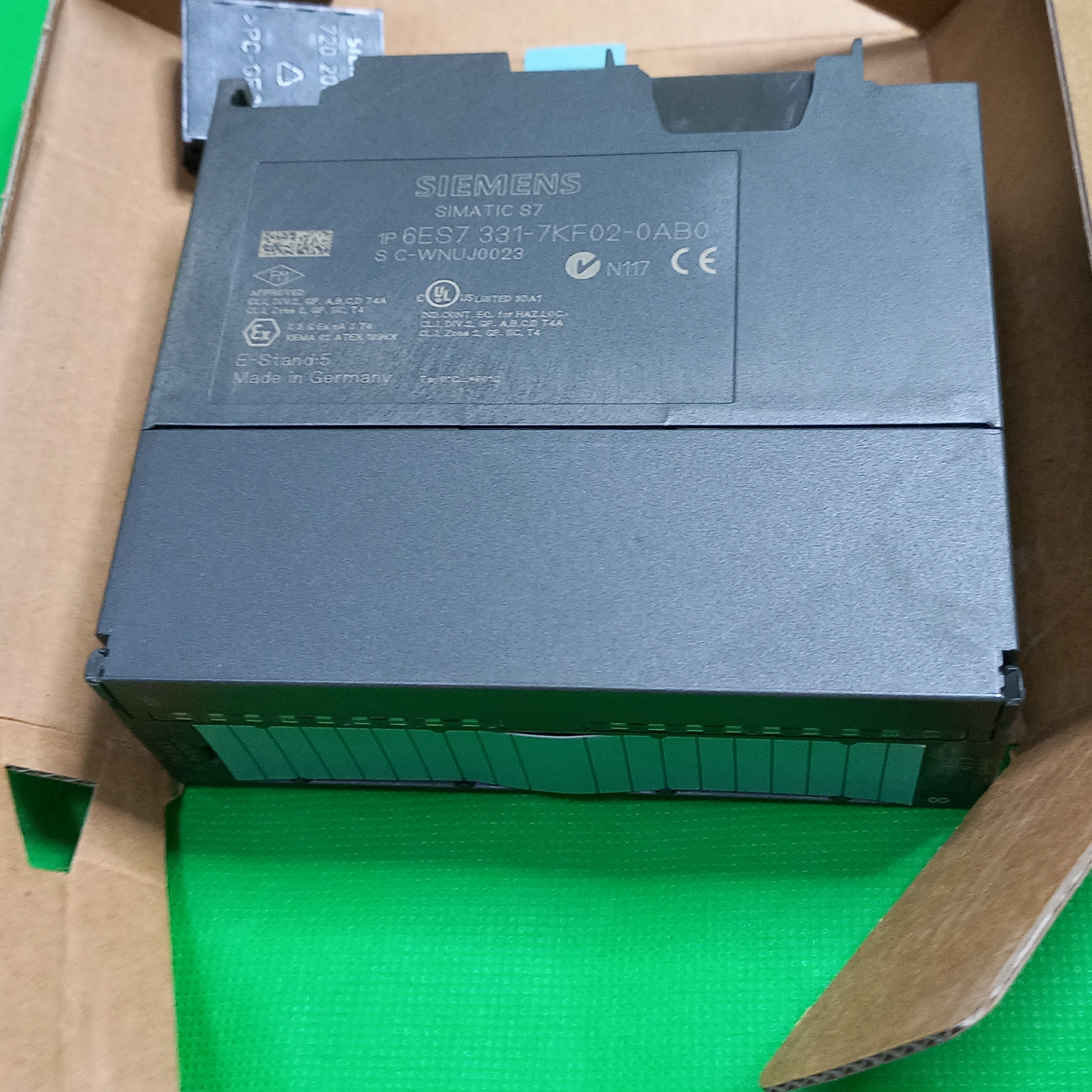

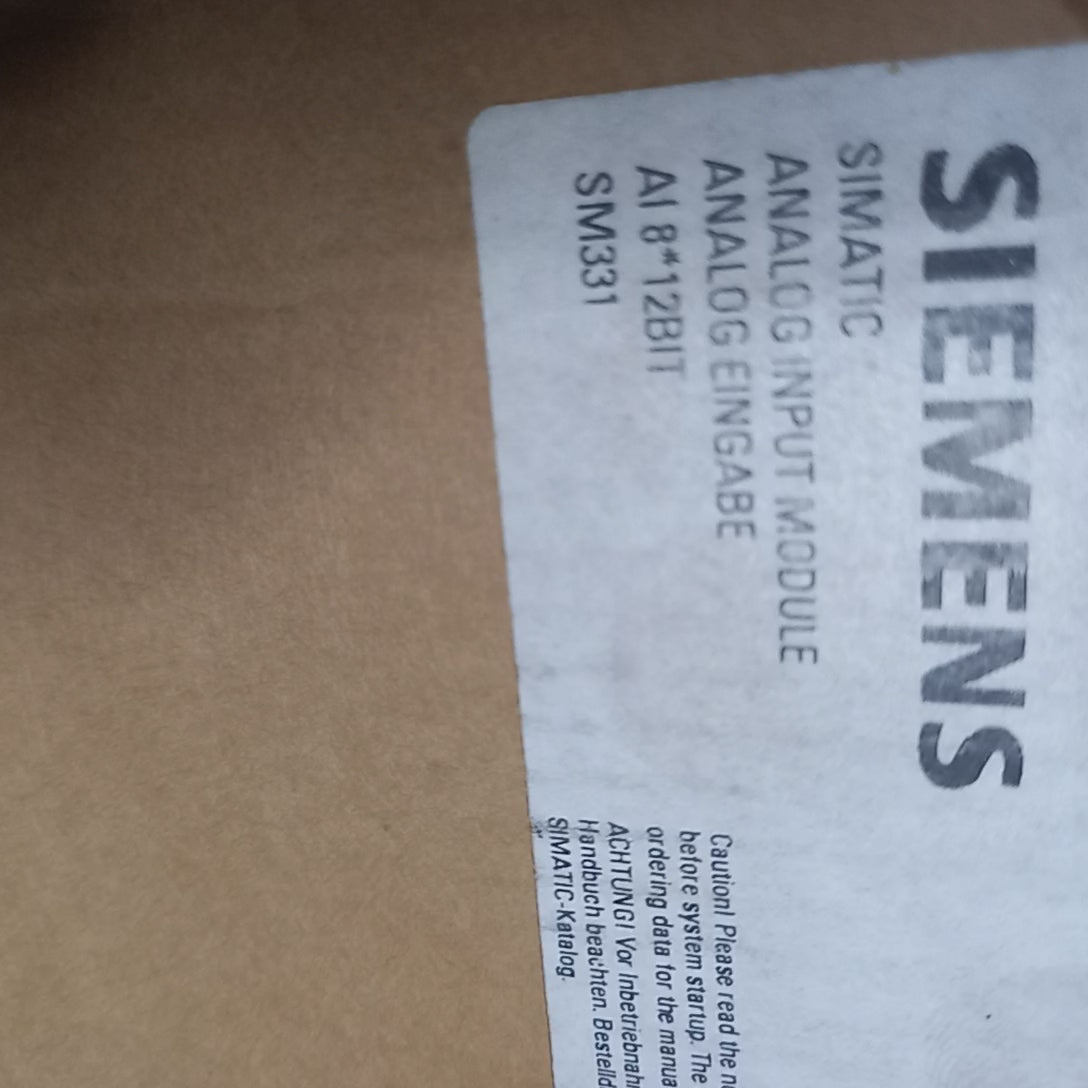

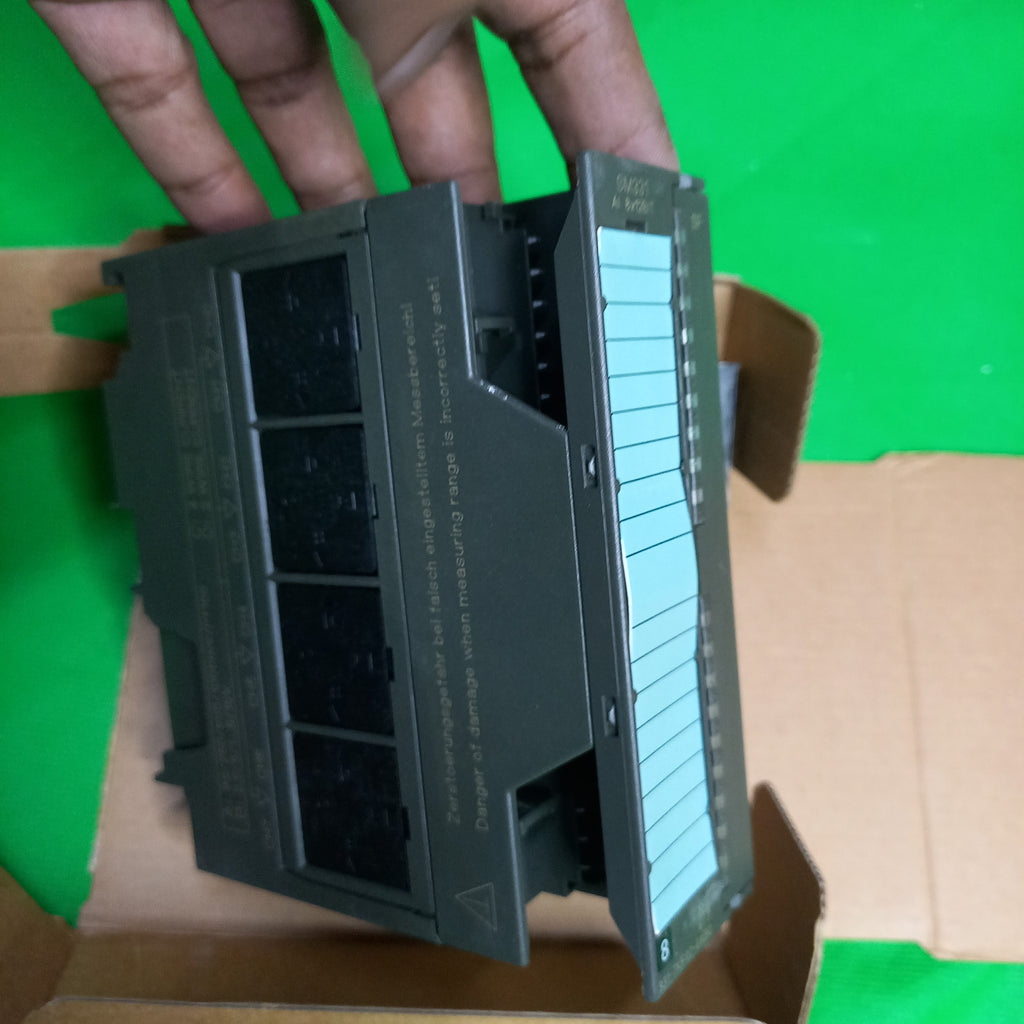

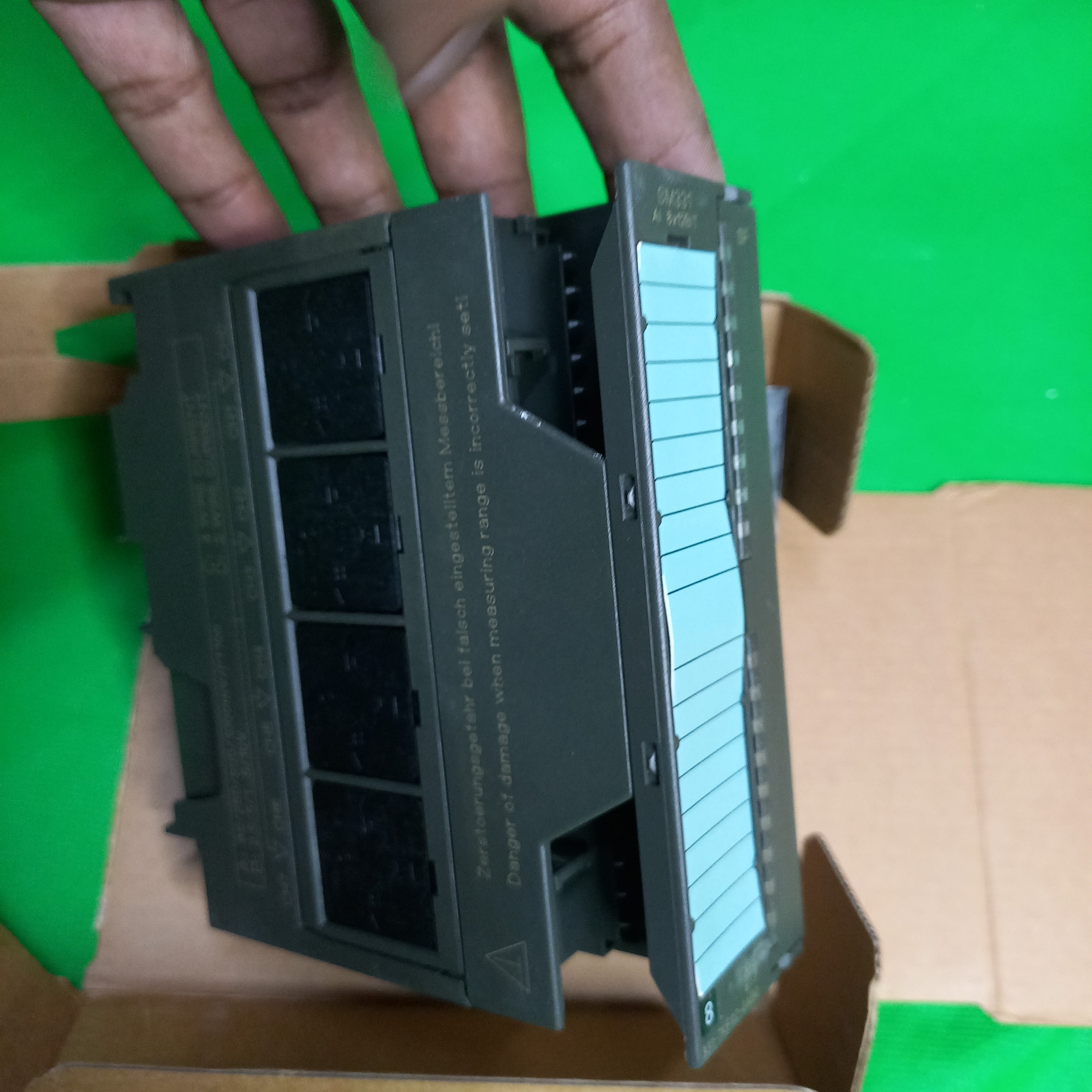

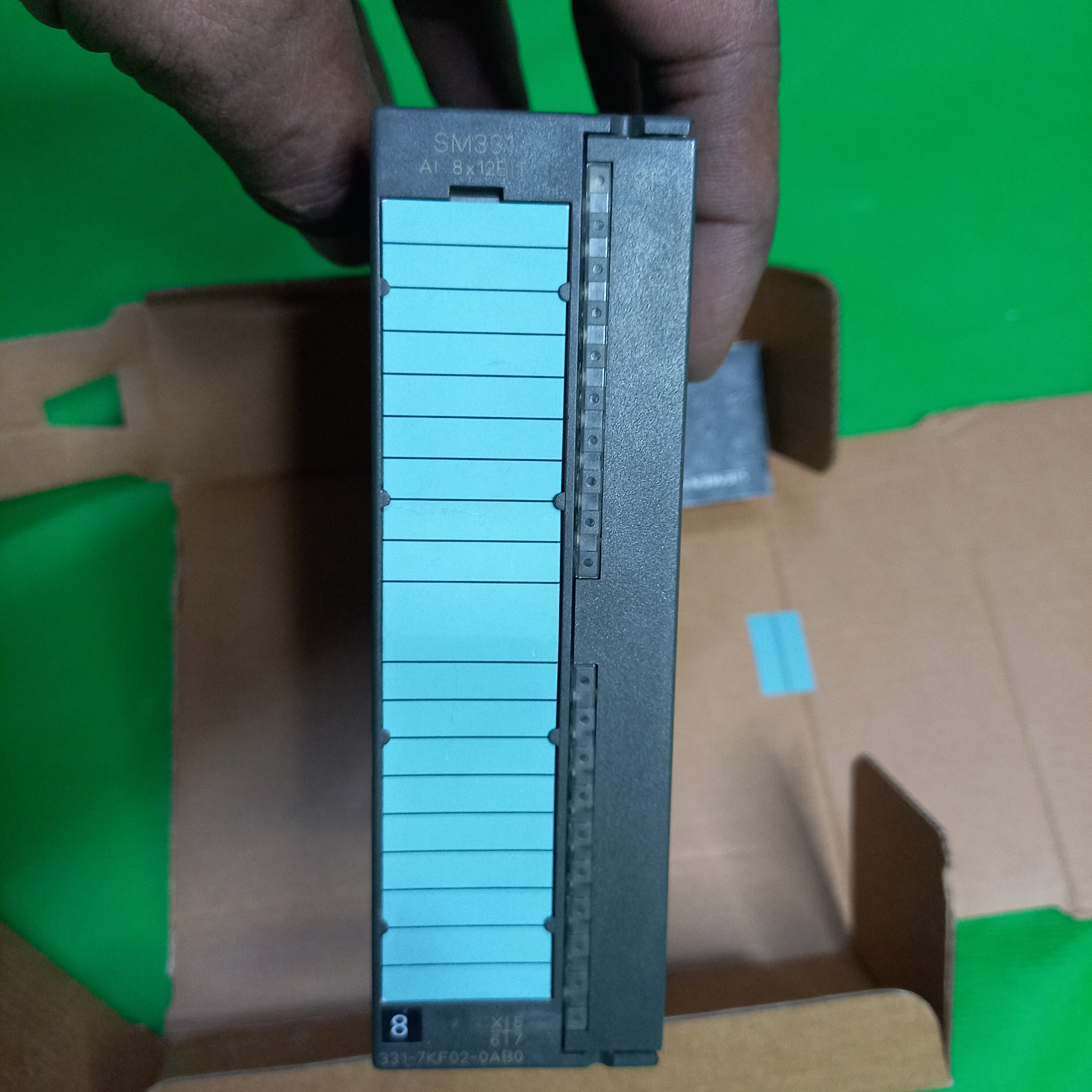

Siemens SM331, 6ES7331-7KF02-0AB0 Analog input module AI8x12bit
$450.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Siemens SM331, 6ES7331-7KF02-0AB0 Analog input module AI8x12bit
$450.00
Taxes included.
Shipping calculated at checkout.
SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 6ES7331-7KF02-0AB0
- Manufacturer Alternative MPN ; 6ES73317KF020AB0
- Manufacturer Id Nr.
SM331, 6ES7331-7KF02-0AB0 Analog input module AI8x12bit; 6ES73317KF020AB0
SM 331;
6ES7331-7KF02-0AB0

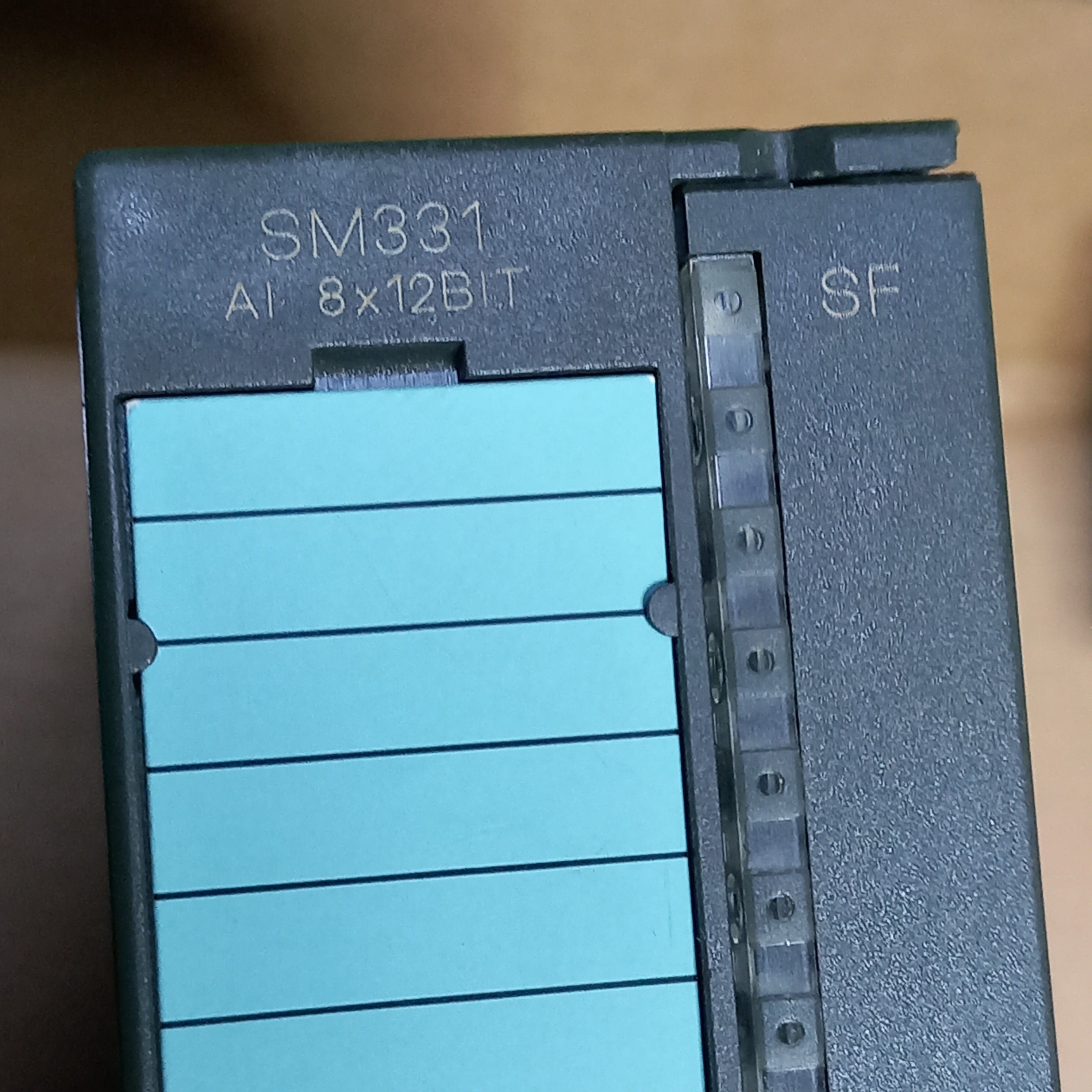

SM331, 8AI, 9/12/14Bit
***spare part*** SIMATIC S7-300, analog input SM 331, isolated, 8 AI, resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole removing/inserting with active backplane bus
Siemens PLC Expansion Module Analogue for use with S7-300 Series
RS Stock No.: 453-2545
Siemens Part No.: 6ES 7331-7KF02-0AB0
Distrelec Article No.: 30410631
Analog input module SM 331; AI 8 x 12 bit;(6ES7331-7KF02-0AB0)
Order number
6ES7331-7KF02-0AB0
Properties
- 8 inputs in 4 channel groups
- Programmable measurement type at each channel group
- - Voltage
- - Current
- - Resistance
- - Temperature
- Programmable resolution at each channel group (9/12/14 bits + sign)
- Any measuring range selection per channel group
- Programmable diagnostics and diagnostic interrupt
- Programmable limit value monitoring for 2 channels
- Programmable hardware interrupt when limit is exceeded
- Electrically isolated to CPU and load voltage (not for 2-wire transducers)
Resolution
The resolution of measured values is directly dependent of the selected integration time. In other words, the longer the integration time for an analog input channel, the higher the resolution of a measured value.
Diagnostics
For information on diagnostics messages at the "group diagnostics" parameter, refer to chapter Diagnostic messages of analog input modules.
Hardware interrupts
Hardware interrupts for channel groups 0 and 1 can be programmed in STEP 7. However, set a hardware interrupt only for the first channel of a channel group, that is, either at channel 0, or at channel 2
Terminal assignment
The diagrams below show various wiring options The input impedance depends on the setting of the measuring range module, see table Measurement types and ranges.
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
