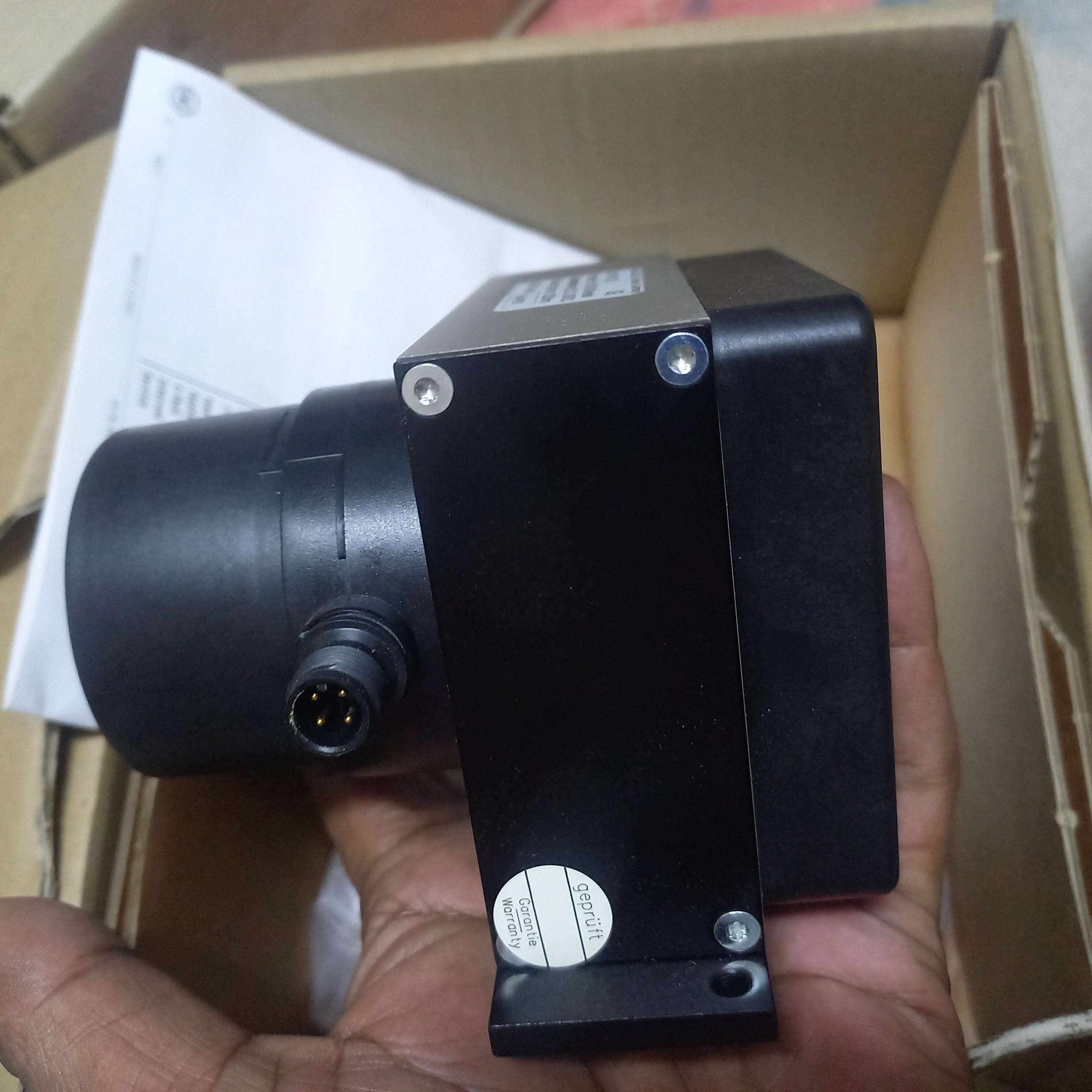

SIKO SGP/1-0201 Draw-wire encoder, Seilauszug 2500mm | SGP/1-2500; Pot 10k
$1,380.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: SGP1-2500; Pot 10k
- Encoder Type: Incremental encoder
- Supply voltage 10v...30VDC
- Encoder ID. NR.SGP/1 , SGP1, SGP-1
- Encoder SIgnal | | | |
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :

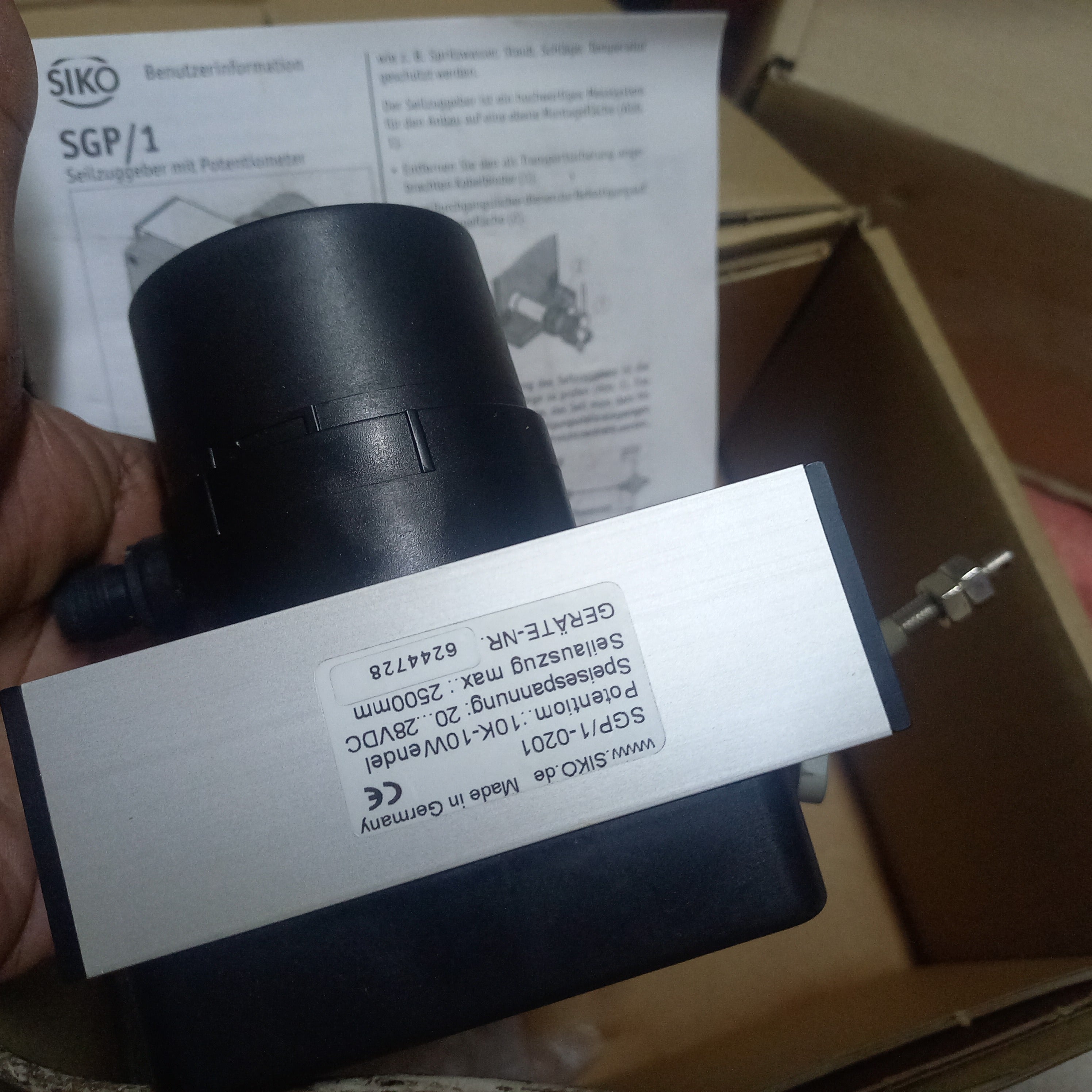

SIKO SGP1-0201 Draw-wire encoder SGP1-2500 robust design | Analog output 2500 mm measurement length

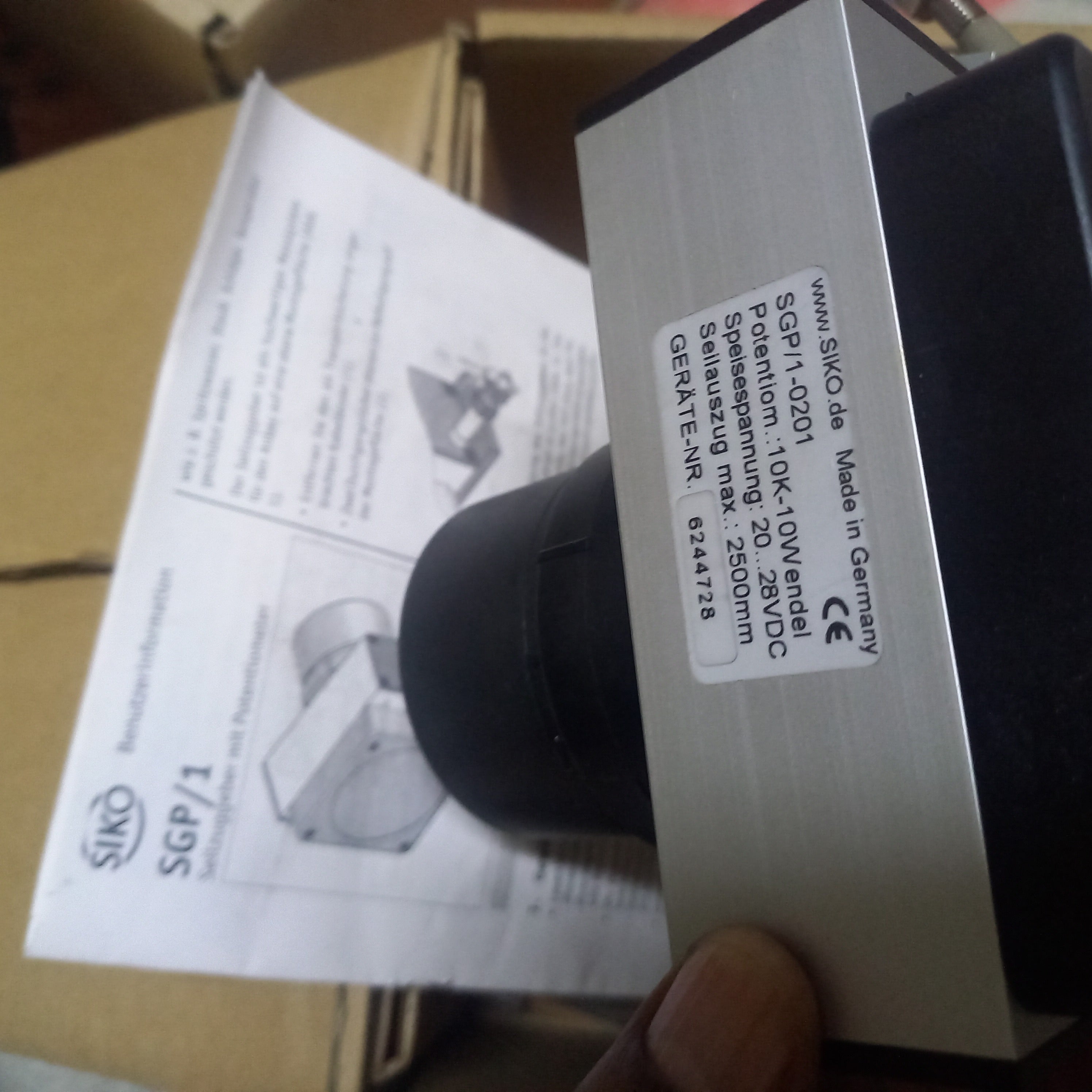

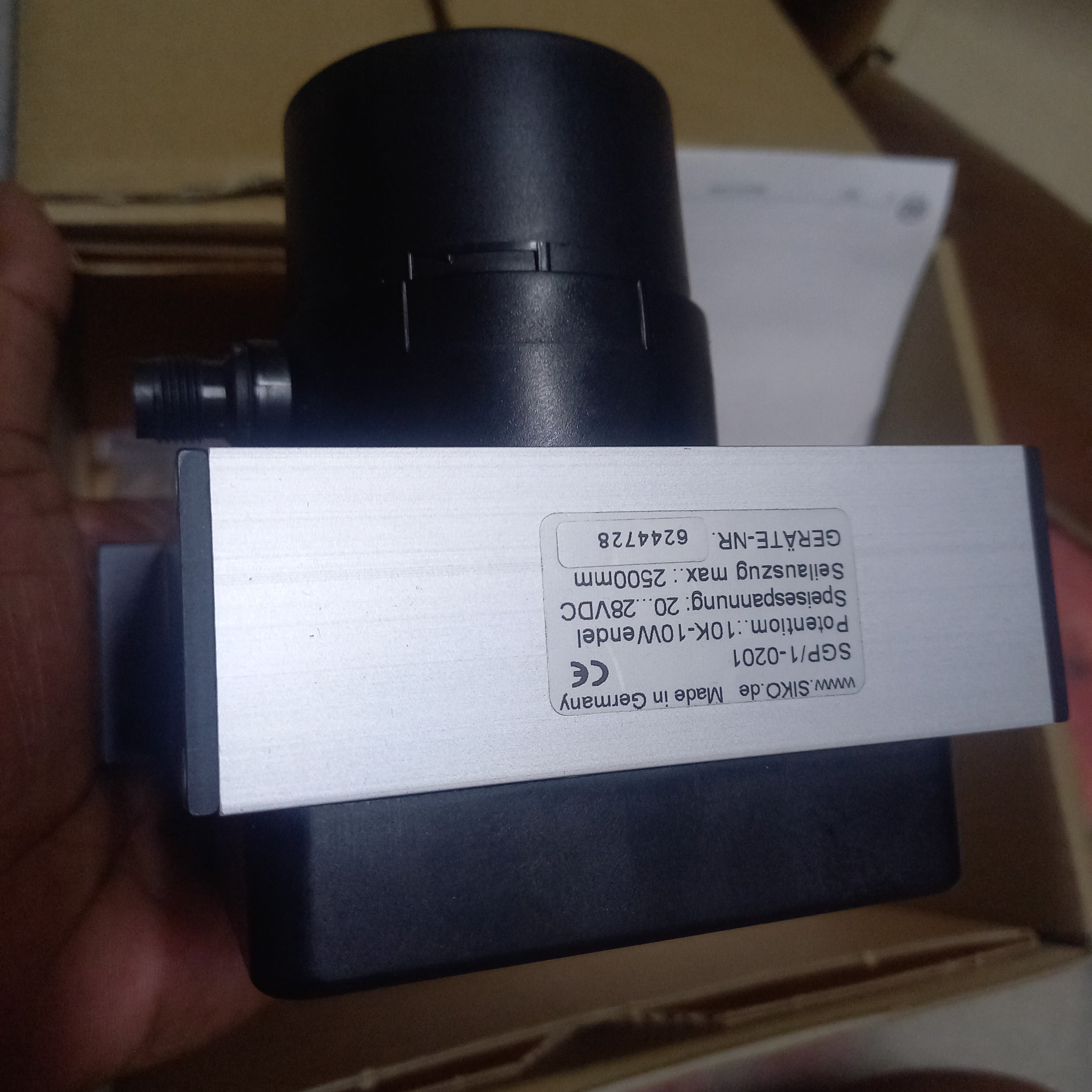

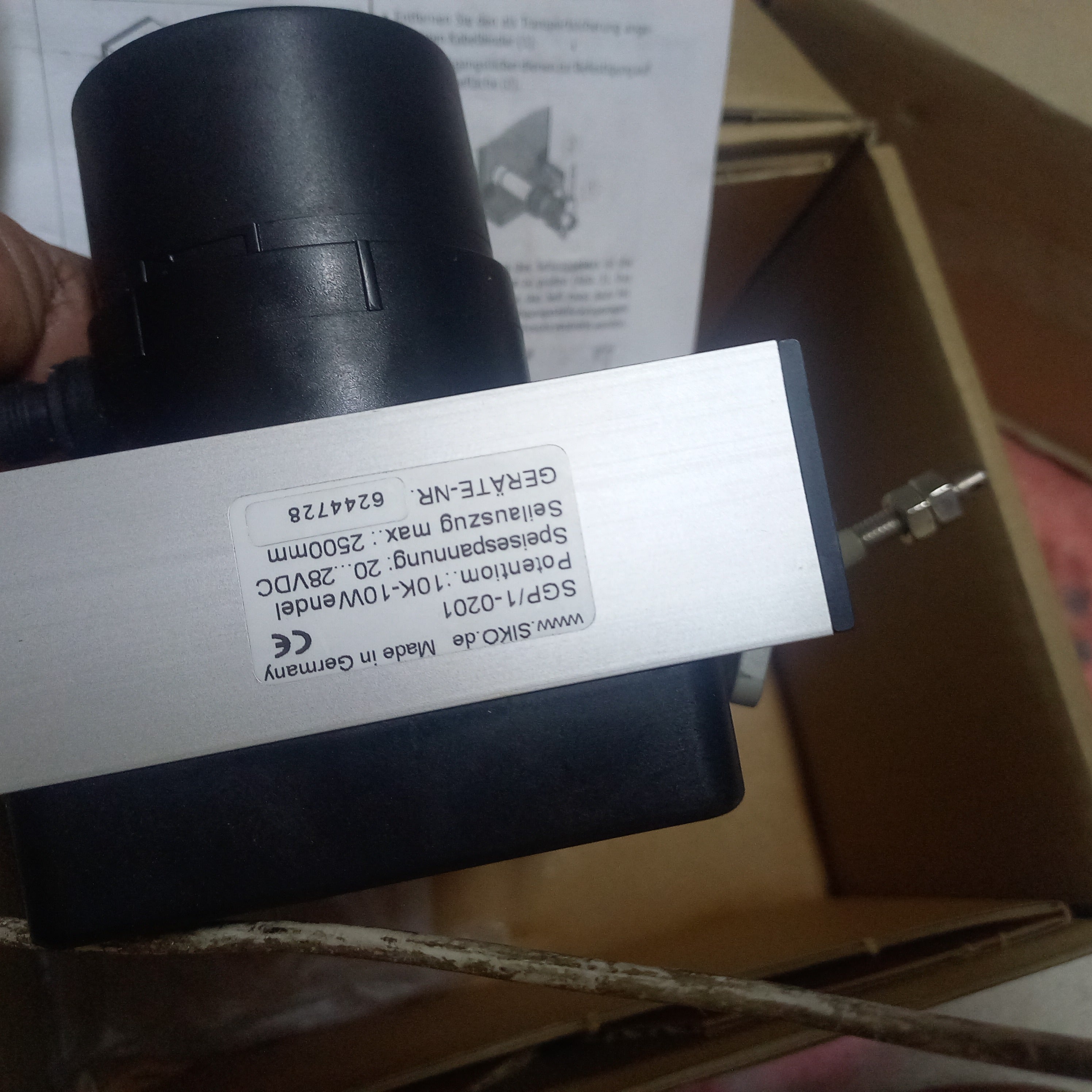

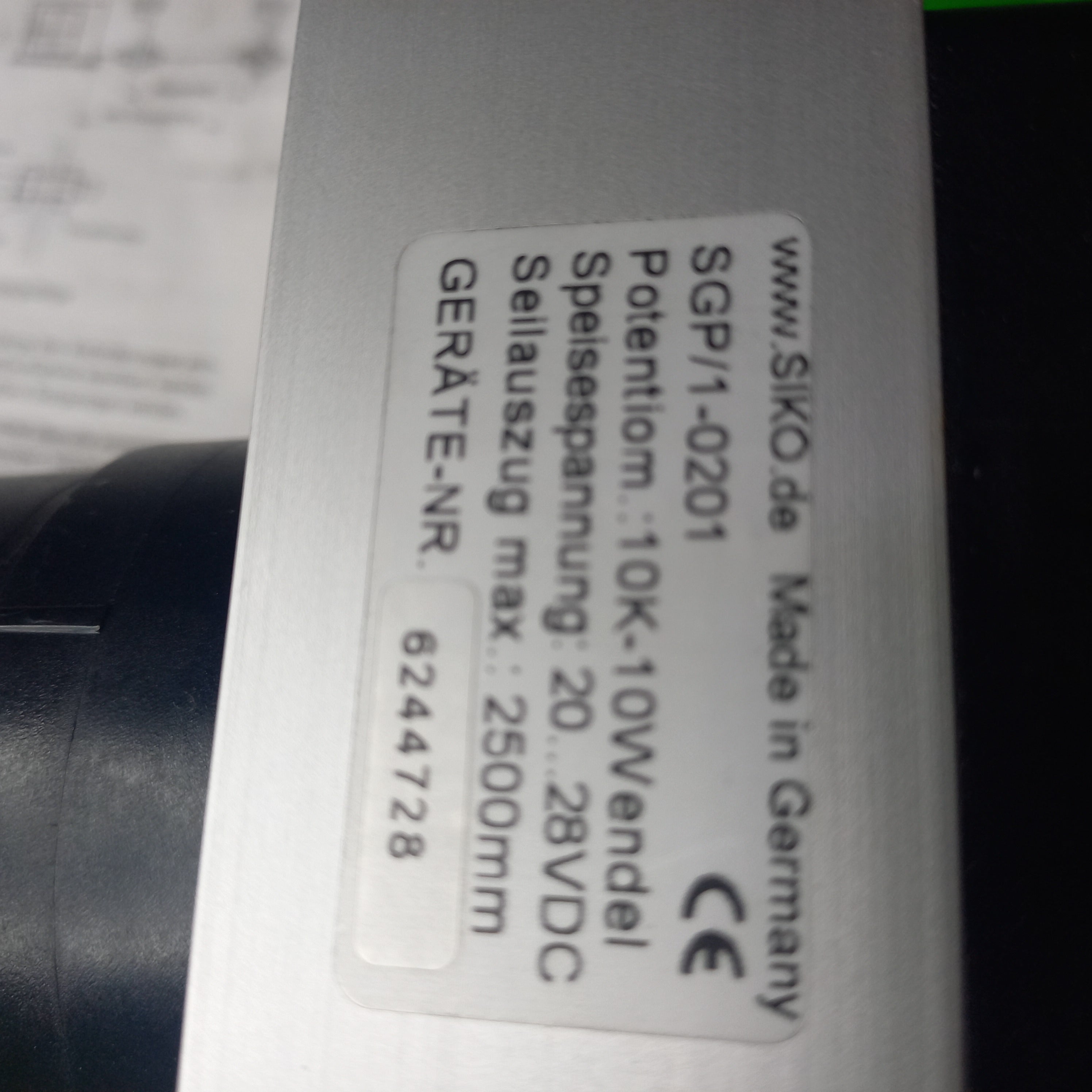

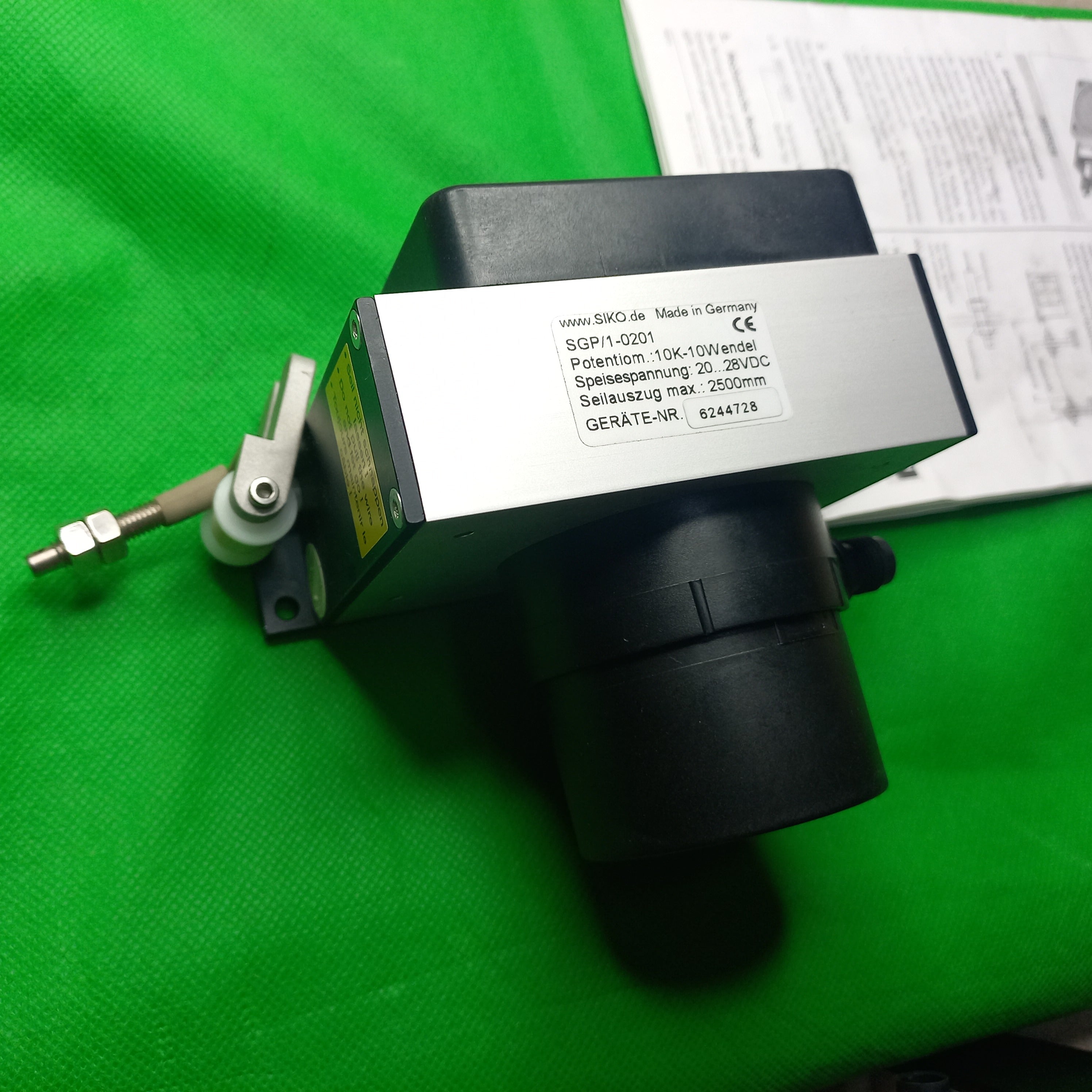

Potentiom: 10K-10 Wendel, Speisespannung: 20---28VDC, Seilauszug Max. 2500
Potentiometer: 10kΩ 10-turn, supply voltage: 20–28 VDC, max. cable extension: 2500
SIKO SGP 1-2500_Pot 10k | SGP/1-0201
Mechanical data
■Housing aluminum

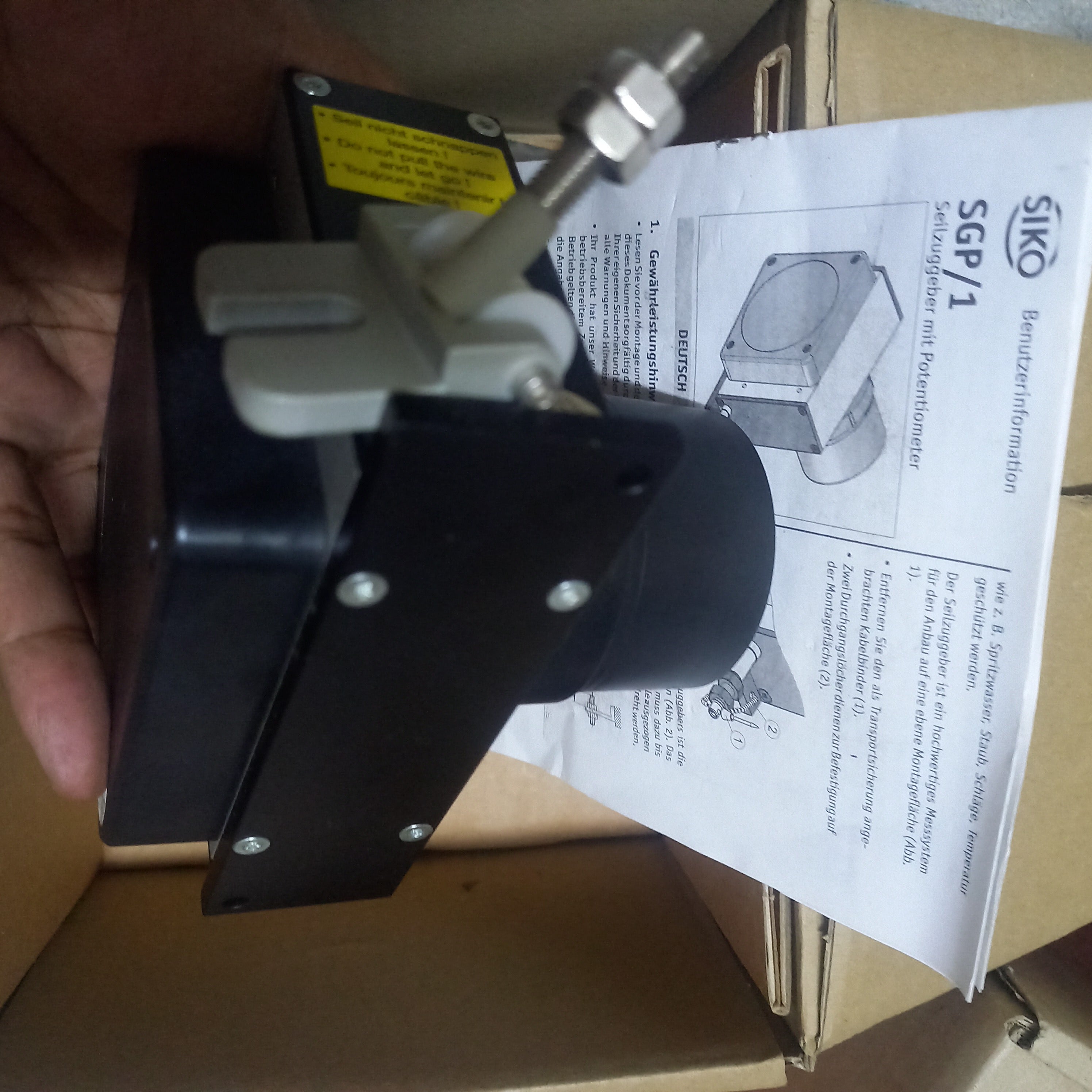

Wire design ø0.54 mm rustproof stainless steel
ø 0.87 mm rustproof stainless steel, plastic-coated
Extension force ≥8 N
Measured distance/ rope drum
revolution
200 mm
Weight ~0.7 kg
Acceleration ≤23.5 m/s²
Electrical data
■ Encoder potentiometer
Power rating : 2 W at 70 °C
resistance : 10 kΩ P10
Resistance tolerance ±5 %
Linearity tolerance ±0.25 %
■ Transducer, power output
Operating voltage 10 … 30 V DC (between I+ and I-, load ≤500 Ω)
Output current 4 … 20 mA
■ Transducer, voltage output
Operating voltage 15 … 28 V DC at 36 mA without load
Output voltage 0 … 10 V DC
resistance 2 … 10 kΩ against GND
Load ≤15 mA
Wire-actuated encoder with analog output, potentiometric, current source or voltage output, with ameasuring length of up to 2500 mm. Easy adjustment of the output signal to the actual measuring length via an integrated gear mechanism.
Robust design
Measurement lengths up to max. 2500 mm
Potentiometer output
Housing made of aluminum and plastic
Potentiometer/resistance range adapted to actual measurement length via an integrated gear
Various wire types
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design
- Incremental Encoder Construction size (flange)
- Incremental Encoder Shaft diameter
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution
- incremental Encoder Range of pulses per revolution
- Signal Details:

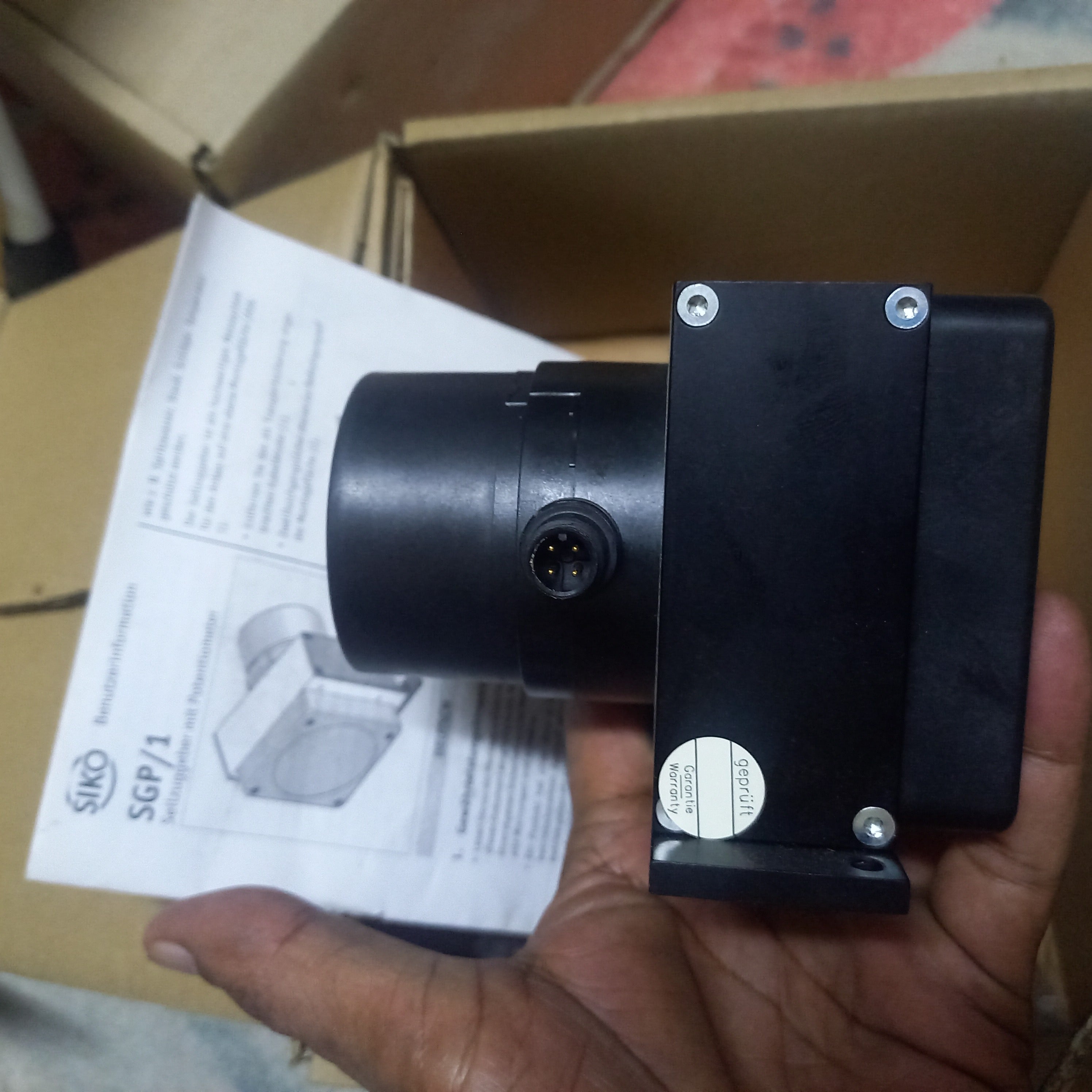

Connection Details of encoder
- Connection type (Detail)
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNSGP/1-0201
- Manufacturer indent Nr.SGP12500
- 1 Manufacturer Part Number (MPN) SGP1-2500; Pot 10k
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
